Managing PDN Topology Through the User Interface

Overview

This guide provides instructions for creating and managing Power Distribution Network (PDN) topology through the Domain Power Service (DPS) user interface. While topology entities and relationships can be defined manually through configuration files as described in the PDN Diagrams guide, the web-based user interface provides an intuitive graphical approach for both creating topology entities and managing their relationships.

Note: The examples and procedures in this guide will create the same topology structure and entities as demonstrated in the PDN Diagrams guide. Both approaches result in identical topology configurations, allowing you to choose the method that best suits your workflow: graphical UI or configuration files.

Benefits of UI-Based Topology Management

Using the user interface for topology management offers several advantages:

1. Visual Representation: See the power distribution hierarchy in a graphical format
2. Ease of Use: No need to manually edit configuration files
3. Error Prevention: Built-in validation prevents common configuration mistakes
4. Collaborative Editing: Multiple administrators can work on topology configurations

Getting Started

Prerequisites

• Deployed DPS system
• Web browser with JavaScript enabled
• Understanding of datacenter power distribution concepts

Accessing the UI

In the DPS SDK environment, the user interface is available at:

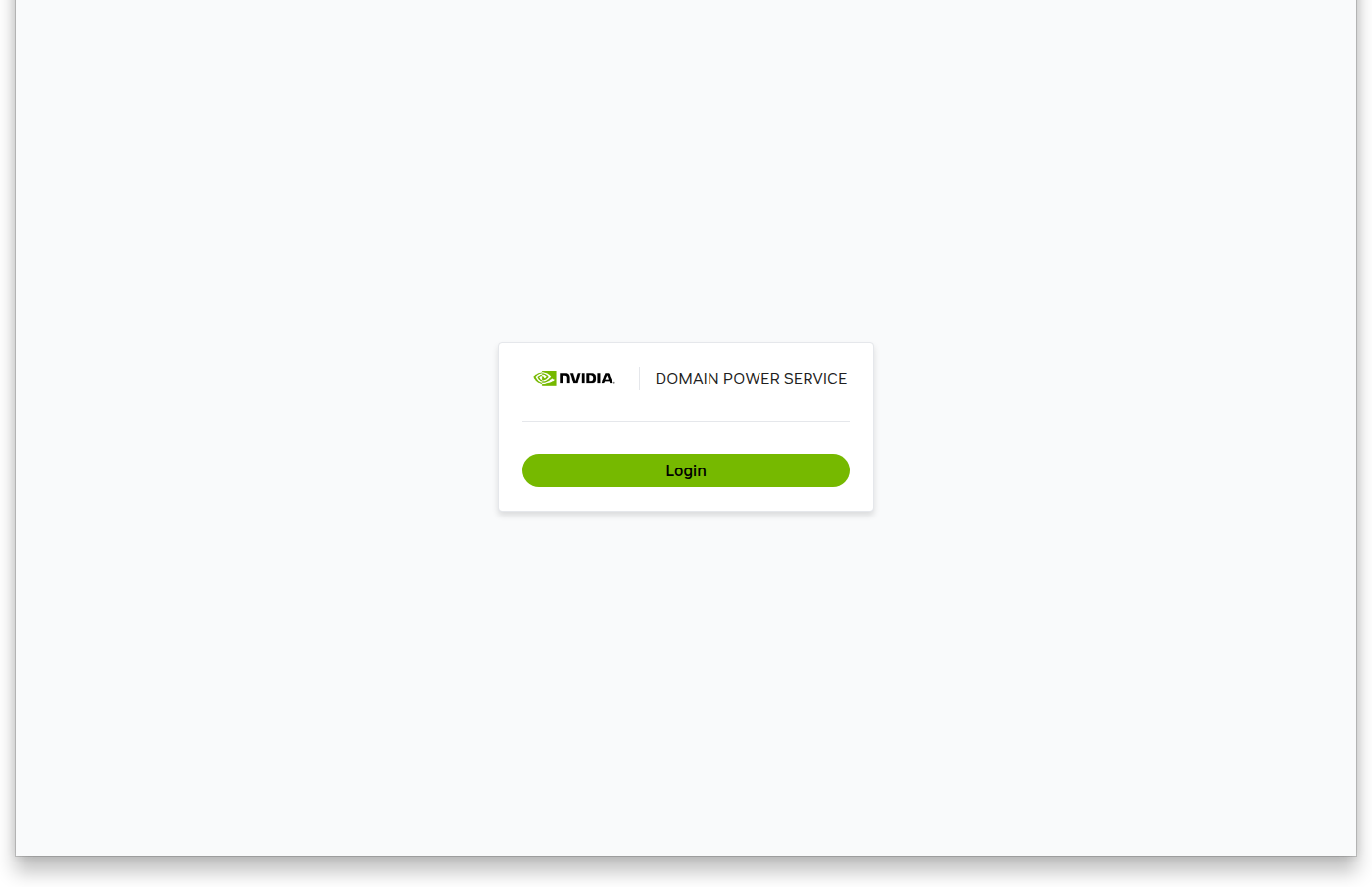

URL: https://ui.dps.sdk.local

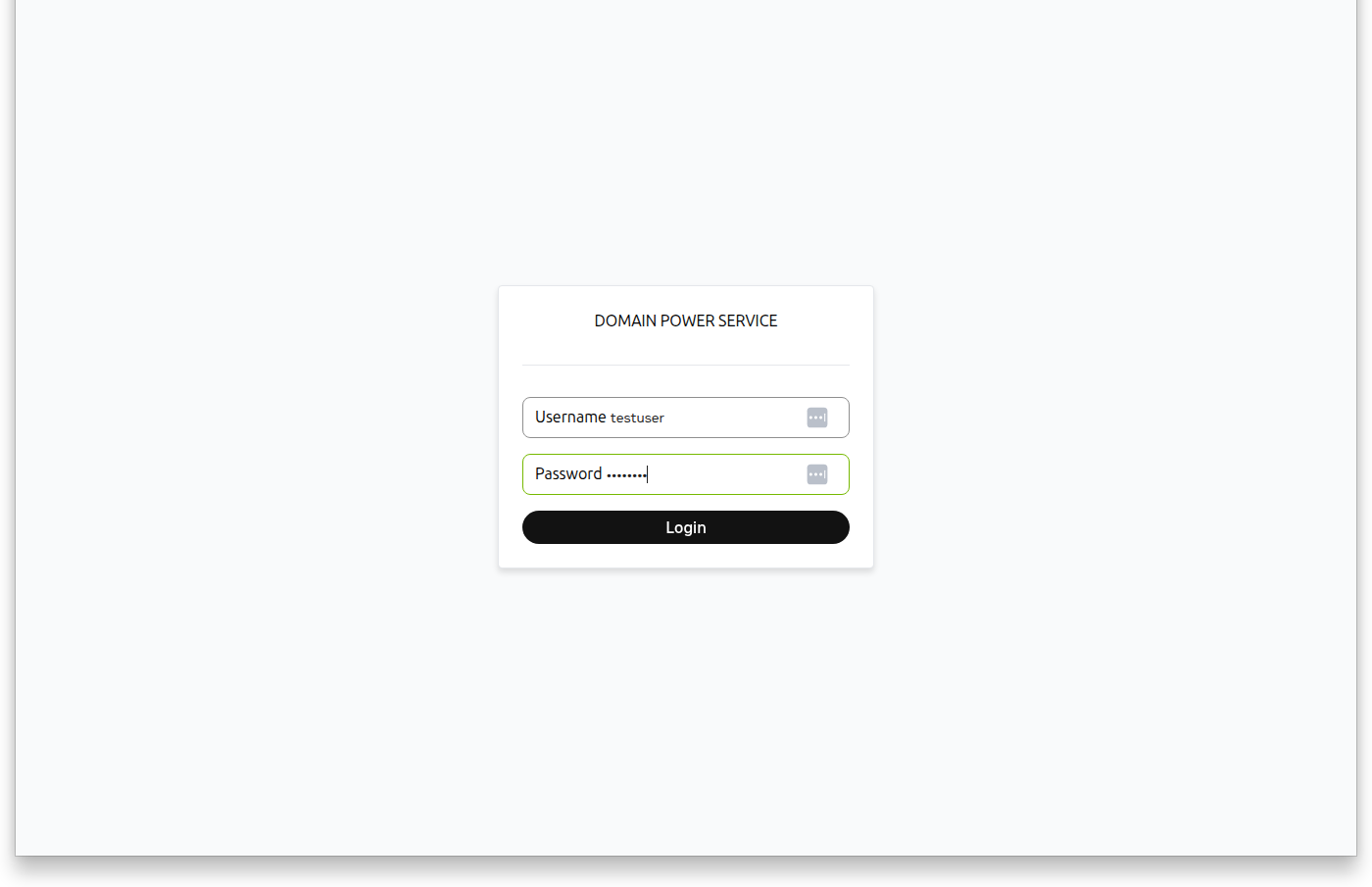

Authentication:

• Username: testuser
• Password: testuser

Topology Creation

Creating a topology involves several sequential steps: defining policies, optionally importing custom devices, creating entities, building the topology structure with their relationships, and finally activating it.

Step 1: Create Policies

Before creating a topology, you must first define the policies that will govern power limits.

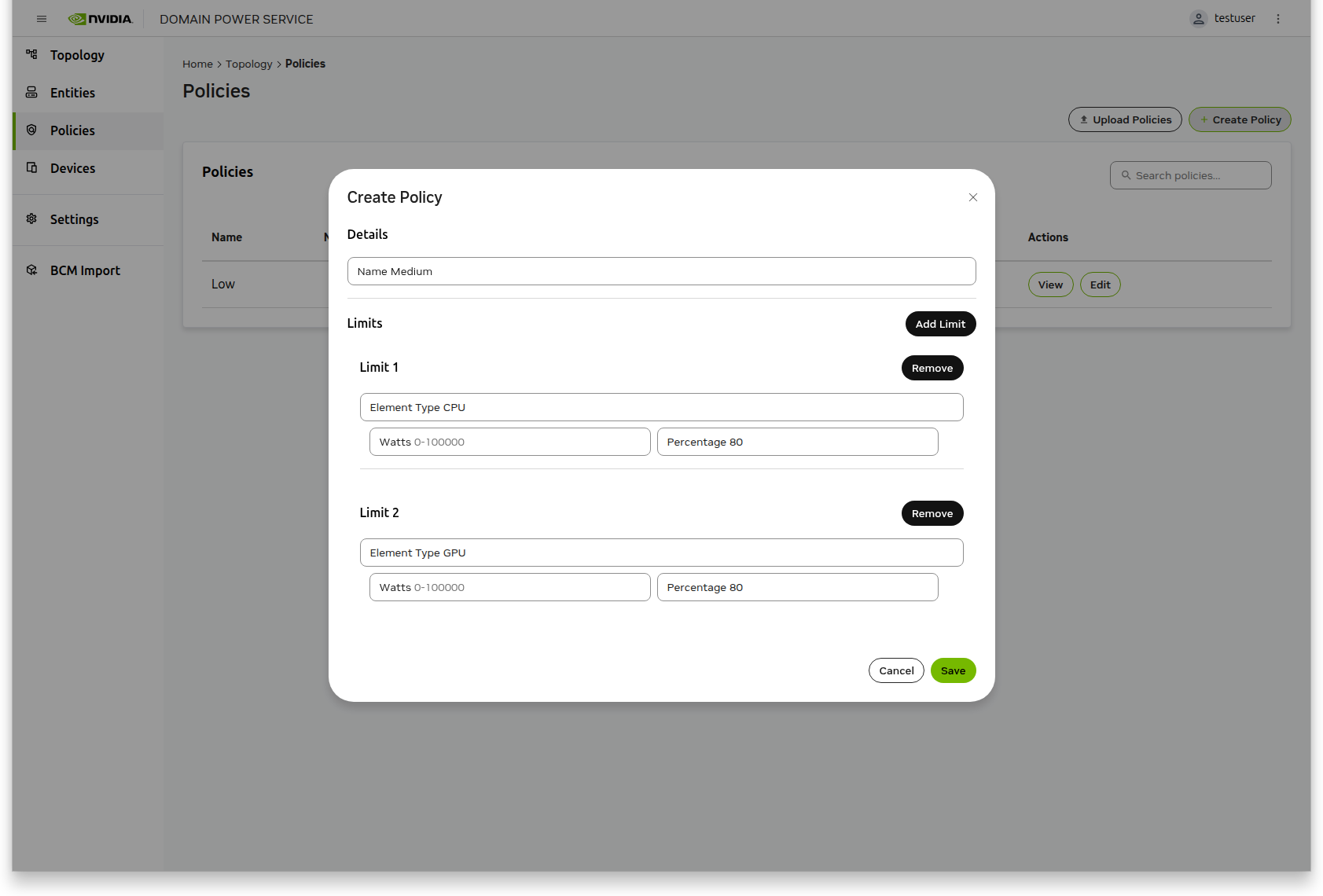

1. Select Policies from the left navigation panel
2. Click the Create Policy button
3. Specify a policy name
4. Click Add Limit to define power constraints
   • Multiple limits can be added, one per element type
   • Limits can be specified in either Watts or Percentage
5. Click Save to store the policy
6. Repeat these steps for each additional policy you need

Step 2: Import Custom Devices (Optional)

If any of your entities require custom device specifications, you must import those devices before creating entities. The UI does not support defining custom devices directly through a form.

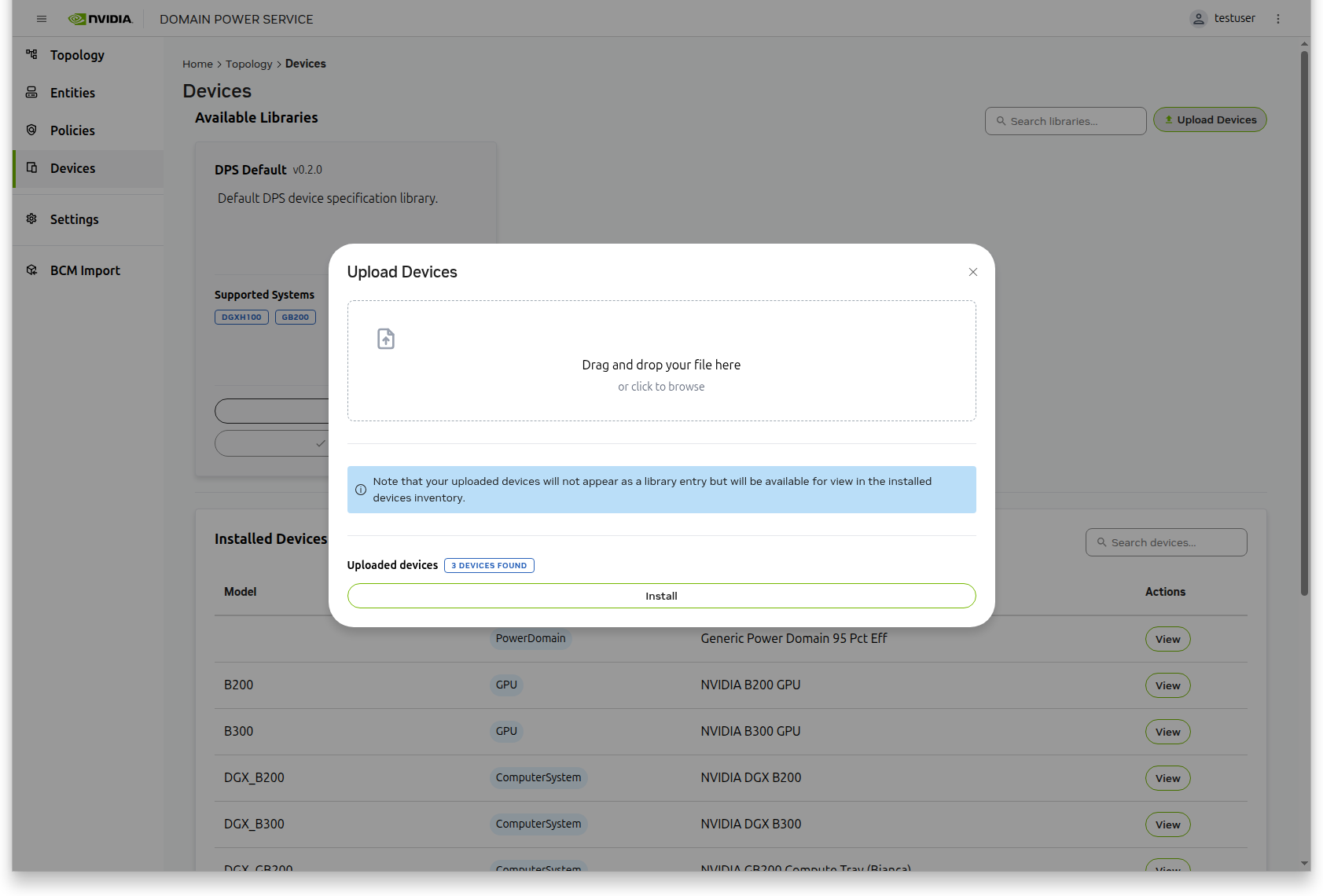

1. Select Devices from the left navigation panel
2. Click Upload Devices
3. Choose your device specification YAML file
4. The devices will be imported and available for use in entity creation

For examples of device specification YAML files and instructions on how to create them, refer to the Add Custom Device Specifications section in the PDN Diagrams guide.

Step 3: Create Entities

With policies defined and any required custom devices imported, you can now create the entities that represent your power distribution components.

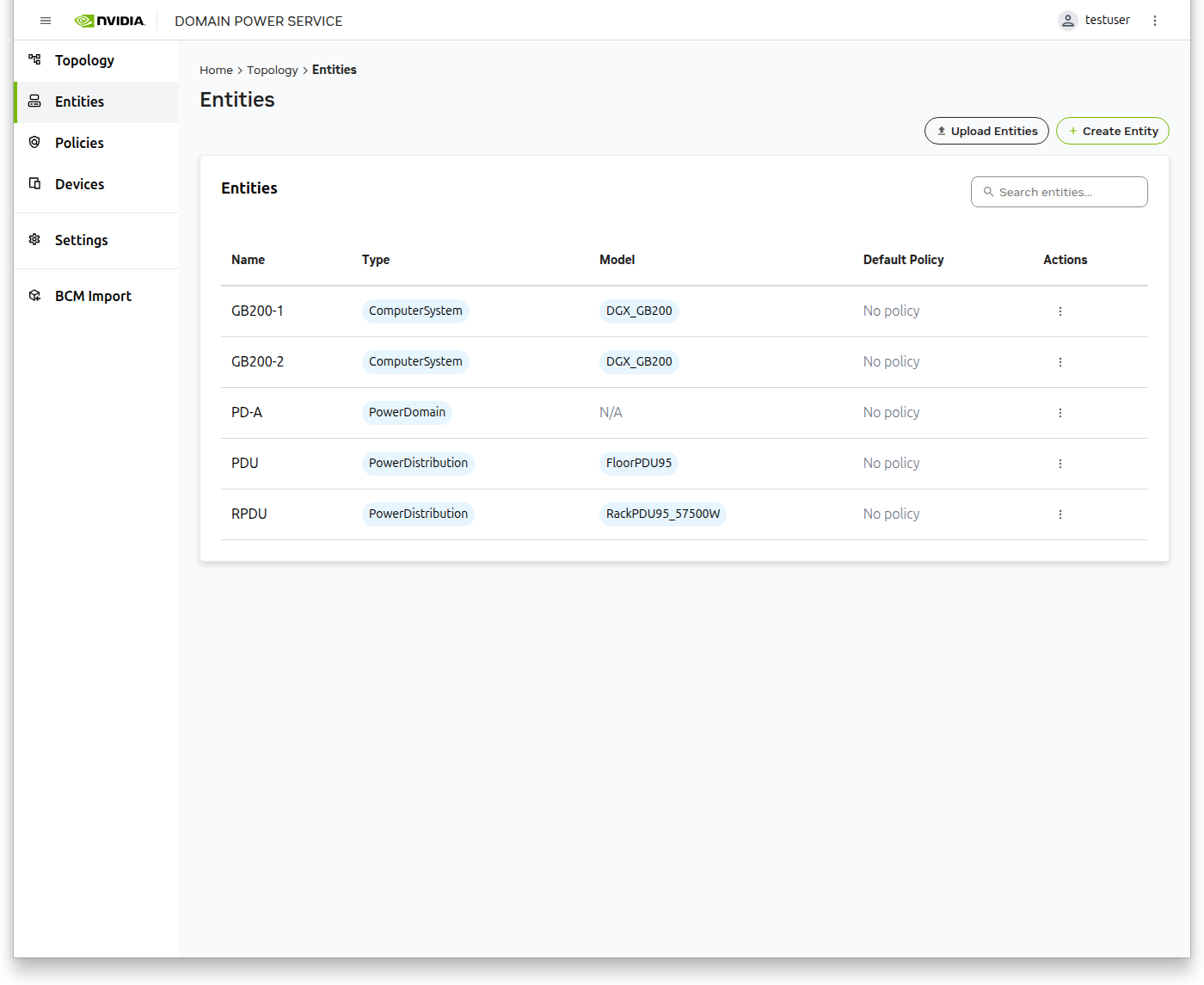

1. Select Entities from the left navigation panel

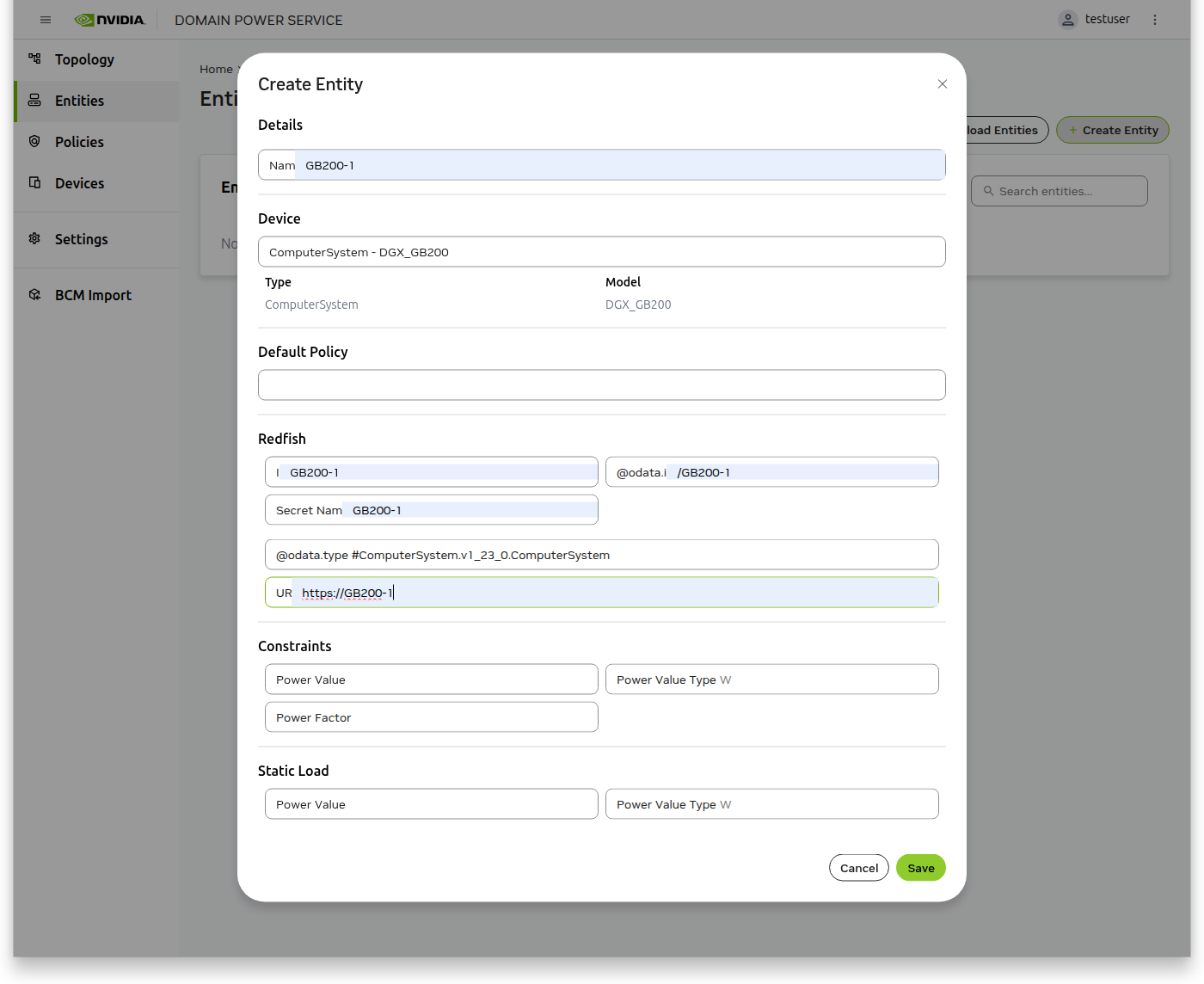

2. Click the Create Entity button
3. Fill in the entity details
4. Click Save
5. Repeat these steps for each entity in your topology

Step 4: Build and Configure the Topology

With policies and entities defined, you can now construct your topology and define the relationships between entities. This is done in a single continuous workflow within the topology builder.

Add Entities to the Topology

1. Navigate to Topology in the left navigation panel
2. Click Create Topology
3. In the dialog window, click Add Entities
4. Select all entities from the previous step
5. Click Add Selected Entities
   • The topology builder will populate with your selected entities

Define Entity Relationships

Configure the hierarchical relationships between entities using the interactive builder.

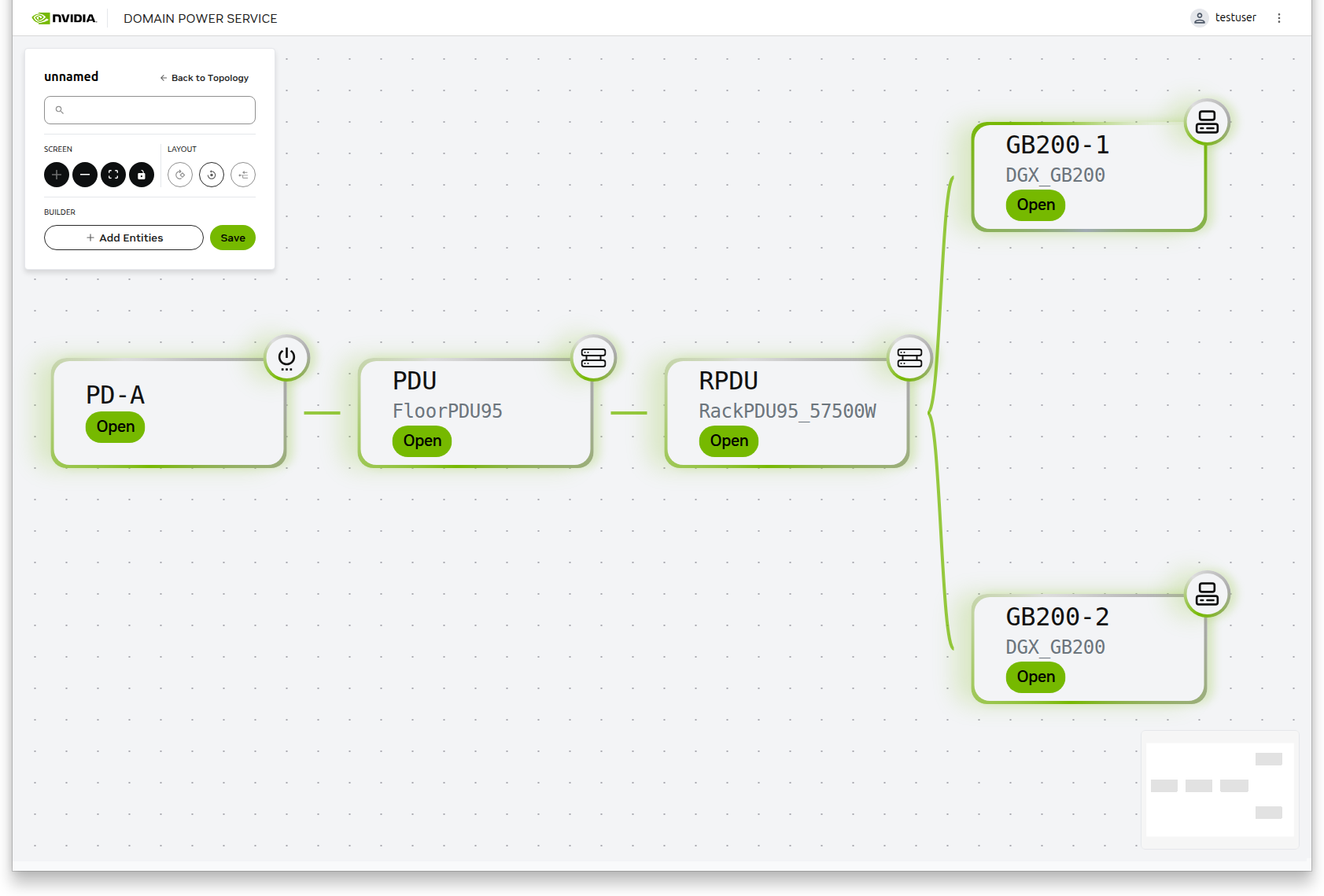

1. The builder automatically enters interactive mode after adding entities
2. Drag entities close to each other to create connections
   • Parent-Child Hierarchy: The leftmost item in a connection is the parent; the rightmost item is the child
   • Position determines the power distribution flow through your topology
3. Once all relationships are established, click Save
4. Specify a topology name in the save dialog

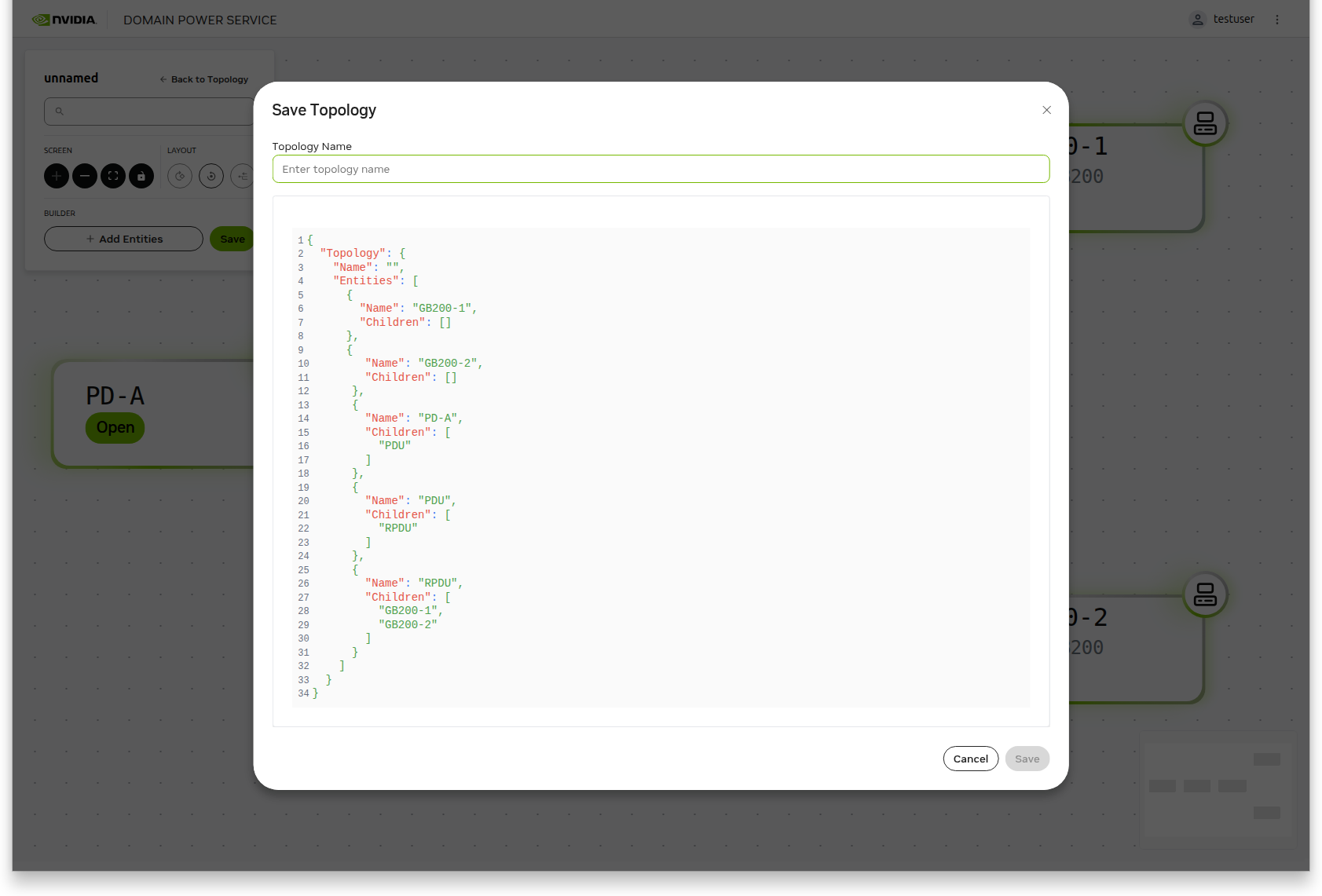

5. Review the generated topology JSON displayed at the bottom of the dialog
6. Click Save to create your topology

Tip: To prevent undesired connection lines from being created accidentally, space entities wider apart before dragging them to create intentional connections. This gives you better control over which entities connect to each other.

Step 5: Activate the Topology

After creating your topology, activate it to make it operational.

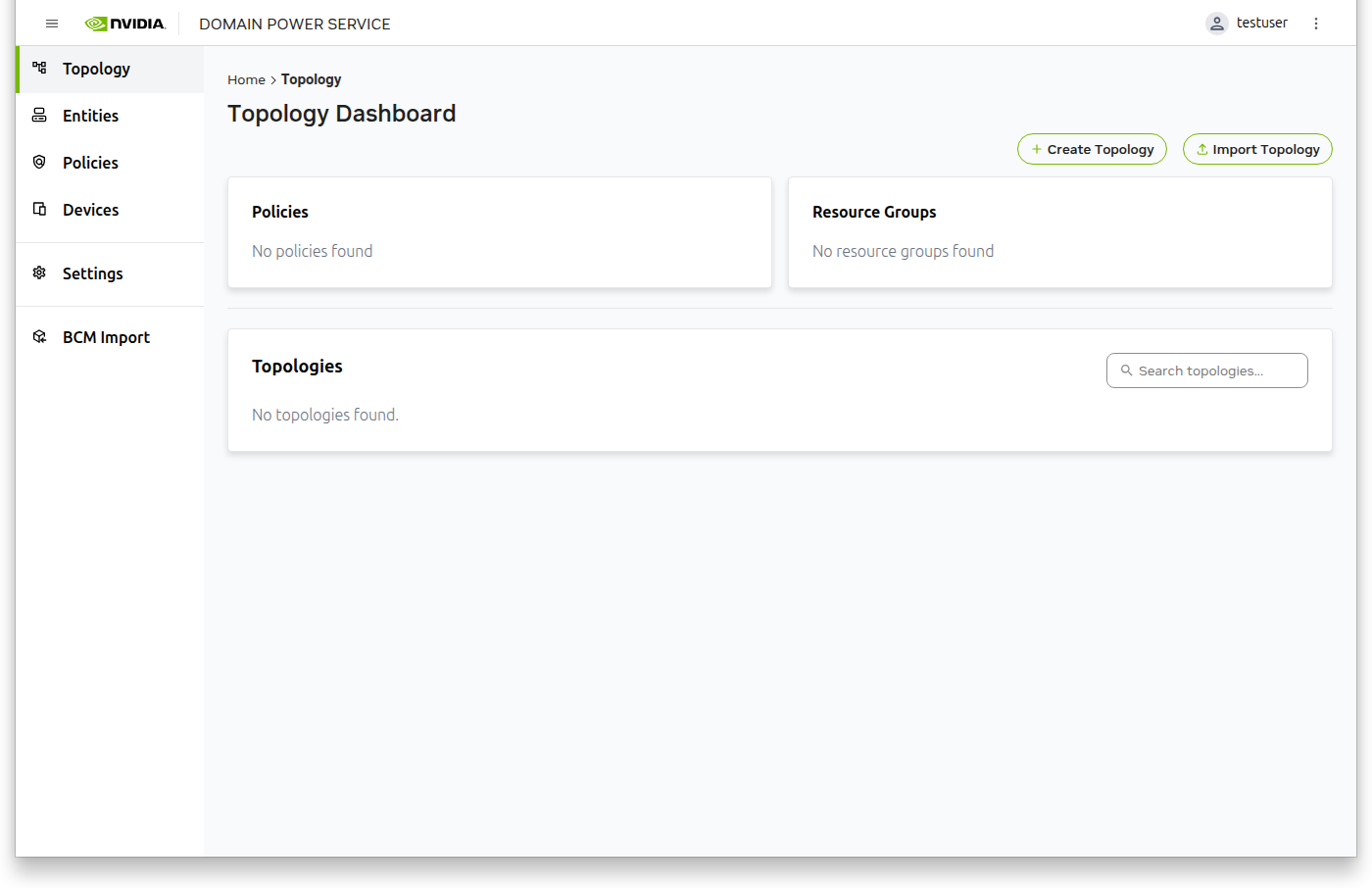

1. Navigate to Topology in the left navigation panel to view the Topologies list
2. Locate your newly created topology
3. Select Activate from the Actions column

Note: Only one topology can be active at a time. Activating a new topology will automatically deactivate any previously active topology.
