NVIDIA Multi-Instance GPU User Guide

This edition of the user guide describes the Multi-Instance GPU feature of the NVIDIA® A100 GPU.

Changelog

  • 8/7/2020: Added information on device nodes and nvidia-capabilities with CUDA 11.0 GA

  • 5/28/2020: Initial Version

Introduction

The new Multi-Instance GPU (MIG) feature allows the NVIDIA A100 GPU to be securely partitioned into up to seven separate GPU Instances for CUDA applications, providing multiple users with separate GPU resources for optimal GPU utilization. This feature is particularly beneficial for workloads that do not fully saturate the GPU’s compute capacity and therefore users may want to run different workloads in parallel to maximize utilization.

For Cloud Service Providers (CSPs), who have multi-tenant use cases, MIG ensures one client cannot impact the work or scheduling of other clients, in addition to providing enhanced isolation for customers.

With MIG, each instance’s processors have separate and isolated paths through the entire memory system - the on-chip crossbar ports, L2 cache banks, memory controllers, and DRAM address busses are all assigned uniquely to an individual instance. This ensures that an individual user’s workload can run with predictable throughput and latency, with the same L2 cache allocation and DRAM bandwidth, even if other tasks are thrashing their own caches or saturating their DRAM interfaces. MIG can partition available GPU compute resources (including streaming multiprocessors or SMs, and GPU engines such as copy engines or decoders), to provide a defined quality of service (QoS) with fault isolation for different clients such as VMs, containers or processes. MIG enables multiple GPU Instances to run in parallel on a single, physical A100 GPU.

With NVIDIA A100 GPU, users will be able to see and schedule jobs on their new virtual GPU Instances as if they were physical GPUs. MIG works with Linux operating systems, supports containers using Docker Engine, with support for Kubernetes and virtual machines using hypervisors such as Red Hat Virtualization and VMware vSphere coming soon.

Figure 1. MIG Overview

Multi-Instance GPU Overview.


The purpose of this document is to introduce the concepts behind MIG, deployment considerations and provide examples of MIG management to demonstrate how users can run CUDA applications on the NVIDIA A100 with MIG.

Concepts

Terminology

This section introduces some terminology used to describe the concepts behind MIG.

Streaming Multiprocessor

A streaming multiprocessor (SM) executes compute instructions on the GPU.

GPU Context

A GPU context is analogous to a CPU process. It encapsulates all the resources necessary to execute operations on the GPU, including a distinct address space, memory allocations, etc. A GPU context has the following properties:
  • Fault isolation

  • Individually scheduled

  • Distinct address space

GPU Engine

A GPU engine is what executes work on the GPU. The most commonly used engine is the Compute/Graphics engine that executes the compute instructions. Other engines include the copy engine (CE) that is responsible for performing DMAs, NVDEC for video decoding, NVENC for encoding, etc. Each engine can be scheduled independently and execute work for different GPU contexts.

GPU Memory Slice

A GPU memory slice is the smallest fraction of the A100 GPU’s memory, including the corresponding memory controllers and cache. A GPU memory slice is roughly one eighth of the total GPU memory resources, including both capacity and bandwidth.

GPU SM Slice

A GPU SM slice is the smallest fraction of the SMs on the A100 GPU. A GPU SM slice is roughly one seventh of the total number of SMs available in A100 when configured in MIG mode.

GPU Slice

A GPU slice is the smallest fraction of the A100 GPU that combines a single GPU memory slice and a single GPU SM slice.

GPU Instance

A GPU Instance (GI) is a combination of GPU slices and GPU engines (DMAs, NVDECs, etc.). Anything within a GPU instance always shares all the GPU memory slices and other GPU engines, but it's SM slices can be further subdivided into compute instances (CI). A GPU instance provides memory QoS. Each GPU slice includes dedicated GPU memory resources which limit both the available capacity and bandwidth, and provide memory QoS. Each GPU memory slice gets 1/8 of the total GPU memory resources and each GPU SM slice gets 1/7 of the total number of SMs.

Compute Instance

A GPU instance can be subdivided into multiple compute instances. A Compute Instance (CI) contains a subset of the parent GPU instance’s SM slices and other GPU engines (DMAs, NVDECs, etc.). The CIs share memory and engines.

Partitioning

The number of slices that a GI can be created with is not arbitrary. The NVIDIA driver APIs provide a number of “GPU Instance Profiles” and users can create GIs by specifying one of these profiles.

On a given GPU, multiple GIs can be created from a mix and match of these profiles, so long as enough slices are available to satisfy the request.

Table 1. GPU Instance Profiles
Profile Name Fraction of Memory Fraction of SMs Hardware Units Number of Instances Available
MIG 1g.5gb 1/8 1/7 0 NVDECs 7
MIG 2g.10gb 2/8 2/7 1 NVDECs 3
MIG 3g.20gb 4/8 3/7 2 NVDECs 2
MIG 4g.20gb 4/8 4/7 2 NVDECs 1
MIG 7g.40gb Full 7/7 5 NVDECs 1

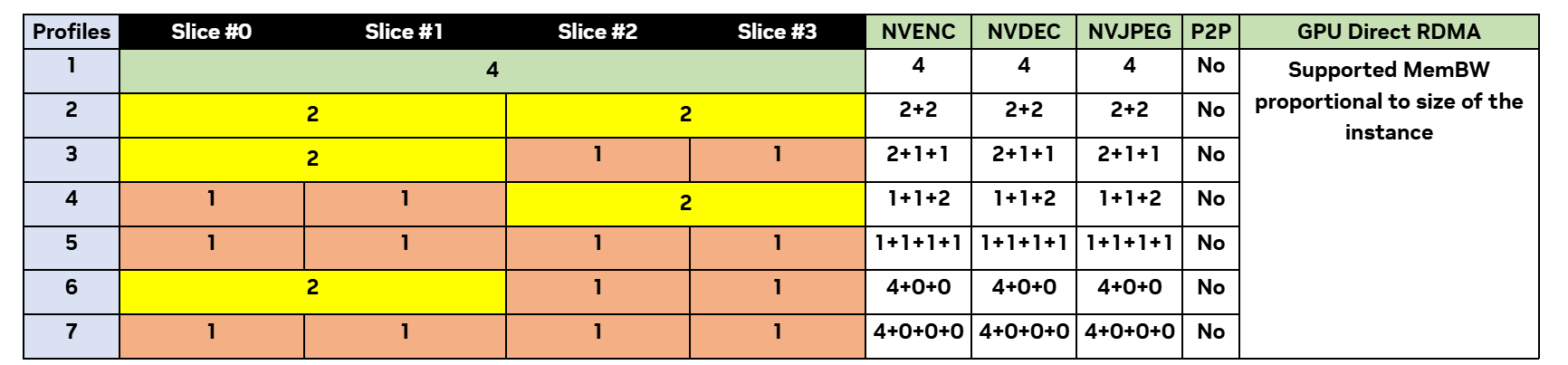

The diagram below shows a pictorial representation of how to build all valid combinations of GPU instances.

Figure 2. Valid GPU Instance Combinations

Valid GPU Instance Combinations.


In this diagram, a valid combination can be built by starting with an instance profile on the left and combining it with other instance profiles as you move to the right, such that no two profiles overlap vertically. The only exception to this rule is the combination of a (4 memory, 4 compute) and a (4 memory, 3 compute) profile, which is currently not supported. However, a combination of (4 memory, 3 compute) and (4 memory, 3 compute) again is supported and illustrated in this section.

An example of one such valid combination can be seen below:

Figure 3. Example Configuration of GPU Instances

Example Configuration of GPU Instances.


It’s important to note that the following two GPU Instance combinations are actually distinct due to the way the instances are created (referred to as placements) on the GPU:

Figure 4. Placement of GPU Instances

Placement of GPU Instances.


This comes from the fact that the diagram actually represents the physical layout of where the GPU Instances will exist once they are instantiated on the GPU. As GPU Instances are created and destroyed at different locations, fragmentation can occur, and the physical position of one GPU Instance will play a role in which other GPU Instances can be instantiated next to it.

CUDA Concurrency Mechanisms

MIG has been designed to be largely transparent to CUDA applications - so that the CUDA programming model remains unchanged to minimize programming effort. CUDA already exposes multiple technologies for running work in parallel on the GPU and it is worthwhile showcasing how these technologies compare to MIG. Note that streams and MPS are part of the CUDA programming model and thus work when used with GPU Instances.

CUDA Streams are a CUDA Programming model feature where, in a CUDA application, different work can be submitted to independent queues and be processed independently by the GPU. CUDA streams can only be used within a single process and don’t offer much isolation - the address space is shared, the SMs are shared, the GPU memory bandwidth, caches and capacity are shared. And lastly any errors affect all the streams and the whole process.

MPS is the CUDA Multi-Process service. It allows co-operative multi process applications to share compute resources on the GPU. It’s commonly used by MPI jobs that cooperate, but it has also been used for sharing the GPU resources among unrelated applications, while accepting the challenges that such a solution brings. MPS currently does not offer error isolation between clients and while streaming multiprocessors used by each MPS client can be optionally limited to a percentage of all SMs, the scheduling hardware is still shared. Memory bandwidth, caches and capacity are all shared between MPS clients.

Lastly, MIG is the new form of concurrency offered by the NVIDIA A100 while addressing some of the limitations with the other CUDA technologies for running parallel work.

Table 2. CUDA Concurrency Mechanisms
  Streams MPS MIG
Partition Type Single Process Logical Physical
Max Partitions Unlimited 48 7
SM Performance Isolation No Yes (by percentage, not partitioning) Yes
Memory Protection No Yes Yes
Memory Bandwidth QoS No No Yes
Error Isolation No No Yes
Cross-Partition Interop Always IPC Limited IPC
Reconfigure Dynamic Process Launch When Idle

Deployment Considerations

MIG functionality is provided as part of the NVIDIA GPU driver starting with the CUDA 11.0 / R450 release.

System Considerations

The following system considerations are relevant for NVIDIA A100 when the GPU is in MIG mode.

  • MIG is supported only on Linux operating system distributions supported by CUDA 11/R450. It is also recommended to use at least to use the NVIDIA Datacenter Linux driver 451.51.06 or above.

    Also note the device nodes and nvidia-capabilities for exposing the MIG devices. The /proc mechanism for system-level interfaces is deprecated as of 451.51.06 and it is recommended to use the /dev based system-level interface for controlling access mechanisms of MIG devices through cgroups.

  • Supported configurations include
    • Bare-metal

    • GPU pass-through to Linux guests on top of supported hypervisors

    • vGPU on top of supported hypervisors

    MIG allows multiple vGPUs to run in parallel on a single A100, while preserving the isolation guarantees that vGPU provides. For more information on vGPU, refer to the software documentation.

  • Setting MIG mode on the A100 requires a GPU reset and super-user privileges. Once A100 is in MIG mode, instance management is then dynamic (i.e. does not require a GPU reset). Note that the setting is on a per-GPU basis.

  • Similar to ECC mode, MIG mode setting is persistent across reboots until the user toggles the setting explicitly

  • All daemons holding handles on driver modules need to be stopped before MIG enablement.

  • This is true for systems such as DGX which may be running system health monitoring services such as nvsm or GPU health monitoring or telemetry services such as DCGM.

  • Toggling MIG mode requires the CAP_SYS_ADMIN capability. Other MIG management, such as creating and destroying instances, requires superuser by default, but can be delegated to non-privileged users by adjusting permissions to MIG capabilities in /proc/.

Application Considerations

Users should note the following considerations when the A100 is in MIG mode:

  • No graphics APIs are supported (e.g. OpenGL, Vulkan etc.)

  • No GPU to GPU P2P (either PCIe or NVLink) is supported

  • CUDA applications treat a Compute Instance and its parent GPU Instance as a single CUDA device. See this section on device enumeration by CUDA

  • CUDA IPC across GPU instances is not supported. CUDA IPC across Compute instances is supported

  • CUDA debugging (e.g. using cuda-gdb) and memory/race checking (e.g. using cuda-memcheck or compute-sanitizer) is supported

  • CUDA MPS is supported on top of MIG. The only limitation is that the maximum number of clients (48) is lowered proportionally to the Compute Instance size

  • GPUDirect RDMA is supported when used from GPU Instances

Device Nodes and Capabilities

Currently, the NVIDIA kernel driver exposes its interfaces through a few system-wide device nodes. Each physical GPU is represented by its own device node - e.g. nvidia0, nvidia1 etc. This is shown below for a 2-GPU system.


        /dev
        ├── nvidiactl
        ├── nvidia-modeset
        ├── nvidia-uvm
        ├── nvidia-uvm-tools
        ├── nvidia-nvswitchctl
        ├── nvidia0
        └── nvidia1


Starting with CUDA 11/R450, a new abstraction known as nvidia-capabilities has been introduced. The idea being that access to a specific capability is required to perform certain actions through the driver. If a user has access to the capability, the action will be carried out. If a user does not have access to the capability, the action will fail. The one exception being if you are the root-user (or any user with CAP_SYS_ADMIN privileges). With CAP_SYS_ADMIN privileges, you implicitly have access to all nvidia-capabilities.

For example, the mig-config capability allows one to create and destroy MIG instances on any MIG-capable GPU (e.g. the A100 GPU). Without this capability, all attempts to create or destroy a MIG instance will fail. Likewise, the fabric-mgmt capability allows one to run the Fabric Manager as a non-root but privileged daemon. Without this capability, all attempts to launch the Fabric Manager as a non-root user will fail.

The following sections walk through the system level interface for managing these new nvidia-capabilities, including the steps necessary to grant and revoke access to them.

System Level Interface

There are two different system-level interfaces available to work with nvidia-capabilities. The first is via /proc and the second is via /dev. The /proc based interface relies on user-permissions and mount namespaces to limit access to a particular capability, while the /dev based interface relies on cgroups. Technically, the /dev based interface also relies on user-permissions as a second-level access control mechanism (on the actual device node files themselves), but the primary access control mechanism is cgroups. The current CUDA 11/R450 GA (Linux driver 450.51.06) supports both mechanisms, but going forward the /dev based interface is the preferred method and the /proc based interface is deprecated. For now, users can choose the desired interface by using the nv_cap_enable_devfs parameter on the nvidia.ko kernel module:
  • When nv_cap_enable_devfs=0 the /proc based interface is enabled.
  • When nv_cap_enable_devfs=1 the /dev based interface is enabled.
  • A setting of nv_cap_enable_devfs=0 is the default for the R450 driver (as of Linux 450.51.06).
  • All future NVIDIA datacenter drivers will have a default of nv_cap_enable_devfs=1.

An example of loading the nvidia kernel module with this parameter set can be seen below:


$ modprobe nvidia nv_cap_enable_devfs=1


/proc based nvidia-capabilities

The system level interface for interacting with /proc based nvidia-capabilities is rooted at /proc/driver/nvidia/capabilities. Files underneath this hierarchy are used to represent each capability, with read access to these files controlling whether a user has a given capability or not. These files have no content and only exist to represent a given capability.

For example, the mig-config capability (which allows a user to create and destroy MIG devices) is represented as follows:


        /proc/driver/nvidia/capabilities
        └── mig
            └── config


Likewise, the capabilities required to run workloads on a MIG device once it has been created are represented as follows (namely as access to the GPU Instance and Compute Instance that comprise the MIG device):


        /proc/driver/nvidia/capabilities
        └── gpu0
            └── mig
                ├── gi0
                │   ├── access
                │   └── ci0
                │       └── access
                ├── gi1
                │   ├── access
                │   └── ci0
                │       └── access
                └── gi2
                    ├── access
                    └── ci0
                        └── access


And the corresponding file system layout is shown below with read permissions:


$ ls -l /proc/driver/nvidia/capabilities/gpu0/mig/gi*
/proc/driver/nvidia/capabilities/gpu0/mig/gi1:
total 0
-r--r--r-- 1 root root 0 May 24 17:38 access
dr-xr-xr-x 2 root root 0 May 24 17:38 ci0

/proc/driver/nvidia/capabilities/gpu0/mig/gi2:
total 0
-r--r--r-- 1 root root 0 May 24 17:38 access
dr-xr-xr-x 2 root root 0 May 24 17:38 ci0


For a CUDA process to be able to run on top of MIG, it needs access to the Compute Instance capability and its parent GPU Instance. Thus a MIG device is identified by the following format:


            MIG-<GPU-UUID>/<GPU instance ID>/<compute instance ID>


As an example, having read access to the following paths would allow one to run workloads on the MIG device represented by <gpu0, gi0, ci0>:


        /proc/driver/nvidia/capabilities/gpu0/mig/gi0/access
        /proc/driver/nvidia/capabilities/gpu0/mig/gi0/ci0/access


Note, that there is no access file representing a capability to run workloads on gpu0 (only on gi0 and ci0 that sit underneath gpu0). This is because the traditional mechanism of using cgroups to control access to top level GPU devices (and any required meta devices) is still required. As shown earlier in the document, the cgroups mechanism applies to:


        /dev/nvidia0
        /dev/nvidiactl
        /dev/nvidiactl-uvm
        ...


In the context of containers, a new mount namespace should be overlaid on top of the path for /proc/driver/nvidia/capabilities, and only those capabilities a user wishes to grant to a container should be bind-mounted in. Since the host’s user/group information is retained across the bind-mount, it must be ensured that the correct user permissions are set for these capabilities on the host before injecting them into a container.

/dev based nvidia-capabilities

The system level interface for interacting with /dev based capabilities is actually through a combination of /proc and /dev.

First, a new major device is now associated with nvidia-capabilites and can be read from the standard /proc/devices file.


$ cat /proc/devices | grep nvidia-caps
238 nvidia-caps


Second, the exact same set of files exist under /proc/driver/nvidia/capabilities as they did for /proc based capabilities, except that these files no longer control access to the capability directly. Instead, the contents of these files point at a device node under /dev, through which cgroups can be used to control access to the capability.

This can be seen in the example below:


$ cat /proc/driver/nvidia/capabilities/mig/config
DeviceFileMinor: 1
DeviceFileMode: 256
DeviceFileModify: 1


The combination of the device major for nvidia-caps and the value of DeviceFileMinor in this file indicate that the mig-config capability (which allows a user to create and destroy MIG devices) is controlled by the device node with a major:minor of 238:1. As such, one will need to use cgroups to grant a process read access to this device in order to configure MIG devices. The purpose of the DeviceFileMode and DeviceFileModify fields in this file are explained later on in this section.

The standard location for these device nodes is under /dev/nvidia-caps as seen in the example below:


$ ll /dev/nvidia-caps
total 0
cr--------  1 root root 238,   1 May 30 20:41 nvidia-cap1
cr--r--r--  1 root root 238,   2 May 30 20:41 nvidia-cap2
...


Unfortunately, these device nodes cannot be automatically created/deleted by the NVIDIA driver at the same time it creates/deletes files underneath /proc/driver/nvidia/capabilities (due to GPL compliance issues). Instead, a user-level program called nvidia-modprobe is provided, that can be invoked from user-space in order to do this. For example:


$ nvidia-modprobe \
    -f /proc/driver/nvidia/capabilities/mig/config \
    -f /proc/driver/nvidia/capabilities/mig/monitor

$ ll /dev/nvidia-caps
total 0
cr--------  1 root root 238,   1 May 30 20:41 nvidia-cap1
cr--r--r--  1 root root 238,   2 May 30 20:41 nvidia-cap2


nvidia-modprobe looks at the DeviceFileMode in each capability file and creates the device node with the permissions indicated (e.g. +ur from a value of 256 (o400) from our example for mig-config).

Programs such as nvidia-smi will automatically invoke nvidia-modprobe (when available) to create these device nodes on your behalf. In other scenarios it is not necessarily required to use nvidia-modprobe to create these device nodes, but it does make the process simpler.

If you actually want to prevent nvidia-modprobe from ever creating a particular device node on your behalf, you can do the following:


# Give a user write permissions to the capability file under /proc
$ chmod +uw /proc/driver/nvidia/capabilities/mig/config

# Update the file with a “DeviceFileModify” setting of 0
$ echo "DeviceFileModify: 0" > /proc/driver/nvidia/capabilities/mig/config


You will then be responsible for managing creation of the device node referenced by /proc/driver/nvidia/capabilities/mig/config going forward. If you want to change that in the future, simply reset it to a value of "DeviceFileModify: 1" with the same command sequence.

One final thing to note about /dev based capabilities is that the minor numbers for all possible capabilities are predetermined and can be queried under various files of the form:


/proc/driver/nvidia-caps/*-minors


For example, all capabilities related to MIG can be looked up as:


$ cat /proc/driver/nvidia-caps/mig-minors
config 1
monitor 2
gpu0/gi0/access 3
gpu0/gi0/ci0/access 4
gpu0/gi0/ci1/access 5
gpu0/gi0/ci2/access 6
...
gpu31/gi14/ci6/access 4321
gpu31/gi14/ci7/access 4322



This is important in the context of containers because we may want to give a container access to a certain capability even if it doesn’t exist in the /proc hierarchy yet.

For example, granting a container the mig-config capability implies that we should also grant it capabilities to access all possible gis and cis that could be created for any GPU on the system. Otherwise the container will have no way of working with those gis and cis once they have actually been created.

MIG Device Names

By default, a MIG device consists of a single “GPU Instance” and a single “Compute Instance”. The table below highlights a naming convention to refer to a MIG device by its GPU Instance's compute slice count and its total memory in GB (rather than just its memory slice count).

When only a single CI is created (that consumes the entire compute capacity of the GI), then the CI sizing is implied in the device name.

Table 3. Device names when using a single CI
Memory 20gb 10gb 5gb
GPU Instance 3g 2g 1g
Compute Instance 3c 2c 1c
MIG Device 3g.20gb 2g.10gb 1g.5gb
  GPCGPCGPC GPCGPC GPC

Each GI can be further sub-divided into multiple CIs as required by users depending on their workloads. The table below highlights what the name of a MIG device would look like in this case. The example shown is for subdividing a 3g.20gb device into a set of sub-devices with different Compute Instance slice counts.

Table 4. Device names when using multiple CIs
Memory 20gb 20gb
GPU Instance 3g 3g
Compute Instance 1c 1c 1c 2c 1c
MIG Device 1c.3g.20gb 1c.3g.20gb 1c.3g.20gb 2c.3g.20gb 1c.3g.20gb
  GPC GPC GPC GPCGPC GPC

Running with MIG

Prerequisites

The following prerequisites apply when using A100 in MIG mode.

  • MIG is supported only on NVIDIA A100 products and associated systems using A100 (e.g. DGX A100 and HGX A100)

  • CUDA 11 and NVIDIA driver 450.36.06 or later

  • CUDA 11 supported Linux operating system distributions

MIG can be managed programmatically using NVIDIA Management Library (NVML) APIs or its command-line-interface, nvidia-smi. Note that for brevity, some of the nvidia-smi output in the following examples may be cropped to showcase the relevant sections of interest.

For more information on the MIG commands, see the nvidia-smi man page or nvidia-smi mig --help. For information on the MIG management APIs, see the NVML header (nvml.11.0.h) included in CUDA 11.

Enable MIG Mode

By default, MIG mode is not enabled on the NVIDIA A100. For example, running nvidia-smi shows that MIG mode is disabled:

$ nvidia-smi -i 0
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 450.36.04    Driver Version: 450.36.04    CUDA Version: 11.0     |
|-------------------------------+----------------------+----------------------+
| GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
| Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
|                               |                      |               MIG M. |
|===============================+======================+======================|
|   0  A100-SXM4-40GB      Off  | 00000000:36:00.0 Off |                    0 |
| N/A   29C    P0    62W / 400W |      0MiB / 40537MiB |      6%      Default |
|                               |                      |             Disabled |
+-------------------------------+----------------------+----------------------+


MIG mode can be enabled on a per-GPU basis with the following command: nvidia-smi -i <GPU IDs> -mig 1. The GPUs can be selected using comma separated GPU indexes, PCI Bus Ids or UUIDs. If no GPU ID is specified, then MIG mode is applied to all the GPUs on the system.

$ sudo nvidia-smi -i 0 -mig 1
Enabled MIG Mode for GPU 00000000:36:00.0
All done.

$ nvidia-smi -i 0 --query-gpu=pci.bus_id,mig.mode.current --format=csv
pci.bus_id, mig.mode.current
00000000:36:00.0, Enabled


The examples shown in the document use super-user privileges. As described in the Device Nodes section, granting read access to mig/config capabilities allows non-root users to manage instances once the A100 has been configured into MIG mode. The default file permissions on the mig/config file is shown below.

$ ls -l /proc/driver/nvidia/capabilities/*
/proc/driver/nvidia/capabilities/mig:
total 0
-r-------- 1 root root 0 May 24 16:10 config
-r--r--r-- 1 root root 0 May 24 16:10 monitor


List GPU Instance Profiles

The NVIDIA driver provides a number of profiles that users can opt-in for when configuring the MIG feature in A100. The profiles are the sizes and capabilities of the GPU instances that can be created by the user. The driver also provides information about the placements, which indicate the type and number of instances that can be created.

$ sudo nvidia-smi mig -lgip
+--------------------------------------------------------------------------+
| GPU instance profiles:                                                   |
| GPU   Name          ID    Instances   Memory     P2P    SM    DEC   ENC  |
|                           Free/Total   GiB              CE    JPEG  OFA  |
|==========================================================================|
|   0  MIG 1g.5gb     19     7/7        4.95       No     14     0     0   |
|                                                          1     0     0   |
+--------------------------------------------------------------------------+
|   0  MIG 2g.10gb    14     3/3        9.90       No     28     1     0   |
|                                                          2     0     0   |
+--------------------------------------------------------------------------+
|   0  MIG 3g.20gb     9     2/2        19.79      No     42     2     0   |
|                                                          3     0     0   |
+--------------------------------------------------------------------------+
|   0  MIG 4g.20gb     5     1/1        19.79      No     56     2     0   |
|                                                          4     0     0   |
+--------------------------------------------------------------------------+
|   0  MIG 7g.40gb     0     1/1        39.59      No     98     5     0   |
|                                                          7     1     1   |
+--------------------------------------------------------------------------+


List the possible placements available using the following command. The syntax of the placement is {<index>}:<GPU Slice Count> and shows the placement of the instances on the GPU.

$ sudo nvidia-smi mig -lgipp
GPU  0 Profile ID 19 Placements: {0,1,2,3,4,5,6}:1
GPU  0 Profile ID 14 Placements: {0,2,4}:2
GPU  0 Profile ID  9 Placements: {0,4}:4
GPU  0 Profile ID  5 Placement : {0}:4
GPU  0 Profile ID  0 Placement : {0}:8


The command shows that the user can create two instances of type 3g.20gb (profile ID 9) or seven instances of 1g.5gb (profile ID 19).

Creating GPU Instances

The following example shows how the user can create GPU instances. In this example, the user can create two GPU instances (of type 3g.20gb), with each GPU instance having half of the available compute and memory capacity.

$ sudo nvidia-smi mig -cgi 9,9
Successfully created GPU instance on GPU  0 using profile ID  9
Successfully created GPU instance on GPU  0 using profile ID  9


Now list the available GPU instances:

$ sudo nvidia-smi mig -lgi
+----------------------------------------------------+
| GPU instances:                                     |
| GPU   Name          Profile  Instance   Placement  |
|                       ID       ID       Start:Size |
|====================================================|
|   0  MIG 3g.20gb       9        1          4:4     |
+----------------------------------------------------+
|   0  MIG 3g.20gb       9        2          0:4     |
+----------------------------------------------------+


Create the corresponding Compute Instances (CIs) within each GPU Instance (GI):

$ sudo nvidia-smi mig -cci -gi 1,2
Successfully created compute instance on GPU  0 GPU instance ID  1 using profile ID  2
Successfully created compute instance on GPU  0 GPU instance ID  2 using profile ID  2


Now verify that the GIs and corresponding CIs are created:

$ nvidia-smi
+-----------------------------------------------------------------------------+
| MIG devices:                                                                |
+------------------+----------------------+-----------+-----------------------+
| GPU  GI  CI  MIG |         Memory-Usage |        Vol|         Shared        |
|      ID  ID  Dev |                      | SM     Unc| CE  ENC  DEC  OFA  JPG|
|                  |                      |        ECC|                       |
|==================+======================+===========+=======================|
|  0    1   0   0  |     11MiB / 20224MiB | 42      0 |  3   0    2    0    0 |
+------------------+----------------------+-----------+-----------------------+
|  0    2   0   1  |     11MiB / 20096MiB | 42      0 |  3   0    2    0    0 |
+------------------+----------------------+-----------+-----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|  No running processes found                                                 |
+-----------------------------------------------------------------------------+


Device Enumeration

GPU Instances (GIs) and Compute Instances (CIs) are enumerated in the new /proc filesystem layout for MIG

$ ls -l /proc/driver/nvidia/capabilities/gpu0/mig/gi*
/proc/driver/nvidia/capabilities/gpu0/mig/gi1:
total 0
-r--r--r-- 1 root root 0 May 24 17:38 access
dr-xr-xr-x 2 root root 0 May 24 17:38 ci0

/proc/driver/nvidia/capabilities/gpu0/mig/gi2:
total 0
-r--r--r-- 1 root root 0 May 24 17:38 access
dr-xr-xr-x 2 root root 0 May 24 17:38 ci0


Running CUDA Applications on Bare-Metal

CUDA Device Enumeration

MIG supports running CUDA applications by specifying the CUDA device on which the application should be run. With CUDA 11, only enumeration of a single MIG instance is supported.

CUDA applications treat a CI and its parent GI as a single CUDA device. CUDA is limited to use a single CI and will pick the first one available if several of them are visible. To summarize, there are two constraints:
  1. CUDA can only enumerate a single compute instance

  2. CUDA will not enumerate non-MIG GPU if any compute instance is enumerated on any other GPU

Note that these constraints may be relaxed in future NVIDIA driver releases for MIG.

CUDA_VISIBLE_DEVICES has been extended to add support for MIG by specifying the CI and the corresponding parent GI. The new format follows this convention: MIG-<GPU-UUID>/<GPU instance ID>/<compute instance ID>.

GPU Instances

The following example shows how two CUDA applications can be run in parallel on two different GPU instances. In this example, the BlackScholes CUDA sample is run simultaneously on the two GIs created on the A100.

$ nvidia-smi -L
GPU 0: A100-SXM4-40GB (UUID: GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0)
  MIG 3g.20gb Device 0: (UUID: MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/1/0)
  MIG 3g.20gb Device 1: (UUID: MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/2/0)

$ CUDA_VISIBLE_DEVICES=MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/1/0 ./BlackScholes &
$ CUDA_VISIBLE_DEVICES=MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/2/0 ./BlackScholes &


Now verify the two CUDA applications are running on two separate GPU instances:

$ nvidia-smi
+-----------------------------------------------------------------------------+
| MIG devices:                                                                |
+------------------+----------------------+-----------+-----------------------+
| GPU  GI  CI  MIG |         Memory-Usage |        Vol|         Shared        |
|      ID  ID  Dev |                      | SM     Unc| CE  ENC  DEC  OFA  JPG|
|                  |                      |        ECC|                       |
|==================+======================+===========+=======================|
|  0    1   0   0  |    268MiB / 20224MiB | 42      0 |  3   0    2    0    0 |
+------------------+----------------------+-----------+-----------------------+
|  0    2   0   1  |    268MiB / 20096MiB | 42      0 |  3   0    2    0    0 |
+------------------+----------------------+-----------+-----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|    0    1    0      58866      C   ./BlackScholes                    253MiB |
|    0    2    0      58856      C   ./BlackScholes                    253MiB |
+-----------------------------------------------------------------------------+


Compute Instances

As explained earlier in this document, a further level of concurrency can be achieved by using Compute Instances (CIs). The following example shows how 3 CUDA processes (BlackScholes CUDA sample) can be run on the same GI.

First, list the available CI profiles available using our prior configuration of creating 2 GIs on the A100.

$ sudo nvidia-smi mig -lcip -gi 1
+--------------------------------------------------------------------------------------+
| Compute instance profiles:                                                           |
| GPU     GPU       Name             Profile  Instances   Exclusive       Shared       |
|       Instance                       ID     Free/Total     SM       DEC   ENC   OFA  |
|         ID                                                          CE    JPEG       |
|======================================================================================|
|   0      1       MIG 1c.3g.20gb       0      0/3           14        2     0     0   |
|                                                                      3     0         |
+--------------------------------------------------------------------------------------+
|   0      1       MIG 2c.3g.20gb       1      0/1           28        2     0     0   |
|                                                                      3     0         |
+--------------------------------------------------------------------------------------+
|   0      1       MIG 3g.20gb          2*     0/1           42        2     0     0   |
|                                                                      3     0         |
+--------------------------------------------------------------------------------------+


Create 3 CIs, each of type 1c compute capacity (profile ID 0) on the first GI.

$ sudo nvidia-smi mig -cci 0,0,0 -gi 1
Successfully created compute instance on GPU  0 GPU instance ID  1 using profile ID  0
Successfully created compute instance on GPU  0 GPU instance ID  1 using profile ID  0
Successfully created compute instance on GPU  0 GPU instance ID  1 using profile ID  0


Using nvidia-smi, the following CIs are now created on GI 1.

$ sudo nvidia-smi mig -lci -gi 1
+-------------------------------------------------------+
| Compute instances:                                    |
| GPU     GPU       Name             Profile   Instance |
|       Instance                       ID        ID     |
|         ID                                            |
|=======================================================|
|   0      1       MIG 1c.3g.20gb       0         0     |
+-------------------------------------------------------+
|   0      1       MIG 1c.3g.20gb       0         1     |
+-------------------------------------------------------+
|   0      1       MIG 1c.3g.20gb       0         2     |
+-------------------------------------------------------+


And the GIs and CIs created on the A100 are now enumerated by the driver:

$ nvidia-smi
+-----------------------------------------------------------------------------+
| MIG devices:                                                                |
+------------------+----------------------+-----------+-----------------------+
| GPU  GI  CI  MIG |         Memory-Usage |        Vol|         Shared        |
|      ID  ID  Dev |                      | SM     Unc| CE  ENC  DEC  OFA  JPG|
|                  |                      |        ECC|                       |
|==================+======================+===========+=======================|
|  0    1   0   0  |     11MiB / 20224MiB | 14      0 |  3   0    2    0    0 |
+------------------+                      +-----------+-----------------------+
|  0    1   1   1  |                      | 14      0 |  3   0    2    0    0 |
+------------------+                      +-----------+-----------------------+
|  0    1   2   2  |                      | 14      0 |  3   0    2    0    0 |
+------------------+----------------------+-----------+-----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|  No running processes found                                                 |
+-----------------------------------------------------------------------------+


Now, three BlackScholes applications can be created and run in parallel:

$ CUDA_VISIBLE_DEVICES=MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/1/0/0 ./BlackScholes &
$ CUDA_VISIBLE_DEVICES=MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/1/0/1 ./BlackScholes &
$ CUDA_VISIBLE_DEVICES=MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/1/0/2 ./BlackScholes &


And seen using nvidia-smi as running processes on the three CIs:

$ nvidia-smi
+-----------------------------------------------------------------------------+
| MIG devices:                                                                |
+------------------+----------------------+-----------+-----------------------+
| GPU  GI  CI  MIG |         Memory-Usage |        Vol|         Shared        |
|      ID  ID  Dev |                      | SM     Unc| CE  ENC  DEC  OFA  JPG|
|                  |                      |        ECC|                       |
|==================+======================+===========+=======================|
|  0    1   0   0  |    476MiB / 20224MiB | 14      0 |  3   0    2    0    0 |
+------------------+                      +-----------+-----------------------+
|  0    1   1   1  |                      | 14      0 |  3   0    2    0    0 |
+------------------+                      +-----------+-----------------------+
|  0    1   2   2  |                      | 14      0 |  3   0    2    0    0 |
+------------------+----------------------+-----------+-----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|    0    1    0      59785      C   ./BlackScholes                    153MiB |
|    0    1    1      59796      C   ./BlackScholes                    153MiB |
|    0    1    2      59885      C   ./BlackScholes                    153MiB |
+-----------------------------------------------------------------------------+



Destroying GPU Instances

Once the A100 is in MIG mode, GIs and CIs can be configured dynamically. The following example shows how the CIs and GIs created in the previous examples can be destroyed.

$ sudo nvidia-smi mig -dci -ci 0,1,2 -gi 1
Successfully destroyed compute instance ID  0 from GPU  0 GPU instance ID  1
Successfully destroyed compute instance ID  1 from GPU  0 GPU instance ID  1
Successfully destroyed compute instance ID  2 from GPU  0 GPU instance ID  1


It can be verified that the MIG devices have now been torn down on the A100:

$ nvidia-smi
+-----------------------------------------------------------------------------+
| MIG devices:                                                                |
+------------------+----------------------+-----------+-----------------------+
| GPU  GI  CI  MIG |         Memory-Usage |        Vol|         Shared        |
|      ID  ID  Dev |                      | SM     Unc| CE  ENC  DEC  OFA  JPG|
|                  |                      |        ECC|                       |
|==================+======================+===========+=======================|
|  No MIG devices found                                                       |
+-----------------------------------------------------------------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|  No running processes found                                                 |
+-----------------------------------------------------------------------------+


Running CUDA Applications as Containers

NVIDIA Container Toolkit has been enhanced to provide support for MIG devices, allowing users to run GPU containers with runtimes such as Docker. This section provides an overview of running Docker containers on A100 with MIG.

Install Docker

Many Linux distributions may come with Docker-CE pre-installed. If not, use the Docker installation script to install Docker.

$ curl https://get.docker.com | sh

$ sudo systemctl start docker && sudo systemctl enable docker


Install NVIDIA Container Toolkit

Now install the NVIDIA Container Toolkit (previously known as nvidia-docker2). MIG support is available starting with v2.3 of nvidia-docker2 (or v1.1.1 of the nvidia-container-toolkit package).

For brevity, the installation instructions provided here are for Ubuntu 18.04 LTS. Refer to the NVIDIA Container Toolkit page for instructions on other Linux distributions.

Setup the repository and the GPG key:

$ curl -s -L https://nvidia.github.io/nvidia-docker/gpgkey | sudo apt-key add -

$ distribution=$(. /etc/os-release;echo $ID$VERSION_ID)

$ curl -s -L https://nvidia.github.io/nvidia-docker/$distribution/nvidia-docker.list | sudo tee /etc/apt/sources.list.d/nvidia-docker.list

$ sudo apt-get update


Install the NVIDIA Container Toolkit packages (and their dependencies):

$ sudo apt-get install -y nvidia-docker2

$ sudo systemctl restart docker


Running Containers

To run containers on specific MIG devices - whether these are GIs or specific underlying CIs, then the NVIDIA_VISIBLE_DEVICES variable (or the --gpus option with Docker 19.03+) can be used.

NVIDIA_VISIBLE_DEVICES supports two formats to specify MIG devices:
  1. MIG-<GPU-UUID>/<GPU instance ID>/<compute instance ID>

  2. GPUDeviceIndex>:<MIGDeviceIndex>

If using Docker 19.03, the --gpus option can be used to specify MIG devices by using the following format: ‘“device=MIG-device”’, where MIG-device can follow either of the format specified above for NVIDIA_VISIBLE_DEVICES.

The following example shows running nvidia-smi from within a CUDA container using both formats. As can be seen in the example, only one MIG device as chosen is visible to the container when using either format.

$ sudo docker run --runtime=nvidia -e NVIDIA_VISIBLE_DEVICES=MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/1/0 nvidia/cuda nvidia-smi

+-----------------------------------------------------------------------------+
| MIG devices:                                                                |
+------------------+----------------------+-----------+-----------------------+
| GPU  GI  CI  MIG |         Memory-Usage |        Vol|         Shared        |
|      ID  ID  Dev |                      | SM     Unc| CE  ENC  DEC  OFA  JPG|
|                  |                      |        ECC|                       |
|==================+======================+===========+=======================|
|  0    1   0   0  |     11MiB / 20224MiB | 42      0 |  3   0    2    0    0 |
+------------------+----------------------+-----------+-----------------------+

+-----------------------------------------------------------------------------+
| Processes:                                                                  |
|  GPU   GI   CI        PID   Type   Process name                  GPU Memory |
|        ID   ID                                                   Usage      |
|=============================================================================|
|  No running processes found                                                 |
+-----------------------------------------------------------------------------+

# For Docker versions < 19.03
$ sudo docker run --runtime=nvidia -e NVIDIA_VISIBLE_DEVICES="0:0" nvidia/cuda nvidia-smi -L
GPU 0: A100-SXM4-40GB (UUID: GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0)
  MIG 3g.20gb Device 0: (UUID: MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/1/0)


# For Docker versions >= 19.03
$ sudo docker run --gpus '"device=0:0"' nvidia/cuda nvidia-smi -L
GPU 0: A100-SXM4-40GB (UUID: GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0)
  MIG 3g.20gb Device 0: (UUID: MIG-GPU-e86cb44c-6756-fd30-cd4a-1e6da3caf9b0/1/0)


A more complex example is to run a TensorFlow container to do a training run using GPUs on the MNIST dataset. This is shown below:

$ sudo docker run --gpus '"device=0:0"' tensorflow/tensorflow:latest-devel-gpu python /tensorflow/tensorflow/examples/tutorials/mnist/mnist_with_summaries.py

Extracting /tmp/tensorflow/mnist/input_data/t10k-images-idx3-ubyte.gz
Successfully downloaded t10k-labels-idx1-ubyte.gz 4542 bytes.
Extracting /tmp/tensorflow/mnist/input_data/t10k-labels-idx1-ubyte.gz
Accuracy at step 0: 0.1591
Accuracy at step 10: 0.7366
Accuracy at step 20: 0.8201
Accuracy at step 30: 0.8509
Accuracy at step 40: 0.8795
Accuracy at step 50: 0.8919
Accuracy at step 60: 0.9016
Accuracy at step 70: 0.9044


MIG support in Kubernetes is coming in a future release of the NVIDIA device plugin for Kubernetes.

Notices

Notice

THE INFORMATION IN THIS GUIDE AND ALL OTHER INFORMATION CONTAINED IN NVIDIA DOCUMENTATION REFERENCED IN THIS GUIDE IS PROVIDED “AS IS.” NVIDIA MAKES NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE INFORMATION FOR THE PRODUCT, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE. Notwithstanding any damages that customer might incur for any reason whatsoever, NVIDIA’s aggregate and cumulative liability towards customer for the product described in this guide shall be limited in accordance with the NVIDIA terms and conditions of sale for the product.

THE NVIDIA PRODUCT DESCRIBED IN THIS GUIDE IS NOT FAULT TOLERANT AND IS NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE IN CONNECTION WITH THE DESIGN, CONSTRUCTION, MAINTENANCE, AND/OR OPERATION OF ANY SYSTEM WHERE THE USE OR A FAILURE OF SUCH SYSTEM COULD RESULT IN A SITUATION THAT THREATENS THE SAFETY OF HUMAN LIFE OR SEVERE PHYSICAL HARM OR PROPERTY DAMAGE (INCLUDING, FOR EXAMPLE, USE IN CONNECTION WITH ANY NUCLEAR, AVIONICS, LIFE SUPPORT OR OTHER LIFE CRITICAL APPLICATION). NVIDIA EXPRESSLY DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY OF FITNESS FOR SUCH HIGH RISK USES. NVIDIA SHALL NOT BE LIABLE TO CUSTOMER OR ANY THIRD PARTY, IN WHOLE OR IN PART, FOR ANY CLAIMS OR DAMAGES ARISING FROM SUCH HIGH RISK USES.

NVIDIA makes no representation or warranty that the product described in this guide will be suitable for any specified use without further testing or modification. Testing of all parameters of each product is not necessarily performed by NVIDIA. It is customer’s sole responsibility to ensure the product is suitable and fit for the application planned by customer and to do the necessary testing for the application in order to avoid a default of the application or the product. Weaknesses in customer’s product designs may affect the quality and reliability of the NVIDIA product and may result in additional or different conditions and/or requirements beyond those contained in this guide. NVIDIA does not accept any liability related to any default, damage, costs or problem which may be based on or attributable to: (i) the use of the NVIDIA product in any manner that is contrary to this guide, or (ii) customer product designs.

Other than the right for customer to use the information in this guide with the product, no other license, either expressed or implied, is hereby granted by NVIDIA under this guide. Reproduction of information in this guide is permissible only if reproduction is approved by NVIDIA in writing, is reproduced without alteration, and is accompanied by all associated conditions, limitations, and notices.

Trademarks

NVIDIA and the NVIDIA logo are trademarks and/or registered trademarks of NVIDIA Corporation in the Unites States and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.
