Fully Developed Turbulent Channel Flow

This tutorial demonstrates the use of PINNs to solve a canonical turbulent flow in a 2D channel using two equation turbulence models and wall functions, without using any training data.

This tutorial also demonstrates how lookup tables can be created which are used in some forms of turbulence modeling using neural networks.

Note

Solving turbulence using PINNs and Neural networks in general, is an active field of research. While making a generalizable turbulence model implementation in PINNs is an ambitious goal, with this example, the aim is to provide a few potential ideas that you can use to solve turbulent systems using two equation models and wall functions.

Note

This chapter is in continuous development and will be updated with new methods and improvements over time.

This tutorial tests the turbulence implementation and the wall functions on a fully developed channel flow case. The flow is set between two flat plates separated by a distance 2H in y-direction and is driven by a constant negative pressure gradient in the streamwise direction. The flow in streamwise direction is periodic and flow is homogenous in the z-direction.


Fig. 134 Turbulent flow in a 2D channel

Solve the problem for a friction Reynolds number of 590. The friction Reynolds number is defined as

(196)\[Re_{\tau} = \frac{u_{\tau}H}{\nu}\]

The pressure gradient is determined from the friction velocity as

(197)\[\frac{\partial p}{\partial x} = \frac{u_{\tau}^2}{H}\]

This example implements the high Reynolds number version of the standard k epsilon model with wall functions. The goal is to solve the equations beyond a certain distance from the wall so that the viscous sublayer is not resolved. The turbulence equations for the k-epsilon model is shown here:

(198)\[\frac{\partial k}{\partial t} + U \cdot \nabla k = \nabla \cdot \left[ \left( \nu + \frac{\nu_t}{\sigma_k} \right) \nabla k \right] + P_k - \varepsilon\]
(199)\[\frac{\partial \varepsilon}{\partial t} + U \cdot \nabla \varepsilon = \nabla \cdot \left[ \left( \nu + \frac{\nu_t}{\sigma_{\varepsilon}} \right) \nabla \varepsilon \right] + (C_{\varepsilon 1}P_k - C_{\varepsilon 2} \varepsilon)\frac{\varepsilon}{k}\]

Next, this tutorial focuses on wall functions. Fig. 135 shows the wall modeling approach followed in this example. As seen in the figure, the equation loses are applied beyond a particular wall height that is chosen a priori. The points below this chosen wall height are discarded. The wall function relations that are shown in the following sections are then applied at this wall height. The wall height is chosen such that the \(y^+\) is \(~30\) which ensures that the inertial sublayer assumption is valid.


Fig. 135 Sampling for interior and wall function points

Not all of the important equations used in the formulation are presented here. For a more detailed description of the wall functions, see 1 2.

Standard Wall Functions

Assuming the closest point to the wall (\(P\)) is within the logarithmic layer, the tangential velocity can be set as

(200)\[\begin{align} U &= \frac{u_{\tau}}{\kappa} \ln{(E y^+)} \end{align}\]

Where, \(\kappa=0.4187\) and \(E=9.793\).

Here, since the \(U\) and \(u_{\tau}\) are related implicitly, you can use a lookup table approach to solve for \(u_{\tau}\) given \(U\) and the wall distance \(y\). This approach is similar to the one discussed here 4.

The \(k\) and \(\varepsilon\) can be set using the below relations

(201)\[\begin{split}\begin{align} k &= \frac{u_{\tau}^2}{\sqrt{C_{\mu}}} \\ \varepsilon &= \frac{C_{\mu} ^ {3 / 4} k ^ {3 / 2}}{\kappa y} \end{align}\end{split}\]

The total shear stress \(\tau\) is the sum of laminar and turbulent shear stresses, i.e. \(\tau=\tau_l+\tau_t\). At the wall, the laminar shear dominates and turbulent shear stress drops to zero, while in the log layer, the turbulent shear stress dominates. For setting the shear stress appropriately, it is assumed that the total shear stress at wall is equal to the turbulent shear stress in the log layer. For \(y^+\) values closer to 30, this assumption does not lead to large inaccuracies. 3 1

Therefore, the wall friction can be set using the log-law assumption and the approximation above as shown here:

(202)\[\tau_w \equiv \mu \frac{\partial U}{\partial y} \Bigg|_{w} \approx (\mu + \mu_t) \frac{\partial U}{\partial y} \Bigg|_{P} = \frac{\rho u_{\tau}U \kappa}{\ln{(E y^+)}}\]

Launder Spalding Wall Functions

The relations for Launder-Spalding wall functions formulation are similar to standard one, except now the friction velocity can directly be computed from the turbulent kinetic energy as shown below:

(203)\[\begin{split}\begin{align} u_{\tau} &= C_{\mu} ^ {1 / 4} k ^ {1 / 2} \\ U &= \frac{C_{\mu} ^ {1 / 4} k ^ {1 / 2}}{\kappa} \ln{(E y^+)} \end{align}\end{split}\]

With this formulation, it was found that an explicit boundary condition for \(k\) is not required as the log-law, relation for \(\varepsilon\) and \(\tau_w\) are sufficient to define all the variables at point \(P\).

(204)\[\begin{split}\begin{align} \varepsilon &= \frac{C_{\mu} ^ {3 / 4} k ^ {3 / 2}}{\kappa y} \\ \tau_w \equiv \mu \frac{\partial U}{\partial y} \Bigg|_{w} \approx (\mu + \mu_t) \frac{\partial U}{\partial y} \Bigg|_{P} &= \frac{\rho C_{\mu} ^ {1 / 4} k ^ {1 / 2} U \kappa}{\ln{(E y^+)}} \end{align}\end{split}\]

Note

The python code for this problem can be found in the directory examples/turbulent_channel/.

The equations are symbolically defined using the custom PDEs (for details on setting up custom PDEs in Modulus Sym, please see 1D Wave Equation). For these problems, the convergence behavior is greatly influenced by the initialization of the network. Therefore, this example starts by training the network to predict constant profiles for turbulent flow quantities and then slowly ramps up the equation losses while ramping down the initialization losses. To do this, a Custom Aggregator is defined.

For the Standard wall function approach, the equation (200) needs to be satisfied exactly. So, train a neural network that can lookup values of \(u_{\tau}\). This is done by solving the log law for a range of \(u\) and \(y\) values and using a Newton-Raphson method to find the zeros. Once you have the table ready, you can train a network to assimilate these values.

Now let’s walk through each of the sections one by one.

This code shows the script to generate the lookup table and assimilate the values in a neural network.

Copy
Copied!


# Copyright (c) 2023, NVIDIA CORPORATION & AFFILIATES. All rights reserved. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. import torch import numpy as np from sympy import Symbol, Eq, sin, cos, Min, Max, Abs, log, exp from scipy import optimize import modulus.sym from modulus.sym.hydra import to_absolute_path, instantiate_arch, ModulusConfig from modulus.sym.solver import Solver from modulus.sym.domain import Domain from modulus.sym.utils.io import csv_to_dict from modulus.sym.domain.constraint import ( PointwiseBoundaryConstraint, PointwiseInteriorConstraint, IntegralBoundaryConstraint, PointwiseConstraint, ) from modulus.sym.domain.monitor import PointwiseMonitor from modulus.sym.domain.inferencer import PointwiseInferencer from modulus.sym.domain.validator import PointwiseValidator from modulus.sym.key import Key from modulus.sym.node import Node @modulus.sym.main(config_path="conf_u_tau_lookup", config_name="config") def run(cfg: ModulusConfig) -> None: u = np.linspace(1e-3, 50, num=100) y = np.linspace(1e-3, 0.5, num=100) U, Y = np.meshgrid(u, y) U = np.reshape(U, (U.size,)) Y = np.reshape(Y, (Y.size,)) Re = 590 nu = 1 / Re def f(u_tau, y, u): return u_tau * np.log(9.793 * y * u_tau / nu) - u * 0.4187 def fprime(u_tau, y, u): return 1 + np.log(9.793 * y * u_tau / nu) u_tau = [] for i in range(len(U)): u_tau_calc = optimize.newton( f, 1.0, fprime=fprime, args=(Y[i], U[i]), tol=1.48e-08, maxiter=200, fprime2=None, ) u_tau.append(u_tau_calc) # save tabulations to a csv file results = np.concatenate( ( np.reshape(U, (len(U), 1)), np.reshape(Y, (len(Y), 1)), np.reshape(u_tau, (len(u_tau), 1)), ), axis=1, ) np.savetxt("u_tau.csv", results, delimiter=",") invar = {"u_in": np.reshape(U, (len(U), 1)), "y_in": np.reshape(Y, (len(Y), 1))} outvar = {"u_tau_out": np.reshape(u_tau, (len(u_tau), 1))} u = np.random.uniform(1e-3, 50, size=100) y = np.random.uniform(1e-3, 0.5, size=100) U, Y = np.meshgrid(u, y) U = np.reshape(U, (U.size,)) Y = np.reshape(Y, (Y.size,)) u_tau_val = [] for i in range(len(U)): u_tau_calc = optimize.newton( f, 1.0, fprime=fprime, args=(Y[i], U[i]), tol=1.48e-08, maxiter=200, fprime2=None, ) u_tau_val.append(u_tau_calc) # save tabulations to a csv file results = np.concatenate( ( np.reshape(U, (len(U), 1)), np.reshape(Y, (len(Y), 1)), np.reshape(u_tau, (len(u_tau), 1)), ), axis=1, ) np.savetxt("u_tau_val.csv", results, delimiter=",") invar_val = {"u_in": np.reshape(U, (len(U), 1)), "y_in": np.reshape(Y, (len(Y), 1))} outvar_val = {"u_tau_out": np.reshape(u_tau_val, (len(u_tau_val), 1))} # make list of nodes to unroll graph on u_tau_net = instantiate_arch( input_keys=[Key("u_in"), Key("y_in")], output_keys=[Key("u_tau_out")], cfg=cfg.arch.fully_connected, ) nodes = [u_tau_net.make_node(name="u_tau_network")] # make domain domain = Domain() train = PointwiseConstraint.from_numpy( nodes=nodes, invar=invar, outvar=outvar, batch_size=10000, ) domain.add_constraint(train, "LogLawLoss") # add validation validator = PointwiseValidator(nodes=nodes, invar=invar_val, true_outvar=outvar_val) domain.add_validator(validator) # make solver slv = Solver(cfg, domain) # start solver slv.solve() if __name__ == "__main__": run()

The code below shows the definition of custom PDEs. Define separate PDEs for the initialization losses, equation losses and wall function losses. For this, use the initialization strategy that is used for CFD problems discussed here .

Copy
Copied!


# Copyright (c) 2023, NVIDIA CORPORATION & AFFILIATES. All rights reserved. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. """Equations related to Navier Stokes Equations """ from sympy import Symbol, Function, Number, log, Abs, simplify from modulus.sym.eq.pde import PDE from modulus.sym.node import Node class kEpsilonInit(PDE): def __init__(self, nu=1, rho=1): # set params nu = Number(nu) rho = Number(rho) # coordinates x = Symbol("x") y = Symbol("y") # make input variables input_variables = {"x": x, "y": y} # velocity componets u = Function("u")(*input_variables) v = Function("v")(*input_variables) p = Function("p")(*input_variables) k = Function("k")(*input_variables) ep = Function("ep")(*input_variables) # flow initialization C_mu = 0.09 u_avg = 21 # Approx average velocity Re_d = ( u_avg * 1 / nu ) # Reynolds number based on centerline and channel hydraulic dia l = 0.038 * 2 # Approx turbulent length scale I = 0.16 * Re_d ** ( -1 / 8 ) # Turbulent intensity for a fully developed pipe flow u_init = u_avg v_init = 0 p_init = 0 k_init = 1.5 * (u_avg * I) ** 2 ep_init = (C_mu ** (3 / 4)) * (k_init ** (3 / 2)) / l # set equations self.equations = {} self.equations["u_init"] = u - u_init self.equations["v_init"] = v - v_init self.equations["p_init"] = p - p_init self.equations["k_init"] = k - k_init self.equations["ep_init"] = ep - ep_init class kEpsilon(PDE): def __init__(self, nu=1, rho=1): # set params nu = Number(nu) rho = Number(rho) # coordinates x = Symbol("x") y = Symbol("y") # make input variables input_variables = {"x": x, "y": y} # velocity componets u = Function("u")(*input_variables) v = Function("v")(*input_variables) p = Function("p")(*input_variables) k = Function("k")(*input_variables) ep = Function("ep")(*input_variables) # Model constants sig_k = 1.0 sig_ep = 1.3 C_ep1 = 1.44 C_ep2 = 1.92 C_mu = 0.09 E = 9.793 # Turbulent Viscosity nu_t = C_mu * (k**2) / (ep + 1e-4) # Turbulent Production Term P_k = nu_t * ( 2 * (u.diff(x)) ** 2 + 2 * (v.diff(y)) ** 2 + (u.diff(y)) ** 2 + (v.diff(x)) ** 2 + 2 * u.diff(y) * v.diff(x) ) # set equations self.equations = {} self.equations["continuity"] = simplify(u.diff(x) + v.diff(y)) self.equations["momentum_x"] = simplify( u * u.diff(x) + v * u.diff(y) + p.diff(x) - ((nu + nu_t) * u.diff(x)).diff(x) - ((nu + nu_t) * u.diff(y)).diff(y) ) self.equations["momentum_y"] = simplify( u * v.diff(x) + v * v.diff(y) + p.diff(y) - ((nu + nu_t) * v.diff(x)).diff(x) - ((nu + nu_t) * v.diff(y)).diff(y) ) self.equations["k_equation"] = simplify( u * k.diff(x) + v * k.diff(y) - ((nu + nu_t / sig_k) * k.diff(x)).diff(x) - ((nu + nu_t / sig_k) * k.diff(y)).diff(y) - P_k + ep ) self.equations["ep_equation"] = simplify( u * ep.diff(x) + v * ep.diff(y) - ((nu + nu_t / sig_ep) * ep.diff(x)).diff(x) - ((nu + nu_t / sig_ep) * ep.diff(y)).diff(y) - (C_ep1 * P_k - C_ep2 * ep) * ep / (k + 1e-3) ) class kEpsilonStdWF(PDE): def __init__(self, nu=1, rho=1): # set params nu = Number(nu) rho = Number(rho) # coordinates x = Symbol("x") y = Symbol("y") # make input variables input_variables = {"x": x, "y": y} # velocity componets u = Function("u")(*input_variables) v = Function("v")(*input_variables) k = Function("k")(*input_variables) ep = Function("ep")(*input_variables) # normals normal_x = -1 * Symbol( "normal_x" ) # Multiply by -1 to flip the direction of normal normal_y = -1 * Symbol( "normal_y" ) # Multiply by -1 to flip the direction of normal # wall distance normal_distance = Function("normal_distance")(*input_variables) # Model constants C_mu = 0.09 E = 9.793 C_k = -0.36 B_k = 8.15 karman_constant = 0.4187 # Turbulent Viscosity nu_t = C_mu * (k**2) / (ep + 1e-4) u_tau = Function("u_tau")(*input_variables) y_plus = u_tau * normal_distance / nu u_plus = log(Abs(E * y_plus)) / karman_constant ep_true = (C_mu ** (3 / 4)) * (k ** (3 / 2)) / karman_constant / normal_distance u_parallel_to_wall = [ u - (u * normal_x + v * normal_y) * normal_x, v - (u * normal_x + v * normal_y) * normal_y, ] du_parallel_to_wall_dx = [ u.diff(x) - (u.diff(x) * normal_x + v.diff(x) * normal_y) * normal_x, v.diff(x) - (u.diff(x) * normal_x + v.diff(x) * normal_y) * normal_y, ] du_parallel_to_wall_dy = [ u.diff(y) - (u.diff(y) * normal_x + v.diff(y) * normal_y) * normal_x, v.diff(y) - (u.diff(y) * normal_x + v.diff(y) * normal_y) * normal_y, ] du_dsdf = [ du_parallel_to_wall_dx[0] * normal_x + du_parallel_to_wall_dy[0] * normal_y, du_parallel_to_wall_dx[1] * normal_x + du_parallel_to_wall_dy[1] * normal_y, ] wall_shear_stress_true_x = ( u_tau * u_parallel_to_wall[0] * karman_constant / log(Abs(E * y_plus)) ) wall_shear_stress_true_y = ( u_tau * u_parallel_to_wall[1] * karman_constant / log(Abs(E * y_plus)) ) wall_shear_stress_x = (nu + nu_t) * du_dsdf[0] wall_shear_stress_y = (nu + nu_t) * du_dsdf[1] u_normal_to_wall = u * normal_x + v * normal_y u_normal_to_wall_true = 0 u_parallel_to_wall_mag = ( u_parallel_to_wall[0] ** 2 + u_parallel_to_wall[1] ** 2 ) ** 0.5 u_parallel_to_wall_true = u_plus * u_tau # k_normal_gradient = normal_x*k.diff(x) + normal_y*k.diff(y) # k_normal_gradient_true = 0 k_true = u_tau**2 / C_mu**0.5 # set equations self.equations = {} self.equations["velocity_wall_normal_wf"] = ( u_normal_to_wall - u_normal_to_wall_true ) self.equations["velocity_wall_parallel_wf"] = ( u_parallel_to_wall_mag - u_parallel_to_wall_true ) self.equations["k_wf"] = k - k_true self.equations["ep_wf"] = ep - ep_true self.equations["wall_shear_stress_x_wf"] = ( wall_shear_stress_x - wall_shear_stress_true_x ) self.equations["wall_shear_stress_y_wf"] = ( wall_shear_stress_y - wall_shear_stress_true_y )

Custom Aggregator

The aggregator in Modulus Sym combines different loss terms together to form a global loss that is used by the network during optimization. The default behavior of the aggregator is to sum all the weighted losses. However, this example varies which losses are applied in the begining of the model training (initialization losses) and which ones are applied later (equations and wall function relations). For this, a \(tanh\) function is used to smoothly ramp up and ramp down the different losses. The code for the following is shown here:

Copy
Copied!


# Copyright (c) 2023, NVIDIA CORPORATION & AFFILIATES. All rights reserved. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. # Import libraries import torch from torch import nn from typing import Dict, List # Import from Modulus from modulus.sym.eq.derivatives import gradient from modulus.sym.loss.aggregator import Aggregator class CustomSum(Aggregator): """ Loss aggregation by summation """ def __init__(self, params, num_losses, weights=None): super().__init__(params, num_losses, weights) def forward(self, losses: Dict[str, torch.Tensor], step: int) -> torch.Tensor: """ Aggregates the losses by summation Parameters ---------- losses : Dict[str, torch.Tensor] A dictionary of losses step : int Optimizer step Returns ------- loss : torch.Tensor Aggregated loss """ # weigh losses losses = self.weigh_losses(losses, self.weights) # Initialize loss loss: torch.Tensor = torch.zeros_like(self.init_loss) smoothness = 0.0005 # use 0.0005 to smoothen the transition over ~10k steps step_tensor = torch.tensor(step, dtype=torch.float32) decay_weight = (torch.tanh((20000 - step_tensor) * smoothness) + 1.0) * 0.5 # Add losses for key in losses.keys(): if "init" not in key: loss += (1 - decay_weight) * (losses[key]) else: loss += decay_weight * (losses[key]) return loss

The custom aggregator is then called in the config files under the loss config group as shown here:

Copy
Copied!


# Copyright (c) 2023, NVIDIA CORPORATION & AFFILIATES. All rights reserved. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. defaults: - modulus_default - arch: - fourier - fully_connected - optimizer: adam - scheduler: tf_exponential_lr - loss: custom-aggregator - _self_ jit: false scheduler: decay_rate: 0.95 decay_steps: 8000 network_dir: "network_checkpoint" initialization_network_dir: "../u_tau_lookup/network_checkpoint/" save_filetypes: "vtk,npz" cuda_graphs: False optimizer: lr: 1e-4 training: rec_validation_freq: 1000 rec_inference_freq: 1000 rec_monitor_freq: 1000 rec_constraint_freq: 1000 max_steps: 400000 batch_size: wf_pt: 512 interior: 2048 inlet: 256 outlet: 256 interior_init: 2048

Once all the prerequisites are defined, you can start solving the turbulent channel flow. Notice that the config file imports the u_tau_network from a previous tutorial by setting the appropriate initialization directory. Set the optimize parameter for that network to False so that the weights and biases from that network do not change during the training. Also, to setup the periodicity in the domain, create symbolic nodes that transform \(x\) to \(sin(x)\) which will become the input to the neural network.

Copy
Copied!


# Copyright (c) 2023, NVIDIA CORPORATION & AFFILIATES. All rights reserved. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. import torch import numpy as np from sympy import Symbol, Eq, sin, cos, Min, Max, Abs, log, exp import modulus.sym from modulus.sym.hydra import to_absolute_path, instantiate_arch, ModulusConfig from modulus.sym.solver import Solver from modulus.sym.domain import Domain from modulus.sym.geometry.primitives_2d import Rectangle, Line, Channel2D from modulus.sym.utils.sympy.functions import parabola from modulus.sym.utils.io import csv_to_dict from modulus.sym.eq.pdes.navier_stokes import NavierStokes from modulus.sym.domain.constraint import ( PointwiseBoundaryConstraint, PointwiseInteriorConstraint, IntegralBoundaryConstraint, ) from modulus.sym.domain.monitor import PointwiseMonitor from modulus.sym.domain.inferencer import PointwiseInferencer from modulus.sym.key import Key from modulus.sym.node import Node from custom_k_ep import kEpsilonInit, kEpsilon, kEpsilonStdWF @modulus.sym.main(config_path="conf_re590_k_ep", config_name="config") def run(cfg: ModulusConfig) -> None: # simulation parameters Re = 590 nu = 1 / Re y_plus = 30 karman_constant = 0.4187 resolved_y_start = y_plus * nu channel_width = (-1, 1) channel_length = (-np.pi / 2, np.pi / 2) inlet = Line( (channel_length[0], channel_width[0]), (channel_length[0], channel_width[1]), normal=1, ) outlet = Line( (channel_length[1], channel_width[0]), (channel_length[1], channel_width[1]), normal=1, ) geo_sdf = Channel2D( (channel_length[0], channel_width[0]), (channel_length[1], channel_width[1]) ) # geometry where the equations are solved geo_resolved = Channel2D( (channel_length[0], channel_width[0] + resolved_y_start), (channel_length[1], channel_width[1] - resolved_y_start), ) # make list of nodes to unroll graph on init = kEpsilonInit(nu=nu, rho=1.0) eq = kEpsilon(nu=nu, rho=1.0) wf = kEpsilonStdWF(nu=nu, rho=1.0) u_tau_net = instantiate_arch( input_keys=[Key("u_in"), Key("y_in")], output_keys=[Key("u_tau_out")], cfg=cfg.arch.fully_connected, ) flow_net = instantiate_arch( input_keys=[Key("x_sin"), Key("y")], output_keys=[Key("u"), Key("v")], frequencies=("axis", [i / 2 for i in range(8)]), frequencies_params=("axis", [i / 2 for i in range(8)]), cfg=cfg.arch.fourier, ) p_net = instantiate_arch( input_keys=[Key("x"), Key("y")], output_keys=[Key("p")], frequencies=("axis", [i / 2 for i in range(8)]), frequencies_params=("axis", [i / 2 for i in range(8)]), cfg=cfg.arch.fourier, ) k_net = instantiate_arch( input_keys=[Key("x_sin"), Key("y")], output_keys=[Key("k_star")], frequencies=("axis", [i / 2 for i in range(8)]), frequencies_params=("axis", [i / 2 for i in range(8)]), cfg=cfg.arch.fourier, ) ep_net = instantiate_arch( input_keys=[Key("x_sin"), Key("y")], output_keys=[Key("ep_star")], frequencies=("axis", [i / 2 for i in range(8)]), frequencies_params=("axis", [i / 2 for i in range(8)]), cfg=cfg.arch.fourier, ) nodes = ( init.make_nodes() + eq.make_nodes() + wf.make_nodes() + [ Node.from_sympy( sin(2 * np.pi * Symbol("x") / (channel_length[1] - channel_length[0])), "x_sin", ) ] + [Node.from_sympy(Min(log(1 + exp(Symbol("k_star"))) + 1e-4, 20), "k")] + [Node.from_sympy(Min(log(1 + exp(Symbol("ep_star"))) + 1e-4, 180), "ep")] + [flow_net.make_node(name="flow_network")] + [p_net.make_node(name="p_network")] + [k_net.make_node(name="k_network")] + [ep_net.make_node(name="ep_network")] ) nodes_u_tau = ( [Node.from_sympy(Symbol("normal_distance"), "y_in")] + [ Node.from_sympy( ( ( Symbol("u") - ( Symbol("u") * (-Symbol("normal_x")) + Symbol("v") * (-Symbol("normal_y")) ) * (-Symbol("normal_x")) ) ** 2 + ( Symbol("v") - ( Symbol("u") * (-Symbol("normal_x")) + Symbol("v") * (-Symbol("normal_y")) ) * (-Symbol("normal_y")) ) ** 2 ) ** 0.5, "u_parallel_to_wall", ) ] + [Node.from_sympy(Symbol("u_parallel_to_wall"), "u_in")] + [Node.from_sympy(Symbol("u_tau_out"), "u_tau")] + [u_tau_net.make_node(name="u_tau_network", optimize=False)] ) # add constraints to solver p_grad = 1.0 x, y = Symbol("x"), Symbol("y") # make domain domain = Domain() # Point where wall funciton is applied wf_pt = PointwiseBoundaryConstraint( nodes=nodes + nodes_u_tau, geometry=geo_resolved, outvar={ "velocity_wall_normal_wf": 0, "velocity_wall_parallel_wf": 0, "ep_wf": 0, "k_wf": 0, "wall_shear_stress_x_wf": 0, "wall_shear_stress_y_wf": 0, }, lambda_weighting={ "velocity_wall_normal_wf": 100, "velocity_wall_parallel_wf": 100, "ep_wf": 1, "k_wf": 1, "wall_shear_stress_x_wf": 100, "wall_shear_stress_y_wf": 100, }, batch_size=cfg.batch_size.wf_pt, parameterization={"normal_distance": resolved_y_start}, ) domain.add_constraint(wf_pt, "WF") # interior interior = PointwiseInteriorConstraint( nodes=nodes, geometry=geo_resolved, outvar={ "continuity": 0, "momentum_x": 0, "momentum_y": 0, "k_equation": 0, "ep_equation": 0, }, lambda_weighting={ "continuity": 100, "momentum_x": 1000, "momentum_y": 1000, "k_equation": 10, "ep_equation": 1, }, batch_size=cfg.batch_size.interior, bounds={x: channel_length, y: channel_width}, ) domain.add_constraint(interior, "Interior") # pressure pc inlet = PointwiseBoundaryConstraint( nodes=nodes, geometry=inlet, outvar={"p": p_grad * (channel_length[1] - channel_length[0])}, lambda_weighting={"p": 10}, batch_size=cfg.batch_size.inlet, ) domain.add_constraint(inlet, "Inlet") # pressure pc outlet = PointwiseBoundaryConstraint( nodes=nodes, geometry=outlet, outvar={"p": 0}, lambda_weighting={"p": 10}, batch_size=cfg.batch_size.outlet, ) domain.add_constraint(outlet, "Outlet") # flow initialization interior = PointwiseInteriorConstraint( nodes=nodes, geometry=geo_resolved, outvar={"u_init": 0, "v_init": 0, "k_init": 0, "p_init": 0, "ep_init": 0}, batch_size=cfg.batch_size.interior_init, bounds={x: channel_length, y: channel_width}, ) domain.add_constraint(interior, "InteriorInit") # add inferencing and monitor invar_wf_pt = geo_resolved.sample_boundary( 1024, parameterization={"normal_distance": resolved_y_start} ) u_tau_monitor = PointwiseMonitor( invar_wf_pt, output_names=["u_tau"], metrics={"mean_u_tau": lambda var: torch.mean(var["u_tau"])}, nodes=nodes + nodes_u_tau, ) domain.add_monitor(u_tau_monitor) # add inferencer data inference = PointwiseInferencer( nodes=nodes, invar=geo_resolved.sample_interior( 5000, bounds={x: channel_length, y: channel_width} ), output_names=["u", "v", "p", "k", "ep"], ) domain.add_inferencer(inference, "inf_interior") inference = PointwiseInferencer( nodes=nodes + nodes_u_tau, invar=geo_resolved.sample_boundary( 10, parameterization={"normal_distance": resolved_y_start} ), output_names=["u", "v", "p", "k", "ep", "normal_distance", "u_tau"], ) domain.add_inferencer(inference, "inf_wf") # make solver slv = Solver(cfg, domain) # start solver slv.solve() if __name__ == "__main__": run()

The case setup for this problem is very similar to the earlier one, except now that you can avoid training of the lookup network as the \(u_{\tau}\) is explicitly defined using the turbulent kinetic energy. The process to define the custom PDEs is similar as before. The custom PDEs for the Launder Spalding wall functions can be found in examples/turbulent_channel/2d/custom_k_ep_ls.py

Use the same custom aggregator you defined earlier as a similar initialization strategy will work for this problem as well. Once you have the PDEs and the aggregator defined, you can setup the script to solve the problem as shown below. There is no seperate network for the lookup table and the losses at the wall are different from the standard wall function formulation.

Copy
Copied!


# Copyright (c) 2023, NVIDIA CORPORATION & AFFILIATES. All rights reserved. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. import torch import numpy as np from sympy import Symbol, Eq, sin, cos, Min, Max, Abs, log, exp import modulus.sym from modulus.sym.hydra import to_absolute_path, instantiate_arch, ModulusConfig from modulus.sym.solver import Solver from modulus.sym.domain import Domain from modulus.sym.geometry.primitives_2d import Rectangle, Line, Channel2D from modulus.sym.eq.pdes.navier_stokes import NavierStokes from modulus.sym.domain.constraint import ( PointwiseBoundaryConstraint, PointwiseInteriorConstraint, IntegralBoundaryConstraint, ) from modulus.sym.domain.monitor import PointwiseMonitor from modulus.sym.domain.inferencer import PointwiseInferencer from modulus.sym.key import Key from modulus.sym.node import Node from custom_k_ep_ls import kEpsilonInit, kEpsilon, kEpsilonLSWF @modulus.sym.main(config_path="conf_re590_k_ep_LS", config_name="config") def run(cfg: ModulusConfig) -> None: # simulation parameters Re = 590 nu = 1 / Re y_plus = 30 karman_constant = 0.4187 resolved_y_start = y_plus * nu channel_width = (-1, 1) channel_length = (-np.pi / 2, np.pi / 2) inlet = Line( (channel_length[0], channel_width[0]), (channel_length[0], channel_width[1]), normal=1, ) outlet = Line( (channel_length[1], channel_width[0]), (channel_length[1], channel_width[1]), normal=1, ) geo_sdf = Channel2D( (channel_length[0], channel_width[0]), (channel_length[1], channel_width[1]) ) # geometry where the equations are solved geo_resolved = Channel2D( (channel_length[0], channel_width[0] + resolved_y_start), (channel_length[1], channel_width[1] - resolved_y_start), ) # make list of nodes to unroll graph on init = kEpsilonInit(nu=nu, rho=1.0) eq = kEpsilon(nu=nu, rho=1.0) wf = kEpsilonLSWF(nu=nu, rho=1.0) flow_net = instantiate_arch( input_keys=[Key("x_sin"), Key("y")], output_keys=[Key("u"), Key("v")], frequencies=("axis", [i / 2 for i in range(8)]), frequencies_params=("axis", [i / 2 for i in range(8)]), cfg=cfg.arch.fourier, ) p_net = instantiate_arch( input_keys=[Key("x"), Key("y")], output_keys=[Key("p")], frequencies=("axis", [i / 2 for i in range(8)]), frequencies_params=("axis", [i / 2 for i in range(8)]), cfg=cfg.arch.fourier, ) k_net = instantiate_arch( input_keys=[Key("x_sin"), Key("y")], output_keys=[Key("k_star")], frequencies=("axis", [i / 2 for i in range(8)]), frequencies_params=("axis", [i / 2 for i in range(8)]), cfg=cfg.arch.fourier, ) ep_net = instantiate_arch( input_keys=[Key("x_sin"), Key("y")], output_keys=[Key("ep_star")], frequencies=("axis", [i / 2 for i in range(8)]), frequencies_params=("axis", [i / 2 for i in range(8)]), cfg=cfg.arch.fourier, ) nodes = ( init.make_nodes() + eq.make_nodes() + wf.make_nodes() + [ Node.from_sympy( sin(2 * np.pi * Symbol("x") / (channel_length[1] - channel_length[0])), "x_sin", ) ] + [Node.from_sympy(Min(log(1 + exp(Symbol("k_star"))) + 1e-4, 20), "k")] + [Node.from_sympy(Min(log(1 + exp(Symbol("ep_star"))) + 1e-4, 180), "ep")] + [flow_net.make_node(name="flow_network")] + [p_net.make_node(name="p_network")] + [k_net.make_node(name="k_network")] + [ep_net.make_node(name="ep_network")] ) # add constraints to solver p_grad = 1.0 x, y = Symbol("x"), Symbol("y") # make domain domain = Domain() # Point where wall funciton is applied wf_pt = PointwiseBoundaryConstraint( nodes=nodes, geometry=geo_resolved, outvar={ "velocity_wall_normal_wf": 0, "velocity_wall_parallel_wf": 0, "ep_wf": 0, "wall_shear_stress_x_wf": 0, "wall_shear_stress_y_wf": 0, }, lambda_weighting={ "velocity_wall_normal_wf": 100, "velocity_wall_parallel_wf": 100, "ep_wf": 1, "wall_shear_stress_x_wf": 100, "wall_shear_stress_y_wf": 100, }, batch_size=cfg.batch_size.wf_pt, parameterization={"normal_distance": resolved_y_start}, ) domain.add_constraint(wf_pt, "WF") # interior interior = PointwiseInteriorConstraint( nodes=nodes, geometry=geo_resolved, outvar={ "continuity": 0, "momentum_x": 0, "momentum_y": 0, "k_equation": 0, "ep_equation": 0, }, lambda_weighting={ "continuity": 100, "momentum_x": 1000, "momentum_y": 1000, "k_equation": 10, "ep_equation": 1, }, batch_size=cfg.batch_size.interior, bounds={x: channel_length, y: channel_width}, ) domain.add_constraint(interior, "Interior") # pressure pc inlet = PointwiseBoundaryConstraint( nodes=nodes, geometry=inlet, outvar={"p": p_grad * (channel_length[1] - channel_length[0])}, lambda_weighting={"p": 10}, batch_size=cfg.batch_size.inlet, ) domain.add_constraint(inlet, "Inlet") # pressure pc outlet = PointwiseBoundaryConstraint( nodes=nodes, geometry=outlet, outvar={"p": 0}, lambda_weighting={"p": 10}, batch_size=cfg.batch_size.outlet, ) domain.add_constraint(outlet, "Outlet") # flow initialization interior = PointwiseInteriorConstraint( nodes=nodes, geometry=geo_resolved, outvar={"u_init": 0, "v_init": 0, "k_init": 0, "p_init": 0, "ep_init": 0}, batch_size=cfg.batch_size.interior_init, bounds={x: channel_length, y: channel_width}, ) domain.add_constraint(interior, "InteriorInit") # add inferencing and monitor invar_wf_pt = geo_resolved.sample_boundary( 1024, ) u_tau_monitor = PointwiseMonitor( invar_wf_pt, output_names=["k"], metrics={ "mean_u_tau": lambda var: torch.mean((0.09**0.25) * torch.sqrt(var["k"])) }, nodes=nodes, ) domain.add_monitor(u_tau_monitor) # add inferencer data inference = PointwiseInferencer( nodes=nodes, invar=geo_resolved.sample_interior( 5000, bounds={x: channel_length, y: channel_width} ), output_names=["u", "v", "p", "k", "ep"], ) domain.add_inferencer(inference, "inf_interior") inference = PointwiseInferencer( nodes=nodes, invar=geo_resolved.sample_boundary( 10, parameterization={"normal_distance": resolved_y_start} ), output_names=["u", "v", "p", "k", "ep", "normal_distance"], ) domain.add_inferencer(inference, "inf_wf") # make solver slv = Solver(cfg, domain) # start solver slv.solve() if __name__ == "__main__": run()

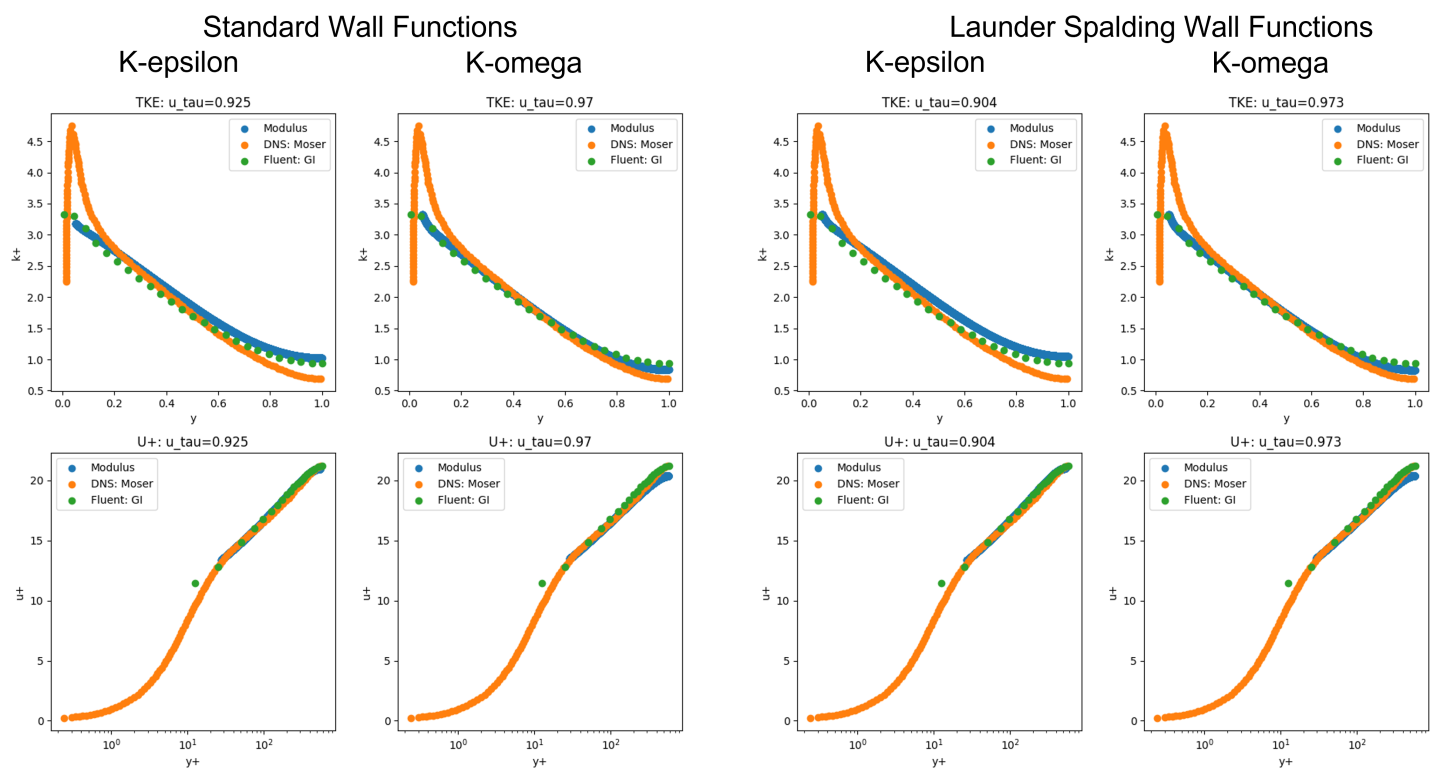

The Modulus Sym results are shown in the figure below along with the DNS data 3 and Solver data 5. Observe that the the nondimensionalized velocity and turbulent kinetic energy profiles match very well with the DNS and solver data. Also, the k-omega models are able to predict the friction velocity with better accuracy when compared to the k-epsilon models.


Fig. 136 Turbulent channel flow results

The scripts for generating the plots shown above as well as the scripts for k-omega models can be found the the examples directory at examples/turbulent_channel/.
