NVIDIA DOCA File Compression Application Guide
This document provides a file compression implementation on top of the NVIDIA® BlueField® DPU.
The file compression application exhibits how to use the DOCA Compress API to compress and decompress data using hardware acceleration as well as sending and receiving it using the DOCA Comm Channel API.
The application's logic includes both a client and a server:
Client side – the application opens a file, compresses it, and sends the checksum of the source file with the compressed data to the server
Server side – the application saves the received file in a buffer, decompresses it, and compares the received checksum with the calculated one

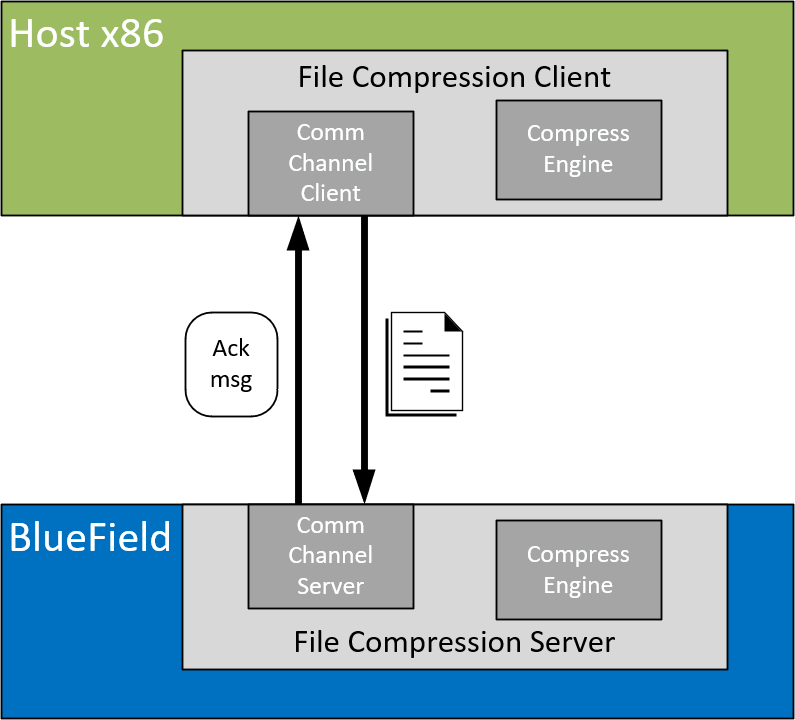

The file compression application client runs on the host and the server runs on the DPU.
![sys-design-version-1-modificationdate-1702685108777-api-v2.png](https://docscontent.nvidia.com/dims4/default/3761a49/2147483647/strip/true/crop/795x720+0+0/resize/795x720!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018f-5536-d441-a9ff-d73ef46d0000%2Fdoca%2Farchive%2F2.6.0%2Fimages%2Fdownload%2Fattachments%2F2448900899%2Fsys-design-version-1-modificationdate-1702685108777-api-v2.png)

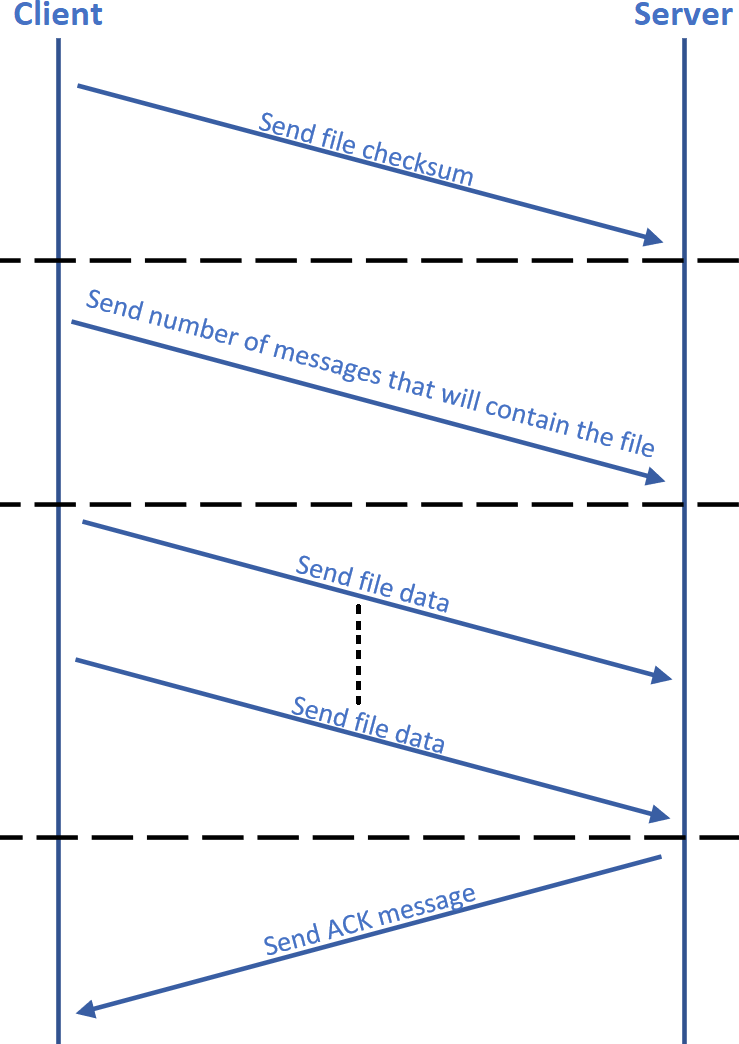

The file compression application runs on top of the DOCA Comm Channel API to send and receive the file from the host and to the DPU.
![app-arch-version-1-modificationdate-1702685107750-api-v2.png](https://docscontent.nvidia.com/dims4/default/0a9a5e2/2147483647/strip/true/crop/739x1044+0+0/resize/739x1044!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018f-5536-d441-a9ff-d73ef46d0000%2Fdoca%2Farchive%2F2.6.0%2Fimages%2Fdownload%2Fattachments%2F2448900899%2Fapp-arch-version-1-modificationdate-1702685107750-api-v2.png)
Connection is established on both sides by DOCA Comm Channel API.
Client compresses the data:
When compress engine is available – submits compress job with DOCA Compress API and sends the result to the server
When compress engine is unavailable – compresses the data in software
Client sends the number of messages needed to send the compressed content of the file.
Client sends data segments in size of up to 4080 bytes.
Server saves the received data in a buffer and submits a decompress job.
Server sends an ACK message to the client when all parts of the file are received successfully.
Server compares the received checksum to the calculated checksum.
Server writes the decompressed data to an output file.
This application leverages the following DOCA libraries:
Refer to their respective programming guide for more information.
Installation
Refer to the NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software.
Application Execution
The file compression application is provided in both source and binary forms. The binary is located under /opt/mellanox/doca/applications/file_compression/bin/doca_file_compression.
Application usage instructions:
Usage: doca_file_compression [DOCA Flags] [Program Flags] DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the (numeric) log level
for
the program <10
=DISABLE,20
=CRITICAL,30
=ERROR,40
=WARNING,50
=INFO,60
=DEBUG,70
=TRACE> --sdk-log-level Set the SDK (numeric) log levelfor
the program <10
=DISABLE,20
=CRITICAL,30
=ERROR,40
=WARNING,50
=INFO,60
=DEBUG,70
=TRACE> -j, --json <path> Parse all command flags from an input json file Program Flags: -p, --pci-addr DOCA Comm Channel device PCI address -r, --rep-pci DOCA Comm Channel device representor PCI address -f, --file File to send by the client / File to write by the server -t, --timeout Application timeoutfor
receiving file content messages,default
is5
secInfoThis usage printout can be printed to the command line using th e -h (or --help) options:
/opt/mellanox/doca/applications/file_compression/bin/doca_file_compression -h
InfoFor additional information, refer to section "Command Line Flags".
CLI example for running the application on BlueField:
/opt/mellanox/doca/applications/file_compression/bin/doca_file_compression -p
03
:00.0
-r 3b:00.0
-f received.txtNoteBoth the DOCA Comm Channel device PCIe address (03:00.0) and the DOCA Comm Channel device representor PCIe address (3b:00.0) should match the addresses of the desired PCIe devices.
CLI example for running the application on the host:
/opt/mellanox/doca/applications/file_compression/bin/doca_file_compression -p 3b:
00.0
-f send.txtNoteThe DOCA Comm Channel device PCIe address (3b:00.0) should match the address of the desired PCIe device.
The application also supports a JSON-based deployment mode, in which all command-line arguments are provided through a JSON file:
doca_file_compression --json [json_file]
For example:
cd /opt/mellanox/doca/applications/file_compression/bin ./doca_file_compression --json ./file_compression_params.json
NoteBefore execution, ensure that the used JSON file contains the correct configuration parameters, and especially the PCIe addresses necessary for the deployment.
Command Line Flags
Flag Type |
Short Flag |
Long Flag/JSON Key |
Description |
JSON Content |
General flags |
h |
help |
Prints a help synopsis |
N/A |
v |
version |
Prints program version information |
N/A |
|
l |
log-level |
Set the log level for the application:
|
|
|
N/A |
sdk-log-level |
Sets the log level for the program:
|
|
|
j |
json |
Parse all command flags from an input JSON file |
N/A |
|
Program flags |
f |
file |
For client – path to the file to be sent For server – path to write the file into Note
This is a mandatory flag.
|
|
p |
pci-addr |
Comm Channel DOCA device PCIe address Note
This is a mandatory flag.
|
|
|
r |
rep-pci |
Comm Channel DOCA device representor PCIe address Note
This flag is mandatory only on the DPU.
|
|
Refer to DOCA Arg Parser for more information regarding the supported flags and execution modes.
Troubleshooting
Refer to the NVIDIA DOCA Troubleshooting Guide for any issue encountered with the installation or execution of the DOCA applications.
The sources of the application can be found under the /opt/mellanox/doca/applications/file_compression/src directory.
Recompiling All Applications
The applications are all defined under a single meson project, so the default compilation recompiles all the DOCA applications.
To build all the applications together, run:
cd /opt/mellanox/doca/applications/
meson /tmp/build
ninja -C /tmp/build
doca_file_compression is created under /tmp/build/file_compression/src/.
Recompiling File Compression Application Only
To directly build only the f ile compression application:
cd /opt/mellanox/doca/applications/
meson /tmp/build -Denable_all_applications=false
-Denable_file_compression=true
ninja -C /tmp/build
doca_file_compression is created under /tmp/build/file_compression/src/.
Alternatively, the user may set the desired flags in the meson_options.txt file instead of providing them in the compilation command line:
Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:
Set enable_all_applications to false
Set enable_file_compression to true
Run the following compilation commands :
cd /opt/mellanox/doca/applications/ meson /tmp/build ninja -C /tmp/build
Infodoca_file_compression is created under /tmp/build/file_compression/src/.
Troubleshooting
Refer to the NVIDIA DOCA Troubleshooting Guide for any issue encountered with the compilation of the application.
Parse application argument.
Initialize arg parser resources and register DOCA general parameters.
doca_argp_init();
Register file compression application parameters.
register_file_compression_params();
Parse the arguments.
doca_argp_start();
Parse app parameters.
Set endpoint attributes.
set_endpoint_properties();
Set maximum message size of 4080 bytes.
Set maximum number of messages allowed.
Create comm channel endpoint.
doca_comm_channel_ep_create();
Create endpoint for client/server.
Run client/server main logic.
file_compression_client/server();
Clean up the file compression application.
file_compression_cleanup();
Free all application resources.
Arg parser destroy.
doca_argp_destroy()
/opt/mellanox/doca/applications/file_compression/src
/opt/mellanox/doca/applications/file_compression/bin/file_compression_params.json
