NVIDIA DOCA DPA GDB Server Tool

This document describes the DPA GDB Server tool.

Info

The DPA GDB Server Tool is currently supported at beta level.

Info

The DPA GDB Server Tool is unsupported for non-crypto-enabled SKUs.

The DPA GDB Server tool (dpa-gdbserver) enables debugging FlexIO DEV programs.

DEV programs for debugging are selected using a token (8-byte value) provided by the FlexIO process owner.

Info

Any GDB, familiar with RISC-V architecture, can be used for the debug. Refer to this page for information how to work with GDB.

Glossary

Term

Description

PUD

Process under debug. DEV-side processes intended for debug.

EU

Execution unit (similar to hardware CPU core)

DPA

Data path accelerator

RPC

Remote process communication. Mechanism used in FlexIO to run DEV-side code instantly. Runtime is limited to 3 seconds.

HOST

x86 or aarch64 Linux OS which manages dev-side code (i.e., DEV)

DEV

RISC-V code, loaded by HOST into the DPA's device. Triggered to run by different types of interrupts. DEV side is directly connected to ConnectX adapter card.

GDB

GNU Project debugger. Allows users to monitor another program while it executes.

GDBSERVER

Tool for remote debug programs

RTOS

Real-time operation system running on RISC-V core. Manages handling of interrupts and calls to DEV user processes routines.

RSP

Remote serial protocol. Used for interaction between GDB and GDBSERVER.


Known Limitations

  • DPA GDB technology does not catch fatal errors. Therefore, if a fatal error occurs, core dump (created by flexio_coredump_create()) should be used.

  • DPA GDB technology does not support Outbox access. GDB users cannot write to Doorbell or to Window configuration areas.

  • DPA GDB technology does not support Window access. Read/write to Window memory does not work properly.

  • The host part of the DPA application has no way of knowing whether the PUD is halted by the debugger. This makes tracing the code impossible when execution time is limited by the HOST (e.g., RPC code).

Token

The process under debug (PUD) can expose a debugging token. Every external process, using this token, get full access to the process with given token. To not show it constantly (e.g., for security reasons), users can modify their host application temporary. See flexio_process_udbg_token_get().

Connection on Application Launch

If the code which needs debugging begins to run immediately after launch, the user should modify the host application to stop upon start to give the user time to run dpa-gdbserver. One possible way of doing this is to place function getchar() immediately after process creation.

DEV-HOST Synchronization

Stopping DEV can cause synchronization issues between the DEV and HOST-side applications. This is developer responsibility to fix. For example, generally, users cannot debug RPC call with GDB, because RPC routine execution is limited to 3 seconds. After the 3 seconds, the HOST application reports an error and force-closes the DEV-side code.

Dummy Thread Concept

Something to consider with DPA debugging is that a PUD does not have a running thread all time (e.g., the process's thread may exist but be waiting for incoming packets). In a regular Linux application, this scenario is not possible and GDB does not support such cases.

Therefore, when no thread is running, dpa-gdbserver reports a dummy thread:

gdb

Copy
Copied!


(gdb) info thread   Id   Target Id                                Frame * 1    Thread 1.805378433 (Dummy Flexio thread) 0x0800000000000000 in ?? () (gdb)

In this case user can inspect memory, create breakpoints, and give the continue command.

Commands like step, next, and stepi can not be executed for the Dummy thread.

Watchdog Issues

The RTOS has a watchdog timer that limits DEV code interrupt processes to 120 seconds. This timer is stopped when the user connects to DEV with GDB. Therefore users will have no time limitation for debugging.

By default, dpa-gdbserver uses TCP port 1981 and runs on EU 29. If this conflicts with another application (or if other instances of dpa-gdbserver are running), users can change the defaults as follows:

Bash

Copy
Copied!


$> dpa-gdbserver mlx5_0 -T <token> -s <port> -E <eu_id>

Preparation for Debug

Modify your FlexIO application if needed. Make sure the HOST code prints udbg_token and waits for GDB connection if needed:

C code. Host side. diff

Copy
Copied!


+ uint64_t udbg_token;   flexio_process_create(..., &flexio_process);   + udbg_token = flexio_process_udbg_token_get(flexio_process); + if (udbg_token) + printf("Process created. Use token >>> %#lx <<< for debug\n", udbg_token);   + printf("Stop point for waiting of GDB connection. Press Enter to continue..."); /* Usually you don't need this stop point */ + fflush(stdout); + getchar();

Extract the DPA application from the FlexIO application. For example:

Bash

Copy
Copied!


$> dpacc-extract cc-host/app/host/flexio_app_name -o flexio_app_name.rv5


Start Debugging

  1. Run your FlexIO application. It should expose the debug token:

    Bash

    Copy
    Copied!


    $> flexio_app_name mlx5_0 Process created. Use token >>> 0xd6278388ce4e682c <<< for debug

  2. Run dpa-gdbserver with the debug token received:

    Bash

    Copy
    Copied!


    $> dpa-gdbserver mlx5_0 -T 0xd6278388ce4e682c Registered on device mlx5_0 Listening for GDB connection on port 1981

  3. Run any GDB with RISC-V support. For example, gdb-multiarch:

    Bash

    Copy
    Copied!


    $> gdb-multiarch -q flexio_app_name.rv5 Reading symbols from flexio_app_name.rv5... (gdb)

  4. Connect to the gdbserver using proper TCP port and hostname, if needed:

    gdb

    Copy
    Copied!


    (gdb) target remote :1981 Remote debugging using :1981 0x0800000000000000 in ?? ()

DPA-specific Debugging Techniques

Easy Example of Transitioning from Dummy to Real Thread

Transitioning between the dummy thread and a real thread is not standard practice for debugging under GDB. In an ideal situation, the user would know exactly the entry points for all their routines and can set breakpoints for all of them. Then the user may run the continue command:

gdb

Copy
Copied!


(gdb) target remote :1981 Remote debugging using :1981 0x0800000000000000 in ?? () (gdb) info threads Id Target Id Frame * 1 Thread 1.805378433 (Dummy Flexio thread) 0x0800000000000000 in ?? () (gdb) b foo Breakpoint 1 at 0x400000b2: file ../tests/path/hello.c, line 58. (gdb) b bar Breakpoint 2 at 0x40000518: file ../tests/path/hallo.c, line 113. (gdb) continue Continuing.

Initiate interrupts for your DEV program (depends your task), and GDB should catch a breakpoint and now the real thread of the PUD appear instead of the dummy:

gdb

Copy
Copied!


(gdb) continue Continuing. (gdb) [New Thread 1.2] [New Thread 1.130] [New Thread 1.258] [New Thread 1.386] [Switching to Thread 1.2]   Thread 2 hit Breakpoint 1, foo(thread_arg=9008) at ../tests/path/hello.c:58 58 struct host_data *hdata = NULL; (gdb) info threads Id Target Id Frame * 2 Thread 1.2 (Process 0 thread 0x1 GVMI 0) foo (arg=9008) at ../tests/path/hello.c:58 3 Thread 1.130 (Process 0 thread 0x81 GVMI 0) foo (arg=9264) at ../tests/path/hello.c:58 4 Thread 1.258 (Process 0 thread 0x101 GVMI 0) foo (arg=9648) at ../tests/path/hello.c:58 5 Thread 1.386 (Process 0 thread 0x181 GVMI 0) foo (arg=9904) at ../tests/path/hello.c:58 (gdb)

From this point, you may examine memory and trace your code as usual.

Complicated Example of Transitioning from Dummy to Real Thread

In a more complicated situation, the interrupt happens after GDB connection. In this case, the real thread should start running but cannot because the PUD is in HALT state. The user can type the command info threads, see new thread instead of the old dummy, and then switch to the new thread manually:

gdb

Copy
Copied!


(gdb) target remote :1981 Remote debugging using :1981 0x0800000000000000 in ?? () (gdb) info threads Id Target Id Frame * 1 Thread 1.805378433 (Dummy Flexio thread) 0x0800000000000000 in ?? () (gdb) info threads [New Thread 1.32769] Id Target Id Frame 2 Thread 1.32769 (Process 0 thread 0x8000 GVMI 0) bar (arg=0xc0, len=0) at /path/lib/src/stub.c:167   The current thread <Thread ID 1> has terminated. See `help thread'. (gdb) thread 2 [Switching to thread 2 (Thread 1.32769)] #0 bar (arg=0xc0, len=0) at /path/lib/src/stub.c:167 167 { (gdb) bt #0 bar (arg=0xc0, len=0) at /path/lib/src/stub.c:167 #1 0x000000004000017a in foo (thread_arg=3221) at ../path/dev/hello.c:182 #2 0x0000000000000000 in ?? () Backtrace stopped: frame did not save the PC (gdb)

Note

The same command info threads in lines 4 and 7 gives different results. This happens because the interrupt occurs between the instances and the real code begins to run.

The user must switch to the new thread manually (see line 14). After this, they can trace/debug the flow as usual (i.e., using the commands step, next, stepi).

Finishing Real Thread without Finishing PUD

Every interrupt handler at some point finishes its way and returns the CPU resources to RTOS. The most common way to do this is to call function flexio_dev_thread_reschedule(). The command next on this function will have the same effect as the command continue:

gdb

Copy
Copied!


205 __dpa_thread_fence(__DPA_MEMORY, __DPA_W, __DPA_W); (gdb) next 206 flexio_dev_cq_arm(dtctx, app_ctx.rq_cq_ctx.cq_idx, app_ctx.rq_cq_ctx.cq_number); (gdb) next 208 if ((dev_errno = flexio_dev_get_and_rst_errno(dtctx))) { (gdb) next 213 print_sim_str("Nothing to do. Wait for next duar\n", 0); (gdb) next 214 flexio_dev_thread_reschedule(); (gdb) next

Info

GDB waits until the user types ^C or a breakpoint is reached after the next interrupt occurred.


Debug RPC Calls

The RPC routine is called from the HOST application. Host limits execution time to 3 seconds. This time frame is too short for user to set breakpoints and debug. Usually RPC calls do not implement complicated logic but rather used for configuration purposes. Therefore two ways of debugging RPC routines:

  1. Use flexio_dev_print() function, if you are not sure in correct logic implementation.

  2. Stop HOST application before and after RPC call and inform user. At those stop points user can halt PUD and examine memory before and after RPC call. This way user can examine changes, done by RPC routine in memory (usually - in global context data).

C code. HOST side.

Copy
Copied!


+ printf("Stop point 1 BEFORE RPC call. Press Enter to continue..."); + fflush(stdout); + getchar(); flexio_process_call(process, &rpc_cb, &rpc_ret, arg_daddr); + printf("Stop point 2 AFTER RPC call. Press Enter to continue..."); + fflush(stdout); + getchar();

You should remember, that on trace point 1 and 2 users can type ^C to examine memory (global context). But before pressing Enter, users should give the command continue from the gdb console. Otherwise, the HOST application terminates execution and destroys the process by timeout.

Info

The DPA GDB server tool has been validated with gdb-multiarch (version 9.2) and with GDB version 12.1 from RISC-V tool chain.

Note

The GDB server should support all commands described in GDB RSP (remote serial protocol) for GDB stubs. But in reality, only well-known GDB commands are supported.

In case of dpa-gdbserver bug, please provide the following data:

  • Used GDB (name and version)

  • Commands sequence to reproduce the issue

  • DPA GDB server tool console output

  • DPA GDB server tool log directory content (see next part for details)

  • Optional – output data printed when dpa-gdbserver is run in verbose mode

Tool Log Directory

For every run, a temporary directory is created with the template /tmp/flexio_gdbs.XXXXXX.

To locate the latest one, run the following command:

Bash

Copy
Copied!


$> ls -ldtr /tmp/flexio_gdbs.* | tail


Verbosity Level of gdbserver

By default, dpa-gdbserver does not print any log information to screen. Adding - v option to command line increases verbosity level, printing additional info to dpa-gdbserver terminal display. Verbosity level is incremented according to number of 'v' in command line switch (i.e. -vv, -vvv etc.).

One -v shows the RSP exchange. This is a textual protocol, so users can read and understand requests from GDB and answers from the GDB server:

gdbserver.log -v

Copy
Copied!


<<<<< "qTStatus" >>>>> "" <<<<< "?" >>>>> "S05" <<<<< "qfThreadInfo" >>>>> "mp01.30011981" <<<<< "qsThreadInfo" >>>>> "l" <<<<< "qAttached:1" >>>>> "1" <<<<< "Hc-1" >>>>> "OK" <<<<< "qC" >>>>> "QCp01.30011981"

Info

In the examples, <<<<< and >>>>> are used to indicate data received from GDB and transmitted to GDB, respectively.

When running with a higher verbosity level (e.g., run dpa-gdbserver with option -vv or higher), the exchange with the RTOS module is shown:

gdbserver.log -vv

Copy
Copied!


<<<<< "qfThreadInfo" / 2/dgdbs_handler - cmd 0x5 / 2/dgdbs_handler - retval 0x4 >>>>> "mp01.30011981" <<<<< "qsThreadInfo" / 2/dgdbs_handler - cmd 0x5 / 2/dgdbs_handler - retval 0x5 >>>>> "l" <<<<< "m800000000000000,4" / 2/dgdbs_handler - cmd 0xc / 2/dgdbs_handler - retval 0x9 >>>>> "E0a" <<<<< "m7fffffffffffffc,4" / 2/dgdbs_handler - cmd 0xc / 2/dgdbs_handler - retval 0x9 >>>>> "E0a" <<<<< "qSymbol::" >>>>> "OK"

Info

Lines beginning with / #/ provide the number of internal RTOS threads printed from the DEV side.


This section provides useful information about commands and methods which can help users when performing DPA debug. This is not related to the dpa-gdbserver itself. But this is about remote debugging and FlexIO sources.

Command "directory"

GDB can run on a different host from the one where compilation was done. For example, users may have compiled and run their application on host1 and run their instance of GDB on host2. In this case, users will see the error message ../xxx/yyy/zzz/your_file.c: No such file or directory. To solve this problem, copy sources to the host running GDB (host2 in the example). Make sure to save the original code hierarchy. Use GDB command directory to inform where the sources are to GDB:

gdb on host2

Copy
Copied!


host2~$> gdb-multiarch -q /tmp/my_riscv.elf Reading symbols from /tmp/my_riscv.elf... (gdb) b foo Breakpoint 1 at 0x4000016c: file ../xxx/yyy/zzz/my_file.c, line 182. (gdb) target remote host1:1981 Remote debugging using host1:1981 0x0800000000000000 in ?? () (gdb) c Continuing. [New Thread 1.32769] [Switching to Thread 1.32769]   Thread 2 hit Breakpoint 1, foo (thread_arg=5728) at ../xxx/yyy/zzz/my_file.c:182 182 ../xxx/yyy/zzz/my_file.c: No such file or directory. (gdb) directory /tmp/apps/ Source directories searched: /tmp/apps:$cdir:$cwd (gdb) list 179 struct flexio_dev_thread_ctx *dtctx; 180 uint64_t dev_errno; 181 182 print_sim_str("=====> NET event handler started\n", 0); 183 184 flexio_dev_print("Hello GDB user\n"); 185

Note

Pay attention to the exact path reported by GDB. The argument for the command directory should point to the start point for this path. For example, if GDB looks for ../xxx/yyy/zzz and you placed the sources in local directory /tmp/copy_of_worktree, then the command should be (gdb) directory /tmp/copy_of_worktree/xxx/ and not (gdb) directory /tmp/copy_of_worktree/.

Sometimes, the *.elf file provides a global path from the root. In this case, use the command set substitute-path <from> <to>. For example, if the file /foo/bar/baz.c was moved to /mnt/cross/baz.c, then the command (gdb) set substitute-path /foo/bar /mnt/cross instructs GDB to replace /foo/bar with /mnt/cross, which allows GDB to find the file baz.c even though it was moved.

See this page of GDB documentation for more examples of specifying source directories.

Core Dump Usage

If the code runs into a fatal error even though the host side of your project is implemented correctly, a core dump is saved which allows analyzing the core. It should point exactly to where the fatal error occurred. The command backtrace can be used to examine the memory and its registers. Change the frame to see local variables of every function on the backtrace list:

gdb

Copy
Copied!


$> gdb-multiarch -q -c crash_demo.558184.core /tmp/my_riscv.elf Reading symbols from /tmp/my_riscv.elf...   [New LWP 1] #0 0x000000004000126e in read_test (line=153, ptr=0x30) at /xxx/yyy/zzz/my_file.c:109 109 val = *(volatile uint64_t *)ptr; (gdb) bt #0 0x000000004000126e in read_test (line=153, ptr=0x30) at /xxx/yyy/zzz/my_file.c:109 #1 0x000000004000031a in tlb_miss_test (op_code=1) at /xxx/yyy/zzz/my_file.c:153 #2 0x0000000040000144 in test_thread_err_events_entry_point (h2d_daddr=3221258560) at /xxx/yyy/zzz/my_file.c:588 #3 0x00000000400013fc in _dpacc_flexio_dev_arg_unpack_test_err_events_dev_test_thread_err_events_entry_point (argbuf=0xc0008228, func=0x400000b0 <test_thread_err_events_entry_point>) at /tmp/dpacc_xExkvE/test_err_events_dev.dpa.device.c:67 #4 0x0000000040001680 in flexio_hw_rpc (host_arg=3221258752) at /local_home/www/flexio-sdk/libflexio-dev/src/flexio_dev_entry_point.c:75 #5 0x0000000000000000 in ?? () Backtrace stopped: frame did not save the PC (gdb) frame 4 #4 0x0000000040001680 in flexio_hw_rpc (host_arg=3221258752) at /local_home/igorle/flexio-sdk/libflexio-dev/src/flexio_dev_entry_point.c:75 75 retval = unpack_cb(&data_from_host->func_params.arg_buf, (gdb) p /x *data_from_host $2 = {poll_lkey = 0x1ff2b1, window_id = 0x3, poll_haddr = 0x55dc0f40b900, entry_point = 0x400013d8, func_params = {func_wo_pack = 0x0, dev_func_entry = 0x400000b0, arg_buf = 0xc0008140}} (gdb)


Debug of Optimized Code

Usually highly optimized code is compiled and run.

Two types of mistakes in code can be considered:

  • Logical errors

  • Optimization-related errors

Logical errors (e.g., using & instead of &&) are reproduced on the non-optimized version of the code. Optimization related errors (e.g., forgetting volatile classification, non-usage of memory barriers) only impact optimization. Non-optimized code is much easier for tracing with GDB, because every C instruction is translated directly to assembly code.

It is good practice to check if an issue can be reproduced on non-optimized code. That helps observing the application flow:

Bash

Copy
Copied!


$> build.sh -O 0

For tracing this code, using GDB commands next and step should be sufficient.

But if an issue can only be reproduced on on optimized code, you should start debugging it. This would require reading disassembly code and using the GDB command stepi because it becomes a challenge to understand exactly which C-code line executed.

Disassembly of Advanced RISC-V Commands

DPA core runs on a RISC-V CPU with an extended instruction set. The GDB may not be familiar with some of those instructions. Therefore, asm view mode shows numbers instead of disassembly. In this case it is recommended to disassemble your RISC-V binary code manually. Use the dpa-objdump utility with the additional option --mcpu=nv-dpa-bf3.

bash

Copy
Copied!


$> dpa-objdump -sSdxl --mcpu=nv-dpa-bf3 my_riscv.elf > my_riscv.asm

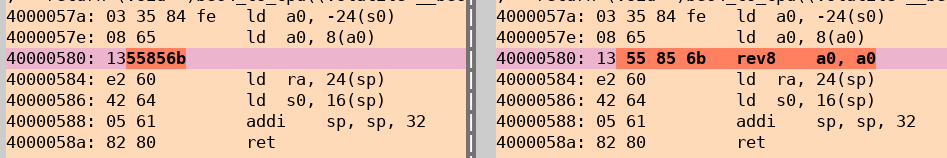

The following screenshot shows the difference:
