NVIDIA DOCA IPsec Security Gateway Application Guide

This document provides an IPsec security gateway implementation on top of NVIDIA® BlueField® DPU.

Note

If your target application utilizes 100Gb/s or higher bandwidth, where a substantial part of the bandwidth is allocated for IPsec traffic, please refer to the NVIDIA BlueField-2 DPUs Product Release Notes to learn about a potential bandwidth limitation. To access the relevant product release notes, please contact your NVIDIA sales representative.

Note

DOCA IPsec Security Gateway is supported at alpha level.

DOCA IPsec Security Gateway leverages the DPU's hardware capability for secure network communication. The application demonstrates how to insert rules related to IPsec encryption and decryption based on the DOCA Flow and DOCA IPsec libraries.

The application demonstrates how to insert rules to create an IPsec tunnel.

Note

An example for configuring the Internet Key Exchange (IKE) can be found under section "Keying Daemon Integration (StrongSwan)" but is not considered part of the application.

The application can be configured to receive IPsec rules in one of the following ways:

  • Static configuration – (default) receives a fixed list of rules for IPsec encryption and decryption

    Note

    When creating the security association (SA) object, the application gets the key, salt, and other SA attributes from the JSON input file.

  • Dynamic configuration – receives IPsec encryption and decryption rules during runtime through a Unix domain socket (UDS) which is enabled when providing a socket path to the application

    Note

    You may find an example of integrating a rules generator with the application under strongSwan project (DOCA plugin).

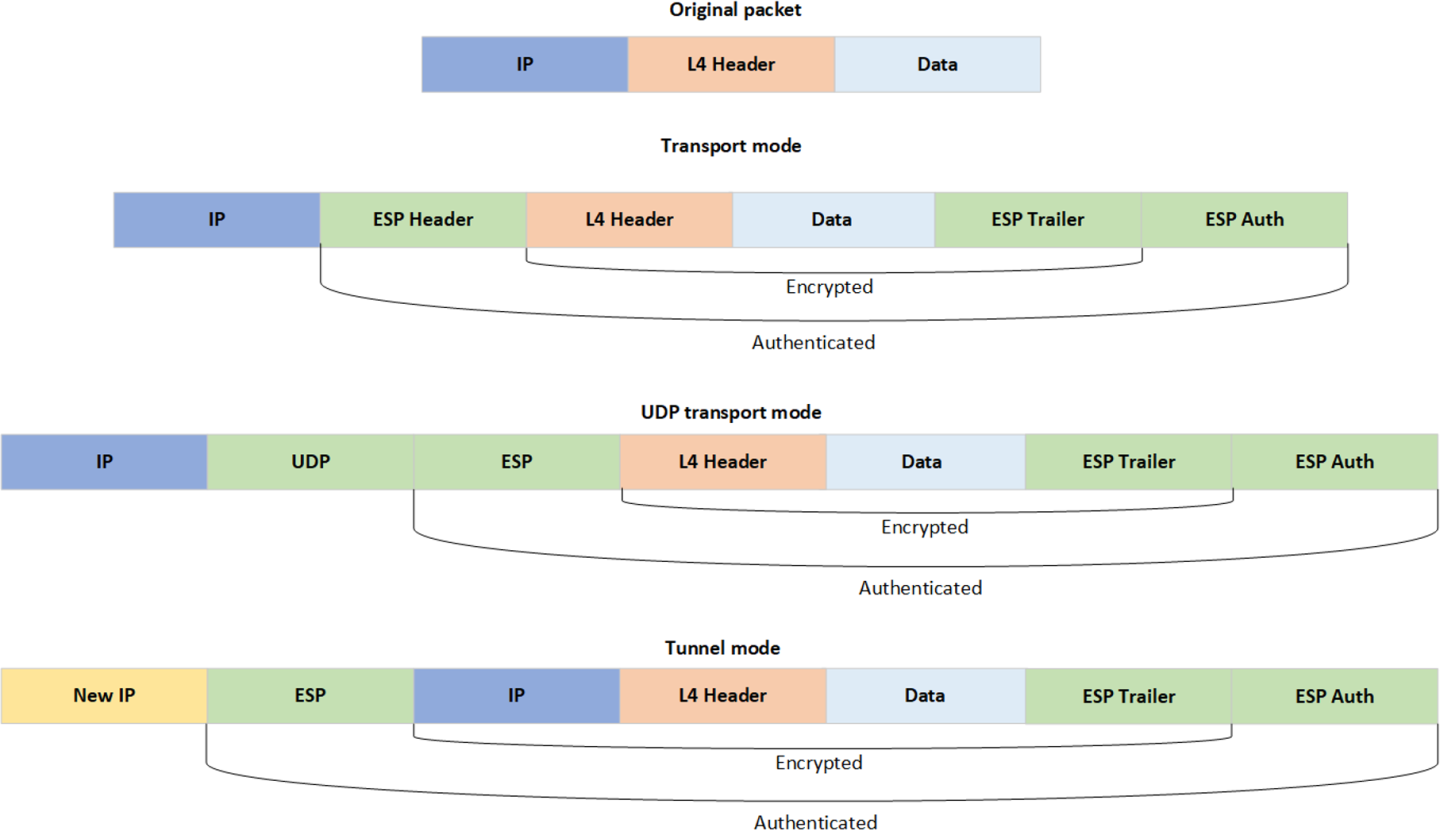

The application supports the following IPsec modes: Tunnel, transport, UDP transport.

ipsec-mode-diagrams-with-encryption-version-1-modificationdate-1705588117693-api-v2.png

DOCA IPsec Security Gateway is designed to run with 2 ports, secured and unsecured:

  • Secured port – BlueField receives IPsec encrypted packets and, after decryption, they are sent through the unsecured port

  • Unsecured port – BlueField receives regular (plain text) packets and, after encryption, they are sent through the secured port

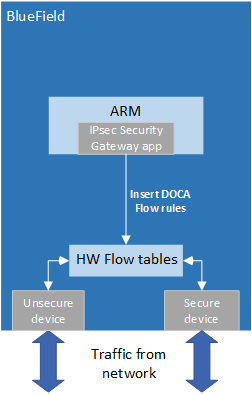

Example packet path for hardware (HW) offloading:

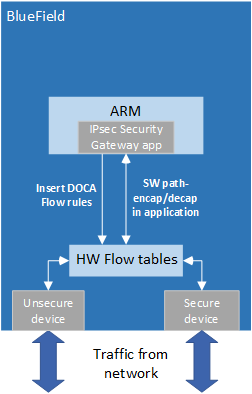

Example packet path for partial software processing (handling encap/decap in software):

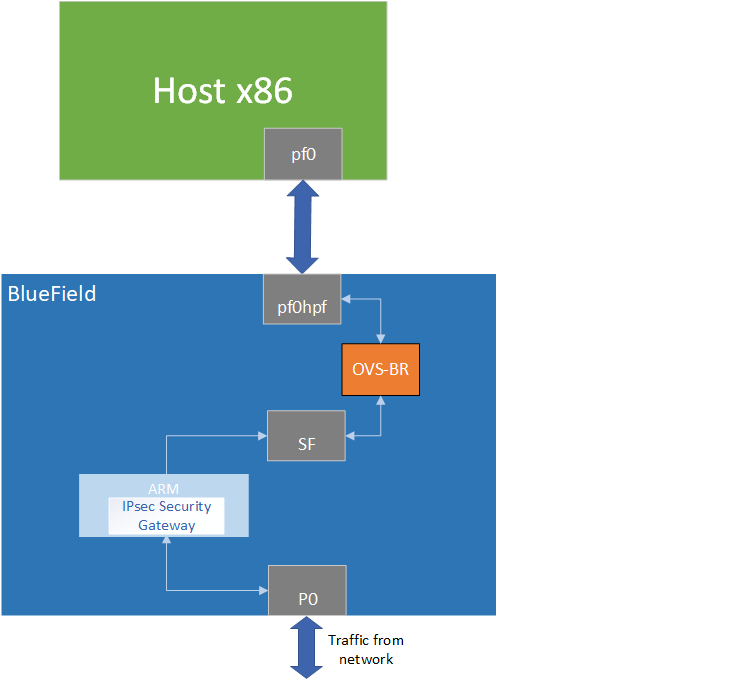

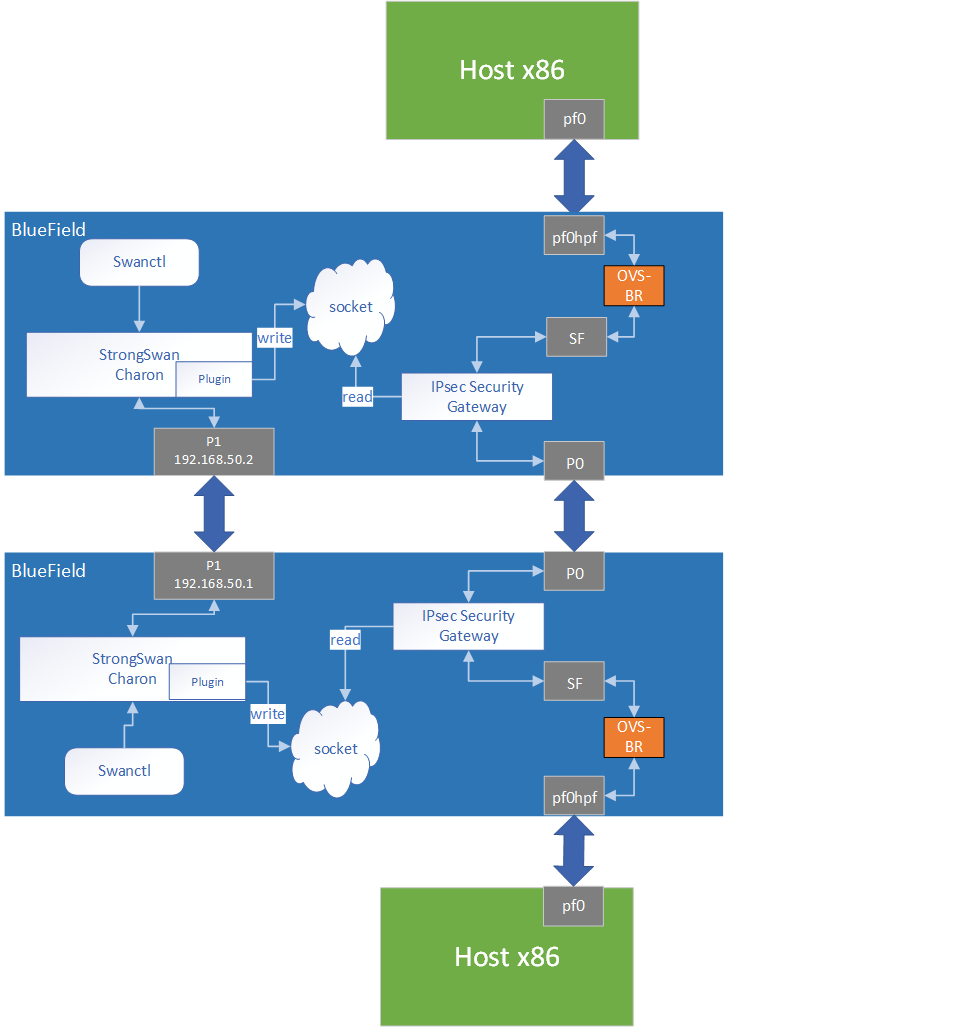

Using the application with SF:

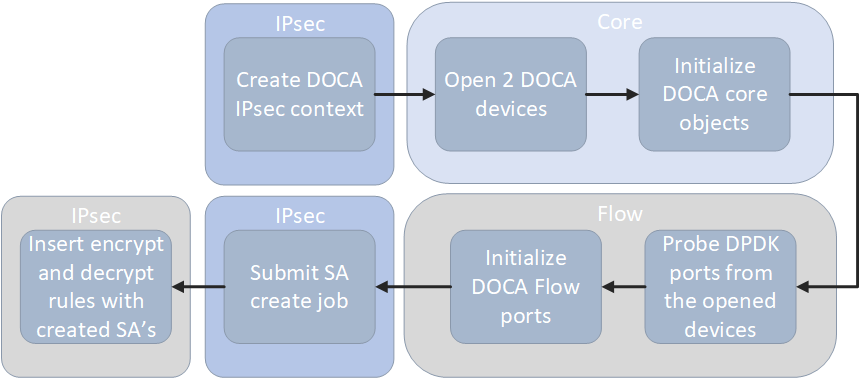

Static Configuration


  1. Create IPsec library context.

  2. Open two DOCA devices, one for the secured port and another for the unsecured port.

  3. Initialize the DOCA work queue.

  4. With the open DOCA devices, the application probes DPDK ports and initializes DOCA Flow and DOCA Flow ports accordingly.

  5. On the created ports, build DOCA Flow pipes.

  6. In a loop according to the JSON rules:

    1. Create DOCA IPsec SA for the new rule.

    2. Insert encrypt or decrypt rule to DOCA Flow pipes.

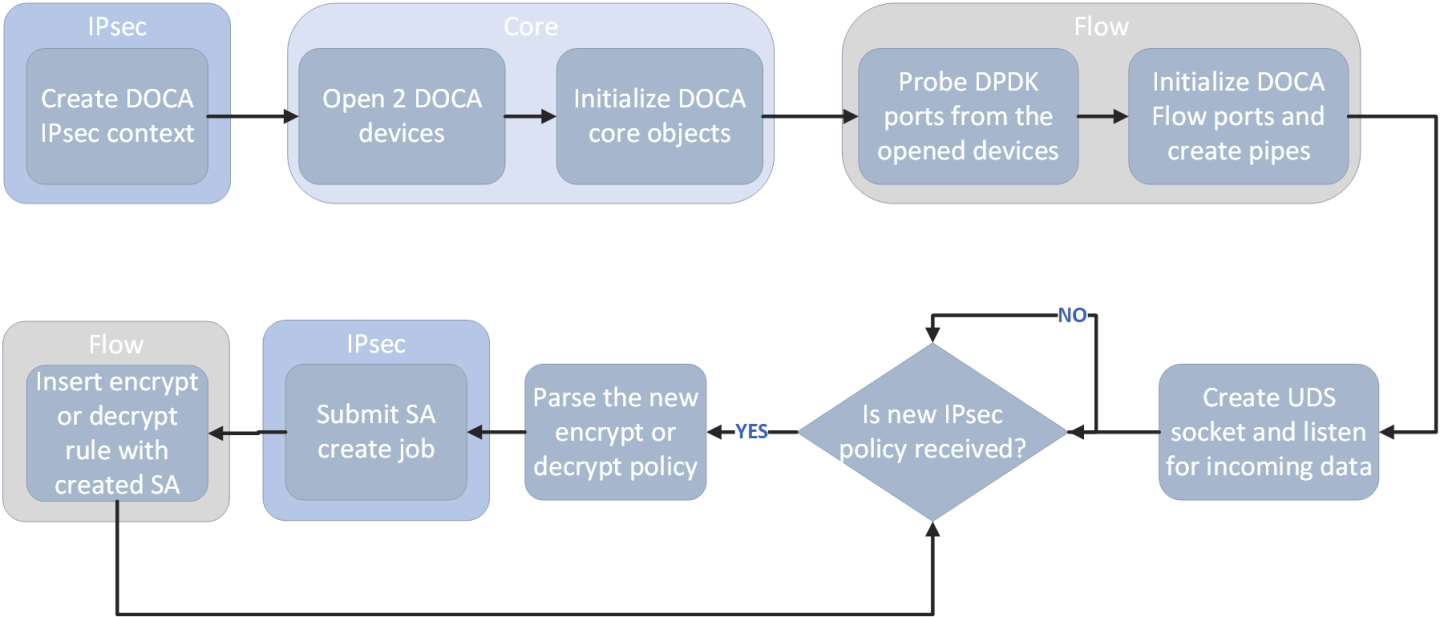

Dynamic Configuration


  1. Create IPsec library context.

  2. Open two DOCA devices, one for the secured port and another for the unsecured port.

  3. Initialize the DOCA work queue.

  4. With the open DOCA devices, the application probes DPDK ports and initializes DOCA Flow and DOCA Flow ports accordingly.

  5. On the created ports, build DOCA Flow pipes.

  6. Create UDS socket and listen for incoming data.

  7. While waiting for new IPsec policies to be received in a loop, if a new IPsec policy is received:

    1. Parse the policy whether it is an encryption or decryption rule.

    2. Create DOCA IPsec SA for the new rule.

    3. Insert encrypt or decrypt rule to DOCA Flow pipes.

DOCA Flow Modes

The application can run in two modes, vnf and switch. For more information about the modes, please refer to "Pipe Mode" in the DOCA Flow.

VNF Mode

Encryption

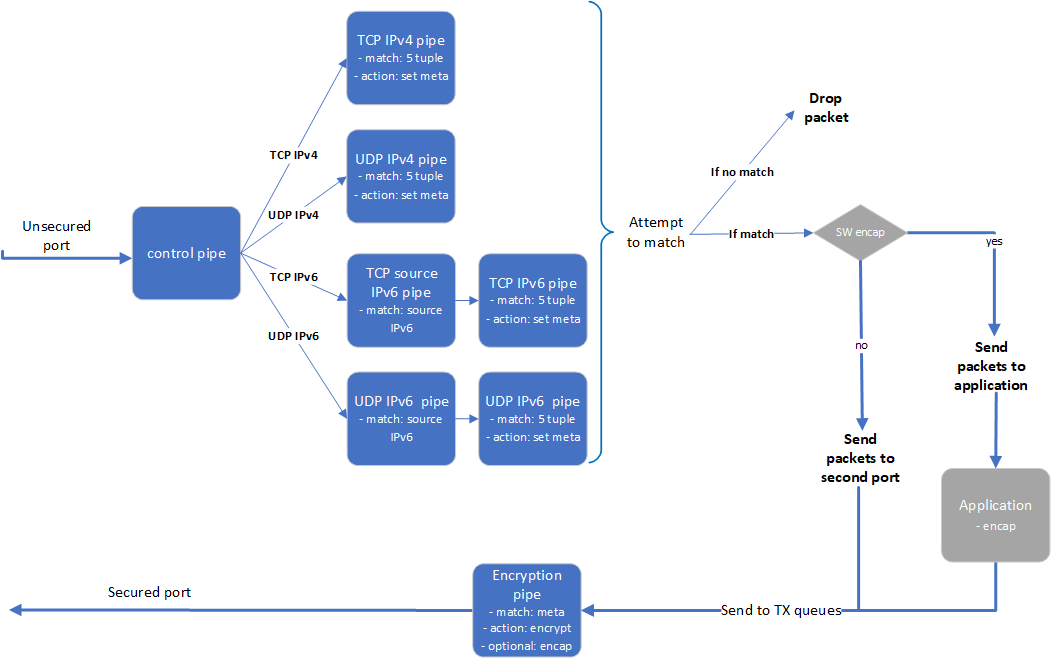

  1. The application builds 8 pipes for encryption. Control pipe as root with four entries that match L3 and L4 types and forward the traffic to the relevant pipes.

    1. IPv6 pipes – match the source IP address and forward the traffic to a pipe that matches 5-tuple excluding the source IP.

    2. In the 5-tuple match pipes set action of "set meta data", the metadata would be the rule's index in the JSON file.

    3. The matched packet is forwarded to the second port.

  2. In the secured egress domain, there is an encryption pipe that has a shared IPsec encrypt action. According to the metadata match, the packet is encrypted with the encap destination IP and SPI as defined in the user's rules.

Decryption

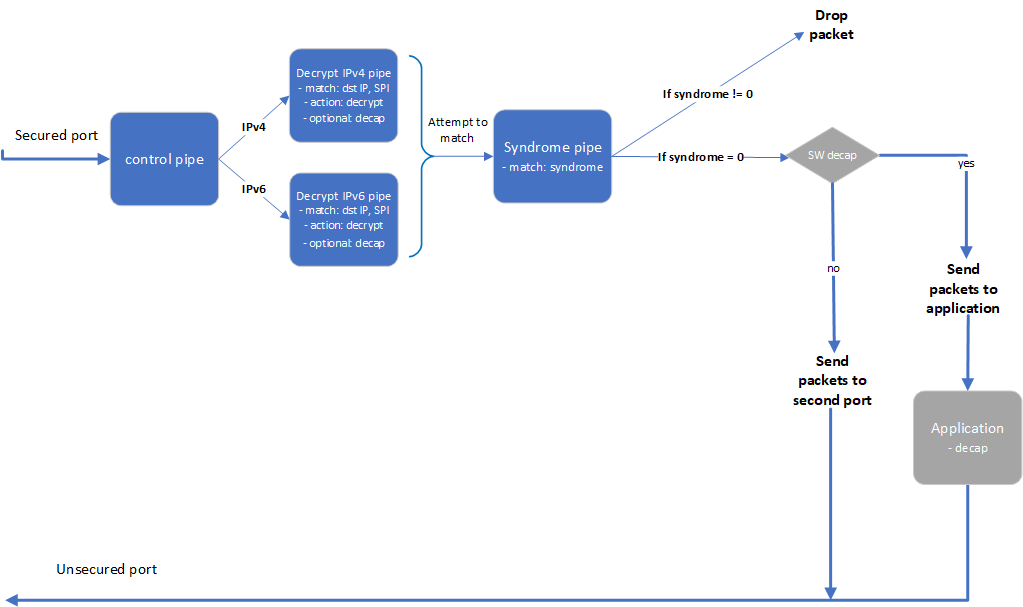

  1. The application builds 4 pipes for decryption. Control pipe as root with two entries that match L3 type and forward the traffic to the relevant decrypt pipe.

  2. The decrypt pipe matches the destination IP and SPI according to the rule files and has a shared IPsec action for decryption.

  3. After decryption, the matched packets are forwarded to the syndrome pipe and, if the syndrome is non-zero, the packets are dropped. Otherwise, the packets are forwarded to the second port.

Switch Mode

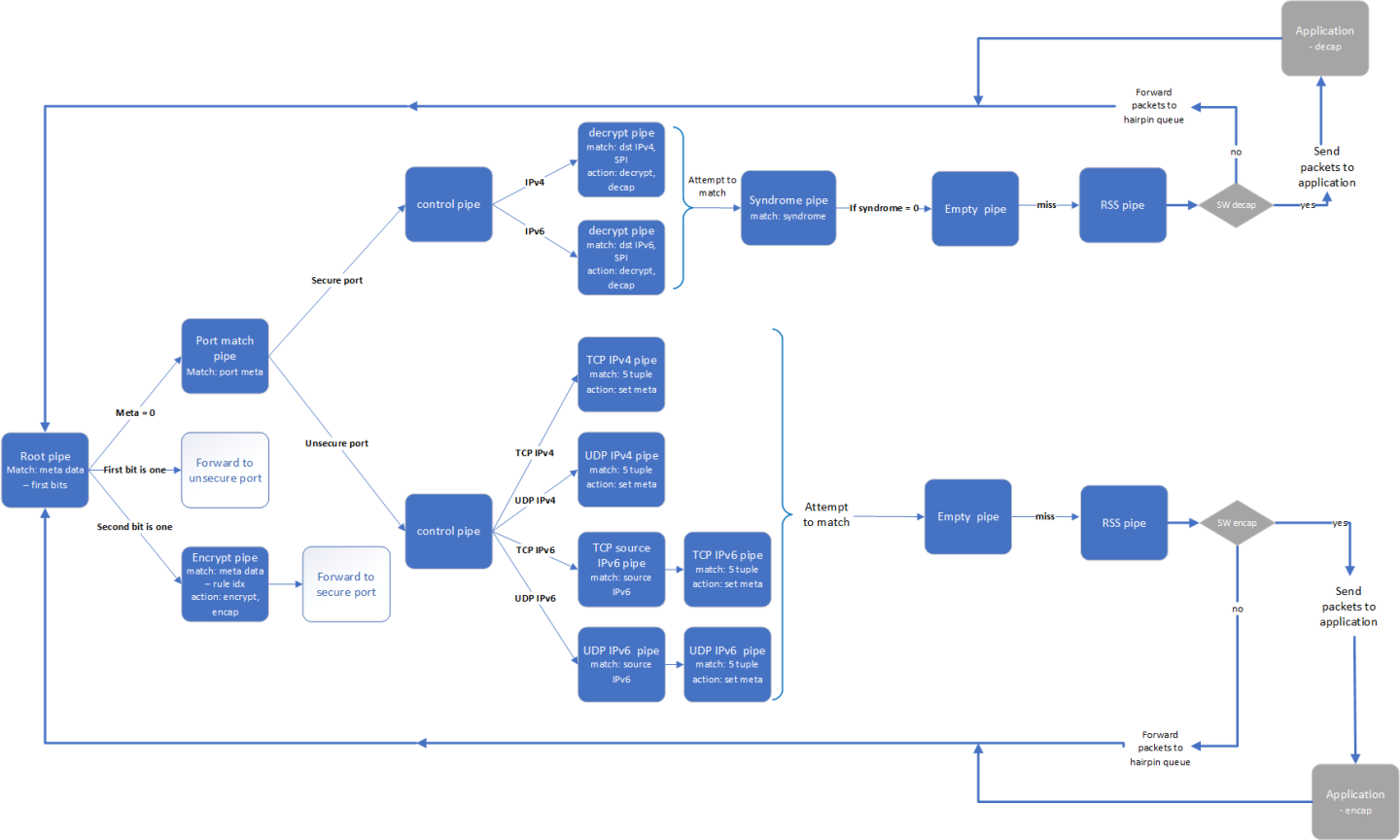

In switch mode, a root pipe matches the first 2 most significant bits (MSBs) to decide what the next pipe is:

  • Metadata is 0 – packet arrives and continues to pipe that matches on the port's meta. Based on the port, the packet passes through almost the same path as VNF mode and the metadata is set in the 2 MSBs. Afterwards, the packet moves to pipes that send the packets to the root pipe.

  • First bit is 1 – packet finishes the decrypt path and must be sent to the unsecure port.

  • Second bit is 1 – packet almost finishes the encrypt path and must be sent to the encrypt pipe on the secure egress domain and to the secure port from there.

This application leverages the following DOCA libraries:

Refer to their respective programming guide for more information.

Installation

Refer to the NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software .

Prerequisites

  1. The IPsec security gateway application is based on DOCA Flow. Therefore, the user is required to allocate huge pages.

    Copy
    Copied!


    echo '2048' | sudo tee -a /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages

    Note

    On some operating systems (RockyLinux, OpenEuler, CentOS 8.2) the default huge page size on the DPU (and Arm hosts) is larger than 2MB, and is often 512MB instead. Once can find out the sige of the huge pages using the following command:

    Copy
    Copied!


    $ grep -i huge /proc/meminfo   AnonHugePages: 0 kB ShmemHugePages: 0 kB FileHugePages: 0 kB HugePages_Total: 4 HugePages_Free: 4 HugePages_Rsvd: 0 HugePages_Surp: 0 Hugepagesize: 524288 kB Hugetlb: 6291456 kB

    Given that the guiding principal is to allocate 4GB of RAM, in such cases instead of allocating 2048 pages, one should allocate the matching amount (8 pages):

    Copy
    Copied!


    echo '8' | sudo tee -a /sys/kernel/mm/hugepages/hugepages-524288kB/nr_hugepages

  2. VNF mode – the IPsec security gateway application requires disabling some of the hardware tables:

    Copy
    Copied!


    /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.0 mode legacy /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.1 mode legacy   echo none > /sys/class/net/p0/compat/devlink/encap echo none > /sys/class/net/p1/compat/devlink/encap   /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.0 mode switchdev /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.1 mode switchdev

    To restore the old configuration:

    Copy
    Copied!


    /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.0 mode legacy /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.1 mode legacy   echo basic > /sys/class/net/p0/compat/devlink/encap echo basic > /sys/class/net/p1/compat/devlink/encap   /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.0 mode switchdev /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.1 mode switchdev

  3. Switch mode – the IPsec security gateway application requires configuring the ports to run in switch mode:

    Copy
    Copied!


    sudo mlxconfig -d /dev/mst/mt41686(mt41692)_pciconf0 s LAG_RESOURCE_ALLOCATION=1 # power cycle the host to apply this setting   /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.0 mode legacy /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.1 mode legacy   sudo devlink dev param set pci/0000:03:00.0 name esw_pet_insert value false cmode runtime sudo devlink dev param set pci/0000:03:00.1 name esw_pet_insert value false cmode runtime   /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.0 mode switchdev /opt/mellanox/iproute2/sbin/devlink dev eswitch set pci/0000:03:00.1 mode switchdev   sudo devlink dev param set pci/0000:03:00.0 name esw_multiport value true cmode runtime sudo devlink dev param set pci/0000:03:00.1 name esw_multiport value true cmode runtime

    Note

    Make sure to perform graceful shutdown prior to power cycling the host.

    To restore the old configuration:

    Copy
    Copied!


    sudo devlink dev param set pci/0000:03:00.0 name esw_multiport value false cmode runtime sudo devlink dev param set pci/0000:03:00.1 name esw_multiport value false cmode runtime

Application Execution

The IPsec Security Gateway application is provided in both source and binary forms. The binary is located under /opt/mellanox/doca/applications/ipsec_security_gw/bin/doca_ipsec_security_gw.

  1. Application usage instructions:

    Copy
    Copied!


    Usage: doca_ipsec_security_gw [DOCA Flags] [Program Flags]   DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE> --sdk-log-level Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE> -j, --json <path> Parse all command flags from an input json file   Program Flags: -s, --secured secured port pci-address -u, --unsecured unsecured port pci-address -c, --config Path to the JSON file with application configuration -m, --mode ipsec mode - {tunnel/transport/udp_transport} -i, --ipc IPC socket file path -sn, --secured-name secured port interface name -un, --unsecured-name unsecured port interface name

    Info

    This usage printout can be printed to the command line using the -h (or --help) options:

    Copy
    Copied!


    /opt/mellanox/doca/applications/ipsec_security_gw/bin/doca_ipsec_security_gw -h

    Info

    For additional information, refer to section "Command Line Flags".

  2. CLI example for running the application on the BlueField or host:

    • Static Configuration:

      Copy
      Copied!


      cd /opt/mellanox/doca/applications/ipsec_security_gw/bin ./doca_ipsec_security_gw -s 03:00.0 -u 03:00.1 -c ./ipsec_security_gw_config.json -m transport

      Note

      Both the PCIe address identifiers ( -s and -u flags) should match the addresses of the desired PCIe devices.

    • Dynamic Configuration:

      Copy
      Copied!


      cd /opt/mellanox/doca/applications/ipsec_security_gw/bin ./doca_ipsec_security_gw -s 03:00.0 -u 03:00.1 -c ./ipsec_security_gw_config.json -m transport -i /tmp/rules_socket

      Note

      Both the PCIe address identifiers ( -s and -u flags) should match the addresses of the desired PCIe devices.

  3. The application also supports a JSON-based deployment mode, in which all command-line arguments are provided through a JSON file:

    Copy
    Copied!


    doca_ipsec_security_gw --json [json_file]

    For example

    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ipsec_security_gw/bin ./doca_ipsec_security_gw --json ./ipsec_security_gw_params.json

    Note

    Before execution, ensure that the used JSON file contains the correct configuration parameters, and especially the PCIe addresses necessary for the deployment.

Command Line Flags

Flag Type

Short Flag

Long Flag/JSON Key

Description

JSON Content

General flags

h

help

Prints a help synopsis

N/A

v

version

Prints program version information

N/A

l

log-level

Set the log level for the application:

  • DISABLE=10

  • CRITICAL=20

  • ERROR=30

  • WARNING=40

  • INFO=50

  • DEBUG=60

  • TRACE=70 ( requires compilation with TRACE log level support )

Copy
Copied!


"log-level": 60

N/A

sdk-log-level

Sets the log level for the program:

  • DISABLE=10

  • CRITICAL=20

  • ERROR=30

  • WARNING=40

  • INFO=50

  • DEBUG=60

  • TRACE=70

Copy
Copied!


"sdk-log-level": 40

j

json

Parse all command flags from an input json file

N/A

Program flags

c

config

Path to JSON file with configurations

Copy
Copied!


"config": security_gateway_config.json

u

unsecured

PCIe address for the unsecured port

Copy
Copied!


"unsecured": "03:00.1"

s

secured

PCIe address for the secured port

Copy
Copied!


"secured": "03:00.0"

m

mode

IPsec mode.

Possible values: tunnel, transport, udp_transport

Copy
Copied!


"mode": "tunnel"

un

unsecured-name

Interface name of the unsecured port

Copy
Copied!


"unsecured-name": "p1"

sn

secured-name

Interface name of the secured port

Copy
Copied!


"secured-name": "p0"

i

ipc

IPC socket file path for receiving IPsec rules during runtime

Copy
Copied!


"ipc": "/tmp/rules_socket"

Info

Refer to DOCA Arg Parser for more information regarding the supported flags and execution modes.


Static Configuration IPsec Rules

IPsec rules and other configuration can be added with a JSON config file which is passed using the --config parameter.

Section

Field

Type

Description

Example

config

switch

bool

True for running DOCA Flow in switch mode.

Default is false (VNF mode).

"switch": true

esp_header_offload

string

Decap and encap offloading: both, encap, decap, or none. Default is both (offloading both encap and decap).

"esp_header_offload": "none"

sw_sn_inc_enable

bool

Increments sequence number of ESP in software if set to true. Default is false.

Note

Available only if esp_header_offload is decap or none.

"sw_sn_inc_enable": true

sw_antireplay_enable

bool

Enables anti-replay mechanism in software if set to true. Default is false. Available only if esp_header_offload is encap or none.

Note

Window size is 64. Not ESN. Supports non-zero sn_initial.

"sw_antireplay_enable": true

sn_initial

uint

Initial sequence number for ESP header. Used also when sw_antireplay_enable is true. Default is 0.

"sn_initial": 0

encrypt_rules

ip-version

int

Source and destination IP version. 4 / 6.

Optional. Default is 4.

"ip-version": 6

src-ip

string

Source IP to match

"src-ip": "1.2.3.4"

dst-ip

string

Destination IP to match

"dst-ip": "101:101:101:101:101:101:101:101"

protocol

string

L4 protocol: TCP or UDP

"protocol"

src-port

int

Source port to match

dst-port

int

Destination port to match

"dst-port": 55

encap-ip-version

int

Encap IP version: 4 or 6. Optional; default is 4.

"ip-version": 4

encap-dst-ip

string

Encap destination IP. Mandatory for tunnel mode only.

"encap-dst-ip": "1.1.1.1"

spi

int

SPI integer to set in the ESP header

"spi": 5

key

string

Key for creating the SA (in hex format)

"key": "112233445566778899aabbccdd"

key_type

int

Key size: 128 or 256. Optional; default is 256.

"key_type": 128

salt

int

Salt value for creating the SA.

Default is 6

"salt": 1212

icv_length

int

ICV length value: 8, 12, or 16.

Default is 16

"icv_length": 12

decrypt_rules

ip-version

int

Destination IP version: 4 or 6. Optional; default is 4.

"ip-version": 6

dst-ip

string

Destination IP to match

"dst-ip": "1122:3344:5566:7788:99aa:bbcc:ddee:ff00"

inner-ip-version

int

Inner IP version. Mandatory for tunnel mode only. Optional; default is 4.

"inner-ip-version": 4

spi

int

SPI to match in the ESP header

"spi": 5

key

string

Key for creating the SA (in hex format)

"key": "112233445566778899aabbccdd"

key_type

int

Key size: 128 or 256. Optional; default is 256.

"key_type": 128

salt

int

Salt value for creating the SA.

Default is 6,

"salt": 1212

icv_length

int

ICV length value: 8, 12, or 16.

Default is 16

"icv_length": 12


Dynamic Configuration IPsec Rules

The application listens on the UDS socket for receiving a predefined structure for the IPsec policy defined in the policy.h file.

The client program or keying daemon should connect to the socket with the same socket file path provided to the application by the --ipc/-i flags, and send the policy structure as packed to the application through the same socket.

Note

In the dynamic configuration, the application uses the config section from the JSON config file and ignores the encrypt_rules and decrypt_rules sections.

The IPsec policy structure:

Copy
Copied!


struct ipsec_security_gw_ipsec_policy { /* Protocols attributes */ uint16_t src_port; /* Policy inner source port */ uint16_t dst_port; /* Policy inner destination port */ uint8_t l3_protocol; /* Policy L3 proto {POLICY_L3_TYPE_IPV4, POLICY_L3_TYPE_IPV6} */ uint8_t l4_protocol; /* Policy L4 proto {POLICY_L4_TYPE_UDP, POLICY_L4_TYPE_TCP} */ uint8_t outer_l3_protocol; /* Policy outer L3 type {POLICY_L3_TYPE_IPV4, POLICY_L3_TYPE_IPV6} */   /* Policy attributes */ uint8_t policy_direction; /* Policy direction {POLICY_DIR_IN, POLICY_DIR_OUT} */ uint8_t policy_mode; /* Policy IPSEC mode {POLICY_MODE_TRANSPORT, POLICY_MODE_TUNNEL} */   /* Security Association attributes */ uint8_t esn; /* Is ESN enabled? */ uint8_t icv_length; /* ICV length in bytes {8, 12, 16} */ uint8_t key_type; /* AES key type {POLICY_KEY_TYPE_128, POLICY_KEY_TYPE_256} */ uint32_t spi; /* Security Parameter Index */ uint32_t salt; /* Cryptographic salt */ uint8_t enc_key_data[MAX_KEY_LEN]; /* Encryption key (binary) */   /* Policy inner and outer addresses */ char src_ip_addr[MAX_IP_ADDR_LEN + 1]; /* Policy inner IP source address in string format */ char dst_ip_addr[MAX_IP_ADDR_LEN + 1]; /* Policy inner IP destination address in string format */ char outer_src_ip[MAX_IP_ADDR_LEN + 1]; /* Policy outer IP source address in string format */ char outer_dst_ip[MAX_IP_ADDR_LEN + 1]; /* Policy outer IP destination address in string format */ };

Note

The policy type, whether it is encrypted or decrypted, is classified according to the policy_direction attribute:

  • POLICY_DIR_IN – decryption policy

  • POLICY_DIR_OUT – encryption policy


Troubleshooting

Refer to the NVIDIA DOCA Troubleshooting Guide for any issue encountered with the installation or execution of the DOCA applications .

In addition to providing the application in binary form, the installation also includes all of the application sources and compilation instructions so as to allow modifying the sources and recompiling the application. For more information about the applications, as well as development and compilation tips, refer to the DOCA Applications page.

The sources of the application can be found under the /opt/mellanox/doca/applications/ipsec_security_gw/src directory.

Recompiling All Applications

The applications are all defined under a single meson project, so the default compilation recompiles all the DOCA applications.

To build all the applications together, run:

Copy
Copied!


cd /opt/mellanox/doca/applications/ meson /tmp/build ninja -C /tmp/build

Info

doca_ipsec_security_gw is created under /tmp/build/ipsec_security_gw/src/.


Recompiling IPsec Security Gateway Application Only

To directly build only the IPsec Security Gateway application:

Copy
Copied!


cd /opt/mellanox/doca/applications/ meson /tmp/build -Denable_all_applications=false -Denable_ipsec_security_gw=true ninja -C /tmp/build

Info

doca_ipsec_security_gw is created under /tmp/build/ipsec_security_gw/src/.

Alternatively, users can set the desired flags in the meson_options.txt file instead of providing them in the compilation command line:

  1. Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:

    • Set enable_all_applications to false

    • Set enable_ipsec_security_gw to true

  2. Run the following compilation commands :

    Copy
    Copied!


    cd /opt/mellanox/doca/applications/ meson /tmp/build ninja -C /tmp/build

    Info

    doca_ipsec_security_gw is created under /tmp/build/ipsec_security_gw/src/.

Troubleshooting

Refer to the NVIDIA DOCA Troubleshooting Guide for any issue encountered with the compilation of the application .

  1. Parse application argument.

    1. Initialize arg parser resources and register DOCA general parameters.

      Copy
      Copied!


      doca_argp_init();

    2. Register the application's parameters.

      Copy
      Copied!


      register_ipsec_security_gw_params();

    3. Parse the arguments.

      Copy
      Copied!


      doca_argp_start();

      1. Parse app parameters.

  2. DPDK initialization.

    Copy
    Copied!


    rte_eal_init();

    Call rte_eal_init() to initialize EAL resources with the provided EAL flags for not probing the ports.

  3. Parse config file.

    Copy
    Copied!


    ipsec_security_gw_parse_config();

  4. Initialize devices and ports.

    Copy
    Copied!


    ipsec_security_gw_init_devices();

    1. Open DOCA devices with input PCIe addresses / interface names.

    2. Probe DPDK port from each opened device.

  5. Initialize and start DPDK ports.

    Copy
    Copied!


    dpdk_queues_and_ports_init();

    1. Initialize DPDK ports, including mempool allocation.

    2. Initialize hairpin queues if needed.

    3. Binds hairpin queues of each port to its peer port.

  6. Initialize objects for DOCA IPsec library.

    Copy
    Copied!


    ipsec_security_gw_ipsec_ctx_create();

    1. Create IPsec library context.

    2. Create DOCA Progress Engine.

  7. Initialize DOCA Flow.

    Copy
    Copied!


    ipsec_security_gw_init_doca_flow();

    1. Initialize DOCA Flow library.

    2. Find the indices of the DPDK-probed ports and start DOCA Flow ports with them.

  8. Insert rules.

    1. Insert encryption rules.

      Copy
      Copied!


      ipsec_security_gw_insert_encrypt_rules();

    2. Insert decryption rules.

      Copy
      Copied!


      ipsec_security_gw_insert_decrypt_rules();

  9. Wait for traffic.

    Copy
    Copied!


    ipsec_security_gw_wait_for_traffic();

    1. wait in a loop until the user terminates the program.

  10. IPsec security gateway cleanup:

    1. DOCA Flow cleanup; destroy initialized ports.

      Copy
      Copied!


      doca_flow_cleanup();

    2. SA destruction.

      Copy
      Copied!


      ipsec_security_gw_destroy_sas();

    3. IPsec objects destruction.

      Copy
      Copied!


      ipsec_security_gw_ipsec_ctx_destroy();

    4. Destroy DPDK ports and queues.

      Copy
      Copied!


      dpdk_queues_and_ports_fini();

    5. DPDK finish.

      Copy
      Copied!


      dpdk_fini();

      Calls rte_eal_destroy() to destroy initialized EAL resources.

    6. Arg parser destroy.

      Copy
      Copied!


      doca_argp_destroy()

strongSwan is a keying daemon that uses the Internet Key Exchange Version 2 (IKEv2) protocol to establish SAs between two peers. s trongSwan includes a DOCA plugin that is part of the strongSwan package in BFB. The plugin is loaded only if the DOCA IPsec Security Gateway is triggered. The plugin connects to UDS socket and sends IPsec policies to the application after the key exchange completes.

For more information about the key daemon, refer to strongSwan documentation .

End-to-end Architecture

The following diagram presents an architecture where two BlueField DPUs are connected to each other with DOCA IPsec Security Gateway running on each.


swanctl is a command line tool used for strongSwan IPsec configuration:

  1. Run DOCA IPsec Security Gateway on both sides in a dynamic configuration.

  2. Start strongSwan service.

  3. Configure strongSwan IPsec using the swanctl.conf configuration file on both sides.

  4. Start key exchange between the two peers. At the end of the flow, the result arrives to the DOCA plugin, populates the policy-defined structure, and sends it to the socket.

  5. DOCA IPsec Security Gateway on both sides reads new policies from the socket, performs the parsing, creates a DOCA SA object, and adds flow decrypt/encrypt entry.

This architecture uses P1 uplink on both BlueField DPUs to run the strongSwan key daemon. To configure the uplink:

  1. Configure an IP addresses for the PFs of both DPUs:

    1. On BF1:

      Copy
      Copied!


      ip addr add 192.168.50.1/24 dev p1

    2. On BF2:

      Copy
      Copied!


      ip addr add 192.168.50.2/24 dev p1

      Note

      It is possible to configure multiple IP addresses to uplinks to run key exchanges with different policy attributes.

  2. Verify the connection between two BlueField DPUs.

    Copy
    Copied!


    BF1> ping 192.168.50.2

    Note

    Make sure that the uplink is not in OVS bridges.

  3. Configure the swanctl.conf files for each machine. The file should be located under /etc/swanctl/conf.d/.
    Adding swanctl.conf file examples:

    • Transport mode

      • swanctl.conf example for BF1:

        Copy
        Copied!


        connections { BF1-BF2 { local_addrs = 192.168.50.1 remote_addrs = 192.168.50.2 rekey_time = 0   local { auth = psk id = host1 } remote { auth = psk id = host2 }   children { bf { local_ts = 192.168.50.1/32 [udp/60] remote_ts = 192.168.50.2/32 [udp/90] esp_proposals = aes128gcm128-x25519-esn mode = transport policies_fwd_out = yes life_time = 0 } } version = 2 mobike = no reauth_time = 0 proposals = aes128-sha256-x25519 } }   secrets { ike-BF { id-host1 = host1 id-host2 = host2 secret = 0sv+NkxY9LLZvwj4qCC2o/gGrWDF2d21jL } }

      • swanctl.conf example for BF2:

        Copy
        Copied!


        connections { BF2-BF1 { local_addrs = 192.168.50.2 remote_addrs = 192.168.50.1 rekey_time = 0   local { auth = psk id = host2 } remote { auth = psk id = host1 }   children { bf { local_ts = 192.168.50.2/32 [udp/90] remote_ts = 192.168.50.1/32 [udp/60] esp_proposals = aes128gcm128-x25519-esn mode = transport life_time = 0 } } version = 2 mobike = no reauth_time = 0 proposals = aes128-sha256-x25519 } }   secrets { ike-BF { id-host1 = host1 id-host2 = host2 secret = 0sv+NkxY9LLZvwj4qCC2o/gGrWDF2d21jL } }

    • Tunnel mode

      Copy
      Copied!


      connections { BF1-BF2 { local_addrs = 192.168.50.2 remote_addrs = 192.168.50.1 rekey_time = 0   local { auth = psk id = host2 } remote { auth = psk id = host1 }   children { bf { local_ts = 2001:db8:85a3::8a2e:370:7334/128 [udp/3030] remote_ts = 2001:db8:85a3::8a2e:370:7335/128 [udp/55] esp_proposals = aes128gcm128-x25519-esn life_time = 0 } } version = 2 mobike = no proposals = aes128-sha256-x25519 } }   secrets { ike-BF { id-host1 = host1 id-host2 = host2 secret = 0sv+NkxY9LLZvwj4qCC2o/gGrWDF2d21jL } }

      Note

      local_ts and remote_ts must have a netmask of /32 for IPv4 addresses and /128 for IPv6 addresses.

      Note

      SA rekey is not supported in DOCA plugin. connection.rekey_time must be set to 0 and connection.child.life_time must be set to 0.

DOCA IPsec only supports ESP headers, AES-GCM encryption algorithm, and key sizes 128 or 256. Therefore, when setting ESP proposals in the swanctl.conf, please adhere to the values provided in the following table:

ESP Proposal

Algorithm Type Including ICV Length

Key Size

aes128gcm8

ENCR_AES_GCM_ICV8

128

aes128gcm64

ENCR_AES_GCM_ICV8

128

aes128gcm12

ENCR_AES_GCM_ICV12

128

aes128gcm96

ENCR_AES_GCM_ICV12

128

aes128gcm16

ENCR_AES_GCM_ICV16

128

aes128gcm128

ENCR_AES_GCM_ICV16

128

aes128gcm

ENCR_AES_GCM_ICV16

128

aes256gcm8

ENCR_AES_GCM_ICV8

256

aes256gcm64

ENCR_AES_GCM_ICV8

256

aes256gcm12

ENCR_AES_GCM_ICV12

256

aes256gcm96

ENCR_AES_GCM_ICV12

256

aes256gcm16

ENCR_AES_GCM_ICV16

256

aes256gcm128

ENCR_AES_GCM_ICV16

256

aes256gcm

ENCR_AES_GCM_ICV16

256


Running the Solution

Run the following commands on both BlueField peers.

  1. Run DOCA IPsec Security Gateway in dynamic configuration, assuming the socket location is /tmp/rules_socket.

    Copy
    Copied!


    doca_ipsec_security_gw -s 03:00.0 -un <sf_net_dev> -c ./ipsec_security_gw_config.json -m transport -i /tmp/rules_socket

    Note

    DOCA IPsec Security Gateway application should be run first.

  2. Edit the /etc/strongswan.d/charon/doca.conf file and add the UDS socket path. If the socket_path is not set, the plugin uses the default path /tmp/strongswan_doca_socket.

    Copy
    Copied!


    doca {   # Whether to load the plugin load = yes   # Path to DOCA socket socket_path = /tmp/rules_socket }

    Note

    You must provide the application with this path as well.

  3. Restart the strongSwan server:

    Copy
    Copied!


    systemctl restart strongswan-starter.service

    Note

    If the application has been run with log level debug, you can see that the connection has been done successfully and the application is waiting for new IPsec policies.

  4. Verify that the swanctl.conf file exists in /etc/swanctl/conf.d/. directory.

    Note

    It is recommended to remove any unused conf files under /etc/swanctl/conf.d/.

  5. Load IPsec configuration:

    Copy
    Copied!


    swanctl --load-all

  6. Start IKE protocol on either the initiator or the target side:

    Copy
    Copied!


    swanctl -i --child <child_name>

    Info

    In the example above, the child's name is bf.

Building strongSwan

To perform some changes in the DOCA plugin in strongSwan zone:

  1. Verify that the dependencies listed here are installed in your environment. libgmp-dev is missing from that list so make sure to install that as well.

  2. Git clone https://github.com/Mellanox/strongswan.git.

  3. Git checkout BF-5.9.6 branch.

  4. Add your changes in the plugin located under src/libcharon/plugins/doca.

  5. Run autogen.sh within the strongSwan repo.

  6. Run the following:

    Copy
    Copied!


    ./configure --enable-openssl --disable-random --prefix=/usr/local --sysconfdir=/etc --enable-systemd --enable-doca make make install systemctl daemon-reload systemctl restart strongswan-starter.service

  • /opt/mellanox/doca/applications/ipsec_security_gw/src

  • /opt/mellanox/doca/applications/ipsec_security_gw/bin/ipsec_security_gw_params.json

© Copyright 2024, NVIDIA. Last updated on May 7, 2024.
