NVIDIA DOCA NAT Application Guide

This document provides a NAT implementation on top of NVIDIA® BlueField® DPU.

The Network Address Translation (NAT) reference application leverages the DPU's hardware capability to switch packets with local IP addresses to global ones and vise versa.

The NAT application is based on the DOCA Flow API used for the programming of the DPU's hardware.

NAT can operate in three modes:

• Static mode – application gets pairs of local IP address and global IP address from the user using a JSON file

• Dynamic mode – user provides pool of global IP addresses that can be used. The application should pick one address from the pool for new local area network (LAN) IP address and use it. Once the session closes, the addresses are returned to the pool.

• PAT mode (DNS offload) – the user provides one global address to use. In addition, the user provides mapping between the local port address to the global port. For each packet, the local address is replaced with the global one and ports are replaced according to mapping table.

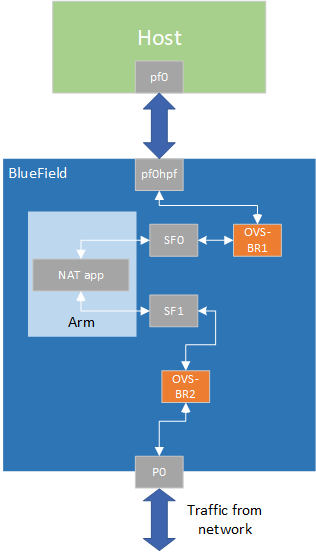

The NAT application is design to run on the DPU. The DPU intercepts ingress traffic from both wire and host, switches the relevant IP address and port according to data configured by the user, and forwards it to the egress port.

NAT runs on the DPU to classify packets.

The app should be configured using a JSON file which includes the operation mode.

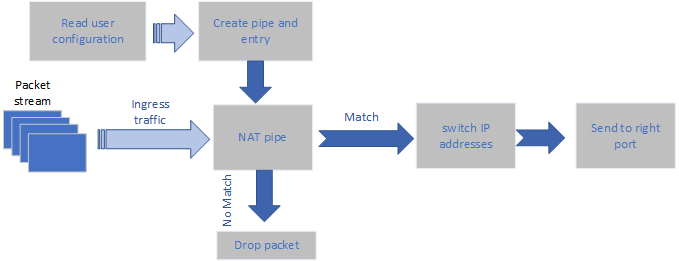

Static Mode

For static mode, the JSON file should include pairs of local and global IP addresses. No change for ports in this mode.

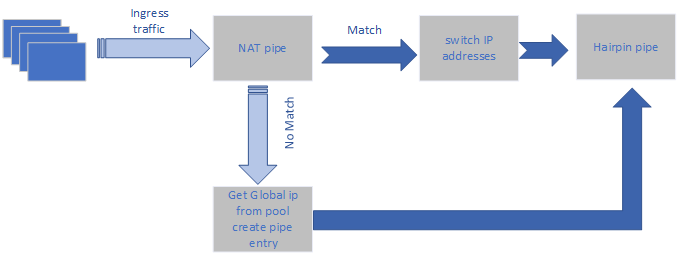

Dynamic Mode

The user must provide a pool of global IP addresses to use. The application allocates a global address to every miss in the pipe (new local address).

If no more global addresses are available in the pool, the user gets an error message and the packet is sent as is.

The application performs a callback to remove the matching of global and local IPs and returns the address to the pool.

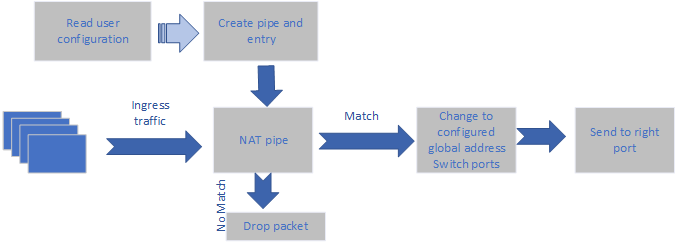

PAT (NAT Offload) Mode

The user provides a global address to replace all local addresses in the user LAN.

The user provides a matching of local IP and port to global port.

The application changes the local IP of every match to the global IP provided by the user and updates the port number according to user configuration.

This application leverages the following DOCA library:

• DOCA Flow

Refer to its respective programming guide for more information.

Installation

Refer to the NVIDIA DOCA Installation Guide for Linux for details on how to install BlueField-related software .

Prerequisites

The NAT application is based on DOCA Flow. Therefore, the user is required to allocate huge pages.




echo '2048' | sudo tee -a /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages





$ grep -i huge /proc/meminfo

AnonHugePages:         0 kB
ShmemHugePages:        0 kB
FileHugePages:         0 kB
HugePages_Total:       4
HugePages_Free:        4
HugePages_Rsvd:        0
HugePages_Surp:        0
Hugepagesize:     524288 kB
Hugetlb:         6291456 kB





echo '8' | sudo tee -a /sys/kernel/mm/hugepages/hugepages-524288kB/nr_hugepages


Application Execution

The NAT application is provided in both source and binary forms, The binary is located under /opt/mellanox/doca/applications/nat/bin/doca_nat.

1. Application usage instructions:

   Copy

   Copied!




   Usage: doca_nat [DPDK Flags] -- [DOCA Flags] [Program Flags]

   DOCA Flags:
     -h, --help                        Print a help synopsis
     -v, --version                     Print program version information
     -l, --log-level                   Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
     --sdk-log-level                   Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>
     -j, --json <path>                 Parse all command flags from an input json file

   Program Flags:
     -m, --mode <mode>                 set NAT mode
     -r, --nat-rules <path>            Path to the JSON file with NAT rules
     -lan, --lan-intf <lan intf>       name of LAN interface
     -wan, --wan-intf <wan intf>       name of wan interface


   Info

   This usage printout can be printed to the command line using the -h (or --help) options:

   Copy

   Copied!




   /opt/mellanox/doca/applications/nat/bin/doca_nat -- -h


   Info

   For additional information, refer to section "Command Line Flags".

2. CLI example for running the application on the BlueField:

   Copy

   Copied!




   /opt/mellanox/doca/applications/nat/bin/doca_nat -a auxiliary:mlx5_core.sf.4,dv_flow_en=2 -a auxiliary:mlx5_core.sf.5,dv_flow_en=2 -- -m static -r /opt/mellanox/doca/applications/nat/bin/nat_static_rules.json -lan sf3 -wan sf4


   Note

   SFs must be enabled according to NVIDIA BlueField DPU Scalable Function User Guide.

   Note

   The flag -a auxiliary:mlx5_core.sf.4,dv_flow_en=2 -a auxiliary:mlx5_core.sf.5,dv_flow_en=2 is mandatory for proper usage of the application. Modifying this flag results in unexpected behavior as only 2 ports are supported. The SF number is arbitrary and configurable.

   Note

   The SF numbers must match the identifiers of the configured SFs.

3. The application also supports a JSON-based deployment mode, in which all command-line arguments are provided through a JSON file:

   Copy

   Copied!




   doca_nat --json [json_file]


   For example:

   Copy

   Copied!




   cd /opt/mellanox/doca/applications/nat/bin
   ./doca_nat --json ./nat_params.json


   Note

   Before execution, ensure that the used JSON file contains the correct configuration parameters, and especially the PCIe addresses necessary for the deployment.

Command Line Flags




"devices":
[
    {"device": "sf", "id": "4","hws": true},
    {"device": "sf", "id": "5","hws": true},
]





"log-level": 60





"sdk-log-level": 40





"mode": "static"





"nat-rules": "nat_static_rules.json"





"lan-intf": "sf3"





"wan-intf": "sf4"


Troubleshooting

Refer to the NVIDIA DOCA Troubleshooting Guide for any issue encountered with the installation or execution of the DOCA applications .

In addition to providing the application in binary form, the installation also includes all of the application sources and compilation instructions so as to allow modifying the sources and recompiling the application. For more information about the applications, as well as development and compilation tips, refer to the DOCA Applications page.

The sources of the application can be found under the /opt/mellanox/doca/applications/nat/src directory.

Recompiling All Applications

The applications are all defined under a single meson project, so the default compilation recompiles all the DOCA applications.

To build all the applications together, run:




cd /opt/mellanox/doca/applications/
meson /tmp/build
ninja -C /tmp/build


Recompiling NAT Application Only

To directly build only the NAT application:




cd /opt/mellanox/doca/applications/
meson /tmp/build -Denable_all_applications=false -Denable_nat=true
ninja -C /tmp/build


Alternatively, users can set the desired flags in the meson_options.txt file instead of providing them in the compilation command line:

1. Edit the following flags in /opt/mellanox/doca/applications/meson_options.txt:

   • Set enable_all_applications to false

   • Set enable_nat to true

2. Run the following compilation commands :

   Copy

   Copied!




   cd /opt/mellanox/doca/applications/
   meson /tmp/build
   ninja -C /tmp/build


   Info

   doca_nat is created under /tmp/build/nat/src/

Troubleshooting

Refer to the NVIDIA DOCA Troubleshooting Guide for any issue encountered with the compilation of the application .

1. Parse application argument.

   1. Initialize arg parser resources and register DOCA general parameters.

      Copy

      Copied!




      doca_argp_init();


   2. Register NAT application.

      Copy

      Copied!




      register_nat_params()


   3. Parse the arguments.

      Copy

      Copied!




       doca_argp_start();


      1. Parse DPDK flags and invoke handler for calling the rte_eal_init() function.

      2. Parse app parameters.

2. DPDK initialization.

   Copy

   Copied!




   dpdk_init();


   Calls rte_eal_init() to initialize EAL resources with the provided EAL flags.

3. DPDK port initialization and start.

   Copy

   Copied!




   dpdk_queues_and_ports_init();


   1. Initialize DPDK ports, including mempool allocation.

   2. Initialize hairpin queues if needed.

   3. Bind hairpin queues of each port to its peer port.

4. NAT initialization.

   Copy

   Copied!




   nat_init();


   1. DOCA Flow and DOCA Flow port initialization.

5. Init user configuration rules into app structure.

   Copy

   Copied!




   parsing_nat_rules();


6. Init pipes and entry according to rules.

   Copy

   Copied!




   nat_pipes_init();


7. Wait for signal to end application.

8. NAT destroy.

   Copy

   Copied!




   nat_destroy();


9. DPDK ports and queues destruction.

   Copy

   Copied!




   dpdk_queues_and_ports_fini();


10. DPDK finish.

    Copy

    Copied!




    dpdk_fini();


    1. Calls rte_eal_destroy() to destroy initialized EAL resources.

11. Arg parser destroy.

    Copy

    Copied!




    doca_argp_destroy();


• /opt/mellanox/doca/applications/nat/src

• /opt/mellanox/doca/applications/nat/bin/nat_params.json
