OpenvSwitch Offload

Open vSwitch (OVS) is a software-based network technology that enhances virtual machine (VM) communication within internal and external networks. Typically deployed in the hypervisor, OVS employs a software-based approach for packet switching, which can strain CPU resources, impacting system performance and network bandwidth utilization. Addressing this, NVIDIA's Accelerated Switching and Packet Processing (ASAP2) technology offloads OVS data-plane tasks to specialized hardware, like the embedded switch (eSwitch) within the NIC subsystem, while maintaining an unmodified OVS control-plane. This results in notably improved OVS performance without burdening the CPU.

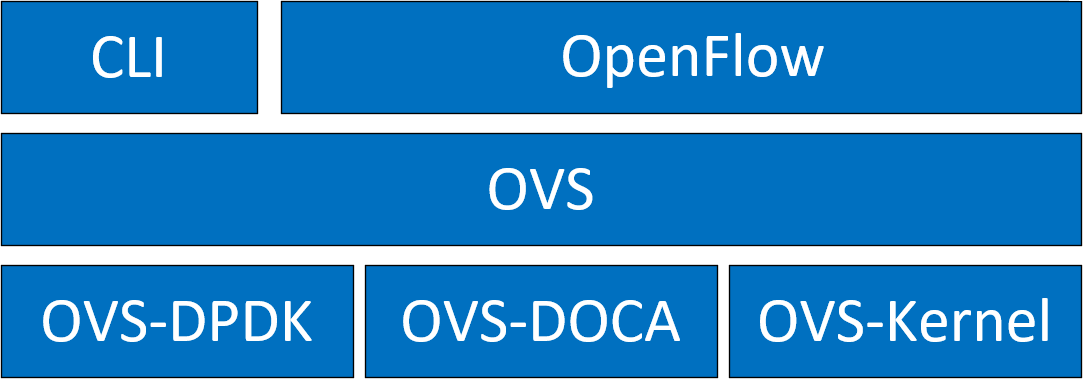

NVIDIA's OVS architecture extends the traditional OVS-DPDK and OVS-Kernel data-path offload interfaces, introducing OVS-DOCA as an additional implementation. OVS-DOCA, built upon NVIDIA's networking API, preserves the same interfaces as OVS-DPDK and OVS-Kernel while utilizing the DOCA Flow library. Unlike the other modes, OVS-DOCA exploits unique hardware offload mechanisms and application techniques, maximizing performance and features for NVIDA NICs and DPUs. This mode is especially efficient due to its architecture and DOCA library integration, enhancing e-switch configuration and accelerating hardware offloads beyond what the other modes can achieve.

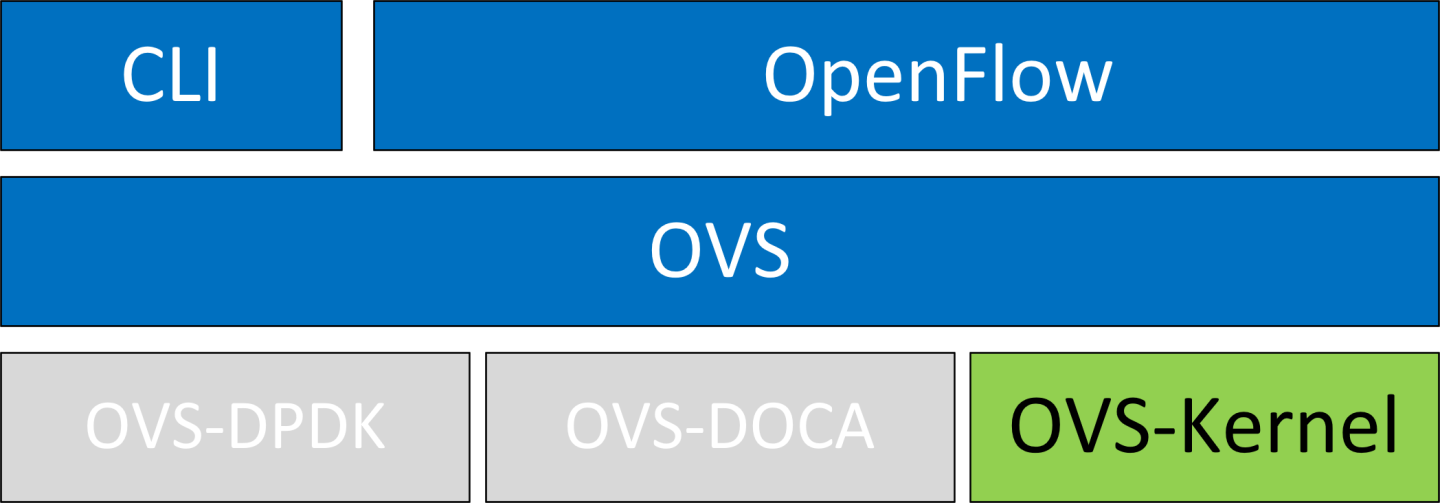

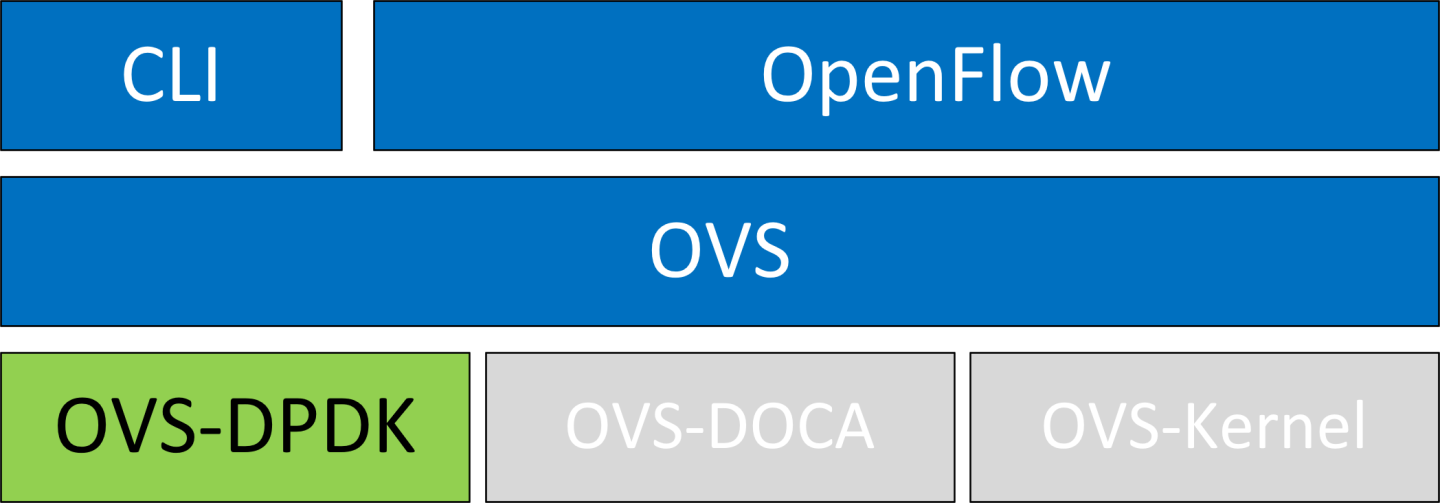

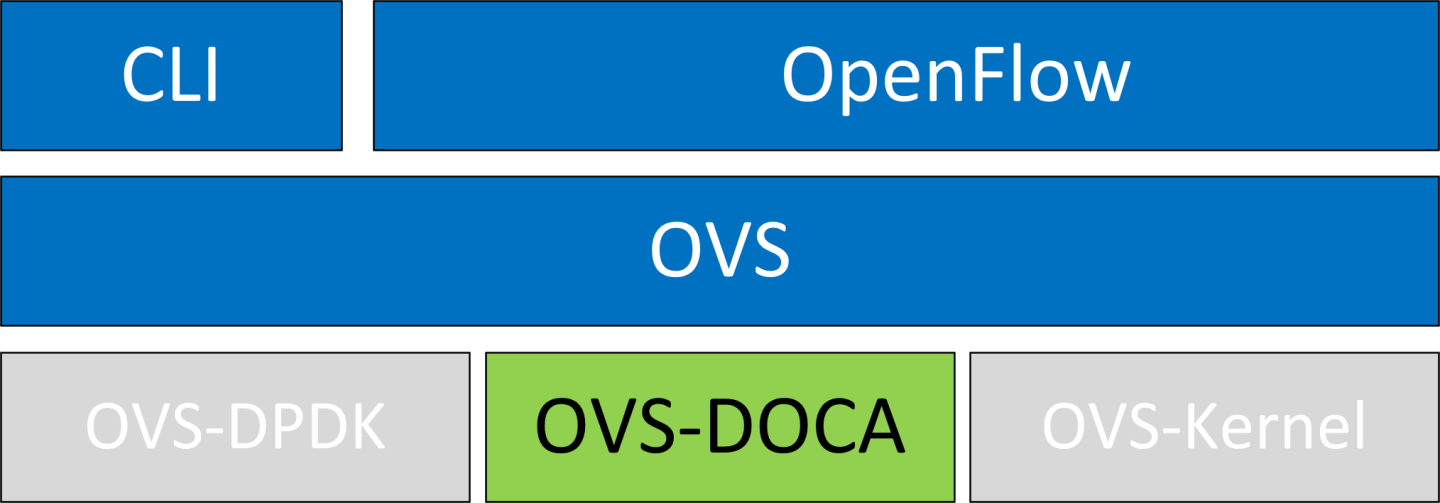

NVIDIA OVS installation contains all three OVS flavors. The following subsections describe the three flavors (default is OVS-Kernel) and how to configure each of them.

OVS and Virtualized Devices

When OVS is combined with NICs and DPUs (such as NVIDIA® ConnectX®-6 Lx/Dx and NVIDIA® BlueField®-2 and later), it utilizes the hardware data plane of ASAP2. This data plane can establish connections to VMs using either SR-IOV virtual functions (VFs) or virtual host data path acceleration (vDPA) with virtio.

In both scenarios, an accelerator engine within the NIC accelerates forwarding and offloads the OVS rules. This integrated solution accelerates both the infrastructure (via VFs through SR-IOV or virtio) and the data plane. For DPUs (which include a NIC subsystem), an alternate virtualization technology implements full virtio emulation within the DPU, enabling the host server to communicate with the DPU as a software virtio device.

  • When using ASAP2 data plane over SR-IOV virtual functions (VFs), the VF is directly passed through to the VM, with the NVIDIA driver running within the VM.

  • When using vDPA, the vDPA driver allows VMs to establish their connections through VirtIO. As a result, the data plane is established between the SR-IOV VF and the standard virtio driver within the VM, while the control plane is managed on the host by the vDPA application.

OVS-Kernel Hardware Offloads

OVS-Kernel is the default OVS flavor enabled on your NVIDIA device.


Switchdev Configuration

  1. Unbind the VFs:

    Copy
    Copied!


    echo 0000:04:00.2 > /sys/bus/pci/drivers/mlx5_core/unbind echo 0000:04:00.3 > /sys/bus/pci/drivers/mlx5_core/unbind

    Note

    VMs with attached VFs must be powered off to be able to unbind the VFs.

  2. Change the eSwitch mode from legacy to switchdev on the PF device:

    Copy
    Copied!


    # devlink dev eswitch set pci/0000:3b:00.0 mode switchdev

    This also creates the VF representor netdevices in the host OS.

    Note

    Before changing the mode, make sure that all VFs are unbound.

    Info

    To return to SR-IOV legacy mode, run:

    Copy
    Copied!


    # devlink dev eswitch set pci/0000:3b:00.0 mode legacy

    This also removes the VF representor netdevices.

    On OSes or kernels that do not support devlink, moving to switchdev mode can be done using sysfs:

    Copy
    Copied!


    # echo switchdev > /sys/class/net/enp4s0f0/compat/devlink/mode

  3. At this stage, VF representors have been created. To map a representor to its VF, make sure to obtain the representor's switchid and portname by running:

    Copy
    Copied!


    # ip -d link show eth4 41: enp0s8f0_1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000 link/ether ba:e6:21:37:bc:d4 brd ff:ff:ff:ff:ff:ff promiscuity 0 addrgenmode eui64 numtxqueues 10 numrxqueues 10 gso_max_size 65536 gso_max_segs 65535 portname pf0vf1 switchid f4ab580003a1420c

    Where:

    • switchid – used to map representor to device, both device PFs have the same switchid

    • portname – used to map representor to PF and VF. Value returned is pf<X>vf<Y>, where X is the PF number and Y is the number of VF.

  4. Bind the VFs:

    Copy
    Copied!


    echo 0000:04:00.2 > /sys/bus/pci/drivers/mlx5_core/bind echo 0000:04:00.3 > /sys/bus/pci/drivers/mlx5_core/bind

Switchdev Performance Tuning

Switchdev tuning improves its performance.

Steering Mode

OVS-kernel supports two steering modes for rule insertion into hardware:

  • SMFS (software-managed flow steering) – default mode; rules are inserted directly to the hardware by the software (driver). This mode is optimized for rule insertion.

  • DMFS (device-managed flow steering) – rule insertion is done using firmware commands. This mode is optimized for throughput with a small amount of rules in the system.

The steering mode can be configured via sysfs or devlink API in kernels that support it:

  • For sysfs:

    Copy
    Copied!


    echo <smfs|dmfs> > /sys/class/net/<pf-netdev>/compat/devlink/steering_mode

  • For devlink:

    Copy
    Copied!


    devlink dev param set pci/0000:00:08.0 name flow_steering_mode value "<smfs|dmfs>" cmode runtime

Notes:

  • The mode should be set prior to moving to switchdev, by echoing to the sysfs or invoking the devlink command.

  • Only when moving to switchdev will the driver use the mode configured.

  • Mode cannot be changed after moving to switchdev.

  • The steering mode is applicable for switchdev mode only (i.e., it does not affect legacy SR-IOV or other configurations).

Troubleshooting SMFS

mlx5 debugfs supports presenting Software Steering resources. dr_domain including its tables, matchers and rules. The interface is read-only.

Note

New steering rules cannot be inserted/deleted w hile the dump is being created,

The steering information is dumped in the CSV form in the following format: <object_type>,<object_ID>, <object_info>,...,<object_info> .

This data can be read at the following path: /sys/kernel/debug/mlx5/<BDF>/steering/fdb/<domain_handle> .

Example:

Copy
Copied!


# cat /sys/kernel/debug/mlx5/0000:82:00.0/steering/fdb/dmn_000018644 3100,0x55caa4621c50,0xee802,4,65533 3101,0x55caa4621c50,0xe0100008

You can then use the steering dump parser to make the output more human-readable.

The parser can be found in this GitHub repository.

vPort Match Mode

OVS-kernel support two modes that define how the rules match on vport.

Mode

Description

Metadata

Rules match on metadata instead of vport number (default mode).

This mode is needed to support SR-IOV live migration and dual-port RoCE.

Note

Matching on Metadata can have a performance impact.

Legacy

Rules match on vport number.

In this mode, performance can be higher in comparison to Metadata. It can be used only if SR-IOV live migration or dual port RoCE are disabled.

vPort match mode can be controlled via sysfs:

  • Set legacy:

    Copy
    Copied!


    echo legacy > /sys/class/net/<PF netdev>/compat/devlink/vport_match_mode

  • Set metadata:

    Copy
    Copied!


    echo metadata > /sys/class/net/<PF netdev>/compat/devlink/vport_match_mode

Note

This mode must be set prior to moving to switchdev.


Flow Table Large Group Number

Offloaded flows, including connection tracking (CT), are added to the virtual switch forwarding data base (FDB) flow tables. FDB tables have a set of flow groups, where each flow group saves the same traffic pattern flows. For example, for CT offloaded flow, TCP and UDP are different traffic patterns which end up in two different flow groups.

A flow group has a limited size to save flow entries. By default, the driver has 15 big FDB flow groups. Each of these big flow groups can save 4M/(15+1)=256k different 5-tuple flow entries at most. For scenarios with more than 15 traffic patterns, the driver provides a module parameter (num_of_groups) to allow customization and performance tuning.

The mode can be controlled via module param or devlink API for kernels that support it:

  • Module param:

    Copy
    Copied!


    echo <num_of_groups> > /sys/module/mlx5_core/parameters/num_of_groups

  • Devlink:

    Copy
    Copied!


    devlink dev param set pci/0000:82:00.0 name fdb_large_groups cmode driverinit value 20

Note

The change takes effect immediately if no flows are inside the FDB table (no traffic running and all offloaded flows are aged out). And it can be dynamically changed without reloading the driver. If there are still offloaded flows when changing this parameter, it takes effect after all flows have aged out.

Open vSwitch Configuration

OVS configuration is a simple OVS bridge configuration with switchdev.

  1. Run the OVS service:

    Ubuntu

    Copy
    Copied!


    systemctl start openvswitch-switch

    RHEL

    Copy
    Copied!


    systemctl start openvswitch

  2. Create an OVS bridge (named ovs-sriov here):

    Copy
    Copied!


    ovs-vsctl add-br ovs-sriov

  3. Enable hardware offload (disabled by default):

    Copy
    Copied!


    ovs-vsctl set Open_vSwitch . other_config:hw-offload=true

  4. Restart the OVS service:

    Copy
    Copied!


    systemctl restart openvswitch

    This step is required for hardware offload changes to take effect.

  5. Add the PF and the VF representor netdevices as OVS ports:

    Copy
    Copied!


    ovs-vsctl add-port ovs-sriov enp4s0f0 ovs-vsctl add-port ovs-sriov enp4s0f0_0 ovs-vsctl add-port ovs-sriov enp4s0f0_1

    Make sure to bring up the PF and representor netdevices:

    Copy
    Copied!


    ip link set dev enp4s0f0 up ip link set dev enp4s0f0_0 up ip link set dev enp4s0f0_1 up

    The PF represents the uplink (wire):

    Copy
    Copied!


    # ovs-dpctl show system@ovs-system: lookups: hit:0 missed:192 lost:1 flows: 2 masks: hit:384 total:2 hit/pkt:2.00 port 0: ovs-system (internal) port 1: ovs-sriov (internal) port 2: enp4s0f0 port 3: enp4s0f0_0 port 4: enp4s0f0_1

  6. Run traffic from the VFs and observe the rules added to the OVS data-path:

    Copy
    Copied!


    # ovs-dpctl dump-flows   recirc_id(0),in_port(3),eth(src=e4:11:22:33:44:50,dst=e4:1d:2d:a5:f3:9d), eth_type(0x0800),ipv4(frag=no), packets:33, bytes:3234, used:1.196s, actions:2   recirc_id(0),in_port(2),eth(src=e4:1d:2d:a5:f3:9d,dst=e4:11:22:33:44:50), eth_type(0x0800),ipv4(frag=no), packets:34, bytes:3332, used:1.196s, actions:3

    In this example, the ping is initiated from VF0 (OVS port 3) to the outer node (OVS port 2), where the VF MAC is e4:11:22:33:44:50 and the outer node MAC is e4:1d:2d:a5:f3:9d. As previously shown, two OVS rules are added, one in each direction.

    Note

    Users can also verify offloaded packets by adding type=offloaded to the command. For example:

    Copy
    Copied!


    ovs-appctl dpctl/dump-flows type=offloaded

OVS Performance Tuning

Flow Aging

The aging timeout of OVS is given in milliseconds and can be controlled by running:

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:max-idle=30000


TC Policy

Specifies the policy used with hardware offloading:

  • none – adds a TC rule to both the software and the hardware (default)

  • skip_sw – adds a TC rule only to the hardware

  • skip_hw – adds a TC rule only to the software

Example:

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:tc-policy=skip_sw

Note

TC policy should only be used for debugging purposes.


max-revalidator

Specifies the maximum time (in milliseconds) for the revalidator threads to wait for kernel statistics before executing flow revalidation.

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:max-revalidator=10000


n-handler-threads

Specifies the number of threads for software datapaths to use to handle new flows.

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:n-handler-threads=4

The default value is the number of online CPU cores minus the number of revalidators.

n-revalidator-threads

Specifies the number of threads for software datapaths to use to revalidate flows in the datapath.

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:n-revalidator-threads=4


vlan-limit

Limits the number of VLAN headers that can be matched to the specified number.

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:vlan-limit=2

Basic TC Rules Configuration

Offloading rules can also be added directly, and not only through OVS, using the tc utility.

To create an offloading rule using TC:

  1. Create an ingress qdisc (queueing discipline) for each interface that you wish to add rules into:

    Copy
    Copied!


    tc qdisc add dev enp4s0f0 ingress tc qdisc add dev enp4s0f0_0 ingress tc qdisc add dev enp4s0f0_1 ingress

  2. Add TC rules using flower classifier in the following format:

    Copy
    Copied!


    tc filter add dev NETDEVICE ingress protocol PROTOCOL prio PRIORITY [chain CHAIN] flower [MATCH_LIST] [action ACTION_SPEC]

    Note

    A list of supported matches (specifications) and actions can be found in section "Classification Fields (Matches)".

  3. Dump the existing tc rules using flower classifier in the following format:

    Copy
    Copied!


    tc [-s] filter show dev NETDEVICE ingress

SR-IOV VF LAG

SR-IOV VF LAG allows the NIC's physical functions (PFs) to get the rules that the OVS tries to offload to the bond net-device, and to offload them to the hardware e-switch.

The supported bond modes are as follows:

  • Active-backup

  • XOR

  • LACP

SR-IOV VF LAG enables complete offload of the LAG functionality to the hardware. The bonding creates a single bonded PF port. Packets from the up-link can arrive from any of the physical ports and are forwarded to the bond device.

When hardware offload is used, packets from both ports can be forwarded to any of the VFs. Traffic from the VF can be forwarded to both ports according to the bonding state. This means that when in active-backup mode, only one PF is up, and traffic from any VF goes through this PF. When in XOR or LACP mode, if both PFs are up, traffic from any VF is split between these two PFs.

SR-IOV VF LAG Configuration on ASAP2

To enable SR-IOV VF LAG, both physical functions of the NIC must first be configured to SR-IOV switchdev mode, and only afterwards bond the up-link representors.

The following example shows the creation of a bond interface over two PFs:

  1. Load the bonding device and subordinate the up-link representor (currently PF) net-device devices:

    Copy
    Copied!


    modprobe bonding mode=802.3ad Ifup bond0 (make sure ifcfg file is present with desired bond configuration) ip link set enp4s0f0 master bond0 ip link set enp4s0f1 master bond0

  2. Add the VF representor net-devices as OVS ports. If tunneling is not used, add the bond device as well.

    Copy
    Copied!


    ovs-vsctl add-port ovs-sriov bond0 ovs-vsctl add-port ovs-sriov enp4s0f0_0 ovs-vsctl add-port ovs-sriov enp4s0f1_0

  3. Bring up the PF and the representor netdevices:

    Copy
    Copied!


    ip link set dev bond0 up ip link set dev enp4s0f0_0 up ip link set dev enp4s0f1_0 up

Note

Once the SR-IOV VF LAG is configured, all VFs of the two PFs become part of the bond and behave as described above.


Using TC with VF LAG

Both rules can be added either with or without shared block:

  • With shared block (supported from kernel 4.16 and RHEL/CentOS 7.7 and above):

    Copy
    Copied!


    tc qdisc add dev bond0 ingress_block 22 ingress tc qdisc add dev ens4p0 ingress_block 22 ingress tc qdisc add dev ens4p1 ingress_block 22 ingress

    1. Add drop rule:

      Copy
      Copied!


      # tc filter add block 22 protocol arp parent ffff: prio 3 \ flower \ dst_mac e4:11:22:11:4a:51 \ action drop

    2. Add redirect rule from bond to representor:

      Copy
      Copied!


      # tc filter add block 22 protocol arp parent ffff: prio 3 \ flower \ dst_mac e4:11:22:11:4a:50 \ action mirred egress redirect dev ens4f0_0

    3. Add redirect rule from representor to bond:

      Copy
      Copied!


      # tc filter add dev ens4f0_0 protocol arp parent ffff: prio 3 \ flower \ dst_mac ec:0d:9a:8a:28:42 \ action mirred egress redirect dev bond0

  • Without shared block (supported from kernel 4.15 and below):

    1. Add redirect rule from bond to representor:

      Copy
      Copied!


      # tc filter add dev bond0 protocol arp parent ffff: prio 1 \ flower \ dst_mac e4:11:22:11:4a:50 \ action mirred egress redirect dev ens4f0_0

    2. Add redirect rule from representor to bond:

      Copy
      Copied!


      # tc filter add dev ens4f0_0 protocol arp parent ffff: prio 3 \ flower \ dst_mac ec:0d:9a:8a:28:42 \ action mirred egress redirect dev bond0

Classification Fields (Matches)

OVS-Kernel supports multiple classification fields which packets can fully or partially match.

Ethernet Layer 2

  • Destination MAC

  • Source MAC

  • Ethertype

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions:eth7

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action mirred egress redirect dev $NIC


IPv4/IPv6

  • Source address

  • Destination address

  • Protocol

    • TCP/UDP/ICMP/ICMPv6

  • TOS

  • TTL (HLIMIT)

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


Ipv4: ipv4(src=0.0.0.0/0.0.0.0,dst=0.0.0.0/0.0.0.0,proto=17,tos=0/0,ttl=0/0,frag=no) Ipv6: ipv6(src=::/::,dst=1:1:1::3:1040:1008,label=0/0,proto=58,tclass=0/0x3,hlimit=64),

Using TC rules:

Copy
Copied!


IPv4: tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ dst_ip 1.1.1.1 \ src_ip 1.1.1.2 \ ip_proto TCP \ ip_tos 0x3 \ ip_ttl 63 \ action mirred egress redirect dev $NIC     IPv6: tc filter add dev $rep parent ffff: protocol ipv6 pref 1 \ flower \ dst_ip 1:1:1::3:1040:1009 \ src_ip 1:1:1::3:1040:1008 \ ip_proto TCP \ ip_tos 0x3 \ ip_ttl 63\ action mirred egress redirect dev $NIC


TCP/UDP Source and Destination Ports and TCP Flags

  • TCP/UDP source and destinations ports

  • TCP flags

Supported on kernel >4.13 and RHEL >7.5.

In OVS dump flows:

Copy
Copied!


TCP: tcp(src=0/0,dst=32768/0x8000), UDP: udp(src=0/0,dst=32768/0x8000), TCP flags: tcp_flags(0/0)

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ ip_proto TCP \ dst_port 100 \ src_port 500 \ tcp_flags 0x4/0x7 \ action mirred egress redirect dev $NIC


VLAN

  • ID

  • Priority

  • Inner vlan ID and Priority

Supported kernels: All (QinQ: kernel 4.19 and higher, and RHEL 7.7 and higher).

In OVS dump flows:

Copy
Copied!


eth_type(0x8100),vlan(vid=2347,pcp=0),

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol 802.1Q pref 1 \ flower \ vlan_ethtype 0x800 \ vlan_id 100 \ vlan_prio 0 \ action mirred egress redirect dev $NIC QinQ: tc filter add dev $rep parent ffff: protocol 802.1Q pref 1 \ flower \ vlan_ethtype 0x8100 \ vlan_id 100 \ vlan_prio 0 \ cvlan_id 20 \ cvlan_prio 0 \ cvlan_ethtype 0x800 \ action mirred egress redirect dev $NIC


Tunnel

  • ID (Key)

  • Source IP address

  • Destination IP address

  • Destination port

  • TOS (supported from kernel 4.19 and above & RHEL 7.7 and above)

  • TTL (support from kernel 4.19 and above & RHEL 7.7 and above)

  • Tunnel options (Geneve)

Supported kernels:

  • VXLAN: All

  • GRE: Kernel >5.0, RHEL 7.7 and above

  • Geneve: Kernel >5.0, RHEL 7.7 and above

In OVS dump flows:

Copy
Copied!


tunnel(tun_id=0x5,src=121.9.1.1,dst=131.10.1.1,ttl=0/0,tp_dst=4789,flags(+key))

Using TC rules:

Copy
Copied!


# tc filter add dev $rep protocol 802.1Q parent ffff: pref 1  flower \ vlan_ethtype 0x800 \ vlan_id 100 \ vlan_prio 0 \ action mirred egress redirect dev $NIC QinQ: # tc filter add dev vxlan100 protocol ip parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4+:11:22:11:4a:50 \ enc_src_ip 20.1.11.1 \ enc_dst_ip 20.1.12.1 \ enc_key_id 100 \ enc_dst_port 4789 \ action tunnel_key unset \ action mirred egress redirect dev ens4f0_0

Supported Actions

Forward

Forward action allows for packet redirection:

  • From VF to wire

  • Wire to VF

  • VF to VF

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions:eth7

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action mirred egress redirect dev $NIC


Drop

Drop action allows to drop incoming packets.

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions:drop

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action drop


Statistics

By default, each flow collects the following statistics:

  • Packets – number of packets which hit the flow

  • Bytes – total number of bytes which hit the flow

  • Last used – the amount of time passed since last packet hit the flow

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions:drop

Using TC rules:

Copy
Copied!


#tc -s filter show dev $rep ingress   filter protocol ip pref 2 flower chain 0 filter protocol ip pref 2 flower chain 0 handle 0x2 eth_type ipv4 ip_proto tcp src_ip 192.168.140.100 src_port 80 skip_sw in_hw action order 1: mirred (Egress Redirect to device p0v11_r) stolen index 34 ref 1 bind 1 installed 144 sec used 0 sec Action statistics: Sent 388344 bytes 2942 pkt (dropped 0, overlimits 0 requeues 0) backlog 0b 0p requeues 0


Tunnels: Encapsulation/Decapsulation

OVS-kernel supports offload of tunnels using encapsulation and decapsulation actions.

  • Encapsulation – pushing of tunnel header is supported on Tx

  • Decapsulation – popping of tunnel header is supported on Rx

Supported Tunnels:

  • VXLAN (IPv4/IPv6) – supported on all Kernels

  • GRE (IPv4/IPv6) – supported on kernel 5.0 and above & RHEL 7.6 and above

  • Geneve (IPv4/IPv6) – supported on kernel 5.0 and above & RHEL 7.6 and above

OVS configuration:

In case of offloading tunnel, the PF/bond should not be added as a port in the OVS datapath. It should rather be assigned with the IP address to be used for encapsulation.

The following example shows two hosts (PFs) with IPs 1.1.1.177 and 1.1.1.75, where the PF device on both hosts is enp4s0f0, and the VXLAN tunnel is set with VNID 98:

  • On the first host:

    Copy
    Copied!


    # ip addr add 1.1.1.177/24 dev enp4s0f1 # ovs-vsctl add-port ovs-sriov vxlan0 -- set interface vxlan0 type=vxlan options:local_ip=1.1.1.177 options:remote_ip=1.1.1.75 options:key=98

  • On the second host:

    Copy
    Copied!


    # ip addr add 1.1.1.75/24 dev enp4s0f1 # ovs-vsctl add-port ovs-sriov vxlan0 -- set interface vxlan0 type=vxlan options:local_ip=1.1.1.75 options:remote_ip=1.1.1.177 options:key=98

    Info

    For a GRE IPv4 tunnel, use type=gre. For a GRE IPv6 tunnel, use type=ip6gre. For a Geneve tunnel, use type=geneve.

Note

When encapsulating guest traffic, the VF's device MTU must be reduced to allow the host/hardware to add the encap headers without fragmenting the resulted packet. As such, the VF's MTU must be lowered by 50 bytes from the uplink MTU for IPv4 and 70 bytes for IPv6.

Tunnel offload using TC rules:

Copy
Copied!


Encapsulation: # tc filter add dev ens4f0_0 protocol 0x806 parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4:11:22:11:4a:50 \ action tunnel_key set \ src_ip 20.1.12.1 \ dst_ip 20.1.11.1 \ id 100 \ action mirred egress redirect dev vxlan100   Decapsulation: # tc filter add dev vxlan100 protocol 0x806 parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4:11:22:11:4a:50 \ enc_src_ip 20.1.11.1 \ enc_dst_ip 20.1.12.1 \ enc_key_id 100 \ enc_dst_port 4789 \ action tunnel_key unset \ action mirred egress redirect dev ens4f0_0


VLAN Push/Pop

OVS-kernel supports offload of VLAN header push/pop actions:

  • Push – pushing of VLAN header is supported on Tx

  • Pop – popping of tunnel header is supported on Rx

OVS Configuration

Add a tag=$TAG section for the OVS command line that adds the representor ports. For example, VLAN ID 52 is being used here.

Copy
Copied!


# ovs-vsctl add-port ovs-sriov enp4s0f0 # ovs-vsctl add-port ovs-sriov enp4s0f0_0 tag=52 # ovs-vsctl add-port ovs-sriov enp4s0f0_1 tag=52

The PF port should not have a VLAN attached. This will cause OVS to add VLAN push/pop actions when managing traffic for these VFs.

Dump Flow Example
Copy
Copied!


recirc_id(0),in_port(3),eth(src=e4:11:22:33:44:50,dst=00:02:c9:e9:bb:b2),eth_type(0x0800),ipv4(frag=no), \ packets:0, bytes:0, used:never, actions:push_vlan(vid=52,pcp=0),2   recirc_id(0),in_port(2),eth(src=00:02:c9:e9:bb:b2,dst=e4:11:22:33:44:50),eth_type(0x8100), \ vlan(vid=52,pcp=0),encap(eth_type(0x0800),ipv4(frag=no)), packets:0, bytes:0, used:never, actions:pop_vlan,3


VLAN Offload Using TC Rules Example

Copy
Copied!


# tc filter add dev ens4f0_0 protocol ip parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4:11:22:11:4a:50 \ action vlan push id 100 \ action mirred egress redirect dev ens4f0   # tc filter add dev ens4f0 protocol 802.1Q parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4:11:22:11:4a:50 \ vlan_ethtype 0x800 \ vlan_id 100 \ vlan_prio 0 \ action vlan pop \ action mirred egress redirect dev ens4f0_0

TC Configuration

Example of VLAN Offloading with popping header on Tx and pushing on Rx using TC rules:

Copy
Copied!


# tc filter add dev ens4f0_0 ingress protocol 802.1Q parent ffff: \        flower \                vlan_id 100 \        action vlan pop \        action tunnel_key set \                src_ip 4.4.4.1 \                dst_ip 4.4.4.2 \                dst_port 4789 \                id 42 \        action mirred egress redirect dev vxlan0   # tc filter add dev vxlan0 ingress protocol all parent ffff: \        flower \                enc_dst_ip 4.4.4.1 \                enc_src_ip 4.4.4.2 \                enc_dst_port 4789 \                enc_key_id 42 \        action tunnel_key unset \        action vlan push id 100 \         action mirred egress redirect dev ens4f0_0

Header Rewrite

This action allows for modifying packet fields.

Ethernet Layer 2

  • Destination MAC

  • Source MAC

Supported kernels:

  • Kernel 4.14 and above

  • RHEL 7.5 and above

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions: set(eth(src=68:54:ed:00:f4:ab,dst=fa:16:3e:dd:69:c4)),eth7

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action pedit ex \ munge eth dst set 20:22:33:44:55:66 \ munge eth src set aa:ba:cc:dd:ee:fe \ action mirred egress redirect dev $NIC


IPv4/IPv6

  • Source address

  • Destination address

  • Protocol

  • TOS

  • TTL (HLIMIT)

Supported kernels:

  • Kernel 4.14 and above

  • RHEL 7.5 and above

In OVS dump flows:

Copy
Copied!


Ipv4: set(eth(src=de:e8:ef:27:5e:45,dst=00:00:01:01:01:01)), set(ipv4(src=10.10.0.111,dst=10.20.0.122,ttl=63)) Ipv6: set(ipv6(dst=2001:1:6::92eb:fcbe:f1c8,hlimit=63)),

Using TC rules:

Copy
Copied!


IPv4: tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ dst_ip 1.1.1.1 \ src_ip 1.1.1.2 \ ip_proto TCP \ ip_tos 0x3 \ ip_ttl 63 \ pedit ex \ munge ip src set 2.2.2.1 \ munge ip dst set 2.2.2.2 \ munge ip tos set 0 \ munge ip ttl dec \ action mirred egress redirect dev $NIC     IPv6: tc filter add dev $rep parent ffff: protocol ipv6 pref 1 \ flower \ dst_ip 1:1:1::3:1040:1009 \ src_ip 1:1:1::3:1040:1008 \ ip_proto tcp \ ip_tos 0x3 \ ip_ttl 63\ pedit ex \ munge ipv6 src set 2:2:2::3:1040:1009 \ munge ipv6 dst set 2:2:2::3:1040:1008 \ munge ipv6 hlimit dec \ action mirred egress redirect dev $NIC

Note

IPv4 and IPv6 header rewrite is only supported with match on UDP/TCP/ICMP protocols.

TCP/UDP Source and Destination Ports

  • TCP/UDP source and destinations ports

Supported kernels:

  • Kernel 4.16 and above

  • RHEL 7.6 and above

In OVS dump flows:

Copy
Copied!


TCP:   set(tcp(src= 32768/0xffff,dst=32768/0xffff)), UDP:   set(udp(src= 32768/0xffff,dst=32768/0xffff)),

Using TC rules:

Copy
Copied!


TCP:   tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ dst_ip 1.1.1.1 \ src_ip 1.1.1.2 \ ip_proto tcp \ ip_tos 0x3 \ ip_ttl 63 \ pedit ex \ pedit ex munge ip tcp sport set 200 pedit ex munge ip tcp dport set 200 action mirred egress redirect dev $NIC   UDP: tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ dst_ip 1.1.1.1 \ src_ip 1.1.1.2 \ ip_proto udp \ ip_tos 0x3 \ ip_ttl 63 \ pedit ex \ pedit ex munge ip udp sport set 200 pedit ex munge ip udp dport set 200 action mirred egress redirect dev $NIC


VLAN

  • ID

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


Set(vlan(vid=2347,pcp=0/0)),

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol 802.1Q pref 1 \ flower \ vlan_ethtype 0x800 \ vlan_id 100 \ vlan_prio 0 \ action vlan modify id 11 pipe action mirred egress redirect dev $NIC

Connection Tracking

The TC connection tracking (CT) action performs CT lookup by sending the packet to netfilter conntrack module. Newly added connections may be associated, via the ct commit action, with a 32 bit mark, 128 bit label, and source/destination NAT values.

The following example allows ingress TCP traffic from the uplink representor to vf1_rep, while assuring that egress traffic from vf1_rep is only allowed on established connections. In addition, mark and source IP NAT is applied.

In OVS dump flows:

Copy
Copied!


ct(zone=2,nat) ct_state(+est+trk) actions:ct(commit,zone=2,mark=0x4/0xffffffff,nat(src=5.5.5.5))

Using TC rules:

Copy
Copied!


# tc filter add dev $uplink_rep ingress chain 0 prio 1 proto ip \ flower \ ip_proto tcp \ ct_state -trk \ action ct zone 2 nat pipe action goto chain 2 # tc filter add dev $uplink_rep ingress chain 2 prio 1 proto ip \ flower \ ct_state +trk+new \ action ct zone 2 commit mark 0xbb nat src addr 5.5.5.7 pipe \ action mirred egress redirect dev $vf1_rep # tc filter add dev $uplink_rep ingress chain 2 prio 1 proto ip \ flower \ ct_zone 2 \ ct_mark 0xbb \ ct_state +trk+est \ action mirred egress redirect dev $vf1_rep   // Setup filters on $vf1_rep, allowing only established connections of zone 2 through, and reverse nat (dst nat in this case)   # tc filter add dev $vf1_rep ingress chain 0 prio 1 proto ip \ flower \ ip_proto tcp \ ct_state -trk \ action ct zone 2 nat pipe \ action goto chain 1 # tc filter add dev $vf1_rep ingress chain 1 prio 1 proto ip \ flower \ ct_zone 2 \ ct_mark 0xbb \ ct_state +trk+est \ action mirred egress redirect dev eth0

CT Performance Tuning

  • Max offloaded connections – specifies the limit on the number of offloaded connections. Example:

    Copy
    Copied!


    devlink dev param set pci/${pci_dev} name ct_max_offloaded_conns value $max cmode runtime

  • Allow mixed NAT/non-NAT CT – allows offloading of the following scenario:

    Copy
    Copied!


    • cookie=0x0, duration=21.843s, table=0, n_packets=4838718, n_bytes=241958846, ct_state=-trk,ip,in_port=enp8s0f0 actions=ct(table=1,zone=2) • cookie=0x0, duration=21.823s, table=1, n_packets=15363, n_bytes=773526, ct_state=+new+trk,ip,in_port=enp8s0f0 actions=ct(commit,zone=2,nat(dst=11.11.11.11)),output:"enp8s0f0_1" • cookie=0x0, duration=21.806s, table=1, n_packets=4767594, n_bytes=238401190, ct_state=+est+trk,ip,in_port=enp8s0f0 actions=ct(zone=2,nat),output:"enp8s0f0_1"

    Example:

    Copy
    Copied!


    echo enable > /sys/class/net/<device>/compat/devlink/ct_action_on_nat_conns

Forward to Chain (TC Only)

TC interface supports adding flows on different chains. Only chain 0 is accessed by default. Access to the other chains requires using the goto action.

In this example, a flow is created on chain 1 without any match and redirect to wire.

The second flow is created on chain 0 and match on source MAC and action goto chain 1.

This example simulates simple MAC spoofing:

Copy
Copied!


#tc filter add dev $rep parent ffff: protocol all chain 1 pref 1 \ flower \ action mirred egress redirect dev $NIC   #tc filter add dev $rep parent ffff: protocol all chain 1 pref 1 \ flower \ src_mac aa:bb:cc:aa:bb:cc \ action goto chain 1

Port Mirroring: Flow-based VF Traffic Mirroring for ASAP²

Unlike para-virtual configurations, when the VM traffic is offloaded to hardware via SR-IOV VF, the host-side admin cannot snoop the traffic (e.g., for monitoring).

ASAP² uses the existing mirroring support in OVS and TC along with the enhancement to the offloading logic in the driver to allow mirroring the VF traffic to another VF.

The mirrored VF can be used to run traffic analyzer (e.g., tcpdump, wireshark, etc.) and observe the traffic of the VF being mirrored.

The following example shows the creation of port mirror on the following configuration:

Copy
Copied!


# ovs-vsctl show 09d8a574-9c39-465c-9f16-47d81c12f88a Bridge br-vxlan Port "enp4s0f0_1" Interface "enp4s0f0_1" Port "vxlan0" Interface "vxlan0" type: vxlan options: {key="100", remote_ip="192.168.1.14"} Port "enp4s0f0_0" Interface "enp4s0f0_0" Port "enp4s0f0_2" Interface "enp4s0f0_2" Port br-vxlan Interface br-vxlan type: internal ovs_version: "2.14.1"

  • To set enp4s0f0_0 as the mirror port and mirror all the traffic:

    Copy
    Copied!


    # ovs-vsctl -- --id=@p get port enp4s0f0_0 \ -- --id=@m create mirror name=m0 select-all=true output-port=@p \ -- set bridge br-vxlan mirrors=@m

  • To set enp4s0f0_0 as the mirror port, only mirror the traffic, and set enp4s0f0_1 as the destination port:

    Copy
    Copied!


    # ovs-vsctl -- --id=@p1 get port enp4s0f0_0 \ -- --id=@p2 get port enp4s0f0_1 \ -- --id=@m create mirror name=m0 select-dst-port=@p2 output-port=@p1 \ -- set bridge br-vxlan mirrors=@m

  • To set enp4s0f0_0 as the mirror port, only mirror the traffic, and set enp4s0f0_1 as the source port:

    Copy
    Copied!


    # ovs-vsctl -- --id=@p1 get port enp4s0f0_0 \ -- --id=@p2 get port enp4s0f0_1 \ -- --id=@m create mirror name=m0 select-src-port=@p2 output-port=@p1 \ -- set bridge br-vxlan mirrors=@m

  • To set enp4s0f0_0 as the mirror port and mirror all the traffic on enp4s0f0_1:

    Copy
    Copied!


    # ovs-vsctl -- --id=@p1 get port enp4s0f0_0 \ -- --id=@p2 get port enp4s0f0_1 \ -- --id=@m create mirror name=m0 select-dst-port=@p2 select-src-port=@p2 output-port=@p1 \ -- set bridge br-vxlan mirrors=@m

To clear the mirror port:

Copy
Copied!


ovs-vsctl clear bridge br-vxlan mirrors

Mirroring using TC:

  • Mirror to VF:

    Copy
    Copied!


    tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action mirred egress mirror dev $mirror_rep pipe \ action mirred egress redirect dev $NIC

  • Mirror to tunnel:

    Copy
    Copied!


    tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action tunnel_key set \ src_ip 1.1.1.1 \ dst_ip 1.1.1.2 \ dst_port 4789 \ id 768 \ pipe \ action mirred egress mirror dev vxlan100 pipe \ action mirred egress redirect dev $NIC

Forward to Multiple Destinations

Forwarding to up 32 destinations (representors and tunnels) is supported using TC:

  • Example 1 – forwarding to 32 VFs:

    Copy
    Copied!


    tc filter add dev $NIC parent ffff: protocol arp pref 1 \                        flower \                        dst_mac e4:1d:2d:5d:25:35 \                        src_mac e4:1d:2d:5d:25:34 \                        action mirred egress mirror dev $rep0 pipe \                        action mirred egress mirror dev $rep1 pipe \ ...                        action mirred egress mirror dev $rep30 pipe \                         action mirred egress redirect dev $rep31

  • Example 2 – forwarding to 16 tunnels:

    Copy
    Copied!


    tc filter add dev $rep parent ffff: protocol arp pref 1 \                        flower \                        dst_mac e4:1d:2d:5d:25:35 \                        src_mac e4:1d:2d:5d:25:34 \                        action tunnel_key set src_ip $ip_src dst_ip $ip_dst \ dst_port 4789 id 0 nocsum \ pipe action mirred egress mirror dev vxlan0 pipe \                        action tunnel_key set src_ip $ip_src dst_ip $ip_dst \ dst_port 4789 id 1 nocsum \ pipe action mirred egress mirror dev vxlan0 pipe \ ...                        action tunnel_key set src_ip $ip_src dst_ip $ip_dst \ dst_port 4789 id 15 nocsum \ pipe action mirred egress redirect dev vxlan0

Note

TC supports up to 32 actions.

Note

If header rewrite is used, then all destinations should have the same header rewrite.

Note

If VLAN push/pop is used, then all destinations should have the same VLAN ID and actions.


sFlow

sFlow allows for monitoring traffic sent between two VMs on the same host using an sFlow collector.

The following example assumes the environment is configured as described later.

Copy
Copied!


# ovs-vsctl show 09d8a574-9c39-465c-9f16-47d81c12f88a Bridge br-vxlan Port "enp4s0f0_1" Interface "enp4s0f0_1" Port "vxlan0" Interface "vxlan0" type: vxlan options: {key="100", remote_ip="192.168.1.14"} Port "enp4s0f0_0" Interface "enp4s0f0_0" Port "enp4s0f0_2" Interface "enp4s0f0_2" Port br-vxlan Interface br-vxlan type: internal ovs_version: "2.14.1"

To sample all traffic over the OVS bridge:

Copy
Copied!


# ovs-vsctl -- --id=@sflow create sflow agent=\"$SFLOW_AGENT\" \ target=\"$SFLOW_TARGET:$SFLOW_PORT\" \ header=$SFLOW_HEADER \ sampling=$SFLOW_SAMPLING polling=10 \ -- set bridge br-vxlan sflow=@sflow

Parameter

Description

SFLOW_AGENT

Indicates that the sFlow agent should send traffic from SFLOW_AGENT's IP address

SFLOW_TARGET

Remote IP address of the sFlow collector

SFLOW_HEADER

Size of packet header to sample (in bytes)

SFLOW_SAMPLING

Sample rate

To clear the sFlow configuration:

Copy
Copied!


# ovs-vsctl clear bridge br-vxlan sflow

To list the sFlow configuration:

Copy
Copied!


# ovs-vsctl list sflow

sFlow using TC:

Copy
Copied!


Sample to VF tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action sample rate 10 group 5 trunc 96 \ action mirred egress redirect dev $NIC

Note

A userspace application is needed to process the sampled packet from the kernel. An example is available on Github.


Rate Limit

OVS-kernel supports offload of VF rate limit using OVS configuration and TC.

The following example sets the rate limit to the VF related to representor eth0 to 10Mb/s:

  • OVS:

    Copy
    Copied!


    ovs-vsctl set interface eth0 ingress_policing_rate=10000

  • TC:

    Copy
    Copied!


    tc_filter add dev eth0 root prio 1 protocol ip matchall skip_sw action police rate 10mbit burst 20k

Kernel Requirements

This kernel config should be enabled to support switchdev offload.

  • CONFIG_NET_ACT_CSUM – needed for action csum

  • CONFIG_NET_ACT_PEDIT – needed for header rewrite

  • CONFIG_NET_ACT_MIRRED – needed for basic forward

  • CONFIG_NET_ACT_CT – needed for CT (supported from kernel 5.6)

  • CONFIG_NET_ACT_VLAN – needed for action vlan push/pop

  • CONFIG_NET_ACT_GACT

  • CONFIG_NET_CLS_FLOWER

  • CONFIG_NET_CLS_ACT

  • CONFIG_NET_SWITCHDEV

  • CONFIG_NET_TC_SKB_EXT – needed for CT (supported from kernel 5.6)

  • CONFIG_NET_ACT_CT – needed for CT (supported from kernel 5.6)

  • CONFIG_NFT_FLOW_OFFLOAD

  • CONFIG_NET_ACT_TUNNEL_KEY

  • CONFIG_NF_FLOW_TABLE – needed for CT (supported from kernel 5.6)

  • CONFIG_SKB_EXTENSIONS – needed for CT (supported from kernel 5.6)

  • CONFIG_NET_CLS_MATCHALL

  • CONFIG_NET_ACT_POLICE

  • CONFIG_MLX5_ESWITCH

VF Metering

OVS-kernel supports offloading of VF metering (TX and RX) using sysfs. Metering of number of packets per second (PPS) and bytes per second (BPS) is supported.

The following example sets Rx meter on VF 0 with value 10Mb/s BPS:

Copy
Copied!


echo 10000000 > /sys/class/net/enp4s0f0/device/sriov/0/meters/rx/bps/rate echo 65536 > /sys/class/net/enp4s0f0/device/sriov/0/meters/rx/bps/burst

The following example sets Tx meter on VF 0 with value 1000 PPS:

Copy
Copied!


echo 1000 > /sys/class/net/enp4s0f0/device/sriov/0/meters/tx/pps/rate echo 100 > /sys/class/net/enp4s0f0/device/sriov/0/meters/tx/pps/burst

Note

Both rate and burst must not be zero and burst may need to be adjusted according to the requirements.

The following counters can be used to query the number dropped packet/bytes:

Copy
Copied!


cat /sys/class/net/enp8s0f0/device/sriov/0/meters/rx/pps/packets_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/rx/pps/bytes_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/rx/bps/packets_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/rx/bps/bytes_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/tx/pps/packets_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/tx/pps/bytes_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/tx/bps/packets_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/tx/bps/bytes_dropped


Representor Metering

Info

Metering for uplink and VF representors traffic is supported.

Traffic going to a representor device can be a result of a miss in the embedded switch (eSwitch) FDB tables. This means that a packet which arrives from that representor into the eSwitch has not matched against the existing rules in the hardware FDB tables and must be forwarded to software to be handled there and is, therefore, forwarded to the originating representor device driver.

The meter allows to configure the max rate [packets per second] and max burst [packets] for traffic going to the representor driver. Any traffic exceeding values provided by the user are dropped in hardware. There are statistics that show the number of dropped packets.

The configuration of representor metering is done via miss_rl_cfg.

  • Full path of the miss_rl_cfg parameter: /sys/class/net//rep_config/miss_rl_cfg

  • Usage: echo "<rate> <burst>" > /sys/class/net//rep_config/miss_rl_cfg.

    • rate is the max rate of packets allowed for this representor (in packets/sec units)

    • burst is the max burst size allowed for this representor (in packets units)

    • Both values must be specified. Both of their default values is 0, signifying unlimited rate and burst.

To view the amount of packets and bytes dropped due to traffic exceeding the user-provided rate and burst, two read-only sysfs for statistics are available:

  • /sys/class/net//rep_config/miss_rl_dropped_bytes – counts how many FDB-miss bytes are dropped due to reaching the miss limits

  • /sys/class/net//rep_config/miss_rl_dropped_packets – counts how many FDB-miss packets are dropped due to reaching the miss limits

OVS Metering

There are two types of meters, kpps (kilobits per second) and pktps (packets per second). OVS-Kernel supports offloading both of them.

The following example is to offload a kpps meter.

  1. Create OVS meter with a target rate:

    Copy
    Copied!


    ovs-ofctl -O OpenFlow13 add-meter ovs-sriov meter=1,kbps,band=type=drop,rate=204800

  2. Delete the default rule:

    Copy
    Copied!


    ovs-ofctl del-flows ovs-sriov

  3. Configure OpenFlow rules:

    Copy
    Copied!


    ovs-ofctl -O OpenFlow13 add-flow ovs-sriov 'ip,dl_dst=e4:11:22:33:44:50,actions= meter:1,output:enp4s0f0_0' ovs-ofctl -O OpenFlow13 add-flow ovs-sriov 'ip,dl_src=e4:11:22:33:44:50,actions= output:enp4s0f0' ovs-ofctl -O OpenFlow13 add-flow ovs-sriov 'arp,actions=normal'

    Here, the VF bandwidth on the receiving side is limited by the rate configured in step 1.

  4. Run iperf server and be ready to receive UDP traffic. On the outer node, run iperf client to send UDP traffic to this VF. After traffic starts, check the offloaded meter rule:

    Copy
    Copied!


    ovs-appctl dpctl/dump-flows --names type=offloaded   recirc_id(0),in_port(enp4s0f0),eth(dst=e4:11:22:33:44:50),eth_type(0x0800),ipv4(frag=no), packets:11626587, bytes:17625889188, used:0.470s, actions:meter(0),enp4s0f0_0

To verify metering, iperf client should set the target bandwidth with a number which is larger than the meter rate configured. Then it should apparent that packets are received with the limited rate on the server side and the extra packets are dropped by hardware.

Multiport eSwitch Mode

The multiport eswitch mode allows adding rules on a VF representor with an action forwarding the packet to the physical port of the physical function. This can be used to implement failover or forward packets based on external information such as the cost of the route.

  1. To configure multiport eswitch mode , the nvconig parameter LAG_RESOURCE_ALLOCATION must be set.

  2. After the driver loads, configure multiport eSwitch for each PF where enp8s0f0 and enp8s0f1 represent the netdevices for the PFs:

    Copy
    Copied!


    echo multiport_esw > /sys/class/net/enp8s0f0/compat/devlink/lag_port_select_mode echo multiport_esw > /sys/class/net/enp8s0f1/compat/devlink/lag_port_select_mode

    The mode becomes operational after entering switchdev mode on both PFs.

Rule example:

Copy
Copied!


tc filter add dev enp8s0f0_0 prot ip root flower dst_ip 7.7.7.7 action mirred egress redirect dev enp8s0f1

OVS-DPDK Hardware Offloads


OVS-DPDK Hardware Offloads Configuration

To configure OVS-DPDK HW offloads:

  1. Unbind the VFs:

    Copy
    Copied!


    echo 0000:04:00.2 > /sys/bus/pci/drivers/mlx5_core/unbind echo 0000:04:00.3 > /sys/bus/pci/drivers/mlx5_core/unbind

    Note

    VMs with attached VFs must be powered off to be able to unbind the VFs.

  2. Change the e-switch mode from legacy to switchdev on the PF device (make sure all VFs are unbound). This also creates the VF representor netdevices in the host OS.

    Copy
    Copied!


    echo switchdev > /sys/class/net/enp4s0f0/compat/devlink/mode

    To revert to SR-IOV legacy mode:

    Copy
    Copied!


    echo legacy > /sys/class/net/enp4s0f0/compat/devlink/mode

    Note

    This command removes the VF representor netdevices.

  3. Bind the VFs:

    Copy
    Copied!


    echo 0000:04:00.2 > /sys/bus/pci/drivers/mlx5_core/bind echo 0000:04:00.3 > /sys/bus/pci/drivers/mlx5_core/bind

  4. Run the OVS service:

    Ubuntu

    Copy
    Copied!


    systemctl start openvswitch-switch

    RHEL

    Copy
    Copied!


    systemctl start openvswitch

  5. Enable hardware offload (disabled by default):

    Copy
    Copied!


    ovs-vsctl --no-wait set Open_vSwitch . other_config:dpdk-init=true ovs-vsctl set Open_vSwitch . other_config:hw-offload=true

  6. Configure the DPDK whitelist:

    Copy
    Copied!


    ovs-vsctl --no-wait set Open_vSwitch . other_config:dpdk-extra="-a 0000:01:00.0,representor=[0],dv_flow_en=1,dv_esw_en=1,dv_xmeta_en=1"

    Where representor=[0-N].

  7. Restart the OVS service:

    Copy
    Copied!


    systemctl restart openvswitch

    Info

    This step is required for the hardware offload changes to take effect.

  8. Create OVS-DPDK bridge:

    Copy
    Copied!


    ovs-vsctl --no-wait add-br br0-ovs -- set bridge br0-ovs datapath_type=netdev

  9. Add PF to OVS:

    Copy
    Copied!


    ovs-vsctl add-port br0-ovs pf -- set Interface pf type=dpdk options:dpdk-devargs=0000:88:00.0

  10. Add representor to OVS:

    Copy
    Copied!


    ovs-vsctl add-port br0-ovs representor -- set Interface representor type=dpdk options:dpdk-devargs=0000:88:00.0,representor=[0]

    Where representor=[0-N].

Offloading VXLAN Encapsulation/Decapsulation Actions

vSwitch in userspace requires an additional bridge. The purpose of this bridge is to allow use of the kernel network stack for routing and ARP resolution.

The datapath must look up the routing table and ARP table to prepare the tunnel header and transmit data to the output port.

Configuring VXLAN Encap/Decap Offloads

Note

The configuration is done with:

  • PF on 0000:03:00.0 PCIe and MAC 98:03:9b:cc:21:e8

  • Local IP 56.56.67.1 – br-phy interface is configured to this IP

  • Remote IP 56.56.68.1

To configure OVS-DPDK VXLAN:

  1. Create a br-phy bridge:

    Copy
    Copied!


    ovs-vsctl add-br br-phy -- set Bridge br-phy datapath_type=netdev -- br-set-external-id br-phy bridge-id br-phy -- set bridge br-phy fail-mode=standalone other_config:hwaddr=98:03:9b:cc:21:e8

  2. Attach PF interface to br-phy bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-phy p0 -- set Interface p0 type=dpdk options:dpdk-devargs=0000:03:00.0

  3. Configure IP to the bridge:

    Copy
    Copied!


    ip addr add 56.56.67.1/24 dev br-phy

  4. Create a br-ovs bridge:

    Copy
    Copied!


    ovs-vsctl add-br br-ovs -- set Bridge br-ovs datapath_type=netdev -- br-set-external-id br-ovs bridge-id br-ovs -- set bridge br-ovs fail-mode=standalone

  5. Attach representor to br-ovs:

    Copy
    Copied!


    ovs-vsctl add-port br-ovs pf0vf0 -- set Interface pf0vf0 type=dpdk options:dpdk-devargs=0000:03:00.0,representor=[0]

  6. Add a port for the VXLAN tunnel:

    Copy
    Copied!


    ovs-vsctl add-port ovs-sriov vxlan0 -- set interface vxlan0 type=vxlan options:local_ip=56.56.67.1 options:remote_ip=56.56.68.1 options:key=45 options:dst_port=4789

CT Offload

CT enables stateful packet processing by keeping a record of currently open connections. OVS flows using CT can be accelerated using advanced NICs by offloading established connections.

To view offloaded connections, run:

Copy
Copied!


ovs-appctl dpctl/offload-stats-show


SR-IOV VF LAG

To configure OVS-DPDK SR-IOV VF LAG:

  1. Enable SR-IOV on the NICs:

    Copy
    Copied!


    mlxconfig -d <PCI> set SRIOV_EN=1

  2. Allocate the desired number of VFs per port:

    Copy
    Copied!


    echo $n > /sys/class/net/<net name>/device/sriov_numvfs

  3. Unbind all VFs:

    Copy
    Copied!


    echo <VF PCI> >/sys/bus/pci/drivers/mlx5_core/unbind

  4. Change both devices' mode to switchdev:

    Copy
    Copied!


    devlink dev eswitch set pci/<PCI> mode switchdev

  5. Create Linux bonding using kernel modules:

    Copy
    Copied!


    modprobe bonding mode=<desired mode>

    Info

    Other bonding parameters can be added here. The supported bond modes are: Active-backup, XOR and LACP.

  6. Bring all PFs and VFs down:

    Copy
    Copied!


    ip link set <PF/VF> down

  7. Attach both PFs to the bond:

    Copy
    Copied!


    ip link set <PF> master bond0

  8. To use VF-LAG with OVS-DPDK, add the bond master (PF) to the bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-phy p0 -- set Interface p0 type=dpdk options:dpdk-devargs=0000:03:00.0 options:dpdk-lsc-interrupt=true

  9. Add representor $N of PF0 or PF1 to a bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-phy rep$N -- set Interface rep$N type=dpdk options:dpdk-devargs=<PF0 PCI>,representor=pf0vf$N

    Or:

    Copy
    Copied!


    ovs-vsctl add-port br-phy rep$N -- set Interface rep$N type=dpdk options:dpdk-devargs=<PF0 PCI>,representor=pf1vf$N

VirtIO Acceleration Through VF Relay: Software and Hardware vDPA

Note

Hardware vDPA is enabled by default. If your hardware does not support vDPA, the driver will fall back to Software vDPA.

To check which vDPA mode is activated on your driver, run: ovs-ofctl -O OpenFlow14 dump-ports br0-ovs and look for hw-mode flag.

Note

This feature has not been accepted to the OVS-DPDK upstream yet, making its API subject to change.

In user space, there are two main approaches for communicating with a guest (VM), either through SR-IOV or virtio.

PHY ports (SR-IOV) allow working with port representor, which is attached to the OVS and a matching VF is given with pass-through to the guest. HW rules can process packets from up-link and direct them to the VF without going through SW (OVS). Therefore, using SR-IOV achieves the best performance.

However, SR-IOV architecture requires the guest to use a driver specific to the underlying HW. Specific HW driver has two main drawbacks:

  • Breaks virtualization in some sense (guest is aware of the HW). It can also limit the type of images supported.

  • Gives less natural support for live migration.

Using a virtio port solves both problems, however, it reduces performance and causes loss of some functionalities, such as, for some HW offloads, working directly with virtio. The netdev type dpdkvdpa solves this conflict as it is similar to the regular DPDK netdev yet introduces several additional functionalities.

dpdkvdpa translates between the PHY port to the virtio port. It takes packets from the Rx queue and sends them to the suitable Tx queue, and allows transfer of packets from the virtio guest (VM) to a VF and vice-versa, benefitting from both SR-IOV and virtio.

To add a vDPA port:

Copy
Copied!


ovs-vsctl add-port br0 vdpa0 -- set Interface vdpa0 type=dpdkvdpa \ options:vdpa-socket-path=<sock path> \ options:vdpa-accelerator-devargs=<vf pci id> \ options:dpdk-devargs=<pf pci id>,representor=[id] \ options: vdpa-max-queues =<num queues> \ options: vdpa-sw=<true/false>

Note

vdpa-max-queues is an optional field. When the user wants to configure 32 vDPA ports, the maximum queues number is limited to 8.

vDPA Configuration in OVS-DPDK Mode

Prior to configuring vDPA in OVS-DPDK mode, perform the following:

  1. Generate the VF:

    Copy
    Copied!


    echo 0 > /sys/class/net/enp175s0f0/device/sriov_numvfs echo 4 > /sys/class/net/enp175s0f0/device/sriov_numvfs

  2. Unbind each VF:

    Copy
    Copied!


    echo <pci> > /sys/bus/pci/drivers/mlx5_core/unbind

  3. Switch to switchdev mode:

    Copy
    Copied!


    echo switchdev >> /sys/class/net/enp175s0f0/compat/devlink/mode

  4. Bind each VF:

    Copy
    Copied!


    echo <pci> > /sys/bus/pci/drivers/mlx5_core/bind

  5. Initialize OVS:

    Copy
    Copied!


    ovs-vsctl --no-wait set Open_vSwitch . other_config:dpdk-init=true ovs-vsctl --no-wait set Open_vSwitch . other_config:hw-offload=true

To configure vDPA in OVS-DPDK mode:

  1. OVS configuration:

    Copy
    Copied!


    ovs-vsctl --no-wait set Open_vSwitch . other_config:dpdk-extra="-a 0000:01:00.0,representor=[0],dv_flow_en=1,dv_esw_en=1,dv_xmeta_en=1" /usr/share/openvswitch/scripts/ovs-ctl restart

  2. Create OVS-DPDK bridge:

    Copy
    Copied!


    ovs-vsctl add-br br0-ovs -- set bridge br0-ovs datapath_type=netdev ovs-vsctl add-port br0-ovs pf -- set Interface pf type=dpdk options:dpdk-devargs=0000:01:00.0

  3. Create vDPA port as part of the OVS-DPDK bridge:

    Copy
    Copied!


    ovs-vsctl add-port br0-ovs vdpa0 -- set Interface vdpa0 type=dpdkvdpa options:vdpa-socket-path=/var/run/virtio-forwarder/sock0 options:vdpa-accelerator-devargs=0000:01:00.2 options:dpdk-devargs=0000:01:00.0,representor=[0] options: vdpa-max-queues=8

To configure vDPA in OVS-DPDK mode on BlueField DPUs, set the bridge with the software or hardware vDPA port:

  • To create the OVS-DPDK bridge on the Arm side:

    Copy
    Copied!


    ovs-vsctl add-br br0-ovs -- set bridge br0-ovs datapath_type=netdev ovs-vsctl add-port br0-ovs pf -- set Interface pf type=dpdk options:dpdk-devargs=0000:af:00.0 ovs-vsctl add-port br0-ovs rep-- set Interface rep type=dpdk options:dpdk-devargs=0000:af:00.0,representor=[0]

  • To create the OVS-DPDK bridge on the host side:

    Copy
    Copied!


    ovs-vsctl add-br br1-ovs -- set bridge br1-ovs datapath_type=netdev protocols=OpenFlow14 ovs-vsctl add-port br0-ovs vdpa0 -- set Interface vdpa0 type=dpdkvdpa options:vdpa-socket-path=/var/run/virtio-forwarder/sock0 options:vdpa-accelerator-devargs=0000:af:00.2

    Note

    To configure SW vDPA, add options:vdpa-sw=true to the command.

Software vDPA Configuration in OVS-Kernel Mode

Software vDPA can also be used in configurations where hardware offload is done through TC and not DPDK.

  1. OVS configuration:

    Copy
    Copied!


    ovs-vsctl set Open_vSwitch . other_config:dpdk-extra="-a 0000:01:00.0,representor=[0],dv_flow_en=1,dv_esw_en=0,idv_xmeta_en=0,isolated_mode=1" /usr/share/openvswitch/scripts/ovs-ctl restart

  2. Create OVS-DPDK bridge:

    Copy
    Copied!


    ovs-vsctl add-br br0-ovs -- set bridge br0-ovs datapath_type=netdev

  3. Create vDPA port as part of the OVS-DPDK bridge:

    Copy
    Copied!


    ovs-vsctl add-port br0-ovs vdpa0 -- set Interface vdpa0 type=dpdkvdpa options:vdpa-socket-path=/var/run/virtio-forwarder/sock0 options:vdpa-accelerator-devargs=0000:01:00.2 options:dpdk-devargs=0000:01:00.0,representor=[0] options: vdpa-max-queues=8

  4. Create Kernel bridge:

    Copy
    Copied!


    ovs-vsctl add-br br-kernel

  5. Add representors to Kernel bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-kernel enp1s0f0_0 ovs-vsctl add-port br-kernel enp1s0f0

Large MTU/Jumbo Frame Configuration

To configure MTU/jumbo frames:

  1. Verify that the Kernel version on the VM is 4.14 or above:

    Copy
    Copied!


    cat /etc/redhat-release

  2. Set the MTU on both physical interfaces in the host:

    Copy
    Copied!


    ifconfig ens4f0 mtu 9216

  3. Send a large size packet and verify that it is sent and received correctly:

    Copy
    Copied!


    tcpdump -i ens4f0 -nev icmp & ping 11.100.126.1 -s 9188 -M do -c 1

  4. Enable host_mtu in XML and add the following values:

    Copy
    Copied!


    host_mtu=9216,csum=on,guest_csum=on,host_tso4=on,host_tso6=on

    Example:

    Copy
    Copied!


    <qemu:commandline> <qemu:arg value='-chardev'/> <qemu:arg value='socket,id=charnet1,path=/tmp/sock0,server'/> <qemu:arg value='-netdev'/> <qemu:arg value='vhost-user,chardev=charnet1,queues=16,id=hostnet1'/> <qemu:arg value='-device'/> <qemu:arg value='virtio-net-pci,mq=on,vectors=34,netdev=hostnet1,id=net1,mac=00:21:21:24:02:01,bus=pci.0,addr=0xC,page-per-vq=on,rx_queue_size=1024,tx_queue_size=1024,host_mtu=9216,csum=on,guest_csum=on,host_tso4=on,host_tso6=on'/> </qemu:commandline>

  5. Add the mtu_request=9216 option to the OVS ports inside the container and restart the OVS:

    Copy
    Copied!


    ovs-vsctl add-port br0-ovs pf -- set Interface pf type=dpdk options:dpdk-devargs=0000:c4:00.0 mtu_request=9216

    Or:

    Copy
    Copied!


    ovs-vsctl add-port br0-ovs vdpa0 -- set Interface vdpa0 type=dpdkvdpa options:vdpa-socket-path=/tmp/sock0 options:vdpa-accelerator-devargs=0000:c4:00.2 options:dpdk-devargs=0000:c4:00.0,representor=[0] mtu_request=9216 /usr/share/openvswitch/scripts/ovs-ctl restart

  6. Start the VM and configure the MTU on the VM:

    Copy
    Copied!


    ifconfig eth0 11.100.124.2/16 up ifconfig eth0 mtu 9216 ping 11.100.126.1 -s 9188 -M do -c1

E2E Cache

Note

This feature is supported at beta level.

OVS offload rules are based on a multi-table architecture. E2E cache enables merging the multi-table flow matches and actions into one joint flow.

This improves CT performance by using a single-table when an exact match is detected.

To set the E2E cache size (default is 4k):

Copy
Copied!


ovs-vsctl set open_vswitch . other_config:e2e-size=<size> systemctl restart openvswitch

To enable E2E cache (disabled by default):

Copy
Copied!


ovs-vsctl set open_vswitch . other_config:e2e-enable=true systemctl restart openvswitch

To run E2E cache statistics:

Copy
Copied!


ovs-appctl dpctl/dump-e2e-stats

To run E2E cache flows:

Copy
Copied!


ovs-appctl dpctl/dump-e2e-flows


Geneve Encapsulation/Decapsulation

Geneve tunneling offload support includes matching on extension header.

To configure OVS-DPDK Geneve encap/decap:

  1. Create a br-phy bridge:

    Copy
    Copied!


    ovs-vsctl --may-exist add-br br-phy -- set Bridge br-phy datapath_type=netdev -- br-set-external-id br-phy bridge-id br-phy -- set bridge br-phy fail-mode=standalone

  2. Attach PF interface to br-phy bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-phy pf -- set Interface pf type=dpdk options:dpdk-devargs=<PF PCI>

  3. Configure IP to the bridge:

    Copy
    Copied!


    ifconfig br-phy <$local_ip_1> up

  4. Create a br-int bridge:

    Copy
    Copied!


    ovs-vsctl --may-exist add-br br-int -- set Bridge br-int datapath_type=netdev -- br-set-external-id br-int bridge-id br-int -- set bridge br-int fail-mode=standalone

  5. Attach representor to br-int:

    Copy
    Copied!


    ovs-vsctl add-port br-int rep$x -- set Interface rep$x type=dpdk options:dpdk-devargs=<PF PCI>,representor=[$x]

  6. Add a port for the Geneve tunnel:

    Copy
    Copied!


    ovs-vsctl add-port br-int geneve0 -- set interface geneve0 type=geneve options:key=<VNI> options:remote_ip=<$remote_ip_1> options:local_ip=<$local_ip_1>

Parallel Offloads

OVS-DPDK supports parallel insertion and deletion of offloads (flow and CT). While multiple threads are supported (only one is used by default).

To configure multiple threads:

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:n-offload-threads=3 systemctl restart openvswitch

Note

Refer to the OVS user manual for more information.


sFlow

sFlow allows monitoring traffic sent between two VMs on the same host using an sFlow collector.

To sample all traffic over the OVS bridge, run the following:

Copy
Copied!


# ovs-vsctl -- --id=@sflow create sflow agent=\"$SFLOW_AGENT\" \ target=\"$SFLOW_TARGET:$SFLOW_HEADER\" \ header=$SFLOW_HEADER \ sampling=$SFLOW_SAMPLING polling=10 \ -- set bridge sflow=@sflow

Parameter

Description

SFLOW_AGENT

Indicates that the sFlow agent should send traffic from SFLOW_AGENT's IP address

SFLOW_TARGET

Remote IP address of the sFlow collector

SFLOW_PORT

Remote IP destination port of the sFlow collector

SFLOW_HEADER

Size of packet header to sample (in bytes)

SFLOW_SAMPLING

Sample rate

To clear the sFlow configuration, run:

Copy
Copied!


# ovs-vsctl clear bridge br-vxlan mirrors

Note

Currently sFlow for OVS-DPDK is supported without CT.


CT CT NAT

To enable ct-ct-nat offloads in OVS-DPDK (disabled by default), run:

Copy
Copied!


ovs-vsctl set open_vswitch . other_config:ct-action-on-nat-conns=true

If disabled, ct-ct-nat configurations are not fully offloaded, improving connection offloading rate for other cases (ct and ct-nat).

If enabled, ct-ct-nat configurations are fully offloaded but ct and ct-nat offloading would be slower to create.

OpenFlow Meters (OpenFlow13+)

OpenFlow meters in OVS are implemented according to RFC 2697 (Single Rate Three Color Marker—srTCM).

  • The srTCM meters an IP packet stream and marks its packets either green, yellow, or red. The color is decided on a Committed Information Rate (CIR) and two associated burst sizes, Committed Burst Size (CBS), and Excess Burst Size (EBS).

  • A packet is marked green if it does not exceed the CBS, yellow if it exceeds the CBS but not the EBS, and red otherwise.

  • The volume of green packets should never be smaller than the CIR.

To configure a meter in OVS:

  1. Create a meter over a certain bridge, run:

    Copy
    Copied!


    ovs-ofctl -O openflow13 add-meter $bridge meter=$id,$pktps/$kbps,band=type=drop,rate=$rate,[burst,burst_size=$burst_size]

    Parameters:

    Parameter

    Description

    bridge

    Name of the bridge on which the meter should be applied.

    id

    Unique meter ID (32 bits) to be used as an identifier for the meter.

    pktps/kbps

    Indication if the meter should work according to packets or kilobits per second.

    rate

    Rate of pktps/kbps of allowed data transmission.

    burst

    If set, enables burst support for meter bands through the burst_size parameter.

    burst_size

    If burst is specified for the meter entry, configures the maximum burst allowed for the band in kilobits/packets, depending on whether kbps or pktps has been specified. If unspecified, the switch is free to select some reasonable value depending on its configuration. Currently, if burst is not specified, the burst_size parameter is set the same as rate.

  2. Add the meter to a certain OpenFlow rule. For example:

    Copy
    Copied!


    ovs-ofctl -O openflow13 add-flow $bridge "table=0,actions=meter:$id,normal"

  3. View the meter statistics:

    Copy
    Copied!


    ovs-ofctl -O openflow13 meter-stats $bridge meter=$id

  4. For more information, refer to official OVS documentation.

OVS-DOCA Hardware Offloads

OVS-DOCA is designed on top of NVIDIA's networking API to preserve the same OpenFlow, CLI, and data interfaces (e.g., vdpa, VF passthrough), and northbound API as OVS-DPDK and OVS-Kernel. While all OVS flavors make use of flow offloads for hardware acceleration, due to its architecture and use of DOCA libraries, the OVS-DOCA mode provides the most efficient performance and feature set among them, making the most out of NVIDA NICs and DPUs.


The following subsections provide the necessary steps to launch/deploy OVS DOCA.

Configuring OVS-DOCA

To configure OVS DOCA HW offloads:

  1. Unbind the VFs:

    Copy
    Copied!


    echo 0000:04:00.2 > /sys/bus/pci/drivers/mlx5_core/unbind echo 0000:04:00.3 > /sys/bus/pci/drivers/mlx5_core/unbind

    Note

    VMs with attached VFs must be powered off to be able to unbind the VFs.

  2. Change the e-switch mode from legacy to switchdev on the PF device (make sure all VFs are unbound):

    Copy
    Copied!


    echo switchdev > /sys/class/net/enp4s0f0/compat/devlink/mode

    Note

    This command also creates the VF representor netdevices in the host OS.

    To revert to SR-IOV legacy mode:

    Copy
    Copied!


    echo legacy > /sys/class/net/enp4s0f0/compat/devlink/mode

  3. Bind the VFs:

    Copy
    Copied!


    echo 0000:04:00.2 > /sys/bus/pci/drivers/mlx5_core/bind echo 0000:04:00.3 > /sys/bus/pci/drivers/mlx5_core/bind

  4. Configure huge pages:

    Copy
    Copied!


    mkdir -p /hugepages mount -t hugetlbfs hugetlbfs /hugepages echo 4096 > /sys/devices/system/node/node0/hugepages/hugepages-2048kB/nr_hugepages

  5. Run the OVS service:

    Ubuntu

    Copy
    Copied!


    systemctl start openvswitch-switch

    RHEL

    Copy
    Copied!


    systemctl start openvswitch

  6. Enable DOCA mode and hardware offload (disabled by default):

    Copy
    Copied!


    ovs-vsctl --no-wait set Open_vSwitch . other_config:doca-init=true ovs-vsctl set Open_vSwitch . other_config:hw-offload=true

  7. Restart the Open vSwitch service.

    Copy
    Copied!


    systemctl restart openvswitch

    Info

    This step is required for HW offload changes to take effect.

  8. Create OVS-DOCA bridge:

    Copy
    Copied!


    ovs-vsctl --no-wait add-br br0-ovs -- set bridge br0-ovs datapath_type=netdev

  9. Add PF to OVS:

    Copy
    Copied!


    ovs-vsctl add-port br0-ovs enp4s0f0 -- set Interface enp4s0f0 type=dpdk

  10. Add representor to OVS:

    Copy
    Copied!


    ovs-vsctl add-port br0-ovs enp4s0f0_0 -- set Interface enp4s0f0_0 type=dpdk

    Info

    The legacy option to add DPDK ports without using a related netdev by providing dpdk-devargs still exists:

    1. Add a PF port:

      Copy
      Copied!


      ovs-vsctl add-port br0-ovs pf -- set Interface pf type=dpdk options:dpdk-devargs=0000:88:00.0,dv_flow_en=2,dv_xmeta_en=4

    2. Add a VF representor port:

      Copy
      Copied!


      ovs-vsctl add-port br0-ovs representor -- set Interface representor type=dpdk options:dpdk-devargs=0000:88:00.0,representor=[0],dv_flow_en=2,dv_xmeta_en=4

    3. Add a SF representor port:

      Copy
      Copied!


      ovs-vsctl add-port br0-ovs representor -- set Interface representor type=dpdk options:dpdk-devargs=0000:88:00.0,representor=sf[0],dv_flow_en=2,dv_xmeta_en=4

    4. Add a BlueField host PF representor port:

      Copy
      Copied!


      ovs-vsctl add-port br0-ovs hpf -- set Interface hpf type=dpdk options:dpdk-devargs=0000:88:00.0,representor=[65535],dv_flow_en=2,dv_xmeta_en=4

  11. Optional configuration:

    1. To set port MTU, run:

      Copy
      Copied!


      ovs-vsctl set interface enp4s0f0 mtu_request=9000

      Note

      OVS restart is required for changes to take effect .

    2. To set VF/SF MAC, run:

      Copy
      Copied!


      ovs-vsctl add-port br0-ovs enp4s0f0 -- set Interface enp4s0f0 type=dpdk options:dpdk-vf-mac=00:11:22:33:44:55

      Note

      Unbinding and rebinding the VFs/SFs is required for the change to take effect .

Notable Differences Between OVS-DPDK and OVS-DOCA

OVS-DOCA shares most of its structure with OVS-DPDK. To benefit from the DOCA offload design, some of the behavior of userland datapath and ports are however modified.

Eswitch Dependency

Configured in switchdev mode, the physical port and all supported functions share a single general domain to execute the offloaded flows, the eswitch.

All ports on the same eswitch are dependent on its physical function. If this main physical function is deactivated (e.g., removed from OVS or its link set down), dependent ports are disabled as well.

Pre-allocated Offload Tables

To offer the highest insertion speed, DOCA offloads pre-allocate offload structures (entries and containers).

When starting the vSwitch daemon, offloads are thus configured with sensible defaults. If different numbers of offloads are required, configuration entries specific to OVS-DOCA are available and are described in the next section.

Unsupported CT-CT-NAT

The special ct-ct-nat mode that can be configured in OVS-kernel and OVS-DPDK is not supported by OVS-DOCA.

OVS-DOCA Specific vSwitch Configuration

The following configuration is particularly useful or specific to OVS-DOCA mode.

Info

The full list of OVS vSwitch configuration is documented in man ovs-vswitchd.conf.db.

other_config

The following table provides other_config configurations which are global to the vSwitch (non-exhaustive list, check manpage for more):

Configuration

Description

other_config:doca-init

  • Optional string, either true or false

  • Set this value to true to enable DOCA Flow HW offload

  • The default value is false. Changing this value requires restarting the daemon.

  • This is only relevant for userspace datapath

other_config:hw-offload-ct-size

  • Optional string, containing an integer, at least 0

  • Only for the DOCA offload provider on netdev datapath

  • Configure the usable amount of connection tracking (CT) offload entries

  • The default value is 250000. Changing this value requires restarting the daemon.

  • Setting a value of 0 disables CT offload

  • Changing this configuration affects the OVS memory usage as CT tables are allocated on OVS start

other_config:hw-offload-ct-ipv6-enabled

  • Optional string, either true or false

  • Only for the DOCA offload provider on netdev datapath

  • Set this value to true to enable IPv6 CT offload

  • The default value is false. Changing this value requires restarting the daemon.

  • Changing this configuration affects the OVS memory usage as CT tables are allocated on OVS start

other_config:doca-congestion-threshold

  • Optional string, containing an integer, in range 30 to 90

  • The occupancy rate of DOCA offload structures that triggers a resize, as a percentage

  • Default to 80, but only relevant if other_config:doca-init is true. Changing this value requires restarting the daemon.

other_config:ctl-pipe-size

  • Optional string, containing an integer

  • The initial size of DOCA control pipes

  • Default to 0, which is DOCA's internal default value

other_config:ctl-pipe-infra-size

  • Optional string, containing an integer

  • The initial size of infrastructure DOCA control pipes: root, post-hash, post-ct, post-meter, split, miss.

  • Default to 0, which fallbacks to other_config:ctl-pipe-size

other_config:pmd-quiet-idle

  • Optional string, either true or false

  • Allow the PMD threads to go into quiescent mode when idling. If no packets are received or waiting to be processed and sent, enter a continuous quiescent period. End this period as soon as a packet is received.

  • This option is disabled by default

other_config:pmd-maxsleep

  • Optional string, containing an integer, in range 0 to 10,000

  • Specifies the maximum sleep time in microseconds per iteration for a PMD thread which has received zero or a small amount of packets from the Rx queues it is polling.

  • The actual sleep time requested is based on the load of the Rx queues that the PMD polls and may be less than the maximum value

  • The default value is 0 microseconds, which means that the PMD does not sleep regardless of the load from the Rx queues that it polls

  • To avoid requesting very small sleeps (e.g., less than 10 µs) the value is rounded up to the nearest 10 µs

  • The maximum value is 10000 microseconds.

other_config:dpdk-max-memzones

  • Optional string, containing an integer

  • Specifies the maximum number of memzones that can be created in DPDK

  • The default is empty, keeping DPDK’s default. Changing this value requires restarting the daemon.


netdev-dpdk

The following table provides netdev-dpdk configurations which only userland (DOCA or DPDK) netdevs support (non-exhaustive list, check manpage for more):

Configuration

Description

options:iface-name

  • Specifies the interface name of the port

  • Providing this option accelerates processing the port reconfiguration by querying the sysfs to check if the interface exists before DPDK attempts to probe the port

Offloading VXLAN Encapsulation/Decapsulation Actions

vSwitch in userspace rather than kernel-based Open vSwitch requires an additional bridge. The purpose of this bridge is to allow use of the kernel network stack for routing and ARP resolution.

The datapath must look up the routing table and ARP table to prepare the tunnel header and transmit data to the output port.

VXLAN encapsulation/decapsulation offload configuration is done with:

  • PF on 0000:03:00.0 PCIe and MAC 98:03:9b:cc:21:e8

  • Local IP 56.56.67.1 – the br-phy interface is configured to this IP

  • Remote IP 56.56.68.1

To configure OVS DOCA VXLAN:

  1. Create a br-phy bridge:

    Copy
    Copied!


    ovs-vsctl add-br br-phy -- set Bridge br-phy datapath_type=netdev -- br-set-external-id br-phy bridge-id br-phy -- set bridge br-phy fail-mode=standalone other_config:hwaddr=98:03:9b:cc:21:e8

  2. Attach PF interface to br-phy bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-phy enp4s0f0 -- set Interface enp4s0f0 type=dpdk

  3. Configure IP to the bridge:

    Copy
    Copied!


    ip addr add 56.56.67.1/24 dev br-phy

  4. Create a br-ovs bridge:

    Copy
    Copied!


    ovs-vsctl add-br br-ovs -- set Bridge br-ovs datapath_type=netdev -- br-set-external-id br-ovs bridge-id br-ovs -- set bridge br-ovs fail-mode=standalone

  5. Attach representor to br-ovs:

    Copy
    Copied!


    ovs-vsctl add-port br-ovs enp4s0f0_0 -- set Interface enp4s0f0_0 type=dpdk

  6. Add a port for the VXLAN tunnel:

    Copy
    Copied!


    ovs-vsctl add-port ovs-sriov vxlan0 -- set interface vxlan0 type=vxlan options:local_ip=56.56.67.1 options:remote_ip=56.56.68.1 options:key=45 options:dst_port=4789

Offloading Connection Tracking

Connection tracking enables stateful packet processing by keeping a record of currently open connections.

OVS flows utilizing connection tracking can be accelerated using advanced NICs by offloading established connections.

To view offload statistics, run:

Copy
Copied!


ovs-appctl dpctl/offload-stats-show


SR-IOV VF LAG

To configure OVS-DOCA SR-IOV VF LAG:

  1. Enable SR-IOV on the NICs:

    Copy
    Copied!


    mlxconfig -d <PCI> set SRIOV_EN=1

  2. Allocate the desired number of VFs per port:

    Copy
    Copied!


    echo $n > /sys/class/net/<net name>/device/sriov_numvfs

  3. Unbind all VFs:

    Copy
    Copied!


    echo <VF PCI> >/sys/bus/pci/drivers/mlx5_core/unbind

  4. Change both NICs' mode to SwitchDev:

    Copy
    Copied!


    devlink dev eswitch set pci/<PCI> mode switchdev

  5. Create Linux bonding using kernel modules:

    Copy
    Copied!


    modprobe bonding mode=<desired mode>

    Note

    Other bonding parameters can be added here. The supported bond modes are Active-Backup, XOR, and LACP.

  6. Bring all PFs and VFs down:

    Copy
    Copied!


    ip link set <PF/VF> down

  7. Attach both PFs to the bond:

    Copy
    Copied!


    ip link set <PF> master bond0

  8. Bring PFs and bond link up:

    Copy
    Copied!


    ip link set <PF0> up ip link set <PF1> up ip link set bond0 up

  9. To work with VF-LAG in OVS-DPDK, add the bond master interface (PF) to the bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-phy p0 -- set Interface p0 type=dpdk options:dpdk-lsc-interrupt=true

    Info

    The legacy option is:

    Copy
    Copied!


    ovs-vsctl add-port br-phy p0 -- set Interface p0 type=dpdk options:dpdk-devargs=<PF0-PCI>,dv_flow_en=2,dv_xmeta_en=4 options:dpdk-lsc-interrupt=true

  10. Add representor of PF0 or PF1 to a bridge :

    Copy
    Copied!


    ovs-vsctl add-port br-phy enp4s0f0_0 -- set Interface enp4s0f0_0 type=dpdk

    Or:

    Copy
    Copied!


    ovs-vsctl add-port br-phy enp4s0f1_0 -- set Interface enp4s0f1_0 type=dpdk

    Info

    The legacy option to add DPDK ports:

    Copy
    Copied!


    ovs-vsctl add-port br-phy rep$N -- set Interface rep$N type=dpdk options:dpdk-devargs=<PF0-PCI>,representor=pf0vf$N,dv_flow_en=2,dv_xmeta_en=4

    Or:

    Copy
    Copied!


    ovs-vsctl add-port br-phy rep$N -- set Interface rep$N type=dpdk options:dpdk-devargs=<PF0-PCI>,representor=pf1vf$N,dv_flow_en=2,dv_xmeta_en=4

Multiport eSwitch Mode

Multiport eswitch mode allows adding rules on a VF representor with an action, forwarding the packet to the physical port of the physical function. This can be used to implement failover or to forward packets based on external information such as the cost of the route.

  1. To configure multiport eswitch mode , the nvconig parameter LAG_RESOURCE_ALLOCATION=1 must be set.

  2. After the driver loads, and before moving to switchdev mode, configure multiport eswitch for each PF where p0 and p1 represent the netdevices for the PFs:

    Copy
    Copied!


    devlink dev param set pci/0000:03:00.0 name esw_multiport value 1 cmode runtime devlink dev param set pci/0000:03:00.1 name esw_multiport value 1 cmode runtime

    Info

    The mode becomes operational after entering switchdev mode on both PFs.

  3. This mode can be activated by default in BlueField by adding the following line into /etc/mellanox/mlnx-bf.conf:

    Copy
    Copied!


    ENABLE_ESWITCH_MULTIPORT="yes"

While in this mode, the second port is not an eswitch manager, and should be add to OVS using this command:

Copy
Copied!


ovs-vsctl add-port br-phy enp4s0f1 -- set interface enp4s0f1 type=dpdk

VFs for the second port can be added using this command:

Copy
Copied!


ovs-vsctl add-port br-phy enp4s0f1_0 -- set interface enp4s0f1_0 type=dpdk

Info

The legacy option to add DPDK ports:

Copy
Copied!


ovs-vsctl add-port br-phy p1 -- set interface p1 type=dpdk options:dpdk-devargs="0000:08:00.0,dv_xmeta_en=4,dv_flow_en=2,representor=pf1

VFs for the second port can be added using this command:

Copy
Copied!


ovs-vsctl add-port br-phy p1vf0 -- set interface p1 type=dpdk options:dpdk-devargs="0000:08:00.0,dv_xmeta_en=4,dv_flow_en=2,representor=pf1vf0


Offloading Geneve Encapsulation/Decapsulation

Geneve tunneling offload support includes matching on extension header.

Note

OVS-DOCA Geneve option limitations:

  • Only 1 Geneve option is supported

  • Max option len is 7

  • To change the Geneve option currently being matched and encapsulated, users must remove all ports or restart OVS and configure the new option

  • Users must change firmware configuration to enable the flex parser by running the following commands:

    Copy
    Copied!


    mst start mlxconfig -d <mst device> s FLEX_PARSER_PROFILE_ENABLE=8 mlxfwreset -d <mst device> r -y

To configure OVS-DOCA Geneve encapsulation/decapsulation:

  1. Create a br-phy bridge:

    Copy
    Copied!


    ovs-vsctl --may-exist add-br br-phy -- set Bridge br-phy datapath_type=netdev -- br-set-external-id br-phy bridge-id br-phy -- set bridge br-phy fail-mode=standalone

  2. Attach a PF interface to br-phy bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-phy enp4s0f0 -- set Interface enp4s0f0 type=dpdk

  3. Configure an IP to the bridge:

    Copy
    Copied!


    ifconfig br-phy <$local_ip_1> up

  4. Create a br-int bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-int enp4s0f0_0 -- set Interface enp4s0f0_0 type=dpdk

  5. Attach a representor to br-int:

    Copy
    Copied!


    ovs-vsctl add-port br-int rep$x -- set Interface rep$x type=dpdk options:dpdk-devargs=<PF PCI>,representor=[$x],dv_flow_en=2,dv_xmeta_en=4

  6. Add a port for the Geneve tunnel:

    Copy
    Copied!


    ovs-vsctl add-port br-int geneve0 -- set interface geneve0 type=geneve options:key=<VNI> options:remote_ip=<$remote_ip_1> options:local_ip=<$local_ip_1>

GRE Tunnel Offloads

To configure OVS-DOCA GRE encapsulation/decapsulation:

  1. Create a br-phy bridge:

    Copy
    Copied!


    ovs-vsctl --may-exist add-br br-phy -- set Bridge br-phy datapath_type=netdev -- br-set-external-id br-phy bridge-id br-phy -- set bridge br-phy fail-mode=standalone

  2. Attach a PF interface to br-phy bridge:

    Copy
    Copied!


    ovs-vsctl add-port br-phy enp4s0f0 -- set Interface enp4s0f0 type=dpdk

  3. Configure an IP to the bridge:

    Copy
    Copied!


    ifconfig br-phy <$local_ip_1> up

  4. Create a br-int bridge:

    Copy
    Copied!


    ovs-vsctl --may-exist add-br br-int -- set Bridge br-int datapath_type=netdev -- br-set-external-id br-int bridge-id br-int -- set bridge br-int fail-mode=standalone

  5. Attach a representor to br-int:

    Copy
    Copied!


    ovs-vsctl add-port br-int enp4s0f0_0 -- set Interface enp4s0f0_0 type=dpdk

  6. Add a port for the Geneve tunnel:

    Copy
    Copied!


    ovs-vsctl add-port br-int gre0 -- set interface gre0 type=gre options:key=<VNI> options:remote_ip=<$remote_ip_1> options:local_ip=<$local_ip_1>

DP-HASH Offloads

OVS supports group configuration. The "select" type executes one bucket in the group, balancing across the buckets according to their weights. To select a bucket, for each live bucket, OVS hashes flow data with the bucket ID and multiplies that by the bucket weight to obtain a "score". The bucket with the highest score is selected.

Info

For more details, refer to the ovs-ofctl man.

For example:

  • ovs-ofctl add-group br-int 'group_id=1,type=select,bucket=<port1>'

  • ovs-ofctl add-flow br-int in_port=<port0>,actions=group=1

Limitations:

  • Offloads are supported on IP traffic only (IPv4 or IPv6)

  • The hash calculation may be different for packets going into software vs. ones that are offloaded

  • Does not work concurrently with CT (i.e., configure hw-offload-ct-size="0" beforehand)

OVS-DOCA Known Limitations

  • Only one insertion thread is supported (n-offload-threads=1)

  • Only 250K connection are offloadable by default (can be configured)

  • Only 8 CT zones are supported by CT offload

  • Offload of IPv6 tunnels are not supported

  • When using two PFs with 127 VFs each and adding their representors to OVS bridge, the user must configure dpdk-memzones:

    Copy
    Copied!


    ovs-vsctl set o . other_config:dpdk-max-memzones=6500 restart ovs

OVS-DOCA Debugging

Additional debugging information can be enabled in the vSwitch log file using the dbg log level:

Copy
Copied!


( topics='netdev|ofproto|ofp|odp|doca' IFS=$'\n'; for topic in $(ovs-appctl vlog/list | grep -E "$topics" | cut -d' ' -f1) do printf "$topic:file:dbg " done ) | xargs ovs-appctl vlog/set

The listed topics are relevant to DOCA offload operations.

Coverage counters specific to the DOCA offload provider have been added. The following command should be used to check them:

Copy
Copied!


ovs-appctl coverage/show # Print the current non-zero coverage counters

The following table provides the meaning behind these DOCA-specific counters:

Counter

Description

doca_async_queue_full

The asynchronous offload insertion queue was full while the daemon attempted to insert a new offload.

The queue will have been flushed and insertion attempted again.

This is not a fatal error but is the sign of a slowed down hardware.

doca_async_queue_blocked

The asynchronous offload insertion queue has remained full even after several attempts to flush its currently enqueued requests.

While not a fatal error, it should never happen during normal offload operations and should be considered a bug.

doca_async_add_failed

An asynchronous insertion failed specifically due to its asynchronous nature. This is not expected to happen and should be considered a bug.

doca_pipe_resize

The number of time a DOCA pipe has been resized. This is normal and expected as DOCA pipes receives more entries.

doca_pipe_resize_over_10_ms

A DOCA pipe resize took longer than 10ms to complete. It can happen infrequently.

If a sudden drop in insertion rate is measured, this counter could help identify the root cause.

OVS Metrics

OVS exposes Prometheus metrics through its control socket (experimental feature). These metrics can be accessed using the command:

Copy
Copied!


ovs-appctl metrics/show

A terminal dashboard is also installed with OVS, ovs-metrics. This script is dependent on the OVS Python API (package python3-openvswitch). Its default mode currently watches over a set of offload-related metrics.

Verifying Host Connection on Linux

When the DPU is connected to another DPU on another machine, manually assign IP addresses with the same subnet to both ends of the connection.

  1. Assuming the link is connected to p3p1 on the other host, run:

    Copy
    Copied!


    $ ifconfig p3p1 192.168.200.1/24 up

  2. On the host which the DPU is connected to, run:

    Copy
    Copied!


    $ ifconfig p4p2 192.168.200.2/24 up

  3. Have one ping the other. This is an example of the DPU pinging the host:

    Copy
    Copied!


    $ ping 192.168.200.1

Verifying Connection from Host to BlueField

There are two SFs configured on the BlueFIeld-2 device, enp3s0f0s0 and enp3s0f1s0, and their representors are part of the built-in bridge. These interfaces will get IP addresses from the DHCP server if it is present. Otherwise it is possible to configure IP address from the host. It is possible to access BlueField via the SF netdev interfaces.

For example:

  1. Verify the default OVS configuration. Run:

    Copy
    Copied!


    # ovs-vsctl show 5668f9a6-6b93-49cf-a72a-14fd64b4c82b Bridge ovsbr1 Port pf0hpf Interface pf0hpf Port ovsbr1 Interface ovsbr1 type: internal Port p0 Interface p0 Port en3f0pf0sf0            Interface en3f0pf0sf0 Bridge ovsbr2 Port en3f1pf1sf0 Interface en3f1pf1sf0 Port ovsbr2 Interface ovsbr2 type: internal Port pf1hpf Interface pf1hpf Port p1 Interface p1 ovs_version: "2.14.1"

  2. Verify whether the SF netdev received an IP address from the DHCP server. If not, assign a static IP. Run:

    Copy
    Copied!


    # ifconfig enp3s0f0s0 enp3s0f0s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.200.125 netmask 255.255.255.0 broadcast 192.168.200.255 inet6 fe80::8e:bcff:fe36:19bc prefixlen 64 scopeid 0x20<link> ether 02:8e:bc:36:19:bc txqueuelen 1000 (Ethernet) RX packets 3730 bytes 1217558 (1.1 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 22 bytes 2220 (2.1 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

  3. Verify the connection of the configured IP address. Run:

    Copy
    Copied!


    # ping 192.168.200.25 -c 5 PING 192.168.200.25 (192.168.200.25) 56(84) bytes of data. 64 bytes from 192.168.200.25: icmp_seq=1 ttl=64 time=0.228 ms 64 bytes from 192.168.200.25: icmp_seq=2 ttl=64 time=0.175 ms 64 bytes from 192.168.200.25: icmp_seq=3 ttl=64 time=0.232 ms 64 bytes from 192.168.200.25: icmp_seq=4 ttl=64 time=0.174 ms 64 bytes from 192.168.200.25: icmp_seq=5 ttl=64 time=0.168 ms   --- 192.168.200.25 ping statistics --- 5 packets transmitted, 5 received, 0% packet loss, time 91ms rtt min/avg/max/mdev = 0.168/0.195/0.232/0.031 ms

Verifying Host Connection on Windows

Set IP address on the Windows side for the RShim or Physical network adapter, please run the following command in Command Prompt:

Copy
Copied!


PS C:\Users\Administrator> New-NetIPAddress -InterfaceAlias "Ethernet 16" -IPAddress "192.168.100.1" -PrefixLength 22

To get the interface name, please run the following command in Command Prompt:

Copy
Copied!


PS C:\Users\Administrator> Get-NetAdapter

Output should give us the interface name that matches the description (e.g. NVIDIA BlueField Management Network Adapter).

Copy
Copied!


Ethernet 2 NVIDIA ConnectX-4 Lx Ethernet Adapter 6 Not Present 24-8A-07-0D-E8-1D Ethernet 6 NVIDIA ConnectX-4 Lx Ethernet Ad...#2 23 Not Present 24-8A-07-0D-E8-1C Ethernet 16 NVIDIA BlueField Management Netw...#2 15 Up CA-FE-01-CA-FE-02

Once IP address is set, Have one ping the other.

Copy
Copied!


C:\Windows\system32>ping 192.168.100.2   Pinging 192.168.100.2 with 32 bytes of data: Reply from 192.168.100.2: bytes=32 time=148ms TTL=64 Reply from 192.168.100.2: bytes=32 time=152ms TTL=64 Reply from 192.168.100.2: bytes=32 time=158ms TTL=64 Reply from 192.168.100.2: bytes=32 time=158ms TTL=64

© Copyright 2024, NVIDIA. Last updated on May 7, 2024.
