DOCA DevEmu PCI Generic

Note

This library is supported at alpha level; backward compatibility is not guaranteed.

This guide provides instructions on building and developing applications that require emulation of a generic PCIe device.

DOCA DevEmu PCI Generic is part of the DOCA Device Emulation subsystem. It provides low-level software APIs that allow creation of a custom PCIe device using the emulation capability of NVIDIA® BlueField®.

For example, it enables emulating an NVMe device by creating a generic emulated device, configuring its capabilities and BAR to be compliant with the NVMe spec, and operating it from the DPU as necessary.

This library follows the architecture of a DOCA Core Context. It is recommended read the following sections beforehand :

Generic device emulation is part of DOCA PCIe device emulation. It is recommended to read the following guides beforehand:

DOCA DevEmu PCI Generic Emulation is supported only on the BlueField target. The BlueField must meet the following requirements:

  • DOCA version 2.7.0 or greater

  • BlueField-3 firmware 32.41.1000 or higher

Info

Please refer to the DOCA Backward Compatibility Policy.

Library must be run with root privileges.

Please refer to DOCA DevEmu PCI Environment, for further necessary configurations.

DOCA DevEmu PCI Generic allows the creation of a generic PCI type. The PCI Type is part of the DOCA DevEmu PCI library. It is the component responsible for configuring the capabilities and bar layout of emulated devices.

The PCI Type can be considered as the template for creating emulated devices. Such that the user first configures a type, and then they can use it to create multiple emulated devices that have the same configuration.

For a more concrete example, consider that you would like to emulate an NVMe device, then you would create a type and configure its capabilities and BAR to be compliant with the NVMe spec, after that you can use the same type, to generate multiple NVMe emulated devices.

PCI Configuration Space

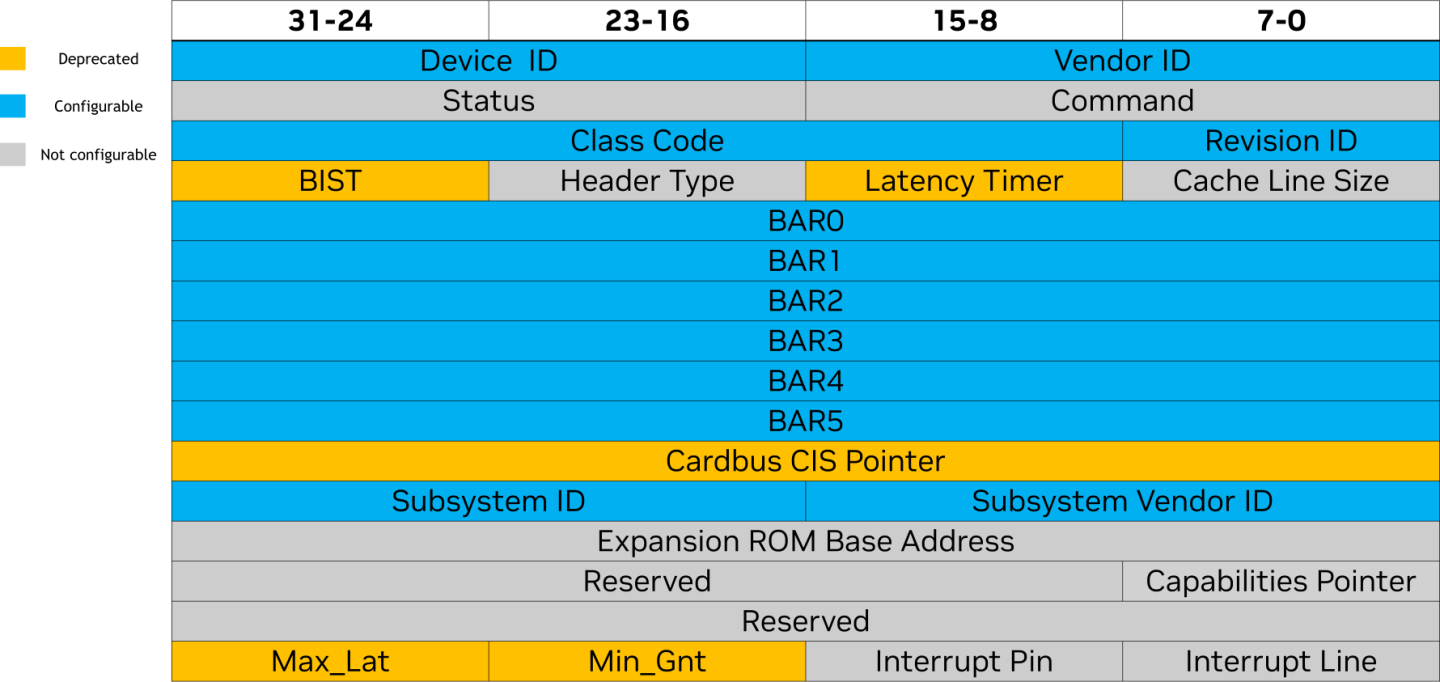

The PCIe configuration space is 256 bytes long and has a header that is 64 bytes long. Each field can be referred to as a register (e.g., device ID).

Every PCIe device is required to implement the PCIe configuration space as defined in the PCIe specification.

The host can then read and/or write to registers in the PCIe configuration space. This allows the PCIe driver and the BIOS to interact with the device and perform the required setup.

It is possible to configure registers in the PCIe configuration space header as shown in the following diagram:


Info

0x0 is the only supported header type (general device).

The following registers are read-only, and they are used to identify the device:

Register Name

Description

Example

Class Code

Defines the functionality of the device

Can be further split into 3 values

{class : subclass: prog IF}

0x020000

Class: 0x02 (Network Controller)

Subclass: 0x00 (Ethernet Controller)

Prog IF: 0x00 (N/A)

Revision ID

Unique identifier of the device revision

Vendor allocates ID by itself

0x01

(Rev 01)

Vendor ID

Unique identifier of the chipset vendor

Vendor allocates ID from the PCI-SIG

0x15b3

Nvidia

Device ID

Unique identifier of the chipset

Vendor allocates ID by itself

0xa2dc

BlueField-3 integrated ConnectX-7 network controller

Subsystem Vendor ID

Unique identifier of the card vendor

Vendor allocates ID from the PCI-SIG

0x15b3

Nvidia

Subsystem ID

Unique identifier of the card

Vendor allocates ID by itself

0x0051


BAR

While the PCIe configuration space can be used to interact with the PCIe device, it is not enough to implement the functionality that is targeted by the device. Rather, it is only relevant for the PCIe layer.

To enable protocol-specific functionality, the device configures additional memory regions referred to as base address registers (BARs) that can be used by the host to interact with the device. Different from the PCIe configuration space, BARs are defined by the device and interactions with them is device-specific. For example, the PCIe driver interacts with an NVMe device's PCIe configuration space according to the PCIe spec, while the NVMe driver interacts with the BAR regions according to the NVMe spec.

Any read/write requests on the BAR are typically routed to the hardware, but in case of an emulated device, the requests are routed to the software.

The DOCA DevEmu PCI type library provides APIs that allow software to pick the mechanism used for routing the requests to software, while taking into consideration common design patterns utilized in existing devices.

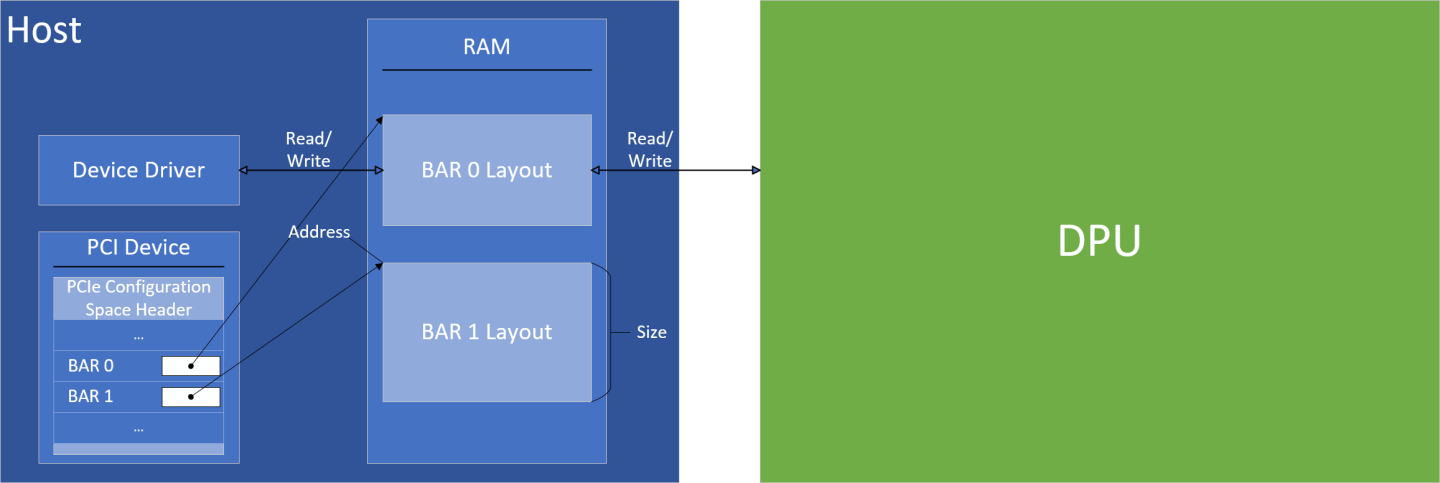

Each PCIe device can have up to 6 BARs with varying properties. During the PCIe bus enumeration process, the PCIe device must be able to advertise information about the layout of each BAR. Based on the advertised information, the BIOS/OS then allocates a memory region for each BAR and assigns the address to the relevant BAR in the PCIe configuration space header. The driver can then use the assigned memory address to perform reads/writes to the BAR.

BAR Layout

The PCIe device must be able to provide information with regards to each BAR's layout.

The layout can be split into 2 types, each with their own properties as detailed in the following subsections.

I/O Mapped

According to the PCIe specification, the following represents the I/O mapped BAR:


Additionally, the BAR register is responsible for advertising the requested size during enumeration.

Info

The size must be a power of 2.

Users can use the following API to set a BAR as I/O mapped:

Copy
Copied!


doca_devemu_pci_type_set_io_bar_conf(struct doca_devemu_pci_type *pci_type, uint8_t id, uint8_t log_sz)

  • id – the BAR ID

  • log_sz – the log of the BAR size

Memory Mapped

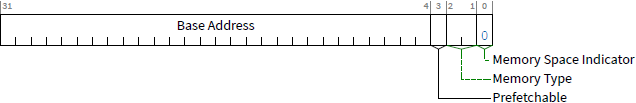

According to the PCIe specification, the following represents the memory mapped BAR:


Additionally, the BAR register is responsible for advertising the requested size during enumeration.

Info

The size must be a power of 2.

The memory mapped BAR allows a 64-bit address to be assigned. To achieve this, users must specify the bar Memory Type as 64-bit, and then set the next BAR's (BAR ID + 1) size to be 0.

Setting the pre-fetchable bit indicates that reads to the BAR have no side-effects.

Users can use the following API to set a BAR as memory mapped:

Copy
Copied!


doca_devemu_pci_type_set_memory_bar_conf(struct doca_devemu_pci_type *pci_type, uint8_t id, uint8_t log_sz, enum doca_devemu_pci_bar_mem_type memory_type, uint8_t prefetchable)

  • id – the BAR ID

  • log_sz – the log of the BAR size. If set to 0, then the size is considered as 0 (instead of 1).

  • memory_type – specifies the memory type of the BAR. If set to 64-bit, then the next BAR must have log_sz set to 0.

  • prefetchable – indicates whether the BAR memory is pre-fetchable or not (a value of 1 or 0 respectively)

BAR Regions

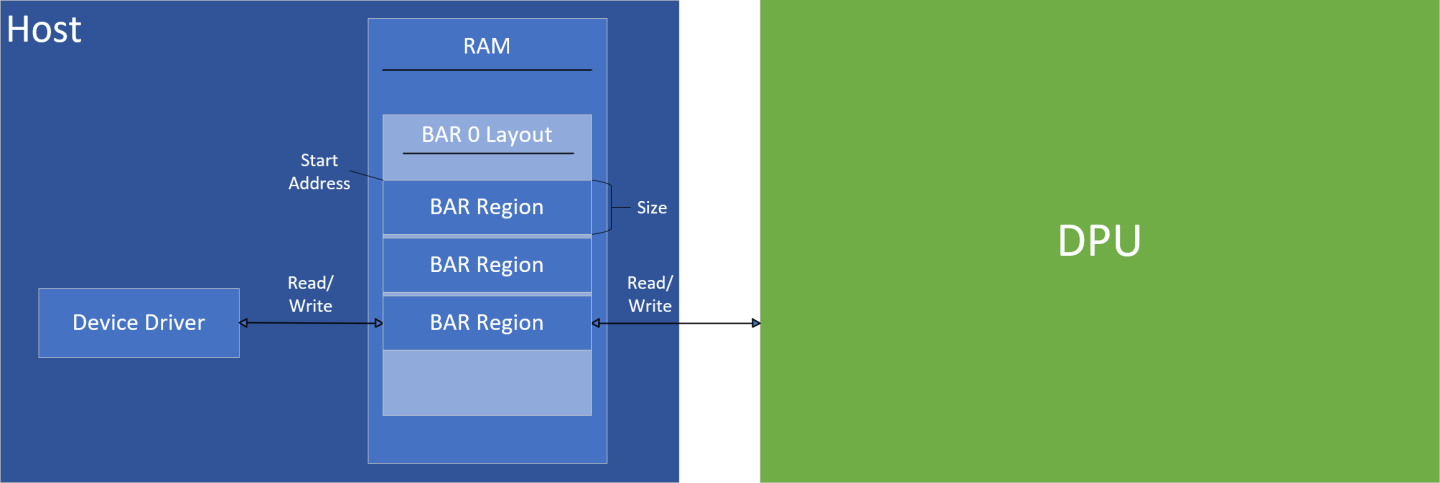

BAR regions refer to memory regions that make up a BAR layout. This is not something that is part of the PCIe specification, rather it is a DOCA concept that allows the user to customize behavior of the BAR when interacted with by the host.

The BAR region defines the behavior when the host performs a read/write to an address within the BAR, such that every address falls in some memory region as defined by the user.


Common Configuration

All BAR regions have these configurations in common:

  • id – the BAR ID that the region is part of

  • start_addr – the start address of the region within the BAR layout relative to the BAR. 0 indicates the start of the BAR layout.

  • size – the size of the BAR region

Currently, there are 4 BAR region types, defining different behavior:

  • Stateful

  • DB by offset

  • DB by data

  • MSIX table

  • MSIX PBA

Generic Control Path (Stateful BAR Region)

Stateful region can be used as a shared memory, such that the contents are maintained in firmware. A read from the driver returns the latest value, while a write updates the value and triggers an event to software running on the DPU.

This can be useful for communication between the driver and the device, during the control path (e.g., exposing capabilities, initialization).

Info

Some limitations apply, please see Limitations section

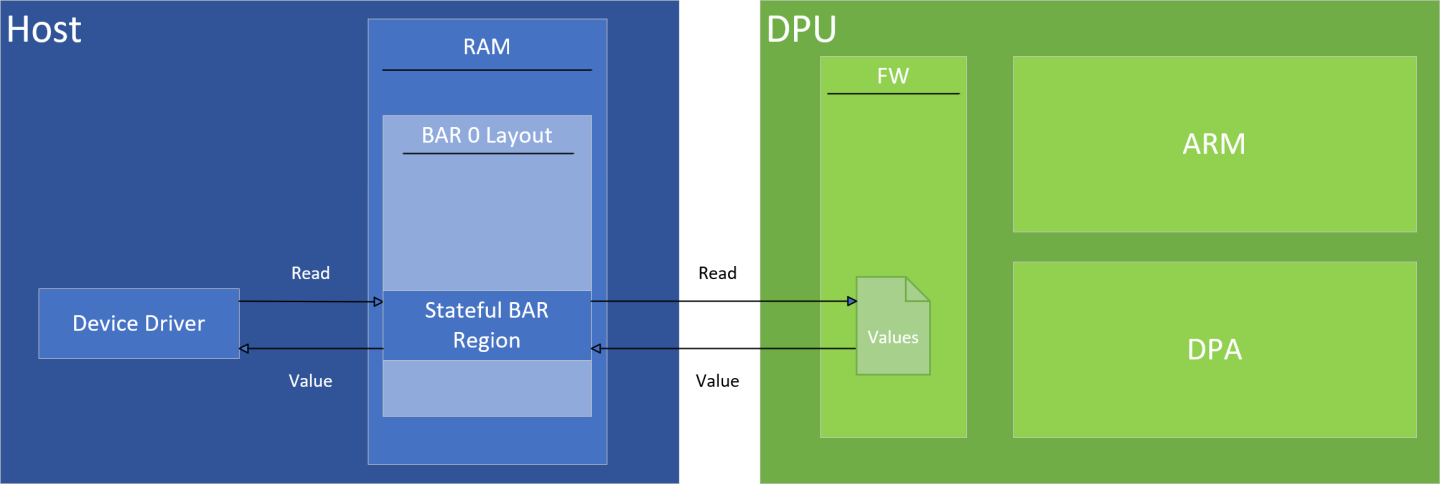

Driver Read

A read from the driver returns the latest value written to the region, whether written by the host or by the driver itself.

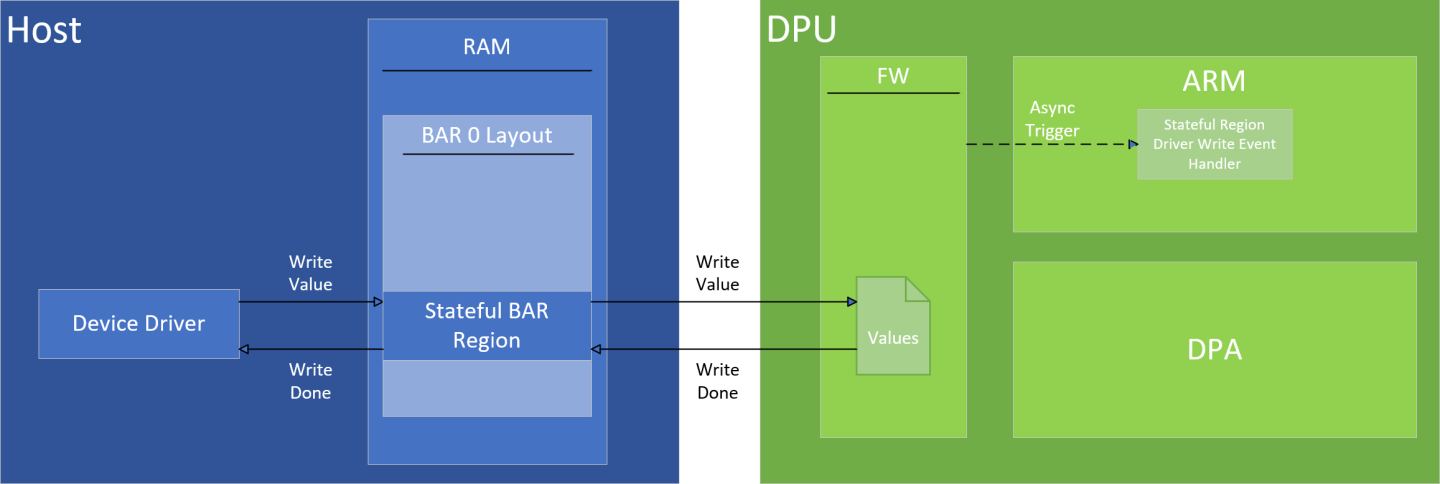

Driver Write

A write from the driver updates the value at the written address and notifies software running on the Arm that a write has occurred. The notification on the Arm arrives as an asynchronous event (see doca_devemu_pci_dev_event_bar_stateful_region_driver_write).


Info

The event that arrives to Arm software is asynchronous such that it may arrive after the driver has completed the write.


DPU Read

The DPU can read the values of the stateful region using doca_devemu_pci_dev_query_bar_stateful_region_values. This returns the latest snapshot of the stateful region values. It can be particularly useful to find what was written by the driver after the "stateful region driver write event" occurs.

DPU Write

The DPU can write the values of the stateful region using doca_devemu_pci_dev_modify_bar_stateful_region_values. This updates the values such that subsequent reads from the driver or the DPU returns these values.

Default Values

The DPU is able to set default values to the stateful region. Default values come in 2 layers:

  • Type default values – these values are set for all devices that have the same type. This can be set only if no device currently exists.

  • Device default values – these values are set for a specific device and take affect on the next FLR cycle or the next hotplug of the device

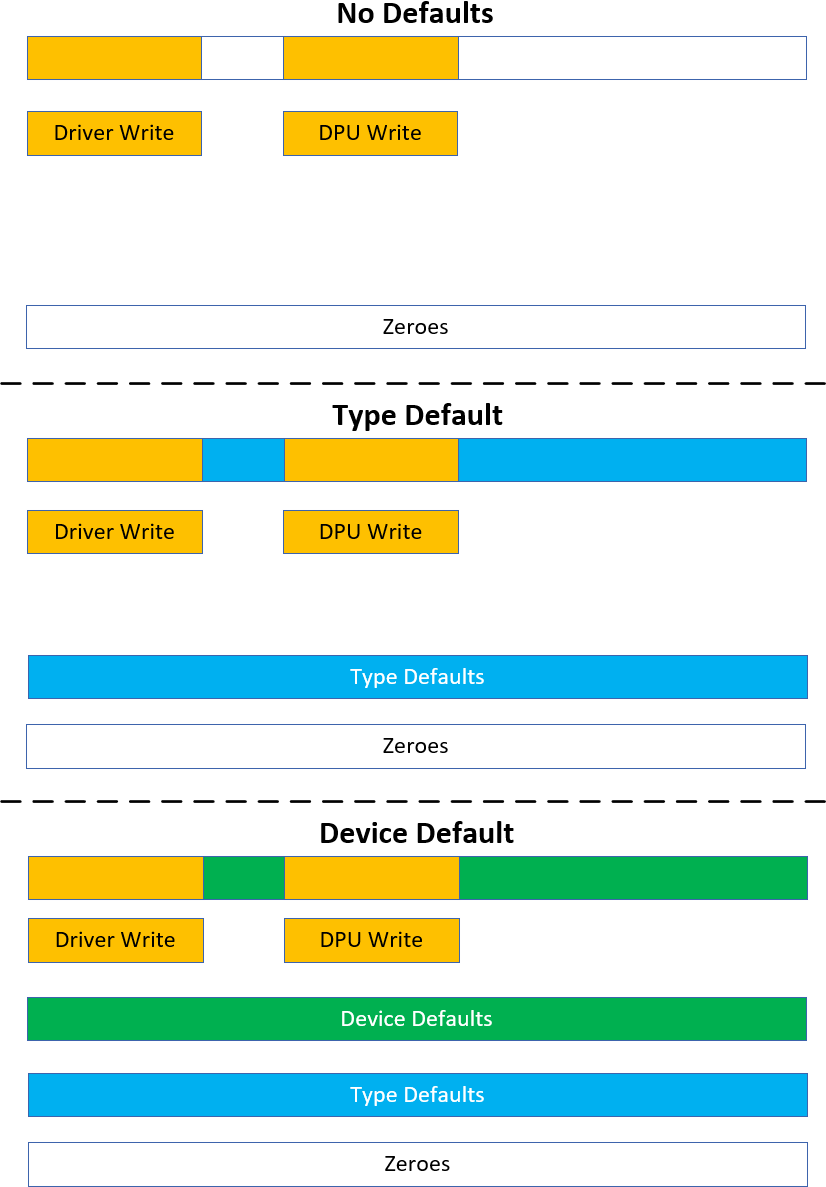

A read of the stateful region follows the following hierarchy:

  1. Return the latest value as written by the host or driver (whichever was done last).

  2. Return the device default values.

  3. Return the type default values.

  4. Return 0.


Generic Data Path (DB BAR Region)

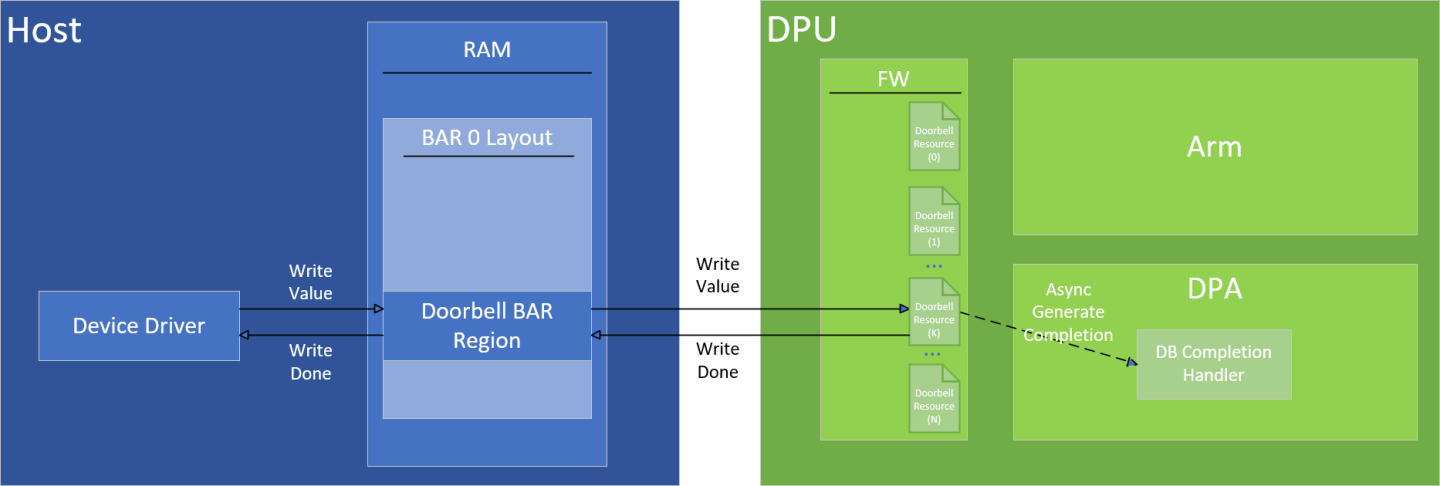

Doorbell (DB) regions can be used to implement a consumer-producer queue between the driver and the DPU, such that a write from the driver would trigger an event on the DPU through DPA, allowing it to fetch the written value. This can be useful for communication between the driver and the device, during the data path allowing IO processing.

While DBs are not part of the PCIe specification, it is a widely used mechanism by vendors (e.g., RDMA QP, NVMe SQ, virtio VQ, etc).


The same DB region can be used to manage multiple DBs, such that each DB can be used to implement a queue.

The DPU software can utilize DB resources individually:

  • Each DB resource has a unique zero-based index referred to as DB ID

  • DB resource can be managed (create/destroy/modify/query) individually

  • Each DB resource has a separate notification mechanism. That is, the notification on DPU is triggered for each DB separately.

Driver Write

The DB usually consists of a numeric value (e.g., uint32_t) representing the consumer/producer index of the queue.

When the driver writes to the DB region, the related DB resource gets updated with the written value, and a notification is sent to the DPU.

When driver writes to the DB BAR region it must adhere to the following:

  • The size of the write must match the size of the DB value (e.g., uint32_t)

  • The offset within the region must be aligned to the DB stride size or the DB size

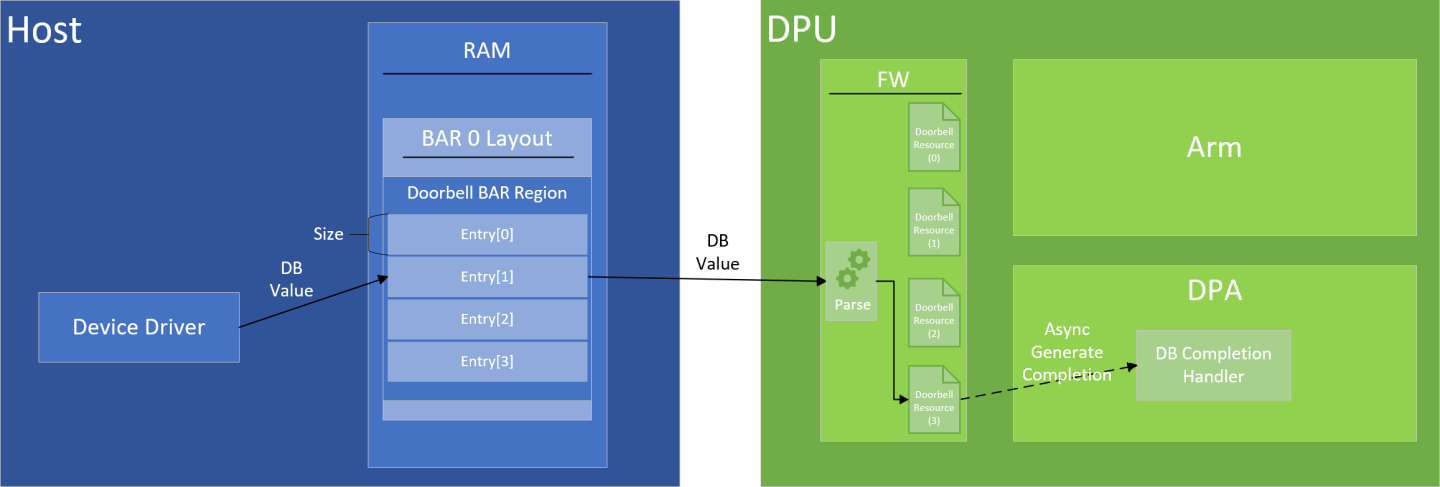

The flow would look something as the following:

  • Driver performs a write of the DB value at some offset within the DB BAR region

  • DPU calculates the DB ID that the write is intended for. Depending on the region type:

    • DB by offset – DPU calculates the DB ID based on the write offset relative to the DB BAR region

    • DB by data – DPU parses the written DB value and extracts the DB ID from it

  • DPU updates the DB resource with the matching DB ID to the value written by the driver

  • DPU sends a notification to the DPA application, informing it that the value of DB with DB ID has been updated by the driver

Driver Read

The driver should not attempt to read from the DB region. Doing so results in anomalous behavior.

BlueField Write

The BlueField can update the value of each DB resource individually using doca_devemu_pci_db_modify_value. This produces similar side effects as though the driver updated the value using a write to the DB region.

BlueField Read

The BlueField can read the value of each DB resource individually using one of the following methods:

  • Read the value from the BlueField Arm using doca_devemu_pci_db_query_value

  • Read the value from the DPA using doca_dpa_dev_devemu_pci_db_get_value

The first option is a time consuming operation and is only recommended for the control path. In the data path, it is recommended to use the second option only.

DB by Offset

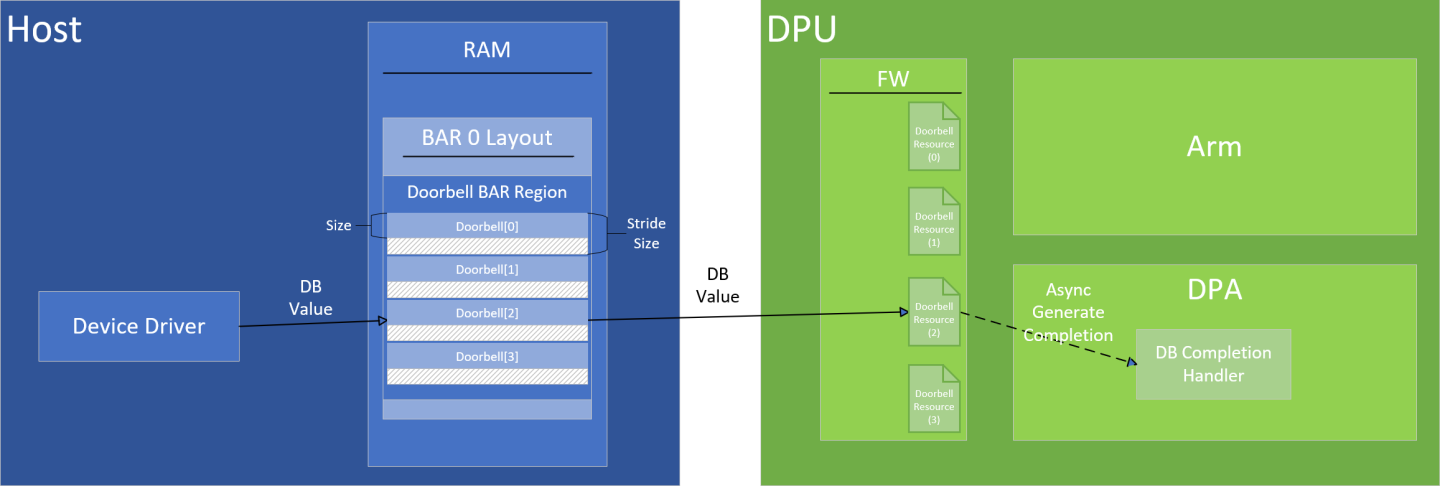

The API doca_devemu_pci_type_set_bar_db_region_by_offset_conf can be used to set up DB by offset region. When the driver writes a DB value using this region, the DPU receives a notification for the relevant DB resource, based on the write offset, such that the DB ID is calculated as follows: db_id=write_offset/db_stride_size.

Warning

The area that is part of the stride but not part of the doorbell, should not be used for any read/write operation, doing so will result in undefined anomalous.


DB by Data


The API doca_devemu_pci_type_set_bar_db_region_by_data_conf can be used to set up DB by data region. When the driver writes a DB value using this region, the DPU receives a notification for the relevant DB resource based on the written DB value, such that there is no relation between the write offset and the DB triggered. This DB region assumes that the DB ID is embedded within the DB value written by the driver. When setting up this region, the user must specify where the Most Significant Byte (MSB) and Least Significant Byte (LSB) of the DB ID are embedded in the DB value.

The DPU follows these steps to extract the DB ID from the DB value:

  • Driver writes the DB value

  • BlueField extracts the bytes between MSB and LSB

  • DPU compares MSB index with LSB index

    • If MSB index greater than LSB index: The extracted value is interpreted as Little Endian

    • If LSB index greater than MSB index: The extracted value is interpreted as Big Endian

Example:

DB size is 4 bytes, LSB is 1, and MSB is 3.

  • Driver writes value 0xCCDDEEFF to DB region at index 0 in Little Endian

    • The value is written to memory as follows: [0]=FF [1]=EE [2]=DD [3]=CC

  • The relevant bytes, are the following: [1]=EE [2]=DD [3]=CC

  • Since MSB (3) is greater than LSB (1), the value is interpreted as Little Endian: db_id = 0xCCDDEE

MSI-X Capability (MSI-X BAR Region)

Message signaled interrupts extended (MSI-X) is commonly used by PCIe devices to send interrupts over the PCIe bus to the host driver. DOCA APIs allow users to expose the MSI-X capability as per the PCIe specification, and to later use it to send interrupts to the host driver.

To configure it, users must provide the following:

  • The number of MSI-X vectors which can be done using doca_devemu_pci_type_set_num_msix

  • Define an MSI-X table

  • Define an MSI-X PBA

MSI-X Table BAR Region

As per the PCIe specification, to expose the MSI-X capability, the device must designate a memory region within its BAR as an MSI-X table region. In DOCA, this can be done using doca_devemu_pci_type_set_bar_msix_table_region_conf.

MSI-X PBA BAR Region

As per the PCIe specification, to expose the MSI-X capability, the device must designate a memory region within its BAR as an MSI-X pending bit array (PBA) region. In DOCA, this can be done using doca_devemu_pci_type_set_bar_msix_pba_region_conf.

Raising MSI-X From DPU

It is possible to raise an MSI-X for each vector individually. This can be done only using the DPA API doca_dpa_dev_devemu_pci_msix_raise.

DMA Memory

Some operations require accessing memory which is set up by the host driver. DOCA's device emulation APIs allow users to access such I/O memory using the DOCA mmap (see DOCA Core Memory Subsystem).

After starting the PCIe device, it is possible to acquire an mmap that references the host memory using doca_devemu_pci_mmap_create. After creating this mmap, it is possible to configure it by providing:

  • Access permissions

  • Host memory range

  • DOCA devices that can access the memory

The mmap can then be used to create buffers that reference memory on the host. The buffers' addresses would not be locally accessible (i.e., CPU cannot dereference the address), instead the addresses would be I/O addresses as defined by the host driver.

The buffers created from the mmap can then be used with other DOCA libraries and accept a doca_buf as an input. This includes:

Function Level Reset

FLR can be handled as described in DOCA DevEmu PCI FLR. Additionally, users must ensure that the following resources are destroyed before stopping the PCIe device:

  • Doorbells created using doca_devemu_pci_db_create_on_dpa

  • MSI-X vectors created using doca_devemu_pci_msix_create_on_dpa

  • Memory maps created using doca_devemu_pci_mmap_create

Limitations

Based on explanation in "Driver Write", user can assume that DOCA DevEmu PCI Generic supports creating emulated PCI devices with the limitation that when a driver writes to a register, the value is immediately available for subsequent reads from the same register. However, this immediate availability does not ensure that any required internal actions triggered by the write have been completed. It is recommended to rely on specific different register values to confirm completion of the write action. For instance, when implementing a write-to-clear operation, e.g. writing 1 to register A to clear register B, it is advisable to poll register B until it indicates the desired state. This approach ensures that the write action has been successfully executed. If a device specification requires certain actions to be completed before exposing written values for subsequent reads, such a device cannot be emulated using the DOCA DevEmu PCI generic framework.

DOCA PCI Device emulation requires a device to operate. For information on picking a device, see DOCA DevEmu PCI Device Support.

Some devices can allow different capabilities as follows:

  • The maximum number of emulated devices

  • The maximum number of different PCIe types

  • The maximum number of BARs

  • The maximum BAR size

  • The maximum number of doorbells

  • The maximum number of MSI-X vectors

  • For each BAR region type there are capabilities for:

    • Whether the region is supported

    • The maximum number of regions with this type

    • The start address alignment of the region

    • The size alignment of the region

    • The min/max size of the region

Tip

As the list of capabilities can be long, it is recommended to use the NVIDIA DOCA Capabilities Print Tool to get an overview of all the available capabilities.

Run the tool as root user as follows:

Copy
Copied!


$ sudo /opt/mellanox/doca/tools/doca_caps -p <pci-address> -b devemu_pci Example output: PCI: 0000:03:00.0 devemu_pci max_hotplug_devices 15 max_pci_types 2 type_log_min_bar_size 12 type_log_max_bar_size 30 type_max_num_msix 11 type_max_num_db 64 type_log_min_db_size 1 type_log_max_db_size 2 type_log_min_db_stride_size 2 type_log_max_db_stride_size 12 type_max_bars 2 bar_max_bar_regions 12 type_max_bar_regions 12 bar_db_region_identify_by_offset supported bar_db_region_identify_by_data supported bar_db_region_block_size 4096 bar_db_region_max_num_region_blocks 16 type_max_bar_db_regions 2 bar_max_bar_db_regions 2 bar_db_region_start_addr_alignment 4096 bar_stateful_region_block_size 64 bar_stateful_region_max_num_region_blocks 4 type_max_bar_stateful_regions 1 bar_max_bar_stateful_regions 1 bar_stateful_region_start_addr_alignment 64 bar_msix_table_region_block_size 4096 bar_msix_table_region_max_num_region_blocks 1 type_max_bar_msix_table_regions 1 bar_max_bar_msix_table_regions 1 bar_msix_table_region_start_addr_alignment 4096 bar_msix_pba_region_block_size 4096 bar_msix_pba_region_max_num_region_blocks 1 type_max_bar_msix_pba_regions 1 bar_max_bar_msix_pba_regions 1 bar_msix_pba_region_start_addr_alignment 4096 bar_is_32_bit_supported unsupported bar_is_1_mb_supported unsupported bar_is_64_bit_supported supported pci_type_hotplug supported pci_type_mgmt supported

Configurations

This section describes the configurations of the DOCA DevEmu PCI Type object, that can be provided before start.

To find if a configuration is supported or what its min/max value is, refer to Device Support.

Mandatory Configurations

The following are mandatory configurations and must be provided before starting the PCI type:

  • A DOCA device that is an emulation manager or hotplug manager. See Device Support.

Optional Configurations

The following configurations are optional:

  • The PCIe device ID

  • The PCIe vendor ID

  • The PCIe subsystem ID

  • The PCIe subsystem vendor ID

  • The PCIe revision ID

  • The PCIe class code

  • The number of MSI-X vectors for MSI-X capability

  • One or more memory mapped BARs

  • One or more I/O mapped BARs

  • One or more DB region

  • An MSI-X table and PBA regions

  • One or more stateful regions

Info

If these configurations are not set then a default value is used.

Configuration Phase

This section describes additional configuration options, on top of the ones already described in DOCA DevEmu PCI Device Configuration Phase.

Configurations

The context can be configured to match the application's use case.

To find if a configuration is supported or what its min/max value is, refer to Device Support.

Optional Configurations

The following configurations are optional:

Execution Phase

This section describes additional events, on top of the ones already described in DOCA DevEmu PCI Device Events.

Events

DOCA DevEmu PCI Device exposes asynchronous events to notify about changes that happen suddenly according to the DOCA Core architecture.

Common events are described in DOCA Core Event.

BAR Stateful Region Driver Write

The stateful region driver write event allows you to receive notifications whenever the host driver writes to the stateful BAR region. See section "Driver Write" for more information.

Configuration

Description

API to Set the Configuration

API to Query Support

Register to the event

doca_devemu_pci_dev_event_bar_stateful_region_driver_write_register

doca_devemu_pci_cap_type_get_max_bar_stateful_regions

If there are multiple stateful regions for the same device, then registration is done separately for each region. The details provided on registration (i.e., bar_id and start address) must match a region previously configured for PCIe type.

Trigger Condition

The event is triggered anytime the host driver writes to the stateful region. See section "Driver Write" for more information.

Output

Common output as described in DOCA Core Event.

Additionally, the event callback receives an event object of type struct doca_devemu_pci_dev_event_bar_stateful_region_driver_write which can be used to retrieve:

  • The DOCA DevEmu PCI Device representing the emulated device that triggered the event – doca_devemu_pci_dev_event_bar_stateful_region_driver_write_get_pci_dev

  • The ID of the BAR containing the stateful region – doca_devemu_pci_dev_event_bar_stateful_region_driver_write_get_bar_id

  • The start address of the stateful region – doca_devemu_pci_dev_event_bar_stateful_region_driver_write_get_bar_region_start_addr

Event Handling

Once the event is triggered, it means that the host driver has written to someplace in the region.

The user must perform either of the following:

  • Query the new values of the stateful region – doca_devemu_pci_dev_query_bar_stateful_region_values

  • Modify the values of the stateful region – doca_devemu_pci_dev_modify_bar_stateful_region_values

It is possible also to do both. However, it is important that the memory areas that the host wrote to are either queried or overwritten with a modify operation.

Note

Failure to do so results in a recurring event. For example, if the host wrote to the first half of the region, but BlueField Arm only queries the second half of the region after receiving the event. Then the library retriggers the event, assuming that the user did not handle the event.

After the PCIe device has been created, it can be used to create DB objects, each DB object represents a DB resources identified by a DB ID. See Generic Data Path (DB BAR Region).

When creating the DB, the DB ID must be provided, this can hold different meaning for DB by offset and DB by data. The DB object can then be used to get a notification to the DPA once a driver write occurs, and to fetch the latest value using the DPA.

Configuration

The flow for creating and configuring a DB should be as follows:

  1. Create the DB object:

    Copy
    Copied!


    arm> doca_devemu_pci_db_create_on_dpa

  2. (Optional) Query the DB value:

    Copy
    Copied!


    arm> doca_devemu_pci_db_query_value

  3. (Optional) Modify the DB value:

    Copy
    Copied!


    arm> doca_devemu_pci_db_modify_value

  4. Get the DB DPA handle for referencing the DB from the DPA:

    Copy
    Copied!


    arm> doca_devemu_pci_db_get_dpa_handle

  5. Bind the DB to the DB completion context using the handle from the previous step:

    Copy
    Copied!


    dpa> doca_dpa_dev_devemu_pci_db_completion_bind_db

    Warning

    It is important to perform this step before the next one. Otherwise, the DB completion context will start receiving completions for an unbound DB.

  6. Start the DB to start receiving completions on DPA:

    Copy
    Copied!


    arm> doca_devemu_pci_db_start

    Info

    Once DB is started, a completion is immediately generated on the DPA.

Similarly the flow for destroying a DB would look as follows:

  1. Stop the DB to stop receiving completions:

    Copy
    Copied!


    arm> doca_devemu_pci_db_stop

    Info

    This step ensures that no additional completions will arrive for this DB

  2. Acknowledge all completions related to this DB:

    Copy
    Copied!


    dpa> doca_dpa_dev_devemu_pci_db_completion_ack

    Info

    This step ensures that existing completions have been processed.

  3. Unbind the DB from the DB completion context:

    Copy
    Copied!


    dpa> doca_dpa_dev_devemu_pci_db_completion_unbind_db

    Warning

    Make sure to not perform this step more than once.

  4. Destroy the DB object:

    Copy
    Copied!


    arm> doca_devemu_pci_db_destroy

Fetching DBs on DPA

To fetch DBs on DPA, a DB completion context can be used. The DB completion context serves the following purposes:

  • Notifying a DPA thread that a DB value has been updated (wakes up thread)

  • Providing information about which DB has been updated

The following flow shows how to use the same DB completion context to get notified whenever any of the DBs are updated, and to find which DBs were actually updated, and finally to get the DBs' values:

  1. Get DB completion element:

    Copy
    Copied!


    doca_dpa_dev_devemu_pci_get_db_completion

  2. Get DB from completion:

    Copy
    Copied!


    doca_dpa_dev_devemu_pci_db_completion_element_get_db_properties

  3. Store the DB (e.g., in an array).

  4. Repeat steps 1-3 until there are no more completions.

  5. Acknowledge the number of received completions:

    Copy
    Copied!


    doca_dpa_dev_devemu_pci_db_completion_ack

  6. Request notification on DPA for the next completion:

    Copy
    Copied!


    doca_dpa_dev_devemu_pci_db_completion_request_notification

  7. Go over the DBs stored in step 3 and for each DB:

    1. Request a notification for the next time the host driver writes to this DB:

      Copy
      Copied!


      doca_dpa_dev_devemu_pci_db_request_notification

    2. Get the most recent value of the DB:

      Copy
      Copied!


      doca_dpa_dev_devemu_pci_db_get_value

Query/Modify DB from Arm

It is possible to query the DB value of a particular DB using doca_devemu_pci_db_query_value on the Arm. Similarly, it is possible to modify the DB value using doca_devemu_pci_db_modify_value. When modifying the DB value, the side effects of such modification is the same as if the host driver updated the DB value.

Tip

Querying and modifying operations from the Arm are time consuming and should be used in the control path only. Fetching DBs on DPA is the recommended approach for retrieval of DB values in the data path.


After the PCIe device has been created, it can be used to create MSI-X objects. Each MSI-X object represents an MSI-X vector identified by the vector index.

The MSI-X object can be used to send a notification to the host driver from the DPA.

Configuration

The MSI-X object can be created using doca_devemu_pci_msix_create_on_dpa. An MSI-X vector index must be provided during creation, this is a value in the range [0, num_msix), such that num_msix is the value previously set using doca_devemu_pci_type_set_num_msix.

Once the MSI-X object is created, doca_devemu_pci_msix_get_dpa_handle can be used to get a DPA handle for use within the DPA.

Raising MSI-X

The MSI-X object can be used on the DPA to raise an MSI-X vector using doca_dpa_dev_devemu_pci_msix_raise.

This section describes DOCA DevEmu Generic samples.

The samples illustrate how to use the DOCA DevEmu Generic API to do the following:

  • List details about emulated devices with same generic type

  • Create and hot-plug/hot-unplug an emulated device with a generic type

  • Handle Host driver write using stateful region

  • Handle Host driver write using DB region

  • Raise MSI-X to the Host driver

  • Perform DMA operation to copy memory buffer between the Host driver and the DPU Arm

Structure

All the samples utilize the same generic PCI type. The configurations of the type reside in /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

The structure for some samples is as follows:

  • /opt/mellanox/doca/samples/doca_devemu/<sample directory>

    1. dpu

      1. host

      2. device

    2. host

Samples following this structure will have two binaries: dpu (1) and host (2), the former should be run on the BlueField and represents the controller of the emulated device, while the latter should be run on the host and represents the host driver.

For simplicity, the host (2) side is based on the VFIO driver, allowing development of a driver in user-space.

Within the dpu (a) directory, there is a host (a) and device (b) directories. host in this case refers to the BlueField Arm processor, while device refers to the DPA processor. Both directories are compiled into a single binary.

Running the Samples

  1. Refer to the following documents:

  2. To build a given sample:

    Copy
    Copied!


    cd /opt/mellanox/doca/samples/doca_devemu/<sample_name>[/dpu or /host] meson /tmp/build ninja -C /tmp/build

    Info

    The binary doca_<sample_name>[_dpu or _host] is created under /tmp/build/.

  3. Sample (e.g., doca_devemu_pci_device_db ) usage:

    1. BlueField side (doca_devemu_pci_device_db_dpu):

      Copy
      Copied!


      Usage: doca_devemu_pci_device_db_dpu [DOCA Flags] [Program Flags]   DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE> --sdk-log-level Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE> -j, --json <path> Parse all command flags from an input json file   Program Flags: -p, --pci-addr The DOCA device PCI address. Format: XXXX:XX:XX.X or XX:XX.X -u, --vuid DOCA Devemu emulated device VUID. Sample will use this device to handle Doorbells from Host -r, --region-index The index of the DB region as defined in devemu_pci_type_config.h. Integer -i, --db-id The DB ID of the DB. Sample will listen on DBs related to this DB ID. Integer

    2. Host side (doca_devemu_pci_device_db_host):

      Copy
      Copied!


      Usage: doca_devemu_pci_device_db_host [DOCA Flags] [Program Flags]   DOCA Flags: -h, --help Print a help synopsis -v, --version Print program version information -l, --log-level Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE> --sdk-log-level Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE> -j, --json <path> Parse all command flags from an input json file   Program Flags: -p, --pci-addr PCI address of the emulated device. Format: XXXX:XX:XX.X -g, --vfio-group VFIO group ID of the device. Integer -r, --region-index The index of the DB region as defined in devemu_pci_type_config.h. Integer -d, --db-index The index of the Doorbell to write to. The sample will write at byte offset (db-index * db-stride) -w, --db-value A 4B value to write to the Doorbell. Will be written in Big Endian

  4. For additional information per sample, use the -h option:

    Copy
    Copied!


    /tmp/build/<sample_name> -h

Additional setup:

  • The BlueField samples require the emulated device to be already hot-plugged:

    • Such samples expect the VUID of the hot-plugged device (-u, --vuid)

    • The list sample can be used to find if any hot-plugged devices exist and what their VUID is

    • The hot-plug sample can be used to hot plug a device if no such device already exists

  • The host samples require the emulated device to be already hot-plugged, and it requires that the device is bound to the VFIO driver:

    • The samples expect 2 parameters -p (--pci-addr) and -g (--vfio-group) of the emulated device as seen by the host

    • The PCI Device List sample can be used from the BlueField to find the PCIe address of the emulated device on the host

    • Once the PCIe address is found, then the host can use the script /opt/mellanox/doca/samples/doca_devemu/devemu_pci_vfio_bind.py to bind the VFIO driver

      Copy
      Copied!


      $ sudo python3 /opt/mellanox/doca/samples/doca_devemu/devemu_pci_vfio_bind.py <pcie-address-of-emulated-dev>

      • The script is a python3 script which expects the PCIe address of the emulated device as a positional argument (e.g., 0000:3e:00.0)

      • The script outputs the VFIO Group ID

      • The script must be used only once after the device is hot-plugged towards the host for the first time

Samples

PCI Device List

This sample illustrates how to list all emulated devices that have the generic type as configured in /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

The sample logic includes:

  1. Initializing generic PCI type based on /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

  2. Creating a list of all emulated devices that belong to this type

  3. Iterating over the emulated devices

  4. Dumping their VUID

  5. Dumping their PCI address as seen by the Host

  6. Releasing the resources

References:

  • /opt/mellanox/doca/samples/doca_devemu/

    • devemu_pci_device_list/

      • devemu_pci_device_list_sample.c

      • devemu_pci_device_list_main.c

      • meson.build

    • devemu_pci_common.h; devemu_pci_common.c

    • devemu_pci_type_config.h

PCI Device Hot-Plug

This sample illustrates how to create and hot-plug/hot-unplug an emulated device that has the generic type as configured in /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

The sample logic includes:

  1. Initializing generic PCI type based on /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

  2. Acquiring the emulated device representor:

    1. If user did not provide VUID as input, then a new emulated device is created and used

    2. If user provide VUID as input, then search for an existing emulated device with matching VUID and use it

  3. Create a PCI device context to manage the emulated device, and connect it to progress engine.

  4. Register to the PCI device's hot-plug state change event

  5. Initialize hot-plug/hot-unplug of the device:

    1. If user did not provide VUID as input, then initialize hot-plug flow of the device

    2. If user provide VUID as input, then initialize hot-unplug flow of the device

  6. Use the progress engine to poll for hot-plug state change event

  7. Wait until hot-plug state transitions to expected state (power on or power off)

  8. Cleanup resources. If hot-unplug was requested then the emulated device will be destroyed as well, otherwise it will persist

References:

  • /opt/mellanox/doca/samples/doca_devemu/

    • devemu_pci_device_hotplug/

      • devemu_pci_device_hotplug_sample.c

      • devemu_pci_device_hotplug_main.c

      • meson.build

    • devemu_pci_common.h; devemu_pci_common.c

    • devemu_pci_type_config.h

PCI Device Stateful Region

This sample illustrates how the Host driver can write to stateful region, and how the DPU Arm can handle the write operation.

This sample consists of Host sample and DPU sample. It is necessary to follow the additional setup as in previous section.

The DPU sample logic includes:

  1. Initializing generic PCI type based on /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

  2. Acquiring the emulated device representor that matches the provided VUID

  3. Create a PCI device context to manage the emulated device, and connect it to progress engine.

  4. For each stateful region configured in /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

    1. Register to the PCI device's stateful region write event

  5. Use the progress engine to poll for driver write to any of the stateful regions

    1. Every time Host driver writes to stateful region then handler is invoked and will do the following

      1. Query the values of the stateful region that the Host wrote to

      2. Log the values of the stateful region

    2. Sample will poll indefinitely until user press [ctrl +c] closing the sample

  6. Cleanup resources

The Host sample logic includes:

  1. Initialize the VFIO device with matching PCI address and VFIO group

  2. Map the stateful memory region from the BAR to the process address space

  3. Write the values that were provided as input to the beginning of the stateful region

References:

  • /opt/mellanox/doca/samples/doca_devemu/

    • devemu_pci_device_stateful_region/dpu/

      • devemu_pci_device_stateful_region_dpu_sample.c

      • devemu_pci_device_stateful_region_dpu_main.c

      • meson.build

    • devemu_pci_device_stateful_region/host/

      • devemu_pci_device_stateful_region_host_sample.c

      • devemu_pci_device_stateful_region_host_main.c

      • meson.build

    • devemu_pci_common.h; devemu_pci_common.c

    • devemu_pci_host_common.h; devemu_pci_host_common.c

    • devemu_pci_type_config.h

PCI Device DB

This sample illustrates how the Host driver can ring the doorbell, and how the DPU can retrieve the doorbell value. The sample also demonstrates how to handle FLR.

This sample consists of Host sample and DPU sample. It is necessary to follow the additional setup as in previous section.

The DPU sample logic includes:

Host (DPU Arm) logic:

  1. Initializing generic PCI type based on /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

  2. Initializing DPA resources

    1. Creating DPA instance, and associating it with the DPA application

    2. Creating DPA thread and associating it with the DPA DB handler

    3. Creating DB completion context and associating it with the DPA thread

  3. Acquiring the emulated device representor that matches the provided VUID

  4. Creating a PCI device context to manage the emulated device, and connecting it to progress engine.

  5. Registering to the context state changes event

  6. Registering to the PCI device FLR event

  7. Use the progress engine to poll for any of the following

    1. Every time the PCI device context state transitions to running the handler will do the following:

      1. Create a DB object

      2. Make RPC to DPA, to initialize the DB object

    2. Every time the PCI device context state transitions to stopping the handler will do the following:

      1. Make RPC to DPA, to un-initialize the DB object

      2. Destroy the DB object

    3. Every time Host driver initializes or destroys the VFIO device, then an FLR event is triggered. The FLR handler will do the following:

      1. Destroy DB object

      2. Stop the PCI device context

      3. Start the PCI device context again

    4. Sample will poll indefinitely until user press [ctrl +c] closing the sample. (Note: during this time the DPA may start receiving DBs from the Host)

  8. Cleanup resources

Device (DPU DPA) logic:

  • Initialize application RPC:

    • Set the global context to point to the DB completion context DPA handle

    • Bind DB to the doorbell completion context

  • Un-initialize application RPC:

    • Unbind DB from the doorbell completion context

  • DB handler:

    • Get DB completion element from completion context

    • Get DB handle from the DB completion element

    • Acknowledge the DB completion element

    • Request notification from DB completion context

    • Request notification from DB

    • Get DB value from DB

The Host sample logic includes:

  1. Initialize the VFIO device with matching PCI address and VFIO group

  2. Map the DB memory region from the BAR to the process address space

  3. Write the value that was provided as input to the DB region at the given offset

References:

  • /opt/mellanox/doca/samples/doca_devemu/

    • devemu_pci_device_db/dpu/

      • host/

        • devemu_pci_device_db_dpu_sample.c

      • device/

        • devemu_pci_device_db_dpu_kernels_dev.c

      • devemu_pci_device_db_dpu_main.c

      • meson.build

    • devemu_pci_device_db/host/

      • devemu_pci_device_db_host_sample.c

      • devemu_pci_device_db_host_main.c

      • meson.build

    • devemu_pci_common.h; devemu_pci_common.c

    • devemu_pci_host_common.h; devemu_pci_host_common.c

    • devemu_pci_type_config.h

PCI Device MSI-X

This sample illustrates how the DPU can raise an MSI-X vector, sending a signal towards the Host, and also shows how the Host can retrieve the signal.

This sample consists of Host sample and DPU sample. It is necessary to follow the additional setup as in previous section.

The DPU sample logic includes:

Host (DPU Arm) logic:

  1. Initializing generic PCI type based on /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

  2. Initializing DPA resources

    1. Creating DPA instance, and associating it with the DPA application

    2. Creating DPA thread and associating it with the DPA DB handler

  3. Acquiring the emulated device representor that matches the provided VUID

  4. Creating a PCI device context to manage the emulated device, and connecting it to progress engine

  5. Creating an MSI-X vector, and acquire its DPA handle

  6. Sending an RPC to the DPA, to raise the MSI-X vector

  7. Cleanup resources

Device (DPU DPA) logic:

  • Raise MSI-X RPC

    • Uses the MSI-X vector handle to raise MSI-X

The Host sample logic includes:

  1. Initialize the VFIO device with matching PCI address and VFIO group

  2. Map each MSI-X vector to a different FD

  3. Read events from the FDs in a loop

    1. Once DPU raises MSI-X, the FD matching the MSI-X vector will return an event, the event will be printed to the screen

    2. The sample will poll the FDs indefinitely until user presses [ctrl +c] closing the sample

References:

  • /opt/mellanox/doca/samples/doca_devemu/

    • devemu_pci_device_msix/dpu/

      • host/

        • devemu_pci_device_msix_dpu_sample.c

      • device/

        • devemu_pci_device_msix_dpu_kernels_dev.c

      • devemu_pci_device_msix_dpu_main.c

      • meson.build

    • devemu_pci_device_msix/host/

      • devemu_pci_device_msix_host_sample.c

      • devemu_pci_device_msix_host_main.c

      • meson.build

    • devemu_pci_common.h; devemu_pci_common.c

    • devemu_pci_host_common.h; devemu_pci_host_common.c

    • devemu_pci_type_config.h

PCI Device DMA

This sample illustrates how the Host driver can set up memory for DMA, then the DPU can use that memory to copy a string from DPU to Host, and from Host to DPU

This sample consists of Host sample and DPU sample. It is necessary to follow the additional setup as in previous section.

The DPU sample logic includes:

  1. Initializing generic PCI type based on /opt/mellanox/doca/samples/doca_devemu/devemu_pci_type_config.h

  2. Acquiring the emulated device representor that matches the provided VUID

  3. Creating a PCI device context to manage the emulated device, and connecting it to progress engine

  4. Creating a DMA context to be used for copying memory across Host and DPU

  5. Setup an mmap representing the Host driver memory buffer

  6. Setup an mmap representing a local memory buffer

  7. Use the DMA context to copy memory from Host to DPU

  8. Use the DMA context to copy memory from DPU to Host

  9. Cleanup resources

The Host sample logic includes:

  1. Initialize the VFIO device with matching PCI address and VFIO group

  2. Allocate memory buffer

  3. Map the memory buffer to I/O memory - the DPU can now access the memory using the I/O address through DMA

  4. Copy string provided by user to the memory buffer

  5. Wait for DPU to write to the memory buffer

  6. Un-map the memory buffer

  7. Cleanup resources

References:

  • /opt/mellanox/doca/samples/doca_devemu/

    • devemu_pci_device_dma/dpu/

      • devemu_pci_device_dma_dpu_sample.c

      • devemu_pci_device_dma_dpu_main.c

      • meson.build

    • devemu_pci_device_dma/host/

      • devemu_pci_device_dma_host_sample.c

      • devemu_pci_device_dma_host_main.c

      • meson.build

© Copyright 2024, NVIDIA. Last updated on Aug 15, 2024.
