DOCA DPA

Note

Supported at beta level.

This chapter provides an overview and configuration instr uctions for DOCA DPA API.

The DOCA DPA library offers a programming model for offloading communication-centric user code to run on the DPA processor on NVIDIA® BlueField®-3 networking platform. DOCA DPA provides a high-level programming interface to the DPA processor.

DOCA DPA offers:

  • Full control over DPA threads –

    • The u ser can control the thread function (kernel) that runs on DPA and t heir placement on DPA EUs

    • The user can associate a DPA thread with a DPA Completion Context. When the completion context receives a notification, the DPA thread is scheduled.

  • Abstraction to allow a DPA thread to issue asynchronous operations

  • Abstraction to execute a blocking one-time call from host application to execute the kernel on the DPA from the host application (RPC)

  • Abstraction for memory services

  • Abstraction for remote communication primitives (integrated with remote event signaling)

  • Full control on execution-ordering and notifications/synchronization of the DPA and host/Target BlueField

  • A set of debugging APIs that allow diagnosing and troubleshooting any issue on the device, as well as accessing real-time information from the running application

  • C API for application developers

DPACC is used to compile and link kernels with DOCA DPA device libraries to get DPA applications that can be loaded from the host program to execute on the DPA (similar to CUDA usage with NVCC). For more information on DPACC, refer to the NVIDIA DOCA DPACC Compiler.

DOCA DPA applications can run either on the host or on the Target BlueField. Running on the host machine requires EU pre-configuration using the dpaeumgmt tool. For more information, please refer to NVIDIA DOCA DPA EU Management Tool.

Please refer to the NVIDIA DOCA Library APIs.

DOCA enables developers to program the DPA processor using both DOCA DPA library and a suite of other tools (mainly DPACC).

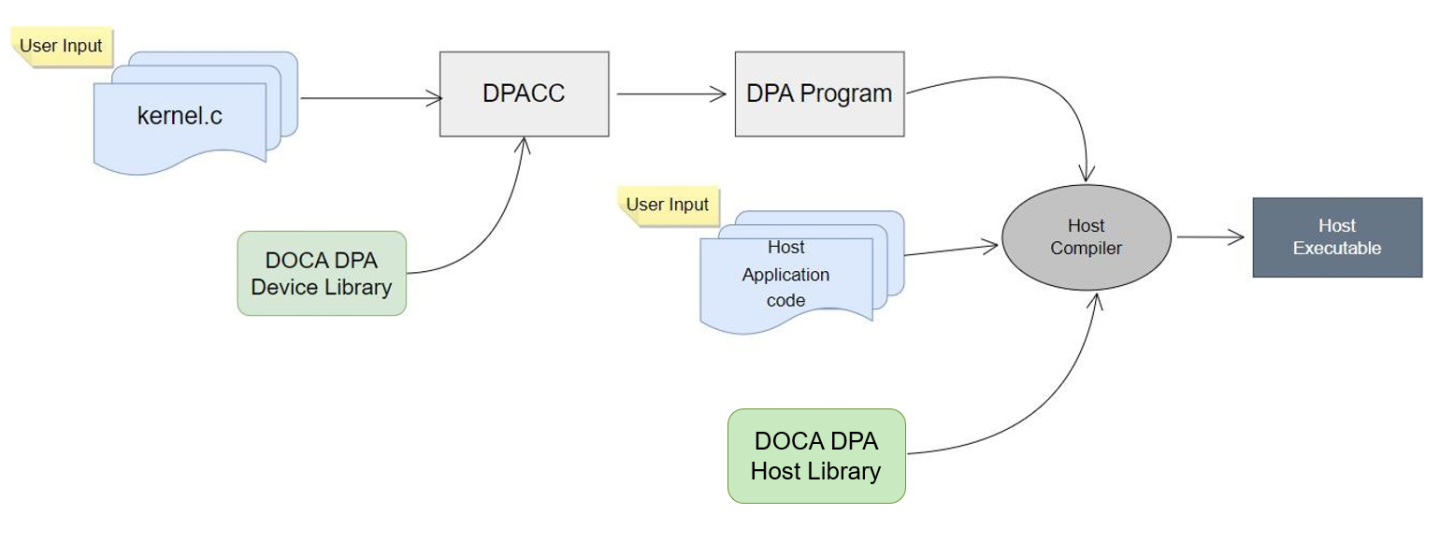

The following are the main steps to start DPA offload programming:

  1. Write DPA device code, or kernels, (.c files) with:

    • The __dpa_global__ keyword before DPA thread function (see "Examples" section)

    • The __dpa_rpc__ keyword before RPC function (see "Examples" section)

  2. Use DPACC to build a DPA program (i.e., a host library which contains an embedded device executable). Inputs for DPACC are:

    • Kernels from the previous step

    • DOCA DPA device libraries

  3. Build host executable using a host compiler. Inputs for the host compiler are:

    • DPA program from the previous step

    • User host application source files

    • DOCA DPA host library

DPACC is provided by the DOCA SDK installation . For more information, please refer to the NVIDIA DOCA DPACC Compiler.

Deployment View

DOCA DPA is composed of the following libraries that come with the DOCA SDK installation:

  • Host/Target BlueField library and header file (used by user host application)

    • doca_dpa.h

    • libdoca_dpa.a/libdoca_dpa.so

  • Two device libraries and header files

    • doca_dpa_dev.h

    • doca_dpa_dev_rdma.h

    • doca_dpa_dev_sync_event.h

    • doca_dpa_dev_buf.h

    • libdoca_dpa_dev.a – DOCA DPA device library for common utilities (e.g., log, trace, completion, sync event, etc.)

    • libdoca_dpa_dev_comm.a – DOCA DPA device library for communication utilities (e.g., RDMA)

DPA Queries

  • Before invoking the DPA API, make sure that DPA is indeed supported on the relevant device. The API which checks whether a device supports DPA is:

    Copy
    Copied!


    doca_error_t doca_devinfo_get_is_dpa_supported(const struct doca_devinfo *devinfo)

    Info

    Only if this call returns DOCA_SUCCESS can the user invoke DOCA DPA API on the device.

  • To use a valid EU ID for the DPA EU Affinity of a DPA thread, use the following APIs to query EU ID and core valid values:

    Copy
    Copied!


    doca_error_t doca_dpa_get_core_num(struct doca_dpa *dpa, unsigned int *num_cores) doca_error_t doca_dpa_get_num_eus_per_core(struct doca_dpa *dpa, unsigned int *eus_per_core) doca_error_t doca_dpa_get_total_num_eus_available(struct doca_dpa *dpa, unsigned int *total_num_eus)

  • There is a limitation on the maximum number of DPA threads that can run a single kernel. This can be retrieved by calling the host API:

    Copy
    Copied!


    doca_error_t doca_dpa_get_max_threads_per_kernel(struct doca_dpa *dpa, unsigned int *value)

  • Each kernel launched into the DPA has a maximum runtime limit. This can be retrieved by calling the host API:

    Copy
    Copied!


    doca_error_t doca_dpa_get_kernel_max_run_time(struct doca_dpa *dpa, unsigned long long *value)

    Note

    If the kernel execution time on the DPA exceeds this maximum runtime limit, it may be terminated and cause a fatal error. To recover, the application must destroy the DPA context and create a new one.

Overview of DOCA DPA Software Objects

Term

Definition

DPA context

Software construct for the host process that encapsulates the state associated with a DPA process (on a specific device).

DPA Application

Interface with the DPACC compiler to produce a DPA program (app) which is obtained by the DPA context to begin working on DPA.

Kernel

User function (and its arguments) to be executed on DPA.

A kernel may be executed by one or more DPA threads.

DPA EU Affinity

An object used to control which EU to use for DPA thread.

DPA Thread

DOCA DPA provides APIs to create/manage DPA thread which runs a given kernel.

DPA Completion Context

An object used to receive/handle a completion notification.

The user can associate a DPA thread with a completion context. When the completion context receives a notification, DPA thread is scheduled.

DPA Thread Notification

A mechanism for one DPA thread to notify another DPA thread.

DPA Async Ops

An object used to allow a DPA thread to issue asynchronous operations, like memcpy or post_wait operations.

DPA RPC

A blocking one-time call from host application to execute a kernel on DPA. RPC is mainly used for control path. The RPC's return value is reported back to the host application.

DPA Memory

DOCA DPA provides an API to allocate/manage DPA memory, as well as handling host/Target BlueField memory that has been exported to DPA.

Sync Event

Data structure in either CPU, Target BlueField, GPU, or DPA-heap. An event contains a counter that can be updated and waited on.

RDMA

Abstraction around a network transport object. Allows executing various RDMA operations.

DPA Hash Table

DOCA DPA provides an API to create a Hash Table on DPA. This data structure is managed on DPA using relevant device APIs.

DPA Logger/Tracer

DOCA DPA provides a set of debugging APIs to allow the user to diagnose and troubleshoot any issue on the device, as well as accessing real-time information from the running application.

Note

The DOCA DPA SDK does not use any means of multi-thread synchronization primitives. All DOCA DPA objects are non-thread-safe. Developers should make sure the user program and kernels are written to avoid race conditions.


Initialization

The DPA context encapsulates the DPA device and a DPA process (program). Within this context, the application creates various DPA SDK objects and controls them. After verifying DPA is supported for the chosen device, the DPA context is created.

Use the following host-side APIs to create/set the DPA context and it is expected to be the first programming step:

  • To create/destroy DPA context:

    Copy
    Copied!


    doca_error_t doca_dpa_create(struct doca_dev *dev, struct doca_dpa **dpa) doca_error_t doca_dpa_destroy(struct doca_dpa *dpa)

  • To start/stop DPA context:

    Copy
    Copied!


    doca_error_t doca_dpa_start(struct doca_dpa *dpa) doca_error_t doca_dpa_stop(struct doca_dpa *dpa)

Interface to DPACC

DPA Application

To associate a DPA program (app) with a DPA context, use the following host-side APIs:

Copy
Copied!


doca_error_t doca_dpa_set_app(struct doca_dpa *dpa, struct doca_dpa_app *app) doca_error_t doca_dpa_get_app(struct doca_dpa *dpa, struct doca_dpa_app **app) doca_error_t doca_dpa_app_get_name(struct doca_dpa_app *app, char *app_name, size_t *app_name_len)

The app variable name used in doca_dpa_set_app() API must be the token passed to DPACC --app-name parameter.

Example (Pseudo Code)

For example, when using the following dpacc command line:

Copy
Copied!


dpacc \ kernels.c \ -o dpa_program.a \ -hostcc=gcc \ -hostcc-options="..." \ --devicecc-options="..." \ -device-libs="-L/opt/mellanox/doca/include -ldoca_dpa_dev -ldoca_dpa_dev_comm" \ --app-name="dpa_example_app"

The user must use the following commands to set the app of a DPA context:

Copy
Copied!


extern struct doca_dpa_app *dpa_example_app; doca_dpa_create(&dpa); doca_dpa_set_app(dpa, dpa_example_app); doca_dpa_start(dpa);

Affinity

The user can control which EU to use for a DPA thread using DPA EU affinity object.

A DPA EU affinity object can be configured for one EU ID at a time.

Use the following host-side APIs to manage it:

  • To create/destroy DPA EU affinity object:

    Copy
    Copied!


    doca_error_t doca_dpa_eu_affinity_create(struct doca_dpa *dpa, struct doca_dpa_eu_affinity **affinity) doca_error_t doca_dpa_eu_affinity_destroy(struct doca_dpa_eu_affinity *affinity)

  • To set/clear EU ID in DPA EU affinity object:

    Copy
    Copied!


    doca_error_t doca_dpa_eu_affinity_set(struct doca_dpa_eu_affinity *affinity, unsigned int eu_id) doca_error_t doca_dpa_eu_affinity_clear(struct doca_dpa_eu_affinity *affinity)

  • To get EU ID of a DPA EU affinity object:

    Copy
    Copied!


    doca_error_t doca_dpa_eu_affinity_get(struct doca_dpa_eu_affinity *affinity, unsigned int *eu_id)

Threading

DOCA DPA thread used to run a user function “DPA kernel” on DPA.

User can control on which EU to run DPA kernel by attaching a DPA EU affinity object to the thread.

The thread can be triggered on DPA using two methods:

  1. DPA Thread Notification - Notifying one DPA thread from another DPA thread.

  2. DPA Completion Context - A completion is arrived at a DPA completion context which is attached to the thread.

DPA Thread

Host-side API

  • To create/destroy DPA thread:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_create(struct doca_dpa *dpa, struct doca_dpa_thread **dpa_thread)   doca_error_t doca_dpa_thread_destroy(struct doca_dpa_thread *dpa_thread)

  • To set/get thread user function and it's argument:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_set_func_arg(struct doca_dpa_thread *thread, doca_dpa_func_t *func, uint64_t arg)   doca_error_t doca_dpa_thread_get_func_arg(struct doca_dpa_thread *dpa_thread, doca_dpa_func_t **func, uint64_t *arg)

  • To set/get DPA EU Affinity:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_set_affinity(struct doca_dpa_thread *thread, struct doca_dpa_eu_thread_affinity *eu_affinity)   doca_error_t doca_dpa_thread_get_affinity(struct doca_dpa_thread *dpa_thread, const struct doca_dpa_eu_affinity **affinity)

  • Thread Local Storage (TLS)

    User can ask to store an opaque for a DPA thread in host side application using the following API:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_set_local_storage(struct doca_dpa_thread *dpa_thread, doca_dpa_dev_uintptr_t dev_ptr)   doca_error_t doca_dpa_thread_get_local_storage(struct doca_dpa_thread *dpa_thread, doca_dpa_dev_uintptr_t *dev_ptr)

    dev_ptr is a pre-allocated DPA memory.

    In kernel, user can retrieve the stored opaque using the relevant device API (see below API).

    This opaque is stored/retrieved using the Thread Local Storage (TLS) mechanism.

  • To start/stop DPA thread:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_start(struct doca_dpa_thread *thread)   doca_error_t doca_dpa_thread_stop(struct doca_dpa_thread *dpa_thread)

  • To run DPA thread:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_run(struct doca_dpa_thread *dpa_thread)

    This API sets the thread to run state.

    This function must be called after DPA thread is:

    1. Created, set and started.

    2. In case of DPA thread is attached to DPA Completion Context, the completion context must be started before, see below pseudo code example:

Device-side API

Device APIs are used by user-written kernels.

  • Thread Restart APIs

    DPA thread can ends its run using one of the following device APIs:

    • Reschedule API:

      Copy
      Copied!


      void doca_dpa_dev_thread_reschedule(void)

      • DPA thread still active.

      • DPA thread resources are back to RTOS.

      • DPA thread can be triggered again.

    • Finish API:

      Copy
      Copied!


      void doca_dpa_dev_thread_finish(void)

      • DPA thread is marked as finished.

      • DPA thread resources are back to RTOS.

      • DPA thread can’t be triggered again.

  • To get TLS:

    Copy
    Copied!


    doca_dpa_dev_uintptr_t doca_dpa_dev_thread_get_local_storage(void)

    This function returns DPA thread local storage which was set previously using host API doca_dpa_thread_set_local_storage().

Example (Host-side Pseudo Code)

Copy
Copied!


extern doca_dpa_func_t hello_kernel;   // create DPA thread doca_dpa_thread_create(&dpa_thread);   // set thread kernel doca_dpa_thread_set_func_arg(dpa_thread, &hello_kernel, func_arg);   // set thread affinity doca_dpa_eu_affinity_create(&eu_affinity); doca_dpa_eu_affinity_set(eu_affinity, 10 /* EU ID */); doca_dpa_thread_set_affinity(dpa_thread, eu_affinity);   // set thread local storage doca_dpa_mem_alloc(&tls_dev_ptr); doca_dpa_thread_set_local_storage(dpa_thread, tls_dev_ptr);   // start thread doca_dpa_thread_start(dpa_thread);   // create and initialize DPA Completion Context doca_dpa_completion_create(&dpa_comp); doca_dpa_completion_set_thread(dpa_comp, dpa_thread); doca_dpa_completion_start(dpa_comp);   // run thread only after both thread is started and the attached completion context is started doca_dpa_thread_run(dpa_thread);

Completion Context

To tie the user application closely with the DPA native model of event-driven scheduling/computation, we introduced DPA Completion Context.

User associates a DPA Thread with a completion context. When the completion context receives a notification, DPA Thread is triggered.

User can choose not to associate it with DPA Thread and to poll it manually.

User has the option to continue receiving new notifications or ignore them.

DOCA DPA provides a generic completion context that can be shared for Message Queues, RDMA, Ethernet and as well as DPA Async Ops.

Host-side API

  • To create/destroy DPA Completion Context:

    Copy
    Copied!


    doca_error_t doca_dpa_completion_create(struct doca_dpa *dpa, unsigned int queue_size, struct doca_dpa_completion **dpa_comp)   doca_error_t doca_dpa_completion_destroy(struct doca_dpa_completion *dpa_comp)

  • To get queue size:

    Copy
    Copied!


    doca_error_t doca_dpa_completion_get_queue_size(struct doca_dpa_completion *dpa_comp, unsigned int *size)

  • To attach to a DPA Thread:

    Copy
    Copied!


    doca_error_t doca_dpa_completion_set_thread(struct doca_dpa_completion *dpa_comp, struct doca_dpa_thread *thread)   doca_error_t doca_dpa_completion_get_thread(struct doca_dpa_completion *dpa_comp, struct doca_dpa_thread **thread)

    Attaching to a thread is only required if the user wants triggering of the thread when a completion is arrived at the completion context.

  • To start/stop DPA Completion Context:

    Copy
    Copied!


    doca_error_t doca_dpa_completion_start(struct doca_dpa_completion *dpa_comp)   doca_error_t doca_dpa_completion_stop(struct doca_dpa_completion *dpa_comp)

  • To get DPA handle:

    Copy
    Copied!


    doca_error_t doca_dpa_completion_get_dpa_handle(struct doca_dpa_completion *dpa_comp, doca_dpa_dev_completion_t *handle)

    Use output parameter handle for below device APIs which can be used in thread kernel.

Device-side API

Device APIs are used by user-written kernels.

Kernels get doca_dpa_dev_completion_t handle and invoke the following API:

  • To get a completion element:

    Copy
    Copied!


    int doca_dpa_dev_get_completion(doca_dpa_dev_completion_t dpa_comp_handle, doca_dpa_dev_completion_element_t *comp_element)

    Use the returned comp_element to retrieve completion info using below APIs.

  • To get completion element type:

    Copy
    Copied!


    typedef enum { DOCA_DPA_DEV_COMP_SEND = 0x0, /**< Send completion */ DOCA_DPA_DEV_COMP_RECV_RDMA_WRITE_IMM = 0x1, /**< Receive RDMA Write with Immediate completion */ DOCA_DPA_DEV_COMP_RECV_SEND = 0x2, /**< Receive Send completion */ DOCA_DPA_DEV_COMP_RECV_SEND_IMM = 0x3, /**< Receive Send with Immediate completion */ DOCA_DPA_DEV_COMP_SEND_ERR = 0xD, /**< Send Error completion */ DOCA_DPA_DEV_COMP_RECV_ERR = 0xE /**< Receive Error completion */ } doca_dpa_dev_completion_type_t;   doca_dpa_dev_completion_type_t doca_dpa_dev_get_completion_type(doca_dpa_dev_completion_element_t comp_element)

  • To get completion element user data:

    Copy
    Copied!


    uint32_t doca_dpa_dev_get_completion_user_data(doca_dpa_dev_completion_element_t comp_element)

    This API returns user data which was set previously in either host APIs:

    1. doca_dpa_async_ops_create(..., user_data, ...)

      When DPA Completion Context is attached to DPA Async Ops.

    2. doca_ctx_set_user_data(..., user_data)

      When DPA Completion Context is attached to DOCA context, such as DOCA RDMA context.

  • To get completion element immediate data:

    Copy
    Copied!


    uint32_t doca_dpa_dev_get_completion_immediate(doca_dpa_dev_completion_element_t comp_element)

    This API returns immediate data for a completion element of type:

    1. DOCA_DPA_DEV_COMP_RECV_RDMA_WRITE_IMM

    2. DOCA_DPA_DEV_COMP_RECV_SEND_IMM

  • Acknowledge that the completions have been read on DPA Completion Context:

    Copy
    Copied!


    void doca_dpa_dev_completion_ack(doca_dpa_dev_completion_t dpa_comp_handle, uint64_t num_comp)

    This API releases resources of the acked completion elements in completion context.

    This acknowledgment enables receiving new num_comp completions.

  • To request notification on DPA Completion Context:

    Copy
    Copied!


    void doca_dpa_dev_completion_request_notification(doca_dpa_dev_completion_t dpa_comp_handle)

    This API enables requesting new notifications on DPA Completion Context.

    Without calling this function, DPA Completion Context is not being notified on new arrived completion elements, hence new completions are not populated in DPA Completion Context.

Example (Device-side Pseudo Code)

Copy
Copied!


__dpa_global__ void hello_kernel(uint64_t arg) { // User is expected to pass in some way the attached completion context handle "dpa_comp_handle" to kernel such as func_arg or a shared memory. DOCA_DPA_DEV_LOG_INFO("Hello from kernel\n");   doca_dpa_dev_completion_element_t comp_element; found = doca_dpa_dev_get_completion(dpa_comp_handle, &comp_element); if (found) { comp_type = doca_dpa_dev_get_completion_type(comp_element); // process the completion according to completion type... // ack on 1 completion doca_dpa_dev_completion_ack(dpa_comp_handle, 1);   // enable getting more completions and triggering the thread doca_dpa_dev_completion_request_notification(dpa_comp_handle);  }   // reschedule thread doca_dpa_dev_thread_reschedule(); }

Thread Notification

Thread Activation is a mechanism for one DPA thread to trigger another DPA Thread.

Thread activation is done without receiving a completion on the attached thread. Therefore it is expected that user of this method of thread activation passes the message in another fashion – such as shared memory.

Thread Activation can be achieved using DPA Notification Completion object.

Host-side API

  • To create/destroy DPA Notification Completion:

    Copy
    Copied!


    doca_error_t doca_dpa_notification_completion_create(struct doca_dpa *dpa, struct doca_dpa_thread *dpa_thread, struct doca_dpa_notification_completion **notify_comp)   doca_error_t doca_dpa_notification_completion_destroy(struct doca_dpa_notification_completion *notify_comp)

    Attaching DPA Notification Completion to a DPA Thread is done using the given parameter dpa_thread.

  • To get attached DPA Thread:

    Copy
    Copied!


    doca_error_t doca_dpa_notification_completion_get_thread(struct doca_dpa_notification_completion *notify_comp, struct doca_dpa_thread **dpa_thread)

  • To start/stop DPA Notification Completion:

    Copy
    Copied!


    doca_error_t doca_dpa_notification_completion_start(struct doca_dpa_notification_completion *notify_comp)   doca_error_t doca_dpa_notification_completion_stop(struct doca_dpa_notification_completion *notify_comp)

  • To get DPA handle:

    Copy
    Copied!


    doca_error_t doca_dpa_notify_completion_get_dpa_handle(struct doca_dpa_notification_completion *notify_comp, doca_dpa_dev_notification_completion_t *comp_handle)

    Use output parameter comp_handle for below device API which can be used in thread kernel.

Device-side API

Device API is used by user-written kernels.

Kernels get doca_dpa_dev_notification_completion_t handle and invoke the following API:

Copy
Copied!


void doca_dpa_dev_thread_notify(doca_dpa_dev_notification_completion_t comp_handle)

Calling this API triggers the attached DPA Thread (the one that is specified in dpa_thread parameter in host-side API doca_dpa_notification_completion_create()).

Example (Pseudo Code)

  • Host-side

    Copy
    Copied!


    extern doca_dpa_func_t hello_kernel;   // create DPA thread doca_dpa_thread_create(&dpa_thread);   // set thread kernel doca_dpa_thread_set_func_arg(dpa_thread, &hello_kernel, func_arg);   // start thread doca_dpa_thread_start(dpa_thread);   // create and start DPA notification completion doca_dpa_notification_completion_create(dpa, dpa_thread, &notify_comp);   doca_dpa_notification_completion_start(notify_comp);   // get its DPA handle doca_dpa_notification_completion_get_dpa_handle(notify_comp, &notify_comp_handle);   // run thread only after both thread is started and attached notification completion is started doca_dpa_thread_run(dpa_thread);

  • Device-side

    Whenever some DPA Thread calls:

    Copy
    Copied!


    doca_dpa_dev_thread_notify(notify_comp_handle);

    This call triggers dpa_thread.

Asynchronous Ops

DPA Async Ops allows DPA Thread to issue asynchronous operations, like memcpy or post_wait.

This feature requires the user to create an “asynchronous ops” context and attach to a completion context.

User is expected to adhere to `queue_size` limit on the device when posting operations.

The completion context can raise activation if it is attached to a DPA Thread.

User can also choose to progress the completion context via polling it manually.

User can provide DPA Async Ops `user_data`, and retrieve this metadata in device using relevant device API.

Host-side API

  • To create/destroy DPA Async Ops:

    Copy
    Copied!


    doca_error_t doca_dpa_async_ops_create(struct doca_dpa *dpa, unsigned int queue_size, uint64_t user_data, struct doca_dpa_async_ops **async_ops)   doca_error_t doca_dpa_async_ops_destroy(struct doca_dpa_async_ops *async_ops)

    Please use the following define for valid user_data values:

    Copy
    Copied!


    #define DOCA_DPA_COMPLETION_LOG_MAX_USER_DATA (24)

  • To get queue size/user_data:

    Copy
    Copied!


    doca_error_t doca_dpa_async_ops_get_queue_size(struct doca_dpa_async_ops *async_ops, unsigned int *queue_size)   doca_error_t doca_dpa_async_ops_get_user_data(struct doca_dpa_async_ops *async_ops, uint64_t *user_data)

  • To attach to a DPA Completion Context:

    Copy
    Copied!


    doca_error_t doca_dpa_async_ops_attach(struct doca_dpa_async_ops *async_ops, struct doca_dpa_completion *dpa_comp)

  • To start/stop DPA Async Ops:

    Copy
    Copied!


    doca_error_t doca_dpa_async_ops_start(struct doca_dpa_async_ops *async_ops)   doca_error_t doca_dpa_async_ops_stop(struct doca_dpa_async_ops *async_ops)

  • To get DPA handle:

    Copy
    Copied!


    doca_error_t doca_dpa_async_ops_get_dpa_handle(struct doca_dpa_async_ops *async_ops, doca_dpa_dev_async_ops_t *handle)

    Use output parameter handle for below device API which can be used in thread kernel.

Device-side API

Device APIs are used by user-written kernels.

Kernels get doca_dpa_dev_async_ops_t handle and invoke the following API:

  • To post memcpy operation using doca_buf:

    Copy
    Copied!


    void doca_dpa_dev_post_buf_memcpy(doca_dpa_dev_async_ops_t async_ops_handle, doca_dpa_dev_buf_t dst_buf_handle, doca_dpa_dev_buf_t src_buf_handle, bool completion_requested)

    This API copies data between two DOCA buffers.

    The destination buffer, specified by `dst_buf_handle` will contain the copied data after memory copy is complete.

    This is a non-blocking routine.

    Use completion_requested to raise a completion when copy data operation is done (any value greater than 0).

    If completion_requested was set and the attached DPA Completion Context is attached to a DPA Thread, then the thread is triggered once the memcpy operation is done.

  • To post memcpy operation using doca_mmap and an explicit addresses:

    Copy
    Copied!


    void doca_dpa_dev_post_memcpy(doca_dpa_dev_async_ops_t async_ops_handle, doca_dpa_dev_mmap_t dst_mmap_handle, uint64_t dst_addr, doca_dpa_dev_mmap_t src_mmap_handle, uint64_t src_addr, size_t length, uint32_t completion_requested)

    This API copies data between two DOCA Mmaps.

    The destination DOCA Mmap, specified by `dst_mmap_handle`, `dst_addr` will contain the copied data in source DOCA Mmap specified by `src_mmap_handle`, `src_addr` and `length` after memory copy is complete.

    This is a non-blocking routine.

    Use completion_requested to raise a completion when copy data operation is done (any value greater than 0).

    If completion_requested was set and the attached DPA Completion Context is attached to a DPA thread, then the thread is triggered once the memcpy operation is done.

    Info

    Use this API for memcpy instead of using doca_buf memcpy API to gain better performance.

  • To post wait greater operation on a DOCA Sync Event:

    Copy
    Copied!


    void doca_dpa_dev_sync_event_post_wait_gt(doca_dpa_dev_async_ops_t async_ops_handle, doca_dpa_dev_sync_event_t wait_se_handle, uint64_t value)

    This function posts a wait operation on the DOCA Sync Event using DPA Async Ops to obtain a DPA Thread activation.

    Attached thread is activated when value of DOCA Sync Event is greater than a given value.

    This is a non-blocking routine.

    Note

    Valid values must be in the range [0, 254] and can be called for event with value in the range [0, 254]. Invalid values leads to undefined behavior.

  • To post wait not equal operation on a DOCA Sync Event:

    Copy
    Copied!


    void doca_dpa_dev_sync_event_post_wait_ne(doca_dpa_dev_async_ops_t async_ops_handle, doca_dpa_dev_sync_event_t wait_se_handle, uint64_t value)

    This function posts a wait operation on the DOCA Sync Event using the DPA Async Ops to obtain a DPA Thread activation.

    Attached thread is activated when value of DOCA Sync Event is not equal to a given value.

    This is a non-blocking routine.

Example (Host-side Pseudo Code)

Copy
Copied!


doca_dpa_thread_create(&dpa_thread); doca_dpa_thread_set_func_arg(dpa_thread); doca_dpa_thread_start(dpa_thread);   doca_dpa_completion_create(&dpa_comp); doca_dpa_completion_set_thread(dpa_comp, dpa_thread); doca_dpa_completion_start(dpa_comp);   doca_dpa_thread_run(dpa_thread);   doca_dpa_async_ops_create(&async_ops); doca_dpa_async_ops_attach(async_ops, dpa_comp); doca_dpa_async_ops_start(async_ops);   doca_dpa_async_ops_get_dpa_handle(async_ops, &handle); // use this handle in relevant Async Ops device APIs

Thread Group

Thread group is used to aggregate individual DPA Threads to a single group.

Please see below host-side APIs for creating/managing thread group.

  • To create/destroy DPA Thread Group:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_group_create(struct doca_dpa *dpa, unsigned int num_threads, struct doca_dpa_tg **tg)   doca_error_t doca_dpa_thread_group_destroy(struct doca_dpa_tg *tg)

  • To get number of threads:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_group_get_num_threads(struct doca_dpa_tg *tg, unsigned int *num_threads);

  • To set DPA Thread at 'rank' in DPA Thread Group:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_group_set_thread(struct doca_dpa_tg *tg, struct doca_dpa_thread *thread, unsigned int rank)

    Thread rank is an index of the thread (between 0 and (num_threads - 1)) within the group.

  • To start/stop DPA Thread Group:

    Copy
    Copied!


    doca_error_t doca_dpa_thread_group_start(struct doca_dpa_tg *tg)   doca_error_t doca_dpa_thread_group_stop(struct doca_dpa_tg *tg)

Memory Subsystem

The user can allocate (from the host API) and access (from both the host and device API) several memory locations using the relevant DOCA DPA API.

DOCA DPA supports access from the host/Target BlueField to DPA heap memory and also enables device access to host memory (e.g., kernel writes to host heap).

The normal memory usage flow would be to:

  1. Allocate memory (Host/Target BlueField/DPA).

  2. Register the memory.

  3. Get a DPA handle for the registered memory so it can be accessed by DPA kernels.

  4. Access/use the memory from the kernel (see relevant device-side APIs).

Host-side API

  • To allocate DPA heap memory:

    Copy
    Copied!


    doca_dpa_mem_alloc(doca_dpa_t dpa, size_t size, doca_dpa_dev_uintptr_t *dev_ptr)

  • To free previously allocated DPA memory:

    Copy
    Copied!


    doca_dpa_mem_free(doca_dpa_dev_uintptr_t dev_ptr)

  • To copy previously allocated memory from a host pointer to a DPA heap device pointer:

    Copy
    Copied!


    doca_dpa_h2d_memcpy(doca_dpa_t dpa, doca_dpa_dev_uintptr_t src_ptr, void *dst_ptr, size_t size)

  • To copy previously allocated memory from a DOCA Buffer to a DPA heap device pointer:

    Copy
    Copied!


    doca_error_t doca_dpa_h2d_buf_memcpy(struct doca_dpa *dpa, doca_dpa_dev_uintptr_t dst_ptr, struct doca_buf *buf, size_t size)

  • To copy previously allocated memory from a DPA heap device pointer to a host pointer:

    Copy
    Copied!


    doca_dpa_d2h_memcpy(doca_dpa_t dpa, void *dst_ptr, doca_dpa_dev_uintptr_t src_ptr, size_t size)

  • To copy previously allocated memory from a DPA heap device pointer to a DOCA Buffer:

    Copy
    Copied!


    doca_error_t doca_dpa_d2h_buf_memcpy(struct doca_dpa *dpa, struct doca_buf *buf, doca_dpa_dev_uintptr_t src_ptr, size_t size)

  • To set memory:

    Copy
    Copied!


    doca_dpa_memset(doca_dpa_t dpa, doca_dpa_dev_uintptr_t dev_ptr, int value, size_t size)

  • To get a DPA handle to use in kernels, the user must use a DOCA Core Memory Inventory Object in the following manner (refer to "DOCA Memory Subsystem"):

    • When the user wants to use device APIs with DOCA Buffer, use the following pseudo code:

      Copy
      Copied!


      doca_buf_arr_create(&buf_arr); doca_buf_arr_set_target_dpa(buf_arr, doca_dpa); doca_buf_arr_start(buf_arr); doca_buf_arr_get_dpa_handle(buf_arr, &handle);

      Use output parameter handle in relevant device APIs in thread kernel.

    • When the user wants to use device APIs with DOCA Mmap, use the following pseudo code:

      Copy
      Copied!


      doca_mmap_create(&mmap); doca_mmap_set_dpa_memrange(mmap, doca_dpa, dev_ptr, dev_ptr_len); // dev-ptr is a pre-allocated DPA memory doca_mmap_start(mmap); doca_mmap_dev_get_dpa_handle(mmap, doca_dev, &handle);

      Use output parameter handle in relevant device APIs in thread kernel.

Device-side API

Device APIs are used by user-written kernels.

Memory APIs supplied by the DOCA DPA SDK are all asynchronous (i.e., non-blocking).

The user can acquire either:

  1. Pre-configured DOCA Buffers (previously configured with doca_buf_arr_set_params).

  2. Non-configured DOCA Buffers and use below device setters to configure them.

Device-side API operations :

  • To obtain a single buffer handle from the buf array handle:

    Copy
    Copied!


    doca_dpa_dev_buf_t doca_dpa_dev_buf_array_get_buf(doca_dpa_dev_buf_arr_t buf_arr, const uint64_t buf_idx)

  • To set/get the address pointed to by the buffer handle:

    Copy
    Copied!


    void doca_dpa_dev_buf_set_addr(doca_dpa_dev_buf_t buf, uintptr_t addr) uintptr_t doca_dpa_dev_buf_get_addr(doca_dpa_dev_buf_t buf)

  • To set/get the length of the buffer:

    Copy
    Copied!


    void doca_dpa_dev_buf_set_len(doca_dpa_dev_buf_t buf, size_t len) uint64_t doca_dpa_dev_buf_get_len(doca_dpa_dev_buf_t buf)

  • To set/get the DOCA Mmap associated with the buffer:

    Copy
    Copied!


    void doca_dpa_dev_buf_set_mmap(doca_dpa_dev_buf_t buf, doca_dpa_dev_mmap_t mmap) doca_dpa_dev_mmap_t doca_dpa_dev_buf_get_mmap(doca_dpa_dev_buf_t buf)

  • To get a pointer to external memory registered on the host using DOCA Buffer:

    Copy
    Copied!


    doca_dpa_dev_uintptr_t doca_dpa_dev_buf_get_external_ptr(doca_dpa_dev_buf_t buf)

  • To get a pointer to external memory registered on the host using an explicit address and DOCA Mmap:

    Copy
    Copied!


    doca_dpa_dev_uintptr_t doca_dpa_dev_mmap_get_external_ptr(doca_dpa_dev_mmap_t mmap_handle, uint64_t addr)

Sync Events

Sync events fulfill the following roles:

  • DOCA DPA execution model is asynchronous and sync events are used to control various threads running in the system (allowing order and dependency)

  • DOCA DPA supports remote sync events, so the programmer is capable of invoking remote nodes by means of DOCA sync events

Host-side API

Please refer to "DOCA Sync Event".

Device-side API

  • To get the current event value:

    Copy
    Copied!


    doca_dpa_dev_sync_event_get(doca_dpa_dev_sync_event_t event, uint64_t *value)

  • To add/set to the current event value:

    Copy
    Copied!


    doca_dpa_dev_sync_event_update_<add|set>(doca_dpa_dev_sync_event_t event, uint64_t value)

  • To wait until event is greater than threshold:

    Copy
    Copied!


    doca_dpa_dev_sync_event_wait_gt(doca_dpa_dev_sync_event_t event, uint64_t value, uint64_t mask)

    Use mask to apply (bitwise AND) on the DOCA sync event value for comparison with the wait threshold.

Communication Model

DOCA DPA communication primitives allow sending data from one node to another.

The object used for the communication between nodes is called an RDMA DPA handle. RDMA DPA handles can be used by kernels only.

RDMAs represent a unidirectional communication pipe between two nodes.

RDMA DPA handles are created when setting a DOCA RDMA context to DPA data path. For more information, please refer to DOCA RDMA.

To track the completion of all communications, the user can attach DOCA RDMA context to a DPA Completion Context.

DPA Completion Context can be associated with a DPA Thread. When the completion context receives a completion on a communication operation, DPA Thread is triggered.

Info

The user can choose not to associate it with a DPA Thread and to poll it manually.

Host-side API

  • To create DOCA RDMA context on DPA, the user must use the following API for the DOCA RDMA context:

    Copy
    Copied!


    doca_error_t doca_ctx_set_datapath_on_dpa(struct doca_ctx *ctx, struct doca_dpa *dpa)

  • To attach a DOCA RDMA context to a DPA Completion Context:

    Copy
    Copied!


    doca_error_t doca_rdma_dpa_completion_attach(struct doca_rdma *rdma, struct doca_dpa_completion *dpa_comp)

  • To obtain a DPA RDMA handle:

    Copy
    Copied!


    doca_error_t doca_rdma_get_dpa_handle(struct doca_rdma *rdma, doca_dpa_dev_rdma_t *dpa_rdma)

    Use output parameter handle in relevant device APIs in the thread kernel.

    Note

    DPA RDMAs are not thread safe and, therefore, must not be used from different kernels/threads concurrently.

Device-side API

DOCA DPA offers two work models for each device RDMA operation:

  • An API for RDMA operation using DOCA Buffer

  • An API for RDMA operation using DOCA Mmap and an explicit memory address

The user may choose to also raise a completion when the operation is done.

  • To read to a local buffer from the remote side buffer:

    Copy
    Copied!


    void doca_dpa_dev_rdma_post_read(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_mmap_t dst_mmap_handle, uint64_t dst_addr, doca_dpa_dev_mmap_t src_mmap_handle, uint64_t src_addr, size_t length, uint32_t completion_requested) void doca_dpa_dev_rdma_post_buf_read(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_buf_t dst_buf_handle, doca_dpa_dev_buf_t src_buf_handle, uint32_t completion_requested)

  • To write local memory to the remote side buffer:

    Copy
    Copied!


    void doca_dpa_dev_rdma_post_write(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_mmap_t dst_mmap_handle, uint64_t dst_addr, doca_dpa_dev_mmap_t src_mmap_handle, uint64_t src_addr, size_t length, uint32_t completion_requested) void doca_dpa_dev_rdma_post_buf_write(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_buf_t dst_buf_handle, doca_dpa_dev_buf_t src_buf_handle, uint32_t completion_requested)

  • To write local memory to the remote side buffer with an immediate data which can be retrieved when receiving a completion on this operation:

    Copy
    Copied!


    void doca_dpa_dev_rdma_post_write_imm(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_mmap_t dst_mmap_handle, uint64_t dst_addr, doca_dpa_dev_mmap_t src_mmap_handle, uint64_t src_addr, size_t length, uint32_t immediate, uint32_t completion_requested) void doca_dpa_dev_rdma_post_buf_write_imm(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_buf_t dst_buf_handle, doca_dpa_dev_buf_t src_buf_handle, uint32_t immediate, uint32_t completion_requested) // use the following API to retrieve immediate data on completion uint32_t doca_dpa_dev_get_completion_immediate(doca_dpa_dev_completion_element_t comp_element)

  • To send local memory:

    Copy
    Copied!


    void doca_dpa_dev_rdma_post_send(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_mmap_t mmap_handle, uint64_t addr, size_t length, uint32_t completion_requested) void doca_dpa_dev_rdma_post_buf_send(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_buf_t send_buf_handle, uint32_t completion_requested)

  • To send local memory with an immediate data which can be retrieved when receiving a completion on this operation:

    Copy
    Copied!


    void doca_dpa_dev_rdma_post_send_imm(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_mmap_t mmap_handle, uint64_t addr, size_t length, uint32_t immediate, uint32_t completion_requested) void doca_dpa_dev_rdma_post_buf_send_imm(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_buf_t send_buf_handle, uint32_t immediate, uint32_t completion_requested) // use the following API to retrieve immediate data on completion uint32_t doca_dpa_dev_get_completion_immediate(doca_dpa_dev_completion_element_t comp_element)

  • To handle posting RDMA receive operation, use the following APIs:

    • To post RDMA receive operation:

      Copy
      Copied!


      void doca_dpa_dev_rdma_post_receive(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_mmap_t mmap_handle, uint64_t addr, size_t length) void doca_dpa_dev_rdma_post_buf_receive(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_buf_t receive_buf_handle)

    • Acknowledge that post receive operations are done (data has been received on associated data buffers). This acknowledgment enables DPA RDMA to repost #num_acked new post receive operations.

      Copy
      Copied!


      void doca_dpa_dev_rdma_receive_ack(doca_dpa_dev_rdma_t rdma, uint32_t num_acked)

  • To perform an atomic add operation on the remote side buffer:

    Copy
    Copied!


    void doca_dpa_dev_rdma_post_atomic_fetch_add(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_mmap_t dst_mmap_handle, uint64_t dst_addr, uint64_t value, uint32_t completion_requested) void doca_dpa_dev_rdma_post_buf_atomic_fetch_add(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_buf_t dst_buf_handle, uint64_t value, uint32_t completion_requested)

  • To signal a remote event:

    Copy
    Copied!


    doca_dpa_dev_rdma_signal_<add|set>(doca_dpa_dev_rdma_t rdma, doca_dpa_dev_sync_event_remote_t remote_sync_event, uint64_t count)

    Note

    The following API is only relevant for a kernel used in kernel_launch APIs. This API is not relevant for DPA RDMA which is attached to a DPA Completion Context.

    As all DPA RDMA operations are non-blocking, the following API is provided to kernel launch developers to wait until all previous RDMA operations are done (blocking call) to drain the RDMA DPA handle:

    Copy
    Copied!


    doca_dpa_dev_rdma_synchronize(doca_dpa_dev_rdma_t rdma)

    When this call returns, all previous non-blocking operations on the DPA RDMA have completed (i.e., sent to the remote RDMA). It is expected that the doca_dpa_dev_rdma_synchronize() call would use the same thread as the handle calls.

    Since DPA RDMAs are non-thread safe, each DPA RDMA must be accessed by a single thread at any given time. If user launches a kernel that should be executed by more than one thread and this kernel includes RDMA communication, it is expected that a user will use array of RDMAs so that each RDMA will be accessed by single thread (each thread can access it's RDMA instance by using doca_dpa_dev_thread_rank() as its index in the array of RDMA handles).

    When using the Remote Event Exchange API, void doca_dpa_dev_rdma_signal_<add|set>(..., doca_dpa_dev_event_remote_t event_handle, ...), within your kernel, note that event is a remote event. That is, an event created on the remote node and exported to a remote node (doca_dpa_event_dev_remote_export(event_handle)).

Multiple RDMA Contexts

To support attaching multiple DOCA RDMA contexts to a single DPA Completion Context, DOCA offers the following APIs.

  • RDMAuser_data which is set using the host API:

    Copy
    Copied!


    doca_error_t doca_ctx_set_user_data(struct doca_ctx *ctx, union doca_data user_data)

    And can be retrieved in device using the completion API:

    Copy
    Copied!


    uint32_t doca_dpa_dev_get_completion_user_data(doca_dpa_dev_completion_element_t comp_element)

    user_data should be used to distinguish which DOCA RDMA context has triggered this completion.

  • RDMA work request index using device API for an RDMA completion:

    Copy
    Copied!


    uint32_t doca_dpa_dev_rdma_completion_get_wr_index(doca_dpa_dev_completion_element_t comp_element)

    work request index should be used to get operation index of DOCA RDMA context which triggered this completion.

Example (Host-side Pseudo Code)

Copy
Copied!


// create and start DPA Thread doca_dpa_thread_create(&dpa_thread); doca_dpa_thread_set_func_arg(dpa_thread); doca_dpa_thread_start(dpa_thread);   // create and start DPA Completion Context which is attached to DPA Thread doca_dpa_completion_create(&dpa_comp); doca_dpa_completion_set_thread(dpa_comp, dpa_thread); doca_dpa_completion_start(dpa_comp);   doca_dpa_thread_run(dpa_thread);   // create and start DPA RDMA context which is attached to DPA Completion Context doca_rdma_create(doca_dev, &rdma);   doca_rdma_dpa_completion_attach(rdma, dpa_comp);   doca_rdma_ctx = doca_rdma_as_ctx(rdma); doca_ctx_set_datapath_on_dpa(doca_rdma_ctx, doca_dpa);   doca_ctx_set_user_data(doca_rdma_ctx, user_data);   doca_ctx_start(doca_rdma_ctx);   doca_rdma_get_dpa_handle(rdma, &handle);

Info

Each completion on an RDMA operation triggers dpa_thread.

Info

Use output parameter handle in relevant RDMA device APIs in the thread kernel.

Data Structures

Hash Table

DOCA DPA provides an API to create a hash table on DPA. This data structure is managed on DPA using relevant device APIs.

Host-side API

  • To create a hash table on DPA:

    Copy
    Copied!


    doca_error_t doca_dpa_hash_table_create(struct doca_dpa *dpa, unsigned int num_entries, struct doca_dpa_hash_table **ht)

  • To destroy a hash table:

    Copy
    Copied!


    doca_error_t doca_dpa_hash_table_destroy(struct doca_dpa_hash_table *ht)

  • To obtain a DPA handle:

    Copy
    Copied!


    doca_error_t doca_dpa_hash_table_get_dpa_handle(struct doca_dpa_hash_table *ht, doca_dpa_dev_hash_table_t *handle)

    Use output parameter handle in relevant device APIs in the thread kernel.

Device-side API

  • To add a new entry to the hash table:

    Copy
    Copied!


    void doca_dpa_dev_hash_table_add(doca_dpa_dev_hash_table_t ht_handle, uint32_t key, uint64_t value)

    Note

    Adding a new key when the hash table is full causes anomalous behavior.

  • To remove an entry from the hash table:

    Copy
    Copied!


    void doca_dpa_dev_hash_table_remove(doca_dpa_dev_hash_table_t ht_handle, uint32_t key)

  • To return the value to which the specified key is mapped in the hash table:

    Copy
    Copied!


    int doca_dpa_dev_hash_table_find(doca_dpa_dev_hash_table_t ht_handle, uint32_t key, uint64_t *value)

RPC and Kernel Launch

RPC

Host-side API

A blocking one-time call from the host application to execute a kernel on DPA.

Info

RPC is mainly used for control path.

The RPC's return value is reported back to the host application.

Copy
Copied!


doca_error_t doca_dpa_rpc(struct doca_dpa *dpa, doca_dpa_func_t *func, uint64_t *retval, … /* func arguments */)


Example

  • Device-side – DPA device func must be annotated with __dpa_rpc__ annotation, such as:

    Copy
    Copied!


    __dpa_rpc__ uint64_t hello_rpc(int arg) { ... }

  • Host-side:

    Copy
    Copied!


    extern doca_dpa_func_t hello_rpc;   uint64_t retval; doca_dpa_rpc(dpa, &hello_rpc, &retval, 10);

Kernel Launch

DOCA DPA provides an API which enables full control for launching and monitoring kernels.

Since DOCA DPA libraries are not thread-safe, it is up to the programmer to make sure the kernel is written to allow it to run in a multi-threaded environment. For example, to program a kernel that uses RDMAs with 16 concurrent threads, the user should pass an array of 16 RDMAs to the kernel so that each thread can access its RDMA using its rank (doca_dpa_dev_thread_rank()) as an index to the array.

Host-side API

Copy
Copied!


doca_dpa_kernel_launch_update_<add|set>(struct doca_dpa *dpa, struct doca_sync_event *wait_event, uint64_t wait_threshold, struct doca_sync_event *comp_event, uint64_t comp_count, unsigned int num_threads, doca_dpa_func_t *func, ... /* args */)

  • This function asks DOCA DPA to run func in DPA by num_threads and give it the supplied list of arguments (variadic list of arguments).

  • This function is asynchronous so when it returns, it does not mean that func started/ended its execution.

  • To add control or flow/ordering to these asynchronous kernels, two optional parameters for launching kernels are available:

    • wait_event – the kernel does not start its execution until the event is signaled (if NULL, the kernel starts once DOCA DPA has an available EU to run on it) which means that DOCA DPA would not run the kernel until the event's counter is bigger than wait_threshold.

      Note

      Please note that the valid values for wait_threshold and wait_event counter and are [0-254]. Values out of this range might cause anomalous behavior.

    • comp_event – once the last thread running the kernel is done, DOCA DPA updates this event (either sets or adds to its current counter value with comp_count).

  • DOCA DPA takes care of packing (on host/Target BlueField) and unpacking (in DPA) the kernel parameters.

  • func must be prefixed with the __dpa_global__ macro for DPACC to compile it as a kernel (and add it to DPA executable binary) and not as part of host application binary.

  • The programmer must declare func in their application also by adding the line extern doca_dpa_func_t func.

Device-side API

Note

The following APIs are only relevant for a kernel used in kernel_launch APIs. These APIs are not relevant in doca_dpa_thread kernel.

  • To retrieve the running thread's rank for a given kernel on the DPA. If, for example, a kernel is launched to run with 16 threads, each thread running this kernel is assigned a rank ranging from 0 to 15 within this kernel. This is helpful for making sure each thread in the kernel only accesses data relevant for its execution to avoid data-races:

    Copy
    Copied!


    unsigned int doca_dpa_dev_thread_rank()

  • To return the number of threads running current kernel:

    Copy
    Copied!


    unsigned int doca_dpa_dev_num_threads()

  • To yield the thread which runs the kernel:

    Copy
    Copied!


    void doca_dpa_dev_yield(void)

Examples

Linear Execution Example

Kernel Code
Copy
Copied!


#include "doca_dpa_dev.h" #include "doca_dpa_dev_sync_event.h"    __dpa_global__ void linear_kernel(doca_dpa_dev_sync_event_t wait_ev, doca_dpa_dev_sync_event_t comp_ev) {     if (wait_ev)         doca_dpa_dev_sync_event_wait_gt(wait_ev, wait_th = 0);       doca_dpa_dev_sync_event_update_add(comp_ev, comp_count = 1); }


Host Application Pseudo Code

Copy
Copied!


#include <doca_dev.h> #include <doca_error.h> #include <doca_sync_event.h> #include <doca_dpa.h>   int main(int argc, char **argv) {       /*         A         |         B         |         C     */       /* Open DOCA device */     open_doca_dev(&doca_dev);     /* Create doca dpa conext */     doca_dpa_create(doca_dev, dpa_linear_app, &dpa_ctx, 0);       /* Create event A - subscriber is DPA and publisher is CPU */     doca_sync_event_create(&ev_a);     doca_sync_event_add_publisher_location_cpu(ev_a, doca_dev);     doca_sync_event_add_subscriber_location_dpa(ev_a, dpa_ctx);     doca_sync_event_start(ev_a);       /* Create event B - subscriber and publisher are DPA */     doca_sync_event_create(&ev_b);     doca_sync_event_add_publisher_location_dpa(ev_b, dpa_ctx);     doca_sync_event_add_subscriber_location_dpa(ev_b, dpa_ctx);     doca_sync_event_start(ev_b);           /* Create event C - subscriber and publisher are DPA */     doca_sync_event_create(&ev_c);     doca_sync_event_add_publisher_location_dpa(ev_c, dpa_ctx);     doca_sync_event_add_subscriber_location_dpa(ev_c, dpa_ctx);     doca_sync_event_start(ev_c);       /* Create completion event for last kernel - subscriber is CPU and publisher is DPA */     doca_sync_event_create(&comp_ev);     doca_sync_event_add_publisher_location_dpa(comp_ev, dpa_ctx);     doca_sync_event_add_subscriber_location_cpu(comp_ev, doca_dev);     doca_sync_event_start(comp_ev);       /* Export kernel events and acquire their handles */    doca_sync_event_get_dpa_handle(ev_b, dpa_ctx, &ev_b_handle);   doca_sync_event_get_dpa_handle(ev_c, dpa_ctx, &ev_c_handle);    doca_sync_event_get_dpa_handle(comp_ev, dpa_ctx, &comp_ev_handle);       /* Launch kernels */     doca_dpa_kernel_launch_update_add(wait_ev = ev_a, wait_threshold = 1, num_threads = 1, &linear_kernel, kernel_args: NULL, ev_b_handle);     doca_dpa_kernel_launch_update_add(wait_ev = NULL, num_threads = 1, &linear_kernel, kernel_args: ev_b_handle, ev_c_handle);     doca_dpa_kernel_launch_update_add(wait_ev = NULL, &linear_kernel, num_threads = 1, kernel_args: ev_c_handle, comp_ev_handle);       /* Update host event to trigger kernels to start executing in a linear manner */     doca_sync_event_update_set(ev_a, 1)       /* Wait for completion of last kernel */     doca_sync_event_wait_gt(comp_ev, 0);       /* Tear Down... */     teardown_resources(); }

Diamond Execution Example

Kernel Code
Copy
Copied!


#include "doca_dpa_dev.h" #include "doca_dpa_dev_sync_event.h"   __dpa_global__ void diamond_kernel(doca_dpa_dev_sync_event_t wait_ev, uint64_t wait_th, doca_dpa_dev_sync_event_t comp_ev1, doca_dpa_dev_sync_event_t comp_ev2) {     if (wait_ev)         doca_dpa_dev_sync_event_wait_gt(wait_ev, wait_th);       doca_dpa_dev_sync_event_update_add(comp_ev1, comp_count = 1);     if (comp_ev2)    // can be 0 (NULL)         doca_dpa_dev_sync_event_update_add(comp_ev2, comp_count = 1); }


Host Application Pseudo Code

Copy
Copied!


#include <doca_dev.h> #include <doca_error.h> #include <doca_sync_event.h> #include <doca_dpa.h>   int main(int argc, char **argv) {     /*          A         / \        C   B       /   /      D   /       \ /        E     */       /* Open DOCA device */     open_doca_dev(&doca_dev);     /* Create doca dpa conext */     doca_dpa_create(doca_dev, dpa_diamond_app, &dpa_ctx, 0);       /* Create root event A that will signal from the host the rest to start */     doca_sync_event_create(&ev_a);     // set publisher to CPU, subscriber to DPA and start event       /* Create events B,C,D,E */     doca_sync_event_create(&ev_b);     doca_sync_event_create(&ev_c);     doca_sync_event_create(&ev_d);     doca_sync_event_create(&ev_e);     // for events B,C,D,E, set publisher & subscriber to DPA and start event       /* Create completion event for last kernel */     doca_sync_event_create(&comp_ev);     // set publisher to DPA, subscriber to CPU and start event       /* Export kernel events and acquire their handles */    doca_sync_event_get_dpa_handle(&ev_b_handle, &ev_c_handle, &ev_d_handle, &ev_e_handle, &comp_ev_handle);       /* wait threshold for each kernel is the number of parent nodes */     constexpr uint64_t wait_threshold_one_parent {1};     constexpr uint64_t wait_threshold_two_parent {2};       /* launch diamond kernels */     doca_dpa_kernel_launch_update_set(wait_ev = ev_a, wait_threshold = 1, num_threads = 1, &diamond_kernel, kernel_args: NULL, 0, ev_b_handle, ev_c_handle);     doca_dpa_kernel_launch_update_set(wait_ev = NULL, num_threads = 1, &diamond_kernel, kernel_args: ev_b_handle, wait_threshold_one_parent, ev_e_handle, NULL);     doca_dpa_kernel_launch_update_set(wait_ev = NULL, num_threads = 1, &diamond_kernel, kernel_args: ev_c_handle, wait_threshold_one_parent, ev_d_handle, NULL);     doca_dpa_kernel_launch_update_set(wait_ev = NULL, num_threads = 1, &diamond_kernel, kernel_args: ev_d_handle, wait_threshold_one_parent, ev_e_handle, NULL);     doca_dpa_kernel_launch_update_set(wait_ev = NULL, num_threads = 1, &diamond_kernel, kernel_args: ev_e_handle, wait_threshold_two_parent, comp_ev_handle, NULL);       /* Update host event to trigger kernels to start executing in a diamond manner */     doca_sync_event_update_set(ev_a, 1);     /* Wait for completion of last kernel */     doca_sync_event_wait_gt(comp_ev, 0);       /* Tear Down... */     teardown_resources(); }

Performance Optimizations

  • The time interval between a kernel launch call from the host and the start of its execution on the DPA is significantly optimized when the host application calls doca_dpa_kernel_launch_update_<add|set>() repeatedly to execute with the same number of DPA threads. So, if the application calls doca_dpa_kernel_launch_update_<add|set>(..., num_threads = x), the next call with num_threads = x would have a shorter latency (as low as ~5-7 microseconds) for the start of the kernel's execution.

  • Applications calling for kernel launch with a wait event (i.e., the completion event of a previous kernel) also have significantly lower latency in the time between the host launching the kernel and the start of the execution of the kernel on the DPA. So, if the application calls doca_dpa_kernel_launch_update_<add|set>( ..., completion event = m_ev, ...) and then doca_dpa_kernel_launch_update_<add|set>( wait event = m_ev, ...), the latter kernel launch call would have shorter latency (as low as ~3 microseconds) for the start of the kernel's execution.

Limitations

  • The order in which kernels are launched is important. If an application launches K1 and then K2, K1 must not depend on K2's completion (e.g., wait on its wait event that K2 should update).

    Not following this guideline leads to unpredictable results (at runtime) for the application and might require restarting the DOCA DPA context (i.e., destroying, reinitializing, and rerunning the workload).

  • DPA threads are an actual hardware resource and are, therefore, limited in number to 256 (including internal allocations and allocations explicitly requested by the user as part of the kernel launch API)

    • DOCA DPA does not check these limits. It is up to the application to adhere to this number and track thread allocation across different DPA contexts.

    • Each doca_dpa_dev_rdma_t consumes one thread.

  • The DPA has an internal watchdog timer to make sure threads do not block indefinitely. Kernel execution time must be finite and not exceed the time returned. by doca_dpa_get_kernel_max_run_time.

  • The num_threads parameter in the doca_dpa_kernel_launch call cannot exceed the maximum allowed number of threads to run a kernel returned. by doca_dpa_get_max_threads_per_kernel.

Logging and Tracing

DOCA DPA provides a set of debugging APIs to allow diagnosing and troubleshooting any issues on the device, as well as accessing real-time information from the running application.

Logging in the data path has significant impact on an application's performance. While the tracer provided by the library is of high-frequency and is designed to prevent significant impact on the application's performance.

Therefore its recommended to use:

  • Logging in the control path

  • Tracing in the data path

The user is able to control the log/trace file path and device log verbosity.

Host-side API

  • To set/get the trace file path:

    Copy
    Copied!


    doca_error_t doca_dpa_trace_file_set_path(struct doca_dpa *dpa, const char *file_path) doca_error_t doca_dpa_trace_file_get_path(struct doca_dpa *dpa, char *file_path, uint32_t *file_path_len);

  • To set/get the log file path:

    Copy
    Copied!


    doca_error_t doca_dpa_log_file_set_path(struct doca_dpa *dpa, const char *file_path) doca_error_t doca_dpa_log_file_get_path(struct doca_dpa *dpa, char *file_path, uint32_t *file_path_len)

  • To set/get device log verbosity:

    Copy
    Copied!


    doca_error_t doca_dpa_set_log_level(struct doca_dpa *dpa, doca_dpa_dev_log_level_t log_level) doca_error_t doca_dpa_get_log_level(struct doca_dpa *dpa, doca_dpa_dev_log_level_t *log_level)

Device-side API

  • Log to host:

    Copy
    Copied!


    typedef enum doca_dpa_dev_log_level { DOCA_DPA_DEV_LOG_LEVEL_DISABLE = 10, /**< Disable log messages */ DOCA_DPA_DEV_LOG_LEVEL_CRIT = 20, /**< Critical log level */ DOCA_DPA_DEV_LOG_LEVEL_ERROR = 30, /**< Error log level */ DOCA_DPA_DEV_LOG_LEVEL_WARNING = 40, /**< Warning log level */ DOCA_DPA_DEV_LOG_LEVEL_INFO = 50, /**< Info log level */ DOCA_DPA_DEV_LOG_LEVEL_DEBUG = 60, /**< Debug log level */ } doca_dpa_dev_log_level_t;   void doca_dpa_dev_log(doca_dpa_dev_log_level_t log_level, const char *format, ...)

  • Log macros:

    Copy
    Copied!


    DOCA_DPA_DEV_LOG_CRIT(...) DOCA_DPA_DEV_LOG_ERR(...) DOCA_DPA_DEV_LOG_WARN(...) DOCA_DPA_DEV_LOG_INFO(...) DOCA_DPA_DEV_LOG_DBG(...)

  • To create a trace message entry with arguments:

    Copy
    Copied!


    void doca_dpa_dev_trace(uint64_t arg1, uint64_t arg2, uint64_t arg3, uint64_t arg4, uint64_t arg5)

  • To flush the trace message buffer to host:

    Copy
    Copied!


    void doca_dpa_dev_trace_flush(void)

Error Handling

DPA context can enter an error state caused by the device flow. The application can check this error state by calling the following host API:

Copy
Copied!


doca_error_t doca_dpa_peek_at_last_error(const struct doca_dpa *dpa)

If a fatal error core dump and crash occur, data is written to the file path /tmp/doca_dpa_fatal or to the file path set by the API doca_dpa_log_file_set_path(), with the suffixes .PID.core and .PID.crash respectively, where PID is the process ID. The data written to the file would include a memory snapshot at the time of the crash, which would contain information instrumental in pinpointing the cause of a crash (e.g., the program's state, variable values, and the call stack).

Info

Creating core dump files can be done after the DPA application has crashed.

Info

This call does not reset the error state.

Note

If an error occurred, DPA context enters a fatal state and must be destroyed by the user.


Procedure Outline

  1. Write DPA device code (i.e., kernels or .c files).

  2. Use DPACC to build a DPA program (i.e., a host library which contains an embedded device executable). Input for DPACC:

    1. Kernels from step 1.

    2. DOCA DPA device library.

  3. Build host executable using a host compiler. Input for the host compiler:

    1. DPA program.

    2. User host application .c/.cpp files.

  4. Run host executable.



Procedure Steps

The following code snippets show a basic DPA code that eventually prints "Hello World" to stdout.

This is achieved using:

  • A DPA Thread which prints the string and signals a DOCA Sync Event to indicate completion to host application

  • A DPA RPC to notify DPA Thread

The steps are elaborated in the following subsections.

Prepare Kernels Code

Copy
Copied!


#include "doca_dpa_dev.h" #include "doca_dpa_dev_sync_event.h"   __dpa_global__ void hello_world_thread_kernel(uint64_t arg) { DOCA_DPA_DEV_LOG_INFO("Hello World From DPA Thread!\n"); doca_dpa_dev_sync_event_update_set(arg, 1); doca_dpa_dev_thread_finish(); }   __dpa_rpc__ uint64_t hello_world_thread_notify_rpc(doca_dpa_dev_notification_completion_t comp_handle) { DOCA_DPA_DEV_LOG_INFO("Notifying DPA Thread From RPC\n"); doca_dpa_dev_thread_notify(comp_handle); return 0; }


Prepare Host Application Code

Copy
Copied!


#include <stdio.h> #include <unistd.h> #include <doca_dev.h> #include <doca_error.h> #include <doca_sync_event.h> #include <doca_dpa.h>   /** * A struct that includes all needed info on registered kernels and is initialized during linkage by DPACC. * Variable name should be the token passed to DPACC with --app-name parameter. */ extern struct doca_dpa_app *dpa_hello_world_app;   /** * kernel declaration that the user must declare for each kernel and DPACC is responsible to initialize. * Only then, user can use this variable in relevant host APIs */ doca_dpa_func_t hello_world_thread_kernel; doca_dpa_func_t hello_world_thread_notify_rpc;   int main(int argc, char **argv) { struct doca_dev *doca_dev = NULL; struct doca_dpa *dpa_ctx = NULL; struct doca_sync_event *cpu_se = NULL; doca_dpa_dev_sync_event_t cpu_se_handle = 0; struct doca_dpa_thread *dpa_thread = NULL; struct doca_dpa_notification_completion *notify_comp = NULL; doca_dpa_dev_notification_completion_t notify_comp_handle = 0; uint64_t retval = 0;   printf("\n----> Open DOCA Device\n"); /* Open appropriate DOCA device doca_dev */   printf("\n----> Initialize DOCA DPA Context\n"); doca_dpa_create(doca_dev, &dpa_ctx); doca_dpa_set_app(dpa_ctx, dpa_hello_world_app); doca_dpa_start(dpa_ctx);   printf("\n----> Initialize DOCA Sync Event\n"); doca_sync_event_create(&cpu_se); doca_sync_event_add_publisher_location_dpa(cpu_se, dpa_ctx); doca_sync_event_add_subscriber_location_cpu(cpu_se, doca_dev); doca_sync_event_start(cpu_se); doca_sync_event_get_dpa_handle(cpu_se, dpa_ctx, &cpu_se_handle);   printf("\n----> Initialize DOCA DPA Thread\n"); doca_dpa_thread_create(dpa_ctx, &dpa_thread); doca_dpa_thread_set_func_arg(dpa_thread, &hello_world_thread_kernel, cpu_se_handle); doca_dpa_thread_start(dpa_thread);   printf("\n----> Initialize DOCA DPA Notification Completion\n"); doca_dpa_notification_completion_create(dpa_ctx, dpa_thread, &notify_comp); doca_dpa_notification_completion_start(notify_comp); doca_dpa_notification_completion_get_dpa_handle(notify_comp, &notify_comp_handle);   printf("\n----> Run DOCA DPA Thread\n"); doca_dpa_thread_run(dpa_thread);   printf("\n----> Trigger DPA RPC\n"); doca_dpa_rpc(dpa_ctx, &hello_world_thread_notify_rpc, &retval, notify_comp_handle);   printf("\n----> Waiting For hello_world_thread_kernel To Finish\n"); doca_sync_event_wait_gt(cpu_se, 0, 0xFFFFFFFFFFFFFFFF);   printf("\n----> Destroy DOCA DPA Notification Completion\n"); doca_dpa_notification_completion_destroy(notify_comp);   printf("\n----> Destroy DOCA DPA Thread\n"); doca_dpa_thread_destroy(dpa_thread);   printf("\n----> Destroy DOCA DPA event\n"); doca_sync_event_destroy(cpu_se);   printf("\n----> Destroy DOCA DPA context\n"); doca_dpa_destroy(dpa_ctx);   printf("\n----> Destroy DOCA device\n"); doca_dev_close(doca_dev);   printf("\n----> DONE!\n"); return 0; }


Build DPA Program

Copy
Copied!


/opt/mellanox/doca/tools/dpacc \ kernel.c \ -o dpa_program.a \ -hostcc=gcc \ -hostcc-options="-Wno-deprecated-declarations -Werror -Wall -Wextra -W" \ --devicecc-options="-D__linux__ -Wno-deprecated-declarations -Werror -Wall -Wextra -W" \ --app-name="dpa_hello_world_app" \ -ldpa \ -I/opt/mellanox/doca/include/


Build Host Application

Copy
Copied!


gcc hello_world.c -o hello_world \ dpa_program.a \ -I/opt/mellanox/doca/include/ \ -DDOCA_ALLOW_EXPERIMENTAL_API \ -L/opt/mellanox/doca/lib/x86_64-linux-gnu/ -ldoca_dpa -ldoca_common \ -L/opt/mellanox/flexio/lib/ -lflexio \ -lstdc++ -libverbs -lmlx5


Execution

Copy
Copied!


$ ./hello_world   ----> Open DOCA Device   ----> Initialize DOCA DPA Context   ----> Initialize DOCA Sync Event   ----> Initialize DOCA DPA Thread   ----> Initialize DOCA DPA Notification Completion   ----> Run DOCA DPA Thread   ----> Trigger DPA RPC / 10/[DOCA][DPA DEVICE][INF] Notifying DPA Thread From RPC / 8/[DOCA][DPA DEVICE][INF] Hello World From DPA Thread!   ----> Waiting For hello_world_thread_kernel To Finish   ----> Destroy DOCA DPA Notification Completion   ----> Destroy DOCA DPA Thread   ----> Destroy DOCA DPA event   ----> Destroy DOCA DPA context   ----> Destroy DOCA device   ----> DONE!

This section provides DPA sample implementation on top of the BlueField-3 networking platform .

To Run DPA samples:

  1. Refer to the following documents:

  2. To build a given sample:

    Copy
    Copied!


    cd /opt/mellanox/doca/samples/doca_dpa/<sample_name> meson /tmp/build ninja -C /tmp/build

    Info

    The binary doca_<sample_name> is created under /tmp/build/.

  3. Sample (e.g., dpa_initiator_target) usage:

    Copy
    Copied!


    Usage: doca_dpa_initiator_target [DOCA Flags] [Program Flags]   DOCA Flags:   -h, --help                              Print a help synopsis   -v, --version                           Print program version information   -l, --log-level                         Set the (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>   --sdk-log-level                         Set the SDK (numeric) log level for the program <10=DISABLE, 20=CRITICAL, 30=ERROR, 40=WARNING, 50=INFO, 60=DEBUG, 70=TRACE>   -j, --json <path>                       Parse all command flags from an input json file   Program Flags:   -d, --device <device name>           device name that supports DPA (optional). If not provided then a random device will be chosen

  4. For additional information per sample, use the -h option:

    Copy
    Copied!


    /tmp/build/doca_<sample_name> -h

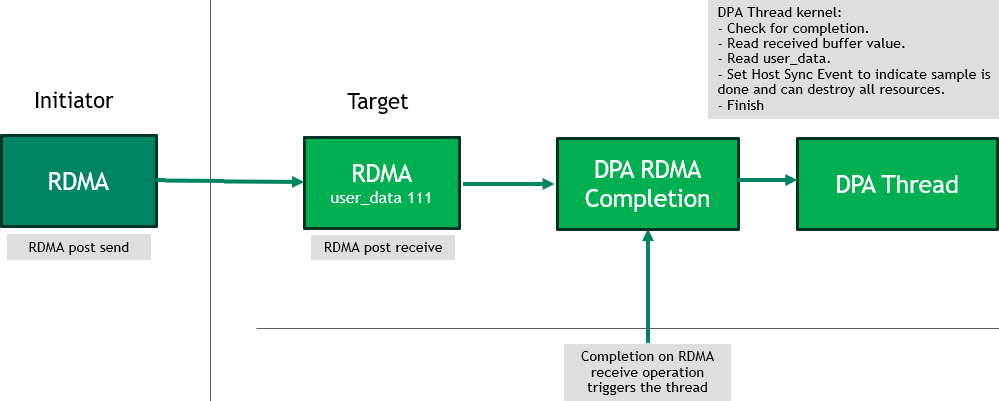

Basic Initiator Target

This sample illustrates how to trigger DPA Thread using DPA Completion Context attached to DOCA RDMA.

This sample consists of initiator and target endpoints.

In the initiator endpoint, a DOCA RDMA executes RDMA post send operation using DPA RPC.

In the target endpoint, a DOCA RDMA, attached to DPA Completion Context, executes RDMA post receive operation using DPA RPC.

Completion on the post receive operation triggers DPA Thread which prints completion info and sets DOCA Sync Event to release the host application that waits on that event before destroying all resources and finish.

The sample logic includes:

  1. Allocating DOCA DPA & DOCA RDMA resources for both initiator and target endpoints.

  2. Target: Attaching DOCA RDMA to DPA Completion Context which is attached to DPA Thread.

  3. Run DPA Thread.

  4. Target: DPA RPC to execute RDMA post receive operation.

  5. Initiator: DPA RPC to execute RDMA post send operation.

  6. The completion on the post receive operation triggers DPA Thread.

  7. Waiting on completion event to be set from DPA Thread.

  8. Destroying all resources.


Reference:

  • /opt/mellanox/doca/samples/doca_dpa/dpa_basic_initiator_target/dpa_basic_initiator_target_main.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_basic_initiator_target/host/dpa_basic_initiator_target_sample.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_basic_initiator_target/device/dpa_basic_initiator_target_kernels_dev.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_basic_initiator_target/meson.build

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.h

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.c

  • /opt/mellanox/doca/samples/doca_dpa/build_dpacc_samples.sh

Advanced Initiator Target

This sample illustrates how to trigger DPA Threads using both DPA Notification Completion and DPA Completion Context which is attached to multiple DOCA RDMAs.

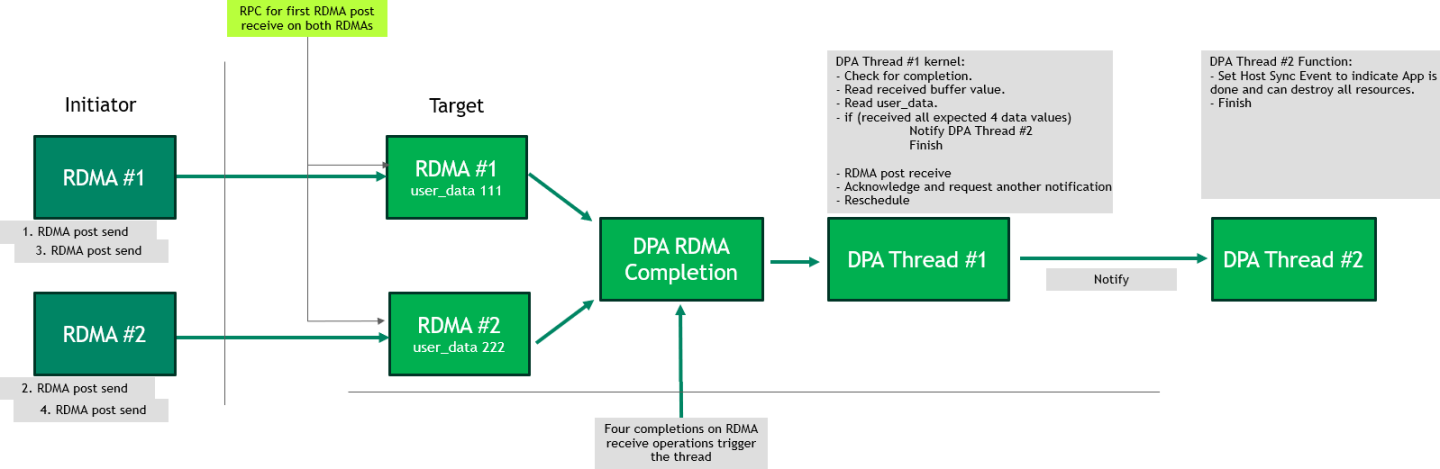

This sample consists of initiator and target endpoints.

In the initiator endpoint, two DOCA RDMAs execute an RDMA post send operation using DPA RPC in the following order:

  1. RDMA #1 executes the RDMA post send operation on buffer with value 1.

  2. RDMA #2 executes the RDMA post send operation on buffer with value 2.

  3. RDMA #1 executes the RDMA post send operation on buffer with value 3.

  4. RDMA #2 executes the RDMA post send operation on buffer with value 4.

In the target endpoint, two DOCA RDMAs, RDMA #1 with user data 111 and RDMA #2 with user data 222.

Target RDMAs are attached to a single DPA Completion Context which is attached to DPA Thread #1.

Target RDMAs execute the initial RDMA post receive operation using DPA RPC.

Completions on the post receive operations trigger DPA Thread #1 which:

  1. Prints completion info including user data.

  2. Updates a local data base with the receive buffer value.

  3. Repost RDMA receive operation.

  4. Ack, request completion and reschedule.

Once target DPA Thread #1 receives all expected values "1, 2, 3, 4", it notify DPA Thread #2 and finish.

Once DPA Thread #2 is triggered, it sets DOCA Sync Event to release the host application that waits on that event before destroying all resources and finishing.

The sample logic includes:

  1. Allocating DOCA DPA and DOCA RDMA resources for both initiator and target endpoints.

  2. Target: Attaching both DOCA RDMAs to DPA Completion Context which is attached to DPA Thread #1.

  3. Target: Attaching DPA Notification Completion to DPA Thread #2.

  4. Run DPA Threads.

  5. Target: DPA RPC to execute the initial RDMA post receive operation.

  6. Initiator: DPA RPC to execute all RDMA post send operations.

  7. Completions on the post receive operations (4 completions) trigger DPA Thread #1.

  8. Once all expected values are received, DPA Thread #1 notifies DPA Thread #2 and finishes.

  9. Waiting on completion event to be set from DPA Thread #2.

  10. Destroying all resources.


Reference:

  • /opt/mellanox/doca/samples/doca_dpa/dpa_initiator_target/dpa_initiator_target_main.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_initiator_target/host/dpa_initiator_target_sample.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_initiator_target/device/dpa_initiator_target_kernels_dev.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_initiator_target/meson.build

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.h

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.c

  • /opt/mellanox/doca/samples/doca_dpa/build_dpacc_samples.sh

Kernel Launch

This sample illustrates how to launch a DOCA DPA kernel with a completion event.

The sample logic includes:

  1. Allocating DOCA DPA resources.

  2. Initializing completion event for the DOCA DPA kernel.

  3. Running hello_world DOCA DPA kernel that prints "Hello from kernel".

  4. Waiting on completion event of the kernel.

  5. Destroying the event and resources.

Reference:

  • /opt/mellanox/doca/samples/doca_dpa/dpa_kernel_launch/dpa_kernel_launch_main.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_kernel_launch/host/dpa_kernel_launch_sample.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_kernel_launch/device/dpa_kernel_launch_kernels_dev.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_kernel_launch/meson.build

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.h

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.c

  • /opt/mellanox/doca/samples/doca_dpa/build_dpacc_samples.sh

Wait Kernel Launch

This sample illustrates how to launch a DOCA DPA kernel with wait and completion events.

The sample logic includes:

  1. Allocating DOCA DPA resources.

  2. Initializing wait and completion events for the DOCA DPA kernel.

  3. Running hello_world DOCA DPA kernel that waits on the wait event.

  4. Running a separate thread that triggers the wait event.

  5. hello_world DOCA DPA kernel prints "Hello from kernel".

  6. Waiting for the completion event of the kernel.

  7. Destroying the events and resources.

Reference:

  • /opt/mellanox/doca/samples/doca_dpa/dpa_wait_kernel_launch/dpa_wait_kernel_launch_main.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_wait_kernel_launch/host/dpa_wait_kernel_launch_sample.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_wait_kernel_launch/device/dpa_wait_kernel_launch_kernels_dev.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_wait_kernel_launch/meson.build

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.h

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.c

  • /opt/mellanox/doca/samples/doca_dpa/build_dpacc_samples.sh

Binary Tree

This sample illustrates how to launch multiple DOCA DPA kernels in a binary tree pattern.

The sample logic includes:

  1. Allocating DOCA DPA resources.

  2. Initializing wait and completion events for the DOCA DPA kernels.

  3. Running 7 DOCA DPA kernels, such that each kernel (except the first) waits on the parent kernel in a binary tree-like pattern.

  4. Waiting on all 7 completion events (completion event for each kernel).

  5. Destroying the events and resources.

Reference:

  • /opt/mellanox/doca/samples/doca_dpa/dpa_binary_tree/dpa_binary_tree_main.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_binary_tree/host/dpa_binary_tree_sample.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_binary_tree/device/dpa_binary_tree_kernels_dev.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_binary_tree/meson.build

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.h

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.c

  • /opt/mellanox/doca/samples/doca_dpa/build_dpacc_samples.sh

Diamond Tree

This sample illustrates how to launch multiple DOCA DPA kernels in a diamond tree-like pattern.

The sample logic includes:

  1. Allocating DOCA DPA resources.

  2. Initializing wait and completion events for the DOCA DPA kernel.

  3. Running 4 kernels, such that each kernel (except the first) waits on the parent kernel in a diamond tree-like pattern.

  4. Waiting on the completion event of the last kernel.

  5. Destroying the events and resources.

Reference:

  • /opt/mellanox/doca/samples/doca_dpa/dpa_diamond_tree/dpa_diamond_tree_main.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_diamond_tree/host/dpa_diamond_tree_sample.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_diamond_tree/device/dpa_diamond_tree_kernels_dev.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_diamond_tree/meson.build

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.h

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.c

  • /opt/mellanox/doca/samples/doca_dpa/build_dpacc_samples.sh

RDMA Copy

This sample illustrates how to perform RDMA copy using DOCA DPA kernels and DOCA DPA RDMAs. This sample launches another thread considered to be a "remote thread" to copy to (the thread is not actually remote as the main process spawns it).

Info

To avoid confusion, the main process is referred to as the "main thread".

The goal is to illustrate how the main thread can copy a buffer (in this example, an integer) to the remote thread's memory.

The sample logic includes:

  1. The main thread allocating DOCA DPA resources.

  2. The main thread creating DOCA DPA events for wait and completion of DOCA DPA kernels, and another event for communication with the remote thread.

  3. Launching the remote thread.

  4. The main thread preparing the DOCA DPA RDMA resources, registering the buffer to copy as a DOCA DPA host memory, and signaling (using the communication event) to the remote thread that it is ready.

  5. The remote thread preparing the DOCA DPA RDMA resources, registering a buffer to copy to it as a DOCA DPA host memory, and signaling (using the communication event) to the main thread that it is ready.

  6. The main and remote threads connecting to each other's RDMAs.

  7. The main thread launching a DOCA DPA kernel that copies the main thread's buffer to the remote thread's buffer.

  8. The DOCA DPA kernel synchronizing the RDMA and finishing.

  9. The main thread waiting on the completion event of the kernel.

  10. The main thread signaling to the remote event that the copy has finished.

  11. The remote thread destroying its resources and joining the main thread.

  12. The main thread destroying the events and resources.

Reference:

  • /opt/mellanox/doca/samples/doca_dpa/dpa_rdma_copy/dpa_rdma_copy_main.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_rdma_copy/host/dpa_rdma_copy_sample.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_rdma_copy/device/dpa_rdma_copy_kernels_dev.c

  • /opt/mellanox/doca/samples/doca_dpa/dpa_rdma_copy/meson.build

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.h

  • /opt/mellanox/doca/samples/doca_dpa/dpa_common.c

  • /opt/mellanox/doca/samples/doca_dpa/build_dpacc_samples.sh

© Copyright 2024, NVIDIA. Last updated on Aug 15, 2024.
