OVS-Kernel Hardware Offloads

1.0

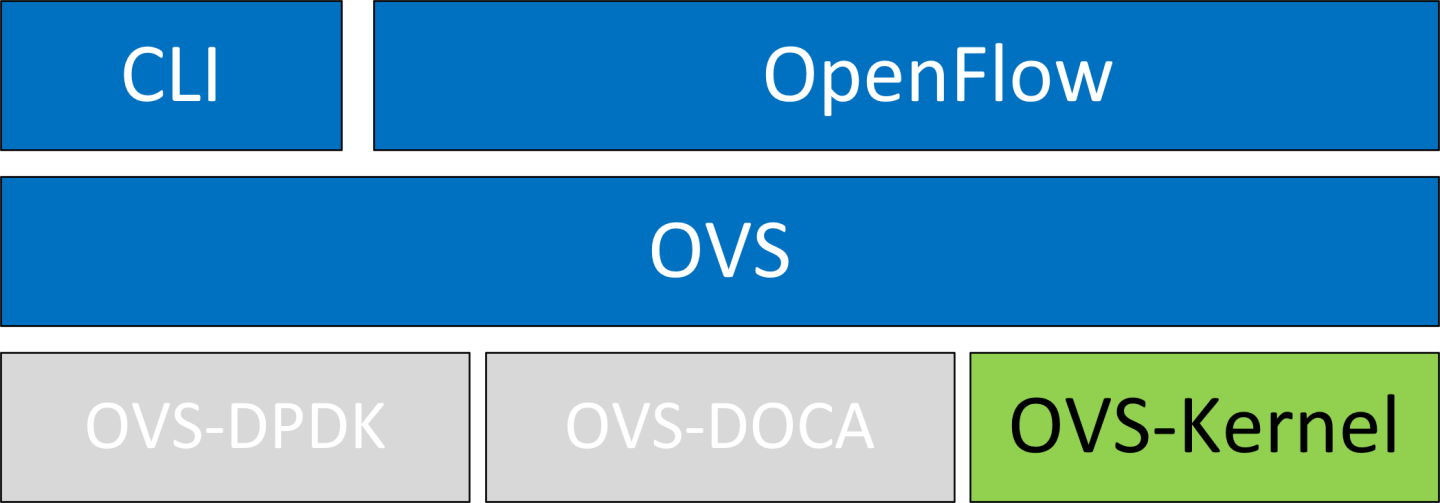

OVS-Kernel is the default OVS flavor enabled on your NVIDIA device.


  1. Unbind the VFs:

    Copy
    Copied!


    echo 0000:04:00.2 > /sys/bus/pci/drivers/mlx5_core/unbind echo 0000:04:00.3 > /sys/bus/pci/drivers/mlx5_core/unbind

    Note

    VMs with attached VFs must be powered off to be able to unbind the VFs.

  2. Change the eSwitch mode from legacy to switchdev on the PF device:

    Copy
    Copied!


    # devlink dev eswitch set pci/0000:3b:00.0 mode switchdev

    This also creates the VF representor netdevices in the host OS.

    Note

    Before changing the mode, make sure that all VFs are unbound.

    Info

    To return to SR-IOV legacy mode, run:

    Copy
    Copied!


    # devlink dev eswitch set pci/0000:3b:00.0 mode legacy

    This also removes the VF representor netdevices.

    On OSes or kernels that do not support devlink, moving to switchdev mode can be done using sysfs:

    Copy
    Copied!


    # echo switchdev > /sys/class/net/enp4s0f0/compat/devlink/mode

  3. At this stage, VF representors have been created. To map a representor to its VF, make sure to obtain the representor's switchid and portname by running:

    Copy
    Copied!


    # ip -d link show eth4 41: enp0s8f0_1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000 link/ether ba:e6:21:37:bc:d4 brd ff:ff:ff:ff:ff:ff promiscuity 0 addrgenmode eui64 numtxqueues 10 numrxqueues 10 gso_max_size 65536 gso_max_segs 65535 portname pf0vf1 switchid f4ab580003a1420c

    Where:

    • switchid – used to map representor to device, both device PFs have the same switchid

    • portname – used to map representor to PF and VF. Value returned is pf<X>vf<Y>, where X is the PF number and Y is the number of VF.

  4. Bind the VFs:

    Copy
    Copied!


    echo 0000:04:00.2 > /sys/bus/pci/drivers/mlx5_core/bind echo 0000:04:00.3 > /sys/bus/pci/drivers/mlx5_core/bind

Switchdev tuning improves its performance.

Steering Mode

OVS-kernel supports two steering modes for rule insertion into hardware:

  • SMFS (software-managed flow steering) – default mode; rules are inserted directly to the hardware by the software (driver). This mode is optimized for rule insertion.

  • DMFS (device-managed flow steering) – rule insertion is done using firmware commands. This mode is optimized for throughput with a small amount of rules in the system.

The steering mode can be configured via sysfs or devlink API in kernels that support it:

  • For sysfs:

    Copy
    Copied!


    echo <smfs|dmfs> > /sys/class/net/<pf-netdev>/compat/devlink/steering_mode

  • For devlink:

    Copy
    Copied!


    devlink dev param set pci/0000:00:08.0 name flow_steering_mode value "<smfs|dmfs>" cmode runtime

Notes:

  • The mode should be set prior to moving to switchdev, by echoing to the sysfs or invoking the devlink command.

  • Only when moving to switchdev will the driver use the mode configured.

  • Mode cannot be changed after moving to switchdev.

  • The steering mode is applicable for switchdev mode only (i.e., it does not affect legacy SR-IOV or other configurations).

Troubleshooting SMFS

mlx5 debugfs supports presenting Software Steering resources. dr_domain including its tables, matchers and rules. The interface is read-only.

Note

New steering rules cannot be inserted/deleted w hile the dump is being created,

The steering information is dumped in the CSV form in the following format: <object_type>,<object_ID>, <object_info>,...,<object_info> .

This data can be read at the following path: /sys/kernel/debug/mlx5/<BDF>/steering/fdb/<domain_handle> .

Example:

Copy
Copied!


# cat /sys/kernel/debug/mlx5/0000:82:00.0/steering/fdb/dmn_000018644 3100,0x55caa4621c50,0xee802,4,65533 3101,0x55caa4621c50,0xe0100008

You can then use the steering dump parser to make the output more human-readable.

The parser can be found in this GitHub repository.

vPort Match Mode

OVS-kernel support two modes that define how the rules match on vport.

Mode

Description

Metadata

Rules match on metadata instead of vport number (default mode).

This mode is needed to support SR-IOV live migration and dual-port RoCE.

Note

Matching on Metadata can have a performance impact.

Legacy

Rules match on vport number.

In this mode, performance can be higher in comparison to Metadata. It can be used only if SR-IOV live migration or dual port RoCE are enabled/used.

vPort match mode can be controlled via sysfs:

  • Set legacy:

    Copy
    Copied!


    echo legacy > /sys/class/net/<PF netdev>/compat/devlink/vport_match_mode

  • Set metadata:

    Copy
    Copied!


    echo metadata > /sys/class/net/<PF netdev>/compat/devlink/vport_match_mode

Note

This mode must be set prior to moving to switchdev.


Flow Table Large Group Number

Offloaded flows, including connection tracking (CT), are added to the virtual switch forwarding data base (FDB) flow tables. FDB tables have a set of flow groups, where each flow group saves the same traffic pattern flows. For example, for CT offloaded flow, TCP and UDP are different traffic patterns which end up in two different flow groups.

A flow group has a limited size to save flow entries. By default, the driver has 15 big FDB flow groups. Each of these big flow groups can save 4M/(15+1)=256k different 5-tuple flow entries at most. For scenarios with more than 15 traffic patterns, the driver provides a module parameter (num_of_groups) to allow customization and performance tuning.

The mode can be controlled via module param or devlink API for kernels that support it:

  • Module param:

    Copy
    Copied!


    echo <num_of_groups> > /sys/module/mlx5_core/parameters/num_of_groups

  • Devlink:

    Copy
    Copied!


    devlink dev param set pci/0000:82:00.0 name fdb_large_groups cmode driverinit value 20

Note

The change takes effect immediately if no flows are inside the FDB table (no traffic running and all offloaded flows are aged out). And it can be dynamically changed without reloading the driver. If there are still offloaded flows when changing this parameter, it takes effect after all flows have aged out.


OVS configuration is a simple OVS bridge configuration with switchdev.

  1. Run the OVS service:

    Copy
    Copied!


    systemctl start openvswitch

  2. Create an OVS bridge (named ovs-sriov here):

    Copy
    Copied!


    ovs-vsctl add-br ovs-sriov

  3. Enable hardware offload (disabled by default):

    Copy
    Copied!


    ovs-vsctl set Open_vSwitch . other_config:hw-offload=true

  4. Restart the OVS service:

    Copy
    Copied!


    systemctl restart openvswitch

    This step is required for hardware offload changes to take effect.

  5. Add the PF and the VF representor netdevices as OVS ports:

    Copy
    Copied!


    ovs-vsctl add-port ovs-sriov enp4s0f0 ovs-vsctl add-port ovs-sriov enp4s0f0_0 ovs-vsctl add-port ovs-sriov enp4s0f0_1

    Make sure to bring up the PF and representor netdevices:

    Copy
    Copied!


    ip link set dev enp4s0f0 up ip link set dev enp4s0f0_0 up ip link set dev enp4s0f0_1 up

    The PF represents the uplink (wire):

    Copy
    Copied!


    # ovs-dpctl show system@ovs-system: lookups: hit:0 missed:192 lost:1 flows: 2 masks: hit:384 total:2 hit/pkt:2.00 port 0: ovs-system (internal) port 1: ovs-sriov (internal) port 2: enp4s0f0 port 3: enp4s0f0_0 port 4: enp4s0f0_1

  6. Run traffic from the VFs and observe the rules added to the OVS data-path:

    Copy
    Copied!


    # ovs-dpctl dump-flows   recirc_id(0),in_port(3),eth(src=e4:11:22:33:44:50,dst=e4:1d:2d:a5:f3:9d), eth_type(0x0800),ipv4(frag=no), packets:33, bytes:3234, used:1.196s, actions:2   recirc_id(0),in_port(2),eth(src=e4:1d:2d:a5:f3:9d,dst=e4:11:22:33:44:50), eth_type(0x0800),ipv4(frag=no), packets:34, bytes:3332, used:1.196s, actions:3

    In this example, the ping is initiated from VF0 (OVS port 3) to the outer node (OVS port 2), where the VF MAC is e4:11:22:33:44:50 and the outer node MAC is e4:1d:2d:a5:f3:9d. As previously shown, two OVS rules are added, one in each direction.

    Note

    Users can also verify offloaded packets by adding type=offloaded to the command. For example:

    Copy
    Copied!


    ovs-appctl dpctl/dump-flows type=offloaded

Flow Aging

The aging timeout of OVS is given in milliseconds and can be controlled by running:

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:max-idle=30000


TC Policy

Specifies the policy used with hardware offloading:

  • none – adds a TC rule to both the software and the hardware (default)

  • skip_sw – adds a TC rule only to the hardware

  • skip_hw – adds a TC rule only to the software

Example:

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:tc-policy=skip_sw

Note

TC policy should only be used for debugging purposes.


max-revalidator

Specifies the maximum time (in milliseconds) for the revalidator threads to wait for kernel statistics before executing flow revalidation.

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:max-revalidator=10000


n-handler-threads

Specifies the number of threads for software datapaths to use to handle new flows.

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:n-handler-threads=4

The default value is the number of online CPU cores minus the number of revalidators.

n-revalidator-threads

Specifies the number of threads for software datapaths to use to revalidate flows in the datapath.

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:n-revalidator-threads=4

vlan-limit

Limits the number of VLAN headers that can be matched to the specified number.

Copy
Copied!


ovs-vsctl set Open_vSwitch . other_config:vlan-limit=2

Offloading rules can also be added directly, and not only through OVS, using the tc utility.

To create an offloading rule using TC:

  1. Create an ingress qdisc (queueing discipline) for each interface that you wish to add rules into:

    Copy
    Copied!


    tc qdisc add dev enp4s0f0 ingress tc qdisc add dev enp4s0f0_0 ingress tc qdisc add dev enp4s0f0_1 ingress

  2. Add TC rules using flower classifier in the following format:

    Copy
    Copied!


    tc filter add dev NETDEVICE ingress protocol PROTOCOL prio PRIORITY [chain CHAIN] flower [MATCH_LIST] [action ACTION_SPEC]

    Note

    A list of supported matches (specifications) and actions can be found in section "Classification Fields (Matches)".

  3. Dump the existing tc rules using flower classifier in the following format:

    Copy
    Copied!


    tc [-s] filter show dev NETDEVICE ingress

SR-IOV VF LAG allows the NIC's physical functions (PFs) to get the rules that the OVS tries to offload to the bond net-device, and to offload them to the hardware e-switch.

The supported bond modes are as follows:

  • Active-backup

  • XOR

  • LACP

SR-IOV VF LAG enables complete offload of the LAG functionality to the hardware. The bonding creates a single bonded PF port. Packets from the up-link can arrive from any of the physical ports and are forwarded to the bond device.

When hardware offload is used, packets from both ports can be forwarded to any of the VFs. Traffic from the VF can be forwarded to both ports according to the bonding state. This means that when in active-backup mode, only one PF is up, and traffic from any VF goes through this PF. When in XOR or LACP mode, if both PFs are up, traffic from any VF is split between these two PFs.

SR-IOV VF LAG Configuration on ASAP2

To enable SR-IOV VF LAG, both physical functions of the NIC must first be configured to SR-IOV switchdev mode, and only afterwards bond the up-link representors.

The following example shows the creation of a bond interface over two PFs:

  1. Load the bonding device and subordinate the up-link representor (currently PF) net-device devices:

    Copy
    Copied!


    modprobe bonding mode=802.3ad Ifup bond0 (make sure ifcfg file is present with desired bond configuration) ip link set enp4s0f0 master bond0 ip link set enp4s0f1 master bond0

  2. Add the VF representor net-devices as OVS ports. If tunneling is not used, add the bond device as well.

    Copy
    Copied!


    ovs-vsctl add-port ovs-sriov bond0 ovs-vsctl add-port ovs-sriov enp4s0f0_0 ovs-vsctl add-port ovs-sriov enp4s0f1_0

  3. Bring up the PF and the representor netdevices:

    Copy
    Copied!


    ip link set dev bond0 up ip link set dev enp4s0f0_0 up ip link set dev enp4s0f1_0 up

Note

Once the SR-IOV VF LAG is configured, all VFs of the two PFs become part of the bond and behave as described above.


Using TC with VF LAG

Both rules can be added either with or without shared block:

  • With shared block (supported from kernel 4.16 and RHEL/CentOS 7.7 and above):

    Copy
    Copied!


    tc qdisc add dev bond0 ingress_block 22 ingress tc qdisc add dev ens4p0 ingress_block 22 ingress tc qdisc add dev ens4p1 ingress_block 22 ingress

    1. Add drop rule:

      Copy
      Copied!


      # tc filter add block 22 protocol arp parent ffff: prio 3 \ flower \ dst_mac e4:11:22:11:4a:51 \ action drop

    2. Add redirect rule from bond to representor:

      Copy
      Copied!


      # tc filter add block 22 protocol arp parent ffff: prio 3 \ flower \ dst_mac e4:11:22:11:4a:50 \ action mirred egress redirect dev ens4f0_0

    3. Add redirect rule from representor to bond:

      Copy
      Copied!


      # tc filter add dev ens4f0_0 protocol arp parent ffff: prio 3 \ flower \ dst_mac ec:0d:9a:8a:28:42 \ action mirred egress redirect dev bond0

  • Without shared block (supported from kernel 4.15 and below):

    1. Add redirect rule from bond to representor:

      Copy
      Copied!


      # tc filter add dev bond0 protocol arp parent ffff: prio 1 \ flower \ dst_mac e4:11:22:11:4a:50 \ action mirred egress redirect dev ens4f0_0

    2. Add redirect rule from representor to bond:

      Copy
      Copied!


      # tc filter add dev ens4f0_0 protocol arp parent ffff: prio 3 \ flower \ dst_mac ec:0d:9a:8a:28:42 \ action mirred egress redirect dev bond0

OVS-Kernel supports multiple classification fields which packets can fully or partially match.

Ethernet Layer 2

  • Destination MAC

  • Source MAC

  • Ethertype

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions:eth7

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action mirred egress redirect dev $NIC


IPv4/IPv6

  • Source address

  • Destination address

  • Protocol

    • TCP/UDP/ICMP/ICMPv6

  • TOS

  • TTL (HLIMIT)

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


Ipv4: ipv4(src=0.0.0.0/0.0.0.0,dst=0.0.0.0/0.0.0.0,proto=17,tos=0/0,ttl=0/0,frag=no) Ipv6: ipv6(src=::/::,dst=1:1:1::3:1040:1008,label=0/0,proto=58,tclass=0/0x3,hlimit=64),

Using TC rules:

Copy
Copied!


IPv4: tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ dst_ip 1.1.1.1 \ src_ip 1.1.1.2 \ ip_proto TCP \ ip_tos 0x3 \ ip_ttl 63 \ action mirred egress redirect dev $NIC     IPv6: tc filter add dev $rep parent ffff: protocol ipv6 pref 1 \ flower \ dst_ip 1:1:1::3:1040:1009 \ src_ip 1:1:1::3:1040:1008 \ ip_proto TCP \ ip_tos 0x3 \ ip_ttl 63\ action mirred egress redirect dev $NIC


TCP/UDP Source and Destination Ports and TCP Flags

  • TCP/UDP source and destinations ports

  • TCP flags

Supported on kernel >4.13 and RHEL >7.5.

In OVS dump flows:

Copy
Copied!


TCP: tcp(src=0/0,dst=32768/0x8000), UDP: udp(src=0/0,dst=32768/0x8000), TCP flags: tcp_flags(0/0)

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ ip_proto TCP \ dst_port 100 \ src_port 500 \ tcp_flags 0x4/0x7 \ action mirred egress redirect dev $NIC


VLAN

  • ID

  • Priority

  • Inner vlan ID and Priority

Supported kernels: All (QinQ: kernel 4.19 and higher, and RHEL 7.7 and higher).

In OVS dump flows:

Copy
Copied!


eth_type(0x8100),vlan(vid=2347,pcp=0),

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol 802.1Q pref 1 \ flower \ vlan_ethtype 0x800 \ vlan_id 100 \ vlan_prio 0 \ action mirred egress redirect dev $NIC QinQ: tc filter add dev $rep parent ffff: protocol 802.1Q pref 1 \ flower \ vlan_ethtype 0x8100 \ vlan_id 100 \ vlan_prio 0 \ cvlan_id 20 \ cvlan_prio 0 \ cvlan_ethtype 0x800 \ action mirred egress redirect dev $NIC


Tunnel

  • ID (Key)

  • Source IP address

  • Destination IP address

  • Destination port

  • TOS (supported from kernel 4.19 and above & RHEL 7.7 and above)

  • TTL (support from kernel 4.19 and above & RHEL 7.7 and above)

  • Tunnel options (Geneve)

Supported kernels:

  • VXLAN: All

  • GRE: Kernel >5.0, RHEL 7.7 and above

  • Geneve: Kernel >5.0, RHEL 7.7 and above

In OVS dump flows:

Copy
Copied!


tunnel(tun_id=0x5,src=121.9.1.1,dst=131.10.1.1,ttl=0/0,tp_dst=4789,flags(+key))

Using TC rules:

Copy
Copied!


# tc filter add dev $rep protocol 802.1Q parent ffff: pref 1  flower \ vlan_ethtype 0x800 \ vlan_id 100 \ vlan_prio 0 \ action mirred egress redirect dev $NIC QinQ: # tc filter add dev vxlan100 protocol ip parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4+:11:22:11:4a:50 \ enc_src_ip 20.1.11.1 \ enc_dst_ip 20.1.12.1 \ enc_key_id 100 \ enc_dst_port 4789 \ action tunnel_key unset \ action mirred egress redirect dev ens4f0_0


Forward

Forward action allows for packet redirection:

  • From VF to wire

  • Wire to VF

  • VF to VF

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions:eth7

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action mirred egress redirect dev $NIC


Drop

Drop action allows to drop incoming packets.

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions:drop

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action drop


Statistics

By default, each flow collects the following statistics:

  • Packets – number of packets which hit the flow

  • Bytes – total number of bytes which hit the flow

  • Last used – the amount of time passed since last packet hit the flow

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions:drop

Using TC rules:

Copy
Copied!


#tc -s filter show dev $rep ingress   filter protocol ip pref 2 flower chain 0 filter protocol ip pref 2 flower chain 0 handle 0x2 eth_type ipv4 ip_proto tcp src_ip 192.168.140.100 src_port 80 skip_sw in_hw action order 1: mirred (Egress Redirect to device p0v11_r) stolen index 34 ref 1 bind 1 installed 144 sec used 0 sec Action statistics: Sent 388344 bytes 2942 pkt (dropped 0, overlimits 0 requeues 0) backlog 0b 0p requeues 0


Tunnels: Encapsulation/Decapsulation

OVS-kernel supports offload of tunnels using encapsulation and decapsulation actions.

  • Encapsulation – pushing of tunnel header is supported on Tx

  • Decapsulation – popping of tunnel header is supported on Rx

Supported Tunnels:

  • VXLAN (IPv4/IPv6) – supported on all Kernels

  • GRE (IPv4/IPv6) – supported on kernel 5.0 and above & RHEL 7.6 and above

  • Geneve (IPv4/IPv6) – supported on kernel 5.0 and above & RHEL 7.6 and above

OVS configuration:

In case of offloading tunnel, the PF/bond should not be added as a port in the OVS datapath. It should rather be assigned with the IP address to be used for encapsulation.

The following example shows two hosts (PFs) with IPs 1.1.1.177 and 1.1.1.75, where the PF device on both hosts is enp4s0f0, and the VXLAN tunnel is set with VNID 98:

  • On the first host:

    Copy
    Copied!


    # ip addr add 1.1.1.177/24 dev enp4s0f1 # ovs-vsctl add-port ovs-sriov vxlan0 -- set interface vxlan0 type=vxlan options:local_ip=1.1.1.177 options:remote_ip=1.1.1.75 options:key=98

  • On the second host:

    Copy
    Copied!


    # ip addr add 1.1.1.75/24 dev enp4s0f1 # ovs-vsctl add-port ovs-sriov vxlan0 -- set interface vxlan0 type=vxlan options:local_ip=1.1.1.75 options:remote_ip=1.1.1.177 options:key=98

    Info

    For a GRE IPv4 tunnel, use type=gre. For a GRE IPv6 tunnel, use type=ip6gre. For a Geneve tunnel, use type=geneve.

Note

When encapsulating guest traffic, the VF's device MTU must be reduced to allow the host/hardware to add the encap headers without fragmenting the resulted packet. As such, the VF's MTU must be lowered by 50 bytes from the uplink MTU for IPv4 and 70 bytes for IPv6.

Tunnel offload using TC rules:

Copy
Copied!


Encapsulation: # tc filter add dev ens4f0_0 protocol 0x806 parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4:11:22:11:4a:50 \ action tunnel_key set \ src_ip 20.1.12.1 \ dst_ip 20.1.11.1 \ id 100 \ action mirred egress redirect dev vxlan100   Decapsulation: # tc filter add dev vxlan100 protocol 0x806 parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4:11:22:11:4a:50 \ enc_src_ip 20.1.11.1 \ enc_dst_ip 20.1.12.1 \ enc_key_id 100 \ enc_dst_port 4789 \ action tunnel_key unset \ action mirred egress redirect dev ens4f0_0


VLAN Push/Pop

OVS-kernel supports offload of VLAN header push/pop actions:

  • Push – pushing of VLAN header is supported on Tx

  • Pop – popping of tunnel header is supported on Rx

OVS Configuration

Add a tag=$TAG section for the OVS command line that adds the representor ports. For example, VLAN ID 52 is being used here.

Copy
Copied!


# ovs-vsctl add-port ovs-sriov enp4s0f0 # ovs-vsctl add-port ovs-sriov enp4s0f0_0 tag=52 # ovs-vsctl add-port ovs-sriov enp4s0f0_1 tag=52

The PF port should not have a VLAN attached. This will cause OVS to add VLAN push/pop actions when managing traffic for these VFs.

Dump Flow Example

Copy
Copied!


recirc_id(0),in_port(3),eth(src=e4:11:22:33:44:50,dst=00:02:c9:e9:bb:b2),eth_type(0x0800),ipv4(frag=no), \ packets:0, bytes:0, used:never, actions:push_vlan(vid=52,pcp=0),2   recirc_id(0),in_port(2),eth(src=00:02:c9:e9:bb:b2,dst=e4:11:22:33:44:50),eth_type(0x8100), \ vlan(vid=52,pcp=0),encap(eth_type(0x0800),ipv4(frag=no)), packets:0, bytes:0, used:never, actions:pop_vlan,3


VLAN Offload Using TC Rules Example

Copy
Copied!


# tc filter add dev ens4f0_0 protocol ip parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4:11:22:11:4a:50 \ action vlan push id 100 \ action mirred egress redirect dev ens4f0   # tc filter add dev ens4f0 protocol 802.1Q parent ffff: \ flower \ skip_sw \ dst_mac e4:11:22:11:4a:51 \ src_mac e4:11:22:11:4a:50 \ vlan_ethtype 0x800 \ vlan_id 100 \ vlan_prio 0 \ action vlan pop \ action mirred egress redirect dev ens4f0_0

TC Configuration

Example of VLAN Offloading with popping header on Tx and pushing on Rx using TC rules:

Copy
Copied!


# tc filter add dev ens4f0_0 ingress protocol 802.1Q parent ffff: \        flower \                vlan_id 100 \        action vlan pop \        action tunnel_key set \                src_ip 4.4.4.1 \                dst_ip 4.4.4.2 \                dst_port 4789 \                id 42 \        action mirred egress redirect dev vxlan0   # tc filter add dev vxlan0 ingress protocol all parent ffff: \        flower \                enc_dst_ip 4.4.4.1 \                enc_src_ip 4.4.4.2 \                enc_dst_port 4789 \                enc_key_id 42 \        action tunnel_key unset \        action vlan push id 100 \         action mirred egress redirect dev ens4f0_0

Header Rewrite

This action allows for modifying packet fields.

Ethernet Layer 2

  • Destination MAC

  • Source MAC

Supported kernels:

  • Kernel 4.14 and above

  • RHEL 7.5 and above

In OVS dump flows:

Copy
Copied!


skb_priority(0/0),skb_mark(0/0),in_port(eth6),eth(src=00:02:10:40:10:0d,dst=68:54:ed:00:af:de),eth_type(0x8100), packets:1981, bytes:206024, used:0.440s, dp:tc, actions: set(eth(src=68:54:ed:00:f4:ab,dst=fa:16:3e:dd:69:c4)),eth7

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action pedit ex \ munge eth dst set 20:22:33:44:55:66 \ munge eth src set aa:ba:cc:dd:ee:fe \ action mirred egress redirect dev $NIC


IPv4/IPv6

  • Source address

  • Destination address

  • Protocol

  • TOS

  • TTL (HLIMIT)

Supported kernels:

  • Kernel 4.14 and above

  • RHEL 7.5 and above

In OVS dump flows:

Copy
Copied!


Ipv4: set(eth(src=de:e8:ef:27:5e:45,dst=00:00:01:01:01:01)), set(ipv4(src=10.10.0.111,dst=10.20.0.122,ttl=63)) Ipv6: set(ipv6(dst=2001:1:6::92eb:fcbe:f1c8,hlimit=63)),

Using TC rules:

Copy
Copied!


IPv4: tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ dst_ip 1.1.1.1 \ src_ip 1.1.1.2 \ ip_proto TCP \ ip_tos 0x3 \ ip_ttl 63 \ pedit ex \ munge ip src set 2.2.2.1 \ munge ip dst set 2.2.2.2 \ munge ip tos set 0 \ munge ip ttl dec \ action mirred egress redirect dev $NIC     IPv6: tc filter add dev $rep parent ffff: protocol ipv6 pref 1 \ flower \ dst_ip 1:1:1::3:1040:1009 \ src_ip 1:1:1::3:1040:1008 \ ip_proto tcp \ ip_tos 0x3 \ ip_ttl 63\ pedit ex \ munge ipv6 src set 2:2:2::3:1040:1009 \ munge ipv6 dst set 2:2:2::3:1040:1008 \ munge ipv6 hlimit dec \ action mirred egress redirect dev $NIC

Note

IPv4 and IPv6 header rewrite is only supported with match on UDP/TCP/ICMP protocols.

TCP/UDP Source and Destination Ports

  • TCP/UDP source and destinations ports

Supported kernels:

  • Kernel 4.16 and above

  • RHEL 7.6 and above

In OVS dump flows:

Copy
Copied!


TCP:   set(tcp(src= 32768/0xffff,dst=32768/0xffff)), UDP:   set(udp(src= 32768/0xffff,dst=32768/0xffff)),

Using TC rules:

Copy
Copied!


TCP:   tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ dst_ip 1.1.1.1 \ src_ip 1.1.1.2 \ ip_proto tcp \ ip_tos 0x3 \ ip_ttl 63 \ pedit ex \ pedit ex munge ip tcp sport set 200 pedit ex munge ip tcp dport set 200 action mirred egress redirect dev $NIC   UDP: tc filter add dev $rep parent ffff: protocol ip pref 1 \ flower \ dst_ip 1.1.1.1 \ src_ip 1.1.1.2 \ ip_proto udp \ ip_tos 0x3 \ ip_ttl 63 \ pedit ex \ pedit ex munge ip udp sport set 200 pedit ex munge ip udp dport set 200 action mirred egress redirect dev $NIC


VLAN

  • ID

Supported on all kernels.

In OVS dump flows:

Copy
Copied!


Set(vlan(vid=2347,pcp=0/0)),

Using TC rules:

Copy
Copied!


tc filter add dev $rep parent ffff: protocol 802.1Q pref 1 \ flower \ vlan_ethtype 0x800 \ vlan_id 100 \ vlan_prio 0 \ action vlan modify id 11 pipe action mirred egress redirect dev $NIC

Connection Tracking

The TC connection tracking (CT) action performs CT lookup by sending the packet to netfilter conntrack module. Newly added connections may be associated, via the ct commit action, with a 32 bit mark, 128 bit label, and source/destination NAT values.

The following example allows ingress TCP traffic from the uplink representor to vf1_rep, while assuring that egress traffic from vf1_rep is only allowed on established connections. In addition, mark and source IP NAT is applied.

In OVS dump flows:

Copy
Copied!


ct(zone=2,nat) ct_state(+est+trk) actions:ct(commit,zone=2,mark=0x4/0xffffffff,nat(src=5.5.5.5))

Using TC rules:

Copy
Copied!


# tc filter add dev $uplink_rep ingress chain 0 prio 1 proto ip \ flower \ ip_proto tcp \ ct_state -trk \ action ct zone 2 nat pipe action goto chain 2 # tc filter add dev $uplink_rep ingress chain 2 prio 1 proto ip \ flower \ ct_state +trk+new \ action ct zone 2 commit mark 0xbb nat src addr 5.5.5.7 pipe \ action mirred egress redirect dev $vf1_rep # tc filter add dev $uplink_rep ingress chain 2 prio 1 proto ip \ flower \ ct_zone 2 \ ct_mark 0xbb \ ct_state +trk+est \ action mirred egress redirect dev $vf1_rep   // Setup filters on $vf1_rep, allowing only established connections of zone 2 through, and reverse nat (dst nat in this case)   # tc filter add dev $vf1_rep ingress chain 0 prio 1 proto ip \ flower \ ip_proto tcp \ ct_state -trk \ action ct zone 2 nat pipe \ action goto chain 1 # tc filter add dev $vf1_rep ingress chain 1 prio 1 proto ip \ flower \ ct_zone 2 \ ct_mark 0xbb \ ct_state +trk+est \ action mirred egress redirect dev eth0

CT Performance Tuning

  • Max offloaded connections – specifies the limit on the number of offloaded connections. Example:

    Copy
    Copied!


    devlink dev param set pci/${pci_dev} name ct_max_offloaded_conns value $max cmode runtime

  • Allow mixed NAT/non-NAT CT – allows offloading of the following scenario:

    Copy
    Copied!


    • cookie=0x0, duration=21.843s, table=0, n_packets=4838718, n_bytes=241958846, ct_state=-trk,ip,in_port=enp8s0f0 actions=ct(table=1,zone=2) • cookie=0x0, duration=21.823s, table=1, n_packets=15363, n_bytes=773526, ct_state=+new+trk,ip,in_port=enp8s0f0 actions=ct(commit,zone=2,nat(dst=11.11.11.11)),output:"enp8s0f0_1" • cookie=0x0, duration=21.806s, table=1, n_packets=4767594, n_bytes=238401190, ct_state=+est+trk,ip,in_port=enp8s0f0 actions=ct(zone=2,nat),output:"enp8s0f0_1"

    Example:

    Copy
    Copied!


    echo enable > /sys/class/net/<device>/compat/devlink/ct_action_on_nat_conns

Forward to Chain (TC Only)

TC interface supports adding flows on different chains. Only chain 0 is accessed by default. Access to the other chains requires using the goto action.

In this example, a flow is created on chain 1 without any match and redirect to wire.

The second flow is created on chain 0 and match on source MAC and action goto chain 1.

This example simulates simple MAC spoofing:

Copy
Copied!


#tc filter add dev $rep parent ffff: protocol all chain 1 pref 1 \ flower \ action mirred egress redirect dev $NIC   #tc filter add dev $rep parent ffff: protocol all chain 1 pref 1 \ flower \ src_mac aa:bb:cc:aa:bb:cc \ action goto chain 1


Unlike para-virtual configurations, when the VM traffic is offloaded to hardware via SR-IOV VF, the host-side admin cannot snoop the traffic (e.g., for monitoring).

ASAP² uses the existing mirroring support in OVS and TC along with the enhancement to the offloading logic in the driver to allow mirroring the VF traffic to another VF.

The mirrored VF can be used to run traffic analyzer (e.g., tcpdump, wireshark, etc.) and observe the traffic of the VF being mirrored.

The following example shows the creation of port mirror on the following configuration:

Copy
Copied!


# ovs-vsctl show 09d8a574-9c39-465c-9f16-47d81c12f88a Bridge br-vxlan Port "enp4s0f0_1" Interface "enp4s0f0_1" Port "vxlan0" Interface "vxlan0" type: vxlan options: {key="100", remote_ip="192.168.1.14"} Port "enp4s0f0_0" Interface "enp4s0f0_0" Port "enp4s0f0_2" Interface "enp4s0f0_2" Port br-vxlan Interface br-vxlan type: internal ovs_version: "2.14.1"

  • To set enp4s0f0_0 as the mirror port and mirror all the traffic:

    Copy
    Copied!


    # ovs-vsctl -- --id=@p get port enp4s0f0_0 \ -- --id=@m create mirror name=m0 select-all=true output-port=@p \ -- set bridge br-vxlan mirrors=@m

  • To set enp4s0f0_0 as the mirror port, only mirror the traffic, and set enp4s0f0_1 as the destination port:

    Copy
    Copied!


    # ovs-vsctl -- --id=@p1 get port enp4s0f0_0 \ -- --id=@p2 get port enp4s0f0_1 \ -- --id=@m create mirror name=m0 select-dst-port=@p2 output-port=@p1 \ -- set bridge br-vxlan mirrors=@m

  • To set enp4s0f0_0 as the mirror port, only mirror the traffic, and set enp4s0f0_1 as the source port:

    Copy
    Copied!


    # ovs-vsctl -- --id=@p1 get port enp4s0f0_0 \ -- --id=@p2 get port enp4s0f0_1 \ -- --id=@m create mirror name=m0 select-src-port=@p2 output-port=@p1 \ -- set bridge br-vxlan mirrors=@m

  • To set enp4s0f0_0 as the mirror port and mirror all the traffic on enp4s0f0_1:

    Copy
    Copied!


    # ovs-vsctl -- --id=@p1 get port enp4s0f0_0 \ -- --id=@p2 get port enp4s0f0_1 \ -- --id=@m create mirror name=m0 select-dst-port=@p2 select-src-port=@p2 output-port=@p1 \ -- set bridge br-vxlan mirrors=@m

To clear the mirror port:

Copy
Copied!


ovs-vsctl clear bridge br-vxlan mirrors

Mirroring using TC:

  • Mirror to VF:

    Copy
    Copied!


    tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action mirred egress mirror dev $mirror_rep pipe \ action mirred egress redirect dev $NIC

  • Mirror to tunnel:

    Copy
    Copied!


    tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action tunnel_key set \ src_ip 1.1.1.1 \ dst_ip 1.1.1.2 \ dst_port 4789 \ id 768 \ pipe \ action mirred egress mirror dev vxlan100 pipe \ action mirred egress redirect dev $NIC

Forwarding to up 32 destinations (representors and tunnels) is supported using TC:

  • Example 1 – forwarding to 32 VFs:

    Copy
    Copied!


    tc filter add dev $NIC parent ffff: protocol arp pref 1 \                        flower \                        dst_mac e4:1d:2d:5d:25:35 \                        src_mac e4:1d:2d:5d:25:34 \                        action mirred egress mirror dev $rep0 pipe \                        action mirred egress mirror dev $rep1 pipe \ ...                        action mirred egress mirror dev $rep30 pipe \                         action mirred egress redirect dev $rep31

  • Example 2 – forwarding to 16 tunnels:

    Copy
    Copied!


    tc filter add dev $rep parent ffff: protocol arp pref 1 \                        flower \                        dst_mac e4:1d:2d:5d:25:35 \                        src_mac e4:1d:2d:5d:25:34 \                        action tunnel_key set src_ip $ip_src dst_ip $ip_dst \ dst_port 4789 id 0 nocsum \ pipe action mirred egress mirror dev vxlan0 pipe \                        action tunnel_key set src_ip $ip_src dst_ip $ip_dst \ dst_port 4789 id 1 nocsum \ pipe action mirred egress mirror dev vxlan0 pipe \ ...                        action tunnel_key set src_ip $ip_src dst_ip $ip_dst \ dst_port 4789 id 15 nocsum \ pipe action mirred egress redirect dev vxlan0

Note

TC supports up to 32 actions.

Note

If header rewrite is used, then all destinations should have the same header rewrite.

Note

If VLAN push/pop is used, then all destinations should have the same VLAN ID and actions.

sFlow allows for monitoring traffic sent between two VMs on the same host using an sFlow collector.

The following example assumes the environment is configured as described later.

Copy
Copied!


# ovs-vsctl show 09d8a574-9c39-465c-9f16-47d81c12f88a Bridge br-vxlan Port "enp4s0f0_1" Interface "enp4s0f0_1" Port "vxlan0" Interface "vxlan0" type: vxlan options: {key="100", remote_ip="192.168.1.14"} Port "enp4s0f0_0" Interface "enp4s0f0_0" Port "enp4s0f0_2" Interface "enp4s0f0_2" Port br-vxlan Interface br-vxlan type: internal ovs_version: "2.14.1"

To sample all traffic over the OVS bridge:

Copy
Copied!


# ovs-vsctl -- --id=@sflow create sflow agent=\"$SFLOW_AGENT\" \ target=\"$SFLOW_TARGET:$SFLOW_PORT\" \ header=$SFLOW_HEADER \ sampling=$SFLOW_SAMPLING polling=10 \ -- set bridge br-vxlan sflow=@sflow

Parameter

Description

SFLOW_AGENT

Indicates that the sFlow agent should send traffic from SFLOW_AGENT's IP address

SFLOW_TARGET

Remote IP address of the sFlow collector

SFLOW_HEADER

Size of packet header to sample (in bytes)

SFLOW_SAMPLING

Sample rate

To clear the sFlow configuration:

Copy
Copied!


# ovs-vsctl clear bridge br-vxlan sflow

To list the sFlow configuration:

Copy
Copied!


# ovs-vsctl list sflow

sFlow using TC:

Copy
Copied!


Sample to VF tc filter add dev $rep parent ffff: protocol arp pref 1 \ flower \ dst_mac e4:1d:2d:5d:25:35 \ src_mac e4:1d:2d:5d:25:34 \ action sample rate 10 group 5 trunc 96 \ action mirred egress redirect dev $NIC

Note

A userspace application is needed to process the sampled packet from the kernel. An example is available on Github.

OVS-kernel supports offload of VF rate limit using OVS configuration and TC.

The following example sets the rate limit to the VF related to representor eth0 to 10Mb/s:

  • OVS:

    Copy
    Copied!


    ovs-vsctl set interface eth0 ingress_policing_rate=10000

  • TC:

    Copy
    Copied!


    tc_filter add dev eth0 root prio 1 protocol ip matchall skip_sw action police rate 10mbit burst 20k

This kernel config should be enabled to support switchdev offload.

  • CONFIG_NET_ACT_CSUM – needed for action csum

  • CONFIG_NET_ACT_PEDIT – needed for header rewrite

  • CONFIG_NET_ACT_MIRRED – needed for basic forward

  • CONFIG_NET_ACT_CT – needed for CT (supported from kernel 5.6)

  • CONFIG_NET_ACT_VLAN – needed for action vlan push/pop

  • CONFIG_NET_ACT_GACT

  • CONFIG_NET_CLS_FLOWER

  • CONFIG_NET_CLS_ACT

  • CONFIG_NET_SWITCHDEV

  • CONFIG_NET_TC_SKB_EXT – needed for CT (supported from kernel 5.6)

  • CONFIG_NET_ACT_CT – needed for CT (supported from kernel 5.6)

  • CONFIG_NFT_FLOW_OFFLOAD

  • CONFIG_NET_ACT_TUNNEL_KEY

  • CONFIG_NF_FLOW_TABLE – needed for CT (supported from kernel 5.6)

  • CONFIG_SKB_EXTENSIONS – needed for CT (supported from kernel 5.6)

  • CONFIG_NET_CLS_MATCHALL

  • CONFIG_NET_ACT_POLICE

  • CONFIG_MLX5_ESWITCH

OVS-kernel supports offloading of VF metering (TX and RX) using sysfs. Metering of number of packets per second (PPS) and bytes per second (BPS) is supported.

The following example sets Rx meter on VF 0 with value 10Mb/s BPS:

Copy
Copied!


echo 10000000 > /sys/class/net/enp4s0f0/device/sriov/0/meters/rx/bps/rate echo 65536 > /sys/class/net/enp4s0f0/device/sriov/0/meters/rx/bps/burst

The following example sets Tx meter on VF 0 with value 1000 PPS:

Copy
Copied!


echo 1000 > /sys/class/net/enp4s0f0/device/sriov/0/meters/tx/pps/rate echo 100 > /sys/class/net/enp4s0f0/device/sriov/0/meters/tx/pps/burst

Note

Both rate and burst must not be zero and burst may need to be adjusted according to the requirements.

The following counters can be used to query the number dropped packet/bytes:

Copy
Copied!


cat /sys/class/net/enp8s0f0/device/sriov/0/meters/rx/pps/packets_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/rx/pps/bytes_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/rx/bps/packets_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/rx/bps/bytes_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/tx/pps/packets_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/tx/pps/bytes_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/tx/bps/packets_dropped cat /sys/class/net/enp8s0f0/device/sriov/0/meters/tx/bps/bytes_dropped

Info

Metering for uplink and VF representors traffic is supported.

Traffic going to a representor device can be a result of a miss in the embedded switch (eSwitch) FDB tables. This means that a packet which arrives from that representor into the eSwitch has not matched against the existing rules in the hardware FDB tables and must be forwarded to software to be handled there and is, therefore, forwarded to the originating representor device driver.

The meter allows to configure the max rate [packets per second] and max burst [packets] for traffic going to the representor driver. Any traffic exceeding values provided by the user are dropped in hardware. There are statistics that show the number of dropped packets.

The configuration of representor metering is done via miss_rl_cfg.

  • Full path of the miss_rl_cfg parameter: /sys/class/net//rep_config/miss_rl_cfg

  • Usage: echo "<rate> <burst>" > /sys/class/net//rep_config/miss_rl_cfg.

    • rate is the max rate of packets allowed for this representor (in packets/sec units)

    • burst is the max burst size allowed for this representor (in packets units)

    • Both values must be specified. Both of their default values is 0, signifying unlimited rate and burst.

To view the amount of packets and bytes dropped due to traffic exceeding the user-provided rate and burst, two read-only sysfs for statistics are available:

  • /sys/class/net//rep_config/miss_rl_dropped_bytes – counts how many FDB-miss bytes are dropped due to reaching the miss limits

  • /sys/class/net//rep_config/miss_rl_dropped_packets – counts how many FDB-miss packets are dropped due to reaching the miss limits

There are two types of meters, kpps (kilobits per second) and pktps (packets per second). OVS-Kernel supports offloading both of them.

The following example is to offload a kpps meter.

  1. Create OVS meter with a target rate:

    Copy
    Copied!


    ovs-ofctl -O OpenFlow13 add-meter ovs-sriov meter=1,kbps,band=type=drop,rate=204800

  2. Delete the default rule:

    Copy
    Copied!


    ovs-ofctl del-flows ovs-sriov

  3. Configure OpenFlow rules:

    Copy
    Copied!


    ovs-ofctl -O OpenFlow13 add-flow ovs-sriov 'ip,dl_dst=e4:11:22:33:44:50,actions= meter:1,output:enp4s0f0_0' ovs-ofctl -O OpenFlow13 add-flow ovs-sriov 'ip,dl_src=e4:11:22:33:44:50,actions= output:enp4s0f0' ovs-ofctl -O OpenFlow13 add-flow ovs-sriov 'arp,actions=normal'

    Here, the VF bandwidth on the receiving side is limited by the rate configured in step 1.

  4. Run iperf server and be ready to receive UDP traffic. On the outer node, run iperf client to send UDP traffic to this VF. After traffic starts, check the offloaded meter rule:

    Copy
    Copied!


    ovs-appctl dpctl/dump-flows --names type=offloaded   recirc_id(0),in_port(enp4s0f0),eth(dst=e4:11:22:33:44:50),eth_type(0x0800),ipv4(frag=no), packets:11626587, bytes:17625889188, used:0.470s, actions:meter(0),enp4s0f0_0

To verify metering, iperf client should set the target bandwidth with a number which is larger than the meter rate configured. Then it should apparent that packets are received with the limited rate on the server side and the extra packets are dropped by hardware.

The multiport eswitch mode allows adding rules on a VF representor with an action forwarding the packet to the physical port of the physical function. This can be used to implement failover or forward packets based on external information such as the cost of the route.

  1. To configure multiport eswitch mode , the nvconfig parameter LAG_RESOURCE_ALLOCATION must be set.

  2. After the driver loads, configure multiport eSwitch for each PF where enp8s0f0 and enp8s0f1 represent the netdevices for the PFs:

    Copy
    Copied!


    echo multiport_esw > /sys/class/net/enp8s0f0/compat/devlink/lag_port_select_mode echo multiport_esw > /sys/class/net/enp8s0f1/compat/devlink/lag_port_select_mode

    The mode becomes operational after entering switchdev mode on both PFs.

Rule example:

Copy
Copied!


tc filter add dev enp8s0f0_0 prot ip root flower dst_ip 7.7.7.7 action mirred egress redirect dev enp8s0f1

© Copyright 2024, NVIDIA. Last updated on May 7, 2024.
