Benchmark Planner Decisions with DynoSim | NVIDIA Dynamo Documentation

Run the Dynamo Planner inside an offline DynoSim prediction to compare aggregated and disaggregated topologies, service-level objective (SLO) targets, and worker startup delays without a live cluster.

The production Planner scales Kubernetes or Global Planner deployments; it does not autoscale a local deployment. aisimulate predict --stack dynamo runs locally but evaluates Planner decisions for the deployment described by its YAML input.

For the general workflow, see Run a DynoSim Simulation. For Planner field types and defaults, see the Planner Configuration reference. For the simulation adapter, see DynoSim Architecture.

Planner Defaults

To enable Planner with its production defaults, add:

planner: {policy: enabled}

The adapter resolves concrete settings through Dynamo’s PlannerConfig. With the default target: throughput, Planner enables load scaling and disables throughput-based scaling, just as it does in a live deployment. To use throughput-based scaling, set target: sla and supply both evaluation.sla.ttft_ms and evaluation.sla.itl_ms, as in the example below.

Omitted adjustment intervals use Planner defaults. An explicit null is also accepted for a scaling mode that is disabled after target normalization; an active mode requires a concrete interval. The resolved configuration always contains numeric intervals. The load interval still controls performance-model updates during throughput-only scaling, so a null load interval uses the production default rather than disabling those updates. The load interval must be shorter than the throughput interval only when both scaling modes are enabled.

Prerequisites

Build the Rust runtime bindings and install Dynamo from the repository root:

source .venv/bin/activate
maturin develop --release -m lib/bindings/python/Cargo.toml
uv pip install -e .

Use a release build because repeated simulation runs are CPU-bound.

Run the aggregated baseline

Download the FAST’25 tool-agent trace:

mkdir -p traces/mooncake-fast25
curl -sL \
  https://raw.githubusercontent.com/kvcache-ai/Mooncake/refs/heads/main/FAST25-release/traces/toolagent_trace.jsonl \
  -o traces/mooncake-fast25/toolagent_trace.jsonl

Save this configuration as planner-aggregated.yaml:

traffic:
  source:
    type: trace
    format: mooncake
    paths: [traces/mooncake-fast25/toolagent_trace.jsonl]
    block_size: 512
  load: {type: trace_timestamps, speedup: 1.0}
  stop: {max_virtual_time_seconds: 3600}
engine:
  mode: aggregated
  model: nvidia/Llama-3.1-8B-Instruct-FP8
  hardware: h200_sxm
  backend: vllm
  context_length: max
  workers:
    aggregated:
      parallelism: {replicas: 2, tensor: 1, pipeline: 1, attention_data: 1, moe_tensor: 1, moe_expert: 1}
      scheduler: {max_batched_tokens: 8192, max_sequences: 256}
      kv_cache: {block_size: 64, prefix_caching: true, capacity: {type: default, memory_fraction: 0.9}}
      timing: {type: default}
      startup_seconds: 0
router:
  policy: round_robin
  prefill_load_model: {type: none}
planner:
  policy: enabled
  target: sla
  enable_throughput_scaling: true
  enable_load_scaling: true
  throughput_adjustment_interval_seconds: 300
  load_adjustment_interval_seconds: 10
  load_scaling_down_sensitivity: 80
  load_min_observations: 5
  max_num_gpus: 2
  min_workers: 1
evaluation:
  sla: {ttft_ms: 1500, itl_ms: 50}

Run the prediction:

aisimulate predict \
  --stack dynamo \
  --config planner-aggregated.yaml \
  --output-dir planner-reports/aggregated

The command prints the summary and writes Planner decisions and metrics to planner-reports/aggregated/prediction.json.

Run the disaggregated comparison

Copy the baseline, then replace its engine mapping with separate prefill and decode roles:

engine:
  mode: disaggregated
  model: nvidia/Llama-3.1-8B-Instruct-FP8
  hardware: h200_sxm
  backend: vllm
  context_length: max
  kv_transfer: {bytes_per_token: auto, bandwidth_gb_per_second: 400, timing_mode: destination_missing}
  workers:
    prefill:
      parallelism: {replicas: 1, tensor: 1, pipeline: 1, attention_data: 1, moe_tensor: 1, moe_expert: 1}
      scheduler: {max_batched_tokens: 8192, max_sequences: 64}
      kv_cache: {block_size: 64, prefix_caching: true, capacity: {type: default, memory_fraction: 0.9}}
      timing: {type: default}
      startup_seconds: 0
    decode:
      parallelism: {replicas: 1, tensor: 1, pipeline: 1, attention_data: 1, moe_tensor: 1, moe_expert: 1}
      scheduler: {max_batched_tokens: 8192, max_sequences: 256}
      kv_cache: {block_size: 64, prefix_caching: true, capacity: {type: default, memory_fraction: 0.9}}
      timing: {type: default}
      startup_seconds: 0

Also replace the planner mapping with role-specific minimums:

planner:
  policy: enabled
  target: sla
  enable_throughput_scaling: true
  enable_load_scaling: true
  throughput_adjustment_interval_seconds: 300
  load_adjustment_interval_seconds: 10
  load_scaling_down_sensitivity: 80
  load_min_observations: 5
  max_num_gpus: 2
  min_workers: 1
  prefill_min_workers: 1
  decode_min_workers: 1

Save the result as planner-disaggregated.yaml, then run it:

aisimulate predict \
  --stack dynamo \
  --config planner-disaggregated.yaml \
  --output-dir planner-reports/disaggregated

Compare request metrics, scaling events, and cumulative GPU time between the two prediction.json files.

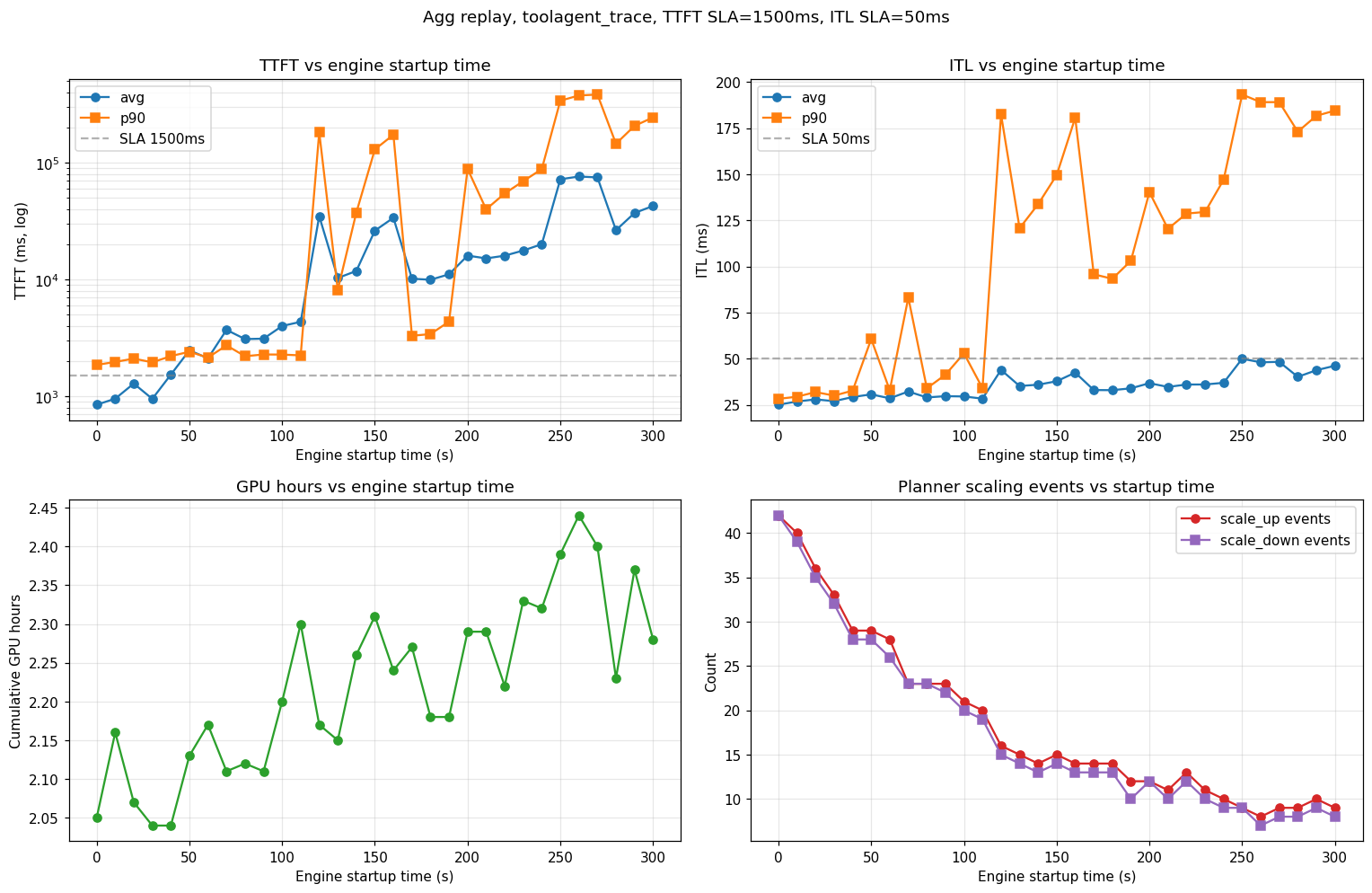

Sweep aggregated startup time

The startup_seconds field is concrete rather than a recommendation search dimension. Run the same prediction with a sequence of CLI overrides:

for startup_seconds in $(seq 0 10 300); do
  output_dir=$(printf "planner-reports/startup-%03d" "$startup_seconds")
  aisimulate predict \
    --stack dynamo \
    --config planner-aggregated.yaml \
    --set "engine.workers.aggregated.startup_seconds=$startup_seconds" \
    --output-dir "$output_dir" \
    --overwrite
done

Read each prediction.json to compare TTFT, ITL, scaling events, and cumulative GPU time as startup delay increases.
