Metrics

Overview

This guide provides a walkthrough for collecting and visualizing metrics from Dynamo components using the kube-prometheus-stack. The kube-prometheus-stack provides a powerful and flexible way to configure monitoring for Kubernetes applications through custom resources like PodMonitors, making it easy to automatically discover and scrape metrics from Dynamo components.

Prerequisites

Install kube-prometheus-stack

If you don’t have an existing Prometheus setup, you’ll likely want to install the kube-prometheus-stack. This is a collection of Kubernetes manifests that includes the Prometheus Operator, Prometheus, Grafana, and other monitoring components in a pre-configured setup. The stack introduces custom resources that make it easy to deploy and manage monitoring in Kubernetes:

• PodMonitor: Automatically discovers and scrapes metrics from pods based on label selectors
• ServiceMonitor: Similar to PodMonitor but works with Services
• PrometheusRule: Defines alerting and recording rules

For a basic installation:

$
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
$
helm repo update
$
# Values allow PodMonitors to be picked up that are outside of the kube-prometheus-stack helm release
$
helm install prometheus -n monitoring --create-namespace prometheus-community/kube-prometheus-stack \
>
  --set prometheus.prometheusSpec.podMonitorSelectorNilUsesHelmValues=false \
>
  --set prometheus.prometheusSpec.podMonitorNamespaceSelector.matchLabels=null \
>
  --set prometheus.prometheusSpec.probeNamespaceSelector.matchLabels=null

Install Dynamo Operator

Before setting up metrics collection, you’ll need to have the Dynamo operator installed in your cluster. Follow our Installation Guide for detailed instructions on deploying the Dynamo operator. Make sure to set the dynamo-operator.dynamo.metrics.prometheusEndpoint to the Prometheus endpoint you installed in the previous step.

$
helm install dynamo-platform ...
$
  --set dynamo-operator.dynamo.metrics.prometheusEndpoint=http://prometheus-kube-prometheus-prometheus.monitoring.svc.cluster.local:9090

Node Exporter for CPU/Memory Metrics

The Dynamo Grafana dashboard includes panels for node-level CPU utilization, system load, and container resource usage. These metrics are collected and exported to Prometheus via node-exporter, which exposes hardware and OS metrics from Linux systems.

To verify node-exporter is running:

$
kubectl get daemonset -A | grep node-exporter

If node-exporter is not running, you can install it via the kube-prometheus-stack or deploy it separately. For more information, see the node-exporter documentation.

DCGM Metrics Collection (Optional)

GPU utilization metrics are collected and exported to Prometheus via dcgm-exporter. The Dynamo Grafana dashboard includes a panel for GPU utilization related to your Dynamo deployment. For that panel to be populated, you need to ensure that the dcgm-exporter is running in your cluster. To check if the dcgm-exporter is running, please run the following command:

$
kubectl get daemonset -A | grep dcgm-exporter

If the output is empty, you need to install the dcgm-exporter. For more information, please consult the official dcgm-exporter documentation.

Deploy a DynamoGraphDeployment

Let’s start by deploying a simple vLLM aggregated deployment:

$
export NAMESPACE=dynamo-system # namespace where dynamo operator is installed
$
pushd examples/backends/vllm/deploy
$
kubectl apply -f agg.yaml -n $NAMESPACE
$
popd

This will create two components:

• A Frontend component exposing metrics on its HTTP port
• A Worker component exposing metrics on its system port

Both components expose a /metrics endpoint following the OpenMetrics format, but with different metrics appropriate to their roles. For details about:

• Deployment configuration: See the vLLM README
• Available metrics: See the metrics guide

Validate the Deployment

Let’s send some test requests to populate metrics:

$
curl localhost:8000/v1/chat/completions \
>
  -H "Content-Type: application/json" \
>
  -d '{
>
    "model": "Qwen/Qwen3-0.6B",
>
    "messages": [
>
    {
>
        "role": "user",
>
        "content": "In the heart of Eldoria, an ancient land of boundless magic and mysterious creatures, lies the long-forgotten city of Aeloria. Once a beacon of knowledge and power, Aeloria was buried beneath the shifting sands of time, lost to the world for centuries. You are an intrepid explorer, known for your unparalleled curiosity and courage, who has stumbled upon an ancient map hinting at ests that Aeloria holds a secret so profound that it has the potential to reshape the very fabric of reality. Your journey will take you through treacherous deserts, enchanted forests, and across perilous mountain ranges. Your Task: Character Background: Develop a detailed background for your character. Describe their motivations for seeking out Aeloria, their skills and weaknesses, and any personal connections to the ancient city or its legends. Are they driven by a quest for knowledge, a search for lost familt clue is hidden."
>
    }
>
    ],
>
    "stream": true,
>
    "max_tokens": 30
>
  }'

For more information about validating the deployment, see the vLLM README.

Set Up Metrics Collection

Enable NIXL Telemetry (Optional)

To enable NIXL telemetry metrics in addition to Dynamo metrics, set the following environment variables in your worker component:

spec: services: YourWorker: envs:

• name: NIXL_TELEMETRY_ENABLE value: “y”

NIXL telemetry is disabled by default. When enabled, NIXL metrics will be exposed on the port specified by NIXL_TELEMETRY_PROMETHEUS_PORT (19090 by default).

Create PodMonitors

The Prometheus Operator uses PodMonitor resources to automatically discover and scrape metrics from pods. To enable this discovery, the Dynamo operator automatically creates PodMonitor resource and adds these labels to all pods:

• nvidia.com/metrics-enabled: "true" - Enables metrics collection
• nvidia.com/dynamo-component-type: "frontend|worker" - Identifies the component type

1
apiVersion: nvidia.com/v1
2
kind: DynamoGraphDeployment
3
metadata:
4
  name: my-deployment
5
  annotations:
6
    nvidia.com/enable-metrics: "false"
7
spec:
8
  # …

Configure Grafana Dashboard

Apply the Dynamo dashboard configuration to populate Grafana with the Dynamo dashboard:

$
kubectl apply -n monitoring -f deploy/observability/k8s/grafana-dynamo-dashboard-configmap.yaml

The dashboard is embedded in the ConfigMap. Since it is labeled with grafana_dashboard: "1", the Grafana will discover and populate it to its list of available dashboards. The dashboard includes panels for:

• Frontend request rates
• Time to first token
• Inter-token latency
• Request duration
• Input/Output sequence lengths
• GPU utilization via DCGM
• Node CPU utilization and system load
• Container CPU usage per pod
• Memory usage per pod

Viewing the Metrics

In Prometheus

$
kubectl port-forward svc/prometheus-kube-prometheus-prometheus 9090:9090 -n monitoring

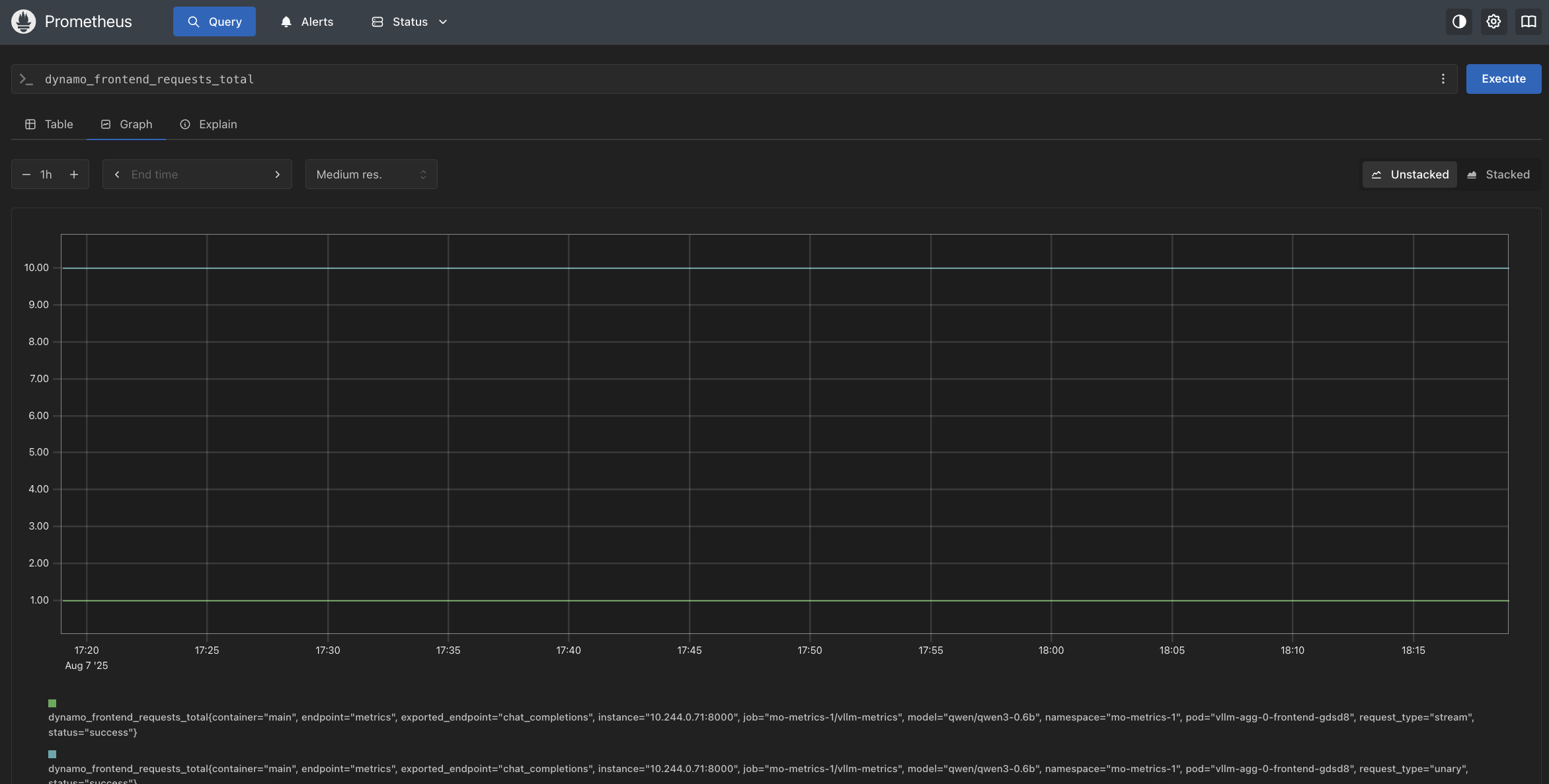

Visit http://localhost:9090 and try these example queries:

• dynamo_frontend_requests_total
• dynamo_frontend_time_to_first_token_seconds_bucket

In Grafana

$
# Get Grafana credentials
$
export GRAFANA_USER=$(kubectl get secret -n monitoring prometheus-grafana -o jsonpath="{.data.admin-user}" | base64 --decode)
$
export GRAFANA_PASSWORD=$(kubectl get secret -n monitoring prometheus-grafana -o jsonpath="{.data.admin-password}" | base64 --decode)
$
echo "Grafana user: $GRAFANA_USER"
$
echo "Grafana password: $GRAFANA_PASSWORD"
$
$
# Port forward Grafana service
$
kubectl port-forward svc/prometheus-grafana 3000:80 -n monitoring

Visit http://localhost:3000 and log in with the credentials captured above.

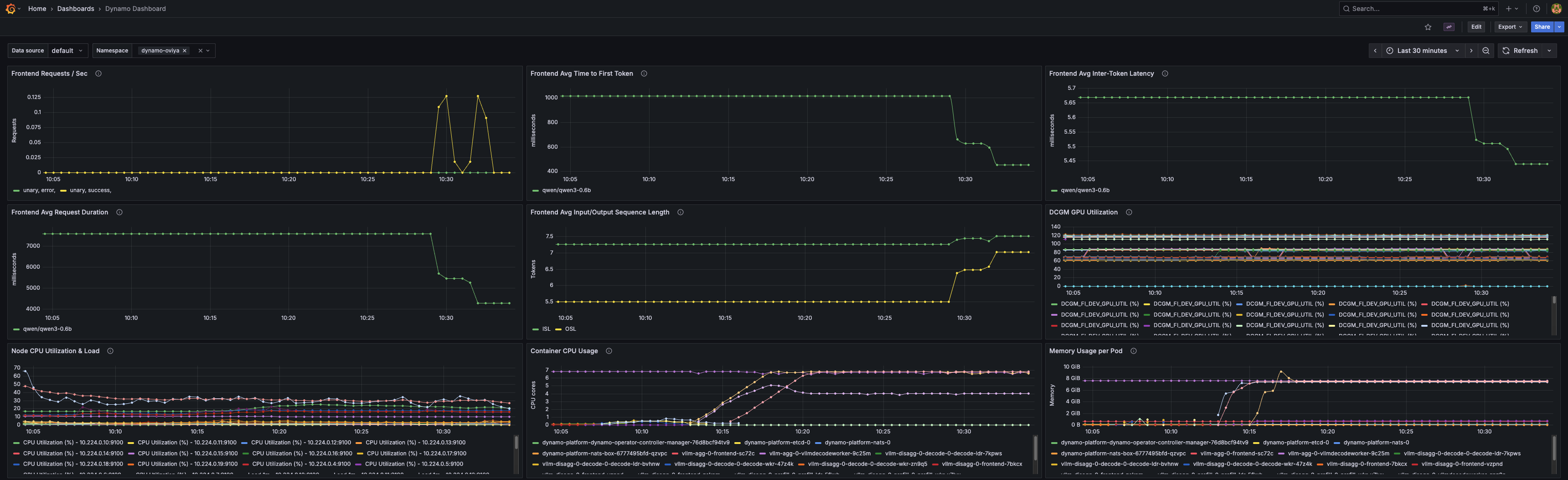

Once logged in, find the Dynamo dashboard under General.

Operator Metrics

Note: The metrics described above are for Dynamo applications (frontends, workers). The Dynamo Operator itself also exposes metrics for monitoring controller reconciliation, webhook validation, and resource inventory.

See the Operator Metrics Guide for details on operator-specific metrics and the operator dashboard.
