Train a Teacher Policy#

The zero and random agents showed that the environment can run, but neither agent knows how to place the vial. Now we’ll train a teacher policy using privileged information from the simulation. The teacher can observe the robot, vial, and rack directly, then learn actions that move the vial into the rack.

Stay on learning-path with the preceding lesson’s changes in place. Replace only the marked regions named below; imports and supporting code are supplied. You can compare your working copy with the completed reference at any time:

git diff main -- src/

Preparing Training Resets#

A reset puts the SO-101 and its surroundings into a starting state so the robot can try the task again. The supplied reset dataset contains physics-validated states; you do not need to regenerate it for these lessons.

Think about learning this task from scratch. If every training episode starts from home, the robot has to learn the early stages before it can practice the later ones. For example, it would have to grasp, lift, turn, and insert the vial before it could practice releasing it. Starting some episodes partway through the task lets it practice each stage.

To give the teacher practice throughout the task, the tutorial includes a reset dataset: saved simulation states from several points in the motion. These are the phases it can start from, defined in dataset.py:

# src/isaaclab_tutorial/tasks/place_vial/reset/dataset.py
PHASE_NAMES = (
    "approach",
    "pregrasp",
    "grasp",
    "lift",
    "reorient",
    "transport",
    "insert",
    "release",
)

The phase weights live in curriculum.py. Training samples all eight phases with equal probability (at a reset, the robot is equally likely to start from any phase). Playback always starts at home, the robot’s initial pose before grasping the vial, so the teacher must complete the entire task.

# src/isaaclab_tutorial/tasks/place_vial/reset/curriculum.py
CANONICAL_START = (1.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0, 0.0)
"""Evaluation and interactive play start every episode from the real robot's home pose."""

ALL_PHASES = (1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0, 1.0)
"""Training samples every phase uniformly, so each part of the task is practised from the first iteration."""

At each training reset, the environment is equally likely to start at any one of the eight phases. It also varies the vial’s friction and mass slightly at "startup", so the policy sees more than one physical setup.

For teacher training, EventsCfg uses the saved states and adds modest physical randomization:

Replace the contents

File: src/isaaclab_tutorial/tasks/place_vial/config/so101/env_cfg.py
Markers: # BEGIN lesson-05-dataset-resets and # END lesson-05-dataset-resets

Paste the code below between the markers. Keep both marker comments.

@configclass
class EventsCfg:
    """Task-horizon resets from the physics-validated dataset plus modest vial variation."""

    vial_material = EventTerm(
        func=mdp.randomize_rigid_body_material,
        mode="startup",
        params={
            "asset_cfg": SceneEntityCfg("vial"),
            "static_friction_range": preset(default=VIAL_FRICTION_RANGE, physx=PHYSX_VIAL_FRICTION_RANGE),
            "dynamic_friction_range": preset(default=VIAL_FRICTION_RANGE, physx=PHYSX_VIAL_FRICTION_RANGE),
            "restitution_range": (0.0, 0.02),
            "num_buckets": 32,
        },
    )
    vial_mass = EventTerm(
        func=mdp.randomize_rigid_body_mass,
        mode="startup",
        params={
            "asset_cfg": SceneEntityCfg("vial"),
            # Newton cannot reliably infer mass from the detailed mesh.
            "mass_distribution_params": (0.015, 0.025),
            "operation": "abs",
        },
    )
    reset_from_dataset = EventTerm(
        func=mdp.ResetFromDataset,
        mode="reset",
        params={"dataset_path": str(RESET_DATASET), "sequential": False, "phase_weights": ALL_PHASES},
    )

The event’s mode tells Isaac Lab when to run it:

"prestartup": Once, before the simulation starts.
"startup": Once, after the simulation starts.
"reset": When an environment resets.
"interval": At configured time intervals during simulation.

ResetFromDataset, in mdp/events.py, remembers information between calls, which makes it a stateful term. It loads the dataset once and keeps the information it needs to choose starting states. On each reset, the manager passes the IDs of the environments that need new states. The helper selects a dataset row (a saved starting state) for each one, restores robot joint positions and position targets, and zeros joint velocities and velocity targets. It places the vial at the saved pose, restores the rack pose, and zeros both objects’ velocities. It adds each environment’s origin to the object positions. This origin is the offset of each parallel scene, so each robot gets its vial and rack in the right location.

The reset helper also stores the selected row and its saved grasp/lift flags. The success term uses those flags to restore progress for episodes that begin partway through the task. Only the selected environments are changed, so one robot can reset while the others continue their attempts.

Giving the Teacher Feedback#

Next, let’s give the teacher feedback. The reward terms below encourage it to approach the vial, reach physical milestones, and complete placement. Losing the vial carries a penalty, while smaller penalties for rapid action changes and joint motion discourage unnecessary movement. You can find the reward functions in mdp/rewards.py. Success and termination logic lives in mdp/terminations.py; shared task geometry lives in mdp/task.py.

Replace the contents

File: src/isaaclab_tutorial/tasks/place_vial/config/so101/env_cfg.py
Markers: # BEGIN lesson-05-rewards and # END lesson-05-rewards

Paste the code below between the markers. Keep both marker comments.

@configclass
class RewardsCfg:
    """Sparse physical milestones, a success bonus, two dense shaping terms, and light regularization."""

    # Sim2real aims the pad centre slightly above the cap, favouring a shallower pinch clear of the mat.
    approach_progress = RewTerm(
        func=mdp.approach_progress, weight=1.0, params={"height_offset": preset(default=0.0, sim2real=0.008)}
    )
    held_goal = RewTerm(func=mdp.held_goal, weight=0.1)
    milestones = RewTerm(func=mdp.milestones, weight=10.0)
    success = RewTerm(func=mdp.success, weight=200.0)
    vial_lost = RewTerm(
        func=mdp.is_terminated_term, weight=-50.0, params={"term_keys": ["vial_out_of_bounds", "vial_dropped"]}
    )
    action_rate = RewTerm(func=mdp.action_rate_l2, weight=-0.002)
    joint_velocity = RewTerm(func=mdp.joint_vel_l2, weight=-0.0002)
    joint_limits = RewTerm(func=mdp.joint_pos_limits, weight=-1.0)
    jaw_support_force = preset(
        default=None,
        sim2real=RewTerm(func=mdp.jaw_support_force, weight=-8.0, params={"free_force": 0.25, "force_span": 2.0}),
    )

The supplied mdp.approach_progress reward measures the decrease in distance between the gripper pads and the vial cap. It pays nothing on the first step after a reset, when no previous distance is available, or after grasping is confirmed. Moving closer gives positive feedback; moving away gives negative feedback. The change is divided by scale=0.01 and clamped to [-1, 1].

The held-vial shaping term considers the nearest rack opening. Success requires the vial to be upright, released, nearly still, and seated in any opening for ten consecutive control steps. The joint-limit penalty discourages pushing against the robot’s soft limits.

How the Reward Helpers Produce Feedback#

Each helper produces one value per environment. Think of this as its score before scaling: the reward manager multiplies it by the configured weight and the control-step duration, then adds the results. A milestone score of 1 therefore contributes a scaled amount to the episode’s total reward. Here’s what the helpers in mdp/rewards.py do:

approach_progress stores the previous gripper-to-cap distance separately for each environment. Its reset(env_ids) clears only the distances for robots beginning a new episode. The first call establishes a new distance baseline: a starting distance for the next comparison. This avoids a reward caused by teleporting from the previous episode’s final pose to the next starting pose.
held_goal compares the vial with an upright insertion pose at each rack opening and uses the smallest geometric error. The comparison uses points along the vial’s axis, so both position and tilt matter without requiring a particular rotation around that axis. It converts the error into exp(-error / std) and returns it only after grasping and before insertion. Smaller errors produce values closer to 1.
milestones remembers which grasp, lift, and insertion milestones have already been reached. Newly reached milestones return raw values of 1, 2, and 4, respectively, summed if several occur together. The first call after a reset records existing milestones without paying for them. Starting from a saved lifted pose therefore does not earn a fresh lift bonus.
success converts the shared success flag to a numeric value: 1 for confirmed placement and 0 otherwise. It reads the result computed by the success termination term instead of implementing a second placement test.

The remaining terms supply penalties. is_terminated_term reads the named ending flags, so vial_lost responds to an out-of-bounds or dropped vial. action_rate_l2 sums squared changes between consecutive action vectors; joint_vel_l2 sums squared joint velocities; and joint_pos_limits measures violations of the soft position limits. Their negative weights make larger values reduce reward.

The teacher also needs privileged observations and task-ending conditions. Add the policy and critic groups, then connect them to the environment. These replace the simple agent’s 18-value input with 60 policy values and 63 critic values.

Replace the contents

File: src/isaaclab_tutorial/tasks/place_vial/config/so101/env_cfg.py
Markers: # BEGIN lesson-05-policy-observations and # END lesson-05-policy-observations

Paste the code below between the markers. Keep both marker comments.

@configclass
class PolicyStateGroupCfg(ObsGroup):
    """Fully observed state actor inputs."""

    joint_pos = ObsTerm(func=mdp.joint_pos, params={"asset_cfg": SceneEntityCfg("robot", joint_names=JOINTS)})
    joint_vel = ObsTerm(func=mdp.joint_vel, params={"asset_cfg": SceneEntityCfg("robot", joint_names=JOINTS)})
    joint_target = ObsTerm(func=mdp.joint_target, params={"asset_cfg": SceneEntityCfg("robot", joint_names=JOINTS)})
    previous_action = ObsTerm(func=mdp.last_action)
    end_effector = ObsTerm(
        func=mdp.body_state_b,
        params={
            "body_asset_cfg": SceneEntityCfg("robot", body_names="gripper"),
            "base_asset_cfg": SceneEntityCfg("robot"),
        },
    )
    vial = ObsTerm(
        func=mdp.body_state_b,
        params={"body_asset_cfg": SceneEntityCfg("vial"), "base_asset_cfg": SceneEntityCfg("robot")},
    )
    vial_in_rack = ObsTerm(func=mdp.vial_in_rack_frame)
    placement = ObsTerm(func=mdp.placement_features)
    # Latched milestones make the once-per-episode milestone rewards Markov.
    progress = ObsTerm(func=mdp.progress_flags)

    def __post_init__(self):
        self.enable_corruption = False
        self.concatenate_terms = True

Replace the contents

File: src/isaaclab_tutorial/tasks/place_vial/config/so101/env_cfg.py
Markers: # BEGIN lesson-05-critic-observations and # END lesson-05-critic-observations

Paste the code below between the markers. Keep both marker comments.

@configclass
class CriticStateGroupCfg(PolicyStateGroupCfg):
    """Privileged training critic inputs."""

    contact = ObsTerm(func=mdp.jaw_contact_flags)

Replace the contents

File: src/isaaclab_tutorial/tasks/place_vial/config/so101/env_cfg.py
Markers: # BEGIN lesson-05-observation-groups and # END lesson-05-observation-groups

Paste the code below between the markers. Keep both marker comments.

@configclass
class ObservationsCfg:
    policy: PolicyStateGroupCfg = PolicyStateGroupCfg()
    critic: CriticStateGroupCfg = CriticStateGroupCfg()

What the Observation Helpers Read#

The observation manager calls the terms in each group and joins their outputs side by side because concatenate_terms=True. This operation is called concatenation. The policy gets a tensor with shape (num_envs, 60) and the critic gets (num_envs, 63): one row per environment, with 60 or 63 values in each row. The tutorial-specific functions are in mdp/observations.py:

joint_target reads the joint-position targets currently sent to the drives, in radians. Together with joint_pos and joint_vel, it lets the policy distinguish requested motion from actual motion. last_action adds the preceding agent action, which uses the action interface’s scaling rather than radians directly.
body_state_b, supplied by Isaac Lab’s lift-task utilities, expresses the selected body’s state relative to the robot base. The two calls select the gripper and vial, giving the policy their poses and motion relative to the robot rather than their positions in the replicated world layout. Each contributes 13 values: three position coordinates, four quaternion components in XYZW order, three linear velocities, and three angular velocities, expressed in the base frame. A quaternion uses four numbers to describe orientation. The base frame supplies the origin and axis directions used to describe the body’s position, orientation, and motion.
vial_in_rack_frame returns three position coordinates in the rack frame. Its helper vial_in_rack, in mdp/task.py, subtracts the rack’s world position and applies its inverse rotation. Subtracting positions alone would not account for a rotated rack. The same helper computes the vial’s axis and lowest point for the reward and success tests.
placement_features stacks four values: horizontal distance to the nearest rack opening, the vial’s lowest rack-local height, uprightness, and linear speed. Uprightness measures alignment with world vertical and is clamped to [0, 1]; the other values use meters or meters per second.
progress_flags converts the latched grasp, lift, and insertion flags to three numeric inputs. Latched means a flag stays true after its milestone is reached until the episode resets. These inputs expose history that affects the one-time milestone rewards.

The critic inherits those inputs and adds jaw_contact_flags: fixed-jaw, moving-jaw, and both-jaws contact flags. Each flag reports whether simulated contact meets a threshold, with the filtering limitations described in the scene lesson. They are extra training information, not measurements from the student’s camera.

How Placement Ends an Episode#

Replace the contents

File: src/isaaclab_tutorial/tasks/place_vial/config/so101/env_cfg.py
Markers: # BEGIN lesson-05-terminations and # END lesson-05-terminations

Paste the code below between the markers. Keep both marker comments.

@configclass
class TerminationsCfg:
    success = DoneTerm(func=mdp.placement_success)
    vial_dropped = DoneTerm(func=mdp.vial_dropped)
    # The robot base frame is yawed +90 degrees, so these bounds are 0.5 m to its sides and 0.62 m ahead/behind.
    vial_out_of_bounds = DoneTerm(
        func=mdp.out_of_bound,
        params={
            "asset_cfg": SceneEntityCfg("vial"),
            "in_bound_range": {"x": (-0.55, 0.45), "y": (-0.62, 0.62), "z": (-0.01, 1.0)},
        },
    )
    unstable_robot = DoneTerm(func=mdp.abnormal_robot_state)
    time_out = DoneTerm(func=mdp.time_out, time_out=True)

placement_success, in mdp/terminations.py, does two jobs on each control step: it updates the shared PlacementProgress object and returns True or False to report success for each environment. Grasping requires both jaw flags and a raised vial for two consecutive steps. Lifting records when the lowest vial point clears the rack. Insertion records when the upright vial enters an opening. Success requires a seated, upright, released, nearly stationary vial for ten consecutive steps; a brief pass through the hole is insufficient.

PlacementProgress, defined in mdp/progress.py, keeps separate flags and counters for each environment. The counters track how many steps in a row a condition holds. If the holding or seated condition breaks, its counter restarts; already reached milestones stay recorded. The termination manager runs before reward computation, so rewards read the progress updated for the current step. On reset, the success term clears the selected environments’ counters and restores any grasp/lift milestones supplied by the dataset reset.

vial_dropped requires both a previously reached lift milestone and a vial below its configured height threshold relative to the robot. A vial initially resting on the desk is therefore not automatically a failure. The other terms check workspace bounds, abnormal robot state, and elapsed episode length. time_out=True marks the episode as truncated: it stopped because time ran out. This lets the learning wrapper distinguish a time limit from an ending caused by the task, such as success or dropping the vial.

The success term also saves copies of terminal milestones, peak rack force, time to success, and the successful hole index before automatic reset clears episode state. The evaluation callback later reads those copies, so its statistics describe the completed attempt rather than the new starting pose.

Finally, replace the lesson-environment region again, this time connecting the teacher’s resets, rewards, observations, and playback behavior:

Replace the contents

File: src/isaaclab_tutorial/tasks/place_vial/config/so101/env_cfg.py
Markers: # BEGIN lesson-environment and # END lesson-environment

Paste the code below between the markers. Keep both marker comments.

@configclass
class SO101VialEnvCfg(ManagerBasedRLEnvCfg):
    """State task trained from physics-validated reset poses."""

    scene: SO101SceneCfg = SO101SceneCfg(num_envs=4096, env_spacing=0.9, replicate_physics=True)
    actions: ActionsCfg = ActionsCfg()
    observations: ObservationsCfg = ObservationsCfg()
    events: EventsCfg = preset(default=EventsCfg(), sim2real=Sim2RealEventsCfg())
    rewards: RewardsCfg = RewardsCfg()
    terminations: TerminationsCfg = TerminationsCfg()

    def __post_init__(self):
        self.decimation = 4
        # The measured shoulder response is slower, so sim2real attempts get more time.
        self.episode_length_s = preset(default=20.0, sim2real=30.0)
        self.is_finite_horizon = False
        self.sim.dt = 1.0 / 120.0
        self.sim.render_interval = self.decimation
        self.sim.physics = PhysicsCfg()
        self.sim.default_visualizer_cfg = VisualizerCfg(eye=(0.64, 0.0, 0.36), lookat=(0.19, 0.02, 0.075))

    def play_mode(self):
        """Play and evaluate complete episodes from the home pose, in dataset order.

        The nominal task pins the vial to its workshop material and mass; sim2real keeps its physics randomization.
        """
        from isaaclab_tutorial.utils import evaluation

        requested_num_envs = self.scene.num_envs
        super().play_mode()
        if evaluation.EXACT_EVALUATION_ACTIVE:
            self.scene.num_envs = min(requested_num_envs, evaluation.EVALUATION_EPISODES)
        else:
            self.scene.num_envs = min(self.scene.num_envs, 16)
        self.events.reset_from_dataset.params["sequential"] = True
        self.events.reset_from_dataset.params["phase_weights"] = CANONICAL_START
        if not isinstance(self.events, Sim2RealEventsCfg):
            self.events.vial_material.params.update(
                static_friction_range=(0.7, 0.7), dynamic_friction_range=(0.7, 0.7), restitution_range=(0.0, 0.0)
            )
            self.events.vial_mass.params["mass_distribution_params"] = (0.020, 0.020)

The play_mode() method above changes configuration before playback creates the environment. It selects ordered home starts, normally caps the viewer at 16 environments, and fixes the nominal vial mass and material values. When the evaluation callback sets EXACT_EVALUATION_ACTIVE, the method instead retains the requested evaluation batch up to the episode target

Configuring the Teacher#

With resets and rewards in place, let’s configure how the teacher learns. Proximal Policy Optimization (PPO), the reinforcement learning algorithm used here, is configured in rsl_rl_ppo_cfg.py. The actor chooses actions from policy observations. The critic uses an additional observation group to estimate how well the episode is going.

Replace the contents

File: src/isaaclab_tutorial/tasks/place_vial/config/so101/agents/rsl_rl_ppo_cfg.py
Markers: # BEGIN lesson-05-ppo and # END lesson-05-ppo

Paste the code below between the markers. Keep both marker comments.

@configclass
class SO101StatePPORunnerCfg(RslRlOnPolicyRunnerCfg):
    """State teacher: fully observed actor, privileged critic."""

    seed = 42
    num_steps_per_env = 64
    max_iterations = 800
    save_interval = 50
    experiment_name = "so101_vial_state"
    run_name = ""
    obs_groups = {"actor": ["policy"], "critic": ["critic"]}
    clip_actions = 1.0
    actor = RslRlMLPModelCfg(
        hidden_dims=[256, 256, 128],
        activation="elu",
        obs_normalization=True,
        # Clamp the std: with clipped actions and an entropy bonus, PPO otherwise grows it without bound.
        distribution_cfg=RslRlMLPModelCfg.GaussianDistributionCfg(init_std=0.2, std_type="log", std_range=(0.05, 0.3)),
    )
    critic = RslRlMLPModelCfg(hidden_dims=[256, 256, 128], activation="elu", obs_normalization=True)
    algorithm = RslRlPpoAlgorithmCfg(
        value_loss_coef=1.0,
        use_clipped_value_loss=True,
        clip_param=0.2,
        entropy_coef=0.005,
        num_learning_epochs=5,
        num_mini_batches=8,
        learning_rate=3.0e-4,
        schedule="adaptive",
        gamma=0.995,
        lam=0.95,
        desired_kl=0.01,
        max_grad_norm=1.0,
    )

Both the actor and critic are multilayer perceptrons (MLPs) with three hidden layers (see RslRlMLPModelCfg). The actor outputs a Gaussian distribution with bounded standard deviation; the runner clips sampled actions to [-1, 1]. The critic outputs a single value estimate of the expected return. The actor and critic use different observation groups, so the critic can see additional information about the environment that the actor cannot.

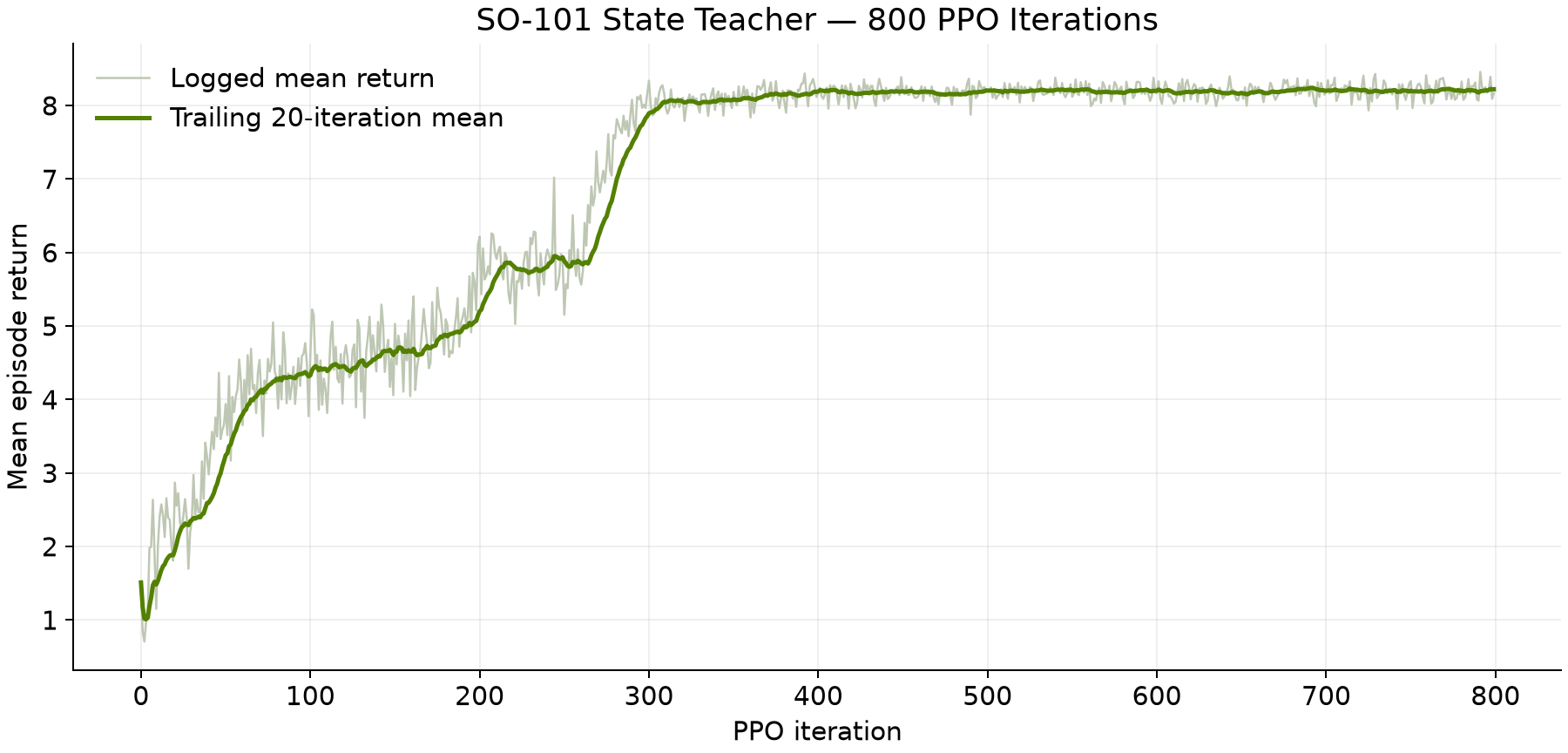

The configuration specifies 64 steps per environment before each update, saves a checkpoint every 50 iterations, and trains for up to 800 iterations. You can adjust these settings in the PPO configuration file or override them on the command line.

For example, to train for 400 iterations instead of the configured 800, override max_iterations on the command line:

uv run isaaclab train                   \
  --rl_library rsl_rl                   \
  --task IsaacTutorial-Place-Vial-SO101 \
  --max_iterations 400                  \
  presets=newton_mjwarp

Training the Teacher#

You’re ready to train. Open a terminal in the root of your cloned project and follow the steps below.

Tip

If your SSH connection might disconnect, start a persistent terminal session before training. See the remote workflow guidance. You can also train in a terminal that stays open.

Start training the teacher policy.
```
uv run isaaclab train                   \
  --rl_library rsl_rl                   \
  --task IsaacTutorial-Place-Vial-SO101 \
  --num_envs 4096                       \
  --run_name state-teacher presets=newton_mjwarp
```
You may see a message saying that CollisionPipeline automatically chose its rigid-contact capacity. Don’t worry: this isn’t an out-of-memory error. Newton is just telling you how much GPU memory it set aside for tracking contacts. With 4,096 environments, that’s about 594.4 MiB for the base contact buffers, plus extra memory for the rest of the simulation.

If you do run out of GPU memory, lower --num_envs and make a note of the change so you can compare runs fairly later. Avoid shrinking the contact capacity just to hide the message.
Track progress with TensorBoard. In a new terminal, run:
```
uv run tensorboard --logdir logs/rsl_rl
```
If you’re training on a remote server, open another terminal on your local machine and forward the TensorBoard port:
```
ssh -N -L PORT:localhost:PORT USER@REMOTE_HOST
```

RSL-RL logs Train/mean_reward as the mean episode return over its most recent 100 completed episodes. Each episode return sums the rewards received over that episode; each step combines the weighted reward terms. This window can span multiple training iterations. Use this metric to follow learning progress, then watch and evaluate the policy to understand its behavior. The curve alone cannot establish how well or how safely the robot performs the task.

The following figure plots the logged mean episode return against PPO learning iteration. The darker line averages the most recent 20 iterations to make the trend easier to see. That smoothing is separate from the logger’s 100-episode window.

SO-101 teacher mean episode return against PPO learning iteration, showing logged values and a trailing 20-iteration mean. — Measured teacher return: 800 iterations, seed 42, tutorial revision `9a4286b`.#

Download the `plotted values`.

View the Teacher Policy in Action#

TensorBoard helps you track the teacher’s progress. Now let’s watch the robot to see what that progress looks like in practice. Follow these steps to play back a checkpoint of the teacher policy.

Use --checkpoint latest for a quick look at the highest-numbered checkpoint in the newest compatible teacher run:

uv run --extra video                    \
  isaaclab play                         \
  --rl_library rsl_rl                   \
  --task IsaacTutorial-Place-Vial-SO101 \
  --num_envs 16                         \
  --seed 42                             \
  --checkpoint latest                   \
  --video --video_length 900            \
  --visualizer newton                   \
  presets=newton_mjwarp                 \
  env.sim.default_visualizer_cfg.eye='[2.5,-3.0,2.5]' \
  env.sim.default_visualizer_cfg.lookat='[0.19,0.02,0.075]'

This command uses Newton GL for the external view and MoviePy to save the video. The last two lines move the camera back so all sixteen environments fit in the frame. We’ll use the same camera view when we record the student, which makes it easy to compare the two policies side by side.

Think of latest as a convenient way to find a recent checkpoint, rather than a way to choose the best policy. It uses the run manifests written during training. For evaluation and student training, copy the checkpoint path printed by playback so you can keep using the same saved policy:

TEACHER_CHECKPOINT=logs/rsl_rl/so101_vial_state/.../MODEL.pt

Replace .../MODEL.pt with your run directory and checkpoint filename. For an older run without a compatible manifest, use find logs/rsl_rl -name '*.pt' and pass a concrete checkpoint path to --checkpoint instead.

Here’s a reference recording of the teacher checkpoint model_799.pt.

Teacher model_799.pt in sixteen environments, recorded from home with seed 42 and nominal physics using tutorial revision d814f75.#

Watch whether the arm grasps, lifts, turns, and releases the vial from the home pose. Note where unsuccessful attempts stop. We’ll use the teacher’s behavior as a reference when we train a camera-based student.

Evaluate the Teacher Policy#

Let’s measure how often the teacher completes the whole task from home: the robot starts in its initial pose with the vial on the desk, rather than partway through a grasp or insertion. Use the checkpoint you selected for playback above and run this command from the tutorial project’s root.

Run the evaluation.

uv run isaaclab play                                                             \
  --rl_library rsl_rl                                                            \
  --task IsaacTutorial-Place-Vial-SO101                                          \
  --num_envs 1024 --seed 42                                                      \
  --checkpoint "$TEACHER_CHECKPOINT"                                             \
  --device cuda:0 --visualizer none                                              \
  --external_callback isaaclab_tutorial.utils.evaluation.install_episode_counter \
  presets=newton_mjwarp

--external_callback installs the tutorial’s completed-episode counter, install_episode_counter, from the project’s isaaclab_tutorial.utils.evaluation module. Normally, playback keeps going until you stop it. This function turns playback into a measured evaluation instead.

It counts the first completed episode in each environment and collects the results. Once all those episodes finish, it prints a summary beginning with SO101_EVAL_RESULT= and stops playback. Some environments may finish sooner and start another episode while they wait for the others; those extra attempts don’t go into the results.

The evaluation stops after exactly 1,024 completed episodes: 128 home starts repeated eight times. Keep --num_envs 1024; this evaluation needs the whole batch at once. Use the same preset for teacher and student evaluations, and record the exact checkpoint paths.

Look for the terminal line beginning with SO101_EVAL_RESULT=. Save it alongside your checkpoint path and evaluation settings so you can revisit the results later. The JSON summary includes episode and success counts, milestone and failure rates, contact forces, and time to success. Multiply the reported rates by 100 to read them as percentages.

Analyzing the Teacher’s Results#

This example uses tutorial revision 9a4286b, seed 42, the nominal newton_mjwarp preset, and 800 PPO iterations with 4,096 environments. Training took about 20 minutes on an RTX PRO 6000 Blackwell Max-Q. Keep your exact checkpoint and evaluation log when comparing results.

In our example evaluation, the teacher’s model_799.pt succeeded in 1,020 of 1,024 episodes, a 99.61% success rate. That’s more than 99 successful placements in every 100 attempts from home. Here’s what else the run tells us:

Grasp: 100.00%; lift: 100.00%; insertion: 99.61%.
Timeout: 0.39% (4 episodes); vial lost: 0.00% (0 episodes).
Mean time to success: 7.86 seconds, counting successful episodes only.
Mean peak rack-contact force: 3.38 N; maximum: 17.61 N.
Unsafe rack contact: 0.00%, using a 20 N threshold.

All successful placements used rack hole 0. Any of the four holes qualifies, but this run does not demonstrate equal use of all four.

When you look at contact forces, check the maximum and the number of episodes above the 20 N threshold, not just the mean. An average can hide one episode where the robot slammed into the rack. And remember: this is simulation. A high success rate and gentle average contacts are encouraging, but they don’t prove the policy would be safe on a real robot.

In this example, the success, timeout, and vial-loss counts happen to sum to 1,024. The evaluation helper counts these flags independently: an episode can have more than one ending flag.

Most attempts reached the grasp, lift, and insertion milestones. For the remaining attempts, watch whether the robot loses the vial, becomes unstable, or keeps trying until timeout. The rates describe the reported flags; the video helps us understand the behavior behind them.

TensorBoard still helps us understand how the teacher learned. Start with the mean reward curve, then check the task metrics. Keep in mind that the training Metrics/success_rate describes environments confirming success at a simulation step, averaged by the logger. The completed-episode success rate above comes from the evaluation log, with every attempt starting from home. These two numbers measure different things (one divides by simulation steps, the other by completed episodes), so they won’t match. When you want to compare how often policies succeed, use the SO101_EVAL_RESULT numbers.

In TensorBoard’s Scalars view, select your teacher run under logs/rsl_rl/so101_vial_state/ and look for Metrics/grasp_rate, Metrics/lift_rate, and Metrics/insertion_rate. Use those curves to follow training, then use the saved SO101_EVAL_RESULT summary for completed-episode results from home.

The teacher’s next role is to provide action targets for a student. Because it uses privileged simulation state that a physical robot cannot read, we still need a policy that works from sensor observations. Next, train the distilled student from wrist-camera and joint observations, following the teacher–student distinction. You’ll evaluate the student separately to see how well it performs. The teacher’s success gives us a useful reference, but the student’s performance and eventual transfer to hardware each need their own checks.

Review#

Check Your Understanding#

How is the completed-episode evaluation success rate calculated?

Apply What You Learned#

How would you explain a difference between your teacher’s training success metric and completed-episode evaluation result? Explain what each metric counts, its denominator and starting conditions, and how playback supports your interpretation.

Key Takeaways#

PPO trains the teacher using simulation state and task feedback.
Completed-episode evaluation measures success from the defined home starting conditions.
The teacher supplies training targets for the student; it is not the final camera policy.
