Distributed Optimizer

The distributed optimizer saves memory by sharding optimizer state across data parallel ranks instead of replicating it on every rank, as described in the ZeRO paper.

Theoretical memory savings depend on the data types of the model parameters (param_dtype) and of the main gradients accumulated across data-parallel replicas (grad_dtype). Optimizer steps always use fp32 main parameters. In the current implementation, the theoretical number of bytes per parameter is as follows (where d is the data parallel size):

	Non-distributed optim	Distributed optim
fp16 parameters, fp16 gradients	20	4 + 16/d
bf16 parameters, fp32 gradients	18	6 + 12/d
fp32 parameters, fp32 gradients	16	8 + 8/d

This distributed optimizer uses contiguous buffers for parameters and main gradients. Model gradients copy into the main gradients as soon as they finish computing.

The following figures show the sharding scheme and the main steps of the parameter update.

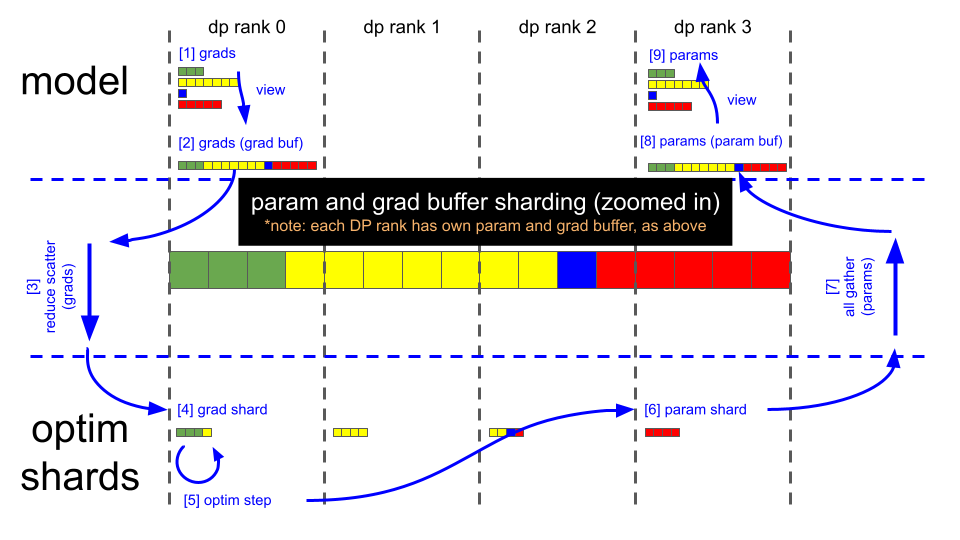

Data Flow

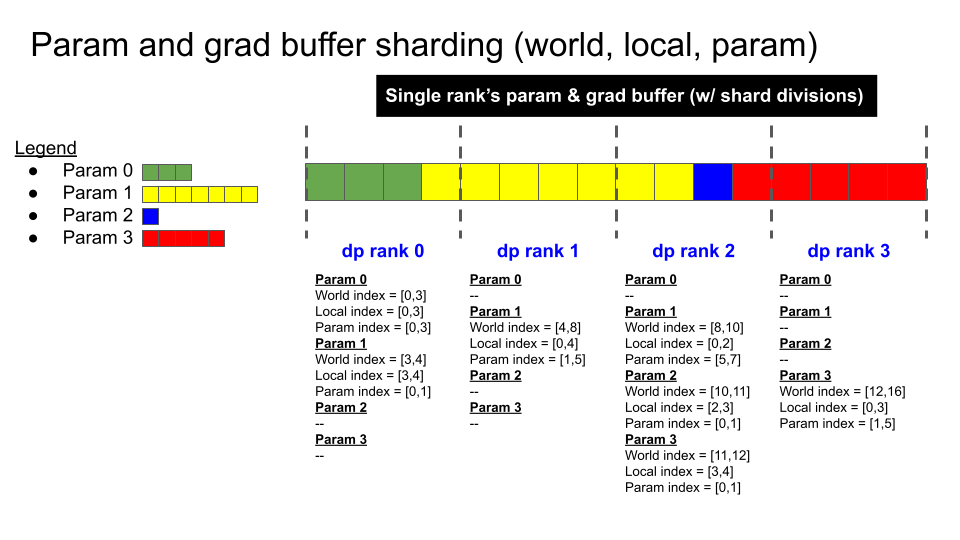

Sharding Scheme

Key Steps

Note: The following steps match the illustrations above. They assume bf16 model weights, bf16 model gradients from the backward pass, and fp32 main gradients for optimizer steps. Optimizer steps use fp32 main weights.

• Backward pass finishes (gradient buffer holds 16 fp32 gradient elements).

• Call reduce-scatter on each DP rank.

• Each DP rank now has four elements within the gradient buffer that are fully reduced (remaining 12 elements are garbage).

  • DP rank 0 has gradient values for elements [0:4].

  • DP rank 1 has gradient values for elements [4:8].

  • DP rank 2 has gradient values for elements [8:12].

  • DP rank 3 has gradient values for elements [12:16].

• Optimizer.step().

• Each DP rank copies its four fp32 main parameter elements into the corresponding bf16 parameter buffer (each element is cast from fp32 to bf16).

• Call all-gather on each DP rank.

• The parameter buffer now contains all 16 updated bf16 model parameter elements. Parameters in PyTorch modules already point to the correct views in this buffer, so forward passes can start after the all-gather completes.

• At this point, you can zero the gradient buffer for the next iteration.
