Validate Ethernet Cluster Networking

Once all of the switches are up, you need to verify the hardware health and proper configuration.

Platform Health

• System

• Internal Components

• Software Processes

• Transceiver/Cable

Cabling Quality (L1)

• Tx/Rx Signal Level

• Peer Connectivity

• Tx/Rx Signal Integrity

Fabric Underlay Routing

Fabric Overlay Routing (EVPN)

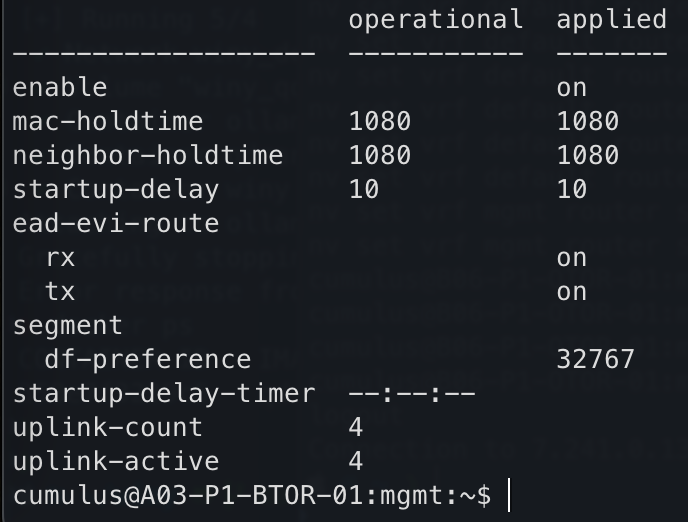

1. To show the Ethernet segments across all VNIs:

nv show evpn multihoming

Show Ethernet Segment Information

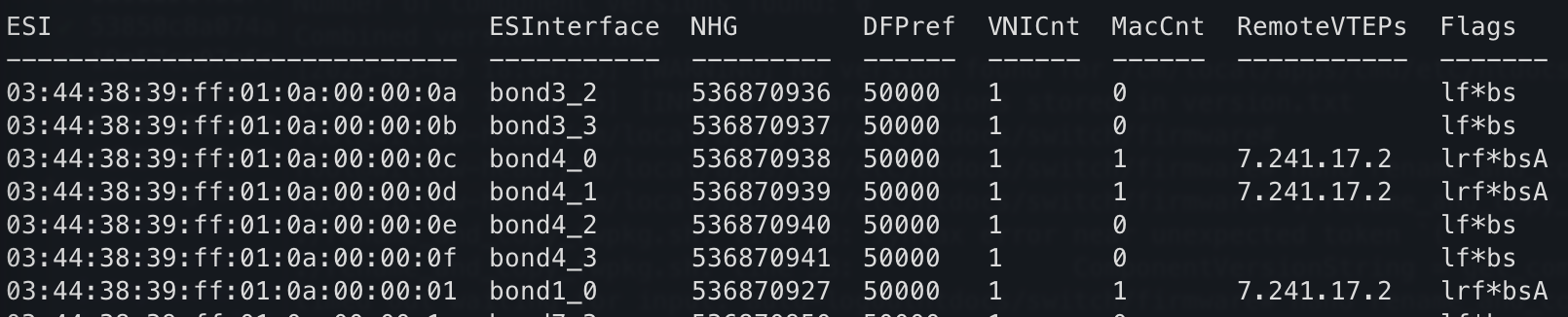

2. To show the Ethernet segments across all VNIs:

nv show evpn multihoming esi

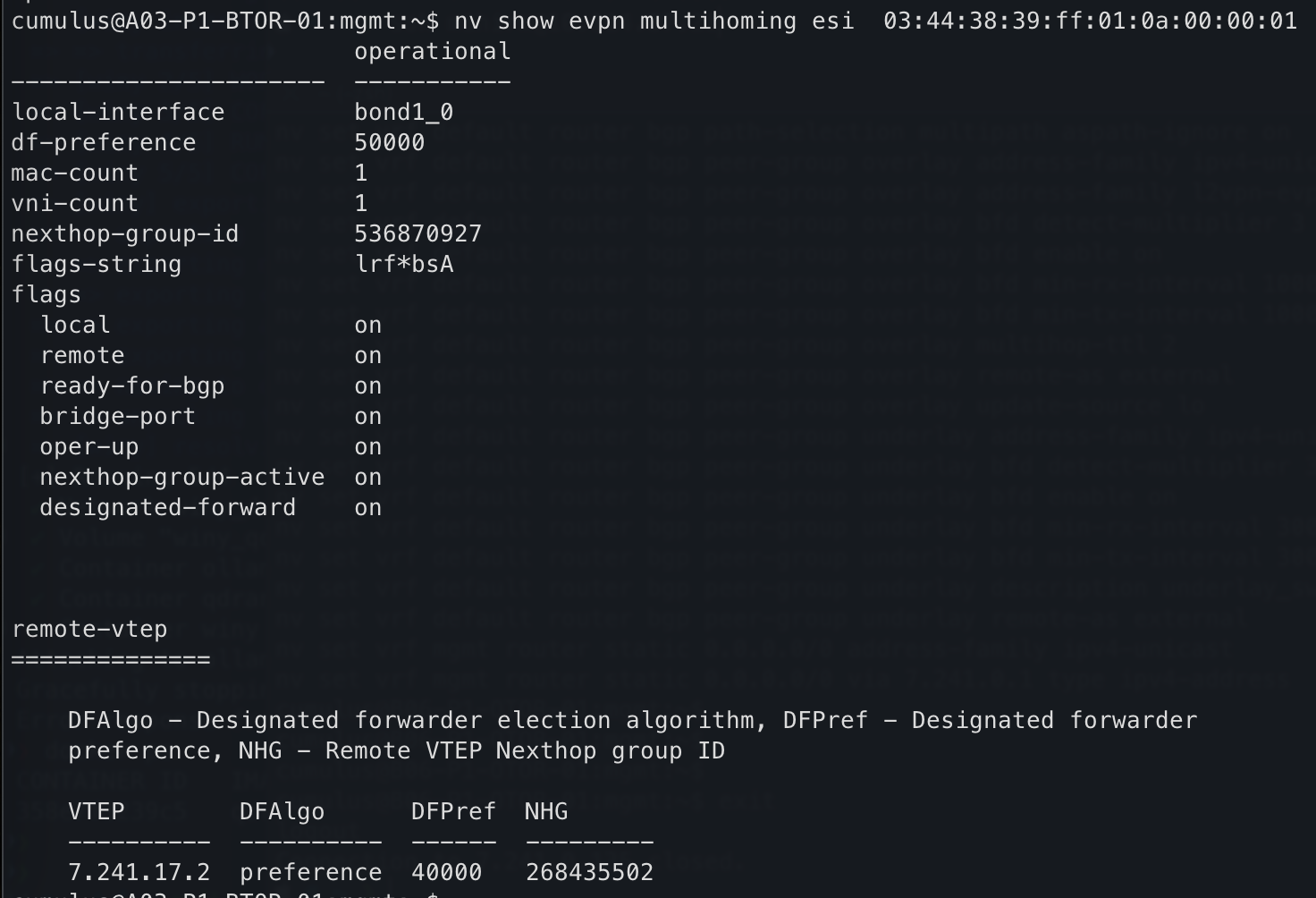

3. To show information about a specific ESI:

nv show evpn multihoming esi <ESI ID>

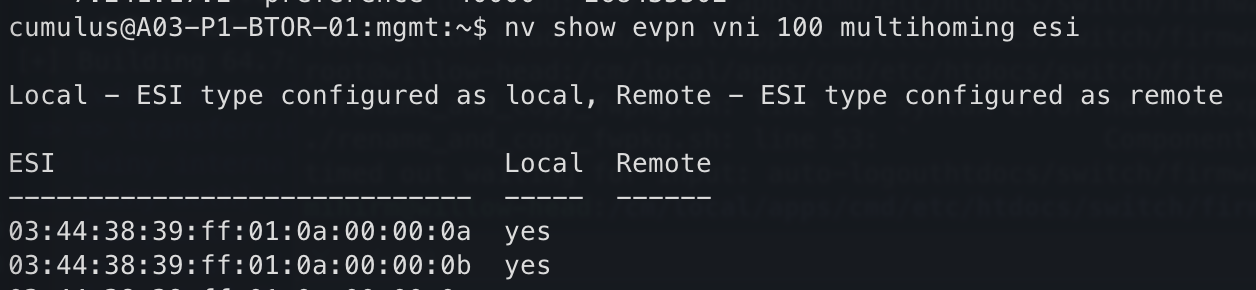

4. To show the Ethernet segments for a specific VNI:

nv show evpn vni <vlan> multihoming esi

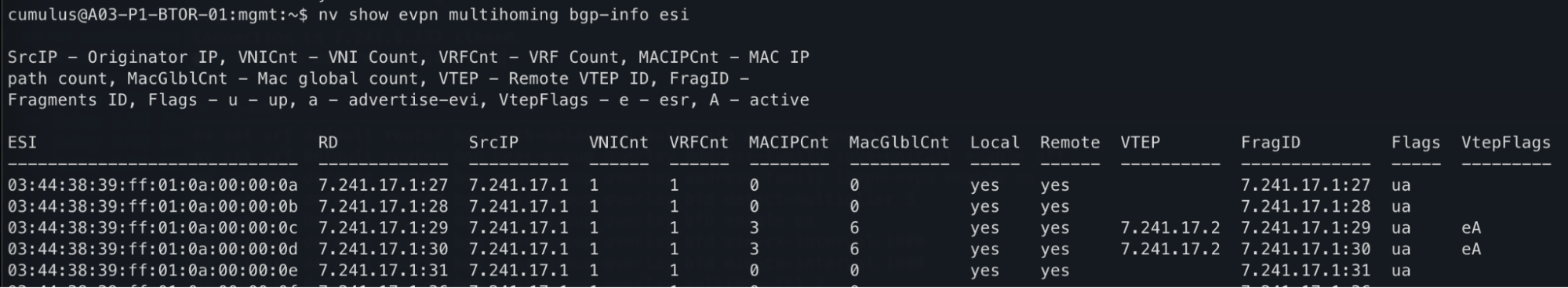

5. To show the Ethernet segments across all VNIs learned through type-1 and type-4 routes, run the NVUE:

nv show evpn multihoming bgp-info esi

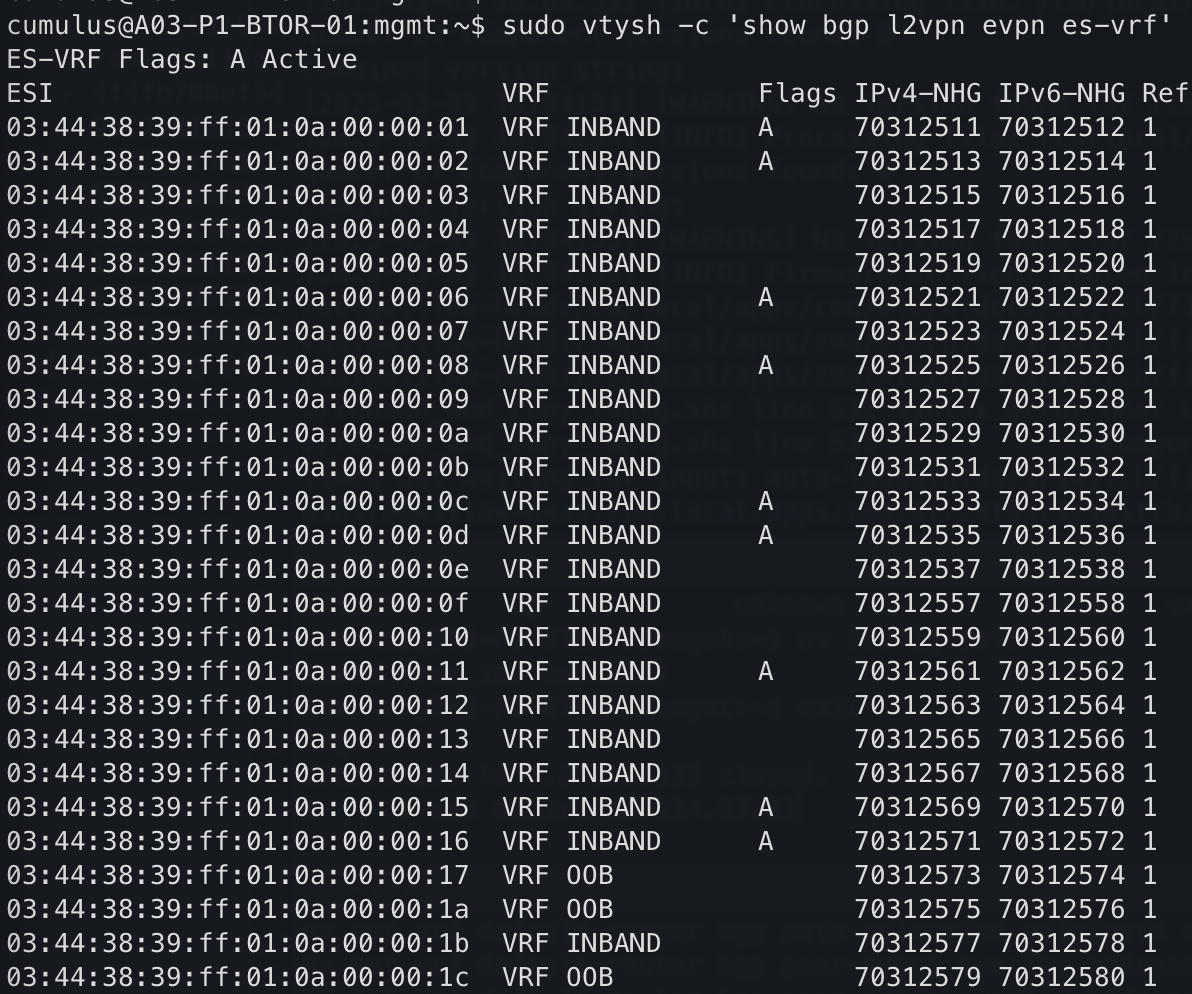

6. To verify ESI to VRF information:

sudo vtysh -c 'show bgp l2vpn evpn es-vrf'

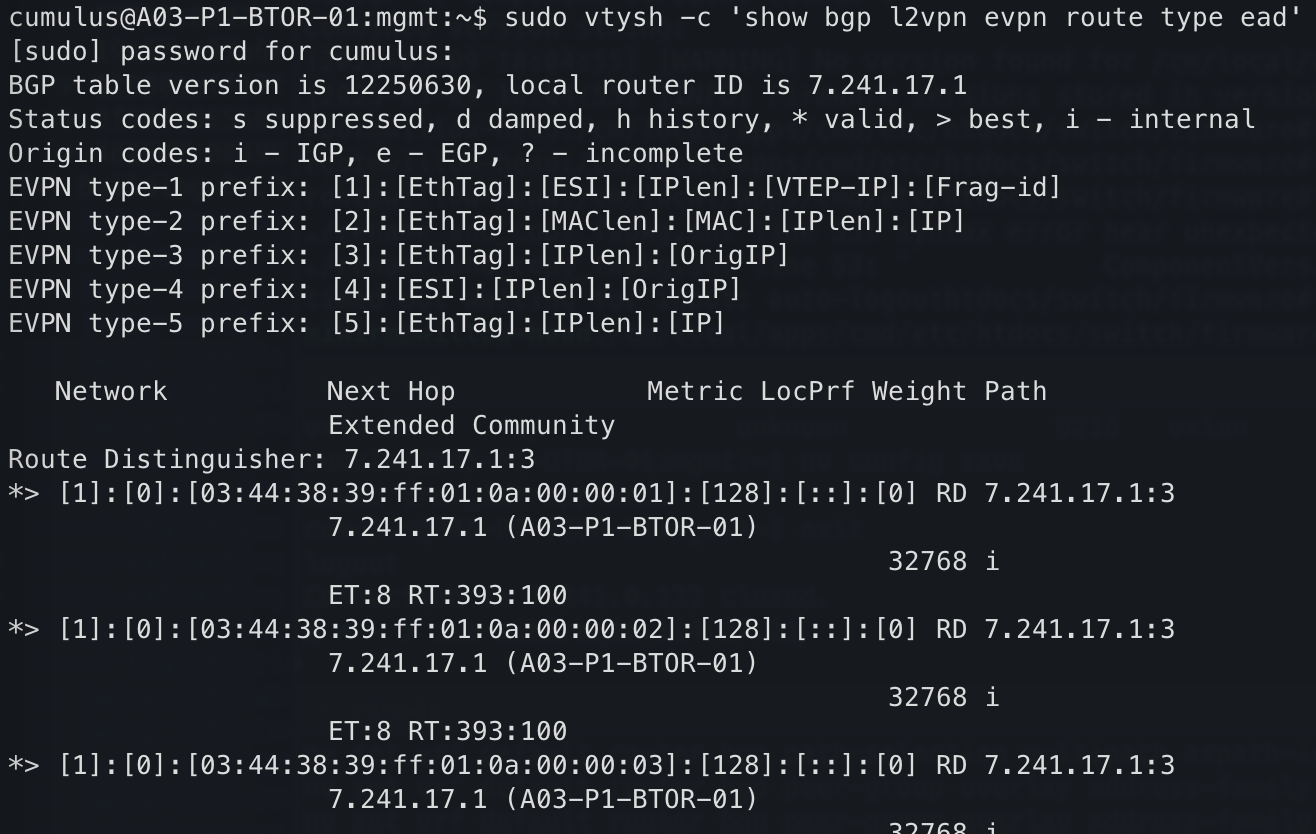

7. To verify EVPN type-1 and type-4 routes learned:

sudo vtysh -c 'show bgp l2vpn evpn route type ead'

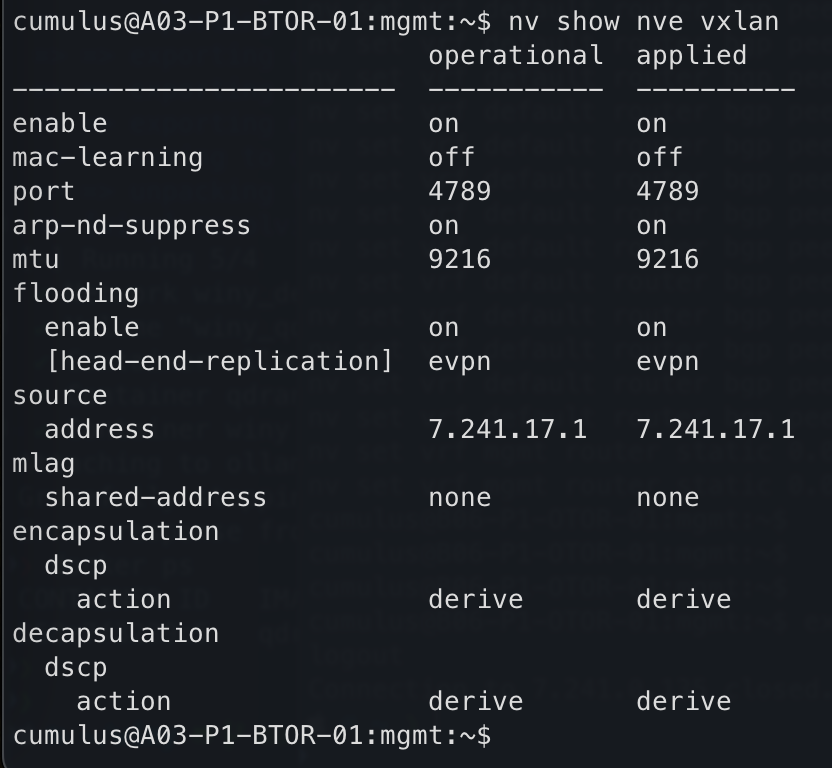

8. To verify NVE interface (VTEP) state and configuration:

nv show nve vxlan

Customer Network Reachability

1. Customer Edge to Cluster Border

   1. BGP IPv4 AF Neighbors

   2. BGP Prefix Exchange

   3. Next-Hop Reachability

   4. Packet Loss

2. Customer (external) to Cluster (internal)

   1. End-to-End Reachability (if available)

      1. Dependent on end-host connected to fabric (ex: DGX)

   2. Packet Loss

Negative Testing

• Customer Edge Failover

  • Disable Switch(es) / Link(s) / BGP Neighbor(s)

  • End-to-End Reachability

  • Packet Loss / Recovery Time

• Cluster Fabric Failover

  • Disable Switch(es) / Link(s) / BGP Neighbor(s)

  • End-to-End Reachability

  • Packet Loss / Recovery Time
