Troubleshooting#

This section describes how to troubleshoot the MNNVL rack.

Troubleshooting the Compute Tray#

This section provides information about troubleshooting the compute tray.

Driver Not Loading#

If you run nvidia-smi and it shows No devices were found, the GPU driver isn’t loading correctly.

Collect the dmesg output and check for XID errors in the log.

Troubleshooting the Switch Tray#

This section provides information about troubleshooting the switch tray.

Note

The NVOS User Manual contains additional troubleshooting information.

Switch Health#

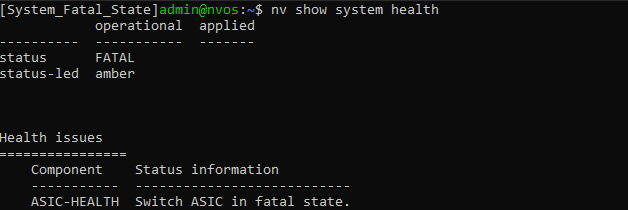

If the nv show system health status is FATAL, reboot the switch tray.

nv action reboot system

If the error persists, contact NVIDIA.

BMC Firmware Issues#

If the BMC displays an error in nv show platform firmware, AC power-cycle the switch tray using the following command.

nv action power-cycle system

Note

The reboot command only reboots the COMe and not the switch BMC, whereas the power-cycle command performs a full AC power-cycle without gracefully shutting down the system.

Troubleshooting the NVLink Fabric#

This section provides information about troubleshooting the NVLink fabric.

NMX-Controller on Multiple Trays#

The NVLink fabric requires the GPUs on each compute node to communicate with all the NVLink switches. Only one NVLink switch runs the NMX-C services.

Running NMX-C on more than one NVLink switch isn’t supported.

Viewing Subnet Manager Logs#

You can find the Subnet Manager (SM) logs in the switch tray that runs NMX-C:

/var/log/nmx/nmx-c/nvlsm.log

Viewing Global Fabric Manager Logs#

You can find the Global Fabric Manager (GFM) logs in the switch tray that runs NMX-C:

/var/log/nmx/nmx-c/fabricmanager.log

Viewing IMEX Logs#

IMEX provides GPU-to-GPU memory management, and the mpi_memcpy application requires IMEX.

To view the IMEX logs on each compute node in the /var/log/nvidia-imex.log file, run the following command.

cat /var/log/nvidia-imex.log
[Aug 05 2024 21:27:19] [INFO] [tid 2248] Node configuration validation from NODE 8 successfully matched this node's configuration.
[Aug 05 2024 21:27:19] [INFO] [tid 2248] Node configuration validation from NODE 1 successfully matched this node's configuration.
[Aug 05 2024 21:27:20] [INFO] [tid 2248] Node configuration validation from NODE 15 successfully matched this node's configuration.
[Aug 05 2024 21:27:24] [INFO] [tid 2248] Node configuration validation from NODE 13 successfully matched this node's configuration.
[Aug 05 2024 21:27:24] [WARNING] [tid 2242] Waiting for validation response for 45 seconds from the following nodes:
[Aug 05 2024 21:27:24] [WARNING] [tid 2242]     0 - 10.28.238.87
[Aug 05 2024 21:27:24] [WARNING] [tid 2242]     7 - 10.28.238.161
[Aug 05 2024 21:27:24] [WARNING] [tid 2242]     10 - 10.28.238.192
[Aug 05 2024 21:27:24] [WARNING] [tid 2242]     12 - 10.28.238.211
[Aug 05 2024 21:27:24] [WARNING] [tid 2242]     14 - 10.28.238.239
[Aug 05 2024 21:27:25] [INFO] [tid 2248] Node configuration validation from NODE 12 successfully matched this node's configuration.
[Aug 05 2024 21:27:29] [WARNING] [tid 2242] Waiting for validation response for 50 seconds from the following nodes:
[Aug 05 2024 21:27:29] [WARNING] [tid 2242]     0 - 10.28.238.87
[Aug 05 2024 21:27:29] [WARNING] [tid 2242]     7 - 10.28.238.161
[Aug 05 2024 21:27:29] [WARNING] [tid 2242]     10 - 10.28.238.192
[Aug 05 2024 21:27:29] [WARNING] [tid 2242]     14 - 10.28.238.239
[Aug 05 2024 21:27:29] [INFO] [tid 2248] Node configuration validation from NODE 14 successfully matched this node's configuration.
[Aug 05 2024 21:27:30] [INFO] [tid 2248] Node configuration validation from NODE 7 successfully matched this node's configuration.
[Aug 05 2024 21:27:34] [WARNING] [tid 2242] Waiting for validation response for 55 seconds from the following nodes:
[Aug 05 2024 21:27:34] [WARNING] [tid 2242]     0 - 10.28.238.87
[Aug 05 2024 21:27:34] [WARNING] [tid 2242]     10 - 10.28.238.192
[Aug 05 2024 21:27:34] [INFO] [tid 2248] Node configuration validation from NODE 0 successfully matched this node's configuration.
[Aug 05 2024 21:27:37] [INFO] [tid 2248] Node configuration validation from NODE 10 successfully matched this node's configuration.
[Aug 05 2024 21:27:37] [INFO] [tid 2242] Node map validation complete.
[Aug 05 2024 21:27:37] [INFO] [tid 2242] GPU event successfully subscribed

The message GPU event successfully subscribed indicates that IMEX has successfully registered with all other cluster GPUs.

IMEX TRANSIENT_FAILURE State#

IMEX operates as a distributed service that runs on each compute node. If a single compute tray isn’t running the IMEX, the IMEX service on other compute trays never reaches the READY state.

Look at the IMEX log, /var/log/nvidia-imex.log for messages like State = TRANSIENT_FAILURE (NOT OK) or Not all clients connected. Waiting and retrying..

Restart the nvidia-imex service on all compute nodes to try and rebuild the IMEX cluster.
