MCX4111A-XCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||
|---|---|---|---|
| Connector: Single SFP28 (copper and optical) | |||
| Protocol Support | Ethernet: 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X | ||
| Data Rate: 1/10 Gb/s Ethernet | |||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||
| Power and Airflow | Voltage: 12V, 3.3V | ||
| Power | Cable Type | ||
| Typical Power(a) | Passive Cables | 8.7W | |
| Maximum Power | Passive Cables | 10.4W | |
| 1W Active Cables | 11.6W | ||
| Maximum power available through SFP28 port: 1.5W | |||
| Airflow | See Airflow Specifications. | ||
| Environmental | Temperature | Operational | 0°C to 55°C |
| Non-operational | -40°C to 70°C(b) | ||
| Humidity | Operational | 10% to 85% relative humidity | |
| Non-operational | 10% to 90% relative humidity | ||
| Altitude (Operational) | 3050m | ||
| Regulatory | Safety | CB / cTUVus / CE | |
| EMC | CE / FCC / VCCI / ICES / RCM | ||
| RoHS | RoHS compliant | ||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX4121A-XCAT/MCX4121A-XCHT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||
|---|---|---|---|
| Connector: Single SFP28 (copper and optical) | |||
| Protocol Support | Ethernet: 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X | ||
| Data Rate: 1/10 Gb/s Ethernet | |||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||
| Power | Voltage: 12V, 3.3V | ||
| Power | Cable Type | ||
| Typical Power(a) | Passive Cables | 9.3W | |
| Maximum Power | Passive Cables | 11.1W | |
| 1W Active Cables | 13.3W | ||
| Maximum power available through SFP28 port: 1.5W | |||
| Airflow | See Airflow Specifications. | ||
| Environmental | Temperature | Operational | 0°C to 55°C |
| Non-operational | -40°C to 70°C(b) | ||
| Humidity | Operational | 10% to 85% relative humidity | |
| Non-operational | 10% to 90% relative humidity | ||
| Altitude (Operational) | 3050m | ||
| Regulatory | Safety | CB / cTUVus / CE | |
| EMC | CE / FCC / VCCI / ICES / RCM | ||
| RoHS | RoHS compliant | ||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX4111A-ACAT and MCX4111A-ACUT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||
|---|---|---|---|
| Connector: Single SFP28 (copper and optical) | |||
| Protocol Support | Ethernet: 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||
| Data Rate: 1/10/25 Gb/s Ethernet | |||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||
| Power | Voltage: 12V, 3.3V | ||
| Power | Cable Type | ||
| Typical Power(a) | Passive Cables | 8.9W | |
| Maximum Power | Passive Cables | 10.7W | |
| 1.5W Active Cables | 12.3W | ||
| Maximum power available through SFP28 port: 1.5W | |||
| Airflow | See Airflow Specifications. | ||
| Environmental | Temperature | Operational | 0°C to 55°C |
| Non-operational | -40°C to 70°C(b) | ||
| Humidity | Operational | 10% to 85% relative humidity | |
| Non-operational | 10% to 90% relative humidity | ||
| Altitude (Operational) | 3050m | ||
| Regulatory | Safety | CB / cTUVus / CE | |
| EMC | CE / FCC / VCCI / ICES / RCM | ||
| RoHS | RoHS compliant | ||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX4121A-ACAT/MCX4121A-ACHT/MCX4121A-ACST/MCX4121A-ACUT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||
|---|---|---|---|
| Connector: Dual SFP28 (copper and optical) | |||
| Protocol Support | Ethernet: 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||
| Data Rate: 1/10/25 Gb/s Ethernet | |||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||
| Power and Airflow | Voltage: 12V, 3.3V | ||
| Power | Cable Type | ||
| Typical Power(a) | Passive Cables | 9.6W | |
| Maximum Power | Passive Cables | 11.6W | |
| 1W Active Cables | 15.0W | ||
| Maximum power available through SFP28 port: 1.5W | |||
| Airflow | See Airflow Specifications. | ||
| Environmental | Temperature | Operational | 0°C to 55°C |
| Non-operational | -40°C to 70°C(b) | ||
| Humidity | Operational | 10% to 85% relative humidity | |
| Non-operational | 10% to 90% relative humidity | ||
| Altitude (Operational) | 3050m | ||
| Regulatory | Safety | CB / cTUVus / CE | |
| EMC | CE / FCC / VCCI / ICES / RCM | ||
| RoHS | RoHS compliant | ||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX4131A-BCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||
|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||
| Protocol Support | Ethernet: 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-CR/CR-S, 25GBASE-KR/KR-S, 25GBASE-SR, 25GBASE-LR, 25G-R (EC), 20GBASE-KR2, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 1000BASE-KX, SGMII / 1000BASE-X | ||
| Data Rate: 1/10/25/40 Gb/s Ethernet | |||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||
| Power and Airflow | Voltage: 12V, 3.3V | ||
| Power | Cable Type | ||
| Typical Power(a) | Passive Cables | 10.6W | |
| Maximum Power | Passive Cables | 12.6W | |
| 1.5W Active Cables | 14.2W | ||
| Maximum power available through SFP28 port: 1.5W | |||
| Airflow | See Airflow Specifications. | ||
| Environmental | Temperature | Operational | 0°C to 55°C |
| Non-operational | -40°C to 70°C(b) | ||
| Humidity | Operational | 10% to 85% relative humidity | |
| Non-operational | 10% to 90% relative humidity | ||
| Altitude (Operational) | 3050m | ||
| Regulatory | Safety | CB / cTUVus / CE | |
| EMC | CE / FCC / VCCI / ICES / RCM | ||
| RoHS | RoHS compliant | ||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX4131A-GCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||
|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||
| Protocol Support | Ethernet: 50G-R2 (EC), 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-CR/CR-S, 25GBASE-KR/KR-S, 25GBASE-SR, 25GBASE-LR, 25G-R (EC), 20GBASE-KR2, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER,10GBASE-CX4, 1000BASE-KX, SGMII / 1000BASE-X | ||
| Data Rate: 1/10/25/40 Gb/s Ethernet | |||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||
| Power and Airflow | Voltage: 12V, 3.3V | ||
| Power | Cable Type | ||
| Typical Power(a) | Passive Cables | 9.6W | |
| Maximum Power | Passive Cables | 11.6 | |
| 3.5W Active Cables | 15.4W | ||
| Maximum power available through SFP28 port: 1.5W | |||
| Airflow | See Airflow Specifications. | ||
| Environmental | Temperature | Operational | 0°C to 55°C |
| Non-operational | -40°C to 70°C(b) | ||
| Humidity | Operational | 10% to 85% relative humidity | |
| Non-operational | 10% to 90% relative humidity | ||
| Altitude (Operational) | 3050m | ||
| Regulatory | Safety | CB / cTUVus / CE | |
| EMC | CE / FCC / VCCI / ICES / RCM | ||
| RoHS | RoHS compliant | ||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
Airflow Specifications
10Gb/s Adapter Cards Airflow
| Airflow (LFM) | ||||
|---|---|---|---|---|
| Airflow Direction | Heatsink to Port | Port to Heatsink | ||
| OPN | Passive | Active 1W | Passive | Active 1W |
| MCX4111A-XCAT | 300 | 300 | 300 | 300 |
| MCX4121A-XCAT | 300 | 300 | 300 | 300 |
25Gb/s Adapter Cards Airflow
| Airflow (LFM) | ||||
|---|---|---|---|---|
| Airflow Direction | Heatsink to Port | Port to Heatsink | ||
| OPN | Passive | Active 1.5W | Passive | Active 1.5W |
| MCX4111A-ACAT | 300 | 400 | 300 | 300 |
| MCX4121A-ACAT | 300 | 400 | 300 | 300 |
| MCX4111A-ACUT | 300 | 400 | 300 | 300 |
| MCX4121A-ACUT | 300 | 400 | 300 | 300 |
| MCX4121A-ACST | 300 | 400 | 300 | 300 |
| MCX4121A-ACHT | 300 | 400 | 300 | 300 |
40/50Gb/s Adapter Cards Airflow(a)
| Airflow (LFM) | |||||
|---|---|---|---|---|---|
| Airflow Direction | Heatsink to Port | Port to Heatsink | |||
| OPN | Passive | Active 1.5W | Active 3.5W | Passive | Active 1.5W |
| MCX413A-BCAT | 300 | 350 | - | 300 | 300 |
| MCX413A-GCAT | 300 | - | 500 | 300 | - |
a. Cells marked with (–) are not applicable
Board Mechanical Drawing and Dimensions
All PSB dimensions are in millimeters. All the mechanical tolerances are +/- 0.13mm.

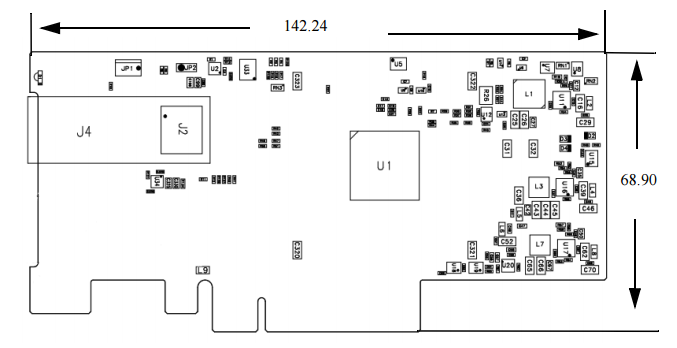

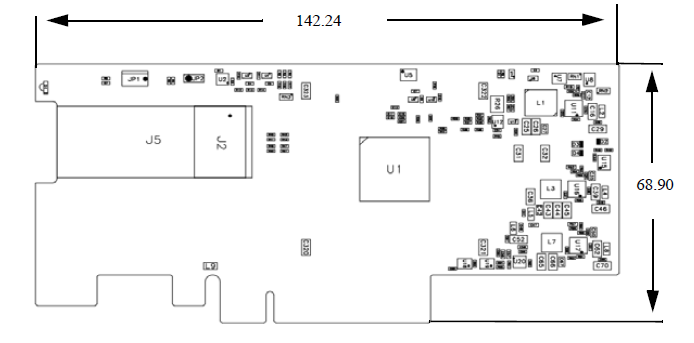

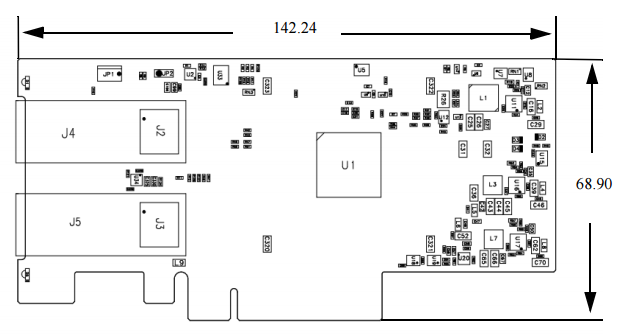

| Single-port 10/25 Gb/s | Dual-port 10/25 Gb/s | Single-port 40/50 Gb/s |
|---|---|---|
|
|
|
Bracket Mechanical Drawing
All bracket dimensions are in millimeters. All the mechanical tolerances are +/- 0.25mm.

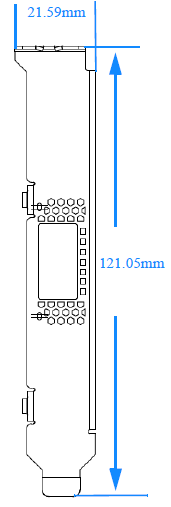

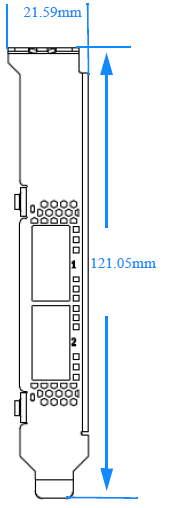

| Single-port Tall Bracket | Dual-port Tall Bracket |
|---|---|
|
|
