Finding the MAC on the Adapter Card

Each Mellanox adapter card has a different identifier printed on the label: serial number and the card MAC for the Ethernet protocol.

Warning

The product revisions indicated on the labels in the following figures do not necessarily represent the latest revisions of the cards.

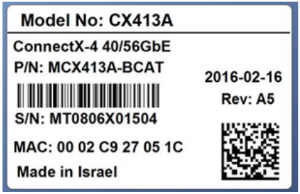

MCX413A-BCAT Boarding Label (Example)

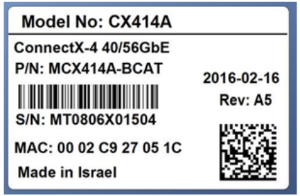

MCX414A-BCAT Board Label (Example)


MCX415A-BCAT Board Label (Example)

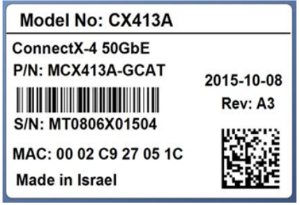

MCX413A-GCAT Board Label (Example)


MCX4121A-ACUT Board Label (Example)


MCX414A-GCAT Board Label (Example)

MCX415A-GCAT Board Label (Example)

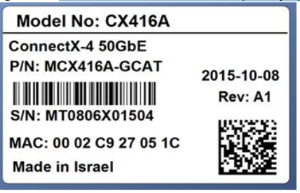

MCX416A-GCAT Board Label (Example)

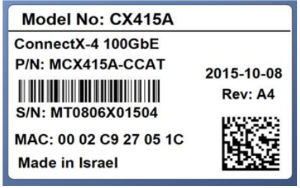

MCX415A-CCAT Board Label (Example)

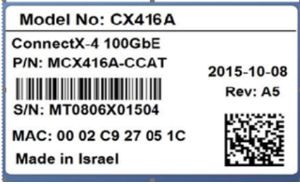

MCX416A-CCAT Board Label (Example)
