MCX413A-BCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/56 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | 40GbE | 56GbE | ||
| Typical Power(a) | Passive Cables | 10.2W | 10.0W | ||
| Maximum Power | Passive Cables | 12.6W | 12.5W | ||
| 1.5W Active Cables | 14.3W | 14.2W | |||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 450LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX414A-BCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/56 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | 40GbE | 56GbE | ||
| Typical Power(a) | Passive Cables | 11.8W | 12.4W | ||
| Maximum Power | Passive Cables | 14.3W | 14.9W | ||
| 1.5W Active Cables | 17.6W | 18.3W | |||
| Maximum power available through QSFP28 port: 1.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 450LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX415A-BCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||
|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||
| Protocol Support | Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||
| Data Rate: 1/10/25/40/56 Gb/s– Ethernet | |||
| PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||
| Power | Voltage: 12V, 3.3V | ||
| Environmental | Temperature | Operational | 0°C to 55°C |
| Non-operational | -40°C to 70°C(b) | ||
| Humidity | Operational | 10% to 85% relative humidity | |
| Non-operational | 10% to 90% relative humidity | ||
| Altitude (Operational) | 3050m | ||
| Regulatory | Safety | CB / cTUVus / CE | |
| EMC | CE / FCC / VCCI / ICES / RCM | ||
| RoHS | RoHS compliant | ||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX416A-BCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Dual QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/56 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | ||||
| Typical Power(a) | Passive Cables | 9.9W | |||
| Maximum Power | Passive Cables | 12.5W | |||
| 1.5W Active Cables | 15.8W | ||||
| 2.5W Active Cables | 18.0W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 500LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX413A-GCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/50 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | ||||
| Typical Power(a) | Passive Cables | 9.9W | |||
| Maximum Power | Passive Cables | 12.5W | |||
| 1.5W Active Cables | 15.8W | ||||
| 2.5W Active Cables | 18.0W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 400LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX414A-GCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/50 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | ||||
| Typical Power(a) | Passive Cables | 9.9W | |||
| Maximum Power | Passive Cables | 12.5W | |||
| 1.5W Active Cables | 15.8W | ||||
| 2.5W Active Cables | 18.0W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 450LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX415A-GCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/50 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||||
| Power | Voltage: 12V, 3.3V | ||||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX416A-GCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/50 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | ||||
| Typical Power(a) | Passive Cables | 14.3W | |||
| Maximum Power | Passive Cables | 16.9W | |||
| 1.5W Active Cables | 20.2W | ||||
| 2.5W Active Cables | 22.4W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 500LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX415A-CCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/50/100 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | ||||
| Typical Power(a) | Passive Cables | 14W | |||
| Maximum Power | Passive Cables | 16.6W | |||
| 1.5W Active Cables | 18.3W | ||||
| 2.5W Active Cables | 19.4W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 3.5W Cables | Passive Cables | Active 3.5W Cables | ||
| 4000LFM | 7000LFM | 4000LFM | 600LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
MCX416A-CCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Dual QSFP28 (copper and optical) | |||||
| Protocol Support | Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | ||||
| Data Rate: 1/10/25/40/50/100 Gb/s– Ethernet | |||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||||
| Power | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | ||||
| Typical Power(a) | Passive Cables | 16.3W | |||
| Maximum Power | Passive Cables | 19W | |||
| 1.5W Active Cables | 22.3W | ||||
| 2.5W Active Cables | 24.5W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 3.5W Cables | Passive Cables | Active 3.5W Cables | ||
| 400LFM | 850LFM | 400LFM | 600LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(b) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. Typical power for ATIS traffic load.
b. The non-operational storage temperature specifications apply to the product without its package.
Board Mechanical Drawing and Dimensions
All PSB dimensions are in millimeters. All the mechanical tolerances are +/- 0.13mm.

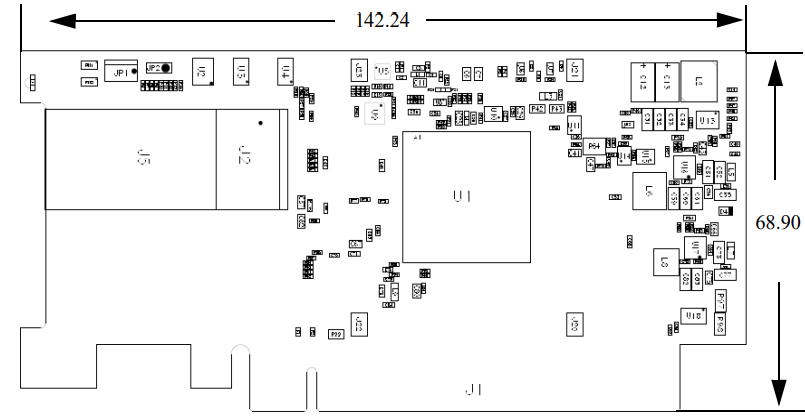

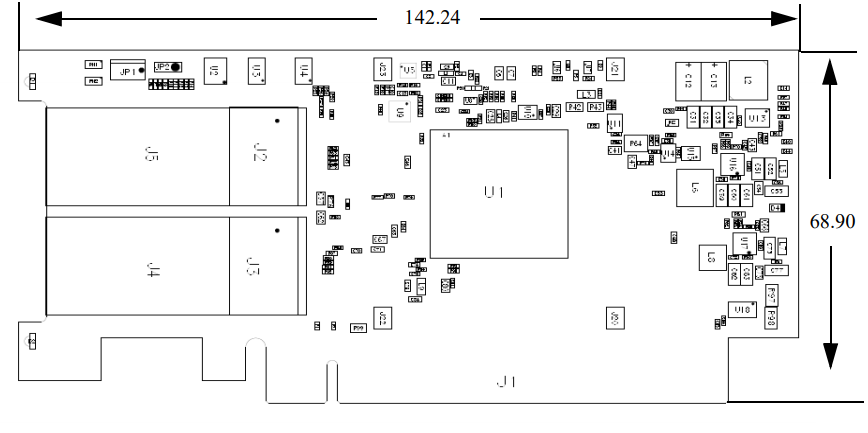

Single-port x8 Cards | Dual-port x8 Cards |
|---|---|
| |

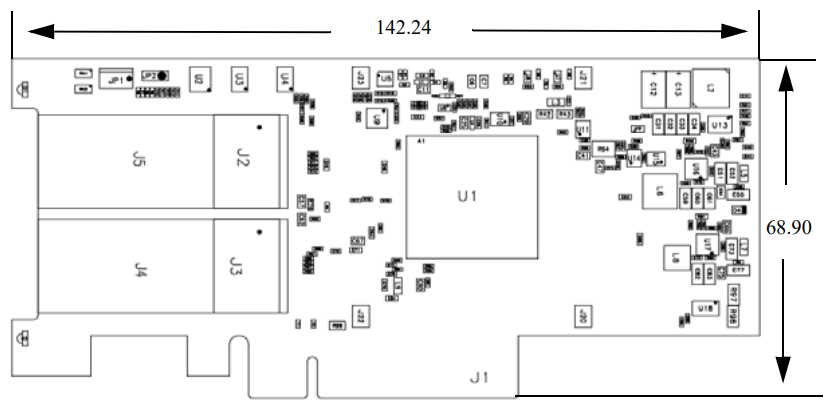

| Single-port x16 Cards | Dual-port x16 Cards |
|
|
Bracket Mechanical Drawing
All bracket dimensions are in millimeters. All the mechanical tolerances are +/- 0.25mm.
Dimensions in millimeters.

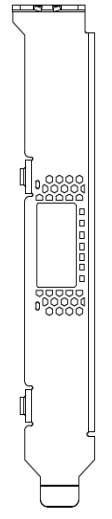

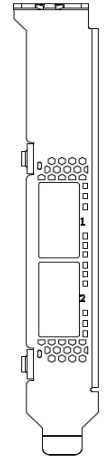

Single-port Bracket | Dual-port Bracket |
|---|---|
|
|
