MCX453A-FACT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 InfiniBand (copper and optical) | |||||
| Protocol Support | InfiniBand(a): IBTA v1.3 Auto-Negotiational : 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port | ||||
Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | |||||
| Data Rate | InfiniBand | SDR/DDR/QDR/FDR | |||
| Ethernet | 1/10/25/40/56 Gb/s | ||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | 56GbE | |||
| Typical Power(b) | Passive Cables | 10.0W | |||
| Maximum Power | Passive Cables | 12.5W | |||
| 1.5W Active Cables | 14.2W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 450LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(c) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. The ConnectX-4 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
MCX454A-FCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 InfiniBand (copper and optical) | |||||
| Protocol Support | InfiniBand(a): IBTA v1.3 Auto-Negotiational : 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port | ||||
Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | |||||
| Data Rate: | InfiniBand | SDR/DDR/QDR/FDR | |||
| Ethernet | 1/10/25/40/56 Gb/s | ||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | FDR/56GbE | |||
| Typical Power(b) | Passive Cables | 12.4W | |||
| Maximum Power | Passive Cables | 14.9W | |||
| 1.5W Active Cables | 18.3W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 450LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(c) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. The ConnectX-4 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
MCX455A-FCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 InfiniBand (copper and optical) | |||||
| Protocol Support | InfiniBand(a): IBTA v1.3 Auto-Negotiational : 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port | ||||
Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | |||||
| Data Rate: | InfiniBand | SDR/DDR/QDR/FDR | |||
| Ethernet | 1/10/25/40/56 Gb/s | ||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | FDR/56GbE | |||
| Typical Power(b) | Passive Cables | 13.51W | |||
| Maximum Power | Passive Cables | 16W | |||
| 1.5W Active Cables | 17.7W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 450LFM | 400LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(c) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. The ConnectX-4 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
MCX456A-FCAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 InfiniBand (copper and optical) | |||||
| Protocol Support | InfiniBand(a): IBTA v1.3 Auto-Negotiational : 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port | ||||
Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | |||||
| Data Rate: | InfiniBand | SDR/DDR/QDR/FDR | |||
| Ethernet | 1/10/25/40/56 Gb/s | ||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | FDR/56GbE | |||
| Typical Power(b) | Passive Cables | 15.9W | |||
| Maximum Power | Passive Cables | 18.5W | |||
| 1.5W Active Cables | 21.8W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Temperature | Operational | 0°C to 55°C | |||
| Non-operational | -40°C to 70°C | ||||
| Humidity | 90% relative humidity(c) | ||||
| Altitude (Operational) | 3050m | ||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 1.5W Cables | Passive Cables | Active 1.5W Cables | ||
| 400LFM | 500LFM | 400LFM | 400LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(c) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. The ConnectX-4 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
MCX455A-ECAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Single QSFP28 InfiniBand (copper and optical) | |||||
| Protocol Support | InfiniBand(a): IBTA v1.3 Auto-Negotiational : 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port | ||||
Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | |||||
| Data Rate: | InfiniBand | SDR/DDR/QDR/FDR/EDR | |||
| Ethernet | 1/10/25/40/50/100 Gb/s | ||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | FDR/56GbE | |||
| Typical Power(b) | Passive Cables | 14W | |||
| Maximum Power | Passive Cables | 16.6W | |||
| 1.5W Active Cables | 18.3W | ||||
| 2.5W Active Cables | 19.4W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 3.5W Cables | Passive Cables | Active 3.5W Cables | ||
| 400LFM | 700LFM | 400LFM | 600LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(c) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. The ConnectX-4 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
MCX456A-ECAT Specifications
| Physical | Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile | ||||
|---|---|---|---|---|---|
| Connector: Dual QSFP28 InfiniBand (copper and optical) | |||||
| Protocol Support | InfiniBand(a): IBTA v1.3 Auto-Negotiational : 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane) port | ||||
Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII | |||||
| Data Rate: | InfiniBand | SDR/DDR/QDR/FDR/EDR | |||
| Ethernet | 1/10/25/40/50/100 Gb/s | ||||
| PCI Express Gen3: SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) | |||||
| Power and Airflow | Voltage: 12V, 3.3V | ||||
| Power | Cable Type | FDR/56GbE | |||
| Typical Power(b) | Passive Cables | 16.3W | |||
| Maximum Power | Passive Cables | 19W | |||
| 1.5W Active Cables | 22.3W | ||||
| 2.5W Active Cables | 24.5W | ||||
| Maximum power available through QSFP28 port: 3.5W | |||||
| Airflow (LFM) | Heatsink to Port | Port to Heatsink | |||
| Passive Cables | Active 3.5W Cables | Passive Cables | Active 3.5W Cables | ||
| 400LFM | 800LFM | 400LFM | 600LFM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | ||
| Non-operational | -40°C to 70°C(c) | ||||
| Humidity | Operational | 10% to 85% relative humidity | |||
| Non-operational | 10% to 90% relative humidity | ||||
| Altitude (Operational) | 3050m | ||||
| Regulatory | Safety | CB / cTUVus / CE | |||
| EMC | CE / FCC / VCCI / ICES / RCM | ||||
| RoHS | RoHS compliant | ||||
Notes: a. The ConnectX-4 adapters supplement the IBTA auto-negotiation specification to get better bit error rates and longer cable reaches. This supplemental feature only initiates when connected to another NVIDIA InfiniBand product.
b. Typical power for ATIS traffic load.
c. The non-operational storage temperature specifications apply to the product without its package.
LED Specifications
See LED Interface.
Board Mechanical Drawings and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.

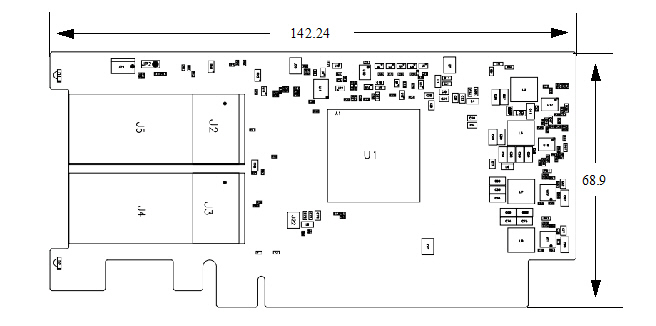

Adapter Card Mechanical Drawing (Component Side)
e
Bracket Mechanical Drawing
All dimensions are in millimeters. The bracket mechanical tolerance is +/- 0.25mm.
Dual-port Bracket | Single-port Bracket |
|---|---|
|
|
