Please make sure to install the ConnectX-6 Dx OCP 2.0 card in a PCIe slot that is capable of supplying the power levels mentioned below for the appropriate use case
MCX623405AC-CDAN/MCX623405AN-CDAN Specifications
| Physical | Dimensions: 4.33 in. x 3.07 in (110.05mm x 78.00mm) | |||||
|---|---|---|---|---|---|---|
| Connector: Single QSFP56 Ethernet (copper and optical) | ||||||
| Protocol Support | Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2 | |||||
| Data Rate: | Ethernet | 1/10/25/40/50/100 Gb/s | ||||
| PCI Express Gen3/4: SERDES @ 8.0GT/s/16Gt/s, 16 lanes (2.0 and 1.1 compatible) Note: PCIe 4.0 x16 bus can supply a maximum bandwidth of 256Gb/s only (=16 * 16GT/s, including overhead). | ||||||
| Power and Airflow | Voltage: 3.3VAUX, 5VAUX, 12V | |||||
| Power | Cable Type | Active Mode | STBY Mode | |||
Typical Power(b) | Passive Cables | 17.5W | 6.4W | |||
| Maximum Power | Passive Cables | 23.1W | 10.5W | |||
| 1.5W Active Cables | 27.2W | 14.6W | ||||
| Maximum power available through QSFP56 port: 3.5W | ||||||
Airflow(b) | Cable Type | Hot Aisle @55°C HSK to Port | Cold Aisle @35°C Port to HSK | |||
| Active Mode | Standby Mode | Active Mode | Standby Mode | |||
| Passive Cable | TBD | TBD | 40PWM | 20PWM | ||
| Active 4.55W Cable | TBD | TBD | 50PWM | 20PWM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | |||
Non-operational | -40°C to 70°C(c) | |||||
Humidity | Operational | 10% to 85% relative humidity | ||||
| Non-operational | 10% to 90% relative humidity | |||||
| Altitude (Operational) | 3050m | |||||
| Regulatory | Safety | CB / cTUVus / CE | ||||
| EMC | CE / FCC / VCCI / ICES / RCM | |||||
| RoHS | RoHS compliant | |||||
a. Typical power for ATIS traffic load.
b. The thermal test was performed in a Yosemite V2 server.
c. The non-operational storage temperature specifications apply to the product without its package.
MCX623405AC-VDAN/MCX623405AN-VDAN Specifications
| Physical | Dimensions: 4.33 in. x 3.07 in (110.05mm x 78.00mm) | |||||
|---|---|---|---|---|---|---|
| Connector: Single QSFP56 Ethernet (copper and optical) | ||||||
| Protocol Support | Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR, 100GBASE-CR2, 100GBASE-KR2, 100GBASE-SR2 | |||||
| Data Rate: | Ethernet | 1/10/25/40/50/100/200 Gb/s | ||||
| PCI Express Gen3/4: SERDES @ 8.0GT/s/16Gt/s, 16 lanes (2.0 and 1.1 compatible) Note: PCIe 4.0 x16 bus can supply a maximum bandwidth of 256Gb/s only (=16 * 16GT/s, including overhead). | ||||||
| Power and Airflow | Voltage: 3.3VAUX, 5VAUX, 12V | |||||
| Power | Cable Type | Active Mode | STBY Mode | |||
Typical Power(a) | Passive Cables | 18.9W | 5.8W | |||
| Maximum Power | Passive Cables | 24.4W | 11.7W | |||
| 1.5W Active Cables | 30.3W | 17.7W | ||||
| Maximum power available through QSFP56 port: 3.5W | ||||||
Airflow(b) | Cable Type | Hot Aisle @55°C HSK to Port | Cold Aisle @35°C Port to HSK | |||
| Active Mode | Standby Mode | Active Mode | Standby Mode | |||
| Passive Cable | TBD | TBD | 40PWM | 20PWM | ||
| Active 4.55W Cable | TBD | TBD | 50PWM | 20PWM | ||
| Environmental | Temperature | Operational | 0°C to 55°C | |||
Non-operational | -40°C to 70°C(c) | |||||
| Humidity | Operational | 10% to 85% relative humidity | ||||
| Non-operational | 10% to 90% relative humidity | |||||
| Altitude (Operational) | 3050m | |||||
| Regulatory | Safety | CB / cTUVus / CE | ||||
| EMC | CE / FCC / VCCI / ICES / RCM | |||||
| RoHS | RoHS compliant | |||||
a. Typical power for ATIS traffic load.
b. The thermal test was performed in a Yosemite V2 server.
c. The non-operational storage temperature specifications apply to the product without its package.

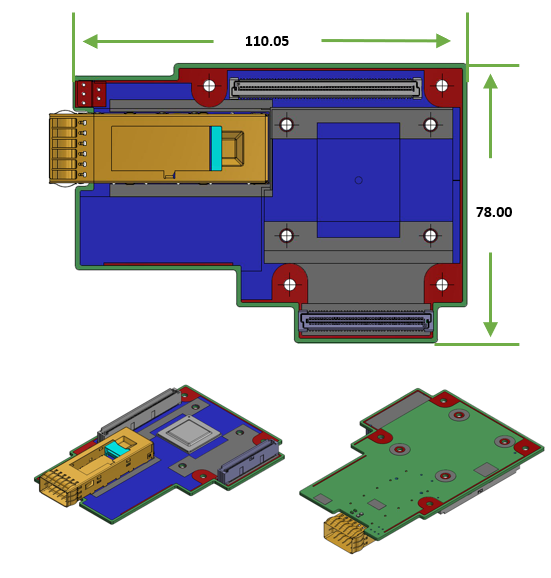

Board Mechanical Drawing and Dimensions
All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.
ConnectX-6 Dx OCP 2.0 Mechanical Drawing and Dimensions
