The following subsections describe the currently supported job templates.

AWX Inventory Host Update

Create, update, or destroy one or more hosts on a specific AWX inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "AWX Inventory Host Update".

Make sure that all required variables described below are defined before running this job. You can define these variables either as inventory variables or as job template variables.

The following variables are required to update inventory:

Name	Default	Type
`controller_host`	URL to the AWX controller instance	String
`controller_oauthtoken`	OAuth token for the AWX controller instance	String
`hostname`	URL to the AWX controller instance	String

Alternatively, you can specify the following variables for update inventory:

Name	Default	Type
`controller_host`	URL to the AWX controller instance	String
`controller_username`	Username for the AWX controller instance	String
`controller_password`	Password for the AWX controller instance	String
`hostname`	Hostname or a hostname expression of the host(s) to update	String

The following variables are available to update inventory:

Name	Description
`api_url`	URL to your cluster bring-up REST API. This variable item is required when the `hostname_regex_enabled` is set to true.
`description`	Description to use for the host(s)
`host_enabled`	Determine whether the host(s) should be enabled
`hostname_regex_enabled`	Determine whether to use hostname expression to create the hostnames
`host_state`	State of the hosts resources. Options: present; or absent.
`inventory`	Name of the inventory the host(s) should be made a member of

The following are variable definitions and default values to update inventory:

Name	Default	Type
`api_url`	`''`	String
`description`	`''`	String
`host_enabled`	`true`	Boolean
`hostname_regex_enabled`	`true`	Boolean
`host_state`	`'present'`	String
`inventory`	`'IB Cluster Inventory'`	String

COT Python Alignment

Ensure that Python environment for the COT client is installed on one or more hosts.

By default, this job template is configured to run against the ib_host_manager group of IB Cluster Inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "COT Python Alignment".

The following variables are available for cluster orchestration Python environment installation:

Name	Description
`cot_dir`	Target path to installation root folder
`force`	Install the package even if it is already up to date
`working_dir`	Path to the working directory on the host

The following are variable definitions and default values for cluster bring-up client installation:

Name	Default	Type
`cot_dir`	`'/opt/nvidia/cot'`	String
`force`	`false`	Boolean
`working_dir`	`'/tmp'`	String

ClusterKit

Run ClusterKit for high performance tests on the hosts of the inventory.

By default, this job template is configured to run against the ib_host_manager group of IB Cluster Inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "ClusteKit".

ClusterKit relies on the HPC-X package. Make sure HPC-X package is installed.

The following variables are available for running ClusterKit:

Name	Description
`clusterkit_hostname`	Hostname expressions that represent the hostnames to run tests on
`clusterkit_options`	List of optional arguments for the tests
`clusterkit_path`	Path to the clusterkit executable script
`inventory_group`	Name of the inventory group for the hostnames to run tests on. This variable item is not available when either the `use_hostfile` is set to false or the `clusterkit_hostname` is set.
`max_hosts`	Limit the number of hostnames. This variable item is not available when the `use_hostfile` is set to false.
`use_hostfile`	Determine whether to use a file for hostnames to run tests on
`working_dir`	Path to the working directory on the host

The following are variable definitions and default values for running ClusterKit:

Name	Default	Type
`clusterkit_hostname`	`null`	String
`clusterkit_options`	`[]`	List[String]
`clusterkit_path`	`'/opt/nvidia/hpcx/clusterkit/bin/clusterkit.sh'`	String
`inventory_group`	`all`	String
`max_hosts`	`-1`	Integer
`use_hostfile`	`true`	Boolean
`working_dir`	`'/tmp'`	String

The ClusterKit results are uploaded to the database after each run and can be accessed via the API.

The following are REST requests to retrieve ClusterKit results:

URL	Response	Method Type
`/api/performance/clusterkit/results`	Get a list of all the ClusterKit run IDs stored in the database	GET
`/api/performance/clusterkit/results/<run_id>`	Get a ClusterKit run's results based on its run ID	GET
`/api/performance/clusterkit/results/<run_id>?raw_data=true`	Get a ClusterKit run's test results as they are stored in the ClusterKit JSON output file based on its run ID. Using the query param "raw_data".	GET
`/api/performance/clusterkit/results/<run_id>?test=<test name>`	Get a specific test result of the ClusterKit run based on its run ID. Using the query param "test".	GET

Query Param	Description
`test`	Returns a specific test result of the ClusterKit run
`raw`	Returns the data as it is stored in the ClusterKit output JSON files

Examples:

$ curl 'http://cluster-bringup:5000/api/performance/clusterkit/results' ["20220721_152951", "20220721_151736", "20220721_152900", "20220721_152702"]

$ curl 'http://cluster-bringup:5000/api/performance/clusterkit/results/20220721_152951?raw_data=true&test=latency' {
  "Cluster": "Unknown",
  "User": "root",
  "Testname": "latency",
  "Date_and_Time": "2022/07/21 15:29:51",
  "JOBID": 0,
  "PPN": 28,
  "Bidirectional": "True",
  "Skip_Intra_Node": "True",
  "HCA_Tag": "Unknown",
  "Technology": "Unknown",
  "Units": "usec",
  "Nodes": {"ib-node-01": 0, "ib-node-02": 1},
  "Links": [[0, 41.885]]
}

IB Cluster Health Checks

Run IB Cluster Health Checks to perform diagnostic of the fabric's state based on ibdiagnet checks, SM files, and switch commands.

By default, this job template is configured to run against the ib_host_manager group of IB Cluster Inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "IB Cluster Health Checks".

The following variables are available for running IB Cluster Health Checks:

Name	Description
`check_max_failure_percentage`	Max failure percentage for cluster health checks
`cot_executable`	Path to the installed `cotclient` tool
`exclude_scope`	List of node GUIDs and their ports to be excluded
`device`	Name of the RDMA device of the port used to connect to the fabric
`routing_check`	Specify for routing check
`sm_configuration_file`	Path for SM configuration file; supported only when the SM is running on the `ib_host_manager`
`sm_unhealthy_ports_check`	Specify for SM unhealthy ports check; supported only when the SM is running on the `ib_host_manager`
`topology_type`	Type of topology to discover
`mlnxos_switch_hostname`	Hostname expression that represents switches running MLNX-OS
`mlnxos_switch_username`	Username to authenticate against the target switches
`mlnxos_switch_password`	Password to authenticate against the target switches

The following are variable definitions and default values for the health check:

Name	Default	Type
`check_max_failure_percentage`	`1`	Float
`cot_executable`	`'/opt/nvidia/cot/client/bin/cotclient'`	String
`exclude_scope`	`NULL`	List(String)
`device`	`'mlx5_0'`	String
`routing_check`	`True`	Boolean
`sm_configuration_file`	`'/etc/opensm/opensm.conf'`	String
`sm_unhealthy_ports_check`	`false`	Boolean
`topology_type`	`'infiniband'`	String
`mlnxos_switch_hostname`	`NULL`	String
`mlnxos_switch_username`	`NULL`	String
`mlnxos_switch_password`	`NULL`	String

The following example shows how to exclude ports using the exclude_scope variable:

exclude_scope: ['0x1234@1/3', '0x1235']

In this example, IB Cluster Health Check runs over the fabric except on ports 1 and 3 of node GUID 0x1234 and all ports of node GUID 0x1235.

The following example shows how to configure switch variables:

mlnxos_switch_hostname: 'ib-switch-t[1-2],ib-switch-s1'
mlnxos_switch_username: 'admin'
mlnxos_switch_password: 'my_admin_password'

In this example, IB Cluster Health Check performs a check that requires switch connection over ib-switch-t1, ib-switch-t2, and ib-switch-s1 using the username admin and password my_admin_password for the connection.

IB Network Discovery

Discover network topology and update the database with the discovered result.

By default, this job template is configured to run against the ib_host_manager group of IB Cluster Inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "IB Network Discovery".

The following variables are required for network discovery:

Name	Default	Type
`api_url`	URL to your cluster bring-up REST API	String

For the network discovery to find the IPs of MLNX-OS switches, the ufm_telemetry_path variable is required. This feature is supported for UFM Telemetry version 1.11.0 and above.

The following variables are available for network discovery:

Name	Description
`ufm_telemetry_path`	Path for the UFM Telemetry folder located on the `ib_host_manager_server`. Specify for using UFM Telemetry's ibdiagnet tool for the network discovery (e.g., `'/tmp/ufm_telemetry'`).
`switch_username`	Username to authenticate against MLNX-OS switches
`switch_password`	Password to authenticate against MLNX-OS switches
`cot_python_interpreter`	Path to cluster orchestration Python interpreter
`ib_device`	Name of the in-band HCA device to use (e.g., `'mlx5_0'`)
`subnet`	Name of a subnet which the topology nodes of the are member of

The following are variables definitions and default values for network discovery:

Name	Default	Type
`ufm_telemetry_path`	`NULL`	String
`cot_python_interpreter`	`'/opt/nvidia/cot/client/bin/python/'`	String
`ib_device`	`'mlx5_0'`	String
`subnet`	`'infiniband-default'`	String

UFM Telemetry Upgrade

Install NVIDIA® UFM® Telemetry on one or more hosts.

By default, this job template is configured to run against the ib_host_manager group of IB Cluster Inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "UFM Telemetry Upgrade".

The following variables are required for UFM Telemetry installation:

Name	Description
`ufm_telemetry_package_url`	URL for UFM Telemetry to download

The following variables are available for UFM Telemetry installation:

Name	Description
`working_dir`	Destination path for installing UFM Telemetry. The package will be placed in a subdirectory called `ufm_telemetry`. Default: `/tmp`.
`ufm_telemetry_checksum`	Checksum of the UFM Telemetry package to download

MLNX_OFED Upgrade

Install NVIDIA® MLNX_OFED driver on one or more hosts.

Refer to the official NVIDIA Linux Drivers documentation for further information.

By default, this job template is configured to run against the hosts of IB Cluster Inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "MLNX_OFED Upgrade".

By default, the MLNX_OFED package is downloaded from the MLNX_OFED download center. You must specify the ofed_version (or use its default value) and the ofed_package_url variables when the download center is not available.

The following variables are available for MLNX_OFED installation:

Name	Description
`force`	Install MLNX_OFED package even if it is already up to date
`ofed_checksum`	Checksum of the MLNX_OFED package to download
`ofed_dependencies`	List of all package dependencies for the MLNX_OFED package
`ofed_install_options`	List of optional arguments for the installation command
`ofed_package_url`	URL of the MLNX_OFED package to download (default: auto-detection). In addition, you must specify the `ofed_version` parameter or use its default value.
`ofed_version`	Version number of the MLNX_OFED package to install
`working_dir`	Path to the working directory on the host

The following are variable definitions and default values for MLNX_OFED installation:

Name	Default	Type
`force`	`false`	Boolean
`ofed_checksum`	`''`	String
`ofed_dependencies`	`[]`	List
`ofed_install_options`	`[]`	List
`ofed_package_url`	`''`	String
`ofed_version`	`5.8-1.0.1.1'`	String
`working_dir`	`'/tmp'`	String

The following example shows MLNX_OFED for RHEL/CentOS 8.0 on the MLNX_OFED Download Center:

ofed_checksum: 'SHA256: 37b64787db9eabecc3cefd80151c0f49c852751d797e1ccdbb49d652f08916e3' ofed_version: '5.4-1.0.3.0'

MLNX-OS Upgrade

Update system firmware/OS software on one or more MLNX-OS switches.

By default, this job template is configured to run against the ib_host_manager group of IB Cluster Inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "MLNX-OS Upgrade".

Make sure all required variables described below are defined before running this job. You can define these variables either as inventory variables or as job template variables.

The following variables are required to update MLNX-OS system:

Name	Description	Type
`mlnxos_image_url`	URL of the MLNX-OS image to download	String
`switch_username`	Username to authenticate against target switches	String
`switch_password`	Password to authenticate against target switches	String
`switches`	List of IP addresses/hostnames of the switches to upgrade	List[String]

The following variables are available to update MLNX-OS system:

Name	Description
`command_timeout`	Time (in seconds) to wait for the command to complete
`force`	Update MLNX-OS system even if it is already up to date
`image_url`	Alias name for `mlnxos_image_url`. This variable item is not available when the `mlnxos_image_url` is set.
`reload_command`	Specify an alternative command to reload switch system
`reload_timeout`	Time (in seconds) to wait for the switch system to reload
`remove_images`	Determine whether to remove all images on disk before system upgrade starts

The following are variable definitions and default values for update MLNX-OS system:

Name	Default	Type
`command_timeout`	`240`	Integer
`force`	`false`	Boolean
`reload_command`	`'"reload noconfirm"'`	String
`reload_timeout`	`200`	Integer
`remove_images`	`false`	Boolean

MLNX-OS Configure

Execute configuration commands on one or more MLNX-OS switches.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "MLNX-OS Configure".

The following variables are required to configure MLNX-OS system:

Name	Description	Type
`switch_config_commands`	List of configuration commands to execute	List[String]
`switch_username`	Username to authenticate against target switches	String
`switch_password`	Password to authenticate against target switches	String
`switches`	List of IP addresses/hostnames of the switches to configure	List[String]

The following variables are available to configure MLNX-OS system:

Name	Description
`save_config`	Indicates to save the system configuration after the execution completed

The following are variable definitions and default values to configure MLNX-OS system:

Name	Default	Type
`save_config`	`true`	Boolean

MFT Upgrade

Install NVIDIA® MFT package on one or more hosts.

Refer to the official Mellanox Firmware Tools documentation for further information.

By default, this job template is configured to run against the hosts of IB Cluster Inventory.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the Launch Template button on "MFT Upgrade".

By default, the MFT package is downloaded from the MFT download center. You must specify the mft_version (or use its default value) and the mft_package_url variables when the download center is not available.

The following variables are available for MFT installation:

Name	Description
`force`	Install MFT package even if it is already up to date
`mft_checksum`	Checksum of MFT package to download
`mft_dependencies`	List of all package dependencies for the MFT package
`mft_install_options`	List of optional arguments for the installation command
`mft_package_url`	URL of the MFT package to download (default: auto-detection). In addition, you must specify the `mft_version` parameter or use its default value.
`mft_version`	Version number of the MFT package to install
`working_dir`	Path to the working directory on the host

The following are variable definitions and default values for MFT installation:

Name	Default	Type
`force`	`false`	Boolean
`mft_checksum`	`''`	String
`mft_dependencies`	`[]`	List
`mft_install_options`	`[]`	List
`mft_package_url`	`''`	String
`mft_version`	`'4.22.0-96'`	String
`working_dir`	`'/tmp'`	String

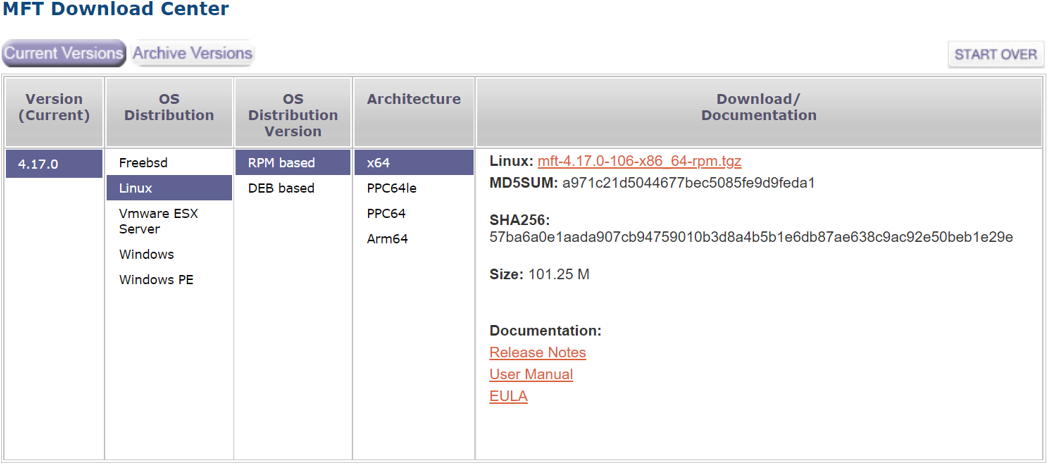

The following example shows MFT for RedHat on the MFT Download Center:

mft_checksum: 'sha256: 57ba6a0e1aada907cb94759010b3d8a4b5b1e6db87ae638c9ac92e50beb1e29e' mft_version: '4.17.0-106'

HPC-X Upgrade

Install NVIDIA® HPC-X® package on one or more hosts.

Refer to the official NVIDIA HPC-X documentation for further information.

By default, this job template is configured to run against the hosts of IB Cluster Inventory. You must set the hpcx_install_once variable to true when installing the HPC-X package to a shared location.

The following instructions describe how to run this job template:

Go to Resources > Templates.
Click the "Launch Template" button on "HPC-X Upgrade".

By default, the HPC-X package is downloaded from the HPC-X download center. You need to specify the hpcx_version (or use its default value) and the hpcx_package_url variables when the download center is not available.

The following variables are available for HPC-X installation:

Name	Description
`force`	Install HPC-X package even if it is already up to date
`hpcx_checksum`	Checksum of the HPC-X package to download
`hpcx_dir`	Target path for HPC-X installation folder
`hpcx_install_once`	Specify whether to install HPC-X package via single host. May be used to install the package on a shared directory.
`hpcx_package_url`	URL of the HPC-X package to download (default: auto-detection). In addition, you must specify the `hpcx_version` parameter or use its default value.
`hpcx_version`	Version number of the HPC-X package to install
`ofed_version`	Version number of the OFED package compatible to the HPC-X package. This variable item is required when MLNX_OFED is not installed on the host.
`working_dir`	Path to the working directory on the host

The following are variable definitions and default values for HPC-X installation:

Name	Default	Type
`force`	`false`	Boolean
`hpcx_checksum`	`''`	String
`hpcx_dir`	`'/opt/nvidia/hpcx'`	String
`hpcx_install_once`	`false`	Boolean
`hpcx_package_url`	`''`	String
`hpcx_version`	`'2.13.0'`	String
`ofed_version`	`''`	String
`working_dir`	`'/tmp'`	String

The following example shows HPC-X for RedHat 8.0 on the HPC-X Download Center:

hpcx_checksum: 'sha256: 57ba6a0e1aada907cb94759010b3d8a4b5b1e6db87ae638c9ac92e50beb1e29e' hpcx_version: '2.9.0' ofed_version: ''

File Server

A file server is useful when you must access files (e.g., packages, images, etc.) that are not available on the WEB.

The files can be accessed over the following URL: http://<host>:<port>/downloads/ where host (IP address/hostname) and port are the address of your cluster bring-up host.

For example, if cluster-bringup is the hostname of your cluster bring-up host and the TCP port is 5000 as defined in the suggested configuration, then files can be accessed over the URL http://cluster-bringup:5000/downloads/.

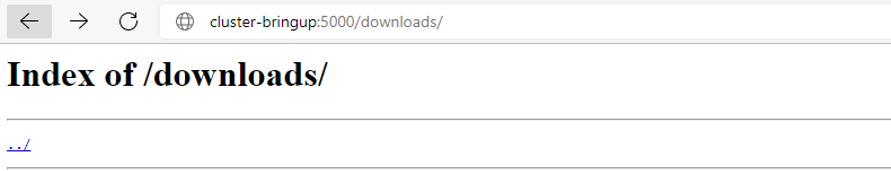

To see all available files, open your browser and navigate to http://cluster-bringup:5000/downloads/.

Create a directory for a specific cable firmware image and copy a binary image file into it. Run:
```
[root@cluster-bringup ~]# mkdir -p \
/opt/nvidia/cot/files/linkx/rel-38_100_121/iffu
[root@cluster-bringup ~]# cp /tmp/hercules2.bin \
/opt/nvidia/cot/files/linkx/rel-38_100_121/iffu
```
The file can be accessed over the URL http://cluster-bringup:5000/downloads/linkx/rel-38_100_121/iffu/hercules2.bin.
To see all available files, open a browser and navigate to http://cluster-bringup:5000/downloads/.

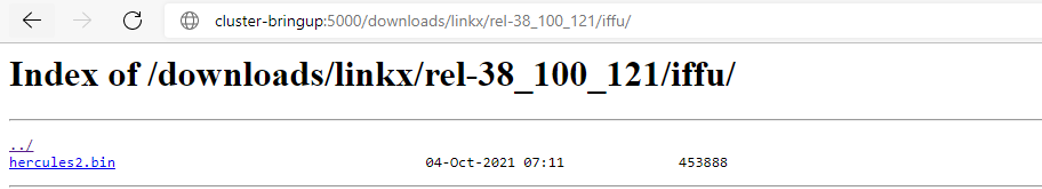

To see the image file, navigate to http://cluster-bringup:5000/downloads/linkx/rel38_100_121/iffu/.

Content

Space Tools

On This Page

AWX Inventory Host Update

COT Python Alignment

ClusterKit

IB Cluster Health Checks

IB Network Discovery

UFM Telemetry Upgrade

MLNX_OFED Upgrade

MLNX-OS Upgrade

MLNX-OS Configure

MFT Upgrade

HPC-X Upgrade

File Server

Content

Space Tools

Supported Job Templates

On This Page

AWX Inventory Host Update

COT Python Alignment

ClusterKit

IB Cluster Health Checks

IB Network Discovery

UFM Telemetry Upgrade

MLNX_OFED Upgrade

MLNX-OS Upgrade

MLNX-OS Configure

MFT Upgrade

HPC-X Upgrade

File Server
