MAM1Q00A-QSA NVIDIA DynamiX QSA™, QSFP+ to SFP+ Adapter Product Specifications

Introduction

NVIDIA® DynamiX QSA™, QSFP+ to SFP+ adapter, enables smooth, cost effective connections between a single lane transceiver/cable and a quad lane port. The QSA provides the option to connect an SFP+/SFP transceiver or cable to a QSFP+ port of a Nx40GbE switch or network interface card (NIC).

The QSA should be installed into a QSFP+ port and is intended to either connect a switch QSFP+ port to a NIC SFP port or connect a NIC QSFP+ port to a switch SFP port. For example, an SFP-based cable can be connected to 40GbE ConnectX®-3 NIC and to the 48 x 10GbE SX1012 Ethernet switch. The QSA conforms to the SFF-8418/8419 for the SFP side and to SFF-8436 for the QSFP+ standards and is thoroughly tested to meet strict quality requirements. The adapter has a QSFP+ form factor with a receptacle for SFP+ transceiver/AOC/DAC connector. The QSA provides a solution for integrating systems using different vendors’ equipment, it is vendor agnostic and provides a direct path to the SFP unit’s memory. The QSA interoperates with all major optical module and direct attach copper cables vendors.

Its design assures minimum loss on the conversion path between the QSFP+ cage and the SFP receptacle. The RF (high speed data) channel of the SFP receptacle is connected to lane 1 of the QSFP+ connector. The 3 remaining RF channels on the QSFP+ connector are not connected. The QSA is qualified for 10GbE SFP+ and 1GbE SFP transceivers meeting the Small Form Factor Pluggable (SFP)
Transceiver Multi-source Agreement (MSA).

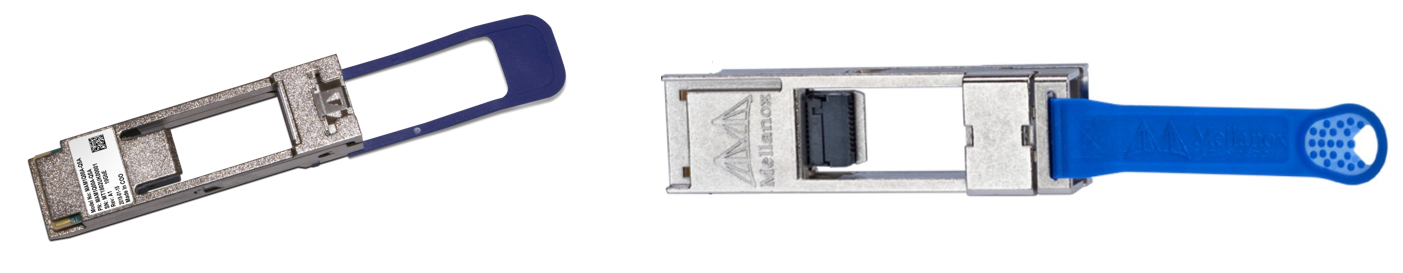

Option 1 Option 2

Warning

Images are for illustration purposes only. Product labels, colors, and lengths may vary.

Key Features

  • Industry-leading price and performance

  • Trouble-free installation and network bring-up

  • Compliant to industry standards

    • QSFP+ MSA SFF-8436

    • SFP+ MSA SFF-8418/8419

  • Low insertion loss

  • Registered US patent 7,934,959

  • Matched impedance

  • Secure latching mechanism

  • RoHS compliant
