Introduction
NVIDIA® MCA4K50 is a 1600Gb/s OSFP (Octal Small Formfactor Pluggable) to 1600 Gb/s OSFP Active Copper Cable which comes in IHS to IHS (Integrated Heat Sink) form factor for connecting Quantom 3 XDR switches.
Using the Octal Small Formfactor Plug (OSFP) and containing eight high-speed electrical copper pairs, each operating at data rates of up to 200Gb/s. The cable firmware supports InfiniBand XDR.
NVIDIA’s cable solutions provide power-efficient connectivity enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.

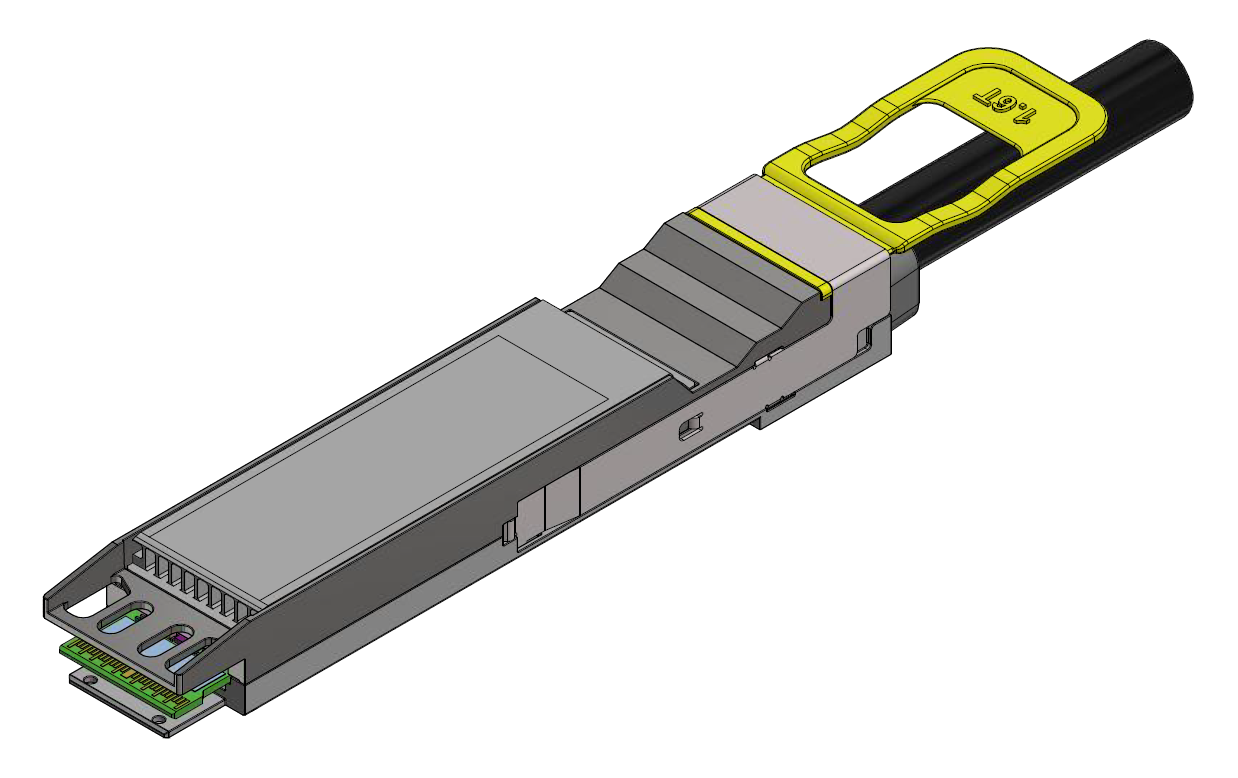

IHS to IHS
Images are for illustration purposes only. Product labels, colors, and lengths may vary.
Key Features
1600Gb/s data rate
Based on 8-channels of 200G-PAM4 modulation
SFF-8665 compliant
Operating case temperature 0-70°C
Max power consumption 27 Watt
Single 3.3V supply voltage
Hot pluggable
RoHS compliant
LSZH (Low Smoke Zero Halogen) jacket
OSFPxmsa.org based
SFF-8636 compliant I2C management interface
Applications
1600Gb/s XDR switch to switch
