Introduction
NVIDIA® MCP7F60-W0xxRyy DAC (Direct Attach Copper) splitter cables are a high speed, cost-effective 400GbE QSFP-DD to 4 x 100GbE QSFP56 Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.
The MCP7F60 cables provide connectivity between system units with a QSFP-DD port on one side and up to 4 different QSFP56 ports on the other. These cables connect the data signals from each of the 4 dual copper pairs (pair 1&2, 3&4, 5&6, 7&8) on the single QSFP-DD end to the dual copper pair of each of the QSFP56 ends (pair 1&2) on the multiport side. Each of the ports comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA’s unique-quality cable solutions provide power-efficient connectivity for short distance interconnects, enabling higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.
![image2021-7-27_15-50-14.png](https://docscontent.nvidia.com/dims4/default/0655bd4/2147483647/strip/true/crop/343x246+0+0/resize/343x246!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018a-5b5e-d88c-afbe-df5e90f60000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F58765112%2Fimage2021-7-27_15-50-14.png)

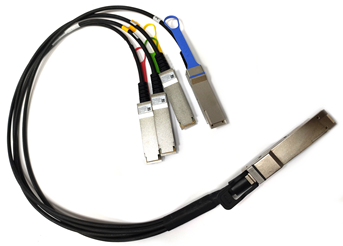

Images are for illustration purposes only. Product labels, colors, and form may vary.
Key Features
400GbE to 4x100GbE data rate
SFF-8636 compliant I2C management interface
Operating case temperature of 0-70°C
Hot pluggable
RoHS compliant
LSZH (Low Smoke Zero Halogen) jacket
LF (Lead Free) HF (Halogen Free) PCB
Applications
Supports 400GbE and 100GbE data rates
