Introduction
The NVIDIA MFP7E40-Nxxx, is a single mode, 4-channel-to-two 2-channel splitter fiber cable. It uses 8 active fibers to transmit light and 4 inactive fibers used as strength members enabled by the Multiple-Push-On, 12 fiber, Angled-Polished-Connectors (MPO-12/APC) optical connectors. The Angled Polished Connector has a 7-degree polish angle to deflect internal optical back reflections from entering the transceiver and distorting the signal quality.
The 4-channel end is inserted into a Twin port OSFP, 800Gb/s transceiver. The 2-channel ends are inserted into two, single port 400Gb/s OSFP and/or QSFP112 transceivers which with only 2 fibers results in 200G rates. Two splitter fiber cables are used in the Twin port OSFP transceiver enabling four, 2-channel ends to four transceivers.
The fibers are “crossover”, Type-B cables enabling directly attaching two transceivers together and aligning the transmit laser fiber on pin 1 to “crosses over” to align with pin 12 of the opposite fiber end transceiver photodetector.
Typically use is linking OSFP switches to in ConnectX-7® network adapters and/or BlueField-3® Data Processing Units (DPUs) in compute and storage servers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability. Mellanox optical solutions provide short, medium, and long reach scalability for all topologies, utilizing innovative optical technologies to enable high signal integrity and reliability.

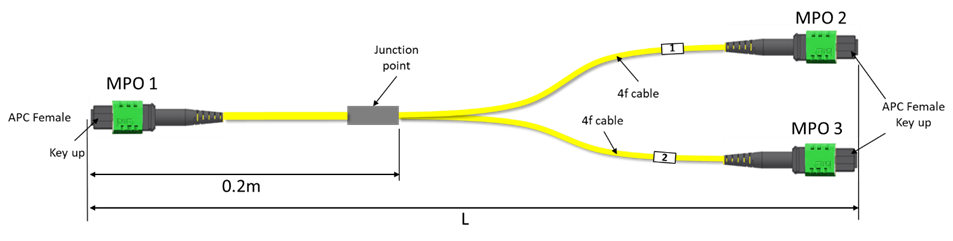

![image2023-9-8_15-9-58.png](https://docscontent.nvidia.com/dims4/default/0a76ddd/2147483647/strip/true/crop/953x241+0+0/resize/953x241!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018b-16cb-d788-a5ff-97cfda340000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F138809300%2Fimage2023-9-8_15-9-58.png)
Images are for illustration purposes only. Product labels, colors, and lengths may vary.
Key Features
Flexible round outer jacket for easier installation/routing
Push-pull latching for quick release
NVIDIA Green connector shell denoting MPO/APC
Female-to-Female connectors
9/125 µm Single Mode fibers
Yellow color cable jacket
Up to 50 m reach
Telcordia GR-1435 compliant
IEC Standard Connectors:
MPO: IEC 61754-7 and ANSI/TIA/EIA 604-5-199
OFNR/LSZH (low smoke zero halogen) jacket
Supports InfiniBand, Ethernet and NVLink protocols
Use with 400G OSFP or QSFP112 transceivers to achieve 200Gb/s using 2 fibers
Applications
Optical short-reach high speed links in data centers
Sever/storage links to switches
