Introduction
NVIDIA® MFS1S00 is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s Ethernet (200GbE) systems.
The MFS1S00 AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.
The MFS1S00 has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 50Gb/s.
The MFS1S00 offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gb/s rates.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
NVIDIA’s unique-quality cable solutions provide power-efficient connectivity for data center interconnects. It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.
![image2021-8-22_11-5-44.png](https://docscontent.nvidia.com/dims4/default/bbf22e8/2147483647/strip/true/crop/422x334+0+0/resize/422x334!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F00000187-94ca-d3c2-a7af-9fde628e0000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F58765221%2Fimage2021-8-22_11-5-44.png)

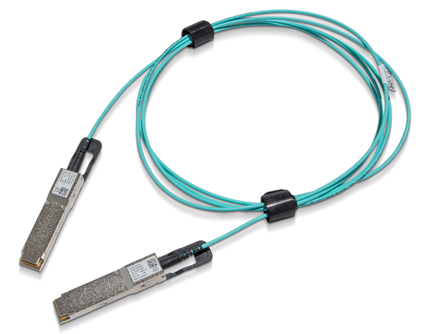

Images are for illustration purposes only. Product labels, colors, and lengths may vary.
Key Features
200GbE data rate
4x 50Gb/s PAM4 modulation
Programmable Rx output amplitude and pre-emphasis
SFF-8665 compliant QSFP56 port
QSFP56 Power class 7
Single 3.3V power supply
4.35W power consumption (typ., each end, with retiming)
Up to 100m length
Hot pluggable
RoHS compliant
SFF-8636 compliant I2C management interface
