Introduction

NVIDIA® MMA1B00-B150D is a 4-channel, pluggable, QSFP+ VCSEL-based (Vertical Cavity Surface Emitting Laser) optical transceiver, designed for use in 40Gb/s Ethernet (40GbE) networks operating at 4x10.3125Gb/s. This transceiver incorporates Mellanox integrated circuit technology, which combines high performance at low power. The transceiver operates over parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is SFF-8436 compliant.

The MMA1B00-B150D transceiver has a standard QSFP+ connector on the electrical side towards the host system for power, control/monitoring and high-speed data. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel MMF cable via a standard MPO connector. The transceiver can operate 10.3125Gb/s without retiming.

The transceiver provides digital diagnostic monitoring of supply voltage, temperature, transmit/receive power, and VCSEL bias.

Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.


Warning

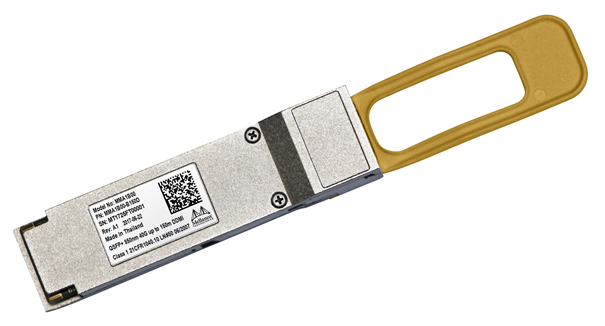

Images are for illustration purposes only. Product labels and colors may vary.

Key Features

  • 40GbE (4x10GbE) Ethernet

  • Programmable Tx input equalizer

  • Programmable Rx output amplitude

  • Programmable Rx output emphasis

  • SFF-8436 compliant QSFP+

  • Single 3.3V supply

  • QSFP+ power class 1

  • Class 1 laser safety

  • Up to 150m on OM4 and 100m on OM3 multi-mode fiber

  • Digital diagnostic monitoring (DDM)

  • Hot pluggable

  • RoHS compliant

  • IEEE 802.3 40GBASE-SR4 compliant

  • SFF-8436 compliant I2C management interface
