Recommended NVIDIA Supplied Crossover Fiber Cables Part Numbers
Single-mode, Straight Crossover Fibers
OPN | 4-channel MPO/APC to 4-channel MPO/APC |
MFP7E30-N001 | 1m |
MFP7E30-N002 | 2m |
MFP7E30-N003 | 3m |
MFP7E30-N005 | 5m |
MFP7E30-N007 | 7m |
MFP7E30-N010 | 10m |
MFP7E30-N015 | 15m |
MFP7E30-N020 | 20m |
MFP7E30-N030 | 30m |
MFP7E30-N050 | 50m |
MFP7E30-N060 | 60m |
MFP7E30-N070 | 70m |
MFP7E30-N100 | 100m |
Note
Lengths beyond 100-meters is not offered but available from third-party suppliers

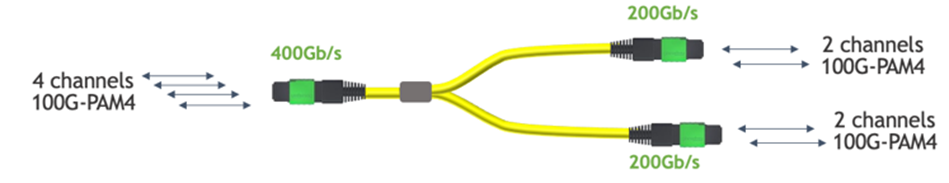

Single-mode, 1:2 Splitter Crossover Fibers
OPN | 4-channel MPO/APC to Two 2-channel MPO/APC |
MFP7E40-N003 | 3m |
MFP7E40-N005 | 5m |
MFP7E40-N007 | 7m |
MFP7E40-N010 | 10m |
MFP7E40-N015 | 15m |
MFP7E40-N020 | 20m |
MFP7E40-N030 | 30m |
MFP7E40-N050 | 50m |
