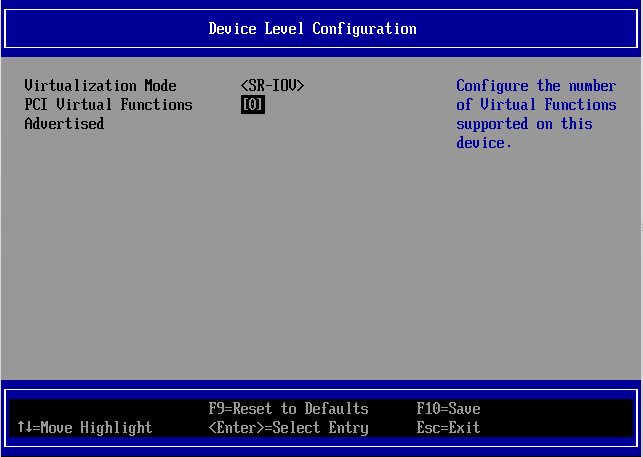

Virtualization Mode
| Location: | Main Configuration Form /Device Level Configuration |
|---|---|
| Description: | Specifies the type of virtualization used by the controller on all ports. Only valid for adapters that support SR-IOV virtualization mode. |
| Configurable: | Yes – built-in options |
| Persistency: | Persistent through AC cycle |
| Reboot required: | Yes – reboot is needed in order for this change to apply |
| Available options: | 1 - None 2 - SR-IOV |
PCI Virtual Functions Advertised
| Location: | Main Configuration Form /Device Level Configuration |
|---|---|
| Description: | The number of virtual functions advertised and usable by the driver. Only valid for adapters that support SR-IOV virtualization mode. |
| Configurable: | Yes – via input – If virtualization mode is SR-IOV |
| Persistency: | Persistent through AC cycle |
| Reboot required: | Yes – reboot is needed in order for this change to apply |
| Value restrictions: | Minimum integer value is 0. Maximum integer value is the value supported by the firmware installed. |
