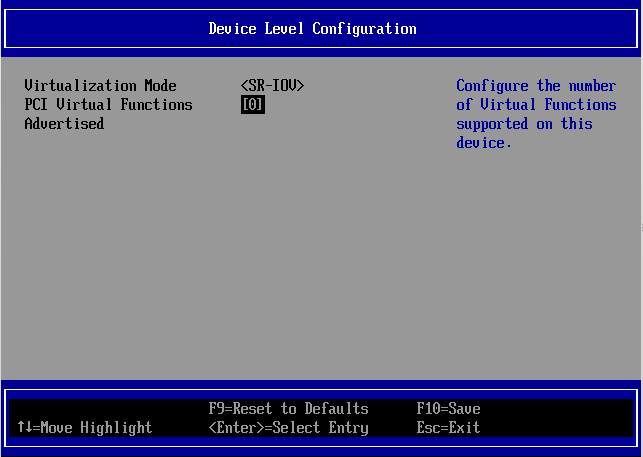

In the following menu, you can set the following options:
![worddav1d90e711f5033c8383f41b673e4ea6e4.png](https://docscontent.nvidia.com/dims4/default/d7d33dd/2147483647/strip/true/crop/643x457+0+0/resize/643x457!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018b-1fe9-dec8-ad8b-bfef62420000%2Fimages%2Fnetworking%2Fdownload%2Fattachments%2F106008057%2Fworddav1d90e711f5033c8383f41b673e4ea6e4.png)
Location: |
Main Configuration Form /Device Level Configuration |
Description: |
Specifies the type of virtualization used by the controller on all ports. Only valid for adapters that support SR-IOV virtualization mode. |
Configurable: |
Yes – built-in options |
Persistency: |
Persistent through AC cycle |
Reboot required: |
Yes – reboot is needed in order for this change to apply |
Available options: |
1 - None 2 - SR-IOV |
Location: |
Main Configuration Form /Device Level Configuration |
Description: |
The number of virtual functions advertised and usable by the driver. Only valid for adapters that support SR-IOV virtualization mode. |
Configurable: |
Yes – via input – If virtualization mode is SR-IOV |
Persistency: |
Persistent through AC cycle |
Reboot required: |
Yes – reboot is needed in order for this change to apply |
Value restrictions: |
Minimum integer value is 0. Maximum integer value is the value supported by the firmware installed. |
