SN2201_M Tool-Less 4-Post Mounting Rail Kit
The SN2201_M includes a tool-less rail kit that is compatible with 19-inch MGX racks.
Kit Part Number | Kit Legacy Part Number | Rack Dimensions |
930-9NRKT-00JS-001 | MTEF-KIT-MX-TL | 19” Rack mount 90” (H) x 23.6” (W) x 42” (D) 2285mm (H) x 600mm (W) x 1068mm (D) |

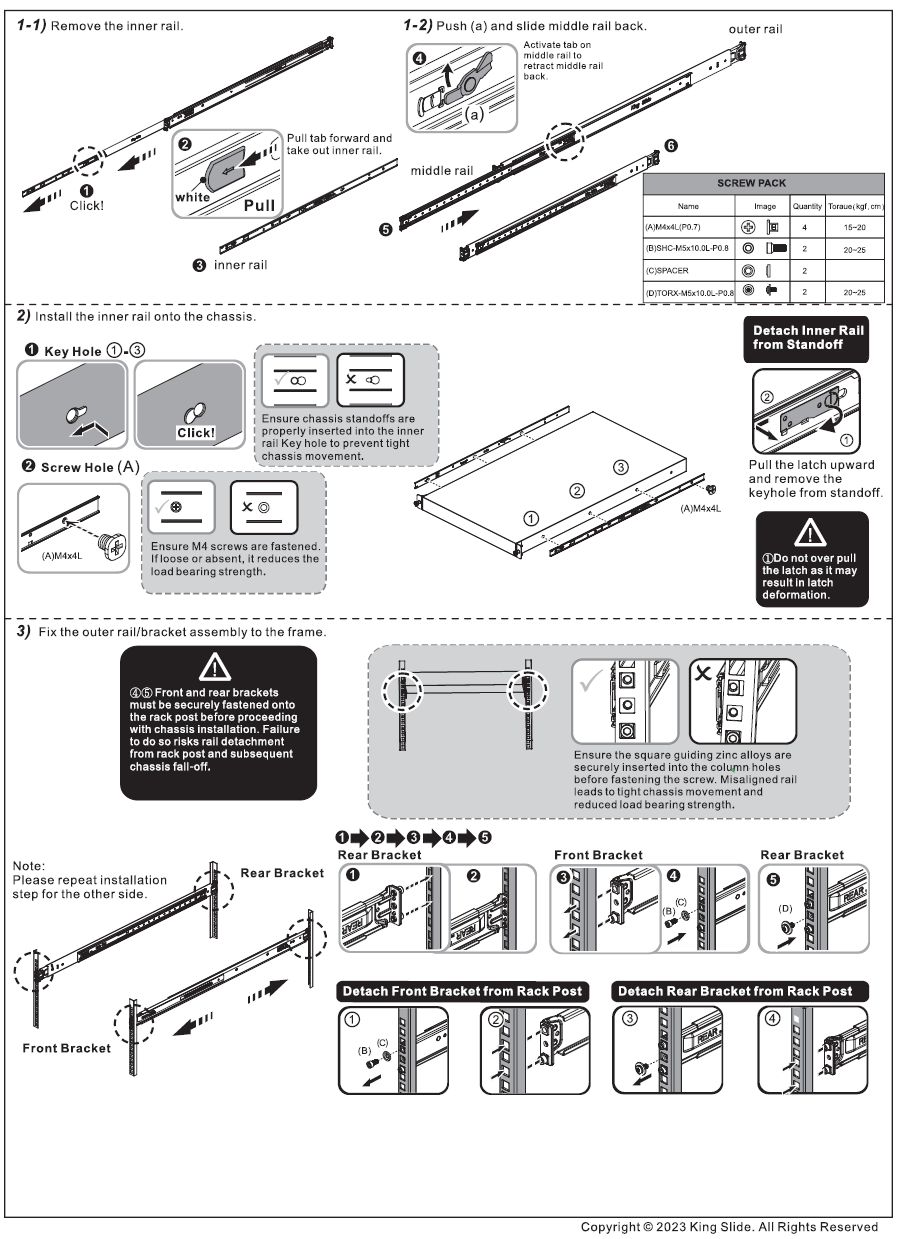

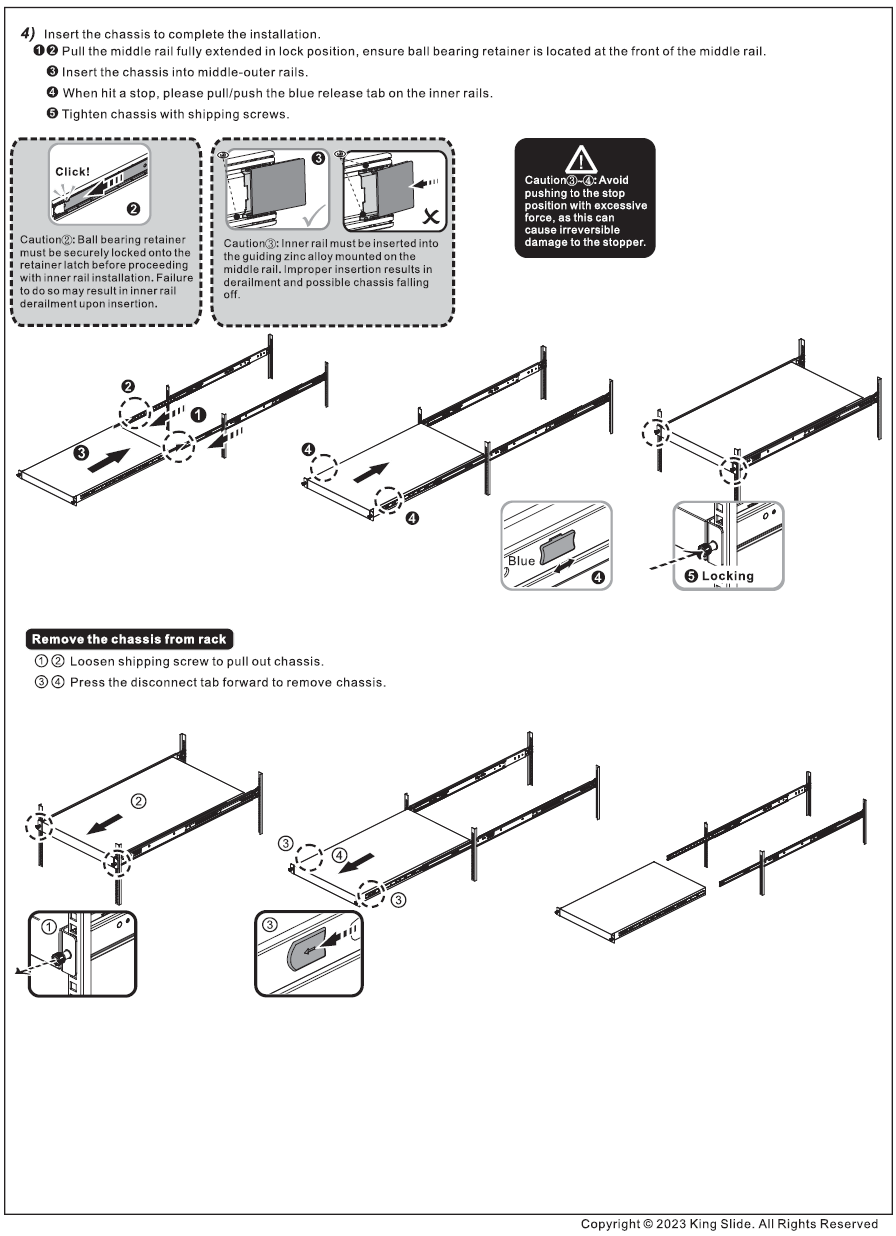

The following instructions have been prepared and provided with express permission from King Slide.
