NVIDIA BlueField-2 BF2500 InfiniBand/Ethernet DPU Controller User Manual
NVIDIA BlueField-2 BF2500 InfiniBand_Ethernet DPU Controller User Manual

Specifications

Important

Ensure your system can support 75W or greater system power supply through the PCIe x16 interface and an additional 75W through the supplementary 6-pin ATX power supply connector

Physical

Form Factor: FHHL
Dimensions: 167.65mm x 11.15mm (6.6in. x 4.37in.)

Connector: Dual Ethernet QSFP56 (copper and optical)

Protocol Support

InfiniBand: IBTA v1.3a

Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane)

Ethernet: 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 56GBASE-R4, 550G Ethernet Consortium, 40GBASE-CR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 25GBASE-CR/CR-S, 25GBASE-SR, 25GBASE-LR, 25G Ethernet Consortium, 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-CX4, SGMII, 1000BASE-X

Data Rate

InfiniBand

SDR/DDR/QDR/FDR/EDR/HDR100/HDR

Ethernet

1/10/25/40/50/100 Gb/s

PCI Express Gen 3.0 / 4.0: SERDES @ 8.0GT/s / 16GT/s, 16 lanes (2.0 and 1.1 compatible)

Power

Voltage: 12V

Maximum power available through QSFP56 port: 5W

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Ca

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety: CB / cTUVus / CE

EMC: CE / FCC / VCCI / ICES / RCM

RoHS: RoHS Compliant

a. The non-operational storage temperature specifications apply to the product without its package.

Physical

Form Factor: FHHL
Dimensions: 167.65mm x 11.15mm (6.6in. x 4.37in.)

Connector: Dual Ethernet QSFP56 (copper and optical)

Protocol Support

InfiniBand: IBTA v1.3a

Auto-Negotiation: 1X/2X/4X SDR (2.5Gb/s per lane), DDR (5Gb/s per lane), QDR (10Gb/s per lane), FDR10 (10.3125Gb/s per lane), FDR (14.0625Gb/s per lane), EDR (25Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), HDR (50Gb/s per lane) port

Ethernet: 200GBASE-CR4, 200GBASE-KR4, 200GBASE-SR4, 100GBASE-CR4, 100GBASE-KR4, 100GBASE-SR4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-KX4, 10GBASE-CR, 10GBASE-KR, SGMII, 1000BASE-CX, 1000BASE-KX, 10GBASE-SR

Data Rate

InfiniBand

SDR/DDR/QDR/FDR/EDR/HDR100/HDR

Ethernet

1/10/25/40/50/100/200 Gb/s

PCI Express Gen 3.0 / 4.0: SERDES @ 8.0GT/s / 16GT/s, 16 lanes (2.0 and 1.1 compatible)

Power

Voltage: 12V

Maximum power available through QSFP56 port: 5W

Environmental

Temperature

Operational

0°C to 55°C

Non-operational

-40°C to 70°Ca

Humidity

Operational

10% to 85% relative humidity

Non-operational

10% to 90% relative humidity

Regulatory

Safety: CB / cTUVus / CE

EMC: CE / FCC / VCCI / ICES / RCM

RoHS: RoHS Compliant

a. The non-operational storage temperature specifications apply to the product without its package

Warning

All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.

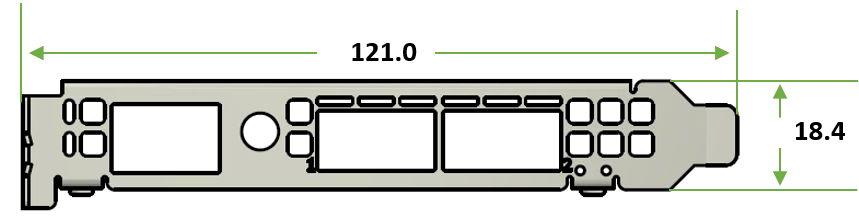

Bracket Mechanical Drawing and Dimensions
