BMC supports configuring the NVIDIA® BlueField®'s BIOS using Redfish commands.

BIOS Configuration Schema

The BIOS schema includes properties associated with the BIOS attribute registry, which defines system-specific BIOS attributes and the actions needed to modify BIOS settings. If the @Redfish.Settings term is present in this resource, a client can use it to request changes to the BIOS settings by updating the resource identified by the @Redfish.Settings annotation.

Getting BIOS Attributes List

Info

After running factory reset, the BIOS configuration attributes list is updated only after rebooting the BlueField as the list gets its values from UEFI as BlueField is booting and Redfish is enabled.

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/Registries/BiosAttributeRegistry/BiosAttributeRegistry

Output example:

Info

In the following output, there is only one BIOS attribute, UefiPassword.

Copy
Copied!


            {
  "@Redfish.Settings": {
    "@odata.type": "#Settings.v1_3_5.Settings",
    "SettingsObject": {
      "@odata.id": "/redfish/v1/Systems/Bluefield/Bios/Settings"
    }
  },
  "@odata.id": "/redfish/v1/Systems/Bluefield/Bios",
  "@odata.type": "#Bios.v1_2_0.Bios",
  "Actions": {
    "#Bios.ChangePassword": {
      "target": "/redfish/v1/Systems/Bluefield/Bios/Actions/Bios.ChangePassword"
    },
    "#Bios.ResetBios": {
      "target": "/redfish/v1/Systems/Bluefield/Bios/Actions/Bios.ResetBios"
    }
  },
  "Attributes": {
    "BootPartitionProtection": false,
    "CeThreshold": 5000,
    "CurrentUefiPassword": "",
    "DateTime": "2024-10-17T19:47:04Z",
    "DefaultPasswordPolicy": true,
    "DisableHEST": false,
    "DisableI2c1": false,
    "DisablePCIe": false,
    "DisableSPMI": false,
    "DisableTMFF": false,
    "EmmcWipe": false,
    "Enable2ndeMMC": false,
    "EnableDdr5600": false,
    "EnableOPTEE": false,
    "EnableSMMU": true,
    "FieldMode": false,
    "ForcePxeRetryDisable": false,
    "HostPrivilegeLevel": "Restricted",
    "InternalCPUModel": "Embedded",
    "L3CachePartitionLevel": 0,
    "LegacyPasswordEnable": false,
    "NicMode": "DpuMode",
    "NvmeWipe": false,
    "OsArgs": "",
    "ResetEfiVars": false,
    "SPCR_UART": "Disabled",
    "UefiArgs": "",
    "UefiPassword": ""
  },
  "Description": "BIOS Configuration Service",
  "Id": "BIOS",
  "Links": {
    "SoftwareImages": [
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_ATF"
      },
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_BOARD"
      },
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_BSP"
      },
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_NIC"
      },
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_NODE"
      },
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_OFED"
      },
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_OS"
      },
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_SYS_IMAGE"
      },
      {
        "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_UEFI"
      }
    ],
    "SoftwareImages@odata.count": 9
  },
  "Name": "BIOS Configuration",
  "ResetBiosToDefaultsPending": false
}

Info

For information on each of the attributes listed in output, please refer to section "System Configuration" in the UEFI Menu page of the NVIDIA BlueField BSP manual.

Getting Current BIOS Attributes Value

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/Bios/

Output example:

Info

The current value of UefiPassword is an empty string.

Copy
Copied!


            {
 "@Redfish.Settings": {
   "@odata.type": "#Settings.v1_3_5.Settings",
   "SettingsObject": {
     "@odata.id": "/redfish/v1/Systems/Bluefield/Bios/Settings"
   }
 },
 "@odata.id": "/redfish/v1/Systems/Bluefield/Bios",
 "@odata.type": "#Bios.v1_2_0.Bios",
 ...
 "Attributes": {
   "UefiPassword": ""
 },
 "Description": "BIOS Configuration Service",
 "Id": "BIOS",
 "Name": "BIOS Configuration",
 ...
}

Changing BIOS Attributes Value

Follow this command template to request changing BIOS attribute values:

Copy
Copied!


            curl -k -u root:'<password>' -X PATCH https://<bmc_ip>/redfish/v1/Systems/Bluefield/Bios/Settings -d '{Attributes:{<attribute-name> : <attribute-value>}}'

At the next boot cycle of the BlueField, the UEFI changes the requested attribute if the requested value is valid.

Getting Pending BIOS Attribute Values

Copy
Copied!


            curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/Bios/Settings

Pending values are a list of values that that user has requested to change. The list of pending values is purged once the UEFI changes the pending attributes.

Output example:

Info

UefiPassword appears in the pending attributes list.

Copy
Copied!


            {
 "@odata.id": "/redfish/v1/Systems/Bluefield/Bios/Settings",
 "@odata.type": "#Bios.v1_2_0.Bios",
 "Attributes": {
   "UefiPassword": "NewPassword123"
 },
 "Description": "BIOS Settings",
 "Id": "BIOS_Settings",
 "Name": "BIOS Configuration"
}

Info

The active BIOS attribute list is updated only after the UEFI approves the changes during the next reboot cycle.

BIOS Configuration Examples

Changing Default UEFI Password Using Redfish

Look for the "Attributes" property to make sure the UEFI version being used has all the necessary attributes. See section "Get BIOS Attributes List" for instructions.

Perform PATCH to BIOS pending settings URI as follows:

Copy
Copied!


            curl -k -u root:<password> -X PATCH -H "Content-Type: application/json" https://<bmc_ip>/redfish/v1/Systems/Bluefield/Bios/Settings -d '{"Attributes":{"CurrentUefiPassword":"CurrentPassword","UefiPassword":"NewPassword321"}}'

Reboot BlueField using the Redfish System schema over 1GbE OOB to the BlueField BMC. See section "Reset Control" for instructions.
If CurrentUefiPassword is correct, then the UEFI password is updated during the UEFI Redfish phase of the boot.

BIOS CA Certificates

Viewing Currently Installed BIOS CA Certificates

Warning

The certificates installed on the UEFI may differ from the certificate presented on the BlueField BMC. This discrepancy arises from a distinct certificate validation processed implemented in the UEFI and BlueField BMC.

Trigger the following GET request to view the content of the system's Truststore:

Copy
Copied!


            curl -k -u root:<password> -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates

For example, the following is the response when there are two certificates installed:

Copy
Copied!


            {
  "@Redfish.SupportedCertificates": [
    "PEM"
  ],
  "@odata.id": "/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates",
  "@odata.type": "#CertificateCollection.CertificateCollection",
  "Members": [
    {
      "@odata.id": "/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates/1"
    },
    {
      "@odata.id": "/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates/2"
    }
  ],
  "Members@odata.count": 2,
  "Name": "TruststoreBios Certificate Collection"
}

Trigger the following GET request to view the details of a specific certificate:

Copy
Copied!


            curl -k -u root:<password> -X GET https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates/<cert_num>

For example:

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/Systems/Bluefield/Boot/Certificates/1",
  "@odata.type": "#Certificate.v1_7_0.Certificate",
  "CertificateString": "<cert_str>",
  "CertificateType": "PEM",
  "Id": "1",
  "Issuer": {
    "City": "Santa Clara",
    "CommonName": "Kg639IcpJtYMRzvh.nvidia",
    "Country": "US",
    "Organization": "NVIDIA",
    "OrganizationalUnit": "NBU",
    "State": "California"
  },
  "KeyUsage": [
    "CRLSigning"
  ],
  "Name": "TruststoreBios Certificate",
  "Subject": {
    "City": "Santa Clara",
    "CommonName": "Kg639IcpJtYMRzvh.nvidia",
    "Country": "US",
    "Organization": "NVIDIA",
    "OrganizationalUnit": "NBU",
    "State": "California"
  },
  "UefiSignatureOwner": "<UEFI_Owner>",
  "ValidNotAfter": "2043-01-01T00:00:00+00:00",
  "ValidNotBefore": "2023-01-01T00:00:00+00:00"
}

BIOS CA Certificates Collection Operations

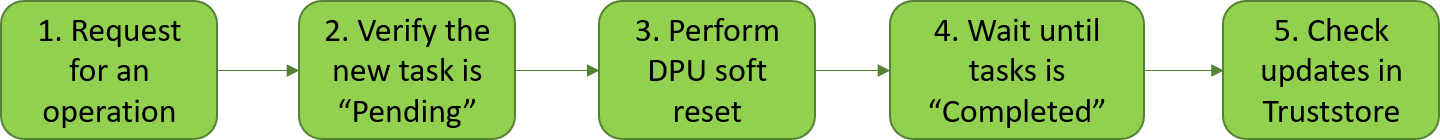

Request for an operation:
- To install a certificate, trigger the following POST request which contains the certificate string and type in JSON format:

  Note

  The BMC certificate must be replaced with a CA signed certificate before installing new CA certificates, and after BMC factory reset. See section "Example for CSR Generation, Certificate Creation and Replacement" for instructions.

  Warning

  If an invalid certificate is installed, the BMC rejects it and does not display it. However, it is still accepted by the UEFI and it must be deleted manually through the UEFI menu.
  Copy

  Copied!
```

            curl -k -u root:<password> -X POST https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates -d @CAcert.json

```
  The content of CAcert.json must be {"CertificateString": "<cert_string>", "CertificateType": "<cert_type>"}. Where:

- - cert_string – certification string which starts with -----BEGIN CERTIFICATE-----\n and ends with -----END CERTIFICATE-----\n.

    Note

    The "\n" at the end are mandatory.
  - cert_type – certification type. Only "PEM" is supported.

To delete a CA certificate, trigger the following DELETE request with the CA certificate URI that should be deleted, this only delete it from the BMC trust store:

Copy
Copied!


            curl -k -u root:<password> -H "Content-Type: application/json" -X DELETE https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Truststore/Certificates/<cert_num>

To reset all certificates in the Truststore, trigger the following TruststoreCertificates.ResetKeys action with the DeleteAllKeys option:

Copy
Copied!


            curl -k -u root:<password> -H "Content-Type: application/json" -X POST https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Actions/TruststoreCertificates.ResetKeys -d '{"ResetKeysType":"DeleteAllKeys"}'

Verify the new task is Pending:

The responses of these requests indicate the creation of a new task for the UEFI:

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/TaskService/Tasks/<task_id>",
  "@odata.type": "#Task.v1_4_3.Task",
  "Id": "<task_id>",
  "TaskState": "Pending",
  "TaskStatus": "OK"
}

Perform BlueField soft reset in order for the UEFI to start handling the pending tasks:

Copy
Copied!


            curl -k -u root:<password> -H "Content-Type: application/json" -X POST https://<bmc_ip>/redfish/v1/Systems/Bluefield/Actions/ComputerSystem.Reset -d '{"ResetType" : "GracefulRestart"}'

Wait until task is Completed.

The task details and status can be checked using the following GET request:

Copy
Copied!


            curl -k -u root:<password> -H "Content-Type: application/json" -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/<task_id>

The task status can be either:

Pending – Initial state.
Copy

Copied!
```

            {
  "@odata.id": "/redfish/v1/TaskService/Tasks/<task_id>",
  "@odata.type": "#Task.v1_4_3.Task",
  ...
  "PercentComplete": 0,
  ...
  "TaskState": "Pending",
  "TaskStatus": "OK"
}

```
If the task remains in a "Pending" state after BlueField reset completes, please check the UEFI-BMC communication.
If a communication failure occurs, consider either:
- Replacing the BMC certificate with one signed by a CA whose certificate was installed and resetting BlueField
- Removing all CA certificates from the UEFI menu

Completed – Finished state.

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/TaskService/Tasks/<task_id>",
  "@odata.type": "#Task.v1_4_3.Task",
  ...
  "PercentComplete": 100,
  ...
  "TaskState": "Completed",
  "TaskStatus": "OK"
}

Exception – Failure state.

Copy
Copied!


            {
  "@odata.id": "/redfish/v1/TaskService/Tasks/<task_id>",
  "@odata.type": "#Task.v1_4_3.Task",
  ...
  "PercentComplete": 0,
  ...
  "TaskState": "Exception",
  "TaskStatus": "OK"
}

In this case, verify that the certificate is valid.

Check updates in Truststore. See section "Viewing Currently Installed BIOS CA Certificates" for details.

BIOS Attributes

For a full list of the BIOS attributes, please refer to the "Redfish" section of the NVIDIA BlueField BSP documentation.

BIOS Debug Mode

BIOS debug mode allows users to view the UEFI debug logs when the BlueField Arm OS is booting up.

To enable the logs, run:

Copy
Copied!


            ipmitool raw 0x3e 0x24 0x1

Returns 01 if successful.

To disable debug mode, run:

Copy
Copied!


            ipmitool raw 0x3e 0x24 0x0

Returns 00 if successful.

To query the current applied mode, run:
Copy

Copied!
```

            ipmitool raw 0x3e 0x24 0x2

```
Returns:
- 00 – Normal (default) mode
- 01 – Debug mode

After setting your desired mode, reset the BlueField Arm OS to view the logs.

Power cycling the system or hard resetting the BlueField SoC resets the BIOS mode value back to its default normal mode.
