Installation for DPU Mode

Contents:

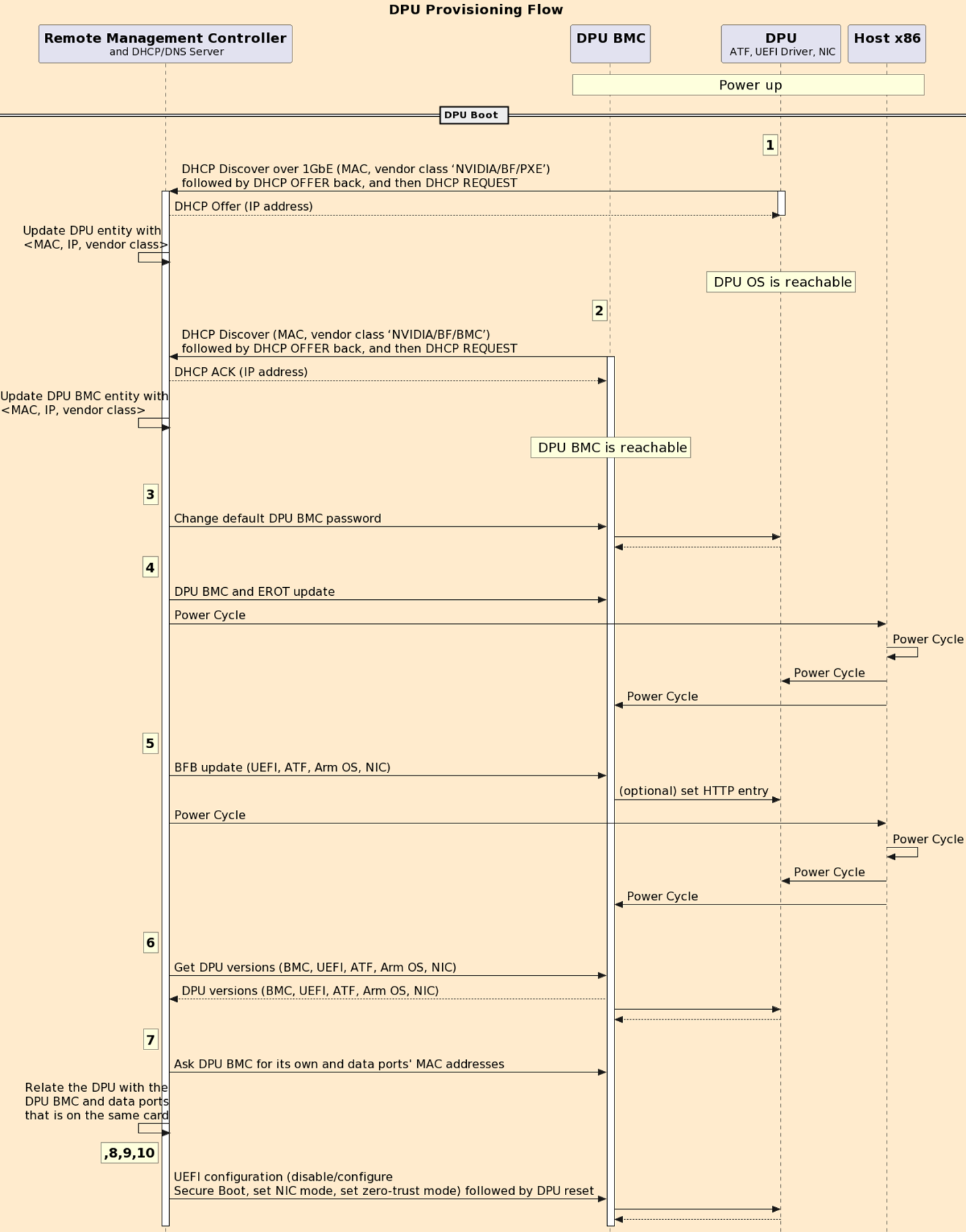

The following diagram illustrates the sequence of events and actions from first time power-up of the NVIDIA® BlueField® networking platform (DPU or SuperNIC) in the data center environment through provisioning and maintenance.

At the end of this procedure, the BlueField should be configured with an IP address, all required settings, has up-to-date software component versions, and is ready to use.

The BlueField SoC boots to the UEFI BIOS and DHCP DISCOVER is sent

1. BlueField SoC runs UEFI/PXE which sends a DHCP DISCOVER over the 1GbE OOB interface, including vendor class ("NVIDIA/BF/PXE") for BlueField SoC (to allow customer's server to differentiate between BlueField SoC and BlueField BMC), and MAC for identification and discovery. See Appendix B for more information.

2. A customer's DHCP server inspects the MAC address and the vendor class, allocates IP, and continues the standard DHCP.

3. DHCP server updates RMC of the new BlueField discovered with detailed information (e.g., MAC, IP address, vendor class).

BlueField BMC issues DHCP DISCOVER over the 1GbE OOB interface, including vendor class ("NVIDIA/BF/BMC") for BlueField-BMC, and MAC for identification and discovery. Example of BlueField BMC DHCP DISCOVER packet structure (note "NVIDIA/BF/BMC" in line 13):




root@bf-bmc:~# 18:18:10.563269 IP (tos 0xc0, ttl 64, id 0, offset 0, flags [none], proto UDP (17), length 320)
0.0.0.0.bootpc > 255.255.255.255.bootps: [udp sum ok] BOOTP/DHCP, Request from b8:3f:d2:ca:4b:26 (oui Unknown), length 292, xid 0xfc2acdec, secs 1, Flags [none] (0x0000)
Client-Ethernet-Address b8:3f:d2:ab:cd:ef (oui Unknown)
Vendor-rfc1048 Extensions
Magic Cookie 0x63825363
DHCP-Message (53), length 1: Discover
Client-ID (61), length 7: ether b8:3f:d2:ab:cd:ef
Parameter-Request (55), length 9:
Subnet-Mask (1), Default-Gateway (3), Domain-Name-Server (6), Hostname (12)
Domain-Name (15), Static-Route (33), NTP (42), Unknown (120)
Classless-Static-Route (121)
MSZ (57), length 2: 576
Hostname (12), length 7: "bf-bmc" Vendor-Class (60), length 13: "NVIDIA/BF/BMC" END (255), length 0
18:18:10.565261 IP (tos 0x0, ttl 63, id 0, offset 0, flags [DF], proto UDP (17), length 353)
(example) dhcp01.XX.YY > ldev-platform-13-043-bmc.bootpc: [no cksum] BOOTP/DHCP, Reply, length 325, hops 1, xid 0xfc2acdec, secs 1, Flags [none] (0x0000)
(example) Your-IP ldev-platform-13-043-bmc.XX.YY
(example) Server-IP l-pxe02.XX.YY
Gateway-IP 10.237.0.255
Client-Ethernet-Address b8:3f:d2:ab:cd:ef (oui Unknown)
file "pxelinux.0" Vendor-rfc1048 Extensions
Magic Cookie 0x63825363
DHCP-Message (53), length 1: Offer
Server-ID (54), length 4: (example) dhcp01.XX.YY
Lease-Time (51), length 4: 43200
Subnet-Mask (1), length 4: 255.255.0.0
Default-Gateway (3), length 4
(example) GW.XX.YY
Hostname (12), length 24: "ldev-platform-13-043-bmc" Domain-Name (15), length 13: "<local domain name>" NTP (42), length 4: (example) NTP.XX.YY
END (255), length 0
18:18:10.565261 IP (tos 0x0, ttl 62, id 0, offset 0, flags [DF], proto UDP (17), length 353)
dhcp01.XX.YY > ldev-platform-13-043-bmc.<local domain name>: [no cksum] BOOTP/DH


1. DHCP server inspects the MAC address and the vendor class, allocates IP and continues the standard DHCP flow.

2. DHCP server updates RMC of the new BlueField BMC discovered with detailed information: MAC, IP address, vendor classes, etc.

To communicate with the BlueField BMC, change the default password (0penBmc) by sending the following Redfish schema to the BlueField BMC:




curl -k -u root:0penBmc -H "Content-Type: application/json" -X PATCH https://<BF-BMC-IP>/redfish/v1/AccountService/Accounts/root -d '{"Password" : "<user-password>"}'


Where <BF-BMC-IP> is the IP address for the BlueField BMC (e.g., 10.10.1.2), and <user-password> is the chosen password to log into the BlueField BMC with root privileges.

The BMC password must comply with the following policy parameters:

• Using ASCII and Unicode characters is permitted

• Minimum length: 12

• Maximum length: 20

• Maximum number of consecutive character pairs: 4

  Info

  Two characters are consecutive if |hex(char_1)-hex(char_2)|=1.

  Examples of passwords with 5 consecutive character pairs (invalid): DcBa123456AbCd!; ab1XbcYcdZdeGef!; Testing_123abcgh!.

The following is a valid example password:

• HelloNvidia3D!

For example:




[redfish_scripts] $ curl -k -u root:0penBmc -H "Content-Type: application/json" -X PATCH https://<BF-BMC-IP>/redfish/v1/AccountService/Accounts/root -d '{"Password" : "HelloNvidia3D!"}'
Response:
{
  "@Message.ExtendedInfo": [
    {
      "@odata.type": "#Message.v1_1_1.Message",
      "Message": "The request completed successfully.",
      "MessageArgs": [],
      "MessageId": "Base.1.15.0.Success",
      "MessageSeverity": "OK",
      "Resolution": "None"
    }
  ]
}


Upgrade BlueField BMC firmware via the Redfish "update service schema" through the 1GbE OOB.

• If a BlueField-2 is in your possession and it is the first time you are upgrading BlueField BMC, follow Appendix A.

• If a BlueField-3 is in your possession, follow the instructions in the following subsections

Update BMC Firmware

1. Run the following Redfish command over the 1GbE out-of-band interface on the BlueField BMC to trigger a secure BlueField BMC firmware update:

   Copy

   Copied!




   curl -k -u root:'<password>' -H "Content-Type: application/octet-stream" -X POST -T <package_path> https://<BF-BMC-IP>/redfish/v1/UpdateService/update


   Where:

   • <password> – BlueField BMC password

   • <package_path> – BMC firmware update package path pointing to BMC *.fwpkg binary (e.g., bf3-bmc-23.09-6_opn.fwpkg)

   • <BF-BMC-IP> – BMC IP address

     After pushing the image to the BlueField BMC, a new task is created. Example:

     Copy

     Copied!




     {
       "@odata.id": "/redfish/v1/TaskService/Tasks/0",
       "@odata.type": "#Task.v1_4_3.Task",
       "Id": "0",
       "TaskState": "Running"
     }


     Info

     BMC firmware update takes ~12 minutes.

2. To track the progress of the update, use the task Id received in the response above (i.e., 0) in your query and monitor the value of the task’s PercentComplete field:

   Copy

   Copied!




   curl -k -u root:'<password>' -X GET https://<BF-BMC-IP>/redfish/v1/TaskService/Tasks/<task_id> | jq -r ' .PercentComplete'


   Where:

   • <password> – BlueField BMC password

   • <BF-BMC-IP> – BMC IP address

   • <task_id> – task ID of the update process as received in the response under the Id value

     Example output:

     Copy

     Copied!




       % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current Dload  Upload   Total   Spent    Left  Speed
     100  2123  100  2123    0     0  38600      0 --:--:-- --:--:-- --:--:-- 37910
     20


     See PercentComplete is at 20 percent.

3. Proceed to the next step when the process reaches 100%.

Update eROT Firmware

1. Trigger a secure firmware update:

   Copy

   Copied!




   curl -k -u root:'<password>' -H "Content-Type: application/octet-stream" -X POST -T <package_path> https://<BF-BMC-IP>/redfish/v1/UpdateService/update


   Where:

   • <password> – BlueField BMC password

   • <package_path> – eROT firmware update package path pointing to eROT *.fwpkg binary (e.g. cec1736-ecfw-00.02.0127.0000-n02-rel-prod.fwpkg)

   • <BF-BMC-IP> – BMC IP address

     After initiating the eROT secure update, a new task is created. Example:

     Copy

     Copied!




     {
       "@odata.id": "/redfish/v1/TaskService/Tasks/0",
       "@odata.type": "#Task.v1_4_3.Task",
       "Id": "0",
       "TaskState": "Running"
     }


     Info

     eROT firmware update takes ~20 seconds.

2. To track the progress of the update, use the task Id received in the response above (i.e., 0) in your query and monitor the value of the task’s PercentComplete field:

   Copy

   Copied!




   curl -k -u root:'<password>' -X GET https://<BF-BMC-IP>/redfish/v1/TaskService/Tasks/<task_id> | jq -r ' .PercentComplete'


   Note

   Run this command several times until PercentComplete shows 100 before proceeding to other operations.

   Where:

   • <password> – BlueField BMC password

   • <BF-BMC-IP> – BMC IP address

   • <task_id> – task ID of the update process as received in the response under the Id value

Possible Error Codes During BMC/eROT Upgrade

Upgrade the BlueField firmware components (i.e., ATF, UEFI, NIC-firmware) and the BSP using the BFB image.

The BFB installation procedure consists of the following main stages:

1. Disabling RShim on the server.

2. Initiating the BFB update procedure by transferring the BFB image using one of the following options:

   • Redfish interface – SimpleUpdate with SCP, HTTP, or HTTPS

     1. Confirming the identity of the host and BMC—required only for SCP, during first-time setup or after BMC factory reset.

     2. Sending a SimpleUpdate request.

   • Direct SCP

3. Tracking the installation's progress and status.




# echo WITH_NIC_FW_UPDATE=yes > bf.cfg
# cat <path_to_bfb> bf.cfg > new.bfb


Transferring BFB File

Since the BFB is too large to store on the BMC flash or tmpfs, the image must be written to the RShim device. This can be done by either running SCP directly or using the Redfish interface.

Redfish Interface

Installing BFB File Using SCP Protocol

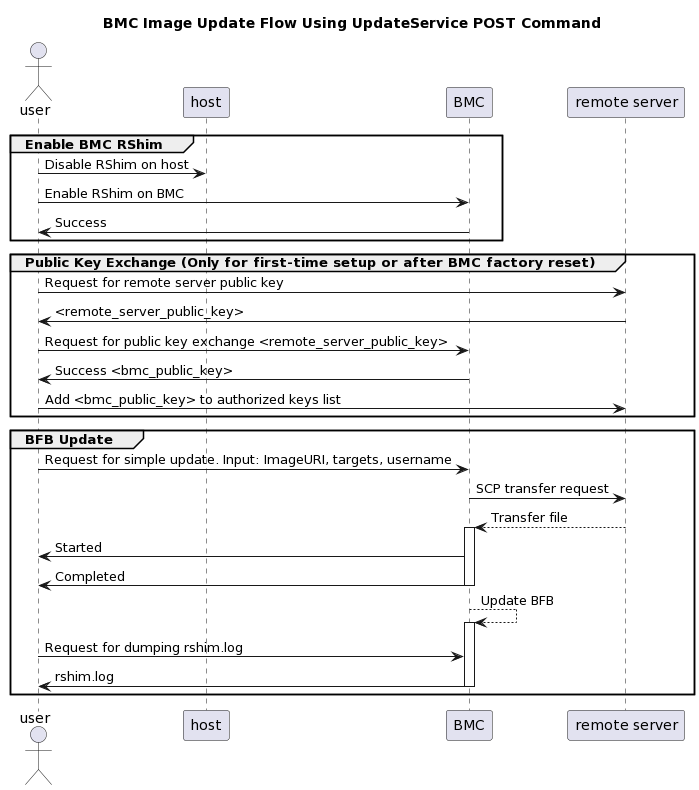

The following are the detailed instructions outlining each step in the diagram above:

1. Prepare secure file transfer of BFB:

   Note

   The following is an example for how to generate the server public key on Ubuntu 22.04 and it may be different on other OS distributions/versions.

   1. Gather the public SSH host keys of the server holding the new.bfb file. Run the following against the server holding the new.bfb file ("Remote Server"):

      Info

      OpenSSH is required for this step.

      Copy

      Copied!




      ssh-keyscan -t <key_type> <remote_server_ip>


      Where:

      • key_type – the type of key associated with the server storing the BFB file (e.g., ed25519)

      • remote_server_ip – the IP address of the server hosting the BFB file

   2. Retrieve the remote server's public key from the response, and send the following Redfish command to the BlueField BMC:

      Copy

      Copied!




      curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST -d '{"RemoteServerIP":"<remote_server_ip>", "RemoteServerKeyString":"<remote_server_public_key>"}' https://<bmc_ip>/redfish/v1/UpdateService/Actions/Oem/NvidiaUpdateService.PublicKeyExchange


      Where:

      • password – BlueField BMC password

      • remote_server_ip – the IP address of the server hosting the BFB file

      • remote_server_public_key – remote server's public key from the ssh-keyscan response, which contains both the type and the public key with one space between the two fields (i.e., "<type> <public_key>")

      • bmc_ip – BMC IP address

   3. Extract the BMC public key information (i.e., "<type> <bmc_public_key> <username>@<hostname>") from the PublicKeyExchange response and append it to the authorized_keys file on the remote server holding the BFB file. This enables password-less key-based authentication for users.

      Copy

      Copied!




      {
        "@Message.ExtendedInfo": [
          {
            "@odata.type": "#Message.v1_1_1.Message",
            "Message": "Please add the following public
             key info to ~/.ssh/authorized_keys on the
             remote server",
            "MessageArgs": [
              "<type> <bmc_public_key> root@dpu-bmc"
            ]
          },
          {
            "@odata.type": "#Message.v1_1_1.Message",
            "Message": "The request completed
             successfully.",
            "MessageArgs": [],
            "MessageId": "Base.1.15.0.Success",
            "MessageSeverity": "OK",
            "Resolution": "None"
              }
          ]
         }


2. Initiate image transfer. Run the following Redfish command:

   Copy

   Copied!




   curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST -d '{"TransferProtocol":"SCP", "ImageURI":"<image_uri>","Targets":["redfish/v1/UpdateService/FirmwareInventory/DPU_OS"], "Username":"<username>"}' https://<bmc_ip>/redfish/v1/UpdateService/Actions/UpdateService.SimpleUpdate


   Note

   This command uses SCP for the image transfer, initiates a soft reset on the BlueField, and then pushes the boot stream. For NVIDIA-supplied BFBs, the eMMC is flashed automatically once the boot stream is pushed. Upon success, a running message is received.

   Info

   After the BMC boots, it may take a few seconds (6-8 seconds for NVIDIA® BlueField®-2, and 2 seconds for BlueField-3) until the BlueField BSP (DPU_OS) is up.

   Where:

   • image_uri – contains both the remote server IP address and the full path to the .bfb file on the remote server, with one slash between the two fields (i.e., <remote_server_ip>/<full_path_of_bfb> ).

     Info

     For example, if <remote_server_ip> is 10.10.10.10 and <full_path_of_bfb> is /tmp/file.bfb then "ImageURI":"10.10.10.10//tmp/file.bfb".

   • username – username on the remote server

   • bmc_ip – BMC IP address

     Response/error messages:

     • If RShim is disabled:

       Copy

       Copied!




       {
         "error": {
           "@Message.ExtendedInfo": [
             {
               "@odata.type": "#Message.v1_1_1.Message",
               "Message": "The requested resource of type Target named '/dev/rshim0/boot' was not found.",
               "MessageArgs": [
                 "Target",
                 "/dev/rshim0/boot"
               ],
               "MessageId": "Base.1.15.0.ResourceNotFound",
               "MessageSeverity": "Critical",
               "Resolution": "Provide a valid resource identifier and resubmit the request."
             }
           ],
           "code": "Base.1.15.0.ResourceNotFound",
           "message": "The requested resource of type Target named '/dev/rshim0/boot' was not found."
       }


     • If a username or any other required field is missing:

       Copy

       Copied!




       {
         "Username@Message.ExtendedInfo": [
           {
             "@odata.type": "#Message.v1_1_1.Message",
             "Message": "The create operation failed because the required property Username was missing from the request.",
             "MessageArgs": [
               "Username"
             ],
             "MessageId": "Base.1.15.0.CreateFailedMissingReqProperties",
             "MessageSeverity": "Critical",
             "Resolution": "Correct the body to include the required property with a valid value and resubmit the request if the operation failed."
           }
         ]
       }


     • Success message if the request is valid and a task is created:

       Copy

       Copied!




       {
         "@odata.id":
          "/redfish/v1/TaskService/Tasks/<task_id>",
         "@odata.type": "#Task.v1_4_3.Task",
         "Id": "<task_id>",
         "TaskState": "Running",
         "TaskStatus": "OK"
       }


3. Run the following Redfish command to track the SCP image's transfer status (percentage is not updated until it reaches 100%):

   Copy

   Copied!




   curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/<task_id>


   Note

   During the transfer, the PercentComplete value remains at 0. If no errors occur, the TaskState is set to Running, and a keep-alive message is generated every 5 minutes with the content "Transfer is still in progress (X minutes elapsed). Please wait". Once the transfer is completed, the PercentComplete is set to 100, and the TaskState is updated to Completed.

   Upon failure, a message is generated with the relevant resolution.

   Where:

• • bmc_ip – BMC IP address

  • task_id – task ID received by the UpdateService command response

    Examples:

• • • Response/error messages:

      • If host identity is not confirmed or the provided host key is wrong:

        Copy

        Copied!




        {
              "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
              "Message": "Transfer of image '<file_name>' to '/dev/rshim0/boot' failed.",
              "MessageArgs": [
                "<file_name>,
                "/dev/rshim0/boot"
              ],
              "MessageId": "Update.1.0.TransferFailed",
              "Resolution": " Unknown Host: Please provide server's public key using PublicKeyExchange ",
              "Severity": "Critical"
            }
        …
        "PercentComplete": 0,
          "StartTime": "<start_time>",
          "TaskMonitor": "/redfish/v1/TaskService/Tasks/<task_id>/Monitor",
          "TaskState": "Exception",
          "TaskStatus": "Critical"


        Info

        In this case, revoke the remote server key using the following Redfish command:

        Copy

        Copied!




        curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST -d '{"RemoteServerIP":"<remote_server_ip>"}' https://<bmc_ip>/redfish/v1/UpdateService/Actions/Oem/NvidiaUpdateService.RevokeAllRemoteServerPublicKeys


        Where:

        • remote_server_ip – remote server's IP address

        • bmc_ip – BMC IP address

        Then repeat steps 1 and 2.

• • • • If the BMC identity is not confirmed:

        Copy

        Copied!




        {
              "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
              "Message": "Transfer of image '<file_name>' to '/dev/rshim0/boot' failed.",
              "MessageArgs": [
                "<file_name>",
                "/dev/rshim0/boot"
              ],
              "MessageId": "Update.1.0.TransferFailed",
              "Resolution": "Unauthorized Client: Please use the PublicKeyExchange action to receive the system's public key and add it as an authorized key on the remote server",
              "Severity": "Critical"
              }
        …
        "PercentComplete": 0,
          "StartTime": "<start_time>",
          "TaskMonitor": "/redfish/v1/TaskService/Tasks/<task_id>/Monitor",
          "TaskState": "Exception",
          "TaskStatus": "Critical"


        Info

        In this case, verify that the BMC key has been added correctly to the authorized_key file on the remote server.

• • • • If SCP fails:

        Copy

        Copied!




        {
              "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
              "Message": "Transfer of image '<file_name>' to '/dev/rshim0/boot' failed.",
              "MessageArgs": [
                "<file_name>",
                "/dev/rshim0/boot"
              ],
              "MessageId": "Update.1.0.TransferFailed",
              "Resolution": "Failed to launch SCP",
              "Severity": "Critical"
              }
        …
        "PercentComplete": 0,
          "StartTime": "<start_time>",
          "TaskMonitor": "/redfish/v1/TaskService/Tasks/<task_id>/Monitor",
          "TaskState": "Exception",
          "TaskStatus": "Critical"


• • • • Success/status messages:

        • The keep-alive message:

          Copy

          Copied!




          {
                "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
                "Message": " <file_name>' is being transferred to '/dev/rshim0/boot'.",
                "MessageArgs": [
                  " <file_name>",
                  "/dev/rshim0/boot"
                ],
                "MessageId": "Update.1.0.TransferringToComponent",
                "Resolution": "Transfer is still in progress (5 minutes elapsed): Please wait",
                "Severity": "OK"
              }
          …
          "PercentComplete": 0,
            "StartTime": "<start_time>",
            "TaskMonitor": "/redfish/v1/TaskService/Tasks/<task_id>/Monitor",
            "TaskState": "Running",
            "TaskStatus": "OK"


        • Upon successful completion of SCP BFB transfer:

          Copy

          Copied!




          {
                "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
                "Message": "Device 'DPU' successfully updated with image '<file_name>'.",
                "MessageArgs": [
                  "DPU",
                  "<file_name>"
                ],
                "MessageId": "Update.1.0.UpdateSuccessful",
                "Resolution": "None",
                "Severity": "OK"
              },
          …
          "PercentComplete": 100,
            "StartTime": "<start_time>",
            "TaskMonitor": "/redfish/v1/TaskService/Tasks/<task_id>/Monitor",
            "TaskState": "Completed",
            "TaskStatus": "OK"


Applying New BFB Image

BlueField must be restarted to apply the new firmware. To restart BlueField:

1. Perform a graceful shutdown of the BlueField Arm OS.

2. Power cycle the server to complete the restart.

Alternatively, a server reboot may be done instead of power cycle by following these steps:

1. Graceful shutdown the BlueField Arm OS.

   Info

   Without graceful shutdown of BlueField Arm OS during server reboot, the BlueField Arm side does not undergo a restart process (so only NIC firmware is applied).

2. Wait until completed.

3. Reboot the server (ATF, UEFI, BlueField Arm OS, NIC firmware is applied).

   Info

   Server reboot will not restart the BlueField BMC (CEC not applied).

4. Log into BlueField BMC via Redfish and issue a restart (BlueField BMC and CEC is applied).

5. Verify that the new BFB is running by checking its version:

   Copy

   Copied!




   curl -k -u root:'<password>' -H "Content-Type: application/json" -X GET https://<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/DPU_OS


Installing BFB File with HTTP Protocol

1. Make sure the BFB file, new.bfb, is available on HTTP server

2. Initiate image transfer. Run the following Redfish command:

   Copy

   Copied!




   curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST -d '{"TransferProtocol":"HTTP", "ImageURI":"<image_uri>","Targets":["redfish/v1/UpdateService/FirmwareInventory/DPU_OS"]}' https://<bmc_ip>/redfish/v1/UpdateService/Actions/UpdateService.SimpleUpdate


   Note

   This command uses HTTP to download the image, initiates a soft reset on the BlueField, and pushes the boot stream. For NVIDIA-supplied BFBs, the eMMC is flashed automatically once the boot stream is pushed. Upon success, a running message is received.

   Info

   After the BMC boots, it may take a few seconds (6-8 seconds in BlueField-2 and 2 seconds in BlueField-3) until the BlueField BSP (DPU_OS) is up.

   Where:

• • image_uri – contains both the HTTP server address and the exported path to the .bfb file on the server, with one slash between the two fields (i.e., <http_server>/<exported_path_of_bfb> ).

    Info

    For example, if <http_server> is 10.10.10.10 and <exported_path_of_bfb> is /tmp/new.bfb then "ImageURI":"10.10.10.10//tmp/new.bfb".

  • bmc_ip – BMC IP address

    Response/error messages:

    • If RShim is disabled:

      Copy

      Copied!




      {
        "error": {
          "@Message.ExtendedInfo": [
            {
              "@odata.type": "#Message.v1_1_1.Message",
              "Message": "The requested resource of type Target named '/dev/rshim0/boot' was not found.",
              "MessageArgs": [
                "Target",
                "/dev/rshim0/boot"
              ],
              "MessageId": "Base.1.15.0.ResourceNotFound",
              "MessageSeverity": "Critical",
              "Resolution": "Provide a valid resource identifier and resubmit the request."
            }
          ],
          "code": "Base.1.15.0.ResourceNotFound",
          "message": "The requested resource of type Target named '/dev/rshim0/boot' was not found."
      }


    • If the HTTPS server address is wrong or the HTTPS service is not stated, an "Unknown Host" error is expected:

      Copy

      Copied!




          {
            "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
            "Message": "Transfer of image 'new.bfb' to '/dev/rshim0/boot' failed.",
            "MessageArgs": [
              "new.bfb",
              "/dev/rshim0/boot"
            ],
            "MessageId": "Update.1.0.TransferFailed",
            "Resolution": "Unknown Host: Please provide server's public key using PublicKeyExchange (for SCP download) or  Check and restart server's web service (for HTTP/HTTPS download)",
            "Severity": "Critical"
          },


    • If TransferProtocol or any other required field are wrong:

      Copy

      Copied!




      {
        "@Message.ExtendedInfo": [     {
              "@odata.type": "#Message.v1_1_1.Message",
              "Message": "The parameter TransferProtocol for the action UpdateService.SimpleUpdate is not supported on the target resource.",
              "MessageArgs": [
                "TransferProtocol",
                "UpdateService.SimpleUpdate"
              ],
              "MessageId": "Base.1.16.0.ActionParameterNotSupported",
              "MessageSeverity": "Warning",
              "Resolution": "Remove the parameter supplied and resubmit the request if the operation failed."
            }
         ]
      }


    • If Targets or any other required field are missing:

      Copy

      Copied!




      {
        "Targets@Message.ExtendedInfo": [
          {
            "@odata.type": "#Message.v1_1_1.Message",
            "Message": "The create operation failed because the required property Targets was missing from the request.",
            "MessageArgs": [
              "Targets"
            ],
            "MessageId": "Base.1.16.0.CreateFailedMissingReqProperties",
            "MessageSeverity": "Critical",
            "Resolution": "Correct the body to include the required property with a valid value and resubmit the request if the operation failed."
          }
        ]
      }


    • Success message if the request is valid and a task is created:

      Copy

      Copied!




      {
        "@odata.id":
         "/redfish/v1/TaskService/Tasks/<task_id>",
        "@odata.type": "#Task.v1_4_3.Task",
        "Id": "<task_id>",
        "TaskState": "Running",
        "TaskStatus": "OK"
      }


Installing BFB File with HTTPS Protocol

1. Make sure the BFB file, new.bfb, is available on HTTPS server

2. Make sure the BMC has certificate to authenticate the HTTPS server. Or install a valid certificate to authenticate:

   Copy

   Copied!




   curl -c cjar -b cjar -k -u root:'<password>' -X POST https://$bmc/redfish/v1/Managers/Bluefield_BMC/Truststore/Certificates -d @CAcert.json


3. Initiate image transfer. Run the following Redfish command:

   Copy

   Copied!




   curl -k -u root:'<password>' -H "Content-Type: application/json" -X POST -d '{"TransferProtocol":"HTTPS", "ImageURI":"<image_uri>","Targets":["redfish/v1/UpdateService/FirmwareInventory/DPU_OS"]}' https://<bmc_ip>/redfish/v1/UpdateService/Actions/UpdateService.SimpleUpdate


   Note

   This command uses HTTPS for the image download, initiates a soft reset on the BlueField, and then pushes the boot stream. For NVIDIA-supplied BFBs, the eMMC is flashed automatically once the boot stream is pushed. Upon success, a running message is received.

   Info

   After the BMC boots, it may take a few seconds (6-8 seconds in BlueField-2 and 2 seconds in BlueField-3) until the BlueField BSP (DPU_OS) is up.

   Where:

• • image_uri – contains both the HTTPS server address and the exported path to the .bfb file on the server, with one slash between the two fields (i.e., <https_server>/<exported_path_of_bfb> ).

    Info

    For example, if <https_server> is urm.nvidia.com and <exported_path_of_bfb> is artifactory/sw-mlnx-bluefield-generic/Ubuntu22.04/new.bfb then "ImageURI":"10.126.206.42/artifactory/sw-mlnx-bluefield-generic/Ubuntu22.04/new.bfb".

  • bmc_ip – BMC IP address

    Response / error messages:

• • • If RShim is disabled:

      Copy

      Copied!




      {
        "error": {
          "@Message.ExtendedInfo": [
            {
              "@odata.type": "#Message.v1_1_1.Message",
              "Message": "The requested resource of type Target named '/dev/rshim0/boot' was not found.",
              "MessageArgs": [
                "Target",
                "/dev/rshim0/boot"
              ],
              "MessageId": "Base.1.15.0.ResourceNotFound",
              "MessageSeverity": "Critical",
              "Resolution": "Provide a valid resource identifier and resubmit the request."
            }
          ],
          "code": "Base.1.15.0.ResourceNotFound",
          "message": "The requested resource of type Target named '/dev/rshim0/boot' was not found."
      }


    • If the HTTPS server address is wrong or the HTTPS service is not stated, an "Unknown Host" error is expected:

      Copy

      Copied!




          {
            "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
            "Message": "Transfer of image 'new.bfb' to '/dev/rshim0/boot' failed.",
            "MessageArgs": [
              "new.bfb",
              "/dev/rshim0/boot"
            ],
            "MessageId": "Update.1.0.TransferFailed",
            "Resolution": "Unknown Host: Please provide server's public key using PublicKeyExchange (for SCP download) or  Check and restart server's web service (for HTTP/HTTPS download)",
            "Severity": "Critical"
          },


    • If TransferProtocol or any other required field are wrong:

      Copy

      Copied!




      {
        "@Message.ExtendedInfo": [     {
              "@odata.type": "#Message.v1_1_1.Message",
              "Message": "The parameter TransferProtocol for the action UpdateService.SimpleUpdate is not supported on the target resource.",
              "MessageArgs": [
                "TransferProtocol",
                "UpdateService.SimpleUpdate"
              ],
              "MessageId": "Base.1.16.0.ActionParameterNotSupported",
              "MessageSeverity": "Warning",
              "Resolution": "Remove the parameter supplied and resubmit the request if the operation failed."
            }
         ]
      }


• • • If Targets or any other required field are missing:

      Copy

      Copied!




      {
        "Targets@Message.ExtendedInfo": [
          {
            "@odata.type": "#Message.v1_1_1.Message",
            "Message": "The create operation failed because the required property Targets was missing from the request.",
            "MessageArgs": [
              "Targets"
            ],
            "MessageId": "Base.1.16.0.CreateFailedMissingReqProperties",
            "MessageSeverity": "Critical",
            "Resolution": "Correct the body to include the required property with a valid value and resubmit the request if the operation failed."
          }
        ]
      }


• • • If the HTTPS server fails to authenticate the current installed certificate:

      Copy

      Copied!




           {
            "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
            "Message": "Transfer of image 'new.bfb' to '/dev/rshim0/boot' failed.",
            "MessageArgs": [
              "new.bfb",
              "/dev/rshim0/boot"
            ],
            "MessageId": "Update.1.0.TransferFailed",
            "Resolution": "Bad Certificate: Please check the remote server certification, correct and replace the current installed one",
            "Severity": "Critical"
          },


• • • Success message if the request is valid and a task is created:

      Copy

      Copied!




      {
        "@odata.id":
         "/redfish/v1/TaskService/Tasks/<task_id>",
        "@odata.type": "#Task.v1_4_3.Task",
        "Id": "<task_id>",
        "TaskState": "Running",
        "TaskStatus": "OK"
      }


Tracking Image Transfer Status and Progress for HTTP/HTTPS Protocols

The following section is relevant for HTTP/HTTPS protocols which received a success message of a valid SimpleUpdate request and a running task state.

Run the following Redfish command to track image transfer status and progress:




curl -k -u root:'<password>' -X GET https://<bmc_ip>/redfish/v1/TaskService/Tasks/<task_id>


Example:




    {
      "@odata.type": "#MessageRegistry.v1_4_1.MessageRegistry",
      "Message": "Image 'new.bfb' is being transferred to '/dev/rshim0/boot'.",
      "MessageArgs": [
        "new.bfb",
        "/dev/rshim0/boot"
      ],
      "MessageId": "Update.1.0.TransferringToComponent",
      "Resolution": "Transfer started",
      "Severity": "OK"
    },
  …

  "PercentComplete": 60,
  "StartTime": "2024-06-10T19:39:03+00:00",
  "TaskMonitor": "/redfish/v1/TaskService/Tasks/1/Monitor",
  "TaskState": "Running",
  "TaskStatus": "OK"


Direct SCP




scp <path_to_bfb> root@<bmc_ip>:/dev/rshim0/boot


If bf.cfg is required as part of the boot process, run:




cat <path_to_bfb> bf.cfg > new.bfb
scp <path to new.bfb> root@<bmc_ip>:/dev/rshim0/boot


BFB Live Firmware Update

To perform a BFB live firmware update:

1. Enable LFWP for the update:

   Copy

   Copied!




   curl -k -u root:'<password>' -X POST -d '{"LFWP": "Enabled"}' https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Actions/LFWP.Set


2. Perform a BFB update, as specified in section "Applying New BFB Image".

3. Once the update is complete, disable LFWP:

   Copy

   Copied!




   curl -k -u root:'<password>' -X POST -d '{"LFWP": "Disabled"}' https://<bmc_ip>/redfish/v1/Systems/Bluefield/Oem/Nvidia/Actions/LFWP.Set


Tracking Installation Progress and Status

After image transfer is complete, users may follow the installation progress and status with the help of a dump of current the RShim miscellaneous messages log.

1. Initiate request for dump download:

   Copy

   Copied!




   sudo curl -k -u root:'<password>' -d '{"DiagnosticDataType": "Manager"}' -X POST https://<ip_address>/redfish/v1/Managers/Bluefield_BMC/LogServices/Dump/Actions/LogService.CollectDiagnosticData


   Where:

   • <ip-address> – BMC IP address

   • <password> – BMC password

2. Use the received task ID to poll for dump completion:

   Copy

   Copied!




   sudo curl -k -u root:'<password>' -H 'Content-Type: application/json' -X GET https://<ip_address>/redfish/v1/TaskService/Tasks/<task_id>


   Where:

   • <ip-address> – BMC IP address

   • <password> – BMC password

   • <task_id> – Task ID received from the first command

3. Once dump is complete, download and review the dump:

   Copy

   Copied!




   sudo curl -k -u root:'<password>' -H 'Content-Type: application/json' -X GET https://<ip_address>/redfish/v1/Managers/Bluefield_BMC/LogServices/Dump/Entries/<entry_id>/attachment --output </path/to/tar/log_dump.tar.xz>


   Where:

   • <ip-address> – BMC IP address

   • <password> – BMC password

   • <entry_id> – The entry ID of the dump in redfish/v1/Managers/Bluefield_BMC/LogServices/Dump/Entries

   • </path/to/tar/log_dump.tar.xz> – path to download the log dump log_dump.tar.xz

4. Untar the file to review the logs. For example:

   Copy

   Copied!




   tar xvfJ log_dump.tar.xz


5. The log is contained in the rshim.log file. The log displays Reboot, finished, DPU is ready, or In Enhanced NIC mode when BFB installation completes.

   Note

   If the downloaded log file does not contain any of these strings, keep downloading the log file until they appear.

6. When installation is complete, you may crosscheck the new BFB version against the version provided to verify a successful upgrade:

   Copy

   Copied!




   curl -k -u root:"<PASSWORD>" -H "Content-Type: application/json" -X GET https://<bmc_ip>/redfish/v1/UpdateService/FirmwareInventory/DPU_OS


   Example response:

   Copy

   Copied!




   "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_OS",
    "@odata.type": "#SoftwareInventory.v1_4_0.SoftwareInventory",
    "Description": "Host image",
    "Id": "DPU_OS",
    "Members@odata.count": 1,
    "Name": "Software Inventory",
    "RelatedItem": [
      {
        "@odata.id": "/redfish/v1/Systems/Bluefield/Bios"
      }
    ],
    "SoftwareId": "",
    "Status": {
      "Conditions": [],
      "Health": "OK",
      "HealthRollup": "OK",
      "State": "Enabled"
    },
    "Updateable": true,
    "Version": "DOCA_2.2.0_BSP_4.2.1_Ubuntu_22.04-8.23-07"


Verify BlueField BSP, BlueField BMC and BlueField NIC firmware versions are up to date according to the NVIDIA BlueField BMC Software User Manual and NVIDIA BlueField BSP Release Notes.

1. Use the Redfish FirmwareInventory schema over the 1GbE OOB interface to the BlueField's BMC:

   Collapse Source

   Copy

   Copied!




   [redfish_scripts] $ curl -k -u root:<password> -H "Content-Type: application/octet-stream" -X GET https://<BF-BMC-IP>/redfish/v1/UpdateService/FirmwareInventory
   {
     "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory",
     "@odata.type": "#SoftwareInventoryCollection.SoftwareInventoryCollection",
     "Members": [
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/9f7ec75a_BMC_Firmware"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/Bluefield_FW_ERoT"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_ATF"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_BOARD"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_BSP"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_NIC"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_NODE"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_OFED"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_OS"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_SYS_IMAGE"
       },
       {
         "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_UEFI"
       }
     ],
     "Members@odata.count": 11,
     "Name": "Software Inventory Collection"
   }


   Response example for DPU_ATF:

   Copy

   Copied!




   > curl -k -u root:<password> -H "Content-Type: application/octet-stream" -X GET https://<BF-BMC-IP>/redfish/v1/UpdateService/FirmwareInventory/DPU_ATF
   {
     "@odata.id": "/redfish/v1/UpdateService/FirmwareInventory/DPU_ATF",
     "@odata.type": "#SoftwareInventory.v1_4_0.SoftwareInventory",
     "Description": "Host image",
     "Id": "DPU_ATF",
     "Members@odata.count": 1,
     "Name": " "Software Inventory",
     "RelatedItem": [
       {
         "@odata.id": "/redfish/v1/Systems/Bluefield/Bios"
       }
     ],
     "SoftwareId": "",
     "Status": {
       "Health": "OK",
       "HealthRollup": "OK",
       "State": "OK",
     },
     "Updateable": true,
     "Version": "v2.2(release):4.0.2-33-gd9f4ad5"


   Info

   This request may also be used to query some of the other previously mentioned components (e.g., 9f7ec75a_BMC_Firmware, Bluefield_FW_ERoT).

2. If the versions are not as expected, upgrade as needed:

   1. Download the latest DOCA (BFB file) versions from the downloader at the bottom of the DOCA product page.

   2. DOCA (BFB) upgrade options (upgrading UEFI, ATF, Arm OS, NIC firmware components):

      • Recommended—BFB upgrade from remote management controller using Redfish UpdateService schema over 1GbE to BlueField BMC:

        Copy

        Copied!




        export token=`curl -k -H "Content-Type: application/json" -X POST https://<bmc_ip>/login -d '{"username":"root", "password":"<password>"}' | grep token | awk '{print $2;}' | tr -d '"'`


        For more information on deploying BlueField software from the BMC, refer to the "Deploying BlueField Software Using BFB from BMC" page of the NVIDIA BlueField BSP document.

1. Get the BlueField's BMC MAC address using the following Redfish command over the 1GbE OOB port to the BlueField BMC:

   Collapse Source

   Copy

   Copied!




   curl -k -u root:<password> -H 'Content-Type: application/json' -X GET https://<BF-BMC-IP>/redfish/v1/Managers/Bluefield_BMC/EthernetInterfaces/eth0
    {
      "@odata.id": "/redfish/v1/Managers/Bluefield_BMC/EthernetInterfaces/eth0",
      "@odata.type": "#EthernetInterface.v1_6_0.EthernetInterface",
      "DHCPv4": {
        "DHCPEnabled": true,
        "UseDNSServers": true,
        "UseDomainName": true,
        "UseNTPServers": true
      },
      "DHCPv6": {
        "OperatingMode": "Stateful",
        "UseDNSServers": true,
        "UseDomainName": true,
        "UseNTPServers": true
      },
      "Description": "Management Network Interface",
      "FQDN": "dpu-bmc",
      "HostName": "BlueField-bmc",
      "IPv4Addresses": [
        {
          "Address": "10.237.40.179",
          "AddressOrigin": "DHCP",
          "Gateway": "0.0.0.0",
          "SubnetMask": "255.255.0.0"
        }
      ],
      "IPv4StaticAddresses": [],
      "IPv6AddressPolicyTable": [],
      "IPv6Addresses": [
        {
          "Address": "fdfd:fdfd:10:237:966d:aeff:fe17:9f5f",
          "AddressOrigin": "DHCPv6",
          "AddressState": null,
          "PrefixLength": 64
        },
        {
          "Address": "fe80::966d:aeff:fe17:9f5f",
          "AddressOrigin": "LinkLocal",
          "AddressState": null,
          "PrefixLength": 64
        }
      ],
      "IPv6DefaultGateway": "fe80::445b:ed80:5f97:8900",
      "IPv6StaticAddresses": [],
      "Id": "eth0",
      "InterfaceEnabled": true,
      "LinkStatus": "LinkUp",
      "MACAddress": "94:6d:ae:17:9f:5f",
      "MTUSize": 1500,
      "Name": "Manager Ethernet Interface",
      "NameServers": [
        "fdfd:fdfd:7:77:250:56ff:fe8b:e4f9"
      ],
      "SpeedMbps": 0,
      "StaticNameServers": [],
      "Status": {
        "Health": "OK",
        "HealthRollup": "OK",
        "State": "Enabled"
      },
      "VLANs": {
        "@odata.id": "/redfish/v1/Managers/Bluefield_BMC/EthernetInterfaces/eth0/VLANs"
      }
    }


2. Get the BlueField's high-speed port's MAC addresses using the following Redfish command over the 1GbE OOB port to the BlueField BMC:

   Copy

   Copied!




   curl -k -u root:<password> -H "Content-Type: application/octet-stream" -X GET https://<bmc_ip>/redfish/v1/Chassis/Card1/NetworkAdapters/NvidiaNetworkAdapter/NetworkDeviceFunctions/eth0f0
   {
     "@odata.id": "/redfish/v1/Chassis/Card1/NetworkAdapters/NvidiaNetworkAdapter/NetworkDeviceFunctions/eth0f0",
     "@odata.type": "#NetworkDeviceFunction.v1_9_0.NetworkDeviceFunction",
     "Ethernet": {
       "MACAddress": "02:b1:b6:12:39:05",
       "MTUSize": 1500
     },
     "Id": "eth0f0",
     "Links": {
       "OffloadSystem": {
         "@odata.id": "/redfish/v1/Systems/Bluefield"
       },
       "PhysicalPortAssignment": {
         "@odata.id": "/redfish/v1/Chassis/Card1/NetworkAdapters/NvidiaNetworkAdapter/Ports/eth0"
       }
     },
     "Name": "NetworkDeviceFunction",
     "NetDevFuncCapabilities": [
       "Ethernet"
     ],
     "NetDevFuncType": "Ethernet"
   }


Unless it is explicitly desired for the host to be trusted, make sure to disable the host PCIe RShim to protect the BlueField from potential security threats from the host:

1. Use Redfish BIOS settings schema over the 1GbE OOB to the BlueField BMC:

   Copy

   Copied!




   curl -k -X PATCH -d '{"Attributes":{"Internal CPU Model": "Restricted"}}' -u root:<password> https://<BF-BMC-IP>/redfish/v1/Systems/<SystemID>/Bios/Settings | python3 -m json.tool


   The available BlueField host privilege levels are Restricted and Privileged. The default is Privileged, where the host has access to BlueField.

2. Change the privilege level to Restricted.

To change from DPU mode to NIC mode (or vice versa):

1. To enable NIC mode:

   Copy

   Copied!




   curl -k -u root:<password> -H 'content-type: application/json' -d '{ "Attributes": { "NicMode": "NicMode" } }' -X PATCH https://<BF-BMC-IP>/redfish/v1/Systems/Bluefield/Bios/Settings


2. To disable NIC mode:

   Copy

   Copied!




   curl -k -u root:<password> -H 'content-type: application/json' -d '{ "Attributes": { "NicMode": "DpuMode" } }' -X PATCH https://<BF-BMC-IP>/redfish/v1/Systems/Bluefield/Bios/Settings


3. To check that the BMC recorded the change for the next UEFI reboot to apply it:

   Copy

   Copied!




   curl -k -u root:<password> -H 'content-type: application/json' -X GET https://<BF-BMC-IP>/redfish/v1/Systems/Bluefield/Bios/Settings


   Note

   Reset the BlueField (Arm and NIC) for the mode change to take effect.

4. To verify that the NIC mode has updated accordingly:

   Copy

   Copied!




   curl -k -u root:<password> -H 'content-type: application/json' -X GET https://<BF-BMC-IP>/redfish/v1/Systems/Bluefield/Bios/


As part of the default settings of the BlueField, UEFI Secure Boot is enabled and requires no special configuration to use it with the bundled Ubuntu OS shipped with the BlueField device. Disabling UEFI Secure Boot may be necessary when running an unsigned Arm OS image, such as a customer OS. Using Redfish Secure Boot schema over 1GbE to BlueField BMC, run:

The included page could not be found.

For more information on user management, review this page.
