Bringup GUI

CVT views help quickly identify and correlate issues for effective remediation actions.

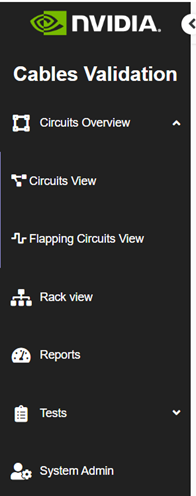

The bringup GUI will contain the following pages


  • Circuits View: Combines link data reported by both ends of a circuit (correlation).

  • Flapping Circuits View: Flapping circuits with 24h flap history.

  • Rack View: Issues displayed by physical location.

  • Reports: Summary (total), list of cable issues.

  • Golden BER Tests: Golden amBER test (clear counters, validate compliance).

  • Amber Collection Test: Collect Amber files.

  • Advanced Flapping Monitoring: Monitors circuit flapping events along with BER (Raw/Eff), temperature, and Tx/Rx.

  • System Admin: CVT tool monitoring and debugging (report delays, load topology, manage device access credentials, start/stop validation, etc.).
