Bringup GUI

The Cable Validation Tool views facilitate rapid issue identification and correlation, enabling efficient remediation.

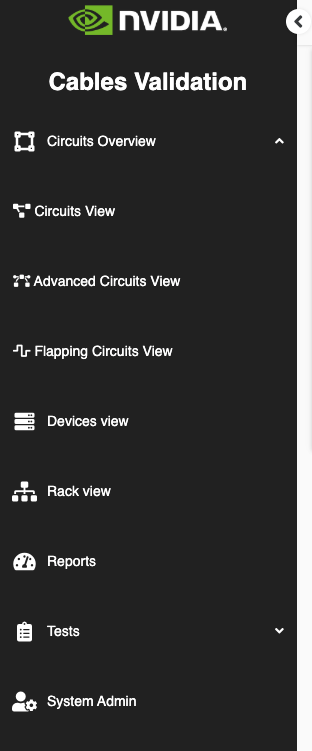

The bring-up GUI includes the following pages:"

• Circuits View: Combines link data reported by both ends of a circuit (correlation).

• Flapping Circuits View: Flapping circuits with 24h flap history.

• Rack View: Issues displayed by physical location.

• Reports: Summary (total), list of cable issues.

• Golden BER Tests: Golden amBER test (clear counters, validate compliance).

• Amber Collection Test: Collect Amber files.

• Advanced Flapping Monitoring: Monitors circuit flapping events along with BER (Raw/Eff), temperature, and Tx/Rx.

• System Admin: CVT tool monitoring and debugging (report delays, load topology, manage device access credentials, start/stop validation, etc.).
