NVIDIA ConnectX-6 InfiniBand/Ethernet Adapter Cards User Manual
NVIDIA ConnectX-6 InfiniBand Ethernet Adapter Cards User Manual

Finding the GUID/MAC on the Adapter Card

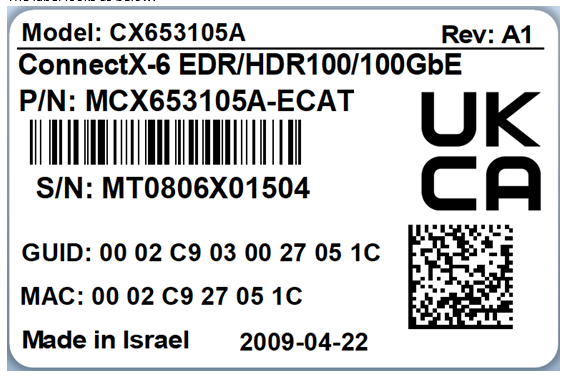

Each NVIDIA adapter card has a different identifier printed on the label: serial number and the card MAC for the Ethernet protocol and the card GUID for the InfiniBand protocol. VPI cards have both a GUID and a MAC (derived from the GUID).

Warning

The product revisions indicated on the labels in the following figures do not necessarily represent the latest revisions of the cards.

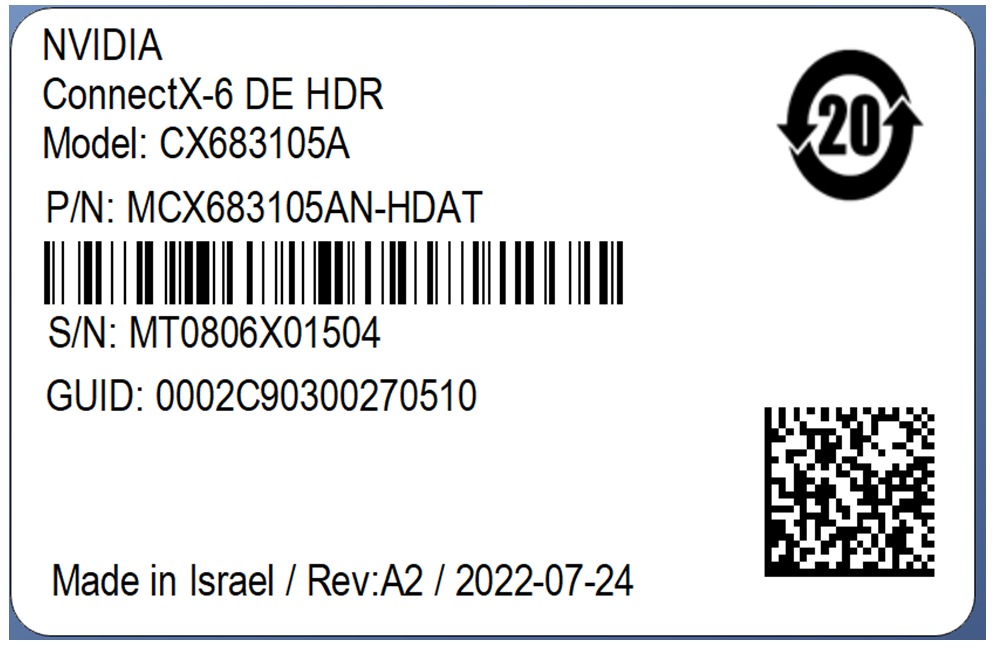

MCX683105AN-HDAT Board Label (Example)
