PCIe Auxiliary Kit Technical Specifications
Physical | PCIe Auxiliary Card Size: 5.69 in. x 2.61 in. (144.75mm x 66.40mm) One MCIO cable: Length 250mm | |||
PCIe Connectivity | PCI Express Gen5: SERDES @ 16 GT/s, x16 lanes (Gen 3.0 compatible) | |||
Power Consumption | Voltage: 12V, 3.3V_PCIe, 3.3V_AUX | |||
Environmental | Temperature | Operational | 0°C to 55°C | |
Non-operational | -40°C to 70°C | |||
Humidity | Operational | 10% to 85% relative humidity | ||
Non-operational | 10% to 90% relative humidity | |||
Altitude (Operational) | 3050m | |||
Regulatory | Safety: CB / cTUVus / CE | |||
EMC: CE / FCC / VCCI / ICES / RCM / KC | ||||
RoHS: RoHS Compliant | ||||
Note

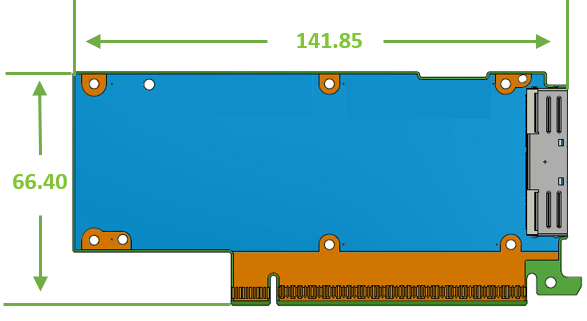

All dimensions are in millimeters. The PCB mechanical tolerance is +/- 0.13mm.

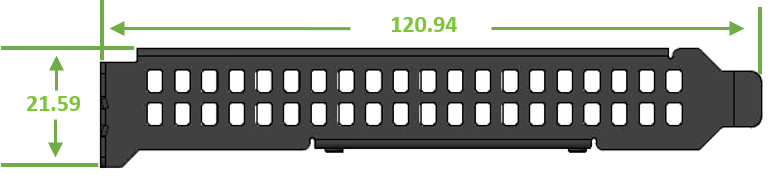

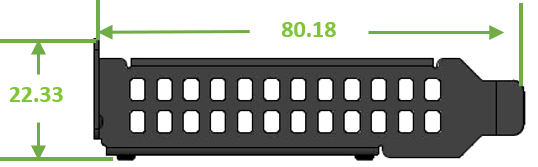

Auxiliary PCIe Connection Card Tall Bracket | Auxiliary PCIe Connection Card Short Bracket |
|
|
