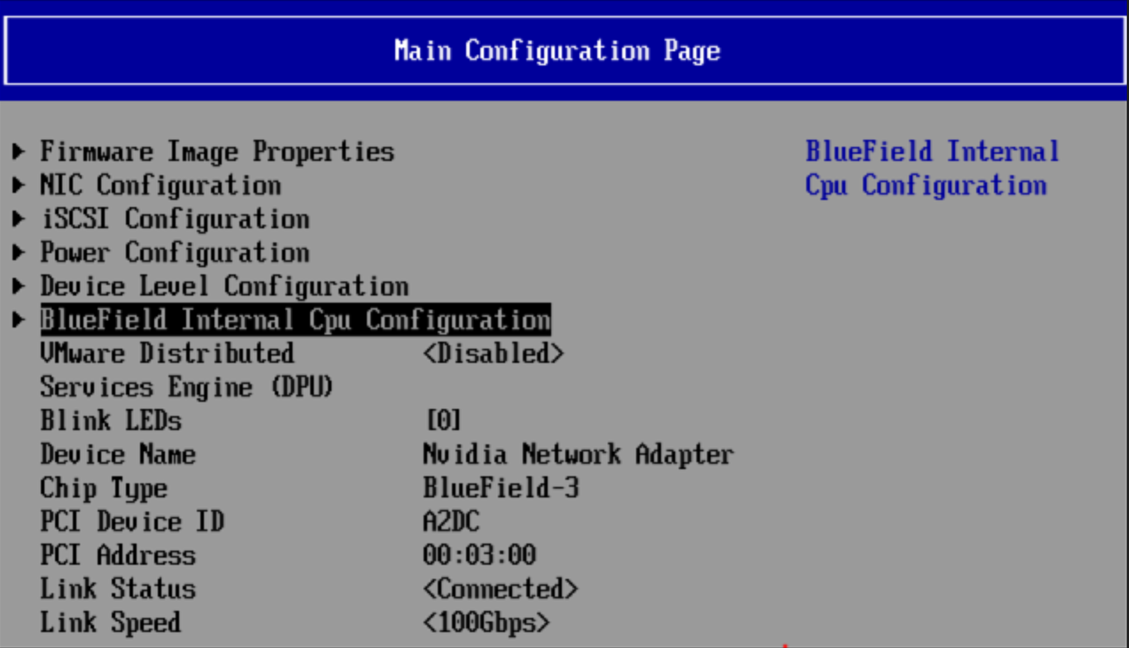

In the following menu, you can set the following options:
![image2023-12-5_14-15-20-version-1-modificationdate-1714665322307-api-v2.png](https://docscontent.nvidia.com/dims4/default/3270720/2147483647/strip/true/crop/1129x648+0+0/resize/1129x648!/quality/90/?url=https%3A%2F%2Fk3-prod-nvidia-docs.s3.us-west-2.amazonaws.com%2Fbrightspot%2Fconfluence%2F0000018f-4e49-d40e-a9bf-4f5fc82b0000%2Fimages%2Fdownload%2Fattachments%2F2794188307%2Fimage2023-12-5_14-15-20-version-1-modificationdate-1714665322307-api-v2.png)
Location: | Main Configuration Form |
Description: | Displays submenu of VMware configurations. |
Configurable: | Yes |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes |
Available options: |
|
Default Value: | Disable |
Blink LEDs will not appear in the boot menu if the feature is not supported by the firmware.
Location: | Main Configuration Form |
Description: | Specifies the number of seconds the LEDs on physical network port should blink to assist with port identification. Only valid for adapters with blink LEDs. |
Configurable: | Yes – via input |
Persistency: | Valid only for current cycle |
Reboot required: | No |
Available options: | 0-15 sec |
Default Value: | 0 |
Location: | Main Configuration Form |
Description: | The device’s product name |
Configurable: | No |
Location: | Main Configuration Form |
Description: | Specifies the chip type |
Configurable: | No |
Location: | Main Configuration Form |
Description: | The PCI Device ID of the controller |
Configurable: | No |
Location: | Main Configuration Form |
Description: | Specifies the BIOS assigned PCI Bus:Device:Function identifier of the card |
Configurable: | No |
Location: | Main Configuration Form |
Description: | Displays current link status on port |
Configurable | No |
Network Link Type will not appear in the boot menu if the feature is not supported by the firmware.
Location: | Main Configuration Form |
Description: | Allows user to manually choose link type on selected VPI devices |
Configurable: | Yes – via input |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes – reboot is needed for this change to take effect. |
Available options: | Ethernet/InfiniBand/VPI |
Location: | Main Configuration Form |
Description: | Defines link working speed. |
Configurable: | No |
Value restrictions: | - |
Location: | Main Configuration Form |
Description: | Permanent MAC address assigned during manufacturing |
Configurable: | No |
Location: | Main Configuration Form |
Description: | Displays device’s virtual MAC address |
Configurable: | No |
Location: | Main Configuration Form |
Description: | Indicates whether Socket Direct functionality is enabled or not. |
Configurable: | No |
