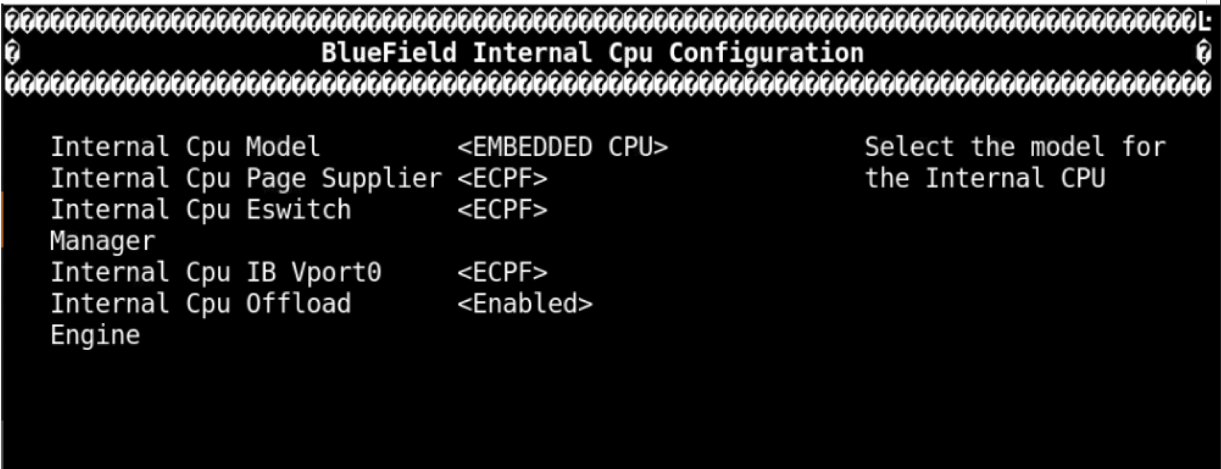

BlueField Internal CPU Configuration
This section is displayed only on BlueField-2 and BlueField-3 devices.
In this menu you can set the following options:
Location: | BlueFiled Internal CPU Configuration |
Description: | Select the model for the Internal CPU |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | EMBEDDED CPU/SPERATED HOST |
Default Value: | EMPEDDED CPU |
Location: | BlueFiled Internal CPU Configuration |
Description: | Defines the owner of providing ICM pages to the external host functions |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | ECPF/External PF |
Default Value: | ECPF |
Location: | BlueFiled Internal CPU Configuration |
Description: | Defines the owner of Eth embedded switch responsibilities |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | ECPF/External PF |
Default Value: | ECPF |
Location: | BlueFiled Internal CPU Configuration |
Description: | Defines the owner of the IB Vport0 responsibilities |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | ECPF/External PF |
Default Value: | ECPF |
Location: | BlueFiled Internal CPU Configuration |
Description: | Defines whether the Internal CPU is used as an offload engine |
Configurable: | Yes - A built-in option |
Persistency: | Persistent through AC cycle |
Reboot required: | Yes - A reboot is needed for this change to apply |
Available options: | Enabled/Disabled |
Default Value: | Enabled |
