Pin Descriptions

The QSFP+ is SFF-8679 compliant.

Pin

Symbol

Description

Pin

Symbol

Description

1

GND

Ground

20

GND

Ground

2

Tx2n

Transmitter Inverted Data Input

21

Rx2n

Receiver Inverted Data Output

3

Tx2p

Transmitter Non-Inverted Data Input

22

Rx2p

Receiver Non-Inverted Data Output

4

GND

Ground

23

GND

Grounds

5

Tx4n

Transmitter Inverted Data Input

24

Rx4n

Receiver Inverted Data Output

6

Tx4p

Transmitter Non-Inverted Data Input

25

Rx4p

Receiver Non-Inverted Data Output

7

GND

Ground

26

GND

Ground

8

ModSelL

Module Select

27

ModPrsL

Module Present

9

ResetL

Module Reset

28

IntL

Interrupt

10

Vcc Rx

+3.3V Power Supply Receiver

29

Vcc Tx

+3.3V Power Supply Transmitter

11

SCL

2-wire Serial Interface Clock

30

Vcc1

+3.3V Power Supply

12

SDA

2-wire Serial Interface Data

31

LPMode

Low Power Mode

13

GND

GND

32

GND

Ground

14

Rx3p

Receiver Non-Inverted Data Output

33

Tx3p

Transmitter Non-Inverted Data Input

15

Rx3n

Receiver Inverted Data Output

34

Tx3n

Transmitter Inverted Data Input

16

GND

Ground

35

GND

Ground

17

Rx1p

Receiver Non-Inverted Data Output

36

Tx1p

Transmitter Non-Inverted Data Input

18

Rx1n

Receiver Inverted Data Output

37

Tx1n

Transmitter Inverted Data Input

19

GND

Ground

38

GND

Ground

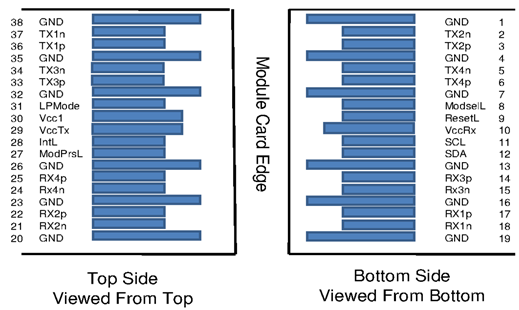

QSFP+ Module Pad Layout


The SFP pin assignment is SFF-8419 compliant.

Pin

Connector Pin Name

Port A Signal Name

1

VeeT

Module Transmitter Ground

2

Tx_Fault

Module Transmitter Fault

3

Tx_Disable

Transmitter Disable. Turns off transmitter laser output

4

SDA

2-wire Serial Interface Data Line

5

SCL

2-wire Serial Interface Clock

6

Mod_ABS

Module Absent. Grounded within the module

7

RS0

Rate Select 0, optionally controls SFP+ module receiver

8

Rx_LOS

Receiver Loss of Signal Indication

9

RS1

Rate Select 1, optionally controls SFP+ module transmitter

10

VeeR

Module Receiver Ground

11

VeeR

Module Receiver Ground

12

RD-

Receiver Inverted Data Output

13

RD+

Receiver Non-Inverted Data Output

14

VeeR

Module Receiver Ground

15

VccR

Module Receiver Power Supply

16

VccT

Module Transmitter Power Supply

17

VeeT

Module Transmitter Ground

18

TD+

Transmitter Non-Inverted Data Input. AC coupled

19

TD-

Transmitter Inverted Data Input. AC coupled

20

VeeT

Module Transmitter Ground

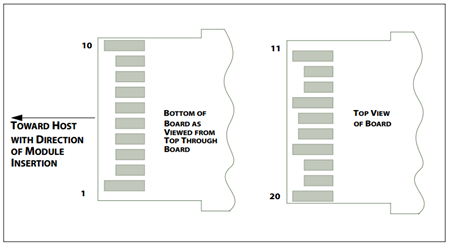

SFP Module Pad Layout

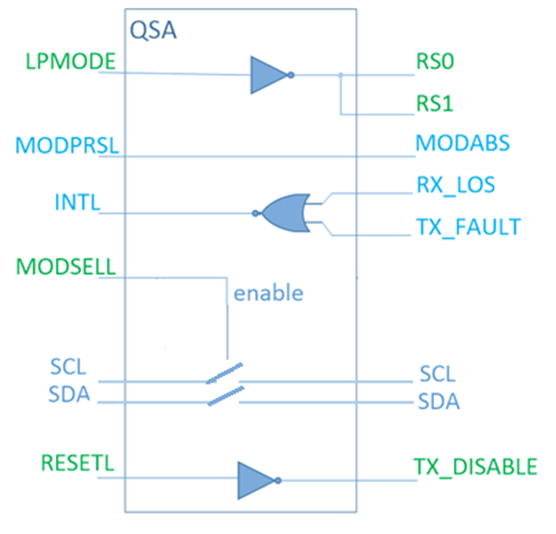

The below details the status/control signals interconnection between QSFP and the SFP connectors.

SFP to QSFP Status/Control Signals

QSFP Signal

SFP Signal

Description of Function

ModPrsL

ModAbs

Connected to Vee inside the SFP transceiver.

IntL

Rx_LOS

Inverted logic:

IntL = Rx_LOS OR Tx_FAULT

Tx_Fault

ModSelL

Used for encoding of the mutual exclusive SCL/SDA switch enable logic as shown below.

LPMode

RS0

Inverted logic:

RS0 = RS1 = NOT LPMode

RS1

ResetL

Tx_Disable

Inverted logic:

Tx_Disable = NOT ResetL

SCL

SCL

Connected to mutual exclusive bidirectional switches using the encoding shown in below.

SDA

SDA

Connected to mutual exclusive bidirectional switches using the encoding shown in below.

SFP to QSFP (Patented U.S. Pat. 7,934,959)
