Specifications
Absolute maximum ratings are those beyond which damage to the device may occur.
Prolonged operation between the operational specifications and absolute maximum ratings is not intended and may cause permanent device degradation.
|
Parameter |
Min |
Max |
Units |
|
Supply voltage |
-0.3 |
3.6 |
V |
|
Data input voltage |
-0.3 |
3.6 |
V |
|
Control input voltage |
-0.3 |
3.6 |
V |
This table shows the environmental specifications for the product.
|
Parameter |
Min |
Max |
Units |
|
Storage temperature |
-40 |
85 |
°C |
This section shows the range of values for normal operation.
|
Parameter |
Min |
Typ |
Max |
Units |
|
Supply voltage (Vcc) |
3.135 |
3.3 |
3.465 |
V |
|
Power consumption |
--- |
--- |
0.1 |
W |
|
Operating case temperature |
0 |
70 |
°C |
|
|
Operating relative humidity |
5 |
85 |
% |
|
Parameter (per lane) |
Min |
Typ |
Max |
Units |
Notes |
|
Characteristic Impedance |
90 |
100 |
110 |
Ω |
--- |
|
Time propagation delay |
--- |
--- |
4.5 |
ns/m |
Informative |
Note: Minimum insertion loss for up to 1m cable length is 6dB @ 12.89GHz.
The head-end of the MCP7F60 cable is QSFP-DD. Hence the memory map of its EEPROM is formatted in compliance with CMIS 4.0 [1]. The key parameters are listed below. The EEPROMs of the QSFP ‘tails’ are SFF-8636 [4] compliant. The memory map of the QSFPs is found in the QSFP56 Memory Map – SFF-8636 compliant - I2C Address A0h table further down .
QSFP-DD Memory Map – CMIS 4.0 compliant - I2C Address A0h
|
Page 00h/ Dec. Byte Address |
Register Name |
Description |
|
0 |
Identifier |
18h: QSFP-DD |
|
1 |
Spec Version |
40h: QSFP-DD Hardware Spec version 4.0 |
|
86 |
Electrical Interface Code |
1Ch: 200G CR4 |
|
87 |
Interface Advertising Code |
01h: Copper cable |
|
88 |
Host/Media Lane Count |
7-4 Host Lane Count / 3-0 Media Lane Count: 44h: Host uses 4 lanes / cable uses 4 lanes |
|
89 |
Lane Assignment |
Bits 7-0 correspond to Host Lanes 8-1: 11h: Two applications allowed, each starting at lane 1 |
|
128 |
Identifier |
18h: QSFP-DD |
|
129-144 |
Vendor name |
NVIDIA: ASCII |
|
145-147 |
QSFP vendor IEEE number |
00-02-C9: NVIDIA OUI. |
|
148-163 |
Part number |
MCP7H60-W0XXXXX: Part number per backshell label (ASCII) |
|
164-165 |
Product revision |
ZZ: Revision per backshell label (ASCII) |
|
166-181 |
Serial number |
MTYYWWXXSSSSS: Serial number per backshell label (ASCII). |
|
182-187 |
Date code |
YYMMDD: Year YY, month MM, day DD. |
|
202 |
Length |
Length in multiples of the base length, which can be 0.1, 1, 10 or 100 [m], as set in bits 7-6. The multiple is set in bits 5-0. Bits 7:6 (Base): Examples: According to SFF-8636 section 7.3.12 Length: |
|
203 |
Connector type |
23h: Direct attach assemblies with no separable interfaces |
|
204 |
Attenuation 5GHz |
Typical attenuation measured during production test, in 1dB. [dB] |
|
205 |
Attenuation 7GHz |
|
|
206 |
Attenuation 12.9GHz |
|
|
207 |
Attenuation 25.8GHz |
|
|
212 |
Interface technology |
0Ah: Passive copper un-equalized |
QSFP56 Memory Map – SFF-8636 compliant - I2C Address A0h
|
Page 00h/ Dec. Byte Address |
Register Name |
Description |
|
0 |
Identifier |
11h: QSFP28 or later |
|
1 |
Status |
08h: Support for SFF-8636 Rev. 2.8 and 2.9 |
|
128 |
Identifier |
11h: QSFP28 or later |
|
130 |
Connector |
23h: Direct attach assemblies with no separable interfaces |
|
131 |
10 Gigabit Ethernet Compliance Codes |
88h: 40GbE + extended code support |
|
134 |
SAS/SATA compliance codes |
04h: 1000BASE-CX |
|
139 |
Code for Serial Encoding Algorithm |
08h: PAM4 |
|
140 |
Nominal bit rate |
FFh: Above 25GbE |
|
146 |
Length |
Length in units of 1 m of direct attach copper cable (integer part – see byte Address 236) |
|
147 |
Device technology |
A0h: Un-equalized copper cable (passive) |
|
148-163 |
Vendor name |
NVIDIA: ASCII |
|
165-167 |
QSFP vendor IEEE number |
00-02-C9: NVIDIA OUI. |
|
168-183 |
Part number |
MCP7H60-W0XXXXX: Part number per backshell label (ASCII) |
|
184-185 |
Product revision |
ZZ: Revision per backshell label (ASCII) |
|
186 |
Attenuation 2.5 GHz |
Typical attenuation measured during production test, in 1dB. [dB] |
|
187 |
Attenuation 5 GHz |
|
|
188 |
Attenuation 7 GHz |
|
|
189 |
Attenuation 12.9 GHz |
|
|
190 |
Max case temperature |
46h: Support for 70ºC |
|
192 |
Link codes |
40h: 200GBASE-CR4 |
|
196-217 |
Serial number |
MTYYWWXXSSSSS: Serial number per backshell label (ASCII). |
|
236 |
Length 0.1m |
Total cable length is the sum of byte 146 for number of meters and byte 236 for 0.1m. Values: Examples: |
|
237 |
AWG |
DAC cable AWG information. |
|
AWG |
Single Cable Diameter |
Minimum Bend Radius |
Length Tolerance |
Cable Color |
|
|
MCP7H60-W001R30 |
30 |
6.9 +/- 0.3mm Jacket: Thermoplastic copolymer (FRNC) BK |
Single bend: 34.5mm Repeated bend: 69mm |
+/-25mm |
Black |
|
MCP7H60-W01AR30 |
|||||
|
MCP7H60-W002R26 |
26 |
9.0 +/- 0.3mm Jacket: Thermoplastic copolymer (FRNC) BK |
Single bend: 45mm Repeated bend: 90mm |
+/-50mm |
|
|
MCP7H60-W02AR26 |
|||||
|
MCP7H60-W003R26 |
Pull-tab Colors
|
QSFP-DD Side |
|
|
Black |
|
|
Dual QSFP56 Side |
|
|
Port 1: Green |
Port 2: Blue |
|
Promo Green |
Nice Blue |
|
Hex = #6faa55 |
Hex = #3b5998 |
|
RGB = 111, 170, 85 |
RGB = 59, 89, 152 |
|
CMYK = 52, 0, 86, 0 |
CMYK = 86, 64, 10, 0 |
|
Pantone = 368 Coated / 368 Uncoated |
Pantone = 660 Coated / 661 Uncoated |

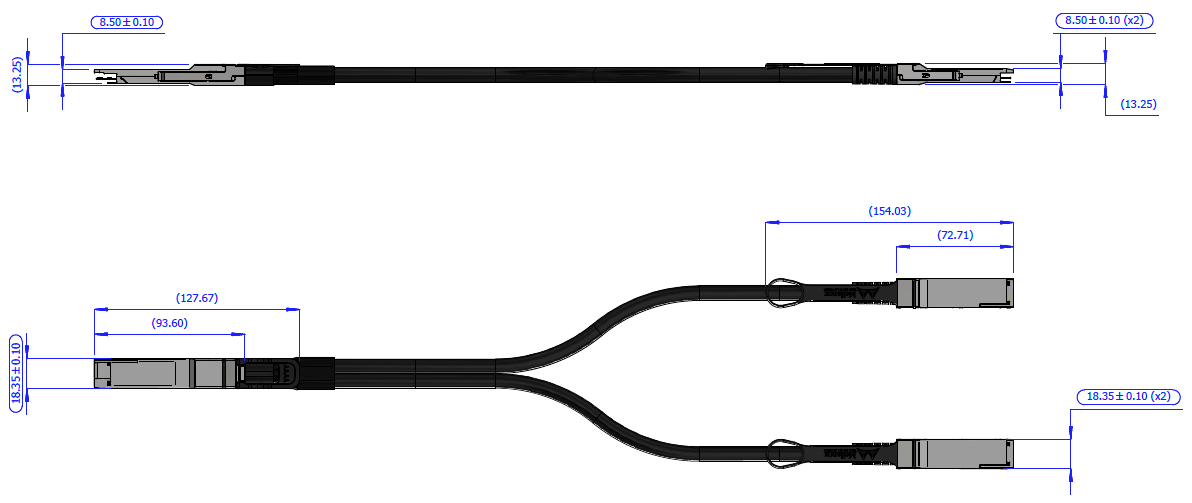

Mechanical Dimensions

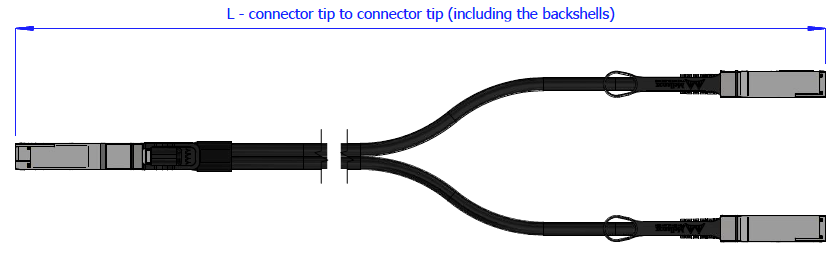

*Ordered OPN length.
Connectivity Schematic
|
QSFP-DD Side |
2x QSFP56 Side |
|
Port 1 Green |
|
|
TX1 |
RX1 |
|
RX1 |
TX1 |
|
TX2 |
RX2 |
|
RX2 |
TX2 |
|
TX3 |
RX3 |
|
RX3 |
TX3 |
|
TX4 |
RX4 |
|
RX4 |
TX4 |
|
Port 2 Blue |
|
|
TX5 |
RX1 |
|
RX5 |
TX1 |
|
TX6 |
RX2 |
|
RX6 |
TX2 |
|
TX7 |
RX3 |
|
RX7 |
TX3 |
|
TX8 |
RX4 |
|
RX8 |
TX4 |
The following label is applied on the cable’s backshell:
Backshell Label of QSFP-DD Side
(sample illustration)
Legend: COO – Country of Origin
Backshell Label of QSFP56 (200GbE) Side
(sample illustration)
The following label is applied on the cable’s jacket:
Copper Cable Jacket Label
(sample illustration)
The following labels are applied on the cable’s jacket at the tail:
Splitter Copper Cable Labels Identifying the Tails
(sample illustration)
Backshell Label Legend
|
Symbol |
Meaning |
Notes |
|
SN – Serial Number |
||
|
MT |
Manufacturer name |
2 characters, e.g. MT |
|
YY |
Year of manufacturing |
2 digits |
|
WW |
Week of manufacturing |
2 digits |
|
XX |
Manufacturer site |
2 characters |
|
SSSSS |
Serial number |
5 digits for serial number, starting from 00001. Reset at start of week to 00001. |
|
Miscellaneous |
||
|
ZZ |
HW and SW revision |
2 alpha-numeric characters |
|
YYYY |
Year of manufacturing |
4 digits |
|
MM |
Month of manufacturing |
2 digits |
|
DD |
Day of manufacturing |
2 digits |
|
COO |
Country of origin |
E.g. China or Malaysia |
|
Quick response code |
Serial number (MTYYWWXXSSSSS) |
Regulatory Compliance and Classification
The MCP7H60 is qualified in accordance with the following standards:
Safety: CB, UL, CE
EMC: CE, FCC, ICES, RCM, VCCI
Ask your NVIDIA field engineer or the support team for a zip file of the certifications for this product.
FCC Class A Notice
Each of the devices complies with CFR47 FCC Class A Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur during installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/television technician for help.
Modifications: Any modifications made to this device that are not approved by NVIDIA may void the authority granted to the user by the FCC to operate this equipment.
Handling Precautions and Electrostatic Discharge (ESD)
The cable is compatible with ESD levels in typical data center operating environments and certified in accordance with the standards listed in the Regulatory Compliance Section. The product is shipped with protective caps on its connectors to protect it until the time of installation. In normal handling and operation of high-speed cables and optical transceivers, ESD is of concern during insertion into the QSFP cage of the server/switch. Hence, standard ESD handling precautions must be observed. These include use of grounded wrist/shoe straps and ESD floor wherever a cable/transceiver is extracted/inserted. Electrostatic discharges to the exterior of the host equipment chassis after installation are subject to system level ESD requirements.
Cable Management Guidelines
It is important to follow the instructions and information detailed NVIDIA Cable Management Guidelines and FAQ Application Note to insure proper and optimal installation of this cable and avoid physical damage.
