Using mlxconfig

In order to access device in BDF format via configuration cycles, use "pciconf-" as prefix to the device.

Example:

Copy
Copied!


# mlxconfig -d 0000:86:00.0 q   Device #1: ---------- Device type: ConnectX5 Name: MCX556A-ECA_Ax Description: ConnectX-5 VPI adapter card; EDR IB (100Gb/s) and 100GbE; dual-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6 Device: 0000:86:00.0   Configurations: Next Boot MEMIC_BAR_SIZE 0 MEMIC_SIZE_LIMIT _256KB(1) HOST_CHAINING_MODE DISABLED(0) HOST_CHAINING_CACHE_DISABLE False(0) HOST_CHAINING_DESCRIPTORS Array[0..7] HOST_CHAINING_TOTAL_BUFFER_SIZE Array[0..7] FLEX_PARSER_PROFILE_ENABLE 0 FLEX_IPV4_OVER_VXLAN_PORT 0 ROCE_NEXT_PROTOCOL 254 ESWITCH_HAIRPIN_DESCRIPTORS Array[0..7] ESWITCH_HAIRPIN_TOT_BUFFER_SIZE Array[0..7] PF_BAR2_SIZE 0 NON_PREFETCHABLE_PF_BAR False(0) VF_VPD_ENABLE False(0) STRICT_VF_MSIX_NUM False(0) VF_NODNIC_ENABLE False(0) NUM_OF_VFS 0 PARTIAL_WRITE_CACHE_MODE DEVICE_DEFAULT(0) PF_BAR2_ENABLE False(0) SRIOV_EN False(0) PF_LOG_BAR_SIZE 5 .............

In order to set IB/ETH parameters through mlxconfig, use the following command line:

Copy
Copied!


# mlxconfig -d <device> set [LINK_TYPE_P1=<link_type>] [LINK_TYPE_P2=<link_type>]

Example: Configuring both ports as InfiniBand:

Copy
Copied!


# mlxconfig -d /dev/mst/mt4119_pciconf0 set LINK_TYPE_P1=1 LINK_TYPE_P2=1   Device #1: ---------- Device type: ConnectX5 Name: MCX556A-ECA_Ax Description: ConnectX-5 VPI adapter card; EDR IB (100Gb/s) and 100GbE; dual-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6 Device: /dev/mst/mt4119_pciconf0   Configurations: Next Boot New LINK_TYPE_P1 ETH(2) IB(1) LINK_TYPE_P2 ETH(2) IB(1)   Apply new Configuration? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.

Setting Auto Negotiation

Auto negotiation modes is displayed at mlxconfig available configuration menu (Using <i> command).

In order to set non-volatile auto negotiation mode through mlxconfig, use the following command line:

Copy
Copied!


# mlxconfig -d <device> set [PHY_AUTO_NEG_P1=<auto_negotiation_mode>] [PHY_AUTO_NEG_P2=<auto_negotiation_mode>]

Example: Configuring both ports with auto negotiation enabled:

Copy
Copied!


# mlxconfig -d /dev/mst/mt4129_pciconf0 set PHY_AUTO_NEG_P1=1 PHY_AUTO_NEG_P2=1   Device #1: ----------   Device type: ConnectX7 Name: CX713106AE-HEA_QP1_Ax Description: NVIDIA ConnectX-7 HHHL adapter Card; 200GbE (default mode) / NDR200 IB; Dual-port QSFP112; PCIe 5.0 x16 with x16 PCIe extension option; Crypto Enabled; Secure Boot Capable; IPN for internal use Device: /dev/mst/mt4129_pciconf0   Configurations: Next Boot New PHY_AUTO_NEG_P1 DEVICE_DEFAULT(0) AUTO_NEG_ENABLED(1) PHY_AUTO_NEG_P2 DEVICE_DEFAULT(0) AUTO_NEG_ENABLED(1)   Apply new Configuration? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.


Setting Speed Rate Mask

Speed rate mask enables masking device's available speeds in all link operational modes.

Speed masking requires defining the speed rate mask and enabling speed override configuration.

In order to set non-volatile speed rate mask through mlxconfig, verify first that override mask is enabled using the following command:

Copy
Copied!


# mlxconfig -d <device> set [PHY_RATE_MASK_OVERRIDE_P1=<True|False>] [PHY_RATE_MASK_OVERRIDE_P2=<True|False>]

Example: Enabling both ports' speed mask override:

Copy
Copied!


# mlxconfig -d /dev/mst/mt4129_pciconf0 set PHY_RATE_MASK_OVERRIDE_P1=1 PHY_RATE_MASK_OVERRIDE_P2=1   Device #1: ----------   Device type: ConnectX7 Name: CX713106AE-HEA_QP1_Ax Description: NVIDIA ConnectX-7 HHHL adapter Card; 200GbE (default mode) / NDR200 IB; Dual-port QSFP112; PCIe 5.0 x16 with x16 PCIe extension option; Crypto Enabled; Secure Boot Capable; IPN for internal use Device: /dev/mst/mt4129_pciconf0   Configurations: Next Boot New PHY_RATE_MASK_OVERRIDE_P1 False(0) True(1) PHY_RATE_MASK_OVERRIDE_P2 False(0) True(1)   Apply new Configuration? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.

Configure the wanted speed mask using the following command:

Copy
Copied!


# mlxconfig -d <device> set [PHY_RATE_MASK_P1=<rate_mask>] [PHY_RATE_MASK_P2=<rate_mask>]

The rate mask mapping is displayed at mlxconfig available configuration menu (Using <i> command).

Example: Enabling both ports to support CAUI-4 / 100GBASE-CR4 only:

Copy
Copied!


# mlxconfig -d /dev/mst/mt4129_pciconf0 set PHY_RATE_MASK_P1=0x200 PHY_RATE_MASK_P2=0x200   Device #1: ----------   Device type: ConnectX7 Name: CX713106AE-HEA_QP1_Ax Description: NVIDIA ConnectX-7 HHHL adapter Card; 200GbE (default mode) / NDR200 IB; Dual-port QSFP112; PCIe 5.0 x16 with x16 PCIe extension option; Crypto Enabled; Secure Boot Capable; IPN for internal use Device: /dev/mst/mt4129_pciconf0   Configurations: Next Boot New PHY_RATE_MASK_P1 0 0x200(512) PHY_RATE_MASK_P2 0 0x200(512)   Apply new Configuration? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.


Setting FEC Mode

Customizes FEC configuration of the port.

Detailed information on FEC modes is displayed at mlxconfig available configuration menu (Using command).

In order to set non-volatile FEC mode through mlxconfig, use the following command line:

Copy
Copied!


# mlxconfig -d <device> set [PHY_FEC_OVERRIDE_P1=<fec_mode>] [PHY_FEC_OVERRIDE_P2=<fec_mode>]

Example: Setting FEC mode disabled DME, RS FEC for 25G/50G/100G for both port:

Copy
Copied!


# mlxconfig -d /dev/mst/mt4129_pciconf0 set PHY_FEC_OVERRIDE_P1=0x2 PHY_FEC_OVERRIDE_P2=0x2   Device #1: ----------   Device type: ConnectX7 Name: CX713106AE-HEA_QP1_Ax Description: NVIDIA ConnectX-7 HHHL adapter Card; 200GbE (default mode) / NDR200 IB; Dual-port QSFP112; PCIe 5.0 x16 with x16 PCIe extension option; Crypto Enabled; Secure Boot Capable; IPN for internal use Device: /dev/mst/mt4129_pciconf0   Configurations: Next Boot New PHY_FEC_OVERRIDE_P1 DEVICE_DEFAULT(0) MODE_2(2) PHY_FEC_OVERRIDE_P2 DEVICE_DEFAULT(0) MODE_2(2)   Apply new Configuration? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.


In order to set SR-IOV parameters through mlxconfig, use the following command line:

Copy
Copied!


# mlxconfig -d <device> set [SRIOV_EN=<0|1>] [NUM_OF_VFS=<NUM>]

Example: Turning on SR-IOV and enabling 8 Virtual Functions per Physical Function:

Copy
Copied!


# mlxconfig -d /dev/mst/mt4115_pciconf0 set SRIOV_EN=1 NUM_OF_VFS=8   Device #1: ---------- Device type: ConnectX4 PCI device: /dev/mst/mt4115_pciconf0 Configurations: Next Boot New SRIOV_EN 0 1 NUM_OF_VFS 0 8   Apply new Configuration? ? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.

For a full description of the preboot configurable parameters refer to Supported Configurations and their Parameters under "Preboot Settings".

Example: Enable boot option ROM on port 1, set boot retries to 3 and set the boot protocol to PXE (on ConnectX-3 Pro cards only).

Copy
Copied!


# mlxconfig -d /dev/mst/mt4103_pciconf0 set BOOT_OPTION_ROM_EN_P1=1 BOOT_RETRY_CNT_P1=3 LEGACY_BOOT_PROTOCOL_P1=1   Device #1: ---------- Device type: ConnectX3Pro PCI device: /dev/mst/mt4103_pciconf0 Configurations: Next Boot New BOOT_OPTION_ROM_EN_P1 False(0) True(1) BOOT_RETRY_CNT_P1 0 3 LEGACY_BOOT_PROTOCOL_P1 2 1   Apply new Configuration? ? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.

Example: Configure VLAN ID to 3 on port 2

Copy
Copied!


# mlxconfig -d /dev/mst/mt4119_pciconf0 set BOOT_VLAN=3   Device #1: ---------- Device type: ConnectX5 Name: MCX556A-ECA_Ax Description: ConnectX-5 VPI adapter card; EDR IB (100Gb/s) and 100GbE; dual-port QSFP28; PCIe3.0 x16; tall bracket; ROHS R6 Device: /dev/mst/mt4119_pciconf0   Configurations: Next Boot New BOOT_VLAN 1 3   Apply new Configuration? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.

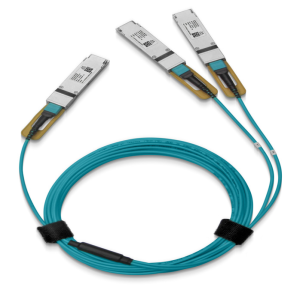

The break-out cable is a unique NVIDIA capability, where a single physical quad-lane HDR or NDR port is divided into 2 dual-lane ports. It maximizes the flexibility of the end user to use the NVIDIA switch with a combination of dual-lane and quad-lane interfaces according to the specific requirements of its network. All system ports may be split into 2-lane ports. Splitting a port changes the notation of that port -

  • In HDR ports:

    From x/y to x/y/z, with “x/y” indicating the previous notation of the port prior to the split, and “z” indicating the number of the resulting sub-physical port (1,2). Each sub-physical port is then handled as an individual port. For example, splitting port 5 into 2 lanes gives the following new ports: 1/5/1 & 1/5/2.

  • In NDR ports:

    From x/y/z to x/y/z/i, with “x/y/z” indicating the previous notation of the port prior to the split, and “i” indicating the number of the resulting single-lane port (1,2). Each sub-physical port is then handled as an individual port. For example, splitting port 1/5/1 into 2 lanes results in ports 1/5/1/1 and 1/5/1/2.


To enable the port split, the following actions are required:

Step 1. Set the Split Mode in a Remotely Managed Switch.

Copy
Copied!


# mlxconfig -d <device>set SPLIT_MODE=1

Example:

Copy
Copied!


# mlxconfig -d /dev/mst/mt54000_pciconf0 set SPLIT_MODE=1   Device #1: ---------- Device type: Quantum Name: N/A Description: N/A Device: /dev/mst/mt54000_pciconf0 Configurations: Next Boot New SPLIT_MODE NO_SPLIT_SUPPORT(0) SPLIT_2X(1)

To create a query for the Split Mode parameter using mlxconfig:

Copy
Copied!


# mlxconfig -d <device> q SPLIT_MODE

Example:

Copy
Copied!


# mlxconfig -d /dev/mst/mt54000_pciconf0 q SPLIT_MODE   Device #1: ---------- Device type: Quantum Name: N/A Description: N/A Device: /dev/mst/mt54000_pciconf0 Configurations: Next Boot SPLIT_MODE SPLIT_2X(1)

Step 2. Split a Port in a Remotely Managed Switch.

  • To split a specific port for one or more ports of (1-64) using mlxconfig:

    Copy
    Copied!


    # mlxconfig -d <device> set SPLIT_PORT[<port_num>/<port_range>]=1

    Note

    Please note that although the command, is “set SPLIT_PORT[33..64]”, it splits a specific port for one or more ports of the higher ports (33-40).

    Please note that the first port is set as 1, e.g., [1], [1..64].

  • How to turn on the split port for the first port only:

    Copy
    Copied!


    mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid-0x0001 set SPLIT_PORT[1]=1

  • How to turn on the split port for the first 32 ports (range of ports):

    Copy
    Copied!


    mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid-0x0001 set SPLIT_PORT[1..32]=1

  • How to turn on the split port for the last 8 ports:

    Copy
    Copied!


    mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid-0x0001 set SPLIT_PORT[57..64]=1

  • How to turn off the split port for port 40:

    Copy
    Copied!


    mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid-0x0001 set SPLIT_PORT[40]=0

  • How to query the split port for the first 32 ports:

    Copy
    Copied!


    mlxconfig -d /dev/mst/SW_MT54000_EVB-SX-1_L00_lid-0x0001 query SPLIT_PORT[1..32]

Step 3. Reboot the switch, or run:

Copy
Copied!


flint -d <device> swreset

To disable the port split, the following actions are required:

Step 1. Disable the Split Ports in a Remotely Managed Switch:

  • To unsplit a specific port for one or more ports (1-32) using mlxconfig:

    Copy
    Copied!


    # mlxconfig -d <device> set SPLIT_PORT[<port_num>/<port_range>]=0

Step 2. Disable the Split Mode in a Remotely Managed Switch.

Copy
Copied!


# mlxconfig -d <device> set SPLIT_MODE=0

mlxconfig allows applying raw configuration file for a pre-set configuration. Raw configuration files are intended for advanced users. This document does not cover the generation of such files.

Set the raw configuration file:

Copy
Copied!


# mlxconfig -f ./tlv_file.conf -d /dev/mst/mt4115_pciconf1 set_raw   Raw TLV #1 Info: Length: 0xc Version: 0 OverrideEn: 1 Type: 0x00000080 Data: 0xa0000000 0xa0020010 0x00000000   Raw TLV #2 Info: Length: 0x4 Version: 0 OverrideEn: 1 Type: 0x01020012 Data: 0x0000000b   Raw TLV #3 Info: Length: 0x8 Version: 0 OverrideEn: 1 Type: 0x00000190 Data: 0x00000010 0x00007d00   Raw TLV #4 Info: Length: 0x4 Version: 0 OverrideEn: 1 Type: 0x00000082 Data: 0x0000000c Operation intended for advanced users.   Are you sure you want to apply raw TLV file? ? (y/n) [n] : y Applying... Done! -I- Please reboot machine to load new configurations.

Note

Never apply files from an unreliable source.
