SB77X0 SB78X0 SB67X0 and SX6710G InfiniBand Switch Systems Quick Installation Guide
SB77X0 SB78X0 SB67X0 and SX6710G InfiniBand Switch Systems Quick Installation Guide

Installation and Configuration

#

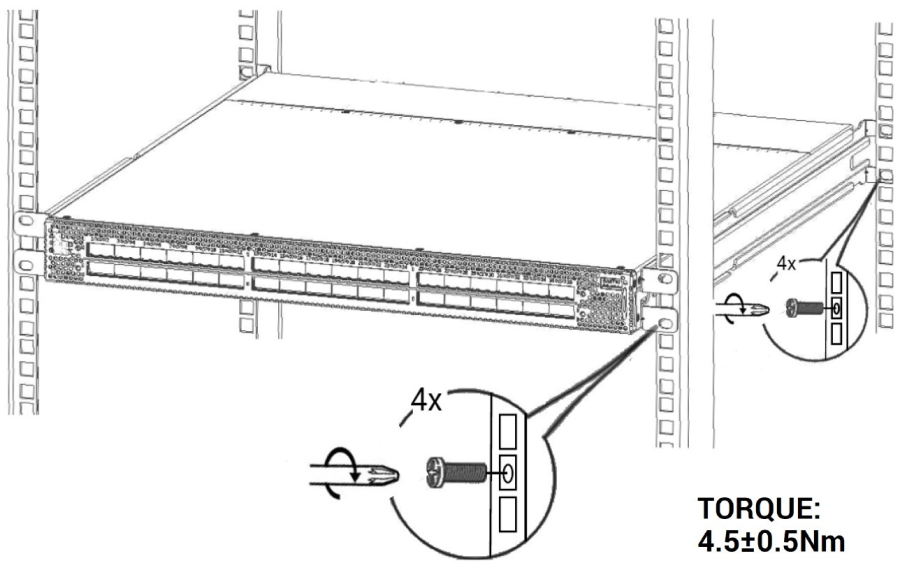

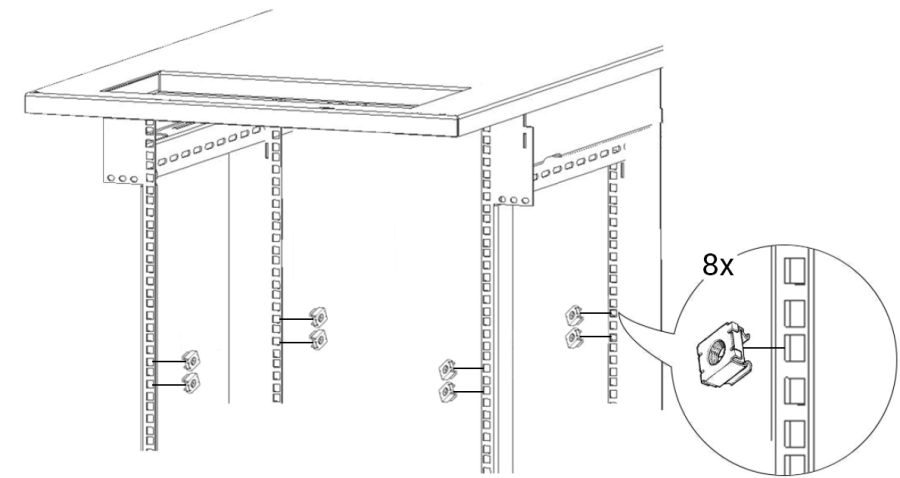

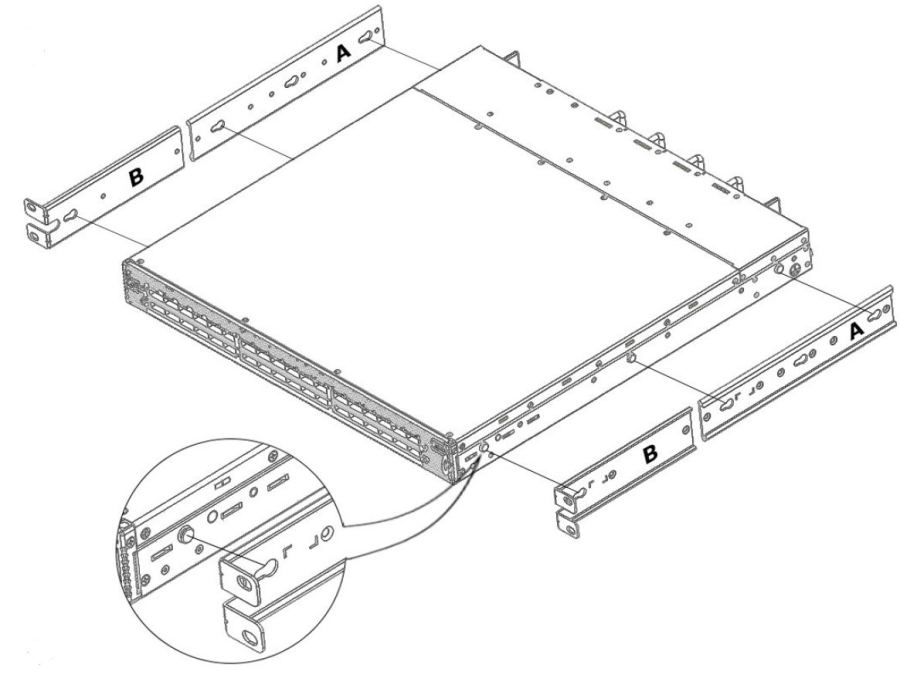

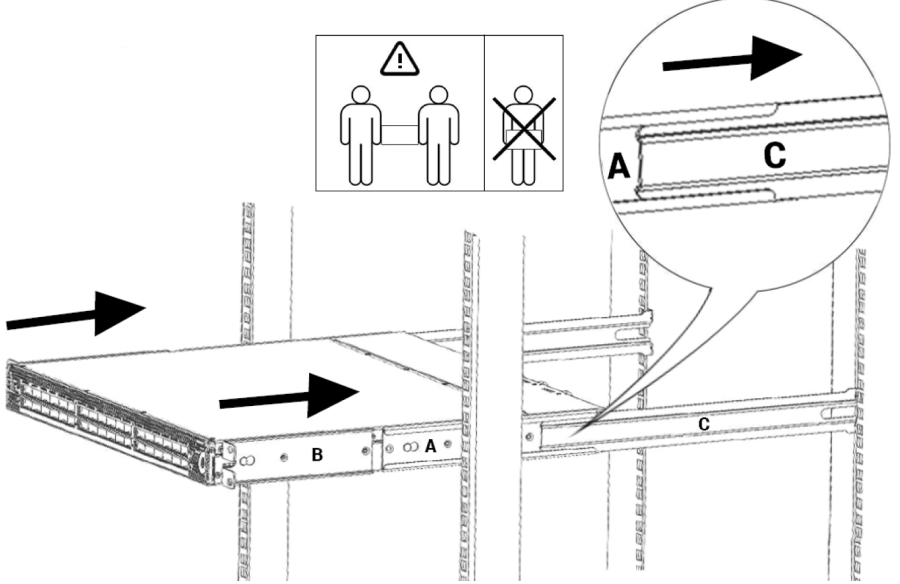

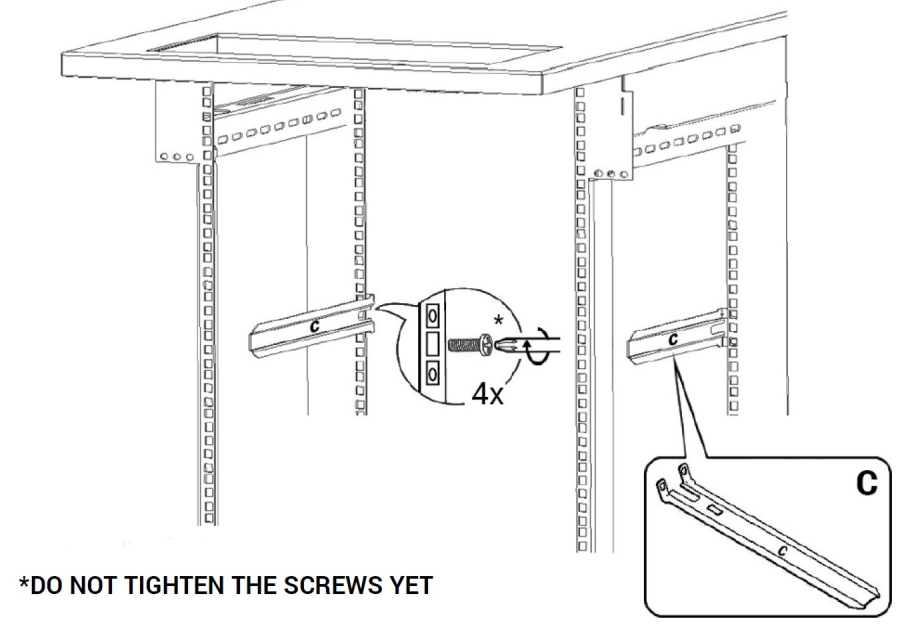

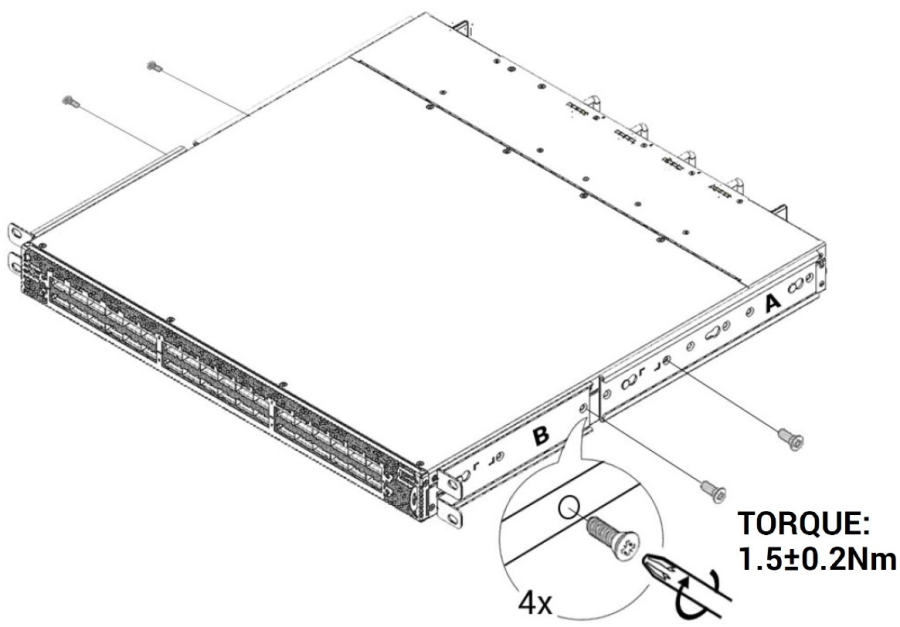

Illustration

1


2


3


4


5


6


Connector (Front) Side


FRU (Rear) Side

Managed Systems

Externally Managed Systems

* It may take up to five minutes to turn on the system. If the System Status LED shows amber after five minutes, unplug the system and contact your NVIDIA representative.

LED Assignments

Symbol

Description

Normal Status


System health

Green/Flashing


Fan health

Green


Power supply health

Green


Bad port detected

Off


Identifier LED

Off/Blue


Reset button

  1. Connect the host PC to the Console (RJ-45) port.

  2. Configure a serial terminal program.

    Parameter

    Settings

    Baud rate

    115200

    Data bits

    8

    Stop bits

    1

    Parity

    None

    Flow control

    None

  3. Login:

    OS

    Username

    Password

    Onyx (MLNX-OS)

    admin

    admin

  4. Initial configuration in Onyx (MLNX-OS): Go through the configuration wizard. For further information, please refer to: https://docs.nvidia.com/networking/category/mlnxos.

For full installation instructions, go to https://docs.nvidia.com/networking/category/switchen.
