Interface Specifications

NVIDIA Spectrum-4 SN5000 2U Switch Systems Hardware User Manual

NVIDIA switch systems come in a flexible range of form factors - SFP/QSFP, SFP28/QSFP28, SFP56/QSFP56, SFP-DD/QSFP-DD and OSFP.

All form factors specification documents are available on the Storage Networking Industry Association (SNIA) Website.

For the specification documents of all available USB types, please refer to the document library in the USB Organization Website.

In order to connect a host PC to the Console RJ45 port of the system, a RS232 harness cable (DB9 to RJ45) is supplied.

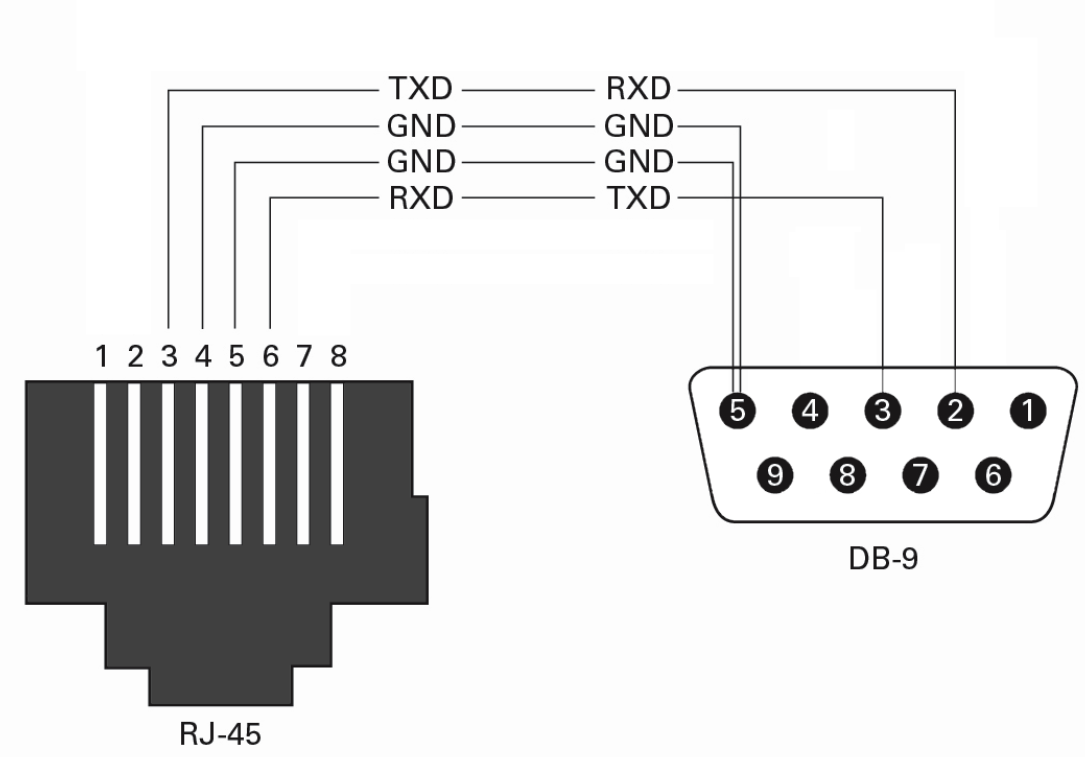

RJ45 to DB9 Harness Pinout
