ClassRegistry is the default implementation for IClassRegistry. More...

#include <ClassRegistry.h>

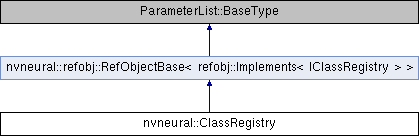

Inheritance diagram for nvneural::ClassRegistry:

Public Types
using	CreationFunction = IRefObject ()()
	Typedef for factory functions that take no arguments and return a new IRefObject.

Public Member Functions
	ClassRegistry ()
	Creates a new ClassRegistry containing statically-registered descriptors and object classes.

NeuralResult	createObject (IRefObject *ppOut, const char pObjectClass) const noexcept final
	Creates the designated object using its manifest-specified class name. More...

const ActivationDesc *	exportedActivationByIndex (std::size_t index) const noexcept final
	Returns a registered activation function descriptor for a given index. More...

std::size_t	exportedActivationsCount () const noexcept final
	Returns the count of registered activation functions. More...

const FusingRule *	exportedFusingRuleByIndex (std::size_t index) const noexcept final
	Returns a registered fusing rule for a given index. More...

std::size_t	exportedFusingRulesCount () const noexcept final
	Returns the count of registered fusing rules. More...

const LayerDesc *	exportedLayerByIndex (std::size_t index) const noexcept final
	Returns a registered layer descriptor for a given index. More...

std::size_t	exportedLayersCount () const noexcept final
	Returns the count of registered layers. More...

const PrototypeDesc *	exportedPrototypeByIndex (std::size_t index) const noexcept final
	Returns a registered prototype layer descriptor for a given index. More...

PrototypeRuntimeValidatorFunction	exportedPrototypeRuntimeValidatorByIndex (std::size_t index) const noexcept final
	Returns the runtime validator of a registered prototype layer for a given index. More...

std::size_t	exportedPrototypesCount () const noexcept final
	Returns the count of registered prototype layers. More...

NeuralResult	importPlugin (IPlugin *pPlugin) final
	Imports everything (layer, activation, fusing rules, and prototypes) registered with a single plugin. More...

NeuralResult	importPluginLoader (IPluginLoader *pPluginLoader) final
	Imports all plugins loaded by a plugin loader. More...

bool	isPrototypeRuntimeCompatible (const char pPrototypeObjectClass, const INetwork pNetwork) const final
	Checks if the given prototype object class is compatible with any of the registered prototypes. More...

	~ClassRegistry ()
	Destroys the ClassRegistry.

Public Member Functions inherited from nvneural::refobj::RefObjectBase< refobj::Implements< IClassRegistry > >
IRefObject::RefCount	addRef () const noexcept
	Increment the object's reference count. More...

const void *	queryInterface (IRefObject::TypeId interfaceId) const noexcept
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void *	queryInterface (IRefObject::TypeId interfaceId) noexcept
	Retrieves a new object interface pointer. More...

	RefObjectBase ()
	Default constructor. Logs object creation.

IRefObject::RefCount	release () const noexcept
	Decrements the object's reference count and destroys the object if the reference count reaches zero. More...

Static Public Member Functions
template<typename TObject >
static OpaqueClassRegistrationHandle	registerActivation (const ActivationDesc &activationDesc)
	Registers a C++ object and ActivationDesc structure for discovery and creation. More...

static OpaqueClassRegistrationHandle	registerActivationDesc (const ActivationDesc *pActivationDesc)
	Registers an ActivationDesc structure for discovery. More...

static OpaqueClassRegistrationHandle	registerFusingRule (std::uint32_t syntaxVersion, const char *pFusingRule)
	Register a fusing rule for export. More...

template<typename TObject >
static OpaqueClassRegistrationHandle	registerLayer (const LayerDesc &layerDesc)
	Registers a C++ object and LayerDesc structure for discovery and creation. More...

static OpaqueClassRegistrationHandle	registerLayerDesc (const LayerDesc *pLayerDesc)
	Registers a LayerDesc structure for discovery. More...

template<typename TObject >
static OpaqueClassRegistrationHandle	registerObjectClass (const char *pObjectClass)
	Registers a C++ object as a factory-creatable object class. More...

static OpaqueClassRegistrationHandle	registerObjectClassInternal (const char *pObjectClass, CreationFunction classFactory)
	Registers an object class and associated creation function. More...

template<typename TObject >
static OpaqueClassRegistrationHandle	registerPrototype (const PrototypeDesc &prototypeDesc, PrototypeRuntimeValidatorFunction runtimeValidator)
	Registers a C++ object as a prototype layer for discovery and creation. More...

static OpaqueClassRegistrationHandle	registerPrototypeDesc (const PrototypeDesc *pPrototypeDesc, PrototypeRuntimeValidatorFunction runtimeValidator)
	Registers a PrototypeDesc structure and validator for discovery. More...

Detailed Description

ClassRegistry is the default implementation for IClassRegistry.

In addition to the operations already described in IClassRegistry, ClassRegistry supports direct integration with ExportPlugin, the standard IPlugin implementation. All statically defined exports (using registerLayer, registerActivation, and so on) are automaticallly hooked up to the type-specific plugin interfaces for discovery by tools and applications.

There are two major caveats to static registration:

ClassRegistry does not make deep copies of registered descriptor structures. They must remain valid at all times while the plugin is loaded. In practice, this means module- level const variables are required. Do not use rvalues!
Module-level variables initialize under the DLL loader lock in Windows. Do not perform significant operations as part of constructing your export variables. In addition to the "C++ static initialization order fiasco" (see this site for details: https://en.cppreference.com/w/cpp/language/siof) you should refrain from allocating large amounts of memory (prefer fixed std::arrays instead) and avoid any threading operations.

Member Function Documentation

◆ createObject()

NeuralResult ClassRegistry::createObject	(	IRefObject **	ppOut,
		const char *	pObjectClass
	)		const

finalnoexcept

Creates the designated object using its manifest-specified class name.

Parameters

ppOut	Receives a pointer to a newly created object, or nullptr if the name is unknown or creation fails.
pObjectClass	Object class name.

Note: For implementers: the newly created object should have a ref count of 1.

◆ exportedActivationByIndex()

const ActivationDesc * ClassRegistry::exportedActivationByIndex ( std::size_t index ) const

finalnoexcept

Returns a registered activation function descriptor for a given index.

Parameters

index 0-based index to an activation function

Returns: A pointer to ActivationDesc that will remain valid through the lifespan of this object, or nullptr if index is out of bounds.

◆ exportedActivationsCount()

std::size_t ClassRegistry::exportedActivationsCount ( ) const

finalnoexcept

Returns the count of registered activation functions.

◆ exportedFusingRuleByIndex()

const FusingRule * ClassRegistry::exportedFusingRuleByIndex ( std::size_t index ) const

finalnoexcept

Returns a registered fusing rule for a given index.

Parameters

index 0-based index to a fusing ruler

Returns: A pointer to FusingRule that will remain valid through the lifespan of this object, or nullptr if index is out of bounds.

◆ exportedFusingRulesCount()

std::size_t ClassRegistry::exportedFusingRulesCount ( ) const

finalnoexcept

Returns the count of registered fusing rules.

◆ exportedLayerByIndex()

const LayerDesc * ClassRegistry::exportedLayerByIndex ( std::size_t index ) const

finalnoexcept

Returns a registered layer descriptor for a given index.

Parameters

index 0-based index to a layer

Returns: A pointer to LayerDesc that will remain valid through the lifespan of this object, or nullptr if index is out of bounds.

◆ exportedLayersCount()

std::size_t ClassRegistry::exportedLayersCount ( ) const

finalnoexcept

Returns the count of registered layers.

◆ exportedPrototypeByIndex()

const PrototypeDesc * ClassRegistry::exportedPrototypeByIndex ( std::size_t index ) const

finalnoexcept

Returns a registered prototype layer descriptor for a given index.

Parameters

index 0-based index to a prototype layer

Returns: A pointer to PrototypeDesc that will remain valid through the lifespan of this object, or nullptr if index is out of bounds.

◆ exportedPrototypeRuntimeValidatorByIndex()

PrototypeRuntimeValidatorFunction ClassRegistry::exportedPrototypeRuntimeValidatorByIndex ( std::size_t index ) const

finalnoexcept

Returns the runtime validator of a registered prototype layer for a given index.

Parameters

index 0-based index to a prototype layer

Returns: A function of PrototypeRuntimeValidatorFunction that will remain valid through the lifespan of this object, or nullptr if index is out of bounds.

◆ exportedPrototypesCount()

std::size_t ClassRegistry::exportedPrototypesCount ( ) const

finalnoexcept

Returns the count of registered prototype layers.

◆ importPlugin()

NeuralResult ClassRegistry::importPlugin ( IPlugin * pPlugin )

final

Imports everything (layer, activation, fusing rules, and prototypes) registered with a single plugin.

Parameters

pPlugin A plugin enumerated by a plugin loader

Returns: Always success as this function does not expect any failure

◆ importPluginLoader()

NeuralResult ClassRegistry::importPluginLoader ( IPluginLoader * pPluginLoader )

final

Imports all plugins loaded by a plugin loader.

Equivalent to looping through the IPluginLoader calling importPlugin on each object.

Parameters

pPluginLoader IPluginLoader with loaded plugins

Returns: Success if plugin loader is empty or all plugins loaded successfully, Failure if one or more had errors

◆ isPrototypeRuntimeCompatible()

bool ClassRegistry::isPrototypeRuntimeCompatible	(	const char *	pPrototypeObjectClass,
		const INetwork *	pNetwork
	)		const

final

Checks if the given prototype object class is compatible with any of the registered prototypes.

Parameters

pPrototypeObjectClass	A string specifying the prototype object class to be checked
pNetwork	Network pointer needed for a prototype's runtime validator

Returns: True if the given prototype is compatible with one of the registered prototypes; False otherwise

◆ registerActivation()

template<typename TObject >

static OpaqueClassRegistrationHandle nvneural::ClassRegistry::registerActivation ( const ActivationDesc & activationDesc )

inlinestatic

Registers a C++ object and ActivationDesc structure for discovery and creation.

The object type is registered equivalent to calling registerObjectClass<TObject>(activationDesc.pObjectClass). You do not need to register the object explicitly.

Template Parameters

TObject Object type to register; must have a zero-argument constructor defined

Parameters

activationDesc Activation descriptor to export

◆ registerActivationDesc()

OpaqueClassRegistrationHandle ClassRegistry::registerActivationDesc ( const ActivationDesc * pActivationDesc )

static

Registers an ActivationDesc structure for discovery.

Does not register referenced object classes for creation.

Parameters

pActivationDesc Activation descriptor to export

◆ registerFusingRule()

OpaqueClassRegistrationHandle ClassRegistry::registerFusingRule	(	std::uint32_t	syntaxVersion,
		const char *	pFusingRule
	)

static

Register a fusing rule for export.

The fusing rule will be considered a "default fusing rule" for purposes of ConverenceNG –enable-default-fusing.

Parameters

syntaxVersion	Fusing rule syntax version used by pFusingRule
pFusingRule	Fusing rule definition to export; syntax is version-specific and described in the FusingRule struct

◆ registerLayer()

template<typename TObject >

static OpaqueClassRegistrationHandle nvneural::ClassRegistry::registerLayer ( const LayerDesc & layerDesc )

inlinestatic

Registers a C++ object and LayerDesc structure for discovery and creation.

The object type is registered equivalent to calling registerObjectClass<TObject>(layerDesc.pObjectClass). You do not need to register the object explicitly.

Template Parameters

TObject Object type to register; must have a zero-argument constructor defined

Parameters

layerDesc Layer descriptor to export

◆ registerLayerDesc()

OpaqueClassRegistrationHandle ClassRegistry::registerLayerDesc ( const LayerDesc * pLayerDesc )

static

Registers a LayerDesc structure for discovery.

Does not register referenced object classes for creation.

Parameters

pLayerDesc Layer descriptor to export

◆ registerObjectClass()

template<typename TObject >

static OpaqueClassRegistrationHandle nvneural::ClassRegistry::registerObjectClass ( const char * pObjectClass )

inlinestatic

Registers a C++ object as a factory-creatable object class.

Template Parameters

TObject Object type to register; must have a zero-argument constructor defined

Parameters

pObjectClass Class name to export the object under; should be a string literal

◆ registerObjectClassInternal()

OpaqueClassRegistrationHandle ClassRegistry::registerObjectClassInternal	(	const char *	pObjectClass,
		CreationFunction	classFactory
	)

static

Registers an object class and associated creation function.

Most of the other registration methods call this for you, but this interface is provided to support nonstandard use cases.

Parameters

pObjectClass	Object class name to export
classFactory	Creation function to associate with the object class

◆ registerPrototype()

template<typename TObject >

static OpaqueClassRegistrationHandle nvneural::ClassRegistry::registerPrototype	(	const PrototypeDesc &	prototypeDesc,
		PrototypeRuntimeValidatorFunction	runtimeValidator
	)

inlinestatic

Registers a C++ object as a prototype layer for discovery and creation.

The object type is registered equivalent to calling registerObjectClass<TObject>(prototypeDesc.pObjectClass). You do not need to register the object explicitly.

Template Parameters

TObject Object type to register; must have a zero-argument constructor defined

Parameters

prototypeDesc	Prototype descriptor to export
runtimeValidator	Validation function associated with the descriptor to export

◆ registerPrototypeDesc()

OpaqueClassRegistrationHandle ClassRegistry::registerPrototypeDesc	(	const PrototypeDesc *	pPrototypeDesc,
		PrototypeRuntimeValidatorFunction	runtimeValidator
	)

static

Registers a PrototypeDesc structure and validator for discovery.

Does not register referenced object classes for creation.

Parameters

pPrototypeDesc	Prototype descriptor to export
runtimeValidator	Validation function associated with the descriptor to export

The documentation for this class was generated from the following files:

Helpers/Inc/ClassRegistry.h
Helpers/Src/ClassRegistry.cpp

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Function Documentation

◆ createObject()

◆ exportedActivationByIndex()

◆ exportedActivationsCount()

◆ exportedFusingRuleByIndex()

◆ exportedFusingRulesCount()

◆ exportedLayerByIndex()

◆ exportedLayersCount()

◆ exportedPrototypeByIndex()

◆ exportedPrototypeRuntimeValidatorByIndex()

◆ exportedPrototypesCount()

◆ importPlugin()

◆ importPluginLoader()

◆ isPrototypeRuntimeCompatible()

◆ registerActivation()

◆ registerActivationDesc()

◆ registerFusingRule()

◆ registerLayer()

◆ registerLayerDesc()

◆ registerObjectClass()

◆ registerObjectClassInternal()

◆ registerPrototype()

◆ registerPrototypeDesc()
