Image Mirroring | NVIDIA Cloud Functions

All required self-hosted NVCF artifacts (see self-hosted-artifact-manifest) must be available to be pulled by pods in your Kubernetes cluster for a successful installation using the helmfile (nvcf-self-managed-stack) automation. This page provides examples on how to pull artifacts from NGC and push them to your desired registry.

Mirroring images is not the same as configuring image pull secrets. This page covers how to copy NVCF artifacts into your registry. If your registry is private, Kubernetes also needs credentials to pull those images at runtime. For instructions on configuring image pull secrets for the NVCF control plane pods, see control-plane-image-pull-secrets in the installation guide.

Recommended for ECR Users: Automated ECR Mirroring

If you are deploying to Amazon EKS with ECR, the nvcf-base Terraform module provides automated image mirroring as the recommended approach. This eliminates manual mirroring steps entirely.

To enable automated mirroring, set the following in your terraform.tfvars:

1 # Enable automated ECR mirroring
2 create_sm_ecr_repos = true

When create_sm_ecr_repos = true, Terraform will:

Create all required ECR repositories under {cluster_name}/ prefix
Mirror all NVCF control plane images and Helm charts from NGC
Mirror LLS artifacts (streaming-proxy, gdn-streaming Helm chart)
Use the correct architecture for your cluster (linux/amd64)

What’s included:

Infrastructure components (NATS, Cassandra, OpenBao)
Control plane components (API, SIS, gRPC proxy, invocation service, etc.)
GPU workload components (NVCA operator, worker utilities)
LLS components (always included)
Reference architecture components (gateway routes, admin-issuer-proxy)

What’s NOT included by default:

Simulation caching components (gxcache, ddcs, usd-content-cache) — uncomment in the copy script if needed
Custom streaming application images (e.g., usd-composer) — mirror manually

Automated mirroring requires:

AWS credentials configured with ECR push permissions. Verify with aws sts get-caller-identity. See aws-authentication for configuration options.
NGC_API_KEY environment variable set with an API key from the nvcf-onprem organization before running terraform apply.
skopeo installed on your machine. Skopeo is used to copy container images directly between registries without requiring a local Docker daemon. See the skopeo installation guide for installation instructions.

For detailed Terraform configuration, see terraform-installation.

If you cannot use the Terraform automation (e.g., non-ECR registry, air-gapped environment), continue with the manual mirroring instructions below.

Prerequisites

You must have access to the NGC nvcf-onprem organization to begin.

Navigate to https://org.ngc.nvidia.com/setup/api-keys and ensure you have selected the nvcf-onprem organization in the upper right.
Create a Personal API key with the required scopes to pull entities.

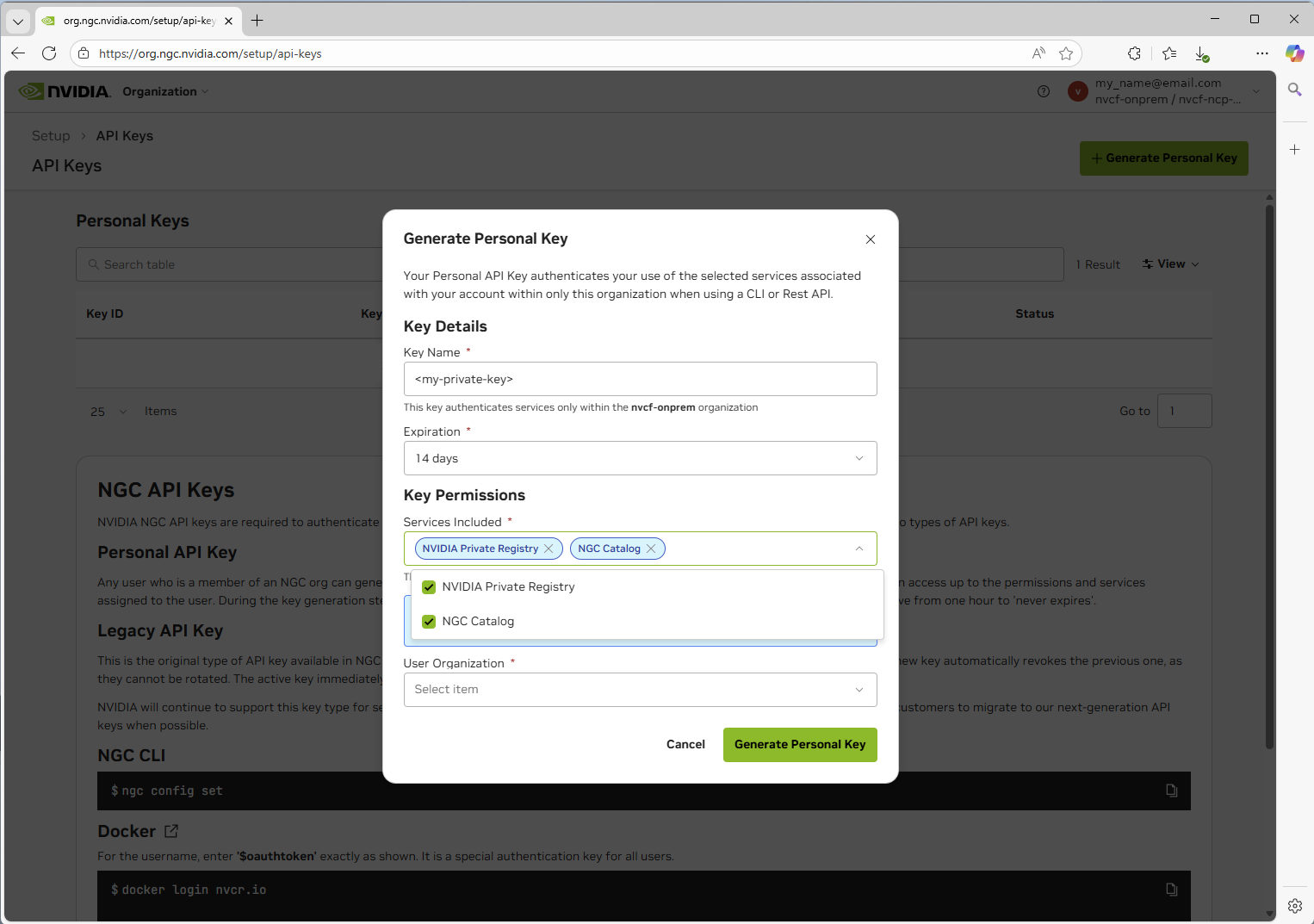

Personal API key creation for nvcf-onprem organization — The User Organization in the drop-down will be whichever NCA Organization your account is registered against. It will not be nvcf-onprem.

Set the NGC API key as an environment variable for use in any subsequent commands:

$ export NGC_API_KEY="nvapi-xxxxxxxxxxxxx"  # Replace with your NGC API key

LLS-Specific Artifacts

If you plan to deploy Low Latency Streaming (LLS), you must mirror the following additional artifacts beyond the core NVCF control plane:

Container Images:

streaming-proxy - Streaming Proxy container for streaming

Helm Charts:

gdn-streaming - GDN Streaming Proxy Helm chart

Optional (for streaming workloads):

Streaming application images (e.g., usd-composer)

These artifacts (aside from the streaming application sample) are automatically included when using Terraform automated mirroring (create_sm_ecr_repos = true). LLS artifacts are always mirrored regardless of whether lls_enabled is set.

See self-hosted-lls-installation for LLS deployment instructions.

Pulling Artifacts from NGC

Important: The examples below show how to pull individual artifacts. You must pull each image, chart, and resource listed in the self-hosted-artifact-manifest individually. These examples demonstrate the process for one artifact of each type - you will need to repeat these steps for every artifact required for your deployment.

Complete the following for each artifact:

Pull each container image from NGC
Pull each Helm chart from NGC
Pull each resource (like nvcf-base, nvcf-self-managed-stack) from NGC
Push each artifact to your target registry (ECR, Harbor, etc.)

See the self-hosted-artifact-manifest for the complete list of all required artifacts.

Pulling Images

Platform Architecture Mismatch

When pulling images, Docker pulls the architecture matching your local machine by default. If you’re running on an Apple Silicon Mac (arm64) but deploying to an amd64 cluster (most EKS/GKE clusters), you must specify the target platform:

$ # Pull for amd64 clusters (most common)
$ docker pull --platform linux/amd64 <image>
$
$ # Pull for arm64 clusters
$ docker pull --platform linux/arm64 <image>

Failing to specify the correct platform will result in exec format error when pods attempt to start. See image-mirroring-troubleshooting for more details.

$ docker login nvcr.io -u '$oauthtoken' -p <NGC_API_KEY>

Pull the image (specify platform matching your target cluster):

$ # For amd64 clusters (most EKS, GKE, AKS clusters)
$ docker pull --platform linux/amd64 nvcr.io/0833294136851237/nvcf-ncp-staging/nvcf-openbao:2.5.1-nv-1.1.0
$
$ # For arm64 clusters (Graviton-based EKS, etc.)
$ docker pull --platform linux/arm64 nvcr.io/0833294136851237/nvcf-ncp-staging/nvcf-openbao:2.5.1-nv-1.1.0

Pulling Helm Charts

OCI-compliant Helm Charts

$ # Set your API key
$ export NGC_API_KEY=<api key generated from the Personal API key steps above>
$
$ # Login to the registry
$ echo "${NGC_API_KEY}" | helm registry login nvcr.io/0833294136851237/nvcf-ncp-staging \
>   --username '$oauthtoken' --password-stdin
$
$ # Pull the chart
$ helm pull oci://nvcr.io/0833294136851237/nvcf-ncp-staging/helm-nvca-operator --version 1.4.7

Repository-based Helm Charts (Non-OCI)

Some charts like the GPU Operator and the Omniverse DDCS, UCC, storage-service, and discovery-service charts are available from traditional Helm repositories rather than OCI registries. These can be pulled directly from the public NVIDIA NGC Catalog.

$ # Add the NVIDIA Helm repository
$ helm repo add nvidia https://helm.ngc.nvidia.com/nvidia --force-update
$ helm repo add omniverse https://helm.ngc.nvidia.com/nvidia/omniverse --force-update
$
$ # Update repositories
$ helm repo update
$
$ # Pull charts (downloads as .tgz files)
$ helm pull nvidia/gpu-operator --version 25.3.1
$ helm pull omniverse/ddcs --version 5.0.0
$ helm pull omniverse/usd-content-cache --version 3.0.3
$ helm pull omniverse/storage-service --version 1.0.2
$ helm pull omniverse/discovery-service --version 2.3.8

The GPU Operator and related components (gpu-operator-validator, k8s-device-plugin), plus the Omniverse DDCS/UCC/storage charts, are available from public NVIDIA Helm repositories. You can either:

Pull directly from the public repository at runtime (simplest approach)
Mirror to your private registry for air-gapped environments (see below)

Converting Non-OCI Charts for ECR

To push repository-based Helm charts to Amazon ECR (which requires OCI format), you must convert them:

$ # Pull the chart from the traditional repository
$ helm repo add omniverse https://helm.ngc.nvidia.com/nvidia/omniverse --force-update
$ helm repo update
$ helm pull omniverse/ddcs --version 5.0.0
$
$ # Login to ECR
$ aws ecr get-login-password --region us-east-1 | \
>   helm registry login --username AWS --password-stdin <aws-account-id>.dkr.ecr.us-east-1.amazonaws.com
$
$ # Create ECR repository for the chart (include your repository prefix)
$ aws ecr create-repository --repository-name nvcf-self-hosted/ddcs --region us-east-1
$
$ # Push the .tgz file as an OCI artifact (include repository prefix)
$ helm push ddcs-5.0.0.tgz oci://<aws-account-id>.dkr.ecr.us-east-1.amazonaws.com/nvcf-self-hosted

ECR will properly track both container images and Helm charts under the same repository name and version, so you can use consistent naming for both. The repository prefix (e.g., nvcf-self-hosted) must match your global.image.repository environment configuration.

Pulling Resources from NGC

Using NGC CLI

First, ensure you have the NGC CLI installed and configured using the Personal API key you created.

$ # Download a specific version
$ ngc registry resource download-version \
>   "0833294136851237/nvcf-ncp-staging/nvcf-self-managed-stack:0.5.0"
$
$ # List all versions
$ ngc registry resource list \
>   "0833294136851237/nvcf-ncp-staging/nvcf-self-managed-stack:*"
$
$ # Download latest version (omit version)
$ ngc registry resource download-version \
>   "0833294136851237/nvcf-ncp-staging/nvcf-self-managed-stack"

Downloading `nvcf-base`

The nvcf-base repository contains Terraform configurations and core application deployments for self-hosted NVCF infrastructure.

Check for the latest version before downloading. The version shown below is an example only.

$ # List available versions to find the latest
$ ngc registry resource list "0833294136851237/nvcf-ncp-staging/nvcf-base:*"

Download and extract:

$ # Set the version (replace with latest from the list command above)
$ export VERSION="0.1.4"
$
$ # Download and extract
$ ngc registry resource download-version "0833294136851237/nvcf-ncp-staging/nvcf-base:${VERSION}" && \
>    mkdir -p nvcf-base && \
>    tar -xzf nvcf-base_v${VERSION}/nvcf-base-${VERSION}.tar.gz -C nvcf-base && \
>    rm -rf nvcf-base_v${VERSION} && \
>    echo "SUCCESS: nvcf-base extracted to $(pwd)/nvcf-base"

If you don’t have access to this repository, contact your NVIDIA representative.

Downloading `nvcf-self-managed-stack`

The nvcf-self-managed-stack repository contains Helmfile configurations for deploying the NVCF control plane components.

Check for the latest version before downloading. The version shown below is an example only.

$ # List available versions to find the latest
$ ngc registry resource list "0833294136851237/nvcf-ncp-staging/nvcf-self-managed-stack:*"

Download and extract:

$ # Set the version (replace with latest from the list command above)
$ export VERSION="0.5.0"
$
$ # Download and extract
$ ngc registry resource download-version "0833294136851237/nvcf-ncp-staging/nvcf-self-managed-stack:${VERSION}" && \
>    mkdir -p nvcf-self-managed-stack && \
>    tar -xzf nvcf-self-managed-stack_v${VERSION}/nvcf-self-managed-stack-${VERSION}.tar.gz -C nvcf-self-managed-stack && \
>    rm -rf nvcf-self-managed-stack_v${VERSION} && \
>    echo "SUCCESS: nvcf-self-managed-stack extracted to $(pwd)/nvcf-self-managed-stack"

If you don’t have access to this repository, contact your NVIDIA representative.

Downloading `nvcf-cli`

The nvcf-cli is a command-line interface for managing NVIDIA Cloud Functions in self-hosted deployments.

Check for the latest version before downloading. The version shown below is an example only.

$ # List available versions to find the latest
$ ngc registry resource list "0833294136851237/nvcf-ncp-staging/nvcf-cli:*"

Download and extract:

$ # Set the version (replace with latest from the list command above)
$ export VERSION="0.0.22"
$
$ # Set your platform (linux-amd64, linux-arm64, darwin-amd64, darwin-arm64, windows-amd64)
$ export PLATFORM="linux-amd64"
$
$ # Download the resource
$ ngc registry resource download-version "0833294136851237/nvcf-ncp-staging/nvcf-cli:${VERSION}"
$
$ # Extract the platform-specific package
$ tar -xzf nvcf-cli_v${VERSION}/${PLATFORM}/nvcf-cli-${PLATFORM}-${VERSION}.tar.gz
$
$ # Move to a working directory
$ mv nvcf-cli-${PLATFORM}-${VERSION} nvcf-cli
$ chmod +x nvcf-cli/nvcf-cli
$
$ # Verify installation
$ ./nvcf-cli/nvcf-cli --help
$
$ # Clean up downloaded resource
$ rm -rf nvcf-cli_v${VERSION}

The extracted directory contains:

nvcf-cli - The CLI binary
.nvcf-cli.yaml.template - Configuration template
examples/ - Sample configuration files for different environments
USAGE-GUIDE.md - Detailed usage documentation

See self-hosted-cli for detailed configuration instructions

If you don’t have access to this repository, contact your NVIDIA representative.

Pushing to Your Registry

Ensure all artifacts listed in the self-hosted-artifact-manifest are mirrored to your registry before beginning the installation process.

Example: Pushing to Amazon ECR

This example assumes you’re configured and authenticated using the AWS CLI.

Identify Your AWS Account ID

The examples below use <aws-account-id> as a placeholder. To get your AWS account ID, run:

$ aws sts get-caller-identity --query Account --output text

ECR Repository Naming Convention

The Helm templates expect images at: {{ registry }}/{{ repository }}/image-name:tag

For example, with environment configuration:

1 global:
2   image:
3     registry: <aws-account-id>.dkr.ecr.us-east-1.amazonaws.com
4     repository: nvcf-self-hosted

The resulting image path would be: <aws-account-id>.dkr.ecr.us-east-1.amazonaws.com/nvcf-self-hosted/nvcf-openbao:2.5.1-nv-1.1.0

In ECR, you must create repositories with the full path including the prefix, e.g., nvcf-self-hosted/bitnami-cassandra, nvcf-self-hosted/nvcf-openbao, etc.

Initial Setup

$ # Set your repository prefix (must match global.image.repository in your environment config)
$ REPO_PREFIX="nvcf-self-hosted"
$
$ # Login to AWS ECR
$ aws ecr get-login-password --region us-east-1 | \
>   docker login --username AWS --password-stdin <aws-account-id>.dkr.ecr.us-east-1.amazonaws.com

Push an Image to ECR

$ # Create ECR repository with the full path (including prefix)
$ aws ecr create-repository --repository-name ${REPO_PREFIX}/nvcf-openbao --region us-east-1
$
$ # Tag the image for ECR (include repository prefix in path)
$ docker tag nvcr.io/0833294136851237/nvcf-ncp-staging/nvcf-openbao:2.5.1-nv-1.1.0 \
>   <aws-account-id>.dkr.ecr.us-east-1.amazonaws.com/${REPO_PREFIX}/nvcf-openbao:2.5.1-nv-1.1.0
$
$ # Push to ECR
$ docker push <aws-account-id>.dkr.ecr.us-east-1.amazonaws.com/${REPO_PREFIX}/nvcf-openbao:2.5.1-nv-1.1.0

Push a Helm Chart to ECR

$ # 1. Login to NGC with Helm
$ export NGC_API_KEY="your-api-key"
$ echo "${NGC_API_KEY}" | helm registry login nvcr.io/0833294136851237/nvcf-ncp-staging \
>   --username '$oauthtoken' --password-stdin
$
$ # 2. Pull the Helm chart from NGC
$ helm pull oci://nvcr.io/0833294136851237/nvcf-ncp-staging/helm-nvca-operator --version 1.4.7
$ # This creates: helm-nvca-operator-1.4.7.tgz
$
$ # 3. Login to AWS ECR with Helm
$ aws ecr get-login-password --region us-east-1 | \
>   helm registry login --username AWS --password-stdin <aws-account-id>.dkr.ecr.us-east-1.amazonaws.com
$
$ # 4. Create ECR repository with prefix (must match your environment config)
$ aws ecr create-repository --repository-name ${REPO_PREFIX}/helm-nvca-operator --region us-east-1
$
$ # 5. Push to ECR as OCI artifact (include repository prefix)
$ helm push helm-nvca-operator-1.4.7.tgz oci://<aws-account-id>.dkr.ecr.us-east-1.amazonaws.com/${REPO_PREFIX}

Replace <aws-account-id> with your AWS account ID (run aws sts get-caller-identity --query Account --output text). The REPO_PREFIX value must match your global.image.repository setting in your environment config. Adjust the region as needed.

Example: Pushing to Volcano Engine Container Registry

This example shows how to push images and Helm charts to Volcano Engine Container Registry (CR) using the web console, Docker commands and Helm commands.

Volcano Engine CR Repository Naming Convention

The Helm templates expect images at: {{ registry }}/{{ repository }}/image-name:tag

For example, with environment configuration:

1 global:
2   image:
3     registry: cr-example-cn-beijing.cr.volces.com
4     repository: nvcf-self-hosted

The resulting image path would be: cr-example-cn-beijing.cr.volces.com/nvcf-self-hosted/nvcf-openbao:2.5.1-nv-1.1.0

Docker Authentication

$ # Set your Volcano Engine CR endpoint
$ CR_ENDPOINT="cr-example-cn-beijing.cr.volces.com"
$ CR_USERNAME="your-username"
$ CR_PASSWORD="your-password"
$
$ # Login to Volcano Engine CR
$ echo "${CR_PASSWORD}" | docker login "${CR_ENDPOINT}" \
>   --username "${CR_USERNAME}" --password-stdin

Replace cr-example-cn-beijing.cr.volces.com with your Volcano Engine CR endpoint, your-username with your username, and your-password with your password. Navigate to your Volcano Engine Container Registry instance web console to get the username and password. If you haven’t set the password, you can set it by clicking “Set Repository Instance Password”.

Push an Image to Volcano Engine CR

$ # Set your registry endpoint and namespace
$ CR_ENDPOINT="cr-example-cn-beijing.cr.volces.com"
$ NAMESPACE="nvcf-self-hosted"
$
$ # Tag the image for Volcano Engine CR
$ docker tag nvcr.io/0833294136851237/nvcf-ncp-staging/nvcf-openbao:2.5.1-nv-1.1.0 \
>   ${CR_ENDPOINT}/${NAMESPACE}/nvcf-openbao:2.5.1-nv-1.1.0
$
$ # Push to Volcano Engine CR
$ docker push ${CR_ENDPOINT}/${NAMESPACE}/nvcf-openbao:2.5.1-nv-1.1.0

Push a Helm Chart to Volcano Engine CR

$ # Set your registry endpoint and namespace
$ CR_ENDPOINT="cr-example-cn-beijing.cr.volces.com"
$ NAMESPACE="nvcf-self-hosted"
$ CR_USERNAME="your-username"
$ CR_PASSWORD="your-password"
$
$ # 1. Login to NGC with Helm
$ export NGC_API_KEY="your-api-key"
$ echo "${NGC_API_KEY}" | helm registry login nvcr.io/0833294136851237/nvcf-ncp-staging \
>   --username '$oauthtoken' --password-stdin
$
$ # 2. Pull the Helm chart from NGC
$ helm pull oci://nvcr.io/0833294136851237/nvcf-ncp-staging/nvca-operator --version 1.2.9
$ # This creates: nvca-operator-1.2.9.tgz
$
$ # 3. Login to Volcano Engine CR with Helm
$ helm registry login ${CR_ENDPOINT} \
>   --username "${CR_USERNAME}" \
>   --password "${CR_PASSWORD}"
$
$ # 4. Push to Volcano Engine CR as OCI artifact
$ helm push nvca-operator-1.2.9.tgz oci://${CR_ENDPOINT}/${NAMESPACE}

Troubleshooting

exec format error

Symptom: Pods fail to start with Init:CrashLoopBackOff or CrashLoopBackOff status. Checking the logs shows:

exec /bin/sh: exec format error

exec /usr/local/bin/docker-entrypoint.sh: exec format error

Cause: This error occurs when container images were pulled/pushed with an architecture that doesn’t match your cluster’s node architecture. This commonly happens when:

Mirroring from an Apple Silicon Mac (arm64) to an amd64 EKS/GKE cluster
Mirroring from an Intel/AMD machine (amd64) to an arm64 cluster (e.g., AWS Graviton)

Solution:

Delete the incorrectly mirrored images from your registry (e.g., ECR):

$ # Delete all repositories with your prefix
$ aws ecr describe-repositories --region us-west-2 \
>   --query "repositories[?starts_with(repositoryName, 'nvcf-self-hosted')].repositoryName" \
>   --output text | tr '\t' '\n' | while read repo; do
$   aws ecr delete-repository --repository-name "$repo" --region us-west-2 --force
$ done

Clean local Docker cache to ensure fresh pulls:

$ # Remove all NGC and ECR images from local cache
$ docker images --format "{{.Repository}}:{{.Tag}}" | \
>   grep -E "(nvcr.io|\.ecr\.)" | \
>   xargs -r docker rmi -f
$
$ # Prune dangling images
$ docker image prune -f

Re-mirror images with the correct platform:

When pulling images, explicitly specify the target platform:

$ # For amd64 clusters (most common)
$ docker pull --platform linux/amd64 <image>
$
$ # For arm64 clusters
$ docker pull --platform linux/arm64 <image>

Then re-tag and push to your registry.

Force Kubernetes to re-pull images by either:

Setting imagePullPolicy: Always temporarily in your Helm values
Deleting and redeploying the affected StatefulSets/Deployments

$ # Delete StatefulSets to force recreation
$ kubectl -n cassandra-system delete statefulset cassandra
$ kubectl -n nats-system delete statefulset nats
$
$ # Redeploy using helmfile
$ HELMFILE_ENV=<environment-name> helmfile sync

Recommended for ECR Users: Automated ECR Mirroring

Prerequisites

LLS-Specific Artifacts

Pulling Artifacts from NGC

Pulling Images

Pulling Helm Charts

Pulling Resources from NGC

Downloading nvcf-base

Downloading nvcf-self-managed-stack

Downloading nvcf-cli

Pushing to Your Registry

Example: Pushing to Amazon ECR

Example: Pushing to Volcano Engine Container Registry

Troubleshooting

exec format error

Downloading `nvcf-base`

Downloading `nvcf-self-managed-stack`

Downloading `nvcf-cli`
