Self-hosted NVCF installation includes the core components required for NVCF inference. Additional optional components such as caching and low latency streaming support are also available.

For a full list of required artifacts, see self-hosted-artifact-manifest.

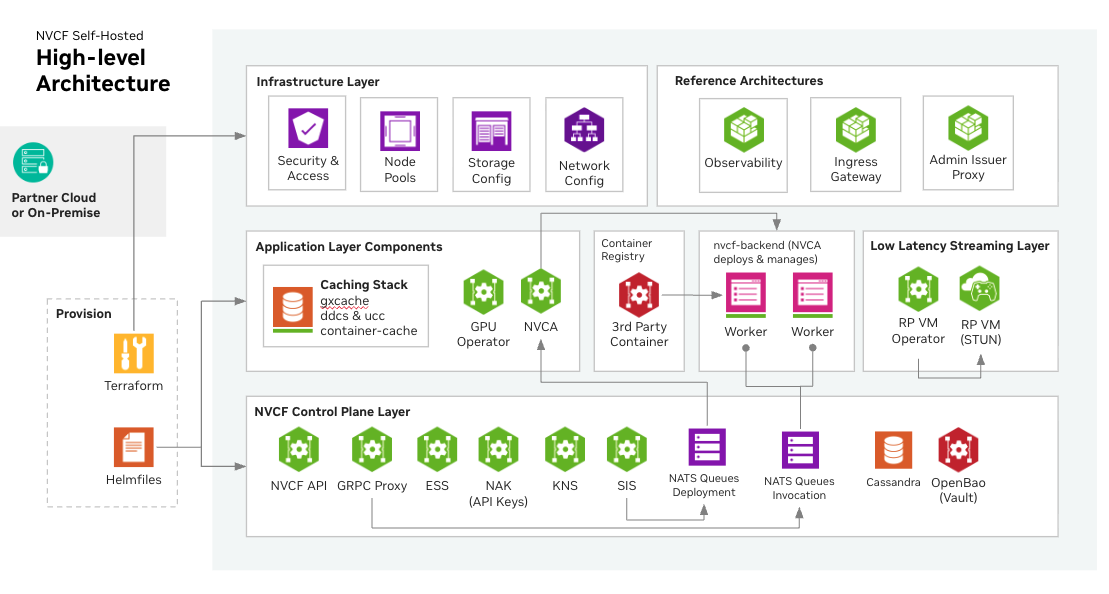

Self-hosted component overview

Want to try NVCF locally first? See local-development for a guide to running the full stack on your laptop using k3d.

Overview

Installation steps are as follows:

  1. Mirror NVCF artifacts to your registry — Choose your mirroring approach based on your deployment method:

    • Terraform with EKS/ECR (Recommended): Use Automated ECR Mirroring by setting create_sm_ecr_repos = true in your Terraform configuration. This handles all image and Helm chart mirroring automatically.
    • All other deployments: Follow the manual mirroring instructions to pull artifacts from NGC and push to your registry.

  2. Create a Kubernetes cluster (Optional, can bring any existing Kubernetes cluster or create an EKS cluster from example Terraform, see terraform-installation)

  3. Install NVCF Self-hosted Control Plane (Required) — Choose your installation method:

  4. Install Low Latency Streaming (Optional, for streaming workloads, see self-hosted-lls-installation)

  5. Install Optional GPU Cluster Enhancements (Optional, such as caching components, see self-hosted-optional-enhancements)

  6. Configure the NVIDIA Cluster Agent (Optional, for GPU clusters that run functions; see self-managed-clusters)

Kubernetes Cluster Requirements

Cluster Version

  • Any official supported Kubernetes version
  • Support for dynamic persistent volume provisioning

Required Operators and Components

NVIDIA GPU Operator

Required for GPU workload scheduling. The GPU Operator automates the management of all NVIDIA software components needed to provision GPUs in Kubernetes, including:

  • NVIDIA device drivers
  • Kubernetes device plugin for GPU discovery
  • GPU feature discovery for node labeling
  • Container runtime integration (containerd, CRI-O, or Docker)
  • Monitoring and telemetry tools

See NVIDIA GPU Operator documentation for installation instructions.

Fake GPU Operator for Development/Testing:

For environments without actual GPU hardware, install the fake GPU operator to simulate GPU resources. See fake-gpu-operator for full instructions.

Network Policies

Your cluster must support Kubernetes Network Policies if network isolation is required.

Persistent Storage

A StorageClass must be configured for persistent volumes. Common options:

  • Amazon EKS: gp3 (default)
  • Local development: local-path
  • Other platforms: Any CSI-compatible storage class

Some cloud providers have minimum PVC size requirements. For example, AWS EBS gp3 volumes have a 1Gi minimum.

Cluster Sizing and Storage

See infrastructure-sizing for node pool specifications, storage recommendations, and three recommended sizing tiers (Development, Minimal HA, and Production).

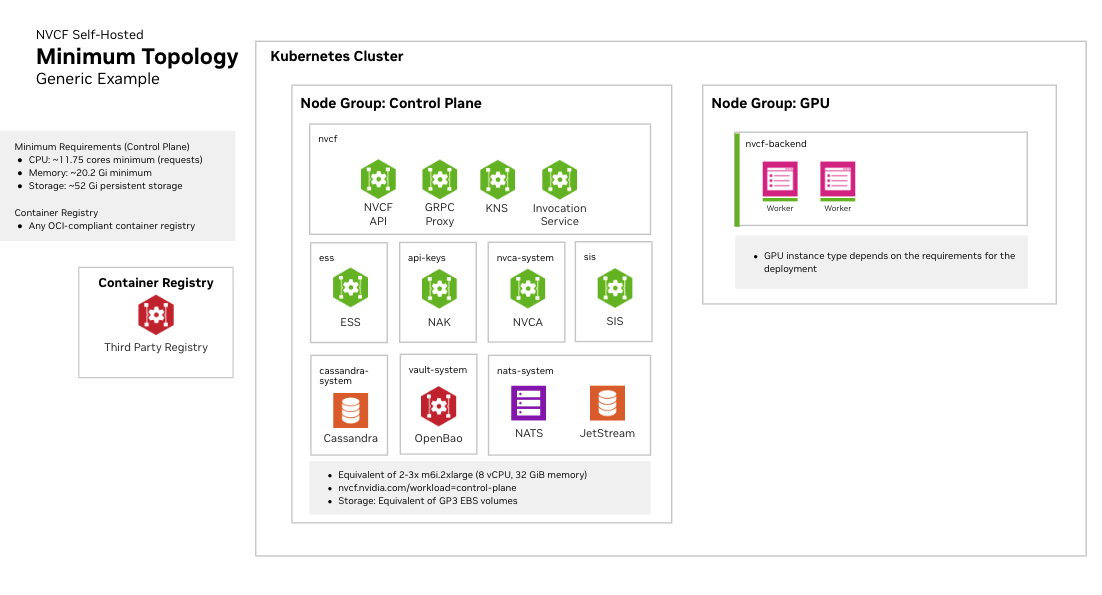

Self-hosted minimum topology
